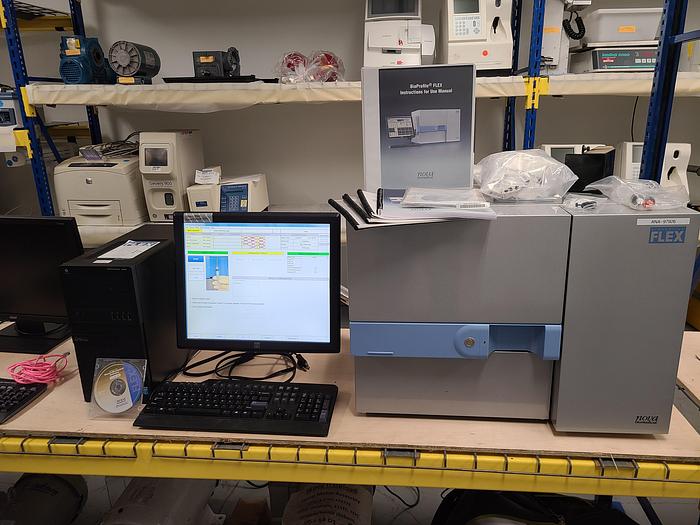

2015 Nova Bioprofiler Flex Automated Analyzer for Fast Comprehensive Cell Culture Analysis

This is a used Nova Biomedical Model 43743 Bio Profile Flex in excellent condition!

One Automated Analyzer for Fast, Comprehensive Cell Culture Analysis

BioProfile is a chemistry/cell viability modular instrument that measures up to 15 key cell culture attributes. By combining as many as five separate instruments into one easy-to-use touchscreen instrument, BioProfile FLEX simplifies workflow and saves time, labor, and operating cost versus multiple instruments.

Applications of BioProfile FLEX include:

•  Monitoring the progress of bioreactor runs
•  Determining consumption and production of key metabolites
•  Identification of growth-limiting nutrients
•  Design of feeding strategies
•  Calibration of bioreactor probes
•  Measurement of cellular respiration
•  Balancing media electrolytes
•  Control levels of waste product.

Specifications...

Sample Analysis Time: 2.5 minutes (Gases only – PO2 + PCO2)4.0 minutes

(Chemistry/Gas & Osmolality)6.25 minutes

(All 15 tests)

Operating Temperature Range: 15-30°C (59-86°F)

Operating Relative Humidity Range: 20-85%

Sample Size: 1 mL (for all modules)

Sampling Options: Individual via syringe/cup

Automated batch using 20-position sampling tray

On-line, automated from up to ten bioreactors

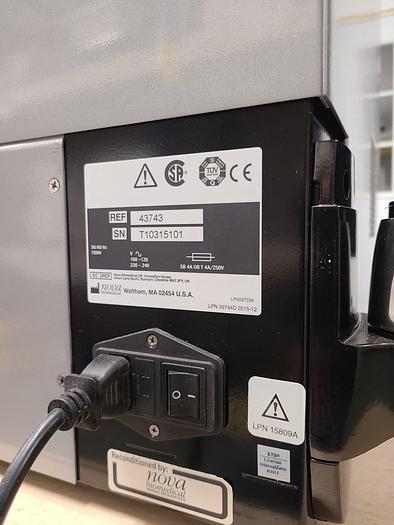

Electrical Requirements: 90-264 VAC, 50 to 60 Hz (Universal Power Supply)

System Size: Height: 20 in (50 cm) Width: 26 in (66 cm) Depth: 20 in (50 cm)

System Weight: Analyzer: 94 lbs (42.6 kg) without reagents

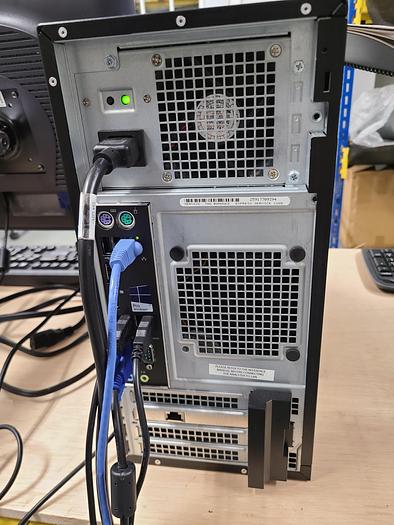

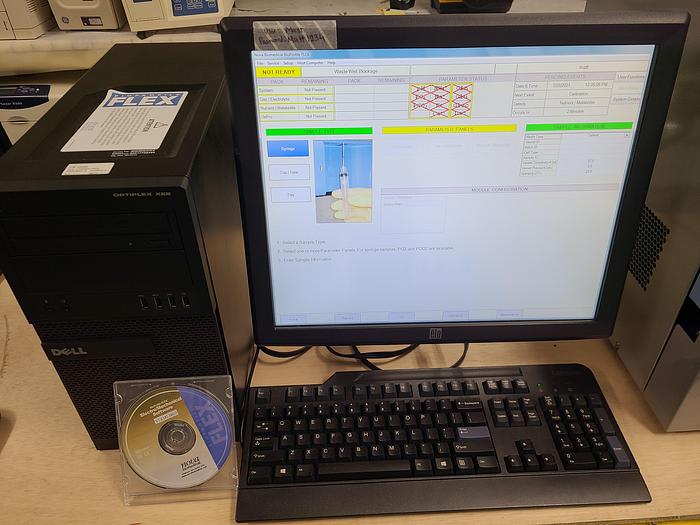

Host Computer Monitor/CPU: 41.5 lbs (18.8 kg)

Safety Certifications: TUV: IEC 61010-1:2001

Quality Systems Certifications: TUV: ISO9001:2000 FDA Registered, OPC Compliant, PAT Compatible, 21 CFR Part 11 Compliant

Chemistry/Gas Module

AssayMeasurement RangeResolutionMethodGlucose0.2–30.0 g/L*0.01g/LBiosensorLactate0.2–10.0 g/L*0.01g/LBiosensorGlutamine0.2–12.0 mmol/L*0.01 mmol/LBiosensorGlutamate0.2–12.0 mmol/L*0.01 mmol/LBiosensorAmmonium0.2–25.0 mmol/L0.01 mmol/LDirect ISEpH5.000–8.0000.001Direct ISEPCO23.0–300.0 mmHg0.1 mmHgDirect ISEPO23.0–800.0 mmHg0.1 mmHgClarke ElectrodeSodium40–220 mmol/L0.1 mmol/LDirect ISEPotassium1.0–100.0 mmol/L0.01 mmol/LDirect ISECalcium0.10–10.0 mmol/L0.01 mmol/LDirect ISE

Calculated Tests:O2 Saturation; CO2 Saturation; Temp. Corrected pH, PCO2, PO2

*Ranges Reflect User Selectable 1:2 Dilution

Osmolality Module

AssayMeasurement RangeResolutionMethodOsmolality0–1500 mOsm/kg1 mOsm/kgFreezing Point

Cell Density/Viability Module

AssayMeasurement RangeResolutionMethodCell Diameter8 – 50 μmN/ADigital ImagingDetectable Density50,000 – 100,000,000cells/mL**N/ADigital ImagingViability0 – 100%N/ADigital Imaging

Phosphate Module

Measurement Range0.20-10 mmol/LSample Size500 µL

**Ranges Reflect User Selectable 1:2, 1:4, 1:5, 1:10 Dilution

IgG Module

Measurement Range: 0.10–10.00 g/L* *Ranges Reflect User Selectable 1:2 Dilution

PTWS # LR-000000-080921-A

Picture# 07282021

R112821
