Prototrack 2 Axis Milling Machine Variable Speed Auto Lube Upgraded with USB Port

Prototrack 2 Axis Milling Machine Variable Speed Auto Lube Upgraded with USB Port

$6,995 (USD)

Location:Central Falls, RI

orCall 1 (401) 965-5557

Description

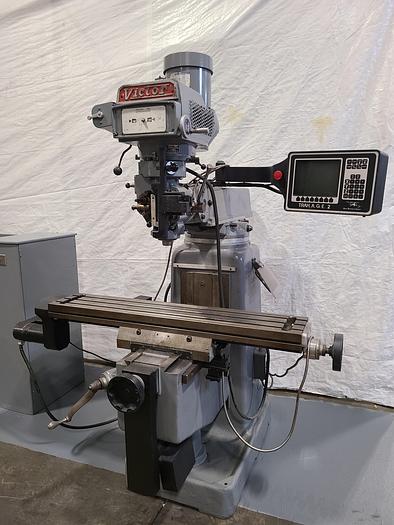

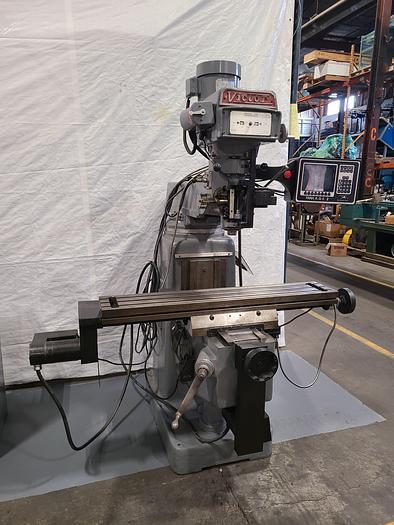

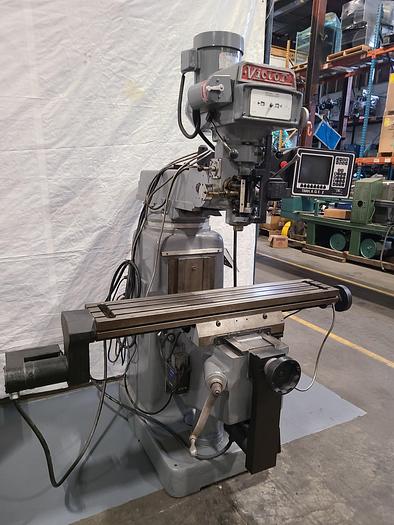

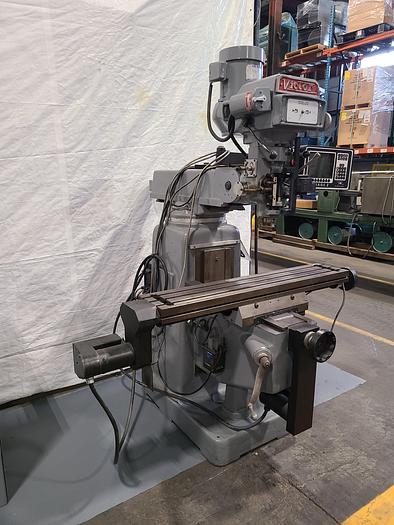

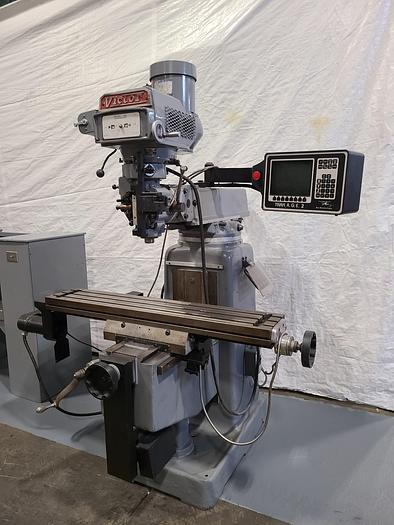

This is a used 2 axis Prototrack 49" Variable Speed Milling Machine Upgraded and Refurbished Prototrak Drive with USB Drive in great condition!


Refurbished Proto Trak 2 Axis Milling Machine...

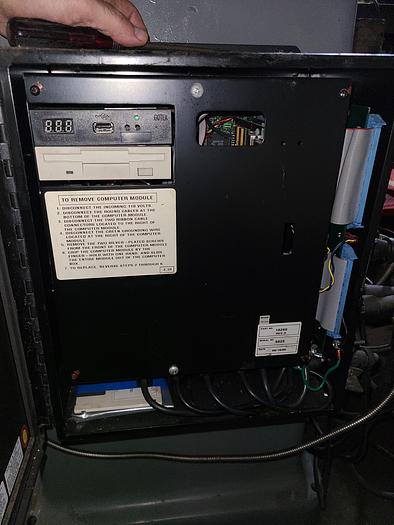

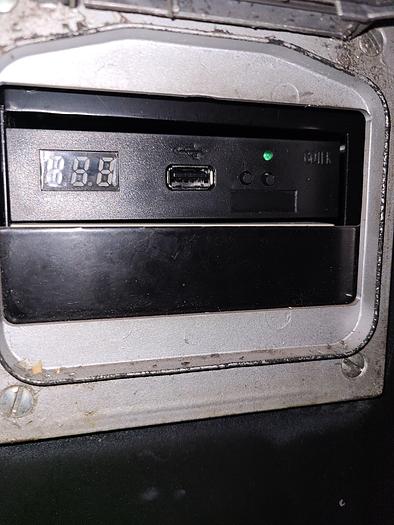

  • Model #AGE2, 1997 upgraded & Refurbished in 2019 with USB Port

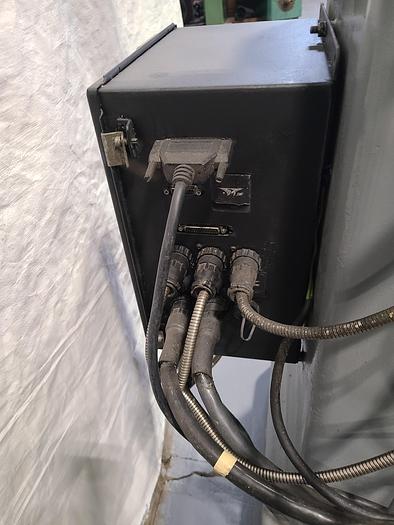

  • Proto Trak Plus System:  Part #20252/16269, Serial #6620 (Refurbished 2019)

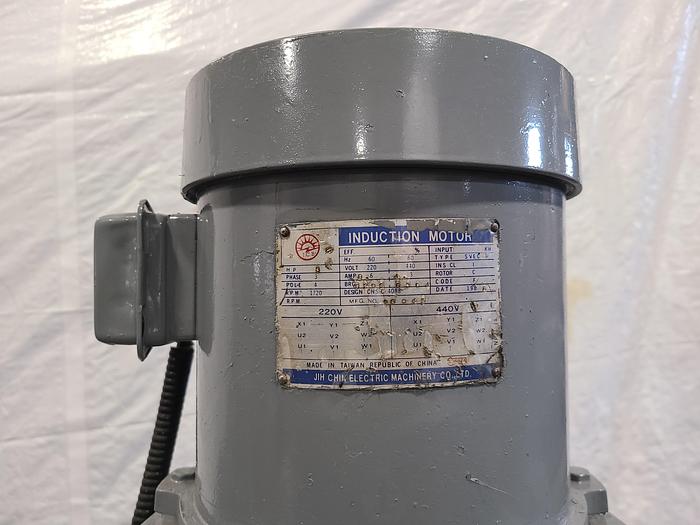

  • Motor: 230/460 Volts 8.2 Amps, 1720 RPM, 50/60 Hz,
  • 3 phase but can be converted to single phase for additional cost.


SPECIFICATIONS...

  • Upgraded Prototrak 2 Axis
  • Comes with boot disc

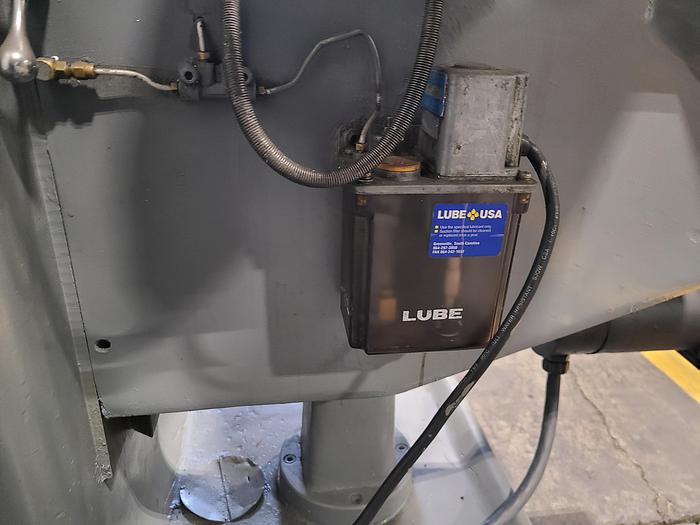

  • Automatic Single Point Lube
  • Automatic Quill Down

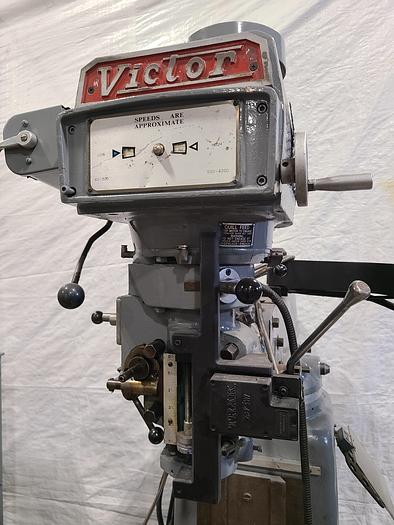

  • Variable Speed Head
  • 3 Phase
  • 60 Hz
  • 1720 RPM
  • 220/440 Volts
  • 3.6/4.3 Amps
  • Spindle Speed Control   Variable Speed

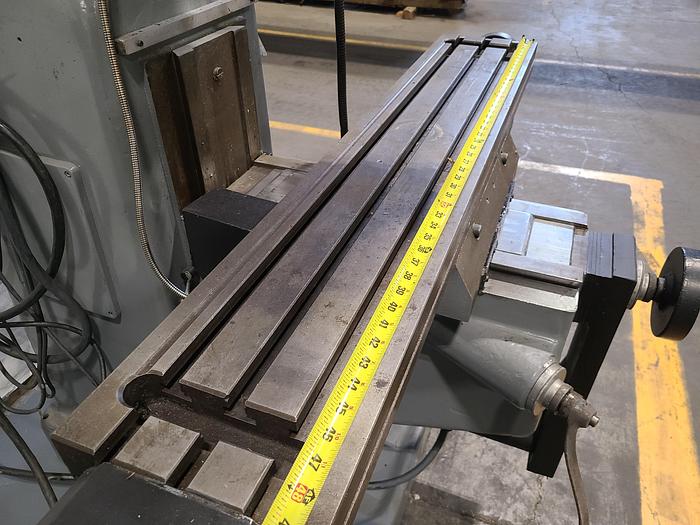

  • Table Length (Inch)        49
  • Table Width (Inch)          9
  • Horsepower (HP)            2
  • Phase   3
  • Voltage 230/460; 208/230/460
  • Longitudinal Travel (Decimal Inch)           36.0000
  • Cross Travel (Decimal Inch)         12.0000
  • Knee Travel (Decimal Inch)          16.0000
  • Minimum Spindle Speed (RPM) 60.00
  • Maximum Spindle Speed (RPM) 4200.00
  • Spindle Taper Size           R8
  • Number of Spindle Speeds          Variable
  • Spindle Travel Length (mm)        127.00
  • Spindle Travel Length (Inch)       5
  • Quill Diameter (mm)      85.73
  • Quill Diameter (Decimal Inch)    3.3750
  • Spindle Power Feed Rate Per Minute (in/rev)     0.0015; 0.0030; 0.0060
  • Spindle Power Feed Rate Per Minute (mm/rev) 0.04
  • Minimum Spindle to Table Distance (Inch)           3
  • Maximum Spindle to Table Distance (mm)           463.55
  • Maximum Spindle to Table Distance (Inch)          18-1/4
  • Maximum Spindle to Table Distance (Decimal Inch)         18.2500
  • Minimum Spindle to Column Distance (mm)       64.00
  • Minimum Spindle to Column Distance (Decimal Inch)      6.7500
  • Maximum Spindle To Column Distance (Decimal Inch)    18.7500
  • Table Load Capacity (Lb.)             750.00
  • Table Load Capacity (kg)              340.19
  • Number of T-Slots           3
  • Left-Hand Head Tilt (Degrees)   90.00
  • Right-Hand Head Tilt (Degrees) 90.00
  • Forward Head Tilt (Degrees)      45.00
  • Backward Head Tilt (Degrees)   45.00
  • Ram Travel Length (mm)              304.80
  • Ram Travel Length (Inch)             12
  • Ram Travel Length (Decimal Inch)            12.0000
  • Overall Length (Inch)     60
  • Overall Height (Inch)     86
  • Overall Depth (Inch)      61


PTWS # LR-000000-090221-2

R100924

Picture# 08232021


Bid with Confidence on this item, check our feedback!!!


* All information deemed accurate but may vary from model to model.


Contact Larry for any questions you may have...

Contact us at Four Zero One - Nine Six Five - Five Five Five Seven or Contact us through ebay

___________________________________________________


Equipment Financing Available, please contact us!

Fast Application, it’s all filled in for you...

Online leasing applications (get LOW monthly payments)

* Please Note: Not all machines may qualify for Leasing.


Payments: We accept all Major Credit Cards, Bank Wires, Company and Personal Checks.


SHIPPING: Contact us for great rates on shipping...

We always get better rates...

Please email us for a rigging and shipping quotejust include the zip code when inquiring and if you have a loading dock or ground level with forklift. Thank you!


Contact us at Four Zero One - Nine Six Five - Five Five Five Seven

We also ship worldwide.


CONDITIONS: All quotations are for immediate acceptance. They are subject to withdrawal, change and prior sale without notice. Shipping dates are only approximate and contingent upon delays beyond our control. All orders received are binding only when they have been accepted and acknowledged by us in writing. Provisions in customer’s purchase orders contrary to these conditions shall not be binding upon us unless accepted in writing. Unless otherwise specified, prices quoted are F.O.B. shipping point, exclusive of State, County and Federal taxes which must be added where applicable. Insurance on shipment must be requested by email, there will be an additional charge for shipping insurance. Shipping destination must be available to receive the shipment… any costs incurred on delays due to the buyers’ destination being unable to receive the shipment and/or additional services required, will be the responsibility of the buyer. Care is taken to give reliable specifications, but these are not guaranteed. We reserve the right to correct typographical errors. All used equipment is sold "as is".


INDEMNIFICATION: Used Machines may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It is the user's responsibility that the said machines be so equipped and safeguarded to meet OSHA and any other requirements before placing such machinery into operation. User agrees to indemnify and hold Seller harmless of and from any and all claims or liabilities from accidents involving these machines caused by failure of user, his employees, or agent to follow instructions, warnings, or recommendations furnished by manufacturer, or Seller, or by failure of user to comply with Federal, State and Local laws applicable to such equipment including the Occupational Safety and Health Act of 1970. User shall notify Seller promptly after occurrence of any accident involving these machines, and shall cooperate fully with Seller. or Seller's agent in investigating and determining the cause of said accident.



Specifications

ManufacturerPrototrack
Year1998
ConditionUsed
Stock Number4201
