VICTOR / PROTOTRAK 2-AXIS CNC VERTICAL MILL – 49" TABLE – VARIABLE SPEED – PROTOTRAK PLUS CONTROL – REFURBISHED / USB UPGRADE – POWER QUILL – AUTO LUBE – EXCELLENT CONDITION

DESCRIPTION

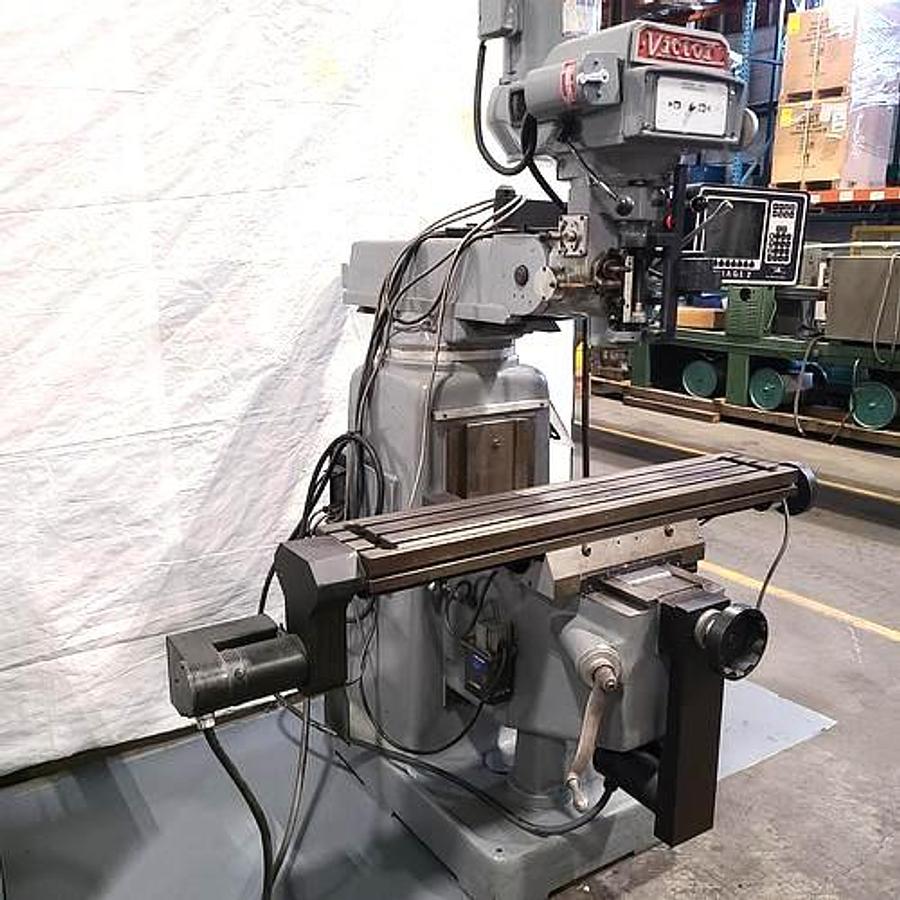

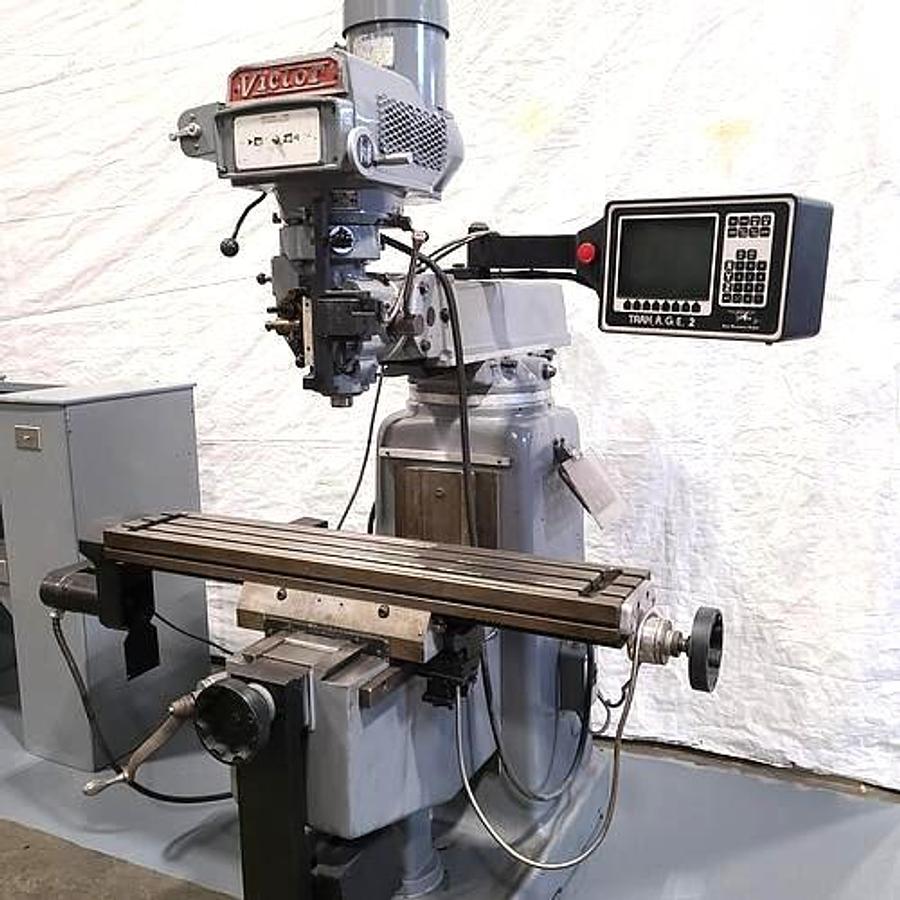

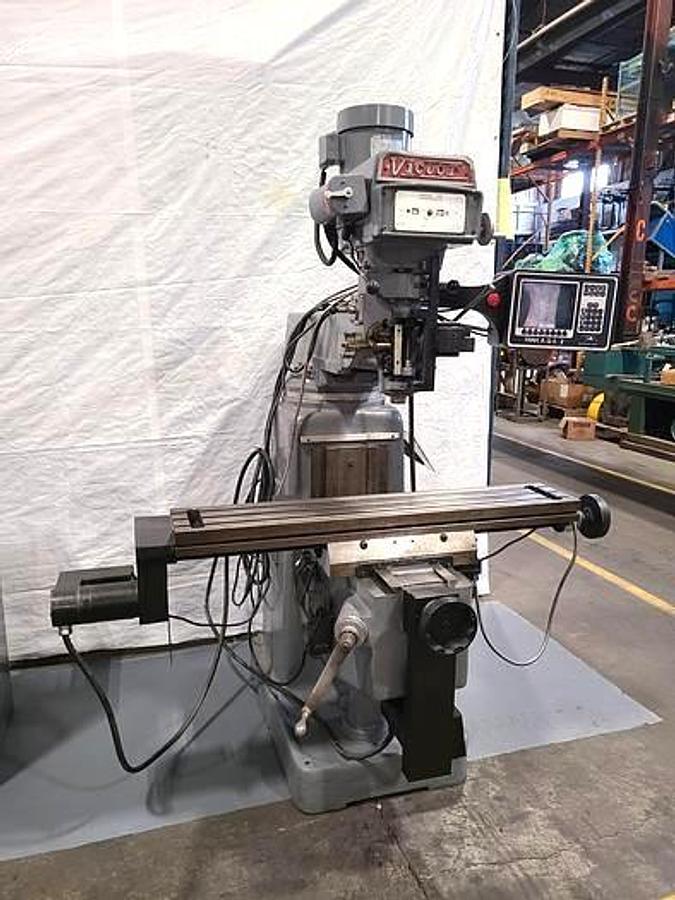

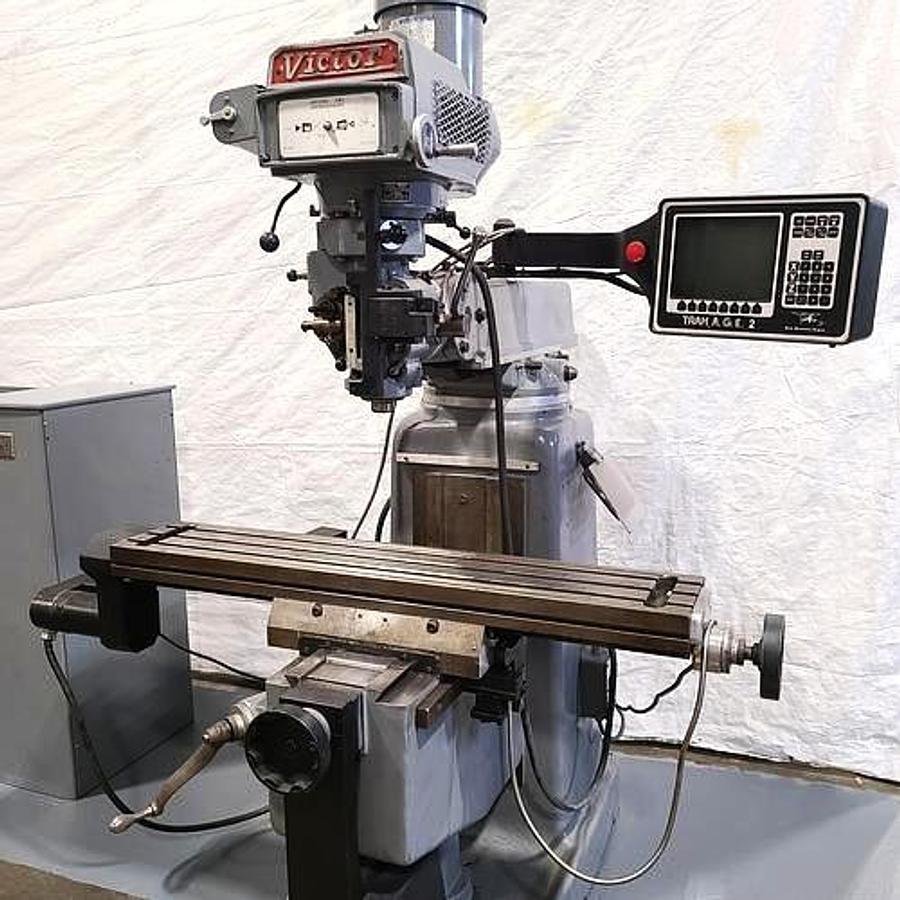

Available for immediate sale is a Victor 2-Axis CNC Vertical Milling Machine equipped with a ProtoTRAK Plus 2-Axis CNC system, 49" table, variable-speed head, power quill feed, automatic lubrication system, and upgraded USB capability.

The machine was originally manufactured in 1997 and the ProtoTRAK control/drive system was refurbished and upgraded in 2019, including the addition of a USB interface, providing a much more convenient method of transferring and storing programs than the machine's original media system.

This is an excellent combination of a traditional heavy-duty knee mill with the versatility of a 2-axis ProtoTRAK CNC system. It can be used for CNC contouring and programmed operations while retaining the accessibility and versatility that make ProtoTRAK-equipped knee mills popular for toolrooms, maintenance departments, prototype work, one-off parts, repair work, and short production runs.

Machine is equipped with a 49" × 9" table, approximately 36" longitudinal travel, 12" cross travel, R8 spindle, variable-speed head, power quill feed, and automatic single-point lubrication system.

A very well-equipped machine in great overall condition.

SPECIFICATIONS

• Manufacturer: Victor

• CNC / Control: ProtoTRAK Plus – 2 Axis

• Control Model: AGE2

• Original Year: 1997

• ProtoTRAK Control Refurbished / Upgraded: 2019

• ProtoTRAK System Part No.: 20252 / 16269

• ProtoTRAK Serial No.: 6620

• USB Interface: Yes – upgraded

• Number of Controlled Axes: 2

• Table Size: 49" × 9"

• Longitudinal Travel: 36"

• Cross Travel: 12"

• Knee Travel: 16"

• Ram Travel: 12"

• Spindle Taper: R8

• Spindle Speed: Variable

• Spindle Speed Range: Approximately 60–4,200 RPM

• Spindle Quill Travel: 5"

• Quill Diameter: Approximately 3.375"

• Spindle Power Feed: Yes

• Power Feed Rates: 0.0015 / 0.0030 / 0.0060 in./rev.

• Table Load Capacity: Approximately 750 lbs.

• Number of T-Slots: 3

• Head Tilt – Left / Right: 90°

• Head Tilt – Forward / Backward: Approximately 45°

• Maximum Spindle-to-Table Distance: Approximately 18-1/4"

• Minimum Spindle-to-Table Distance: Approximately 3"

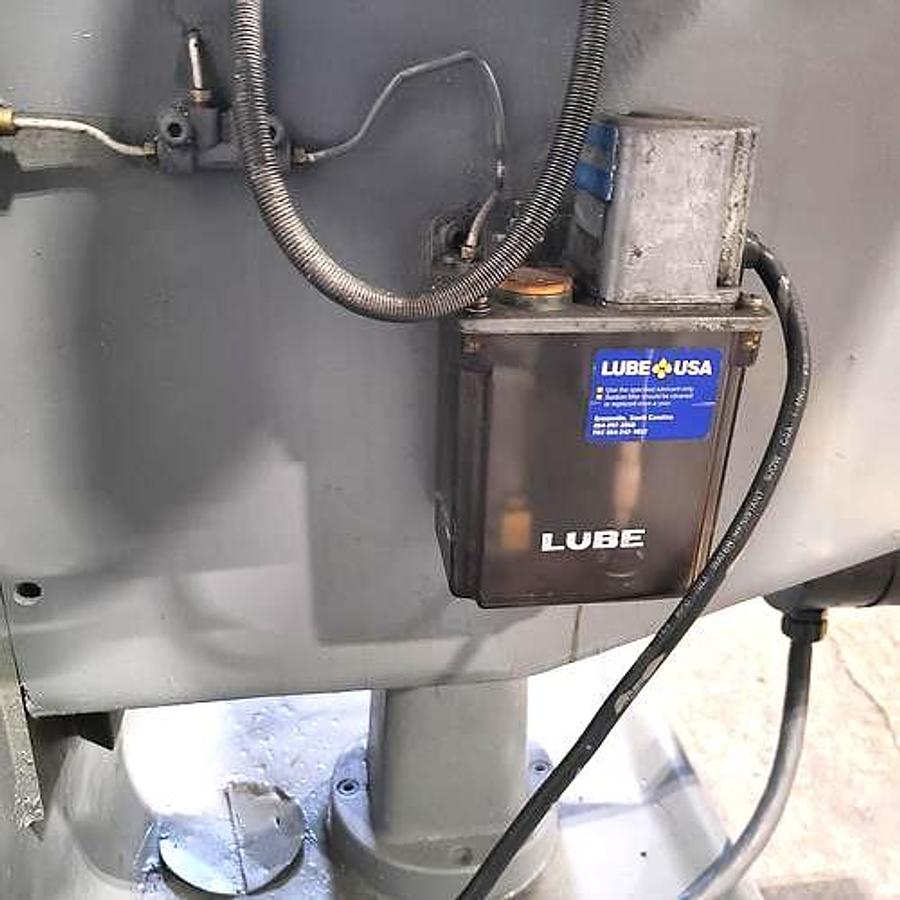

• Automatic Lubrication: Yes – Lube USA system

• Main Motor: 2 HP

• Electrical: 230/460V, 3 Phase, 50/60 Hz

• Approximate Overall Dimensions: 60" L × 61" D × 86" H

PROTOTRAK CONTROL / 2019 UPGRADE

The machine is equipped with a ProtoTRAK Plus 2-Axis CNC control system.

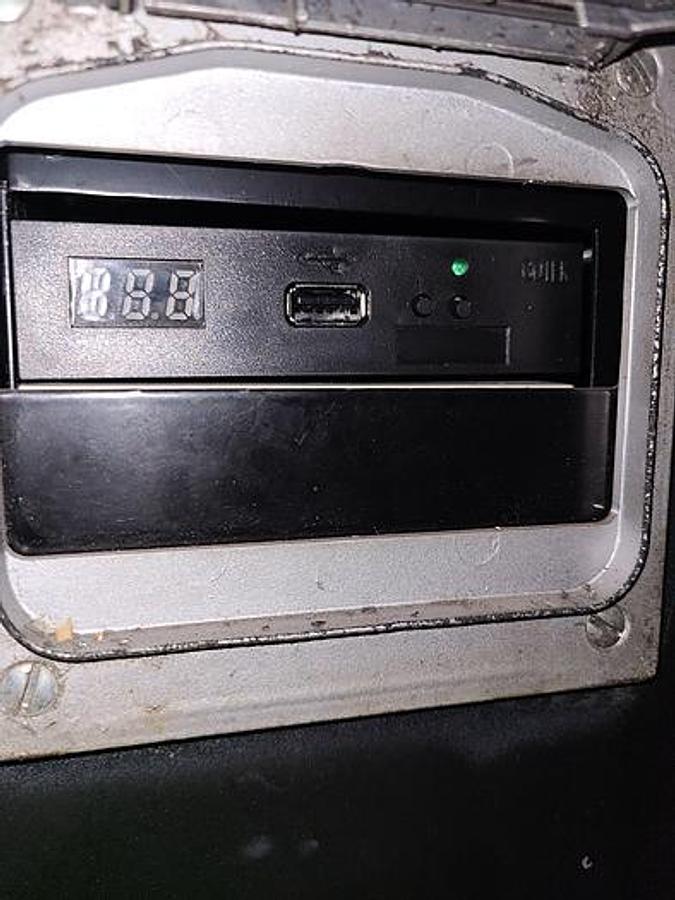

The ProtoTRAK system was refurbished/upgraded in 2019 and includes an upgraded USB interface.

This is an important improvement over the original configuration and allows much more convenient program/file handling.

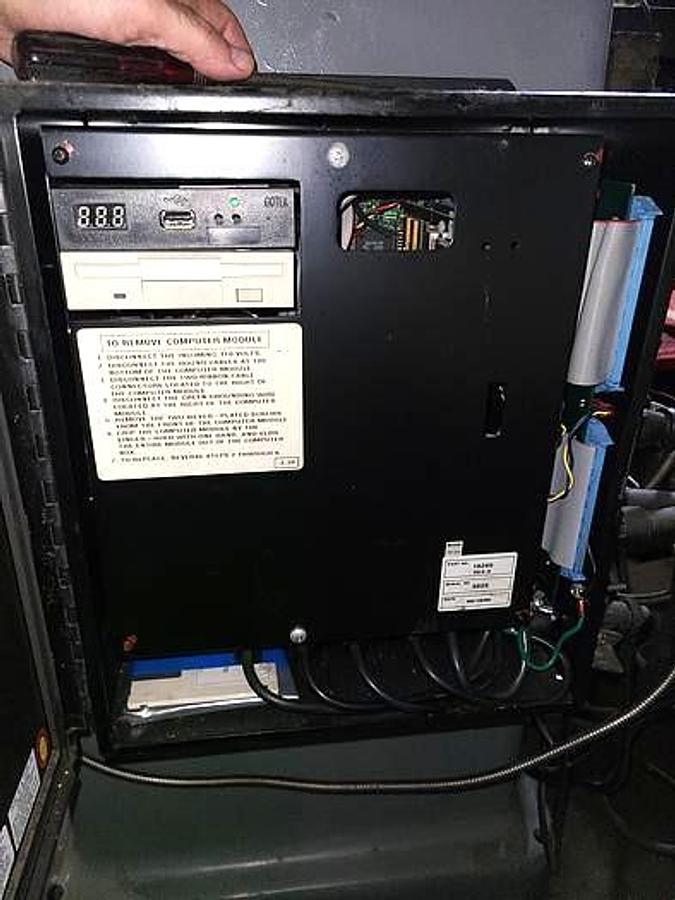

The control enclosure and internal computer/control components are shown in the photographs.

FEATURES

• ProtoTRAK Plus 2-Axis CNC

• Control system refurbished/upgraded in 2019

• USB program/file interface

• 49" × 9" work table

• 36" X-axis travel

• 12" Y-axis travel

• Heavy-duty knee mill construction

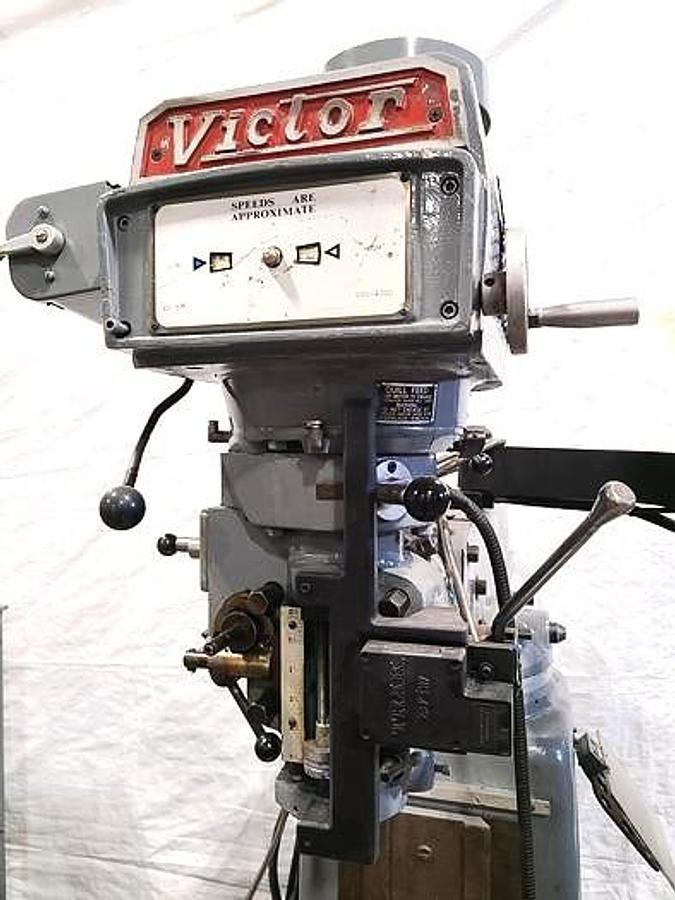

• Variable-speed milling head

• R8 spindle

• Power quill downfeed

• Automatic single-point lubrication system

• Manual/CNC versatility

• Excellent for toolroom and prototype applications

• Excellent for one-off and short-run production

• Adjustable ram and swiveling/tilting head

• Standard 230/460V three-phase electrical configuration

INCLUDES

• Victor Vertical Milling Machine

• ProtoTRAK Plus 2-Axis CNC System

• Refurbished/upgraded ProtoTRAK control/drive system

• USB interface

• Computer/control module

• Boot/software media

• Automatic lubrication system

• Power quill feed

• All components and accessories shown in photographs

CONDITION

Great overall condition.

ProtoTRAK system was professionally refurbished/upgraded in 2019, including USB capability.

Machine presents as a well-equipped, substantially complete 2-axis CNC knee mill.

Normal cosmetic wear consistent with age and previous industrial use may be present.

Please review photographs carefully for actual configuration and condition.

ELECTRICAL

• 230/460 Volt

• 3 Phase

• 50/60 Hz

Machine is presently configured for three-phase industrial power.

Single-phase conversion may be available at additional cost – please inquire.

APPLICATIONS

Excellent machine for:

• Tool & die work

• Prototype machining

• Maintenance departments

• Job shops

• Fixtures and tooling

• Repair machining

• Short production runs

• One-off components

• Educational / technical training

• General precision milling

SHIPPING

Machine is available for immediate shipment from our Central Falls, Rhode Island warehouse.

We can assist with professional rigging, loading, and freight arrangements.

We ship worldwide.
