Everite Electrochemical Automatic Tube Cutoff & Deburr Saw Machine Model TC SR7

Sold

Everite Electrochemical Automatic Tube Cutoff & Deburr Saw Machine Model TC SR7

$34,995 (USD)

Central Falls, RI

Description

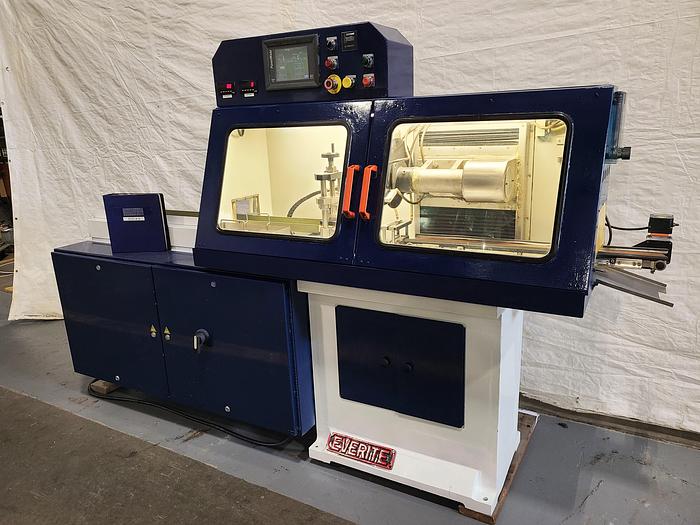

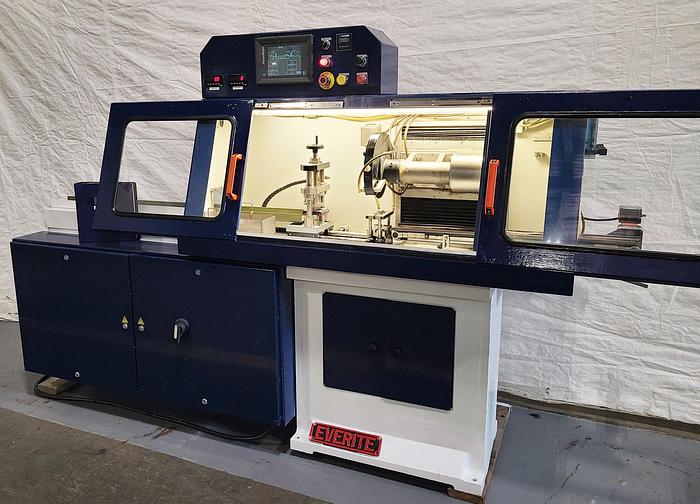

This is a used Everite Electrochemical Automatic Cutoff & Deburr Saw Machine Model TC SR7 in pristine condition!


Tested and running perfectly! ...Please see video or contact us for a demonstration!

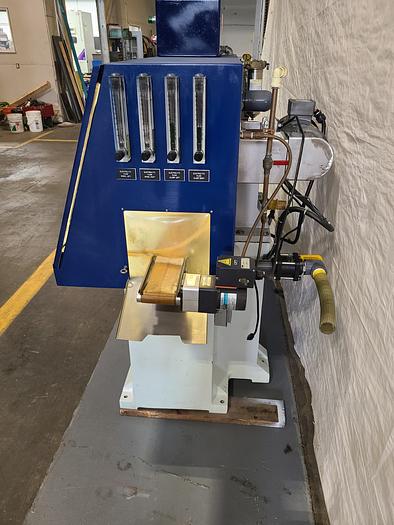

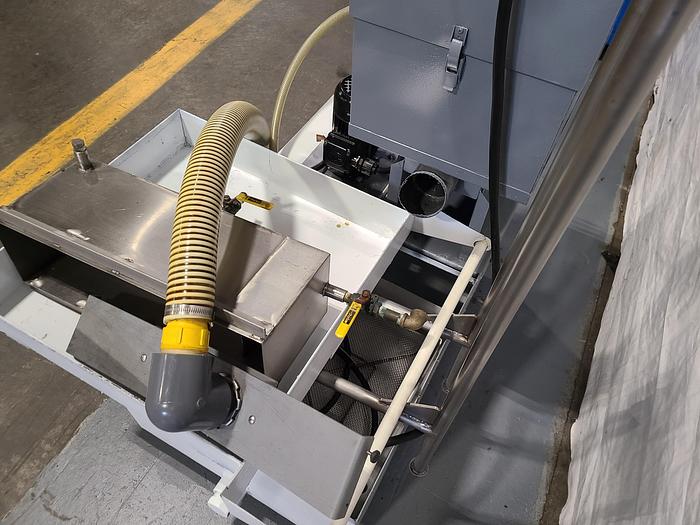

This unit comes complete with Electrolyte tank and pumps.

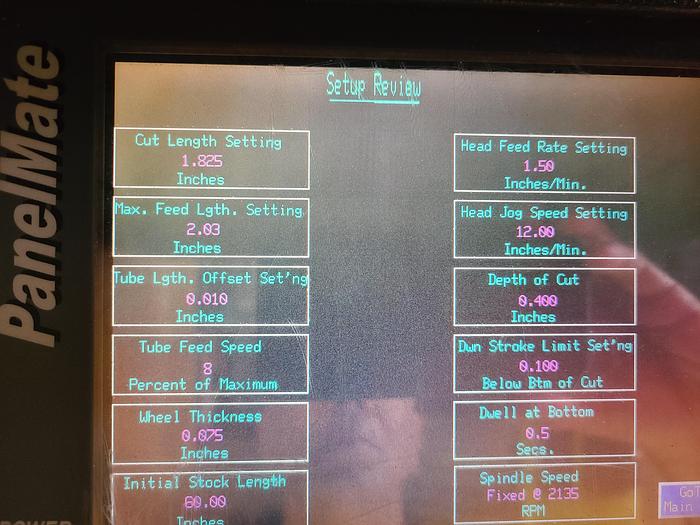

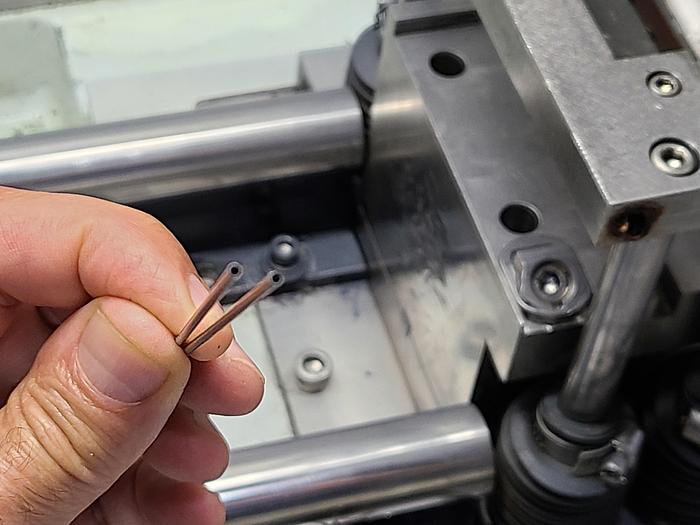

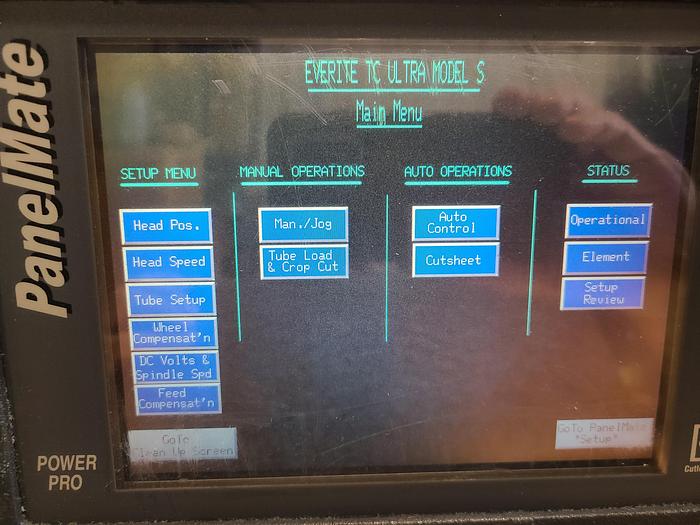

This saw automatically cuts and deburrs tubing at precision sizes ...produces a finished cut tube with no need for secondary finishing operations. The Everite Electrochemical Tube Ultra Cutoff Machine with the Touch Screen Operator

Interface is the most advanced of its kind in industry ...with the new SmartHead and

SmartFeed controls, machine productivity and ease of use are dramatically improved while

still getting the quality expected from the Everite electrochemical cutoff process.


The SmartHead feature (standard on the S) optimizes efficiency and

cut quality by providing precise positioning and speed control and allows for easy operator

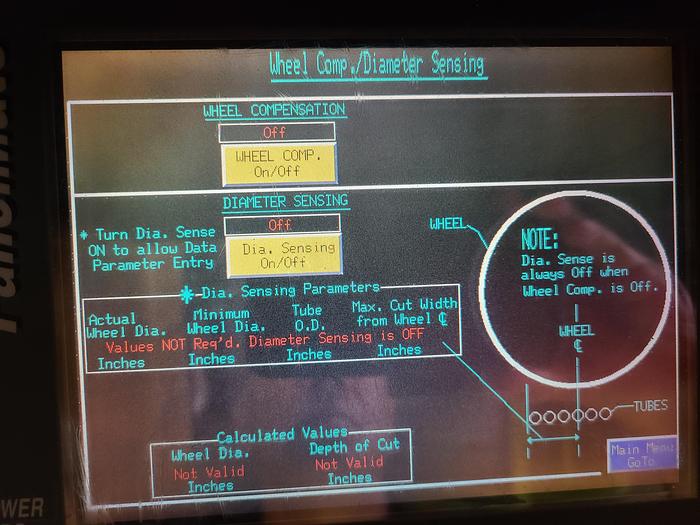

entered setup as wheel wear occurs. (The S model provides for automatic wheel size

compensation and automatically modulated cutting speed based on workpiece geometry)

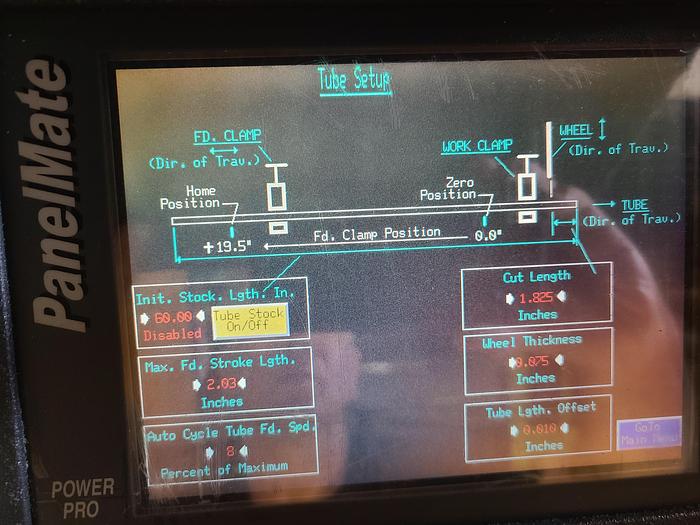

The SmartFeed allows the machine to easily process varying cut lengths (without operator

intervention in the Model S), and yields excellent tolerance control. The SmartFeed is also

well suited for integration into cut-to-length lines and is easily adapted to various cell

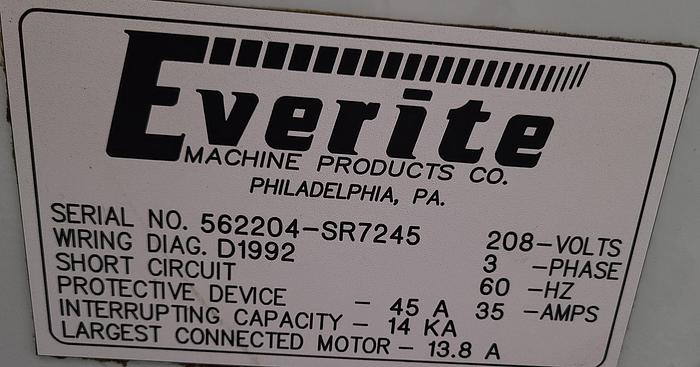

concepts. Model #TC SR7 Serial #562204 208V Three Phase

60hz

35 amps

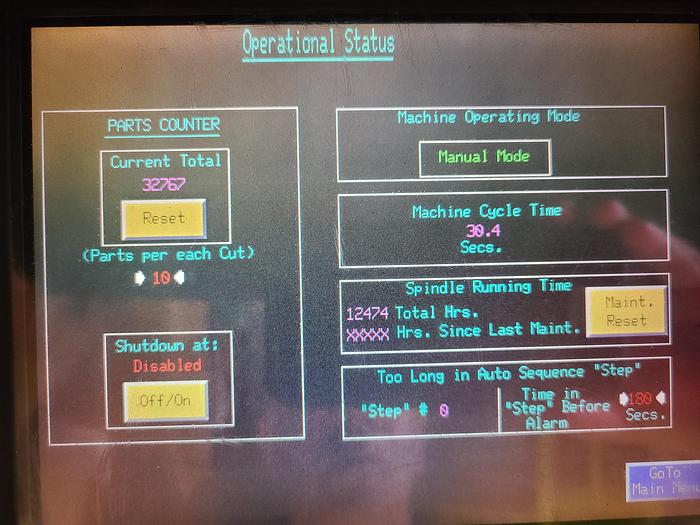

12,474 Hours on Spindle Made In USA


SPECIFICATIONS- ULTRACUT T/C

Machine Height 72” (1830 mm)

Floor Space 102” x 53” (2590 x 1350 mm)

Weight 4200 lbs. (1900 kg)

Floor to Top of Fixture 39” (990 mm) Standard

Spindle Speed 2120 RPM (Variable Option)

Cutting Speed 0.5 – 8.0 Inches/Min. (13-21 mm/m)

Tube Feed Speed 180 I.P.M. Max. (4570 mm/m)

Workpiece Capacity 3” Dia. Max. (76 mm)

Wheel Size 12” Dia. Max. (305 mm)

Electrical Power Requirement 12.0 KVA (300 Machining Amps DC)

18.0 KVA (600 Machining Amps DC)

Spindle Motor 5 HP. (7.5 Optional); (3.7kW, 5.6 Optional)

Compressed Air Requirement 80 PSI (5.6 kg/cm2 @ < 1 SCFM (1.7 m3/hr) PLEASE CONTACT US FOR A DEMONSTRATION. PTWS# LR-000000-091521-A * All information deemed accurate but may vary from model to model. Contact Larry for any questions you may have... Contact us at Four Zero One - Nine Six Five - Five Five Five Seven ___________________________________________________ Equipment Financing Available, please contact us! Fast Application, it’s all filled in for you... Online leasing applications (get LOW monthly payments) * Please Note: Not all machines may qualify for Leasing. Payments: We accept all Major Credit Cards, Bank Wires, Company and Personal Checks. SHIPPING: Contact us for great rates on shipping... We always get better rates... Please message us for a rigging and shipping quote; just include the zip code when inquiring and if you have a loading dock or ground level with forklift. Thank you! Contact us at Four Zero One - Nine Six Five - Five Five Five Seven

We also ship worldwide. CONDITIONS: All quotations are for immediate acceptance. They are subject to withdrawal, change and prior sale without notice. Shipping dates are only approximate and contingent upon delays beyond our control. All orders received are binding only when they have been accepted and acknowledged by us in writing. Provisions in customer’s purchase orders contrary to these conditions shall not be binding upon us unless accepted in writing. Unless otherwise specified, prices quoted are F.O.B. shipping point, exclusive of State, County and Federal taxes which must be added where applicable. Insurance on shipment must be requested by email, there will be an additional charge for shipping insurance. Shipping destination must be available to receive the shipment… any costs incurred on delays due to the buyers’ destination being unable to receive the shipment and/or additional services required, will be the responsibility of the buyer. Care is taken to give reliable specifications, but these are not guaranteed. We reserve the right to correct typographical errors. All used equipment is sold "as is". INDEMNIFICATION: Used Machines may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It is the user's responsibility that the said machines be so equipped and safeguarded to meet OSHA and any other requirements before placing such machinery into operation. User agrees to indemnify and hold Seller harmless of and from any and all claims or liabilities from accidents involving these machines caused by failure of user, his employees, or agent to follow instructions, warnings, or recommendations furnished by manufacturer, or Seller, or by failure of user to comply with Federal, State and Local laws applicable to such equipment including the Occupational Safety and Health Act of 1970. User shall notify Seller promptly after occurrence of any accident involving these machines, and shall cooperate fully with Seller. or Seller's agent in investigating and determining the cause of said accident.

Specifications

ManufacturerEverite
ModelTC SR7
ConditionUsed
Serial Number562204
Stock Number3222
Country/region of manufactureUSA
MpnTC SR7
