Franklin Roll Leaf Hot Stamping Press Model 8200 Gold Silver Color Roll Stamper


Franklin Roll Leaf Hot Stamping Press Model 8200 Gold Silver Color Roll Stamper

$2,495 (USD)

Central Falls, RI

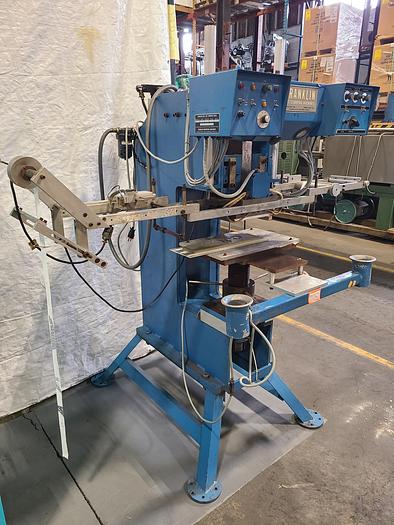

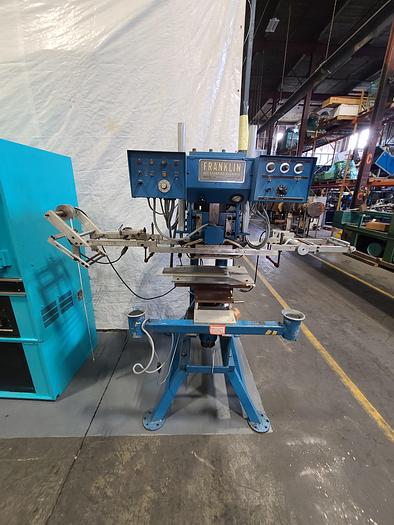

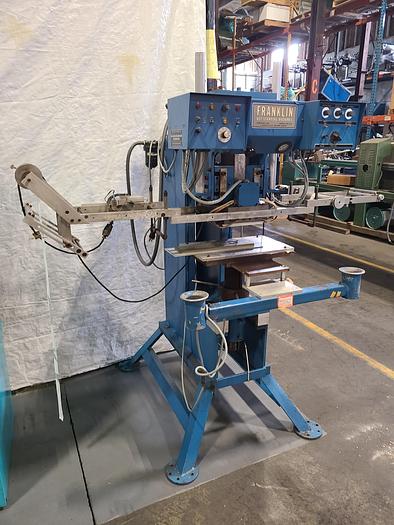

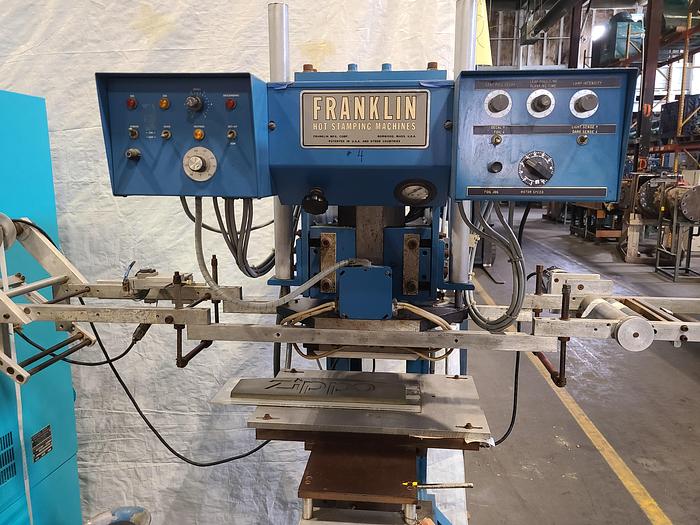

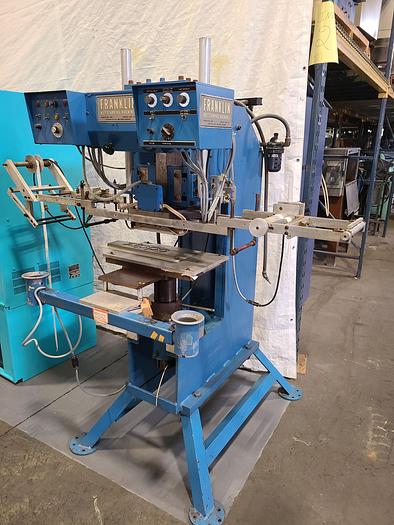

This is a Franklin Roll Leaf Hot Stamping Press Model 8200 Tested and Running Excellent!

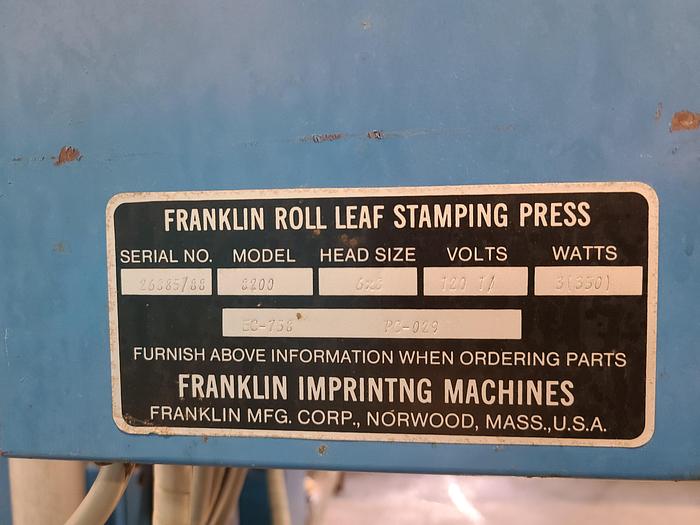

  • Model #8200
  • Serial #26885/88
  • Head Size: 6 x 8
  • 120 Volts
  • 3 (350) Watts
  • EC-758
  • PC-029

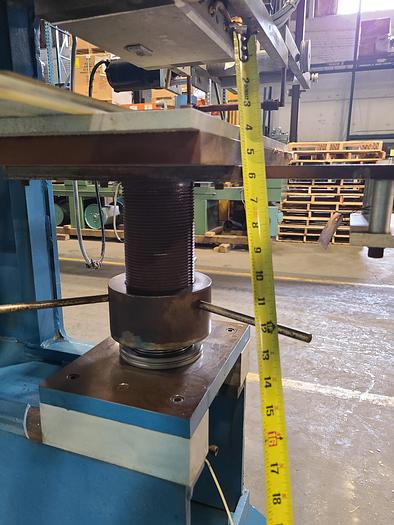

Maximum Opening Under Head: 14 inches Hot Stamps

Items Up To: 11 inches

Overall Height: 75 inches

Net Weight: 1500 lbs.

Head Stroke: 2¾" standard

Throat Depth: 12 inches

Pressure Range Up To:  10 tons standard, 15 tons optional

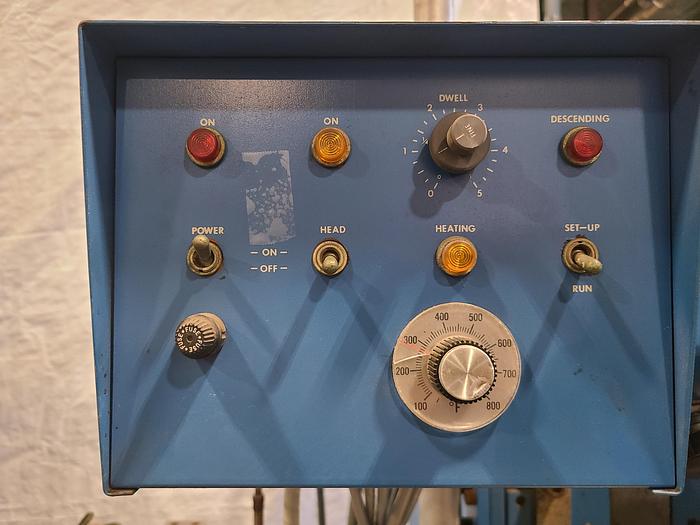

Heat Control:       Solid state with platinum RTD probe

Heating System: 6" x 8" head three 350-watt cartridge heaters 1050 watts total

6" x 12" head four 500-watt cartridge heaters 2000 watts total

1O" x 15" head four 1000-watt cartridge heaters 4000 watts total

12"x18" and 12"x24" head four 1500-watt cartridge heaters 6000 watts total

 Made in U.S.A.

 Dwell Control: Actuation:

Standard Electrical Requirements:

Compressed Air Requirements:


Ground Work Table:

Solid state (plus or minus 0.1%)

Simultaneous anti-tiedown 2-hand buttons w/pinch point circuit standard 6" x 8" 110 V AC

6" x 12", 1O" x 15" 230 V AC single phase

All others 230 V AC three phase unless otherwise specified.

1 cu. ft. per stroke at rated pressure

6" x 8" or 6" x 12" head 1" x 11½" x 17½" steel

10"x15" or 12"x18" head

1" x 15½" x 23½" steel

12" x 24" head

1" x 16" x 30" steel


PTWS # LR-000000-103121-LR09

Picture# 10072021
