REFURBISHED CONLEY 9" / 12" SPIN CASTING MACHINE – FISHING JIGS, SINKERS, LURES – VARIABLE SPEED – 110V – TESTED EXCELLENT

DESCRIPTION

Available for immediate sale is a Conley 9" / 12" Centrifugal Spin Casting Machine, professionally refurbished, tested, and running excellent.

This machine is designed for centrifugal casting using 9" or 12" silicone rubber molds and is an excellent production system for manufacturing fishing jigs, sinkers, weights, lure components, pewter parts, jewelry, belt buckles, miniature figurines, emblems, decorative hardware, and numerous other small cast-metal products.

Spin casting was used extensively for many years in the jewelry and decorative metal industries and remains an extremely efficient manufacturing process for producing multiple small castings from a single rubber mold.

Today, one of the applications we particularly recommend these machines for is the fishing tackle industry.

Traditional fishing jigs and sinkers are commonly produced by manually pouring molten lead into aluminum molds. With conventional gravity casting, the operator must clamp the mold, pour the metal, allow it to solidify, open the mold, remove the parts, and typically cut relatively large gates from the finished castings.

Spin casting offers a very different production method.

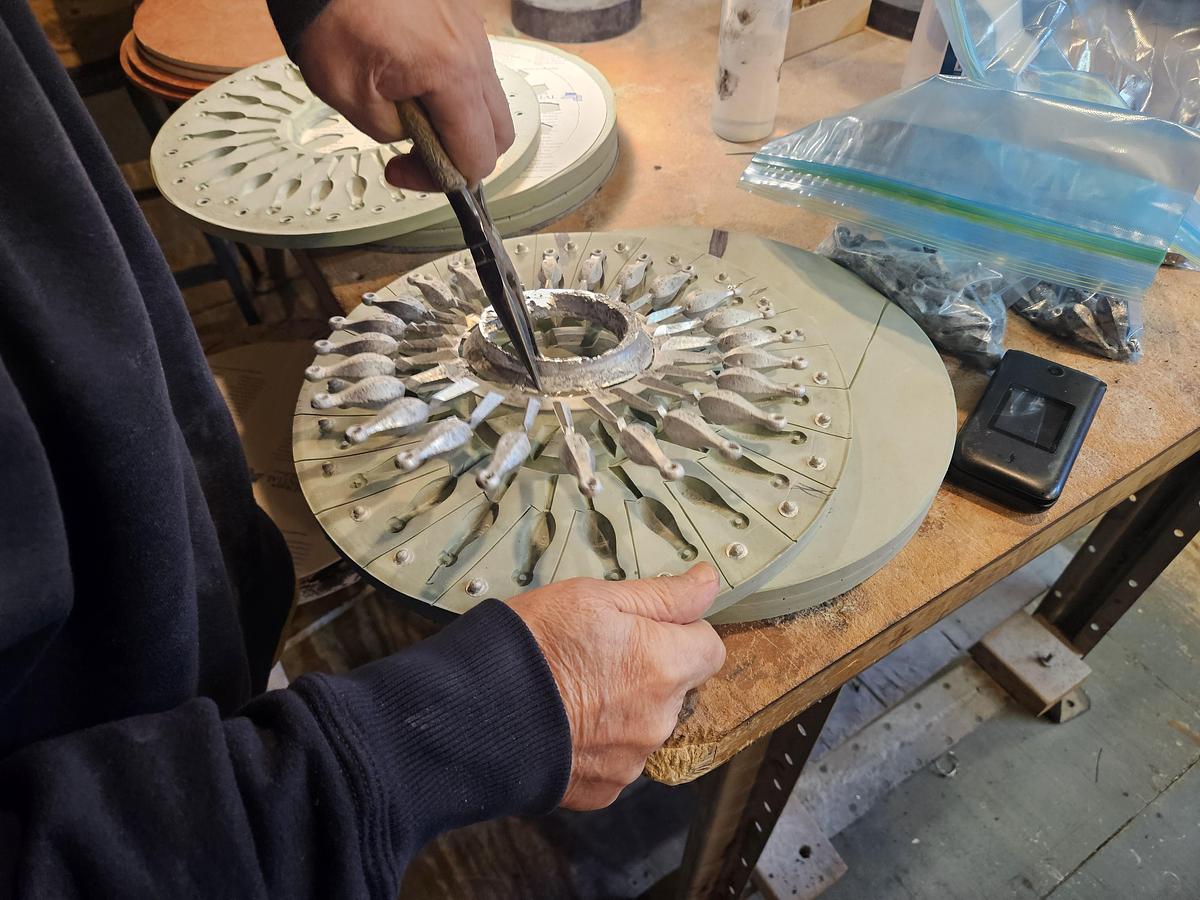

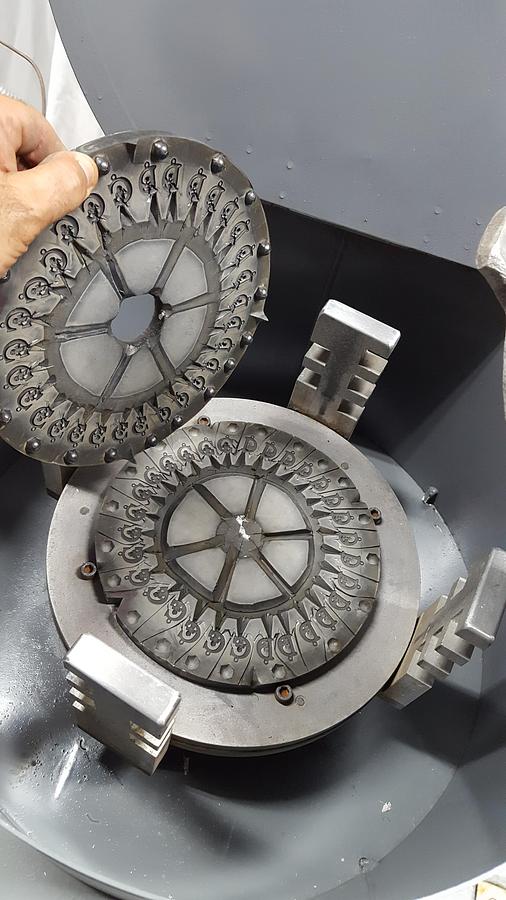

The centrifugal force generated by the spinning mold helps drive molten metal through smaller gates and into multiple mold cavities. Depending upon the size and configuration of the part, numerous jigs, sinkers, weights or other components can be produced during a single casting cycle.

The smaller gates possible with centrifugal casting can also substantially reduce the amount of clipping, sanding and secondary finishing required after casting.

For a fishing tackle manufacturer looking to increase production beyond conventional hand-poured aluminum molds, a spin casting system can be an excellent alternative.

SPECIFICATIONS

• Manufacturer: Conley

• Type: Centrifugal Spin Casting Machine

• Mold Capacity: 9" or 12" Diameter Rubber Molds

• Motor: 1/2 HP DC

• Motor Voltage: 90 VDC

• Incoming Power: 110/120 VAC, Single Phase

• Speed: Variable

• Speed Control: Electronic DC Motor Control

• Motor Direction: Forward / Reverse

• Braking: Electronic Rapid Spin-Down / Static Braking

• Mold Pressure: Pneumatic / Adjustable Air Pressure

• Air Regulation: Adjustable Regulator

• Mold Retention: Locking Cover / Pressure Plate

• Installation: Standard 110/120V electrical service plus compressed air

FEATURES

• Variable-speed DC drive

• Electronic speed control

• Forward and reverse rotation

• Rapid electronic spin-down / braking

• Adjustable pneumatic mold pressure

• Air pressure regulator

• Locking mold cover / pressure plate

• Accepts both 9" and 12" silicone rubber molds

• Simple, rugged mechanical design

• Standard 110/120V power

• Compact footprint

• Refurbished and tested

• Runs excellent

Note: Equipment configuration can vary between individual spin casting machines. Digital RPM readout is included only when specifically shown or stated for the machine being offered.

IDEAL FOR FISHING TACKLE PRODUCTION

Spin casting is particularly well suited for manufacturing:

• Fishing jig heads

• Lead sinkers

• Fishing weights

• Lure components

• Small lead castings

• Pewter components

• Zinc / Zamak components

• Decorative metal parts

• Small production castings

Compared with conventional hand-poured aluminum molds, centrifugal spin casting can provide several production advantages:

• Multiple parts can be incorporated into a single rubber mold

• Faster production of multiple castings per cycle

• Centrifugal force assists metal flow into smaller cavities

• Smaller gates can often be utilized

• Reduced gate clipping and secondary finishing

• Rapid mold changes

• Relatively inexpensive rubber tooling

• Excellent for short- and medium-run production

OTHER APPLICATIONS

In addition to fishing tackle, spin casting has historically been used for producing:

• Jewelry components

• Belt buckles

• Pewter figurines

• HO / model railroad miniatures

• Automotive emblems

• Decorative hardware

• Medallions

• Badges

• Promotional products

• Small industrial castings

• Prototype and reproduction parts

COMPLETE SPIN CASTING SYSTEMS AVAILABLE

L R Associates specializes in spin casting equipment and can supply much more than just the casting machine.

We frequently have available:

• Contenti Spin Casting Machines

• Conley Spin Casting Machines

• Pertot Spin Casting Machines – 12" through 18"

• Rubber Mold Vulcanizers

• 9" and 12" Mold Frames

• Melting Furnaces

• Electric Melting Furnaces

• Natural Gas Melting Furnaces

• Propane Melting Furnaces

• Polishing Equipment

• Vibratory Tumblers / Finishing Equipment

• Additional Spin Casting Accessories

We can help put together an entire spin casting operation from mold making through casting and finishing. Please inquire regarding current availability.

NEED SPIN CAST MOLDS?

...WE MAKE MOLDS TOO!!

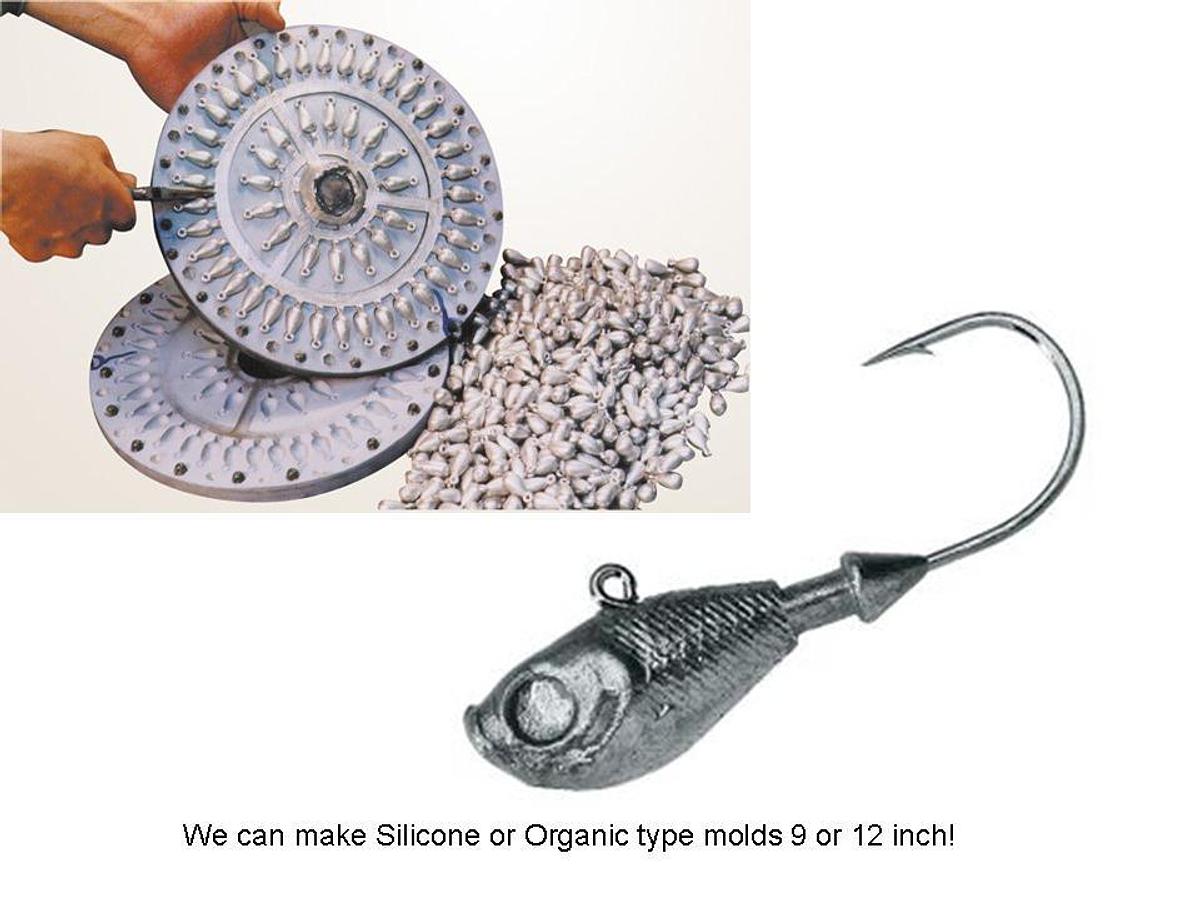

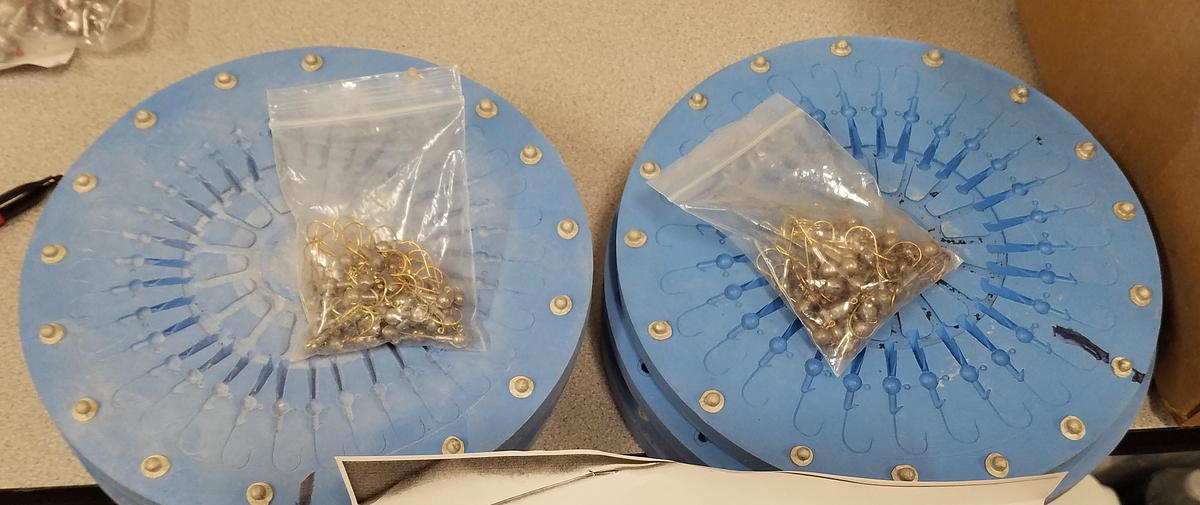

We can also assist customers who need silicone rubber spin casting molds made.

For manufacturers interested in producing their own molds, we can help supply the necessary vulcanizer, mold frames and supporting mold-making equipment.

This makes it possible to establish an in-house system for producing molds and casting your own fishing tackle, decorative products or other small metal components.

Contact us with information about the product you are interested in manufacturing and we can help determine the appropriate equipment.

CONDITION

REFURBISHED – TESTED – RUNNING EXCELLENT

Machine has been inspected and tested for operation.

This is a used industrial machine and may show normal cosmetic wear consistent with previous use.

Please review photographs for actual condition.
