Bridgeport 1HP Milling Machine 42" Table Step Pulley Speed Control Single Point Lube

Bridgeport 1HP Milling Machine 42" Table Step Pulley Speed Control Single Point Lube

$3,595 (USD)

Central Falls, RI

orCall 1 (401) 965-5557

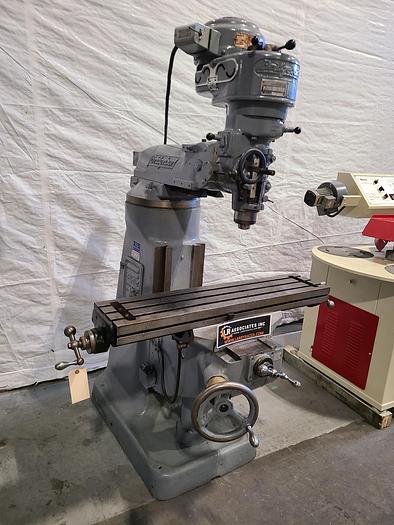

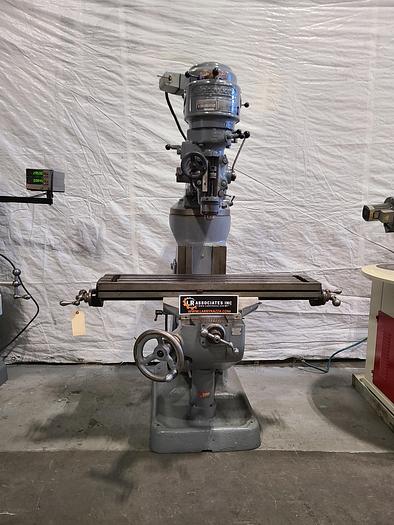

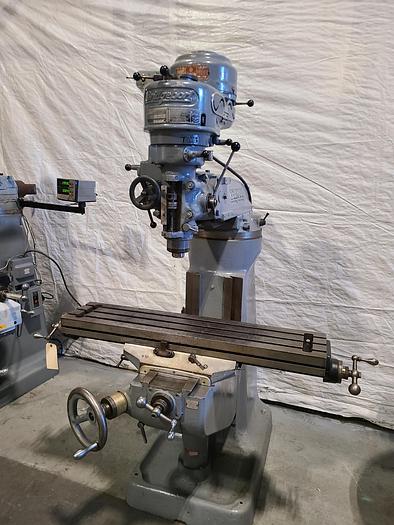

This is a Bridgeport 1HP Variable Speed Milling Machine with Single Point Lubrication in pristine running condition!

We can turn this machine into single phase for $350

Bridgeport 9" x 42" 1HP Milling Machine Package

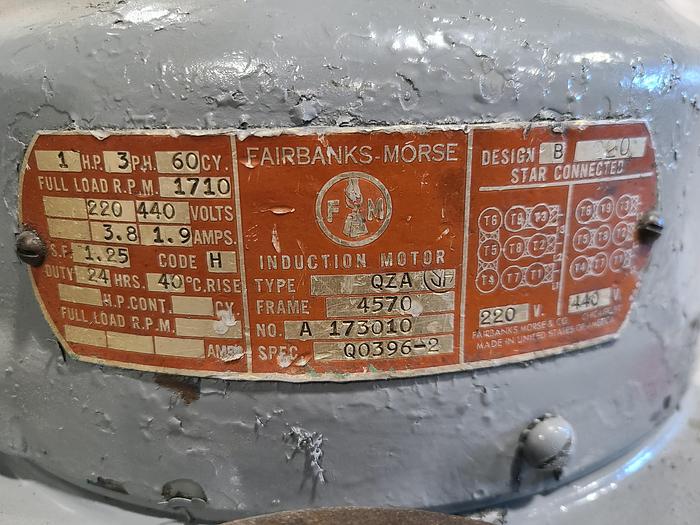

  • 1 HP
  • 3 Phase
  • 60 Cycle
  • 1710 RPM's
  • 220/440 Volts
  • 3.8/1.9 Amps
  • Bridgeport Milling Machine with Accessory Package as Shown:

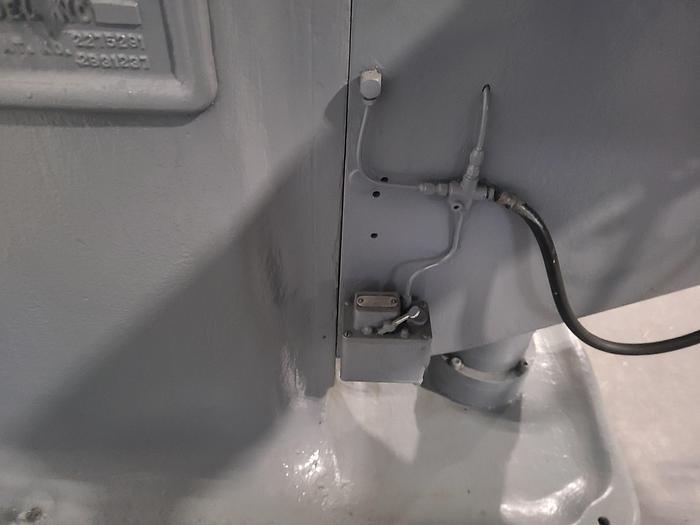

  • Single Point Lubrication

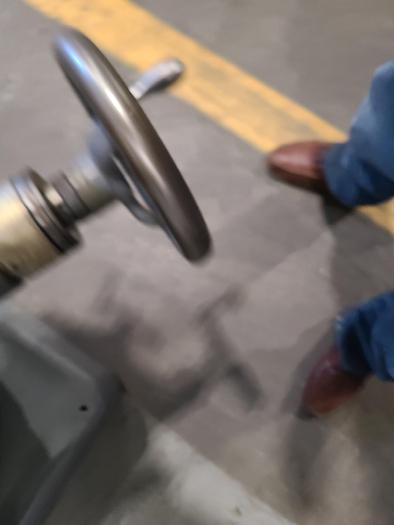

  • Easy Wheel For Z Axis

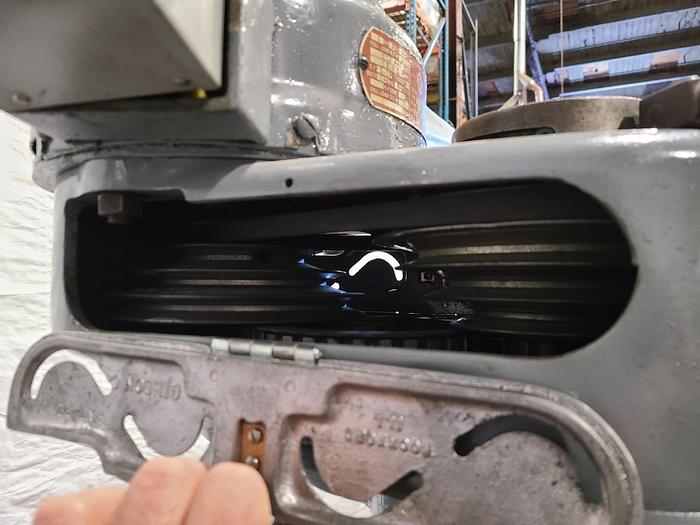

  • Step Pulley Speed Control
  • Range:
  • Table Travel (X-Axis) 30 in. (914 mm)
  • Saddle Travel (Y-Axis) 12 in. (305 mm)
  • Quill Travel 5 in. (127 mm)
  • Knee Travel (Z-Axis)* 16 in. (406 mm)
  • Ram Travel 12 in. (305 mm)
  • Throat Distance (min.) 6.75 in. (171 mm)
  • Throat Distance (max.) 18.75 in. (476 mm)
  • Table to Spindle Nose Gage Line:
  • - (min.) 2.5 in. (64 mm)
  • - (max.) 18.25 in. (463 mm)

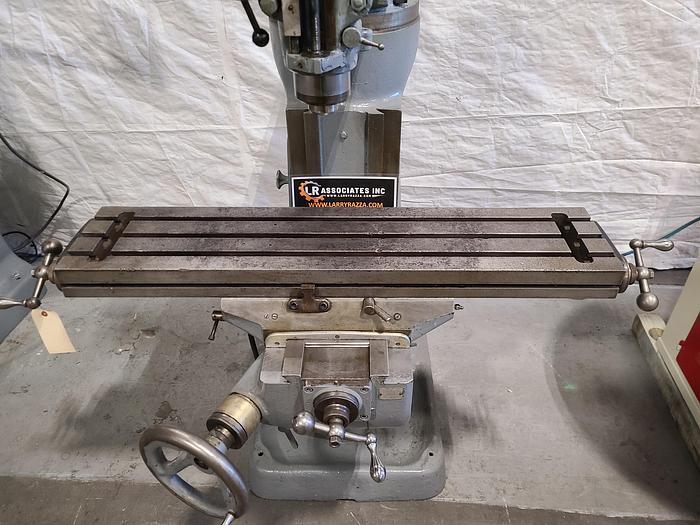

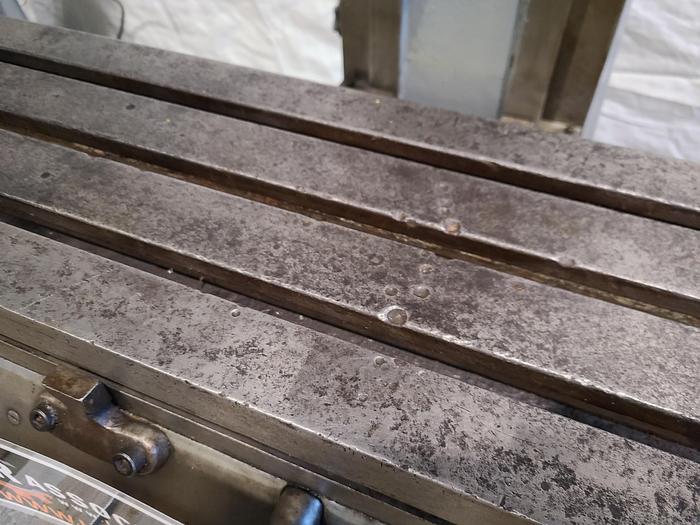

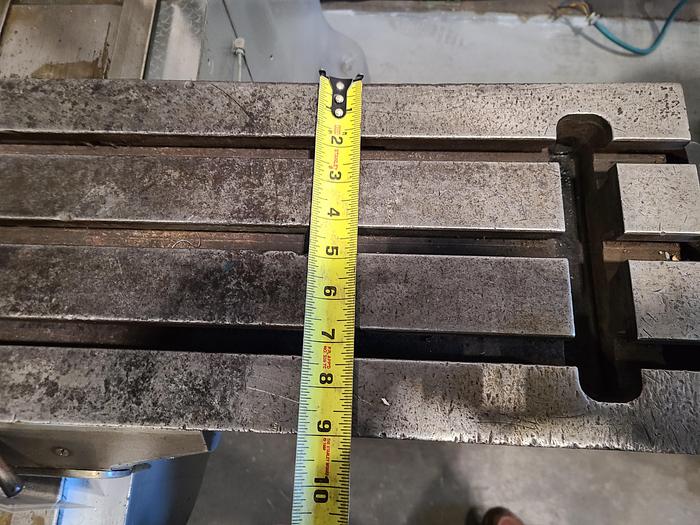

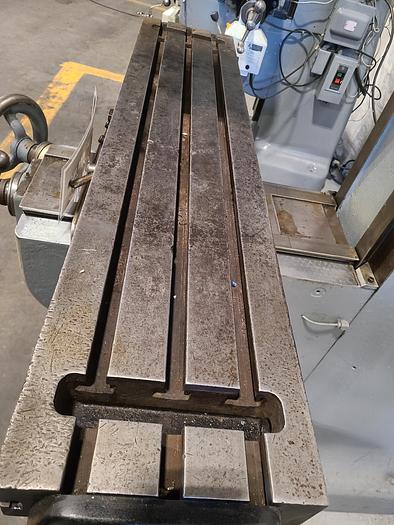

  • Table:
  • Overall Size 492 x 9 in. (1245 x 299 mm)

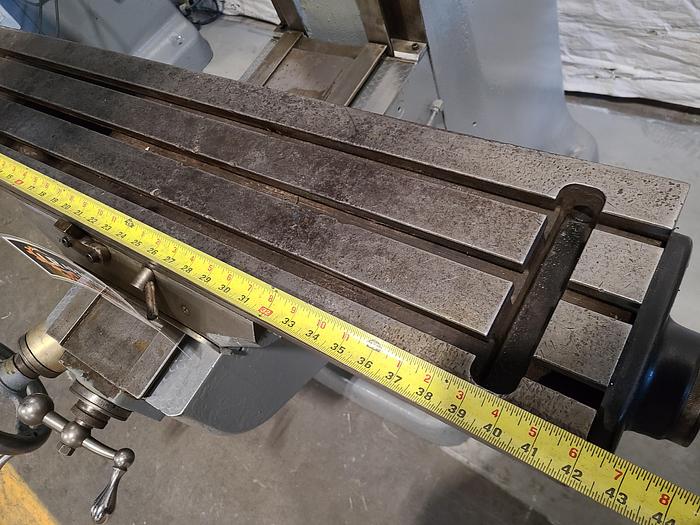

  • Working Surface 42 x 9 in. (1245 x 229 mm)
  • T-slots Centers 3 @ 2.5 in. (64 mm)
  • T-slot Size 0.625 in. (16 mm)
  • Height above Floor (max.) 47.25 in. (1200 mm)
  • Weight of Workpiece (max.) TBD
  • Spindle (2J Head):
  • AC Power Rating:
  • - (continuous) 1 hp (1.2 kW)
  • Spindle Taper R-8
  • Tooling R-8 Collets

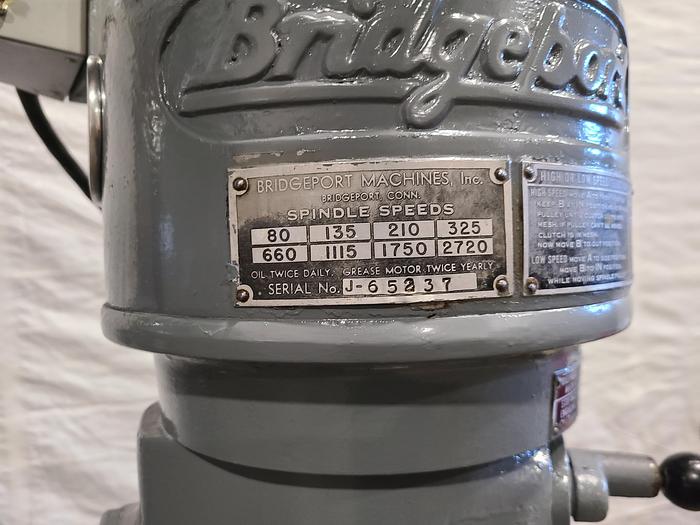

  • Speed Range:
  • High (infinitely variable) 660 – 2720 rpm
  • Low 80 – 325 rpm
  • Power Quill Feed 0.0015 in./rev (0.038 mm)
  • Manual Adjust:
  • - 0.003 in./rev (0.076 mm)
  • - 0.006 in./rev (0.152 mm)
  • Drilling Capacity:
  • Power Quill Feed 3/4 in. (19 mm)
  • Milling Capacity (mild steel) 3/4 in. (19 mm)
  • Boring Range (mild steel) 6 in. dia. (152 mm)
  • Spindle Diameter 1.875 in. (48 mm)
  • Quill Diameter 3.375 in. (86 mm)
  • Positioning:
  • Auto (X, Y) 100 ipm (2540 mm/min)
  • Manual (X, Y) 100 ipm (2540 mm/min)
  • Feedrate Range (X, Y) 0.1 – 35 ipm (2 – 889 mm/min)
  • Minimum Increment 0.0001 in. (0.003 mm)
  • Space and Weight:
  • Floor Area:
  • - 8.3 x 5.3 ft. (2.53 x 1.62 m)
  • - 8.3 x 7.8 ft. (2.53 x 2.4 m)**
  • Height 7.04 ft. (2.15 m)
  • Net Weight 1930 lb (875 kg)
  • Shipping Weight 2075 lb (941 kg)

PTWS # LR-0000-030222LR-14

Pic# 02102022

* All information deemed accurate but may vary from model to model.

Contact Larry for any questions you may have.
