PEMSERTER® Series 4 Inserting Press Insert Threads Posts Fasteners

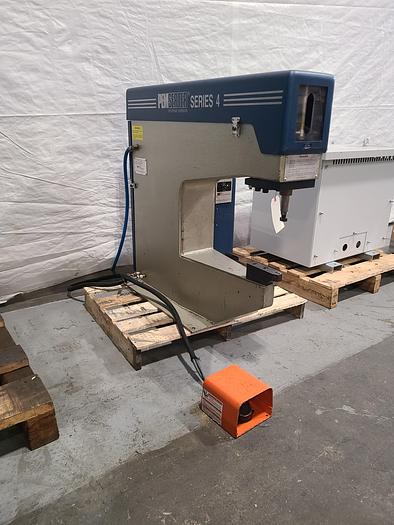

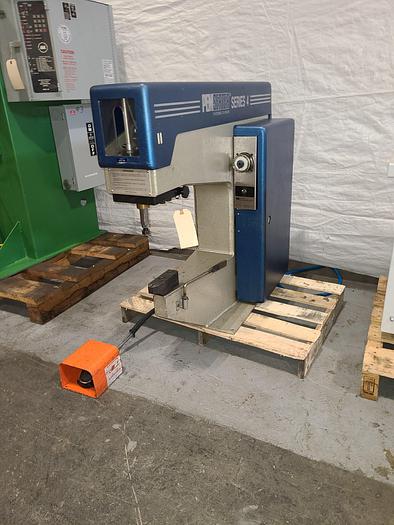

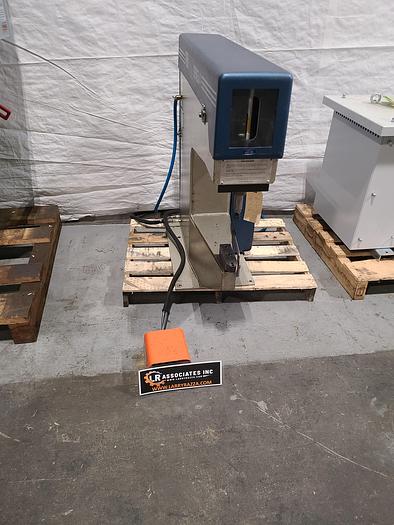

This is a PEMSERTER® Series 4 Inserting Press... tested and running well!

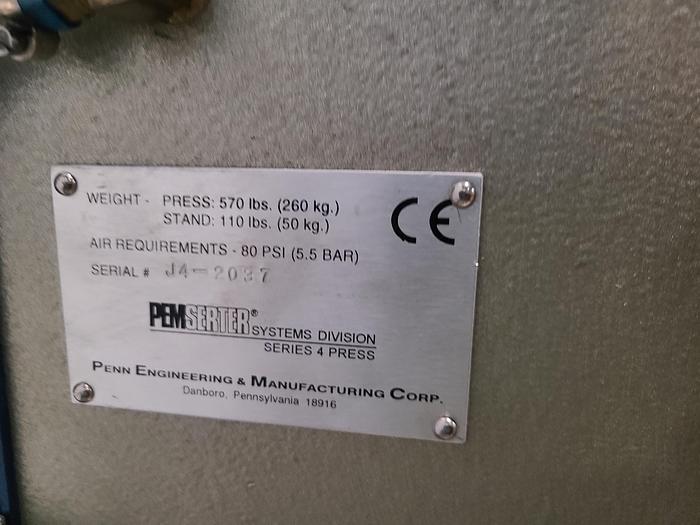

• PemSerter
• Series:4
• Serial # J4-2037
• Weight: Press: 570 Lbs.
• Air Requirements> 80 PSI (5.5 BAR)

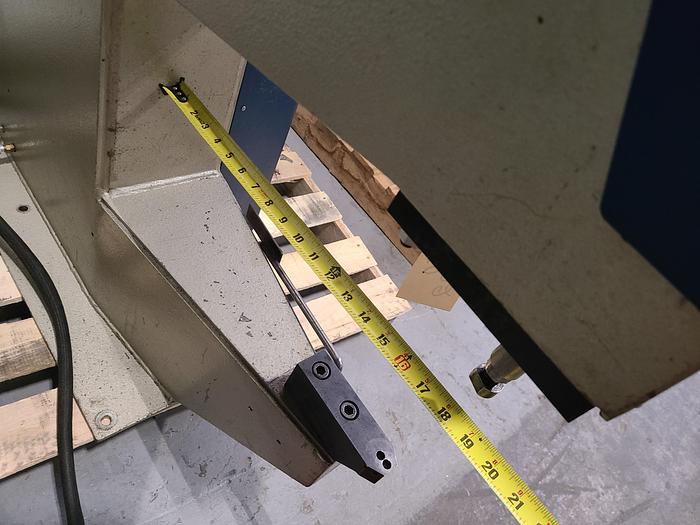

The PEMSERTER® Series 4® machine is totally pneumatic providing short cycle time for increased productivity and 53.4 kN / 6 tons of force and a 45.7 cm / 18” throat depth which provides clearance for a variety of chassis configurations. It is designed to install self-clinching fasteners in size M2 / #0 thru M10 / 3/8” in steel, and sizes up to M12 / 1/2” in aluminum panels or circuit boards.

Features and Benefits

• Insertion force adjustable from 1.8 to 53.4 kN /

Specifications:

Ram Force

4.5 to 53.4 kN

1000 to 12000 lb

Control System

Pneumatic Logic

Pressure System Type

Pneumatic / Lever

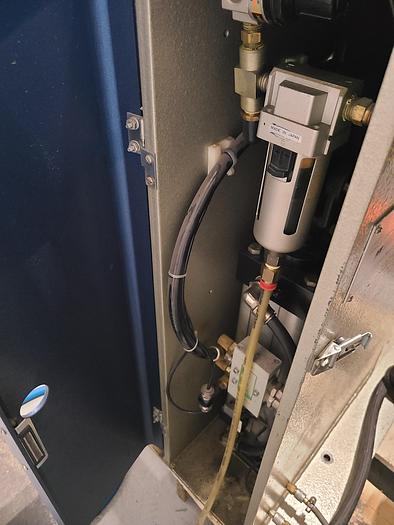

Air Requirements

6 to 7 bar / 90 to 100 psi

12 mm / 1/2 in dia. minimum line flow

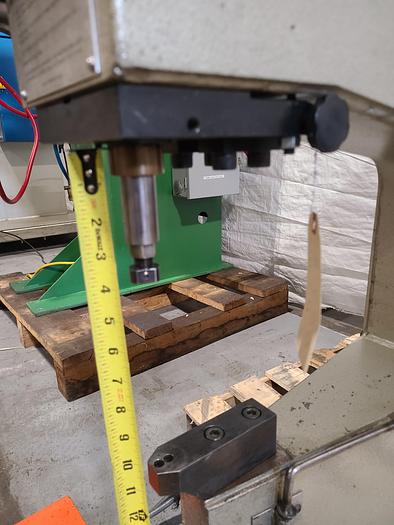

Throat Depth

45.70 cm

18 in

Height

167.60 cm

66.00 in

Width

43.20 cm

17.00 in

Weight

259.00 kg

570.0 lb

Weight with Cabinet

372.00 kg

819.00 lb

Cabinet Dimensions L x W x H

74.00 x 66.00 x 76.00 cm

29.00 x 26.00 x 30.00 in

PTWS # LR-000000-08142022-JCO-03

Picture# 08092022

* All information deemed accurate but may vary from model to model.
