Barrett Centrifuge Oil Clarifier Cleans Fluid From Process Equipment without Filters! Recycle Oil

Barrett Centrifuge Oil Clarifier Cleans Fluid From Process Equipment without Filters! Recycle Oil

$6,995 (USD)

Central Falls, RI

orCall 1 (401) 965-5557

Description

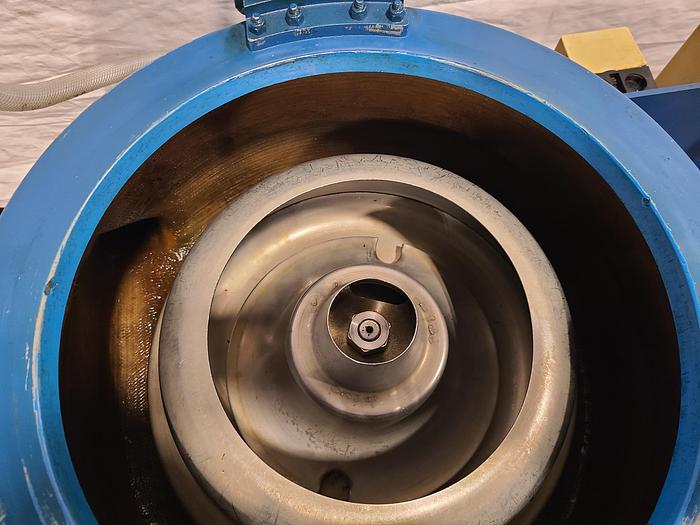

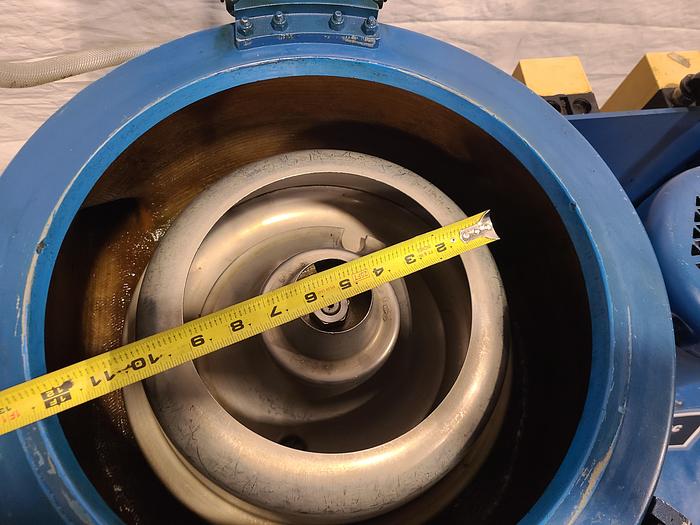

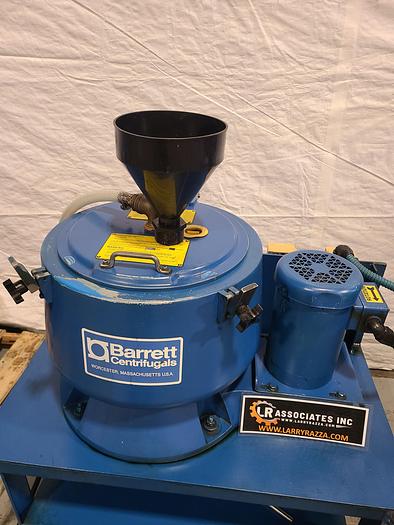

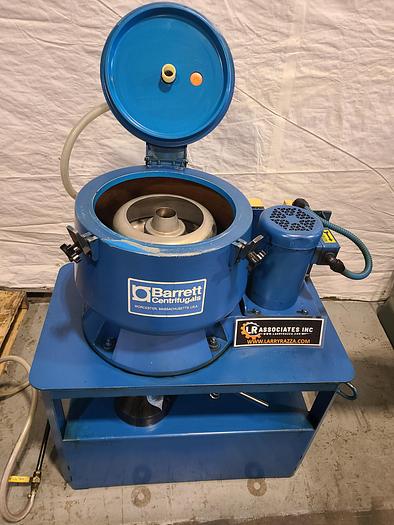

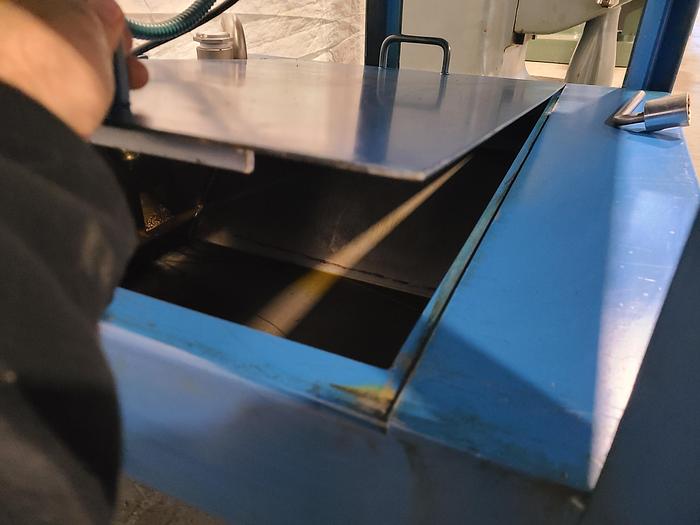

This is a Barrett #225 F Clarifuge Oil/ Fluid Cleaning System with catch tank and pump... Tested and Runs Excellent!


RECYCLE EXPENSIVE OIL... without filters!!!


Separates & Remove solid contaminant down to a sub-micron size from the oil, improved purity of the oil, extended oil life change period, Improve the quality of products significantly. Used for fluids/oils purifying in machining industry, EDM industry, grinding industry, etc.


BARRETT CLARIFUGE - FLUID CLEANING UNIT


1,000 Gs= SUPERIOR SOLID-FLUID SEPARATION

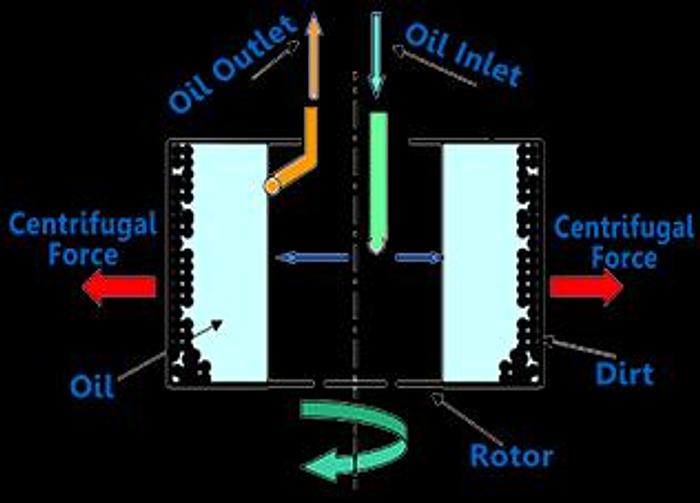

•   Centrifugal particle separation without bags or filters

•   Fluid flow rate from 3 to 15 gallons per min.

•   Separable solid particle to 5 microns

•   Separated solids collected capacity 40 to 50 lbs.

•   Removes abrasives, machining swarf and fine chips

•   Clarifies wire EDM, quench, & wire drawing fluids

•   Cleans fluid from process equipment sump

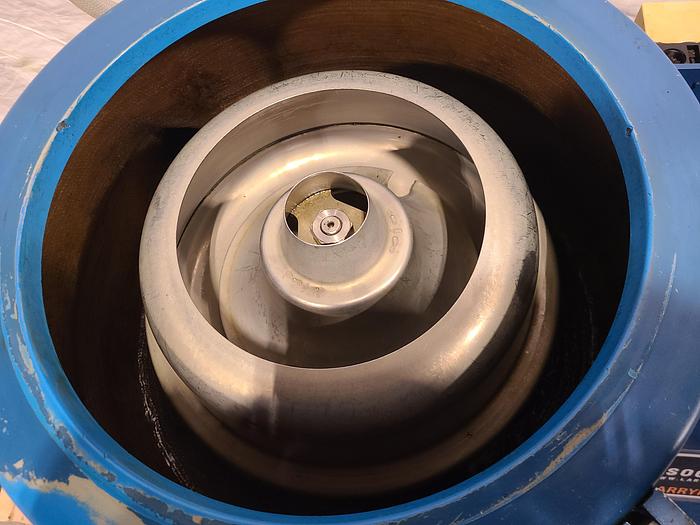

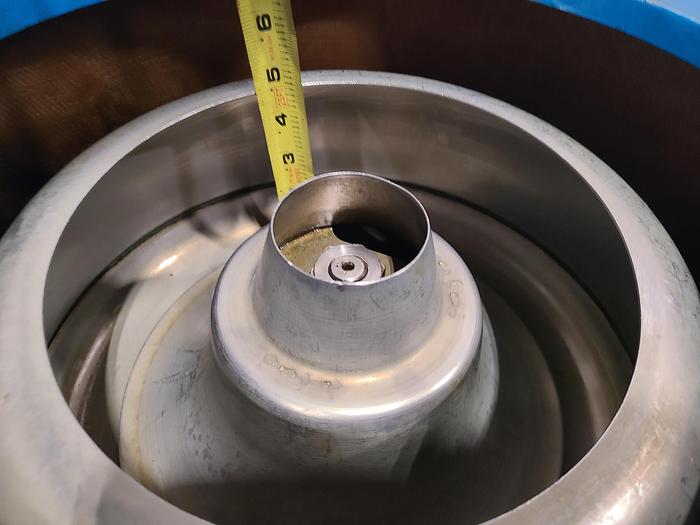

•   Easy bowl cleaning by Clari-Clean bowl cleaning unit

•   Compact design Including a safety lid lock

•   Rugged ball bearing spindle, simple reliable belt drive

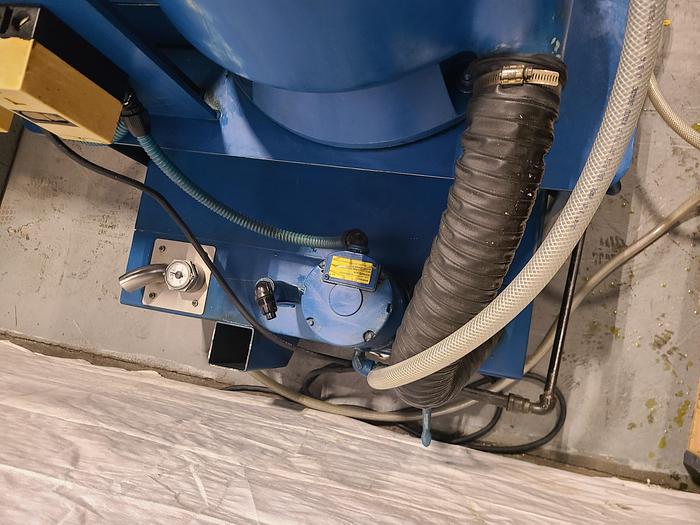

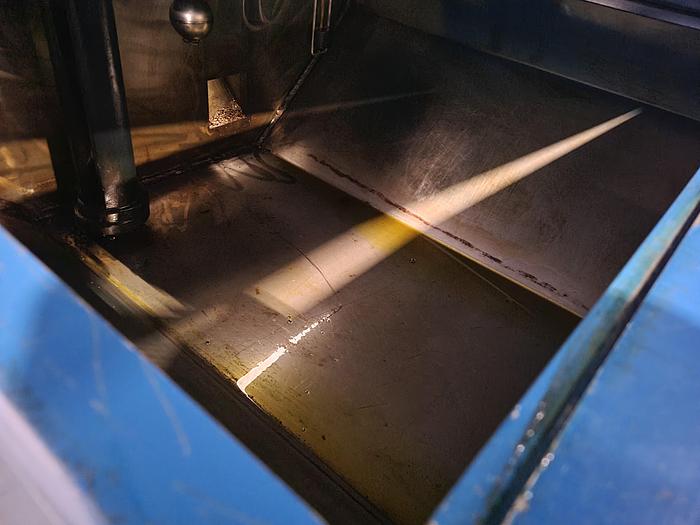

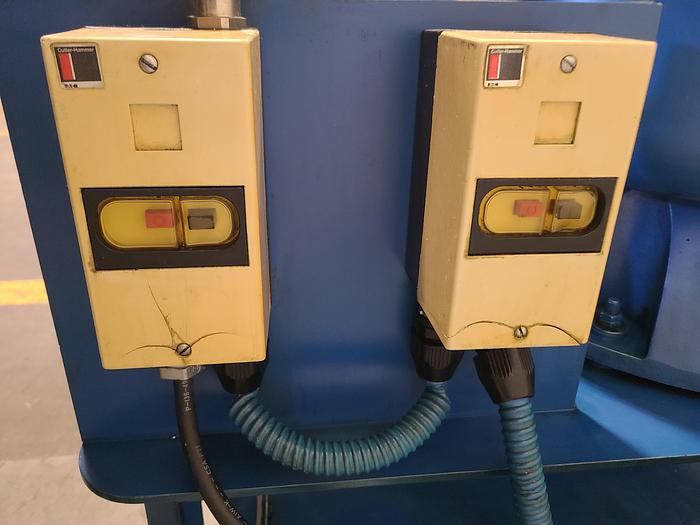

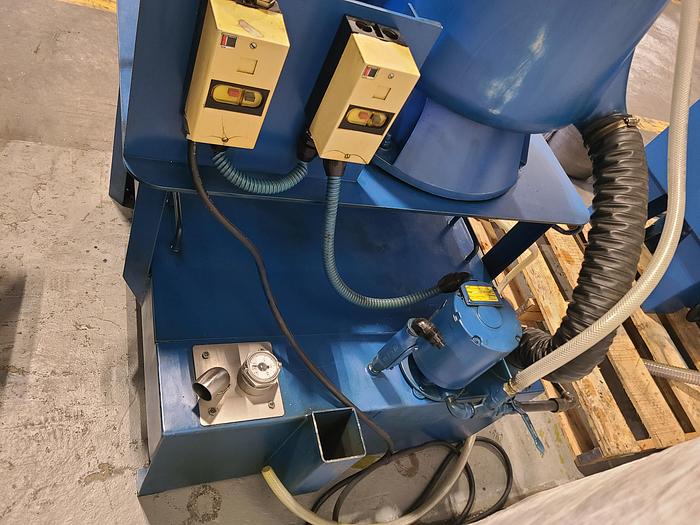

This portable turnkey system includes a Clarifuge, feed pump, catch tank, starter switches and disconnect and is an efficient alterative to costly central filtration systems.

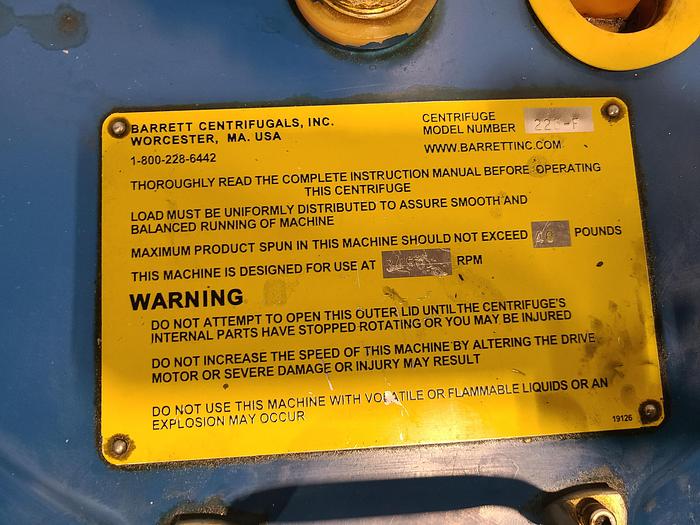

  • Barrett Fluid Clarifier
  • Model 225-F

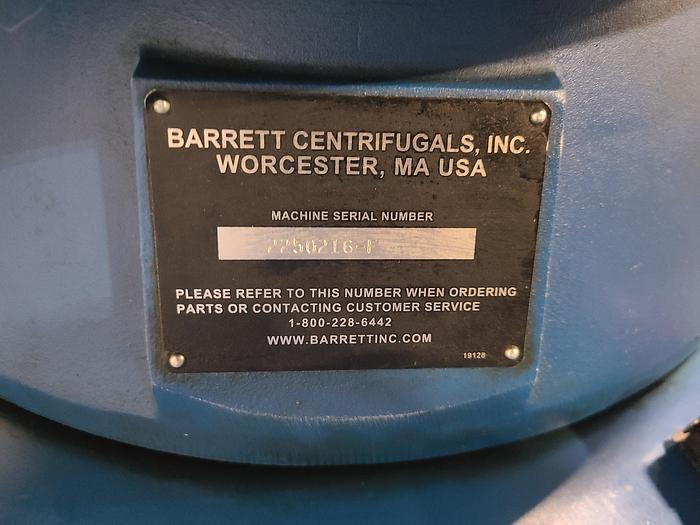

  • Serial # 2250216-F
  • 40 Lb. Collected Load Capacity

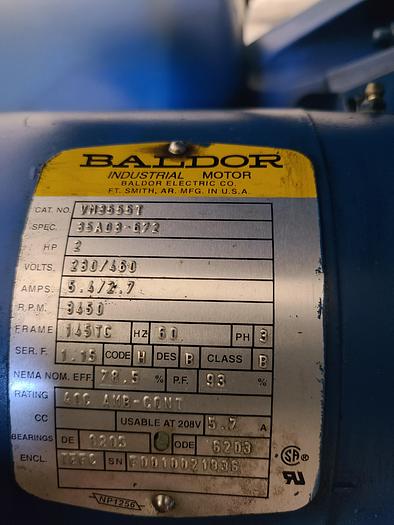

  • Baldor Industrial Motor:
  • 2 Hp
  • 60 Hz

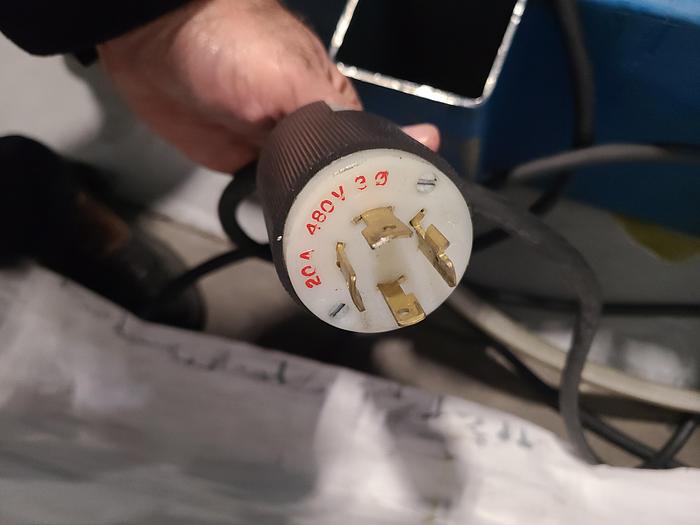

  • 230/460 Volts
  • 5.4/2.7 Amps
  • Three Phase
  • 3450 RPM

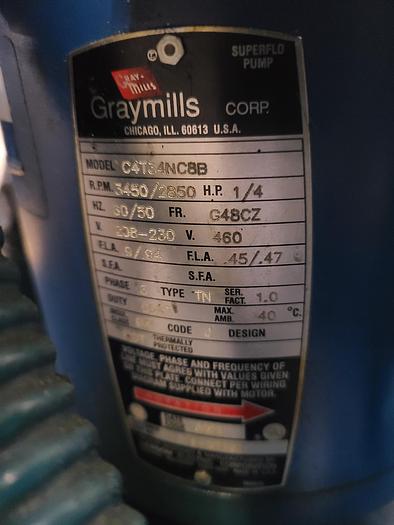

  • Superflo Pump:
  • 3450/2850 RPM
  • 1/4 Hp
  • 60/50 Hz
  • 208/230/460 Volts


PTWS - 11012022-LR-13


Picture# 10192022


* All information deemed accurate but may vary from model to model.




Contact Larry for any questions please call Four Zero One - Nine Six Five - Five Five Five Seven


___________________________________________________




Equipment Financing Available, please contact us!


Fast Application, it’s all filled in for you...


Online leasing applications (get LOW monthly payments)


* Please Note: Not all machines may qualify for Leasing.




Payments: We accept all Major Credit Cards, Bank Wires, Company and Personal Checks.




SHIPPING: Contact us for great rates on shipping...


We always get better rates...


Please email us for a rigging and shipping quote; just include the zip code when inquiring and if you have a loading dock or ground level with forklift. Thank you!




Contact us at Four Zero One - Nine Six Five - Five Five Five Seven


We also ship worldwide.




CONDITIONS: All quotations are for immediate acceptance. They are subject to withdrawal, change and prior sale without notice. Shipping dates are only approximate and contingent upon delays beyond our control. All orders received are binding only when they have been accepted and acknowledged by us in writing. Provisions in customer’s purchase orders contrary to these conditions shall not be binding upon us unless accepted in writing. Unless otherwise specified, prices quoted are F.O.B. shipping point, exclusive of State, County and Federal taxes which must be added where applicable. Insurance on shipment must be requested by email, there will be an additional charge for shipping insurance. Shipping destination must be available to receive the shipment… any costs incurred on delays due to the buyers’ destination being unable to receive the shipment and/or additional services required, will be the responsibility of the buyer. Care is taken to give reliable specifications, but these are not guaranteed. We reserve the right to correct typographical errors. All used equipment is sold "as is".




  • INDEMNIFICATION: Used Machines may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It is the user's responsibility that the said machines be so equipped and safeguarded to meet OSHA and any other requirements before placing such machinery into operation. User agrees to indemnify and hold Seller harmless of and from any and all claims or liabilities from accidents involving these machines caused by failure of user, his employees, or agent to follow instructions, warnings, or recommendations furnished by manufacturer, or Seller, or by failure of user to comply with Federal, State and Local laws applicable to such equipment including the Occupational Safety and Health Act of 1970. User shall notify Seller promptly after occurrence of any accident involving these machines and shall cooperate fully with Seller. or Seller's agent in investigating and determining the cause of said accident. Private Notes


Specifications

ManufacturerBarrett Centrifugals, Inc.
Model225-F
ConditionUsed
Serial Number2250216-F
Stock Number11012022-LR-13
