Flash 500 Flare Smart Scope optical gauging Measuring Machine Inspection auto measurement CMM with Rotary Table

Sold

Flash 500 Flare Smart Scope optical gauging Measuring Machine Inspection auto measurement CMM with Rotary Table

$36,500 (USD)

Location:Central Falls, RI

Description

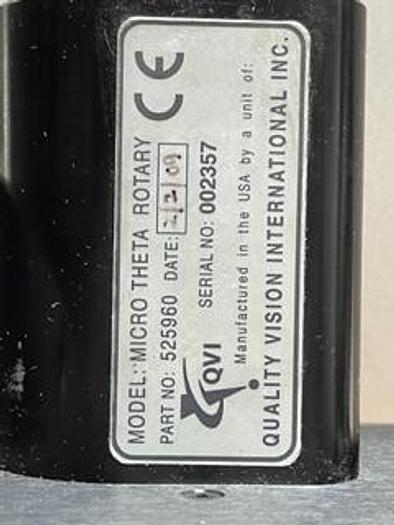

This is a SmartScope® Flash™ 500 Optical measurement machine with Micro Theta Rotary Table in excellent condition!


2004 UPDATED 2017 (Computer & Software updated in 2017)


Machine Options:

All software installed, Plus Calibrated!!

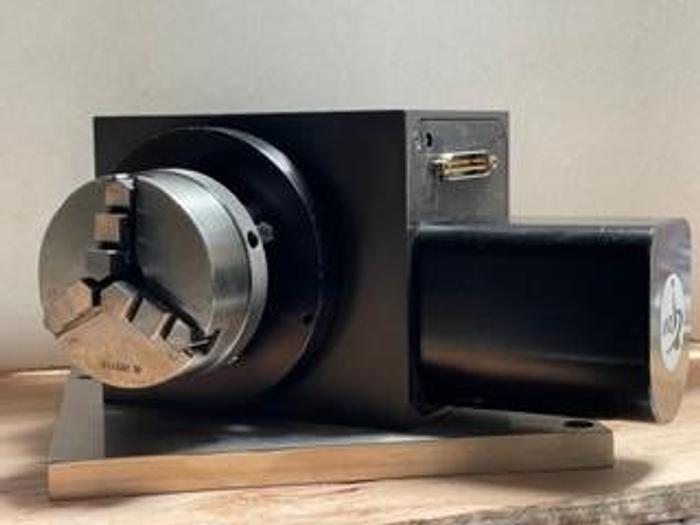

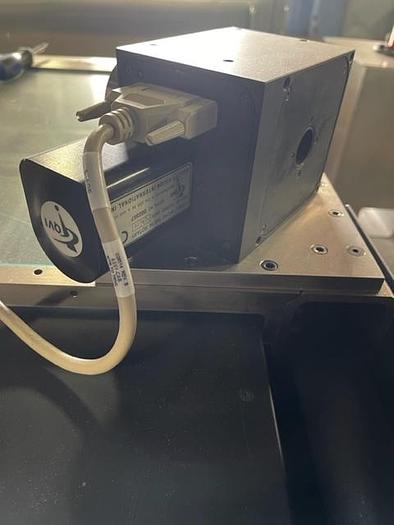

Flash 500 has a precision rotary unit

serial # SVW-5001336

Windows 7 Ultimate

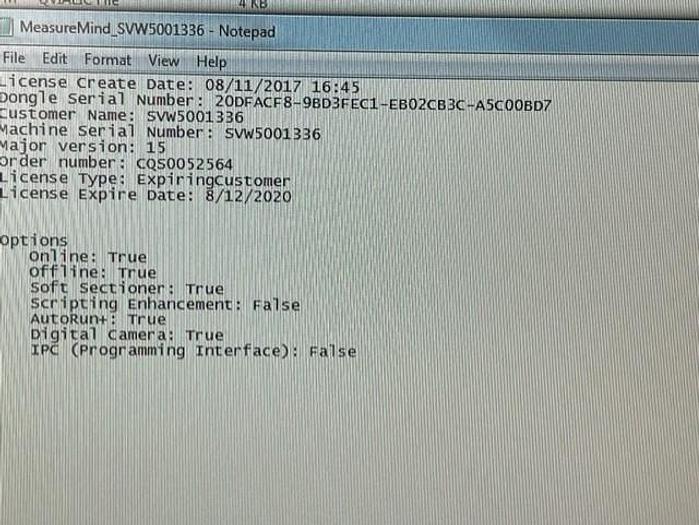

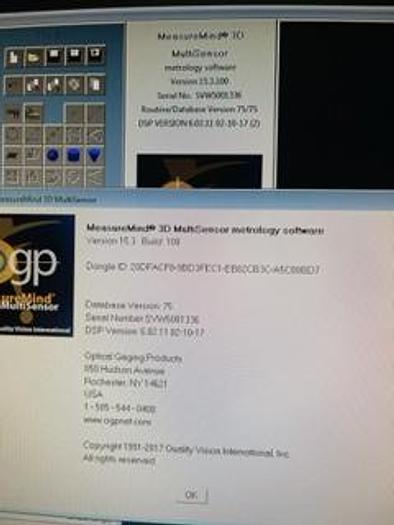

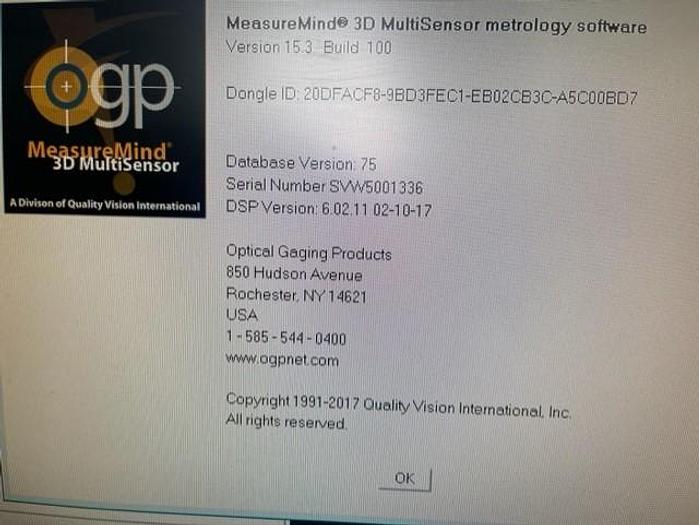

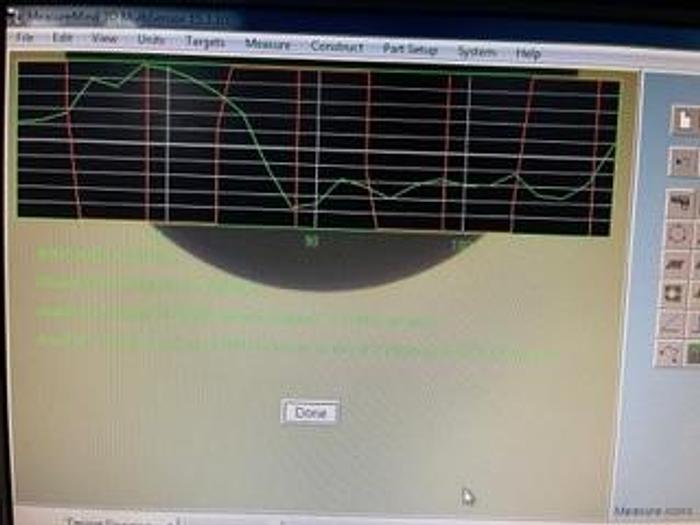

Measure Mind 3D OGP software version 15.3 build 100

Data Base V - 75

DSP VERSION 6.02.11 02-10-2017


We have tested this machine and calibrated it as of 032223


Measurement stability

Optics mounted on a rigid

bridge support structure for

metrological integrity


Precision optics

High quality Zoom 12

AccuCentric® zoom lens

autocalibrates with every

magnification change


Standard Optional

XYZ travel 500 x 450 x 200 mm Extended Y axis, 610 mm; extended Z axis, 300 or 400 mm

XYZ scale resolution 0.5 μm 0.1 μm (optional XYZ), optional dual Y-axis scales

Drive system DC servo with 4-axis control (X,Y,Z,zoom); with multifunction handheld controller

Worktable Nickel plated steel, with fixture holes, removable stage glass, 65 kg recommended max payload

Optics Zoom 12 AccuCentric® auto-calibrating

zoom with up to 25 calibrated positions

0.5x, 0.75x, 1.5x, and 2.0x lens attachments; 2.5x and 5.0x laser lenses (for use with or without optional TTL laser),

FOV size (std optical configuration) Measured diagonally, 10.1 mm (low mag) to 1.1 mm (high mag)

Illumination LED substage (monochromatic), LED

coaxial TTL surface, 8 sector/8 ring

SmartRing™ LED (white)

• Flexible SmartRing light for long working distance optical configurations (in lieu of

standard SmartRing light)

• 8 sector/6 ring Vu-Light™ LED ring light, standard working distance (70 mm), or low

incidence working distance (36 mm) (in lieu of standard SmartRing light)

• Red or green SmartRing light (in lieu of standard white SmartRing light)

Camera High resolution color metrology camera

Image processing 256 level grayscale processing with 10:1 subpixel resolution

Sensor options (contact OGP for

possible combinations of sensors)

Controller Windows® based, with up-to-date processor and on board networking/communication ports

Controller accessory package 24” flat panel LCD monitor, or dual 24” flat panel LCD monitors; keyboard, 3-button

mouse (or user supplied)

Software QVI Portal, including:

• Portal Navigator

• Independent Calibration Engine (ICE)

• Multimedia Content Viewer

• SmartLink™

Metrology software: ZONE3® or ZONE3 Pro, MeasureMind® 3D MultiSensor,

Measure-X®, VMS™, Elements®

Productivity software: MeasureFit® Plus, SmartFit® 3D, SmartProfile®

Offline software: ZONE3, MeasureMind 3D MultiSensor, Measure-X, VMS

Power requirements 115/230 vac, 50/60 Hz, 1 phase, 700 W

Rated environment Temperature 18-22° C, stable to ±1° C; 30-80% humidity; vibration <0.001g below 15 Hz

Operating environment, safe operation 15-30° C

XYZ volumetric accuracy1 E3 = (3.5 + 8L/1000) μm2,4,5 (requires QVI 3D metrology software1)

XY area accuracy1 E2 = (2.5 + 5L/1000) μm2,3,4

Z linear accuracy1 E1 = (3.0 + 8L/1000) μm4 E1 = (2.0 + 8L/1000) μm4 (with optional 2.0x


Axis                Travel (mm)

X axis                       500

Y axis                       450

Z axis                        200

Extended Y (opt)      610

Extended Z (opt)       300

Extended Z (opt)       400



WSPT #LRRQ-00000-040423-A

RQR082823


* All information deemed accurate but may vary from model to model.


Contact Larry for any questions you may have... Contact us at Four Zero One - Nine Six Five - Five Five Five Seven


Equipment Financing Available, please contact us! Fast Application, it’s all filled in for you...

Online leasing applications (get LOW monthly payments)

* Please Note: Not all machines may qualify for Leasing.


Payments: We accept all Major Credit Cards, Bank Wires, Company and Personal Checks. SHIPPING: Contact us for great rates on shipping... We always get better rates... Please email us for a rigging and shipping quote; just include the zip code when inquiring and if you have a loading dock or ground level with forklift. Thank you! Contact us at 401-965-5557



CONDITIONS: All quotations are for immediate acceptance. They are subject to withdrawal, change and prior sale without notice. Shipping dates are only approximate and contingent upon delays beyond our control. All orders received are binding only when they have been accepted and acknowledged by us in writing. Provisions in customer’s purchase orders contrary to these conditions shall not be binding upon us unless accepted in writing. Unless otherwise specified, prices quoted are F.O.B. shipping point, exclusive of State, County and Federal taxes which must be added where applicable. Insurance on shipment must be requested by email, there will be an additional charge for shipping insurance. Shipping destination must be available to receive the shipment… any costs incurred on delays due to the buyers’ destination being unable to receive the shipment and/or additional services required, will be the responsibility of the buyer. Care is taken to give reliable specifications, but these are not guaranteed. We reserve the right to correct typographical errors. All used equipment is sold "as is".



INDEMNIFICATION: Used Machines may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It is the user's responsibility that the said machines be so equipped and safeguarded to meet OSHA and any other requirements before placing such machinery into operation. User agrees to indemnify and hold Seller harmless of and from any and all claims or liabilities from accidents involving these machines caused by failure of user, his employees, or agent to follow instructions, warnings, or recommendations furnished by manufacturer, or Seller, or by failure of user to comply with Federal, State and Local laws applicable to such equipment including the Occupational Safety and Health Act of 1970. User shall notify Seller promptly after occurrence of any accident involving these machines, and shall cooperate fully with Seller. or Seller's agent in investigating and determining the cause of said accident.

Specifications

ManufacturerOGP Flash
ModelFlash 500
Year2004
ConditionUsed
