2 HP Vari-Speed Bridgeport Milling Machine with Mitutoyo DRO Power Feed 230V 3 Phase

No longer available

2 HP Vari-Speed Bridgeport Milling Machine with Mitutoyo DRO Power Feed 230V 3 Phase

$4,295 (USD)

Central Falls, RI

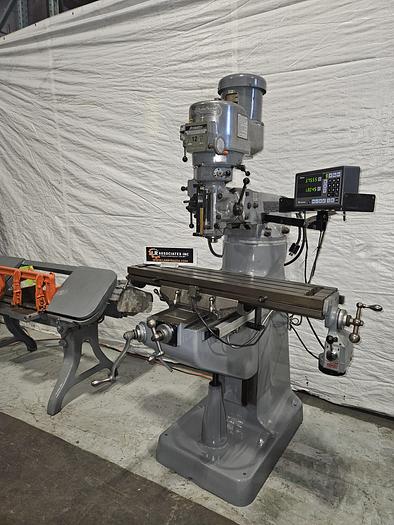

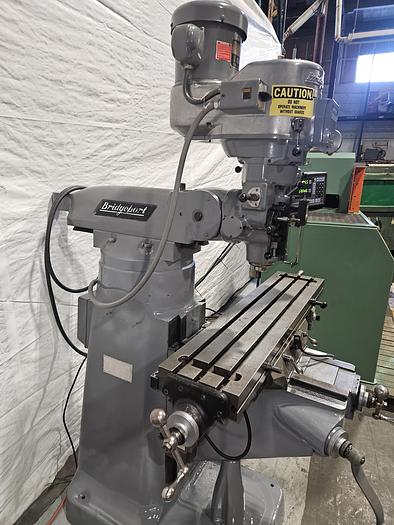

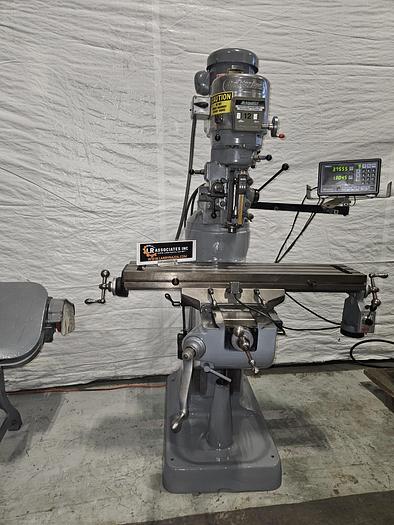

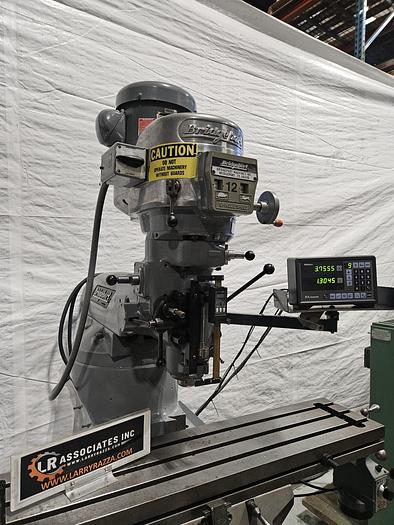

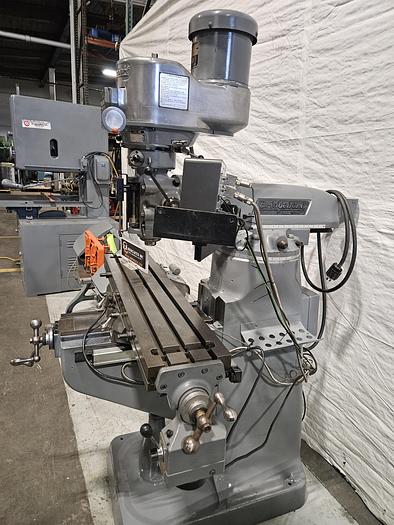

This is a Bridgeport 2HP Vari-Speed 42" Milling Machine with Mitutoyo DRO Power Feed 230V 3 Phase in great running condition!

We can turn this machine into single phase for $350

Bridgeport 9" x 42" 1HP Milling Machine Package

Bridgeport Milling Machine with Accessory Package as Shown:

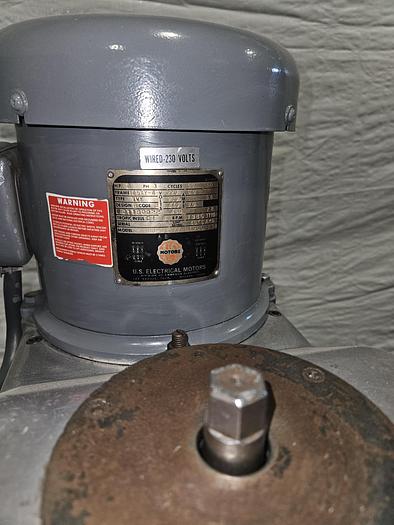

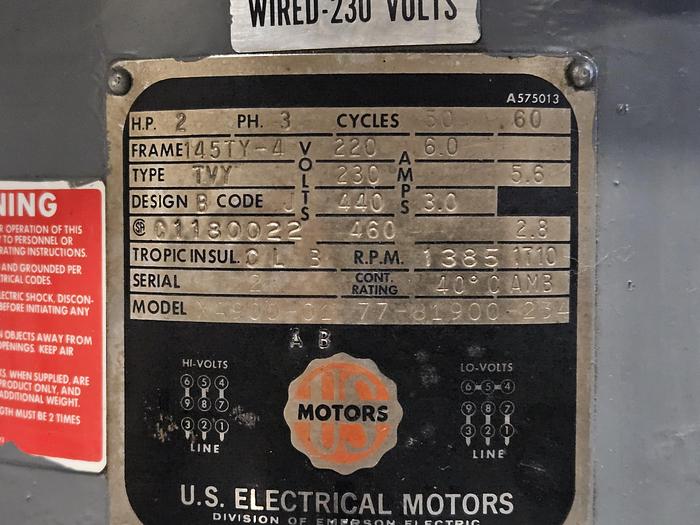

2HP Motor

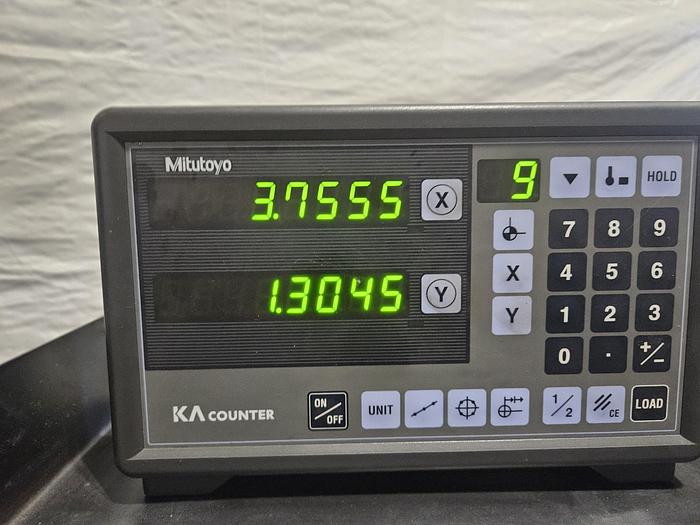

Mitutoyo Digital Read Out

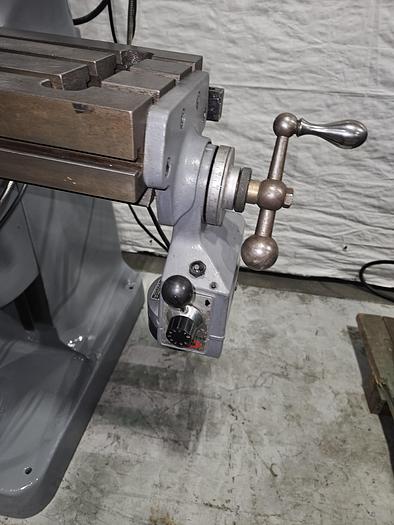

X & Z Power Feed

Round Head



Table Travel (X-Axis) 30 in. (914 mm)

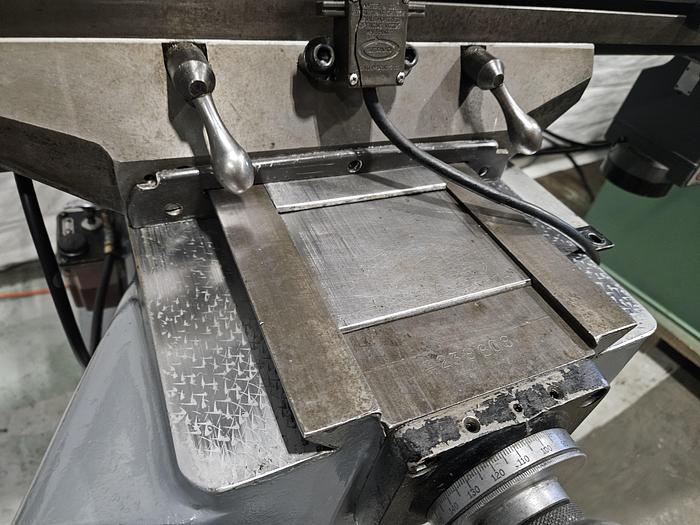

Saddle Travel (Y-Axis) 12 in. (305 mm)

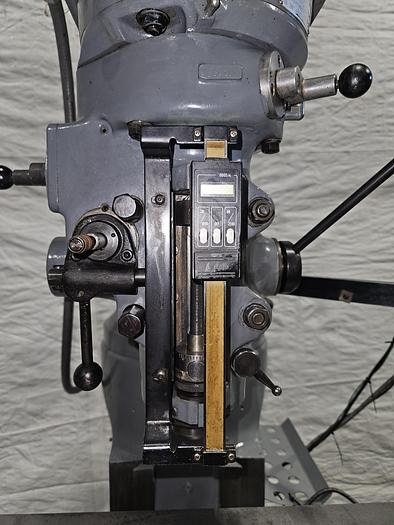

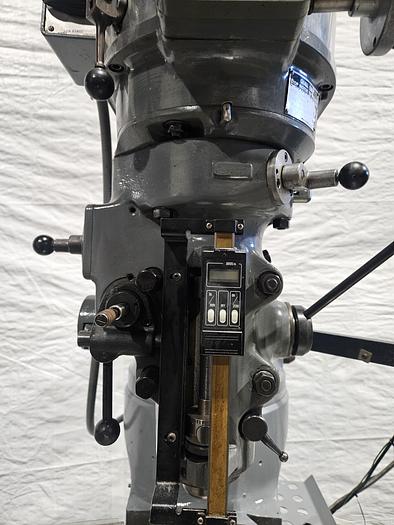

Quill Travel 5 in. (127 mm)

Knee Travel (Z-Axis)* 16 in. (406 mm)

Ram Travel 12 in. (305 mm)

Throat Distance (min.) 6.75 in. (171 mm)

Throat Distance (max.) 18.75 in. (476 mm)

Table to Spindle Nose Gage Line:

- (min.) 2.5 in. (64 mm)

- (max.) 18.25 in. (463 mm)


Overall Size 492 x 9 in. (1245 x 299 mm)

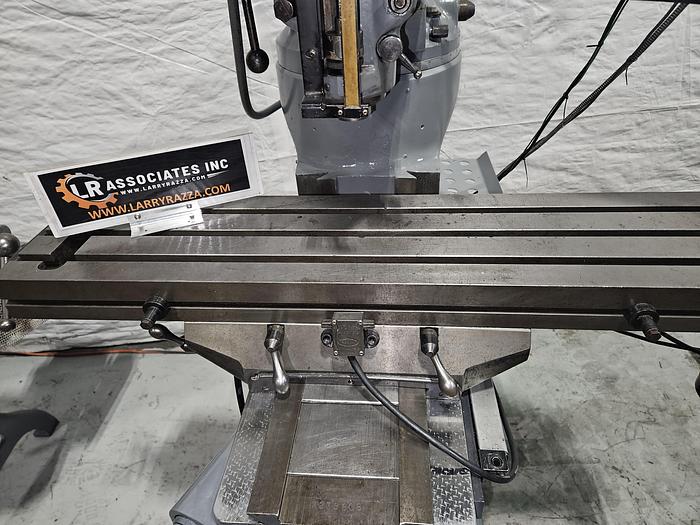

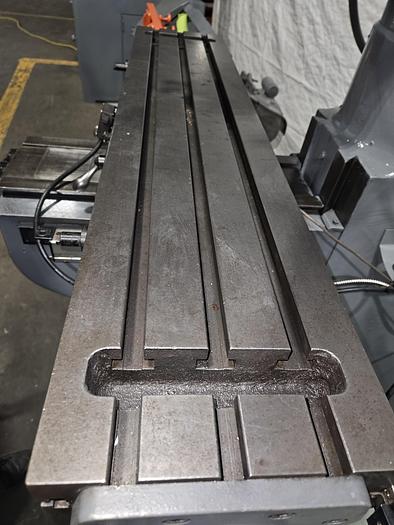

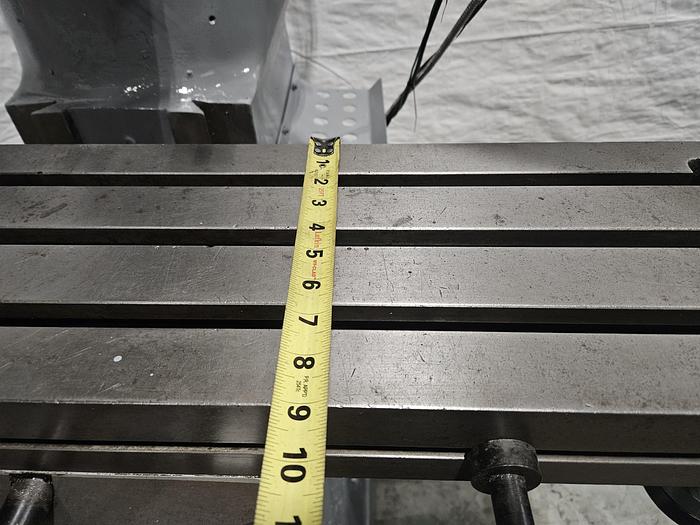

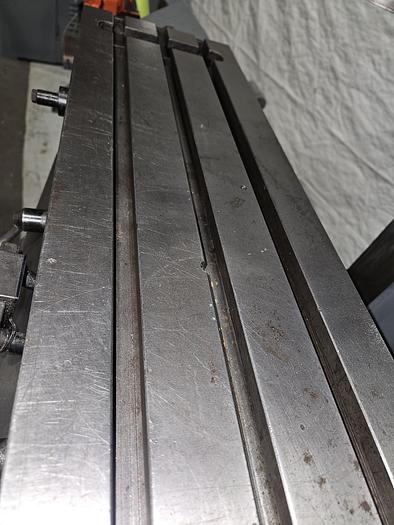

Working Surface 42 x 9 in. (1245 x 229 mm)

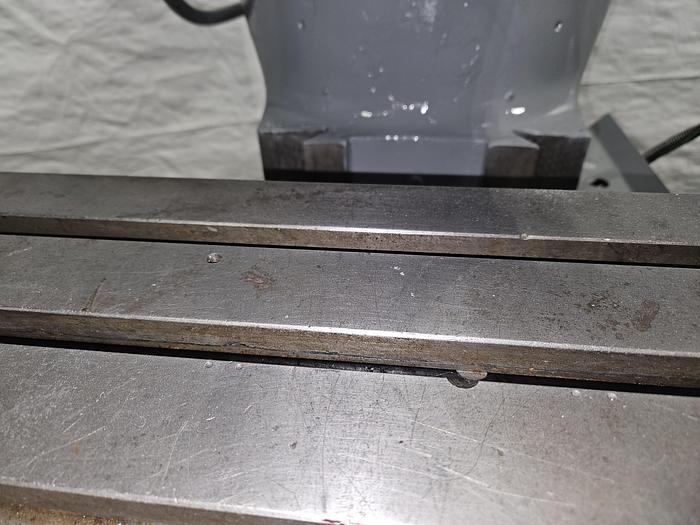

T-slots Centers 3 @ 2.5 in. (64 mm)

T-slot Size 0.625 in. (16 mm)

Height above Floor (max.) 47.25 in. (1200 mm)

Weight of Workpiece (max.) TBD

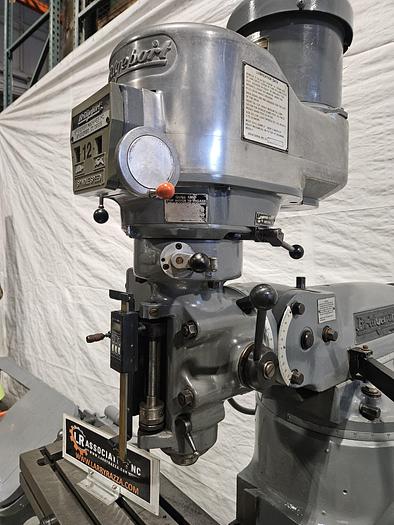

Spindle (2J Head):

AC Power Rating:

- (continuous) 2 hp

Spindle Taper R-8

Tooling R-8 Collets

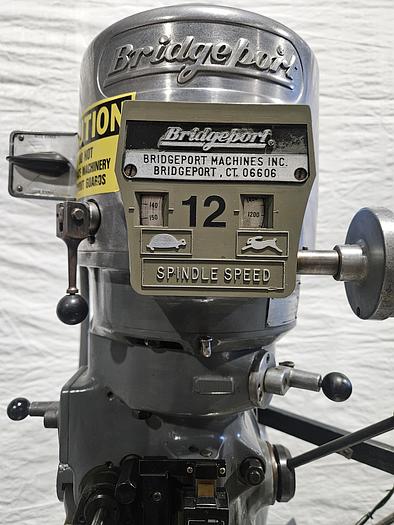

Speed Range:

High (infinitely variable) 660 – 2720 rpm

Low 80 – 325 rpm

Power Quill Feed 0.0015 in./rev (0.038 mm)

Manual Adjust:

- 0.003 in./rev (0.076 mm)

- 0.006 in./rev (0.152 mm)

Drilling Capacity:

Power Quill Feed 3/4 in. (19 mm)

Milling Capacity (mild steel) 3/4 in. (19 mm)

Boring Range (mild steel) 6 in. dia. (152 mm)

Spindle Diameter 1.875 in. (48 mm)

Quill Diameter 3.375 in. (86 mm)


Auto (X, Y) 100 ipm (2540 mm/min)

Manual (X, Y) 100 ipm (2540 mm/min)

Feedrate Range (X, Y) 0.1 – 35 ipm (2 – 889 mm/min)

Minimum Increment 0.0001 in. (0.003 mm)

Space and Weight:

Floor Area:

- 8.3 x 5.3 ft. (2.53 x 1.62 m)

- 8.3 x 7.8 ft. (2.53 x 2.4 m)**

Height 7.04 ft. (2.15 m)

Net Weight 1930 lb (875 kg)

Shipping Weight 2075 lb (941 kg)

Cat# LRIP-00000-030324-D

Picture #02202024


* All information deemed accurate but may vary from model to model.
