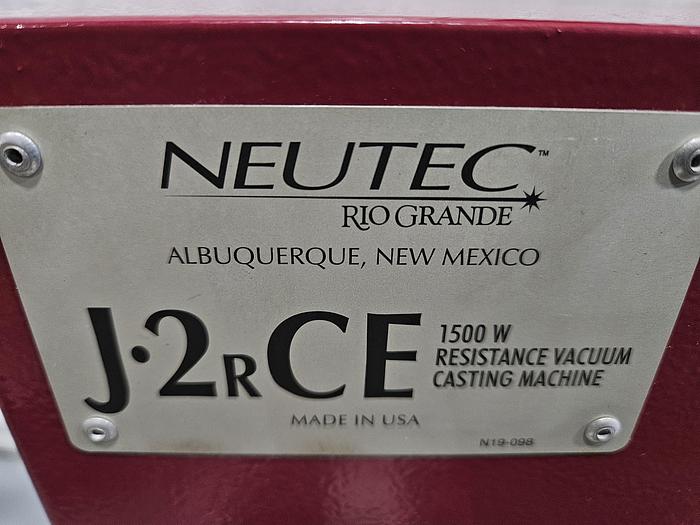

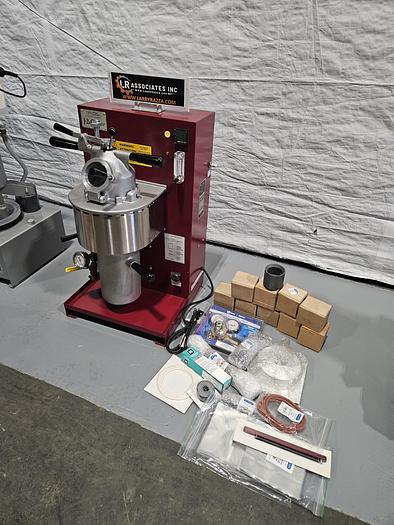

Neutec J2 RCE 1500 W Resistance Lost Wax Vacuum Casting Machine Loaded with Accessories Cast Gold Silver Brass

Neutec J2 RCE 1500 W Resistance Lost Wax Vacuum Casting Machine Loaded with Accessories Cast Gold Silver Brass

$15,495 (USD)

Central Falls, RI

orCall 1 (401) 965-5557

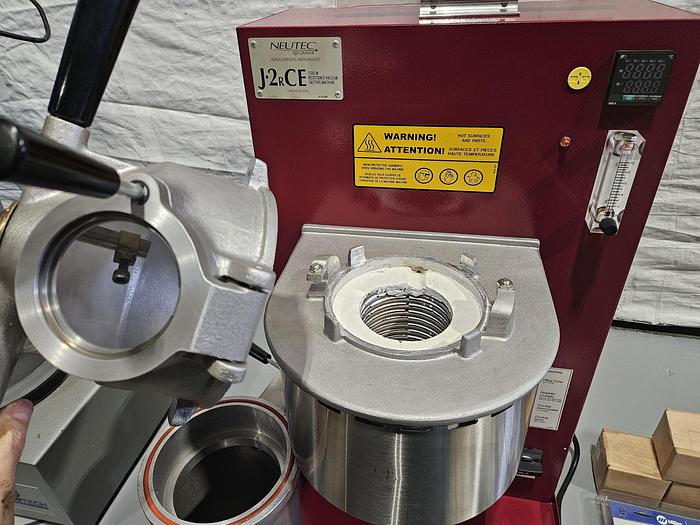

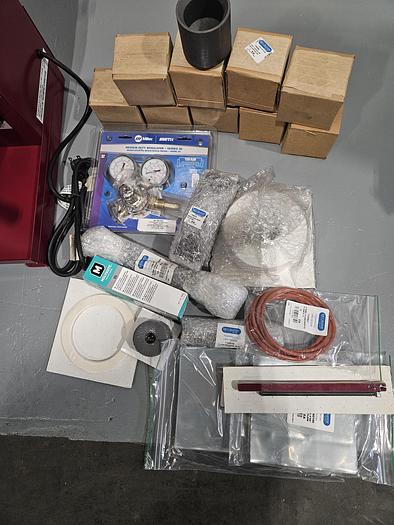

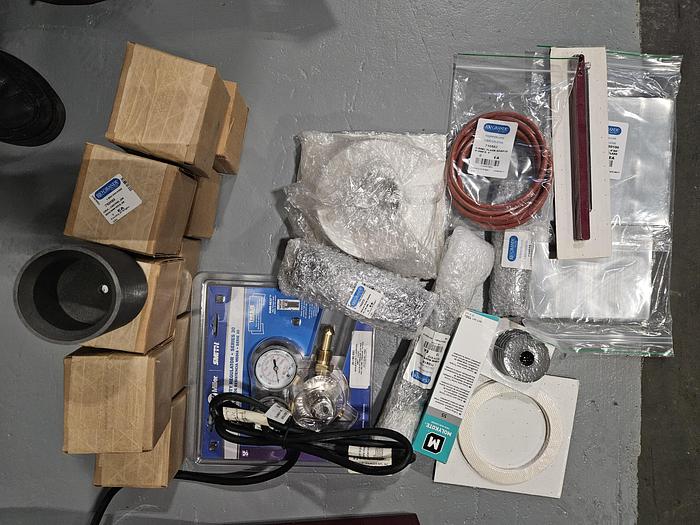

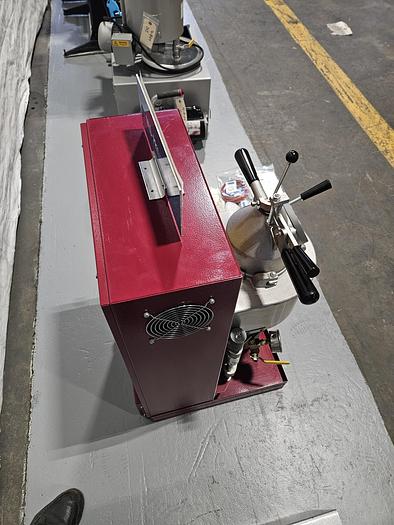

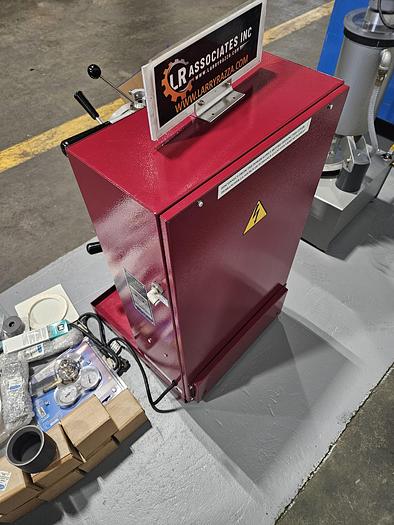

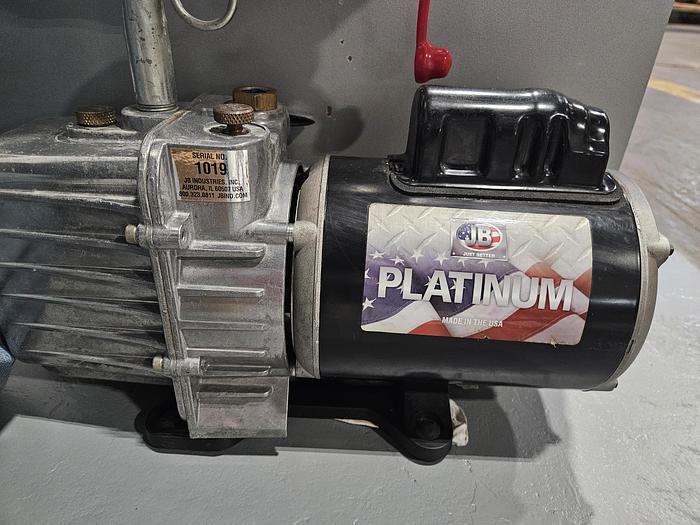

This is a New Neutec J2 RCE 1500 W Resistance Vacuum Lost Wax Casting Machine Loaded with Accessories... with Vacuum Motor.... This unit was purchased NEW and never used!!! This unit is TURN-KEY Ready to Cast!!

  • Brand: Neutec
  • Model J-2RCE
  • Attributes Dimensions: 18"W x 18"D x 32"H

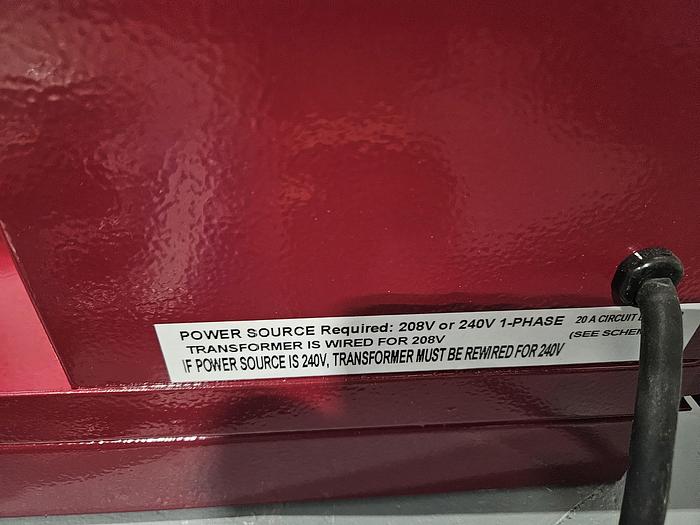

  • Voltage: 208–240 volts (single-phase)
  • Amperage: 13 amps
  • Frequency: 50/60Hz
  • Shipping Weight: 225 lbs (102.058kg)
  • Made In USA

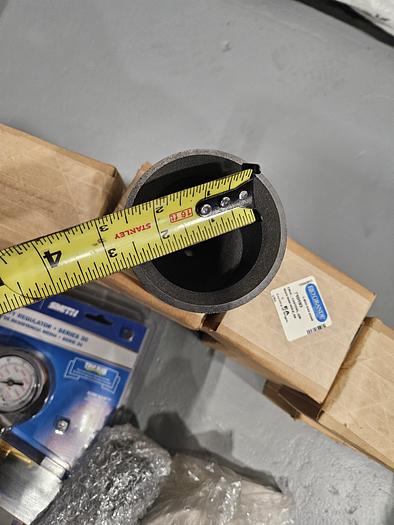

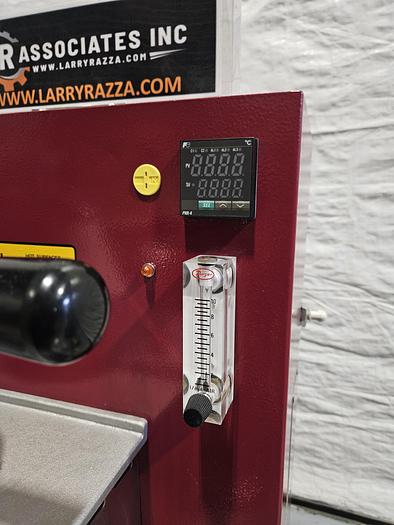

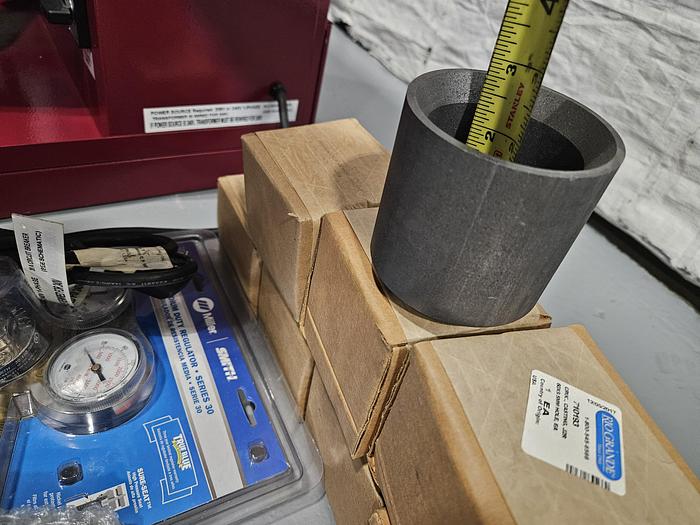

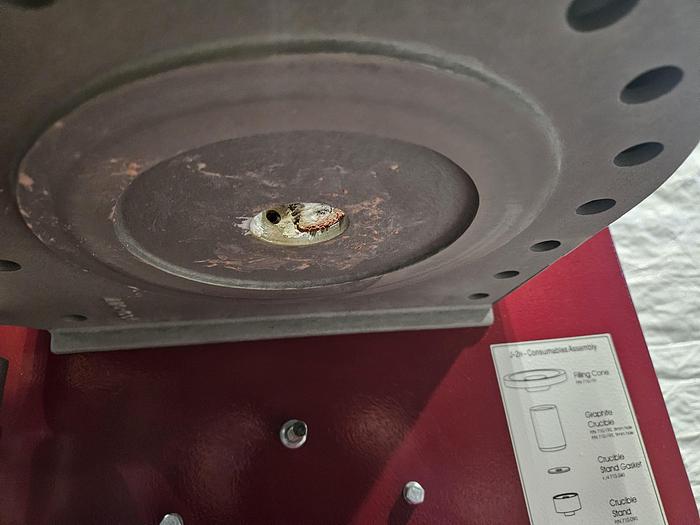

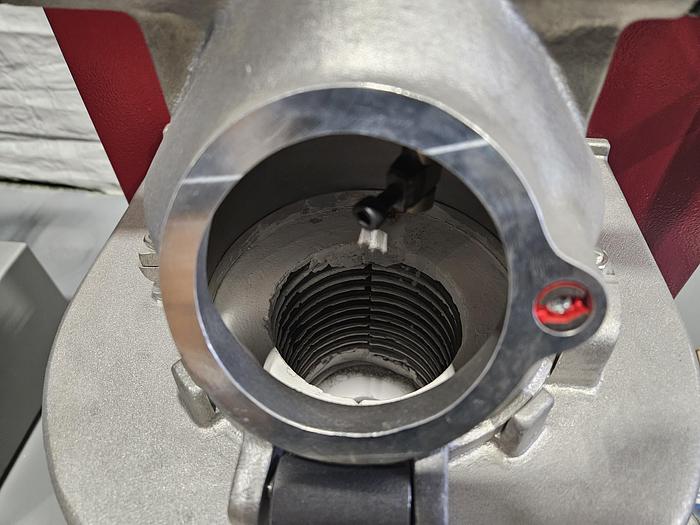

For a fraction of the cost of any comparable machine, the Neutec® J-2R™ delivers superior jewelry castings and greater jewelry production capacity. Manufactured using the best components available, this exceptional machine combines advanced technology with practical design to give you the casting capability you need today and well into the future. The J-2R is absolutely the easiest casting system to set up, use and maintain, and it delivers quality castings and outstanding operational reliability. You can be ready to cast again 6–8 minutes after each pour, keeping your production moving all day long.The J-2R™ provides an oxygen-free atmosphere for the metal during melting and pouring to help eliminate oxidation. The large-volume graphite crucible also removes oxygen that may previously have been dissolved in the metal. This means fewer defects and lower reject rates. Cast at the optimum temperature for any design without overheating the metal. The J-2R measures the metal temperature in the center of the metal pool, giving you accurate casting temperatures. The crucible is a bottom-pour design, so there is very little drop in metal temperature from crucible to flask.Simple to install and operate in only three square feet of bench space, the J-2R™ requires only that you set the temperature controller for the desired casting temperature, add the casting grain to the crucible, insert the flask and (when set temperature is reached) squeeze the casting lever.The exclusive Neutec® technology engineered into this machine produces the time- and money-saving benefits you've come to expect from Neutec. These benefits include:• Easy installation and simple operation.• Fast, 6- to 8-minute cycle times.• More oxide-free, defect-free castings thanks to an advanced technology graphite crucible system that helps remove oxides from the metal, an oxygen-free atmosphere in both crucible and flask chambers.• Dependable, repeatable results from precise temperature control.• Interlocking consumables that protect the coil from metal spills• Long-life coil designFeatures:• Roomy flask chamber accommodates flasks from 2-1/2" to 4" in diameter and up to 9" high. It swivels completely out from under the crucible chamber, making it easy to insert or remove flasks or to service the machine.• 60mm graphite crucible helps remove oxide contamination that can cause inclusions. It easily accommodates enough metal for large flasks yet also melts small loads efficiently.• Built-in stirring rod ensures a homogeneous melt without having to open the unit. Temperature is maintained and the controlled atmosphere remains intact.• Easy-read vacuum gauge and handle provide at-a-glance monitoring of vacuum pressure.• Thermocouple is centered in the sealing rod to ensure fast, accurate readings.• Digital temperature control produces accuracy you can see.• Easy-squeeze lever starts the pour quickly and easily.• Metal introduction door allows quick loading of the crucible.• Resistance coil surrounds the crucible for maximum heat transfer and fast, effective melting.• Space-saving, 18" x 18" footprint fits easily into any shop.• Rugged, durable construction.• Includes one set of consumables to get you started.

Specifications & Features

  • Attributes Dimensions: 18"W x 18"D x 32"H
  • Voltage: 208–240 volts (single-phase)
  • Amperage: 13 amps
  • Frequency: 50/60Hz
  • Brand: Neutec
  • Shipping Weight: 225 lbs (102.058kg)
  • Country Of Origin: United States

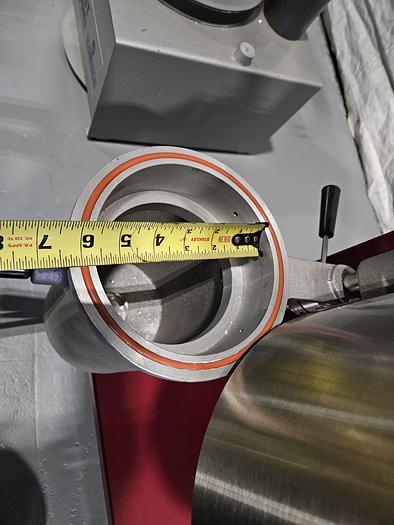

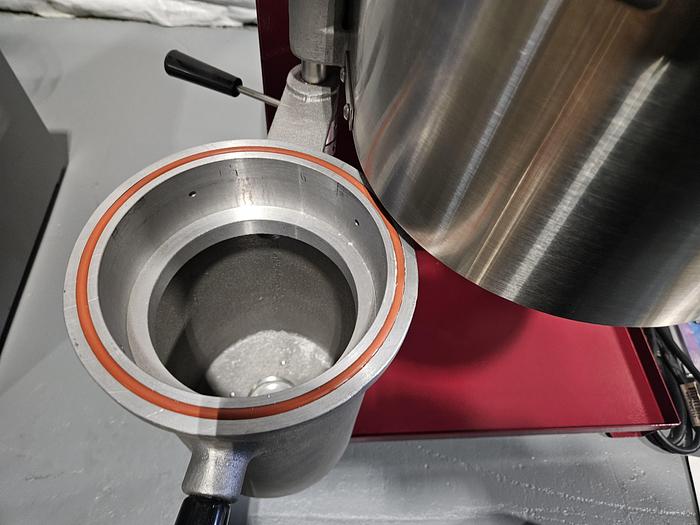

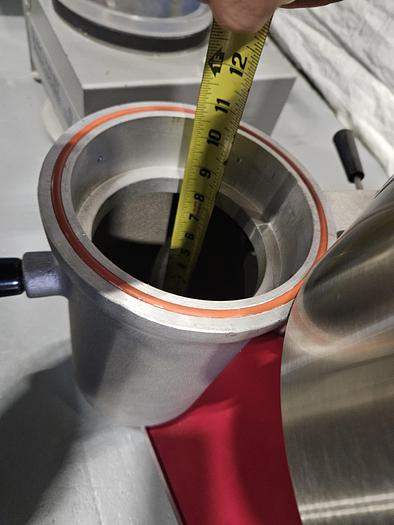

Additional Crucible capacity: 780g sterling silver or 1,004g 14K goldMax. flask capacity: 4" x 9" (102 x 229mm) perforatedMax. temperature: 2,200°F (1,204°C)Machine weight: 120 lbs. (54kg)

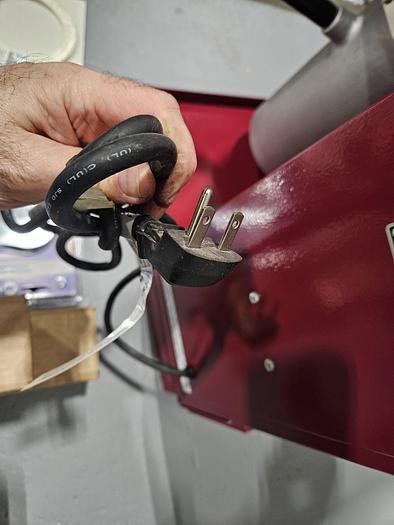

Features & Maintenance• This machine comes pre-wired with a 220-volt/20 amp cord.• Your specific destination will determine how your machine must be packaged for shipping.• All items in this kit are made in the USA.• IMPORTANT: This item is wired for a 220-volt outlet and is sold with a U.S. plug. Because amperage, outlets and plugs vary widely by location, you may need a different plug. If so, you are responsible for having the appropriate plug or adapter installed by a qualified professional. Rio Grande assumes no liability for improper or inadequate re-wiring or adapters procured by customer.

* All information deemed accurate but may vary from model to model.

Contact Larry for any questions you may have...

Contact us at Four Zero One - Nine Six Five - Five Five Five Seven

Google "Larry Razza" to see more information & videos of our equipment!

L R Associates, Inc.

Rhode Island, USA


Equipment Financing Available, please contact us!

Fast Application, it’s all filled in for you...

Online leasing applications (get LOW monthly payments)

* Please Note: Not all machines may qualify for Leasing.

Payments: We accept all Major Credit Cards, Bank Wires, Company and Personal Checks.

SHIPPING: Contact us for great rates on shipping...

We always get better rates...

Please email us for a rigging and shipping quote; just include the zip code when inquiring and if you have a loading dock or if you are a residential delivery, Thanks!

...We also ship worldwide.

CONDITIONS: All quotations are for immediate acceptance. They are subject to withdrawal, change and prior sale without notice. Shipping dates are only approximate and contingent upon delays beyond our control. All orders received are binding only when they have been accepted and acknowledged by us in writing. Provisions in customer’s purchase orders contrary to these conditions shall not be binding upon us unless accepted in writing. Unless otherwise specified, prices quoted are F.O.B. shipping point, exclusive of State, County and Federal taxes which must be added where applicable. Insurance on shipment must be requested by email, there will be an additional charge for shipping insurance. Shipping destination must be available to receive the shipment… any costs incurred on delays due to the buyers’ destination being unable to receive the shipment and/or additional services required, will be the responsibility of the buyer. Care is taken to give reliable specifications, but these are not guaranteed. We reserve the right to correct typographical errors. All used equipment is sold "as is".

INDEMNIFICATION: Used Machines may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It is the user's responsibility that the said machines be so equipped and safeguarded to meet OSHA and any other requirements before placing such machinery into operation. User agrees to indemnify and hold Seller harmless of and from any and all claims or liabilities from accidents involving these machines caused by failure of user, his employees, or agent to follow instructions, warnings, or recommendations furnished by manufacturer, or Seller, or by failure of user to comply with Federal, State and Local laws applicable to such equipment including the Occupational Safety and Health Act of 1970. User shall notify Seller promptly after occurrence of any accident involving these machines, and shall cooperate fully with Seller. or Seller's agent in investigating and determining the cause of said accident.

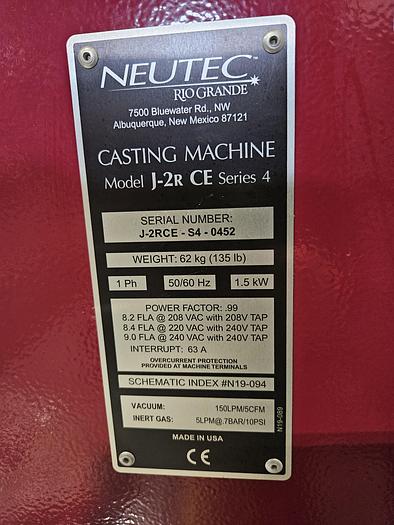

ModelJ-2RCE Series 4
Serial NumberJ-2RCE-S4-0452
Stock NumberWSPT-LCJ-00000-042024-B
