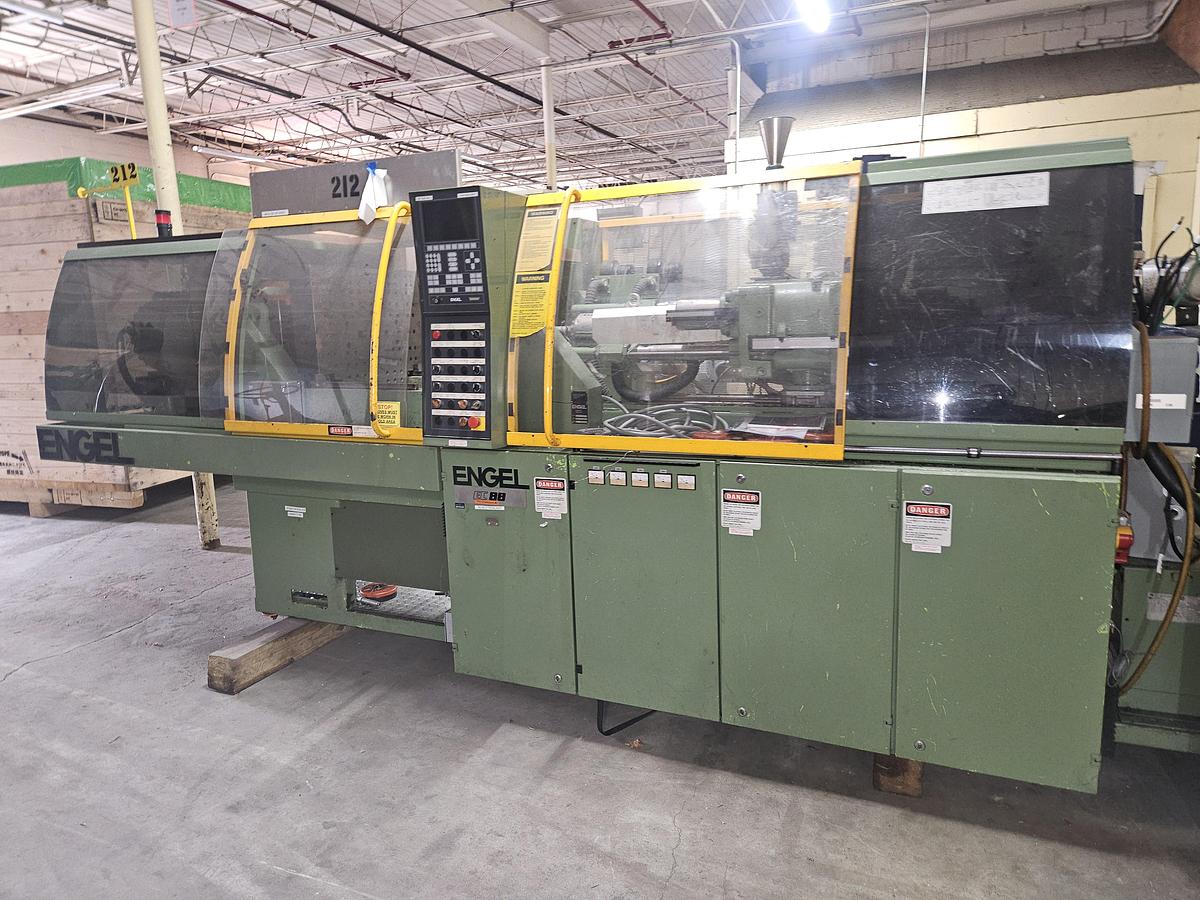

1994 Engel 330/ 90 Ton Horizontal Plastic Injection Molding Machine We Have Two Available!!!

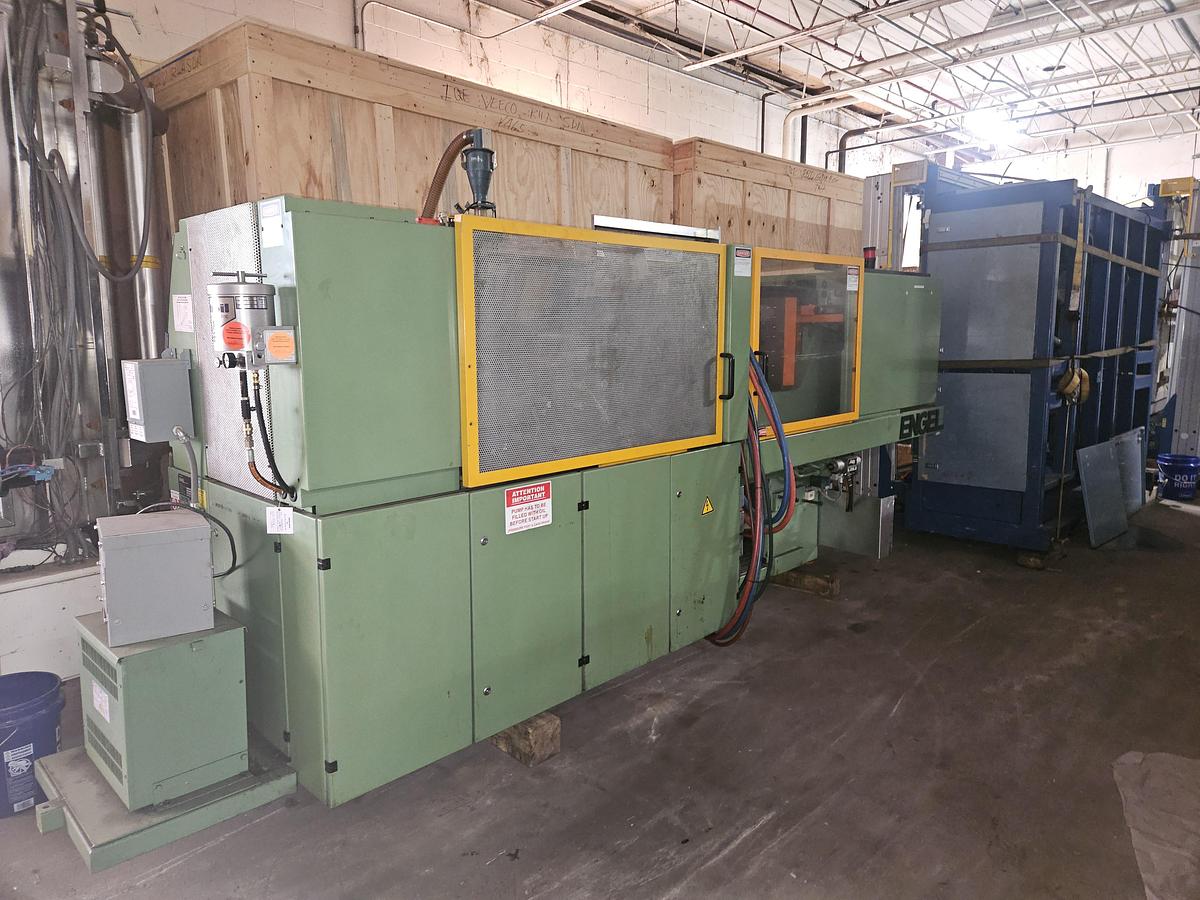

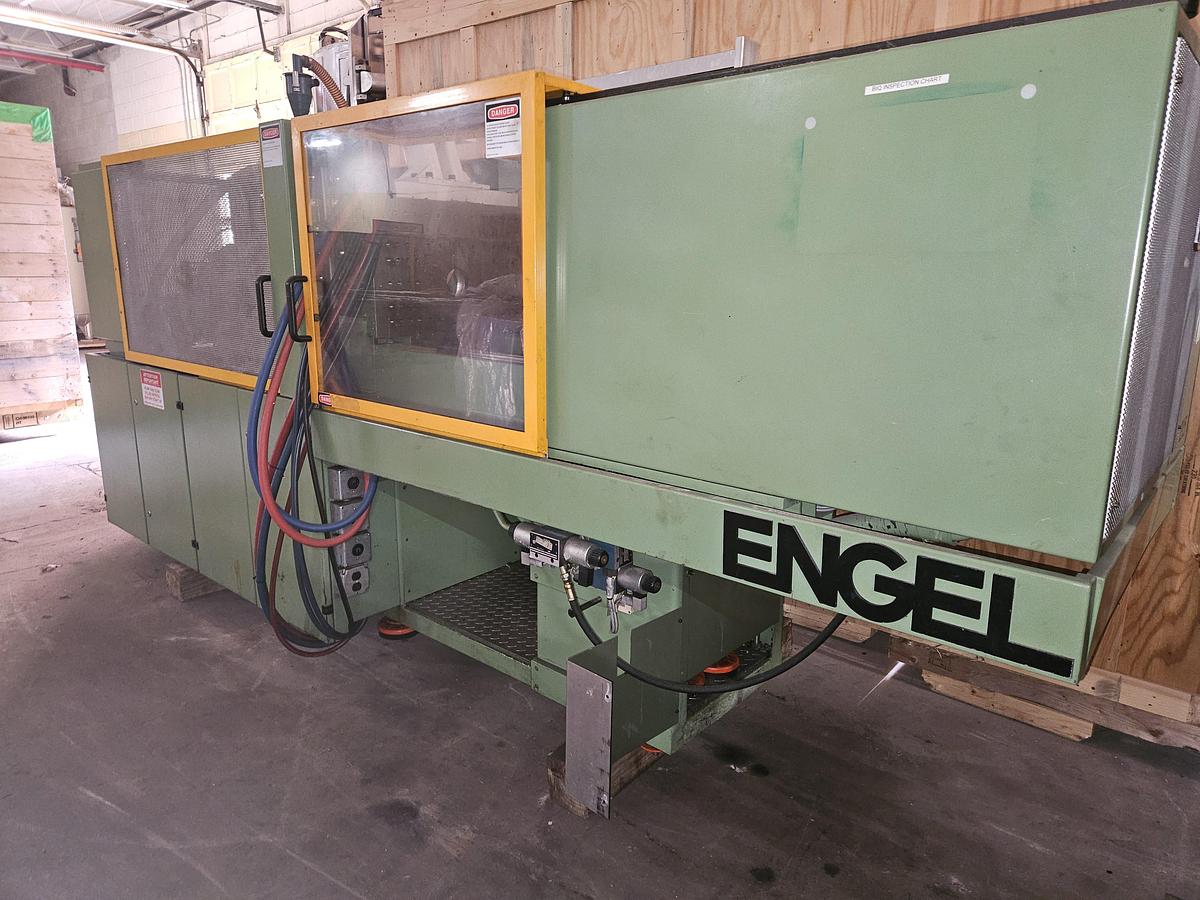

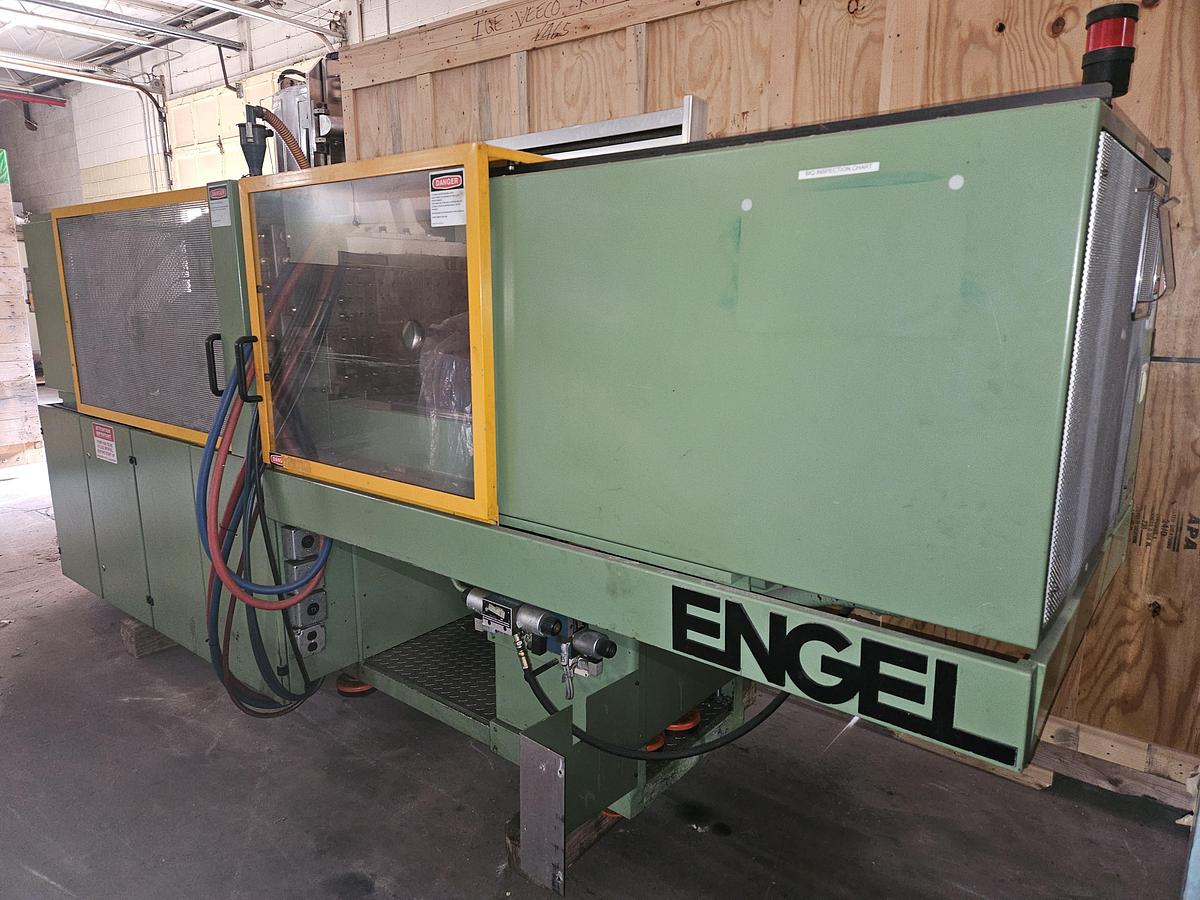

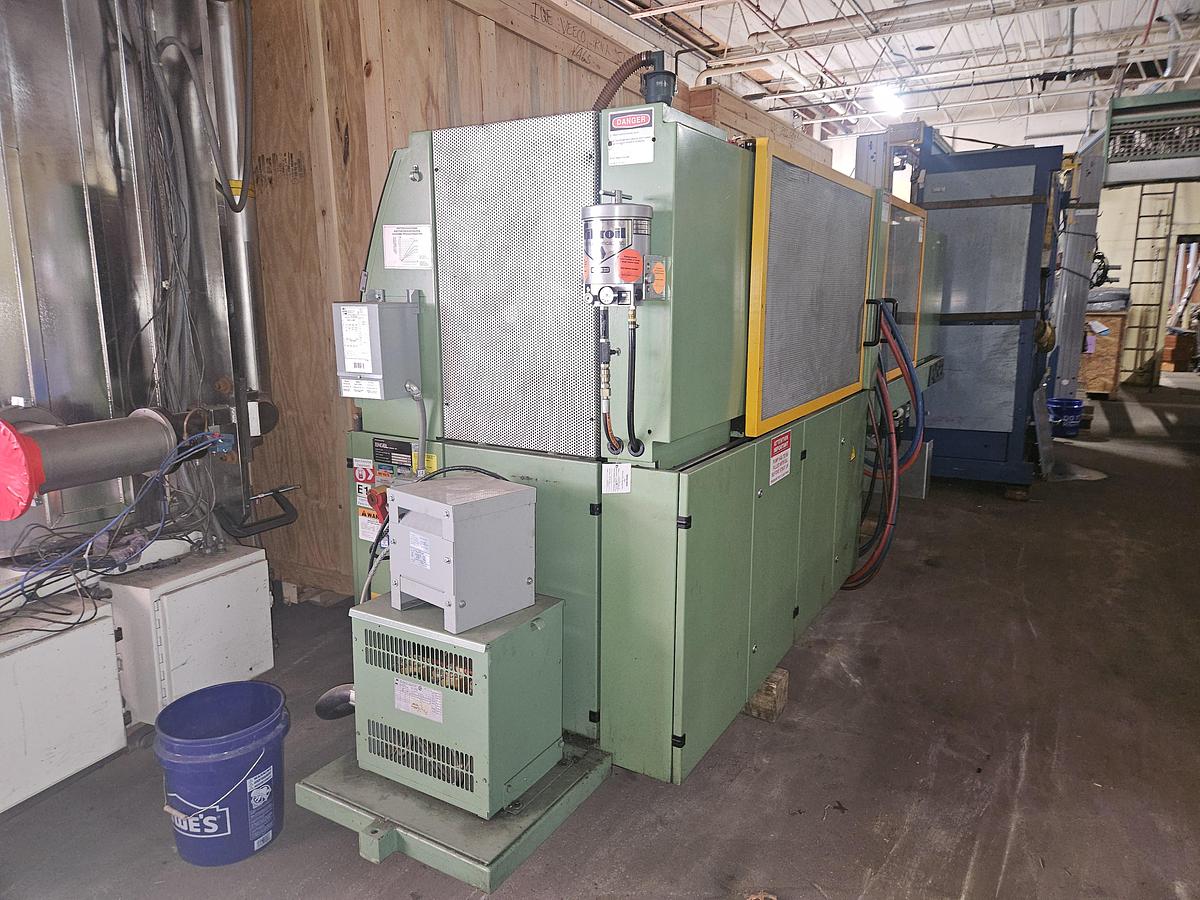

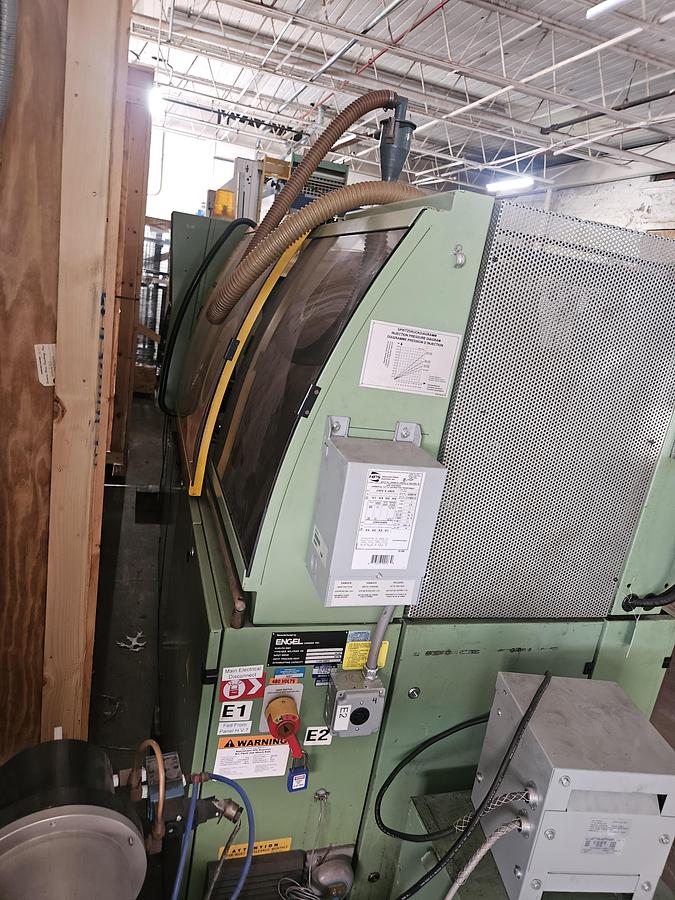

This is a 1994 Engel 330/ 90 Ton Horizontal Plastic Injection Molding Machine... Running when taken off-line.

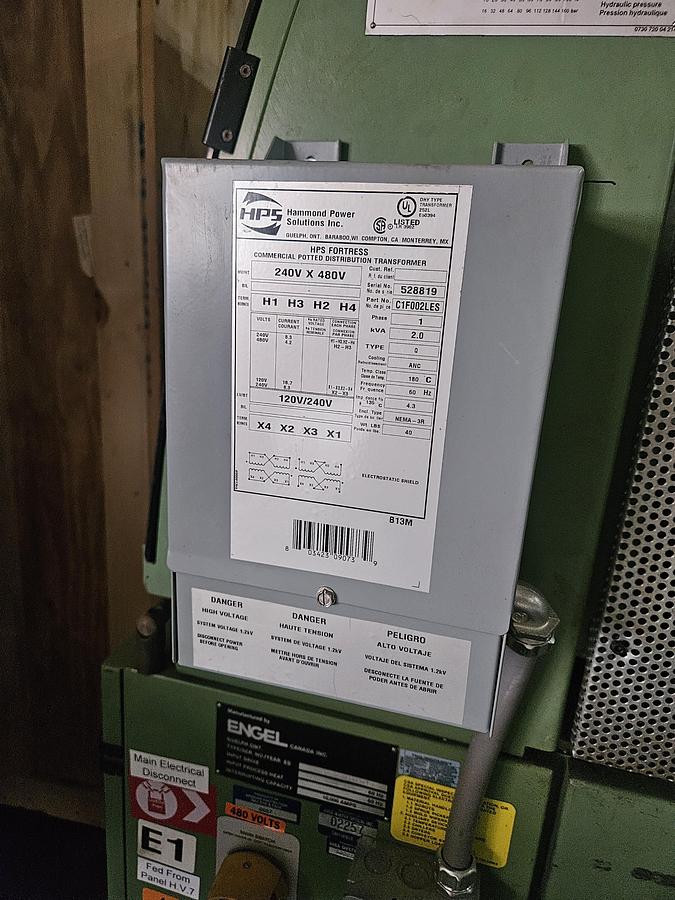

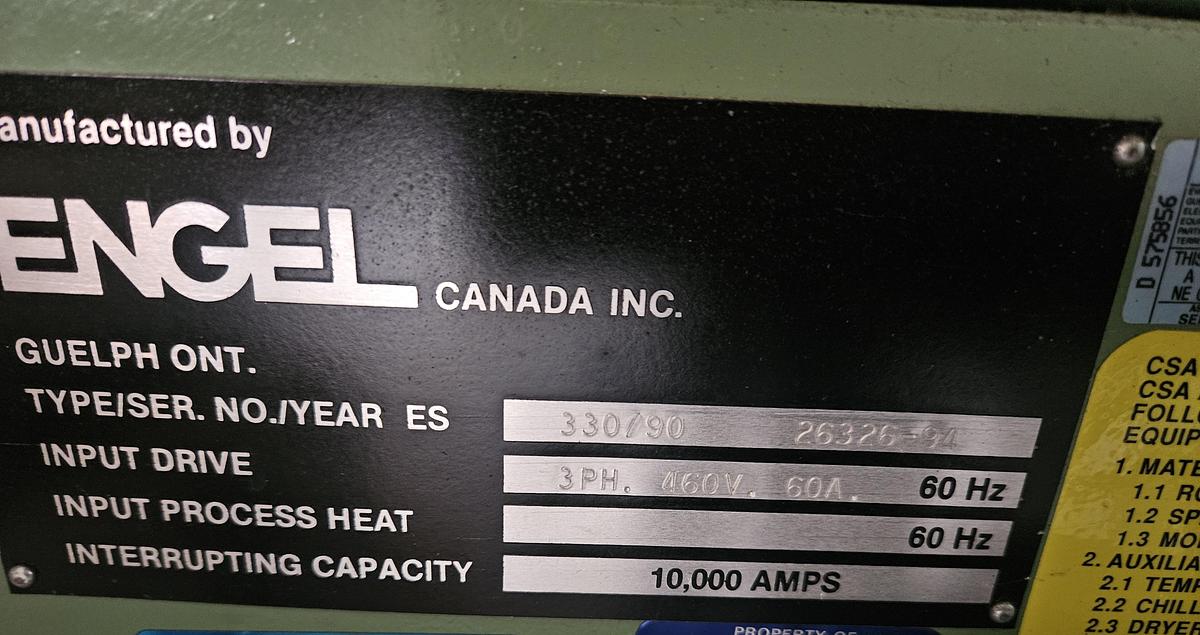

Power: 460V 3 Phase, 60 Amps, for hydraulic motor and heaters.

WE ALSO HAVE YUSHIN ROBOTS THAT FIT ON THIS MACHINE!! PLEASE INQUIRE!!

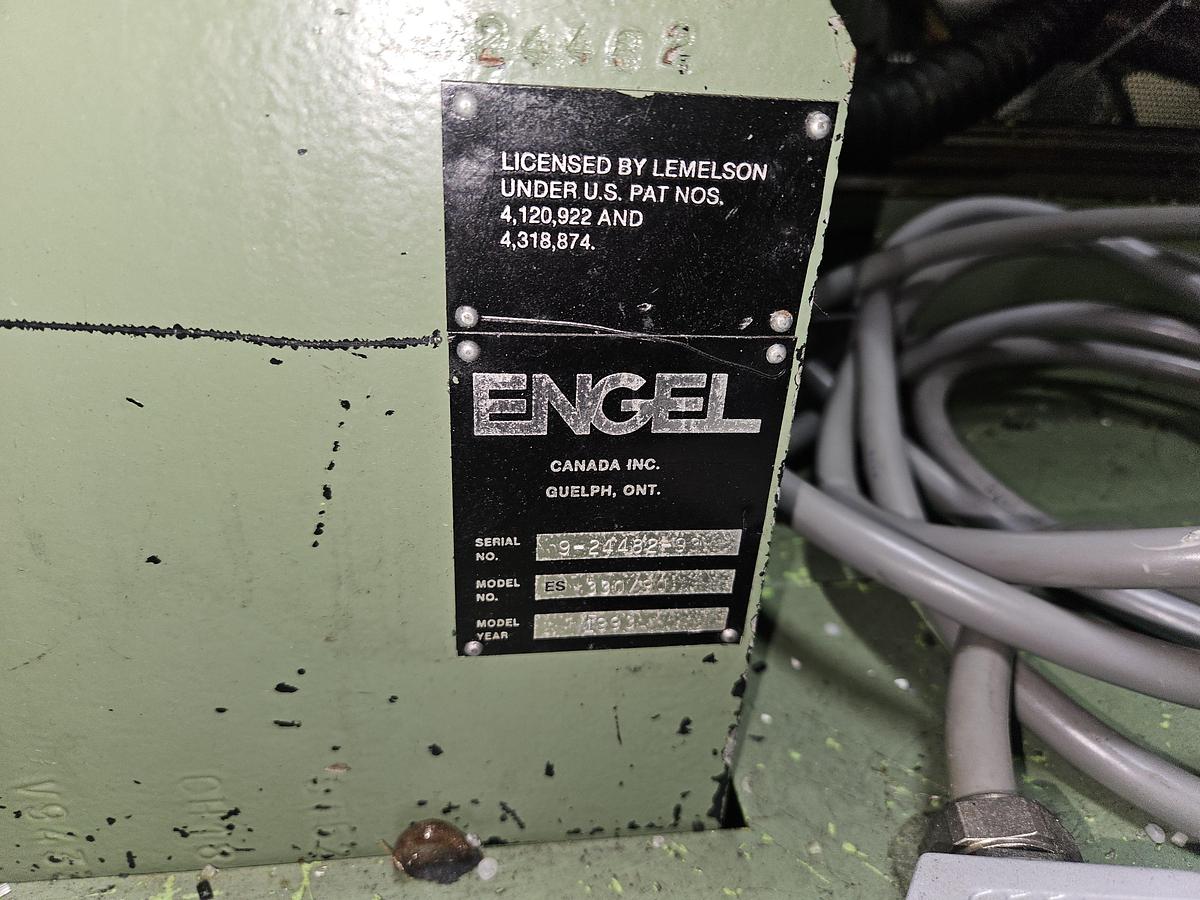

Manufacturer: Engel

Type of machine: ES 330 / 90 HL

Year: 1994

Delivery time: Immediately

Terms of Delivery: Ex - Works

Location: Attleboro, Massachusetts, USA

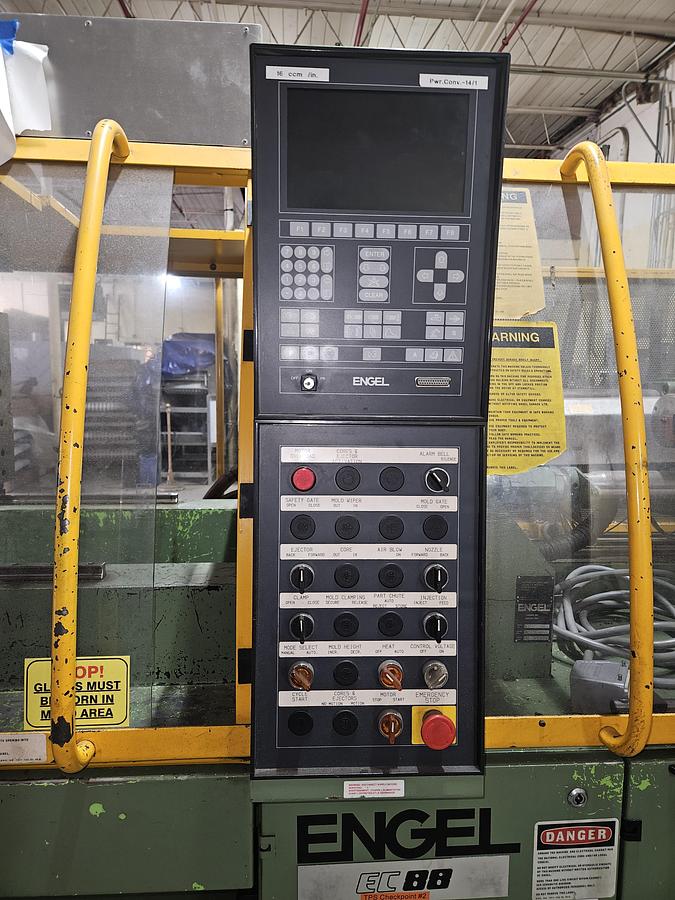

Screen text: English

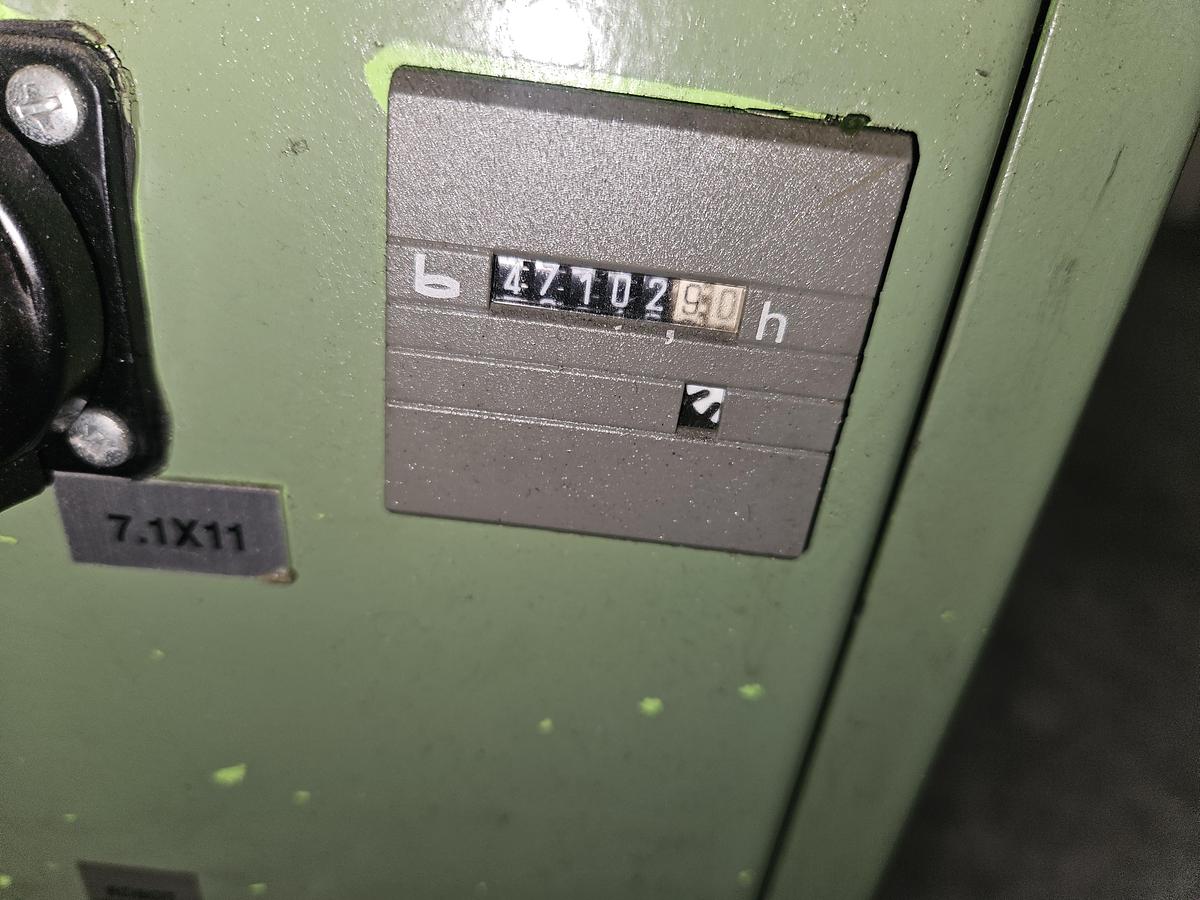

Operating hours: 48,000 Hrs

Technical details

Clamping unit

Clamping force: 900 kN

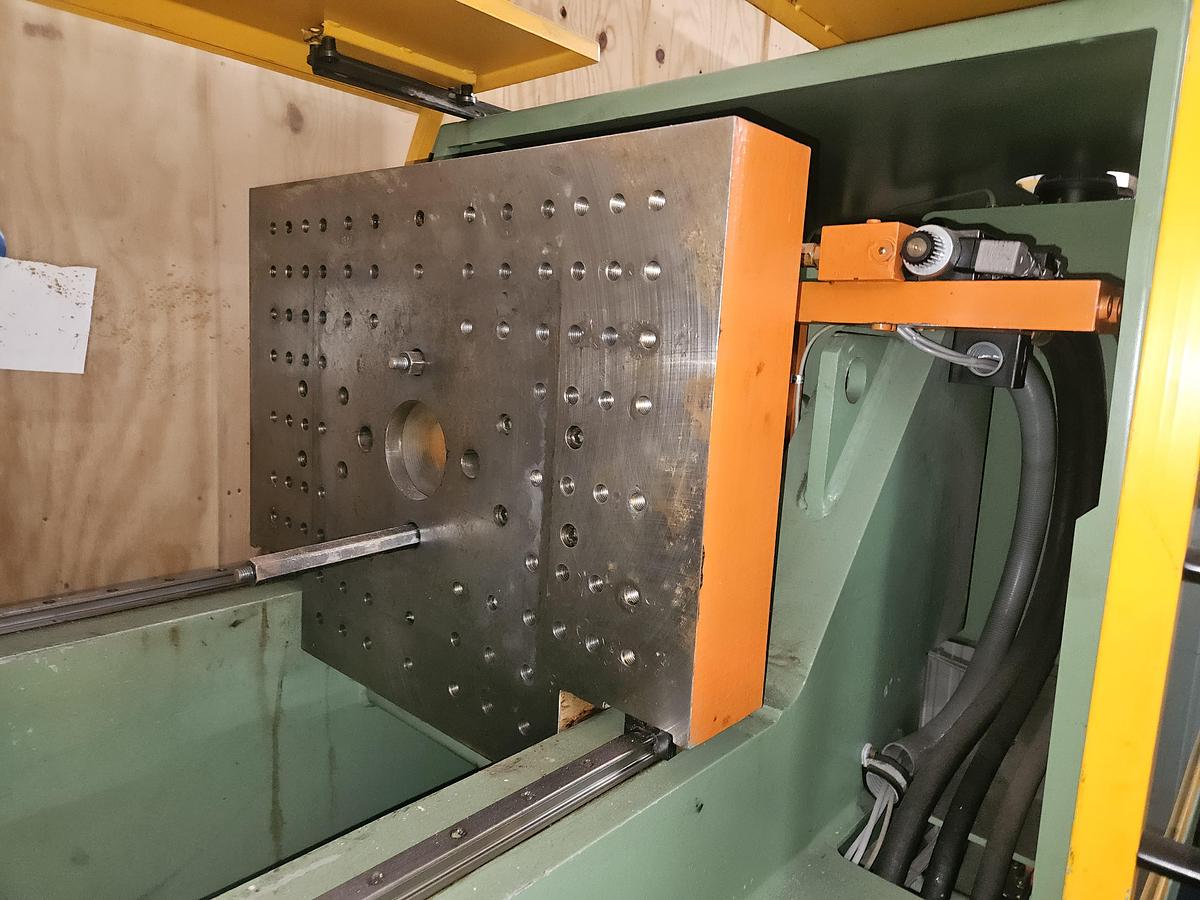

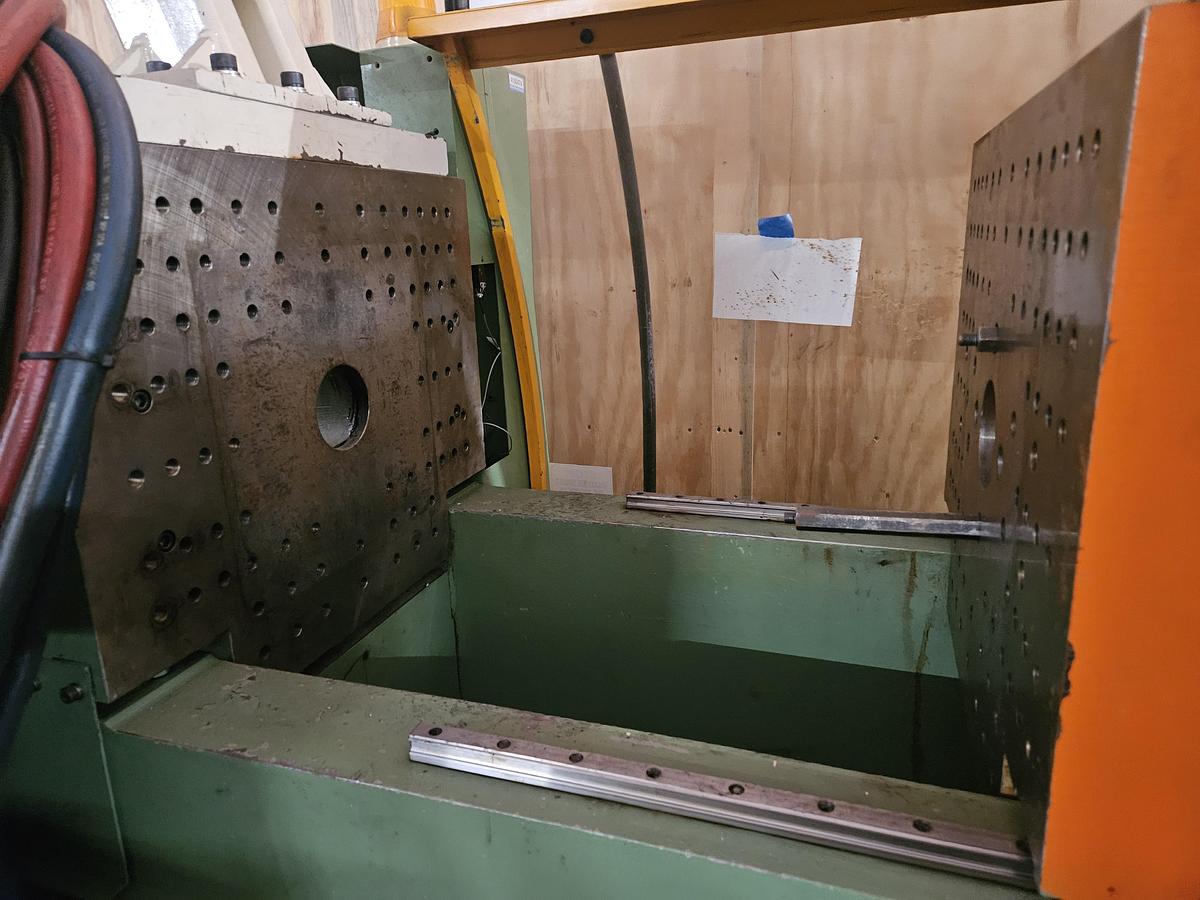

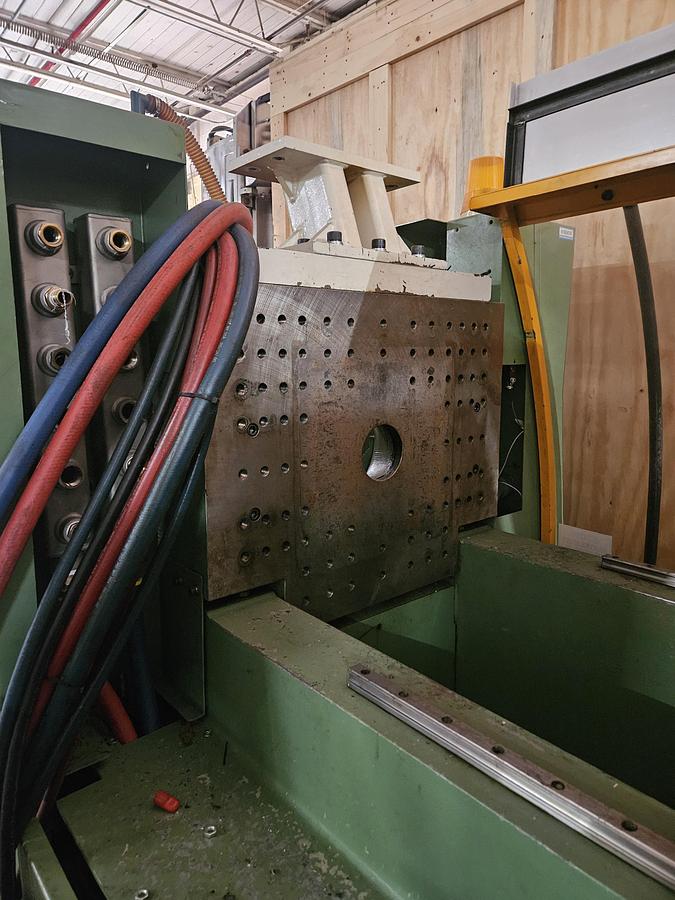

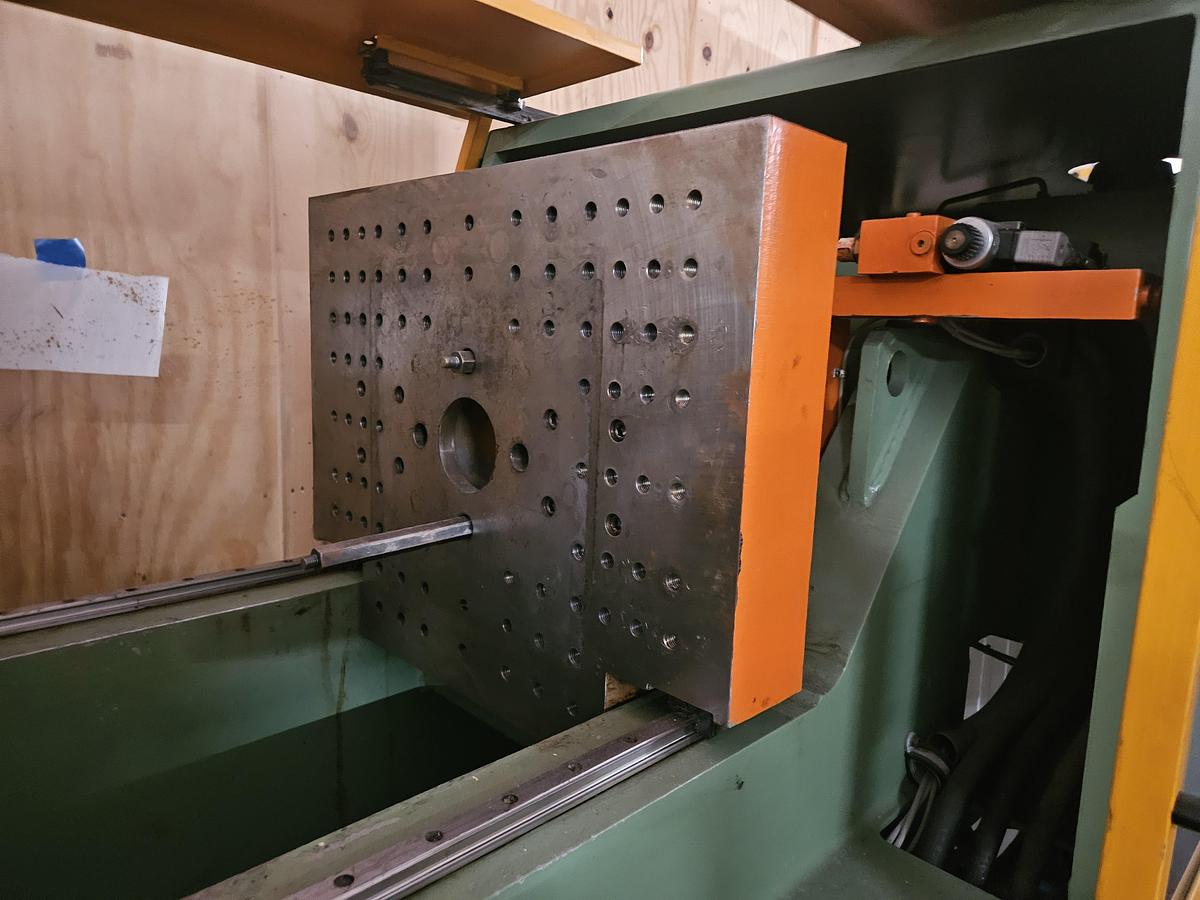

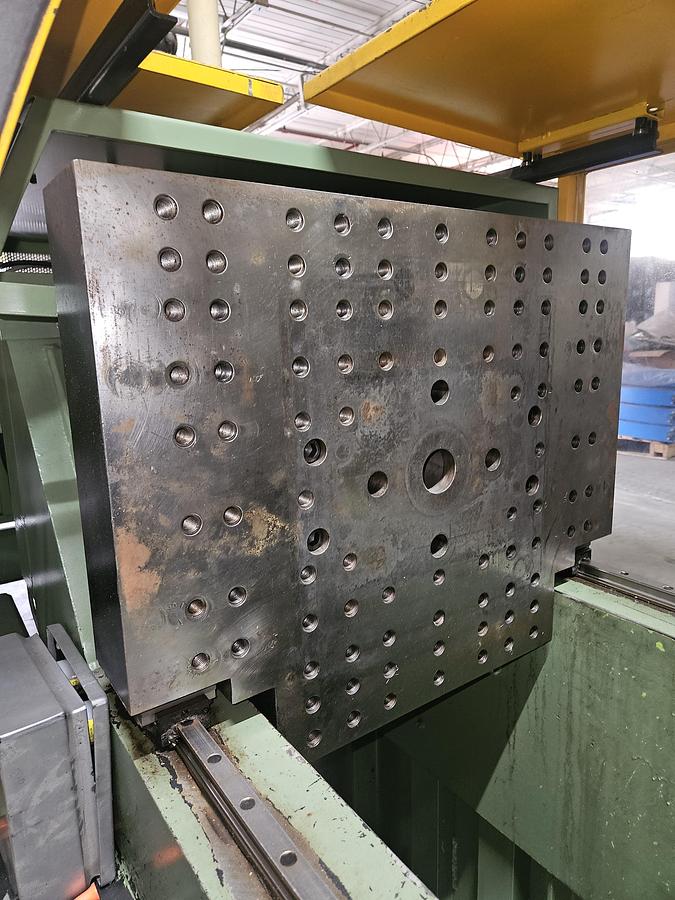

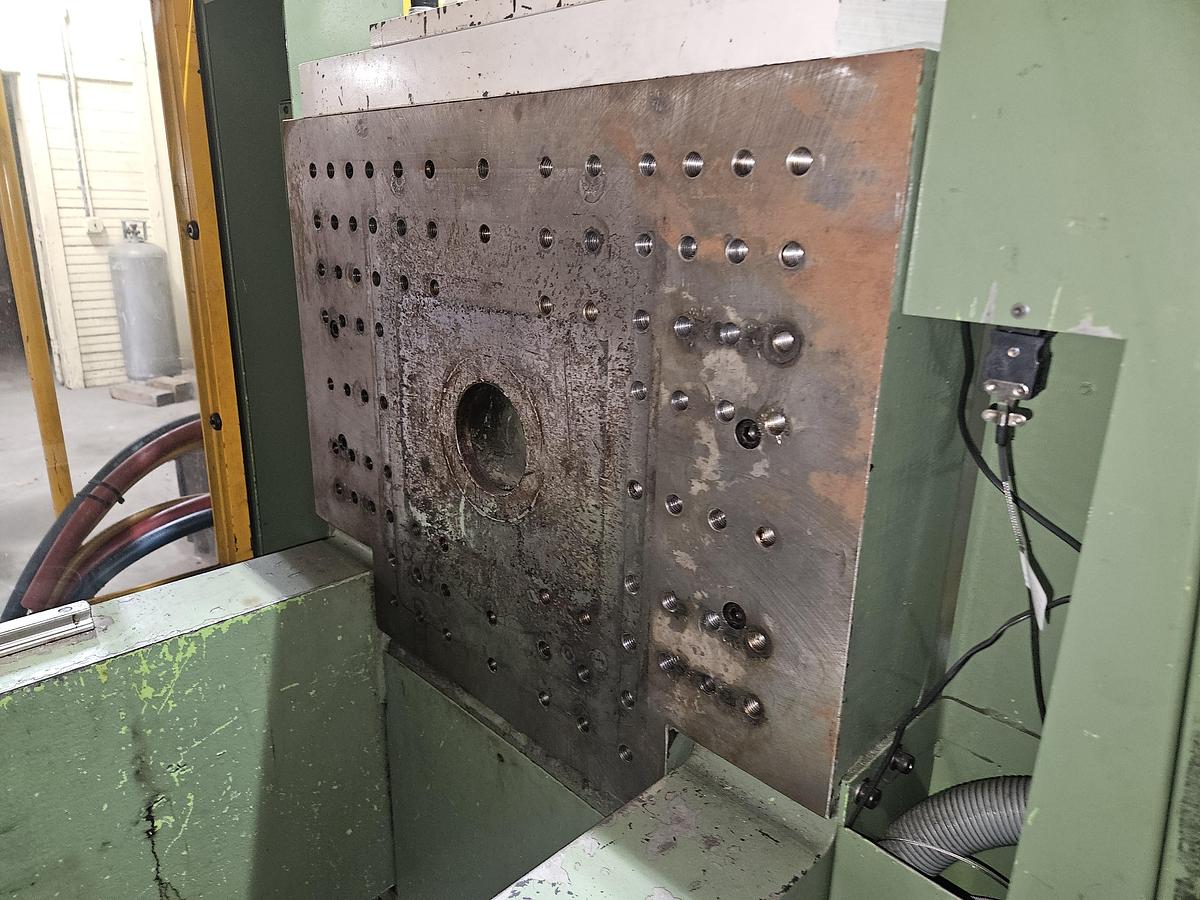

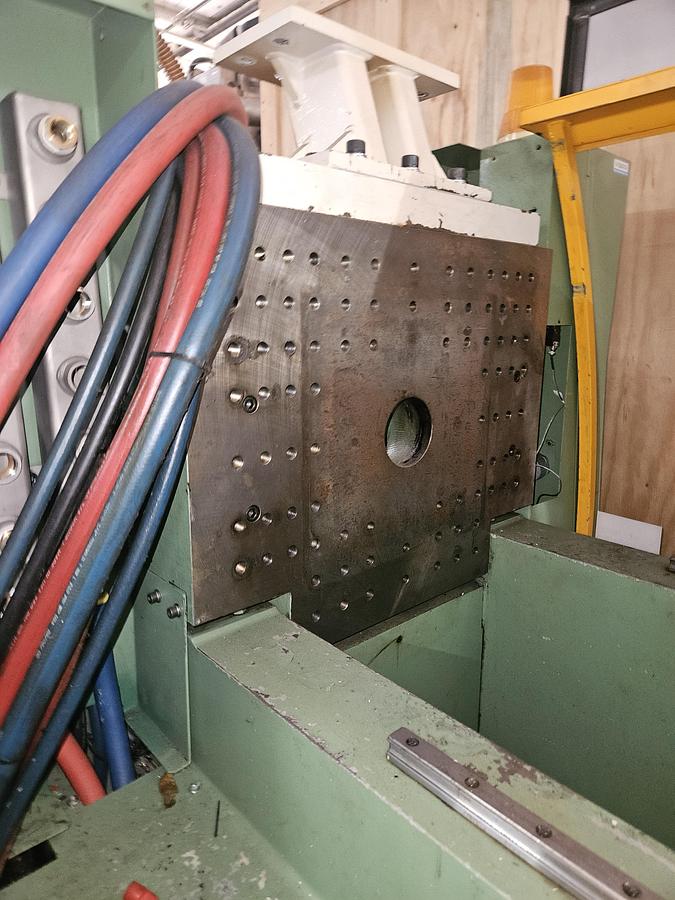

Size of mold platens (h x v): 710 mm x 420 mm

Distance between tie bars (h x v): HL

Mold opening stroke: 500 mm

Mold height min.: 250 mm

Mold height max.: mm

Max daylight: 750 mm

Hydraulic ejector - stroke: 130 mm

Ejector force forward/backward: 40 kN

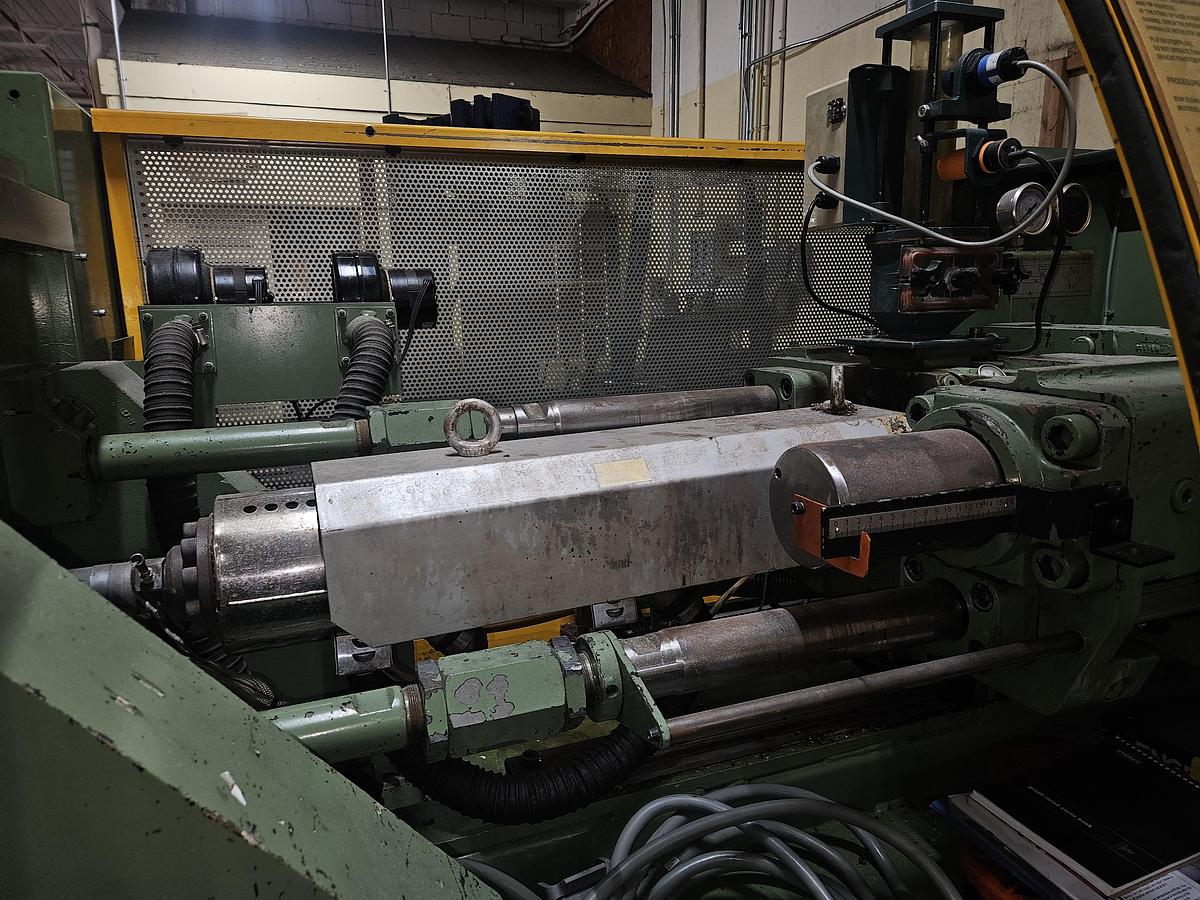

Injection unit

Screw diameter: 40 mm

Injection pressure: 1250 bar

Stroke volume: 201 ccm

Shot weight, PS: 183 g

Screw speed: 20-320 1/min

Plasticising rate max.: 22 g/s

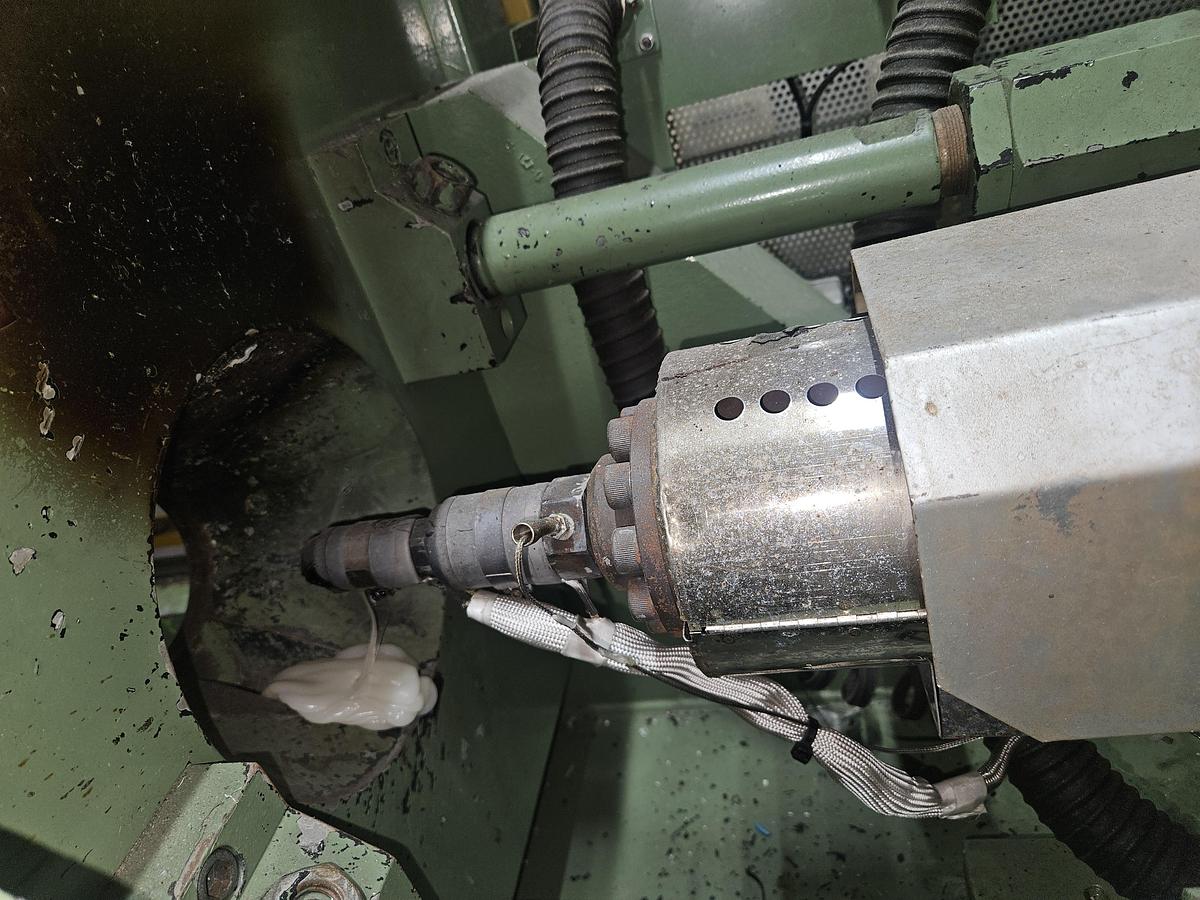

Nozzle pressure: 47 kN

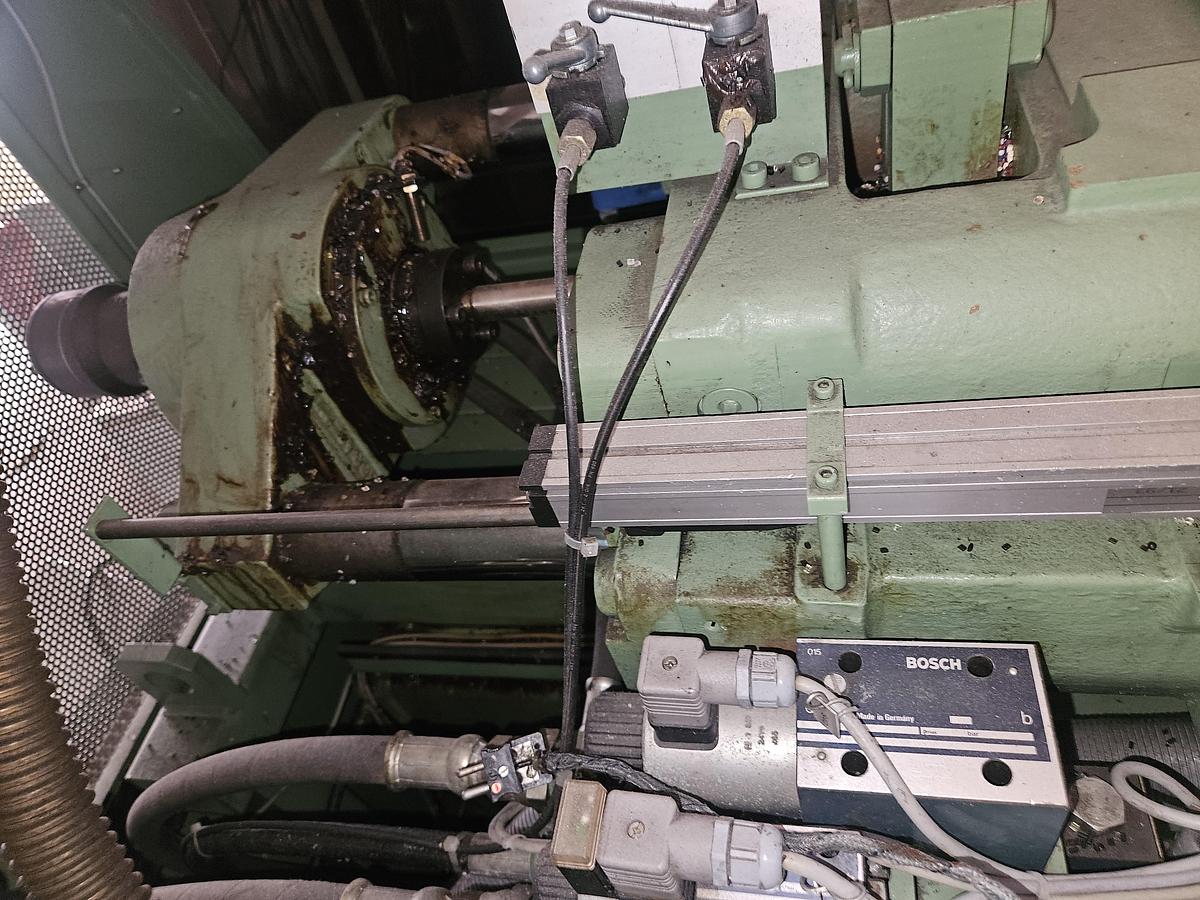

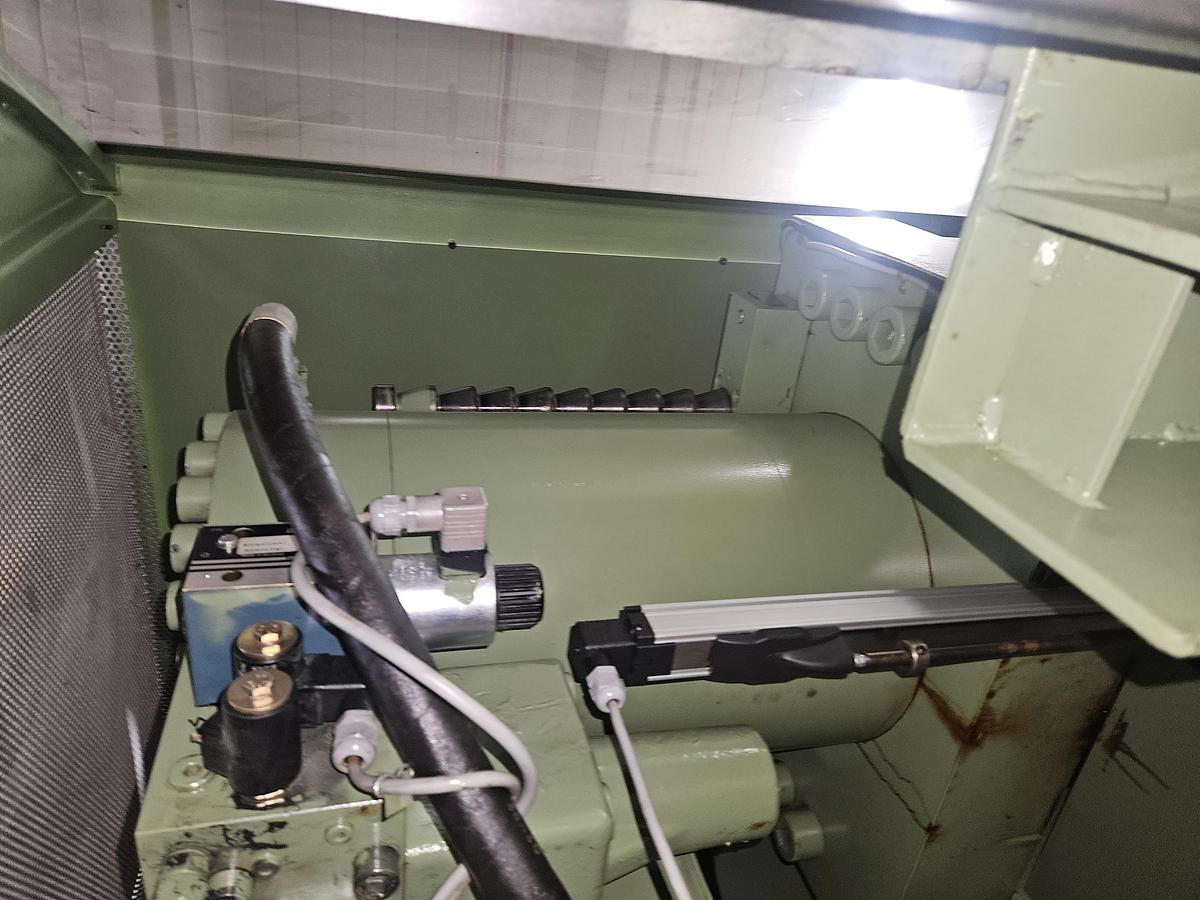

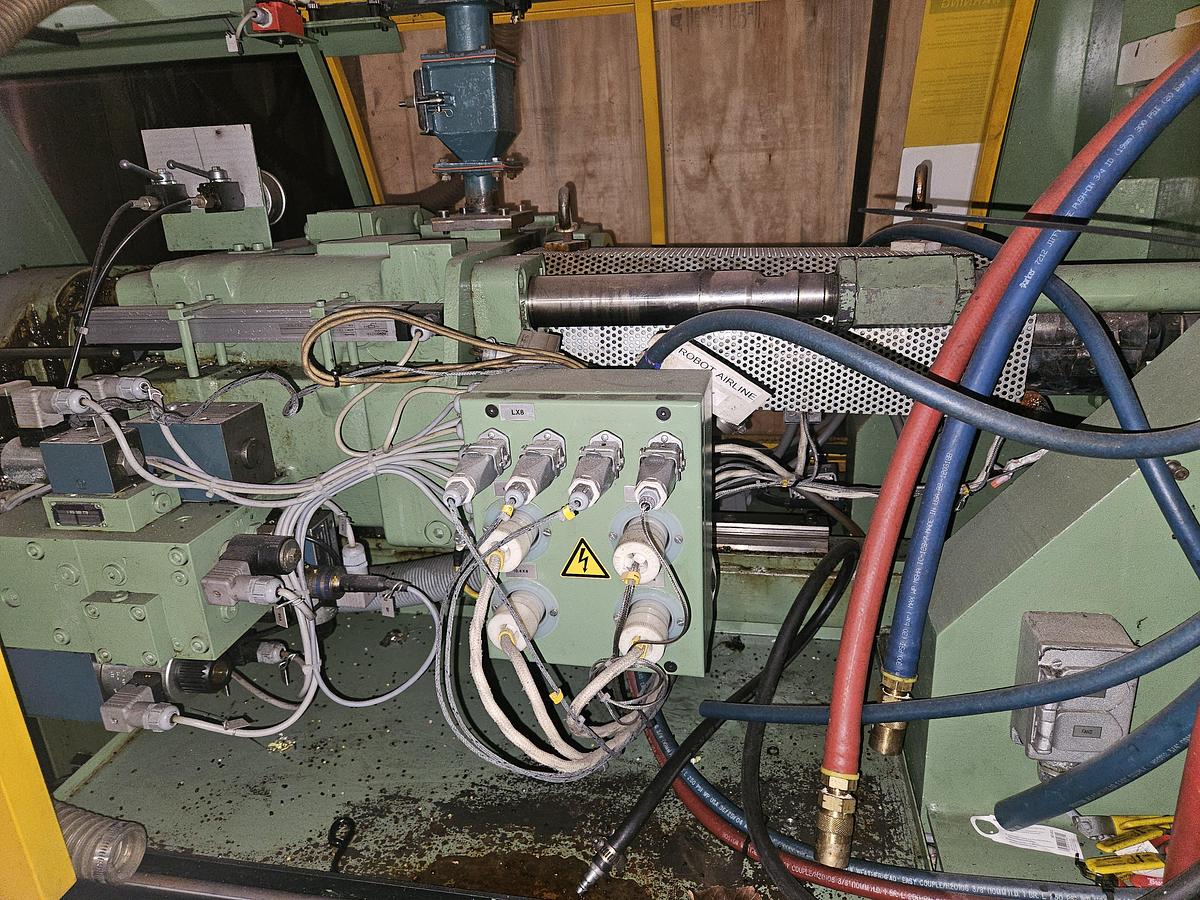

Electric and Hydraulic Equipment

Nominal capacity of pump motor: 15 kW

Installed heating capacity: 9,2 kW

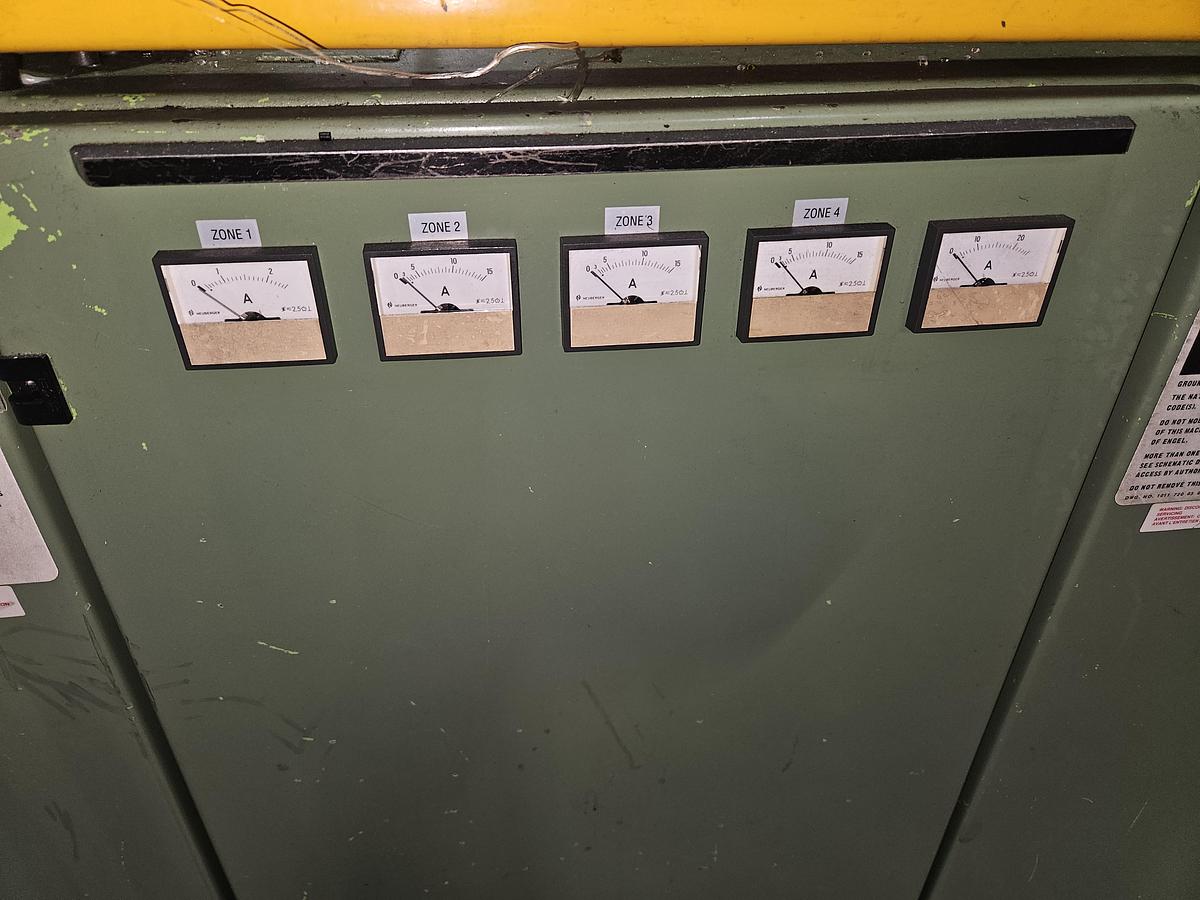

Adjustable barrel heating zones: 4

Dry cycle time: 1,5 sec

Reservoir capacity: 200 ltr.

Dimensions und weights

Dimensions of the machine ca.: 4,22 m x 1,42 m x 2,00 m

Total machine weight: 5.900 kg (13,000 Lbs.)

WSPT# - GDNT-042225-H

Picture - 040825

* All information deemed accurate but may vary from model to model.
