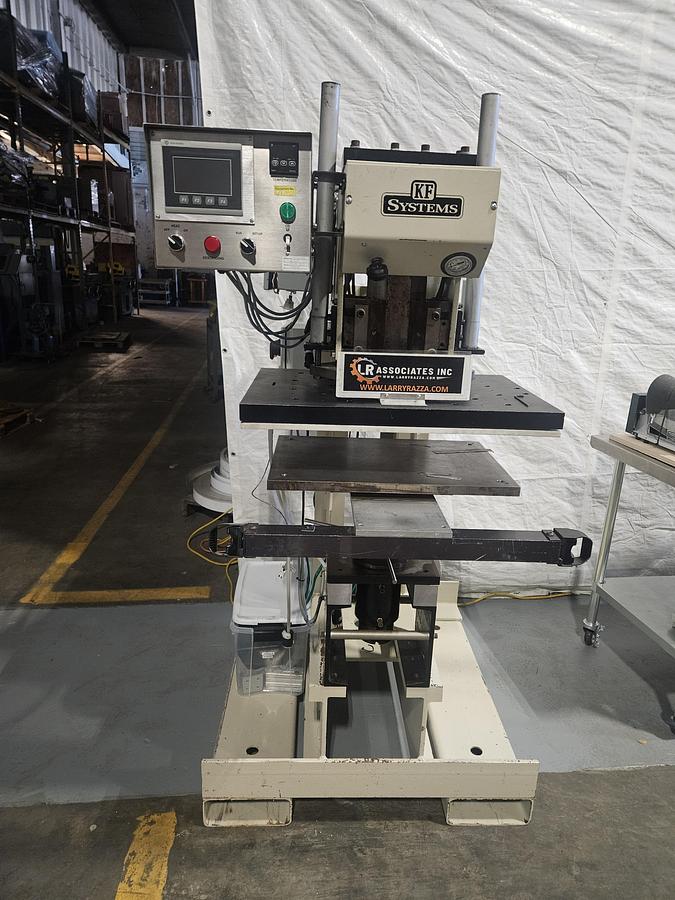

This is a KF8500W LINEAR WEDGE AIR-OPERATED HOT STAMPING PRESS... TESTED & RUNNING EXCELLENT!

Kensol Franklin KF8500W

10/15 TON LINEAR WEDGE AIR-OPERATED HOT STAMPING PRESS

FEATURES...

• Hardened and Ground 2″ x 6″ Dovetailed Steel Head Ram
• Dovetailed Die Holder
• Accurate Easy-to-Adjust Foil Advance
• Simple to Unload Foil Takeup
• Ground Steel Worktable with 4″ Diameter Acme Screw Adjustment
• Head Speed Controls
• Heavy Duty Extra Rigid Frame
• Air Filter, Pressure Regulator & Automatic Lubricator
• 10 TON or 15 TON capacity
• See PDF manual below

KF8500W LINEAR WEDGE AIR-OPERATED HOT STAMPING PRESS SPECIFICATIONS

Max Opening Under Head: 24″

Hot Stamps Items up to: 21.25″

Overall Height: 77.50″

Net Weight: 2200 Ibs.

Head Stroke: 2.75″ Standard, 3.75″ Optional

Throat Depth: 15″

Pressure Range: 0-10 Tons Standard, 15 Tons Optional

Foil Advance: Electric Motor

Heat Control: Solid State Digital Indicating

Head Sizes: 12″ x 24″... 8500 Watt

Press Controls: Programmable Logic-Based Svstem with Operator Interface Panel

Actuation: Simultaneous Lite-Touch Anti-Tie Down 2 Hand Buttons W/Pinch Point Interlock

Electrical Requirements: 6″ x 8″ 110V A.C. Larger sizes 220V, 1 Phase

Compressed Air Requirements: 1.05 Cu. Ft. Free Air/Stroke @80 p.s.i.

Work Table: Pre-Drilled Ground Steel

STANDARD VARIATIONS AVAILABLE

• Specialty Code Conformance: NEMA, JIC. etc.

• Longer Head Stroke

• Larger Work Table

• Larger Platen Sizes

• Expanded Dwell Timer Range

• Heat Transfer Indexer

PTWS - L-0000-051025-D

Picture# 041725

* All information deemed accurate but may vary from model to model.
