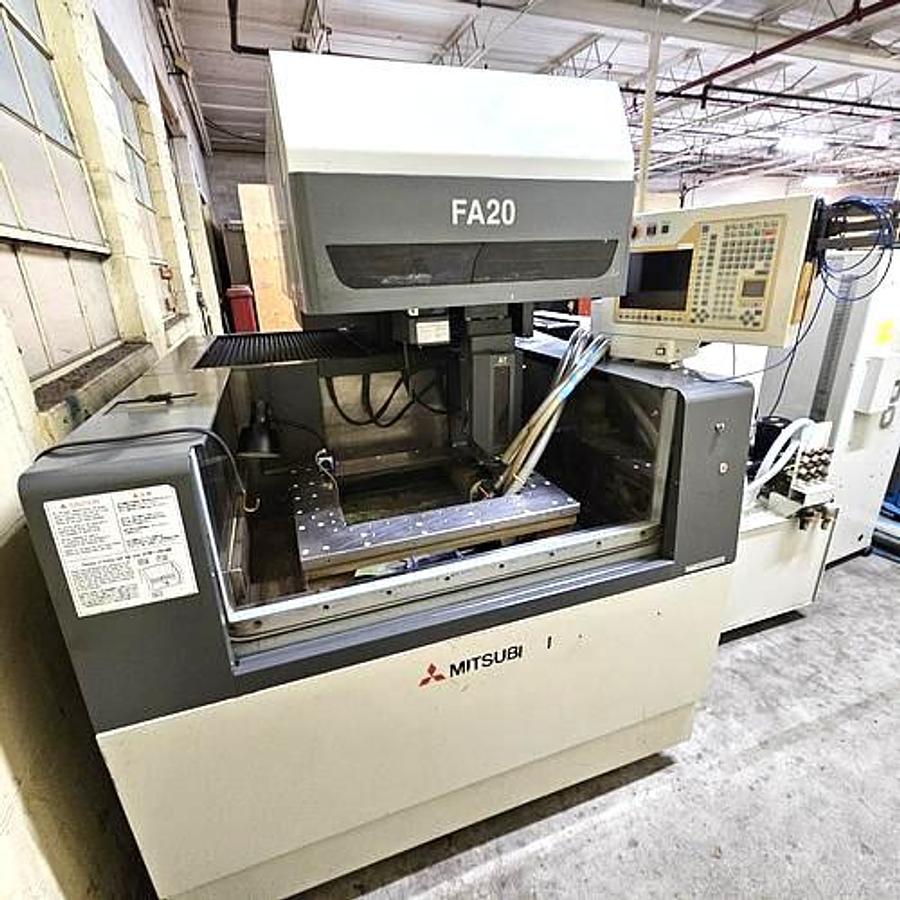

MITSUBISHI FA20 CNC WIRE EDM – W21FA-2 – AUTO WIRE THREADING – SUBMERGED MACHINING – U/V TAPER – CHILLER / FILTRATION SYSTEM – COMPLETE MACHINE

DESCRIPTION

Available for immediate sale is this Mitsubishi FA20 CNC Wire EDM, Model W21FA-2, a heavy-duty precision wire electrical discharge machining system designed for demanding toolroom, mold, die, aerospace, medical, precision machining, and production applications.

The Mitsubishi FA series has long been recognized for its rigid machine construction, precision motion control, reliable EDM power supply technology, and ability to perform highly accurate unattended wire EDM machining.

This FA20 provides a generous machining envelope with approximately 19.7" X-axis travel, 13.8" Y-axis travel, and 11.8" Z-axis travel, making it considerably more capable than many smaller wire EDM systems.

The machine is equipped with automatic wire threading, submerged machining capability, programmable U/V taper control, Mitsubishi CNC control, dielectric circulation and filtration system, and external cooling/chiller equipment.

The U/V taper system is capable of approximately ±1.25" travel, allowing tapered profiles and complex precision geometries to be produced.

A substantial 3,300 lb. maximum workpiece capacity makes this an exceptionally versatile EDM for large dies, tooling, fixtures, molds, and precision components.

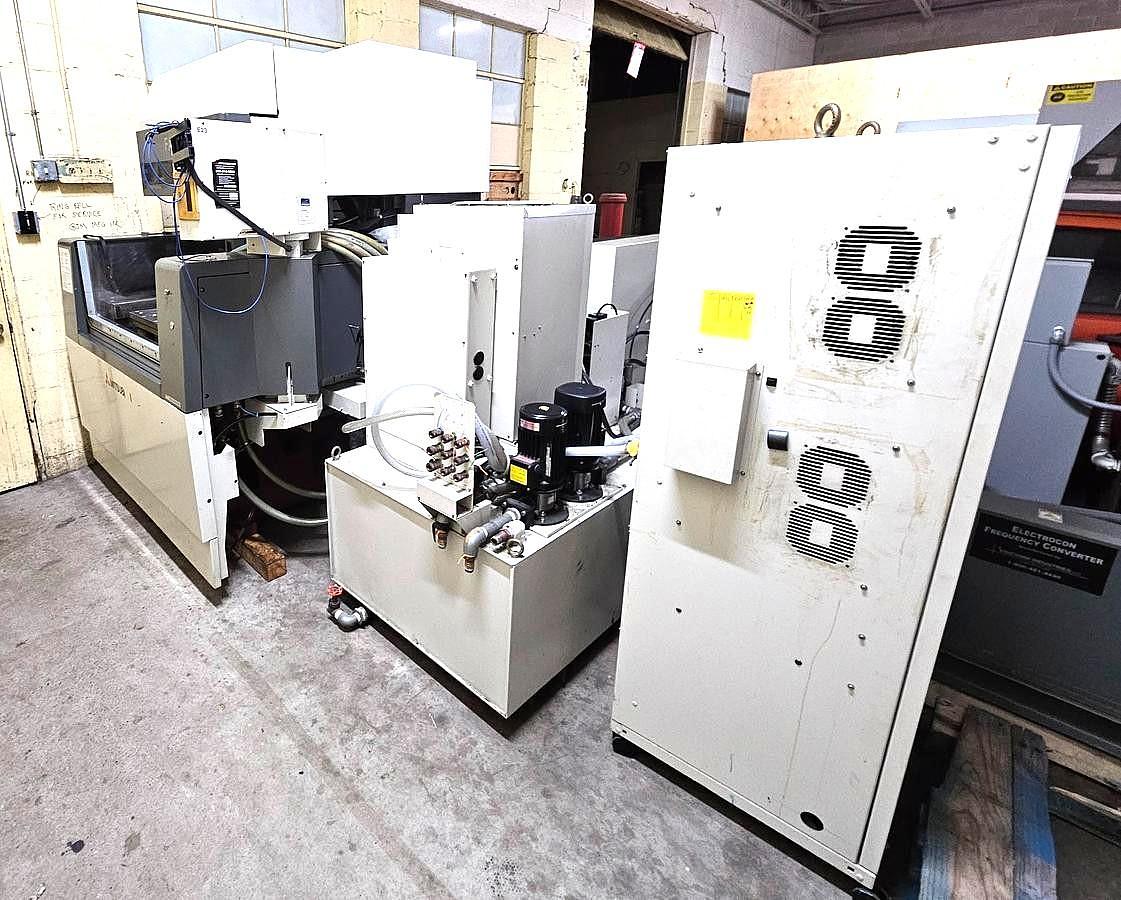

This is a complete industrial wire EDM package including the machine, CNC control, dielectric system, pumps, filtration equipment, cooling system, and available documentation.

SPECIFICATIONS

Manufacturer: Mitsubishi Electric

Model: FA20

Electrical Equipment Model: W21FA-2

Machine Type: CNC Wire EDM / Wire Electrical Discharge Machine

Serial Number: J20M0385

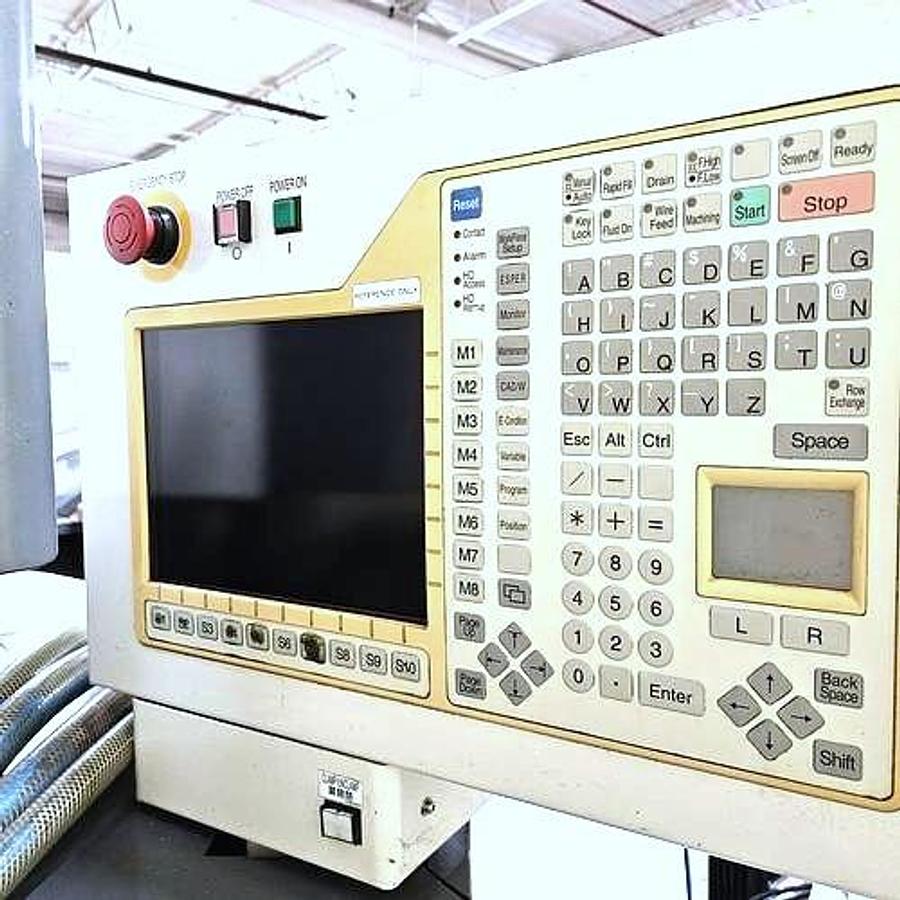

CNC Control: Mitsubishi

X-Axis Travel: Approx. 19.7"

Y-Axis Travel: Approx. 13.8"

Z-Axis Travel: Approx. 11.8"

U/V Axis Travel: Approx. ±1.25"

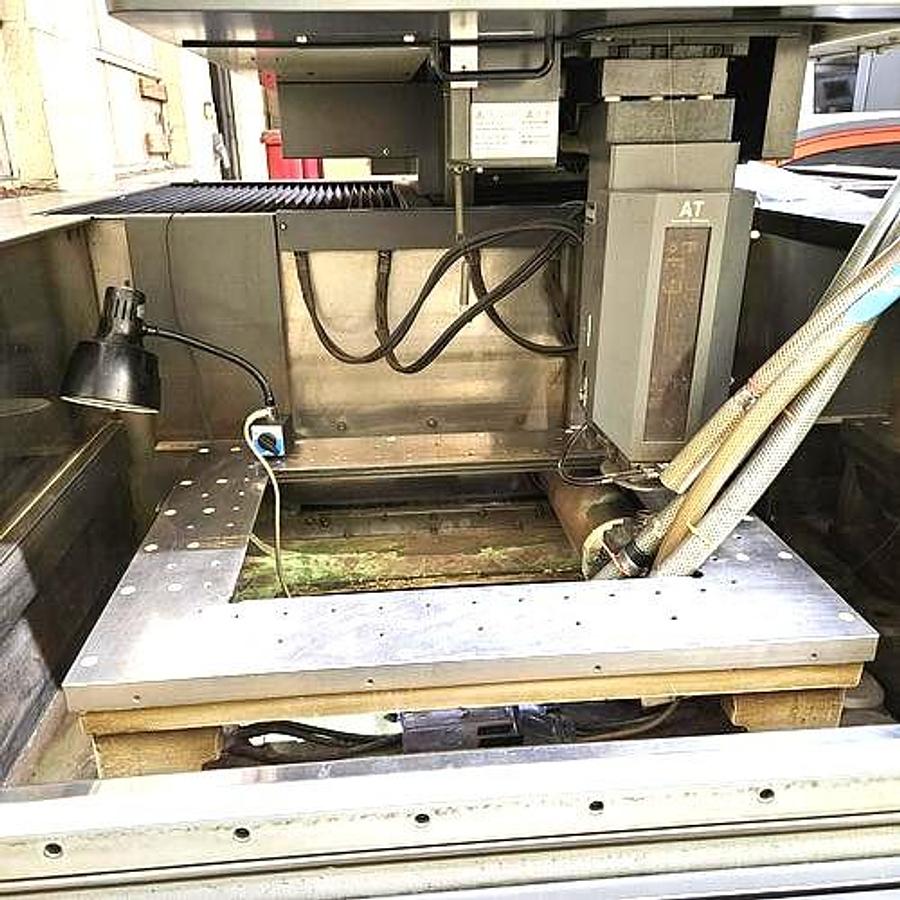

Table Size: Approx. 30.7" × 24.8"

Maximum Workpiece Size: Approx. 41.3" × 31.5" × 11.6"

Maximum Workpiece Weight: Approx. 3,300 lbs.

Wire Diameter Capability: Approx. .004" – .012"

Automatic Wire Threading: Yes

Submerged Machining: Yes

Taper Cutting Capability: Approx. 15° through 4" material

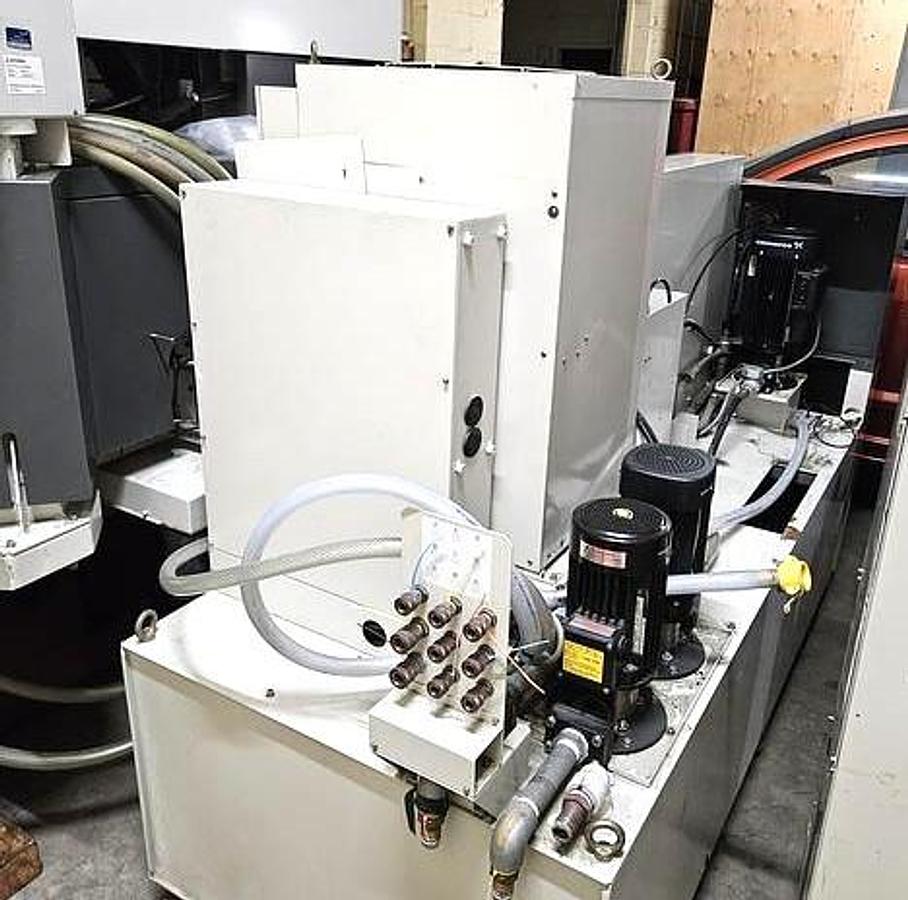

Dielectric System: Integrated circulation / filtration system

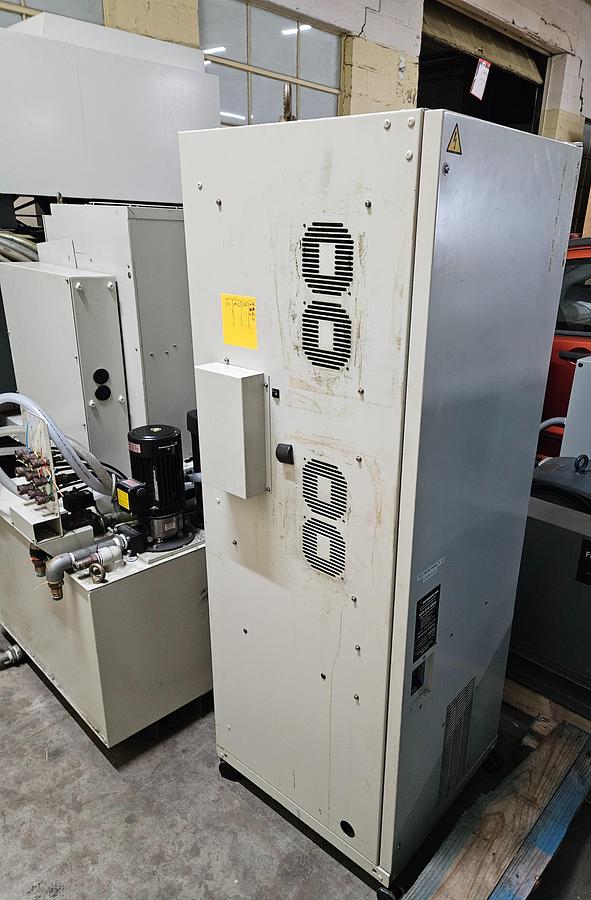

Cooling System: External cooling / chiller system

Electrical Requirement: Approximately 200–220 VAC

Phase: 3 Phase

Frequency: 60 Hz

Power Requirement: Approx. 13.5 kVA

Approximate System Weight: 9,100 lbs.

Approximate Overall Footprint: 102" L × 104" D × 84" H

Country of Manufacture: Japan

FEATURES

• Mitsubishi FA20 industrial CNC wire EDM

• Mitsubishi W21FA-2 electrical system

• Large-capacity machining envelope

• Approximately 19.7" X-axis travel

• Approximately 13.8" Y-axis travel

• Approximately 11.8" Z-axis travel

• CNC controlled U/V taper axes

• Automatic wire threading system

• Submerged EDM machining capability

• Programmable taper cutting

• Approximately 15° taper capability through 4" material

• Handles workpieces up to approximately 3,300 lbs.

• Precision Mitsubishi EDM power supply

• Heavy-duty rigid machine construction

• Integrated dielectric tank

• Dielectric circulation system

• Multiple filtration pumps

• External cooling / chiller system

• Adjustable upper and lower wire guides

• CNC operator control

• Automatic machining cycles

• Emergency stop system

• Complete electrical cabinet

• Japanese-built industrial machine

• Manuals and training documentation included

APPLICATIONS

Ideal for:

• Tool & Die Manufacturing

• Precision Mold Manufacturing

• Punches & Dies

• Progressive Dies

• Injection Mold Components

• Aerospace Components

• Medical Components

• Precision Tooling

• Carbide Tooling

• Hardened Tool Steel

• Stainless Steel Components

• Prototype Manufacturing

• Production Wire EDM

• Precision Machine Shops

• Research & Development

• Educational / Technical Facilities

INCLUDES

• Mitsubishi FA20 CNC Wire EDM

• Mitsubishi CNC Control

• Automatic Wire Threading System

• U/V Taper Cutting System

• Dielectric Tank

• Dielectric Pumps

• Filtration System

• Cooling / Chiller System

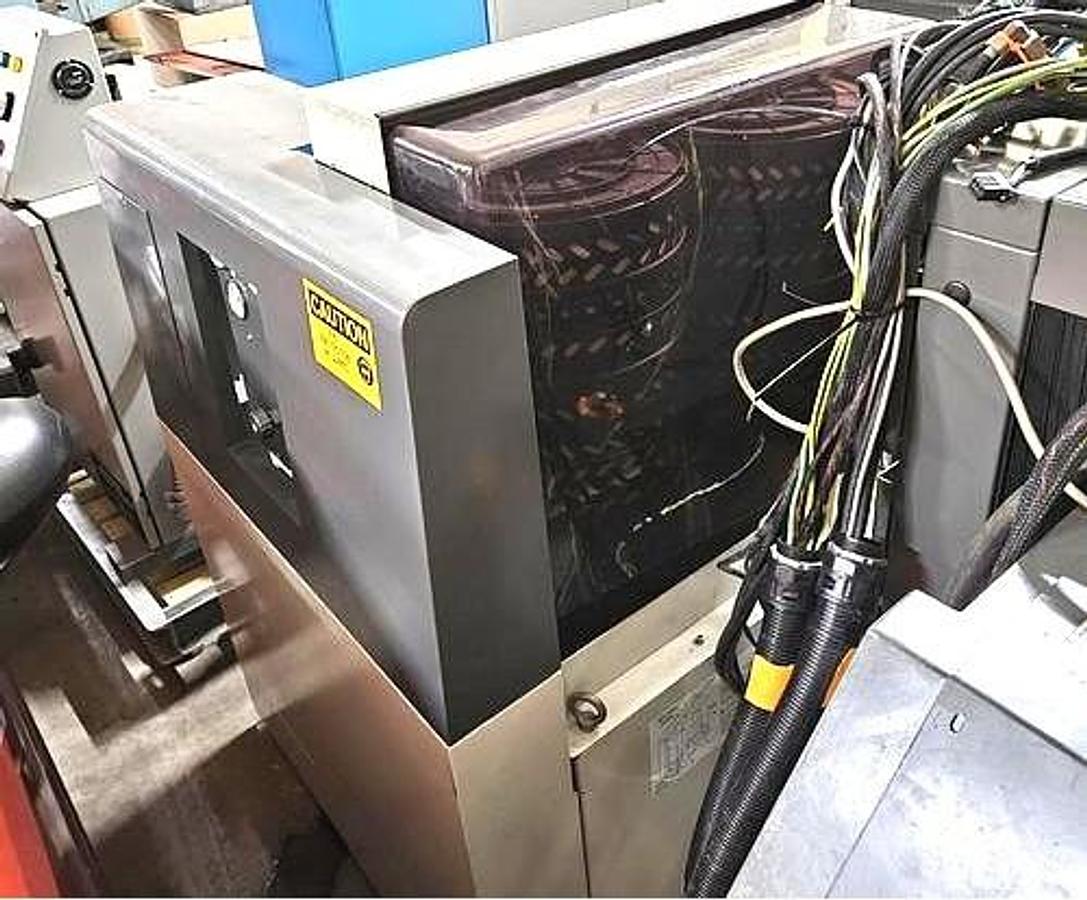

• Wire Handling System

• Machine Electrical Cabinet

• Available Mitsubishi Manuals

• RA/QA/FA Series Training Documentation

CONDITION

This Mitsubishi FA20 is a complete industrial wire EDM system and presents well for a machine of its age.

The machine appears substantially complete with the CNC control, automatic wire threading components, dielectric system, pumps, filtration equipment, cooling system, electrical cabinet, and associated machine components present.

The machine has been stored indoors.

Buyer is encouraged to inspect the machine and verify all specifications and operating functions prior to purchase.

SHIPPING

Due to the size and weight of this machine, professional rigging will be required.

We can assist with rigging and freight quotes upon request.

Please contact us for a Shipping Quote!

We ship anywhere!

NOTE: There will be a Loading Charge for this machine. Please inquire!

LR# LGD-0000-072025-A

R080325/121325/082926

P#071725

OFFERED BY

L R Associates, Inc.

Machinery Dealers / Consultants / Appraisers / Auctioneers

25 Conduit Street

Central Falls, Rhode Island 02863

Contact us at Four Zero One – Nine Six Five – Five Five Five Seven

ADDITIONAL INFORMATION

Specifications are based upon manufacturer information, machine nameplate information, available documentation, and visual inspection.

Specifications should be independently verified by the buyer prior to purchase.

Subject to prior sale.
