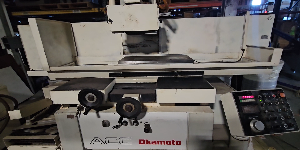

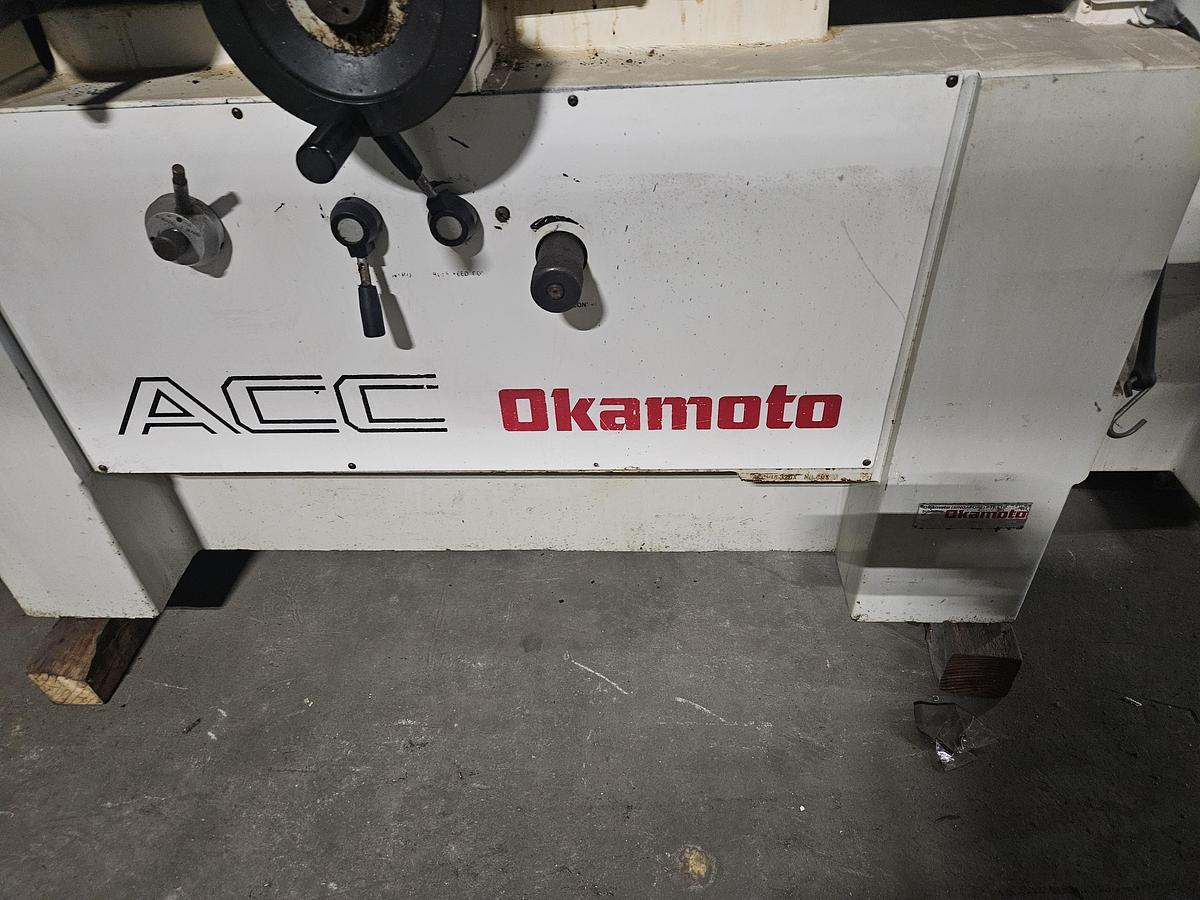

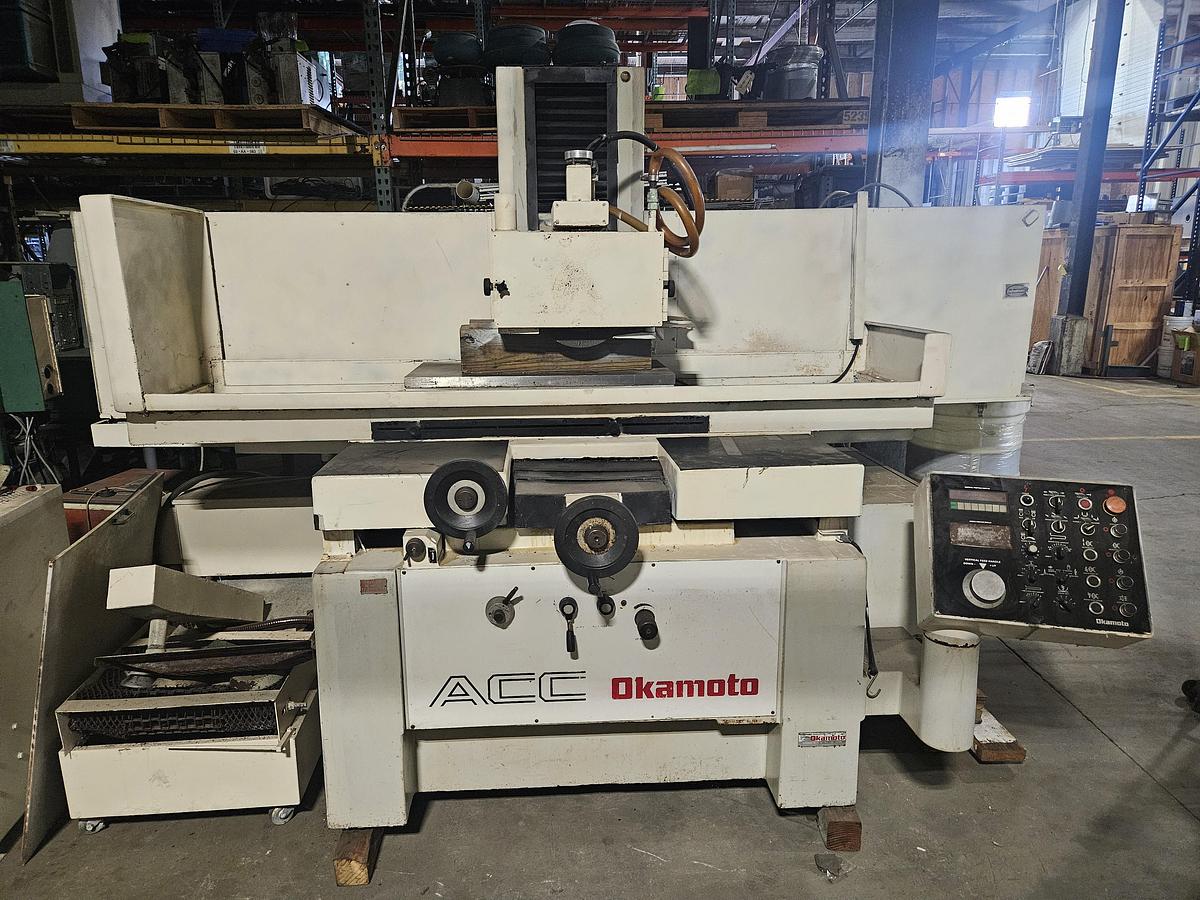

OKAMOTO ACC-1632DX 2001 AUTOMATIC IDF 3X AUTO FEEDS SURFACE GRINDER WITH ELECTRIC MAG CHUCK

This is a Okamoto ACC-1632DX CNC Surface Grinder 16" Width 32" Length

Okamoto ACC-1632DX, 2001, PROG. AUTO IDF, 3X AUTO FEEDS, SURFACE GRINDER, POWER

16" X 32" OKAMOTO HIGH-PRECISION

3-AXIS AUTOMATIC FEEDS SURFACE GRINDER

DX PROGRAMMABLE AUTO INCREMENTAL DOWNFEED

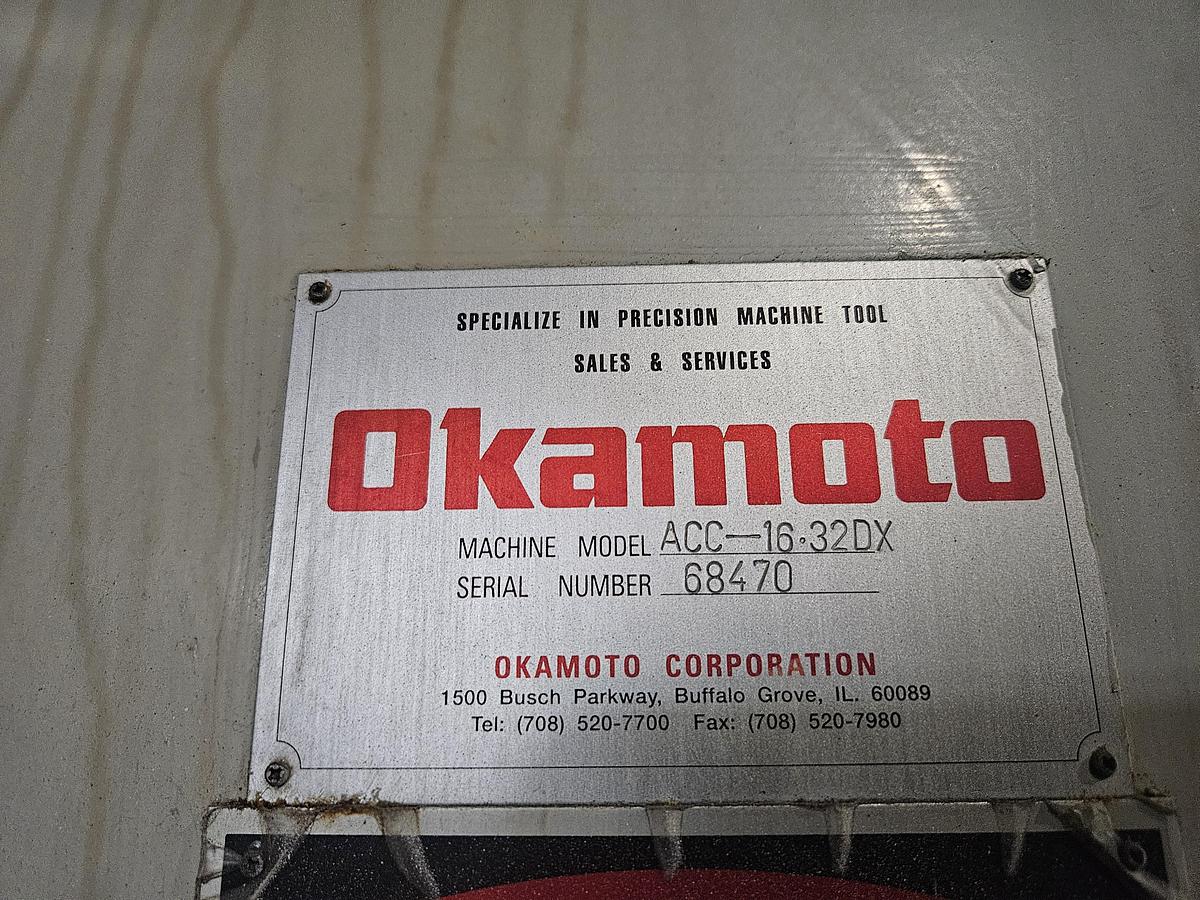

MODEL: ACC-1632DX   S/N: 68470   NEW: 2001

NOMINAL GRINDING CAPACITY .................. 16" x 32"

MAXIMUM HEIGHT UNDER STD. 12" WHEEL

TO TABLE SURFACE ......................... 21.5"

TABLE SPEED, INFINITELY VARIABLE ........... UP TO 82' FPM

MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ... 38"

AUTO CROSS FEED INCREMENT .................. 0.002" TO .80"

AUTO CONTINOUS CROSSFEED ................... 4' TO 40' FPM

CROSSFEED, MANUAL, HAND FEED PER REV. ...... 0.25"

GRAD. OF HANDWHEEL ...... 0.001"

MAX. CROSSFEED, MANUAL ..................... 18"

AUTO INCREMENTAL DOWNFEED INCREMENTS ... 0.00005" TO .0015"

POWER RAPID WHEEL POSITIONING RATE ......... 16" IPM

SPINDLE MOTOR .............................. 5 H.P.

HYDRAULIC PUMP MOTOR ....................... 3 H.P.

VERTICAL RAPID FEED & DOWNFEED MOTOR ...... 0.5 H.P.

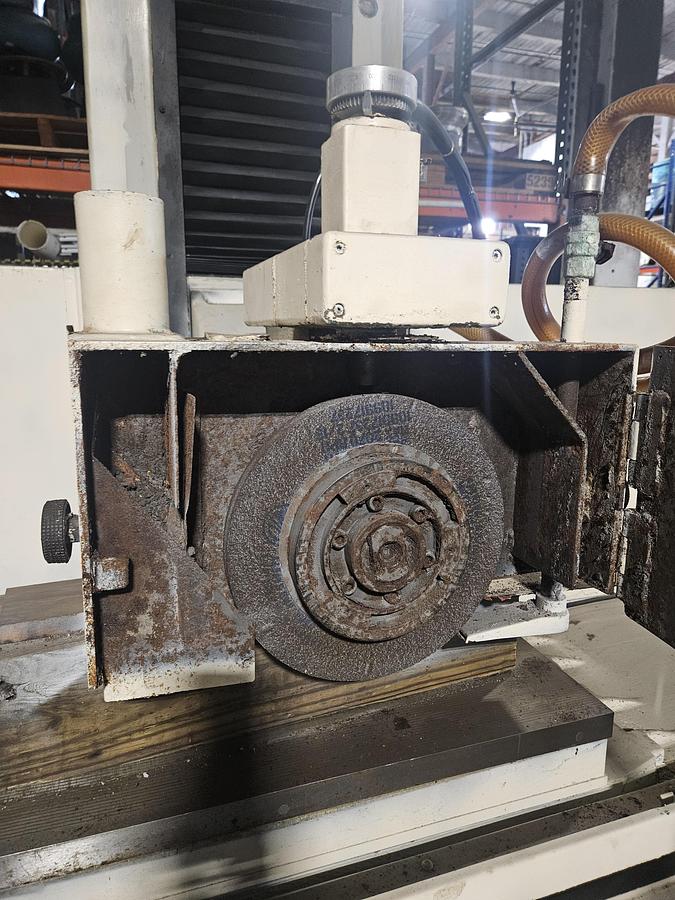

WHEEL SIZE ............................. 12" X 1.5" X 5"

WHEEL SPEED ................................ 6,500 SFPM

GRINDING WHEEL SPEED ....................... 1,800 RPM

APPROX. MACHINE WEIGHT ..................... 8,800 LBS.

MACHINE FLOOR SPACE (L x W x H)......... 132" x 87" x 82"

MACHINE FEATURES:

HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSSFEED

"DX" PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:

-SERVO DRIVEN DOWNFEED

-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE

 OPERATIONS

-DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS

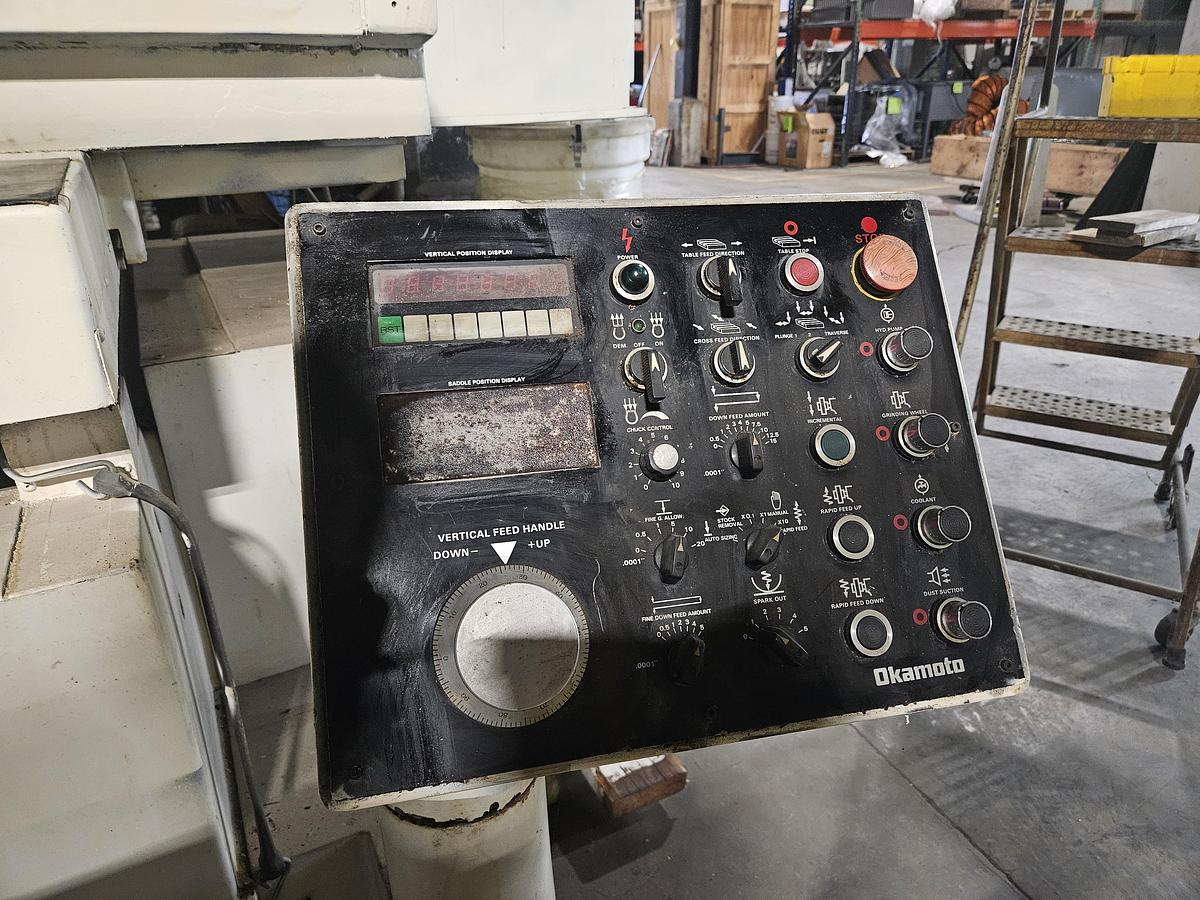

-DIGITAL DISPLAY FOR VERTICAL AXIS

-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT

 COMPLETION OF GRIND CYCLE

-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT

 W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"

-POWER RAPID WHEEL POSITIONING

-WHEEL RETRACTION

 EQUIPPED WITH:

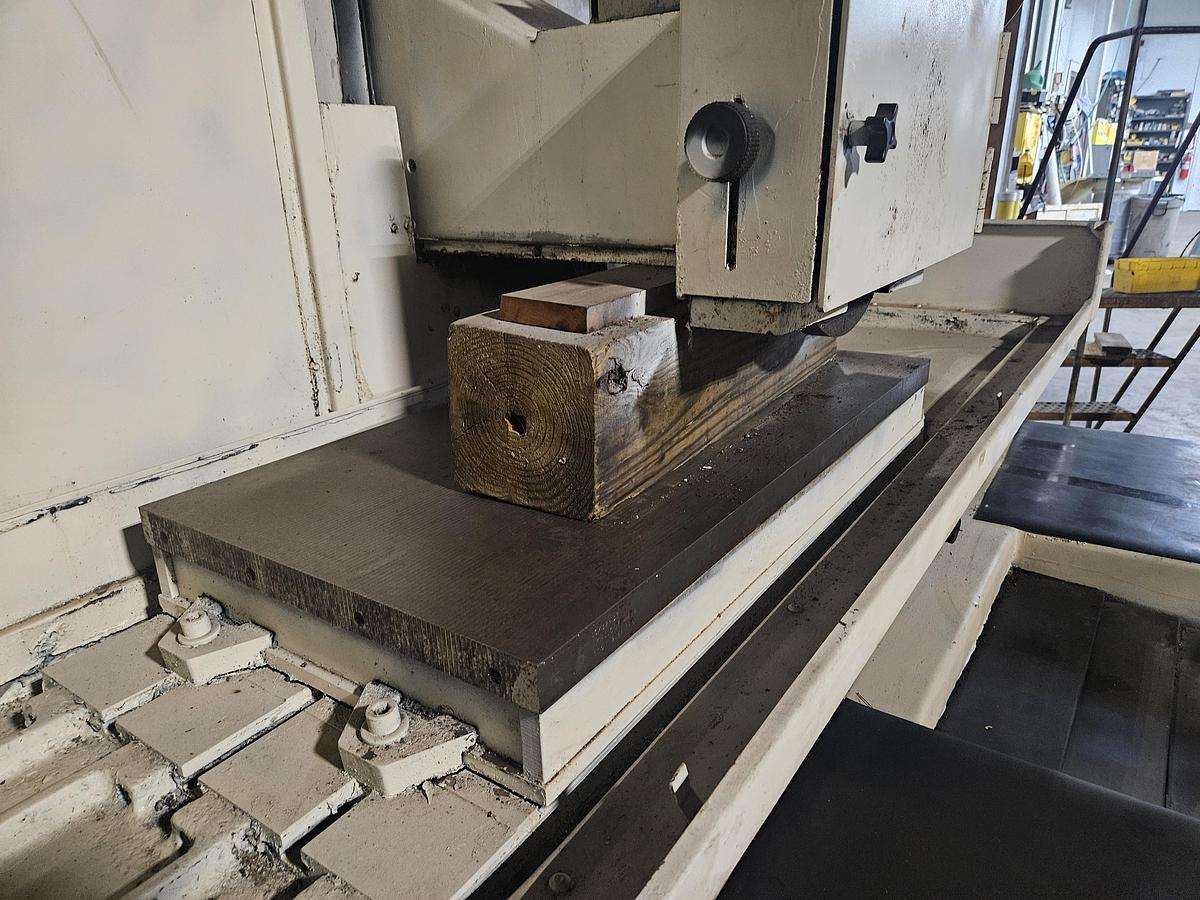

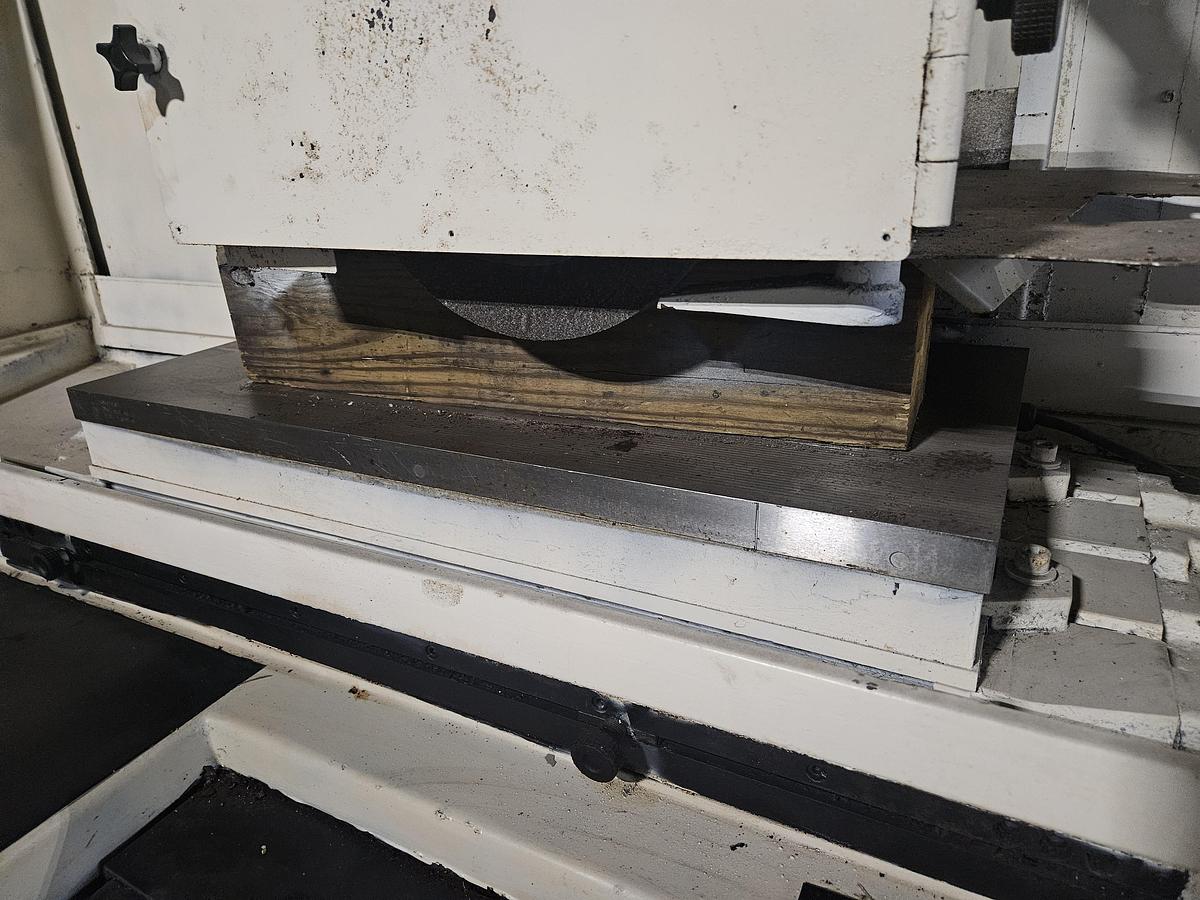

16" X 32" STD. POLE CROSS PATTERN, ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD CHUCK CONTROL

POWER OVER-THE-WHEEL DRESSER WITH MICROMETER ADJUSTMENT

COOLANT SYSTEM, LOW PROFILE

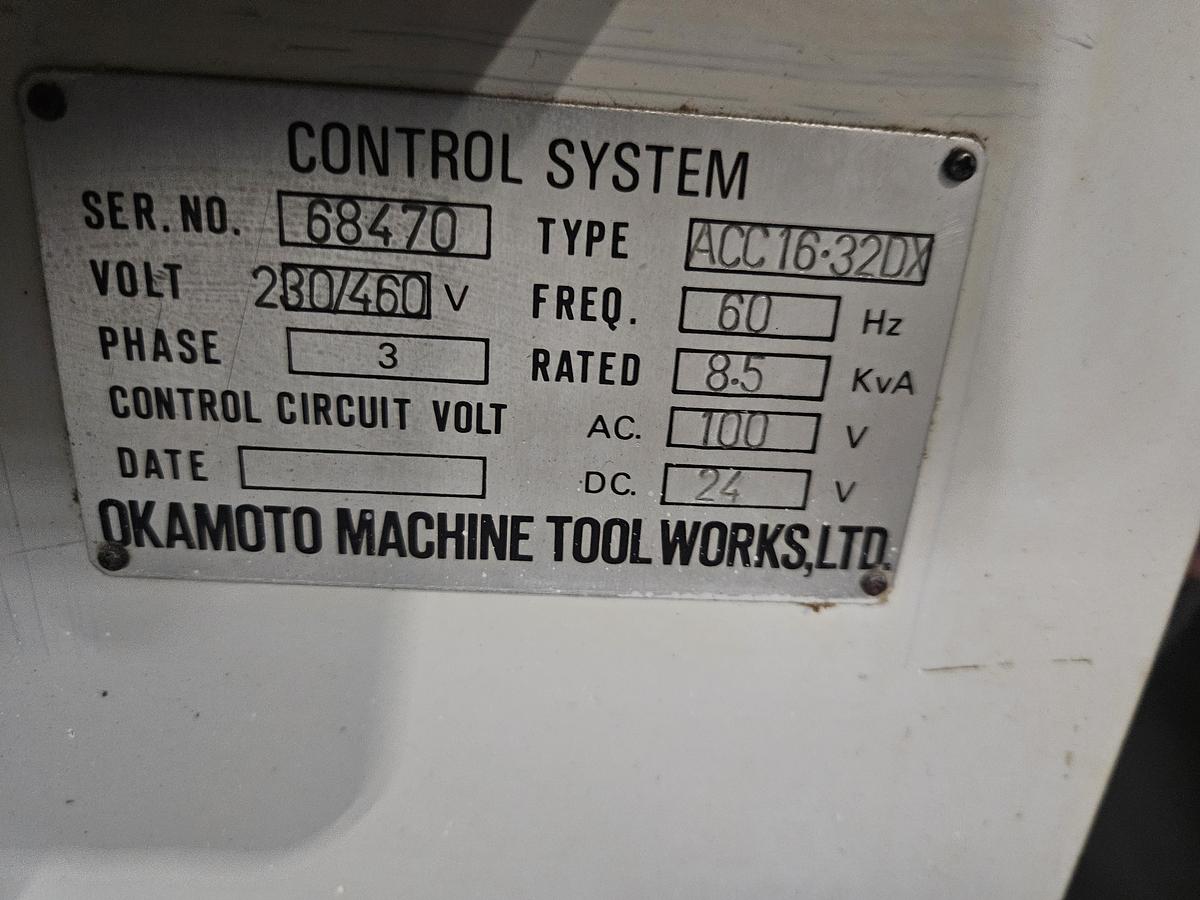

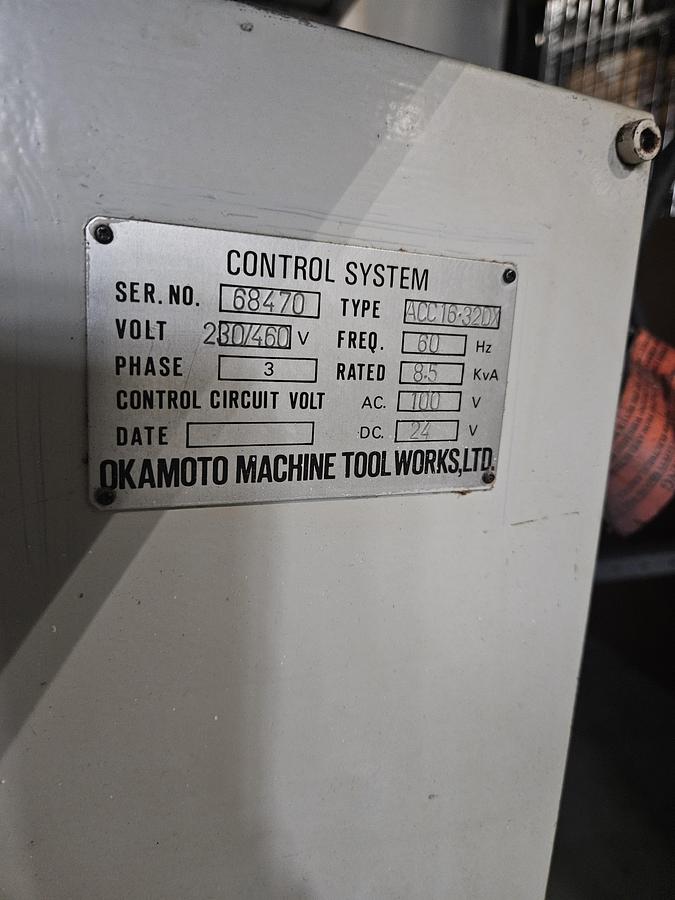

3/60/230-460 VOLT ELECTRICS, RATED 8.5 KVA

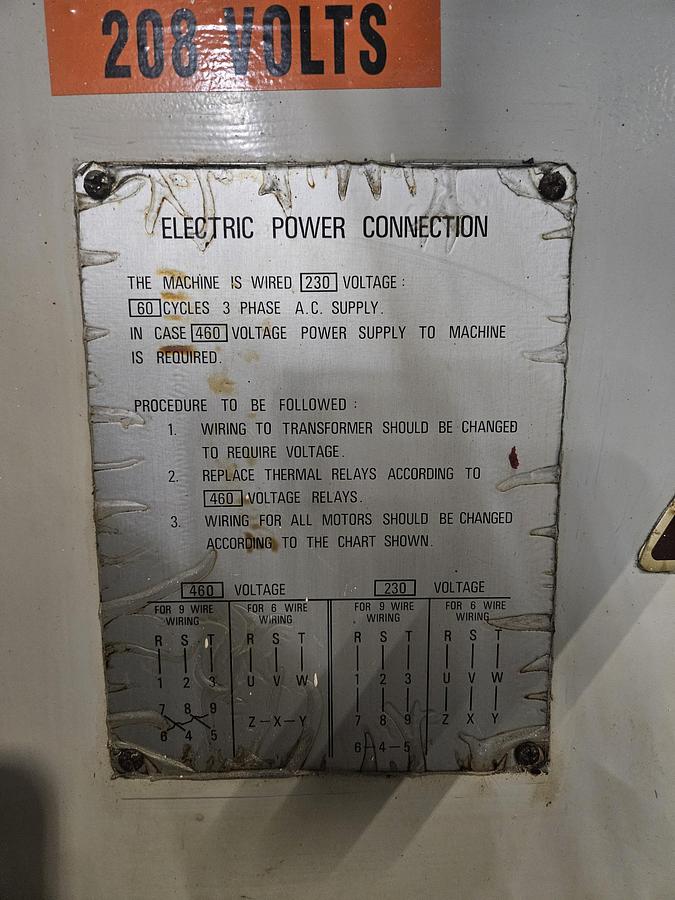

WIRED 220 VOLTS 3 PHASE

WSPT# L-0000-072025-C

Picture 062525

NOTE: There will be a loading/rigging charge on this machine to be loaded on a truck. Please inquire.

* All information deemed accurate but may vary from model to model.

Contact Larry for any questions you may have...
