NEW 2026 DCS 650 Ton Hydraulic Coining Press Gold Silver Brass with Touch Screen Controls Made In USA

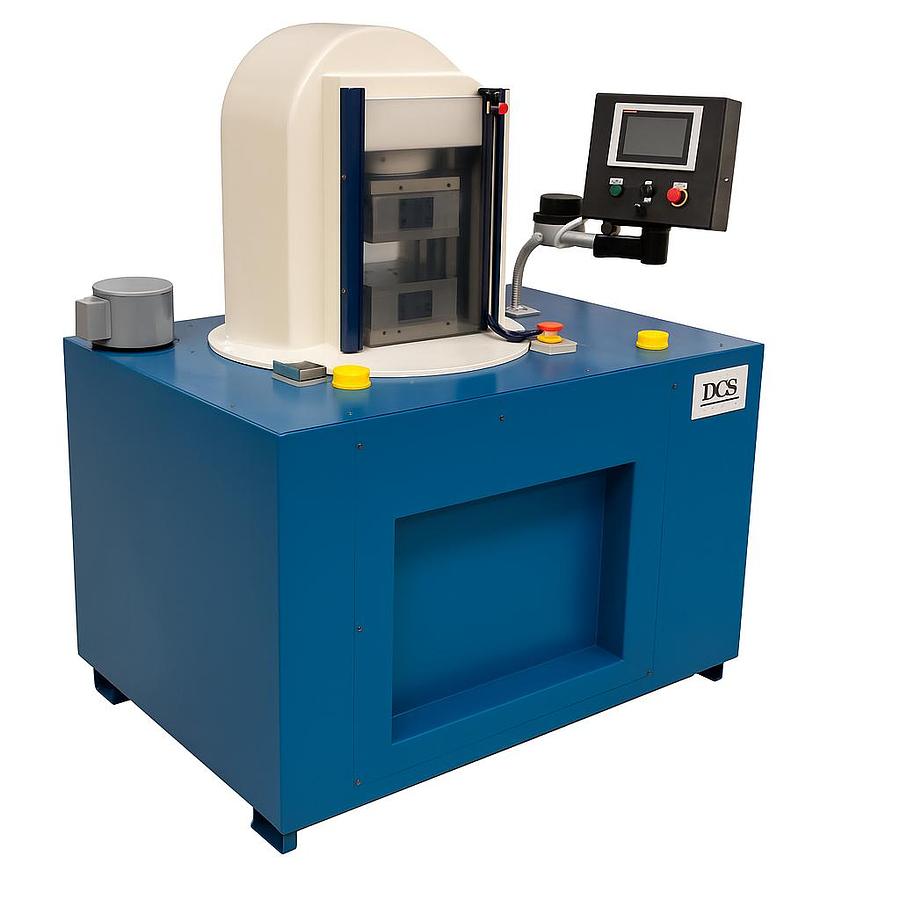

🔹 NEW DCS 650-Ton Hydraulic Press

Manufacturer: Dynamic Converting Systems, Inc.

Model: DCS-650

Condition: Brand New / Never Installed

🏭 Description:

This is a brand-new, never-used 650-Ton Hydraulic Press manufactured by Dynamic Converting Systems, Inc. — a heavy-duty, industrial-grade unit designed for precision metal forming or coining applications.

Built to exacting standards for production reliability, this press combines exceptional power, smooth hydraulic motion, and robust construction suitable for metalworking, composites, rubber, and specialty manufacturing.

PROUDLY MADE IN USA!!

_______________________________________________________________________________

⚙️ Specifications:

• Tonnage Capacity: 650 Tons
• Press Type: Hydraulic
• Weight: 7,300 lbs
• Motor HP: 20 HP
• Voltage: 230/460V, 3-Phase, 60 Hz
• Compressed Air: 1 CFM @ 60 PSI
• Hydraulics: Variable displacement, electronically controlled pump

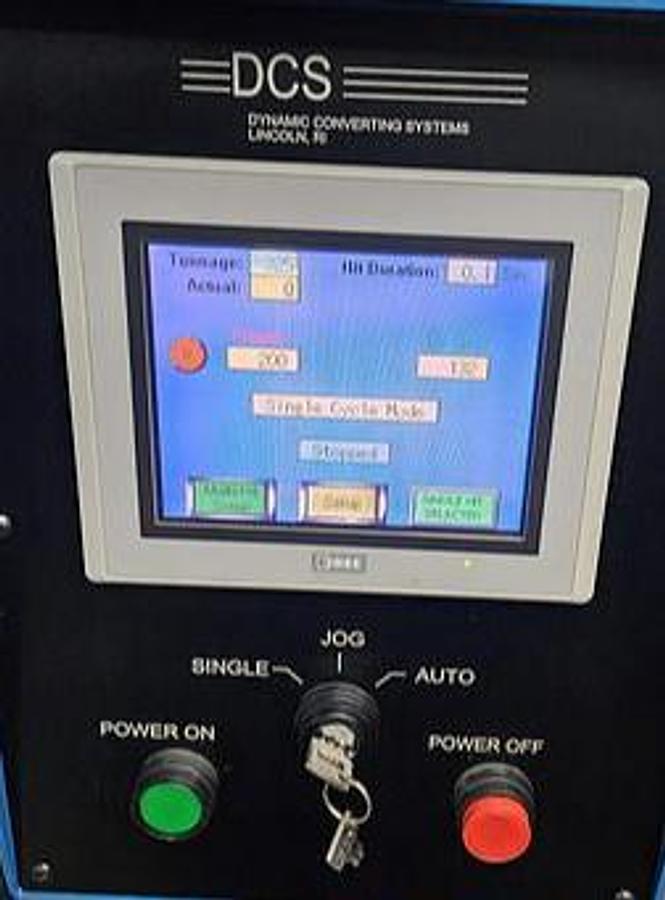

• Controls: Microprocessor, closed-loop system — all process parameters entered from touchscreen
• Operation Cycles:
• Jog (Setup)
• Manual (Single Cycle)
• Automatic
• Speed:
• Jog: Infinitely adjustable
• Manual: 2-second cycle at full tonnage and 0.3 sec dwell
• Automatic: 20–30 SPM
• Dwell: 0.2 to 9.9 seconds
• Cooling: Air-to-oil heat exchanger
• Safety:
• Two-button, anti tie-down actuation
• Electrically interlocked ½" thick polycarbonate (Lexan) front shield
• ½" thick polycarbonate rear shield
• Thermal motor protection
• Oil over-temperature shut-off
• Low-oil shut-off
• Ram over-travel protection
• Tool Area: 11.500" wide x 12.250" high

🧰 Features:

• Coaxial jack piston for smooth, rapid approach
• Low-pressure (4,800 PSI) hydraulic system uses commercial hoses, valves, etc.
• Multi-hit feature allows up to 3 hits per cycle at different tonnages and dwell times
• Can operate continuously at maximum rated tonnage
• Oil-tight enclosure retains minor oil leaks inside the machine, not on the floor
• Heavy welded steel frame construction
• Precision-ground platens for even pressure distribution
• Modern touchscreen control with recipe storage and programmable parameters
• Ideal for molding, forming, laminating, die-cutting, and embossing operations
• Ready for integration into automated or stand-alone systems

📦 Included:

• Complete Hydraulic Power Unit (HPU)
• Operator Control Console with Touchscreen PLC
• Factory Documentation and Electrical Schematics
• All Safety and Guarding Components

🧾 Warranty:

• 1-Year Comprehensive Warranty
• 2-Year Warranty on Frame and Piston Seals

⏱ Delivery:

• Estimated Lead Time: 10–12 Weeks After Order
• Delivery Terms: FOB Pawtucket, Rhode Island, USA

🧰 Features:

• Heavy welded steel frame construction
• Precision-ground platens for even pressure distribution
• Modern touchscreen control system with recipe storage and adjustable pressure, temperature, and dwell parameters
• Smooth hydraulic motion with programmable control
• Ideal for molding, forming, laminating, die cutting, and embossing applications
• Ready for integration into automated or stand-alone operation

📦 Included:

• Complete Hydraulic Power Unit (HPU)
• Operator Control Console with Touchscreen PLC
• Factory Documentation and Electrical Schematics
• All Safety and Guarding Components

⏱ Delivery:

• Estimated Lead Time: 10–12 Weeks After Order
• Delivery Terms: FOB Pawtucket, Rhode Island, USA

LDCS-00000-102225-A

Picture# File DCS
