MIRTEC MV-2HTL Desktop AOI Vision Inspection System – 2006

PCB Inspection • Tested & Running • Complete Workstation

DESCRIPTION

Available for immediate sale is this MIRTEC MV-2HTL Desktop-Type Vision Inspection System, manufactured in 2006 and recently powered on and tested in operation. This offline AOI unit is designed for printed circuit board inspection, solder joint verification, component presence checks, polarity detection, and first-article or QA inspection environments.

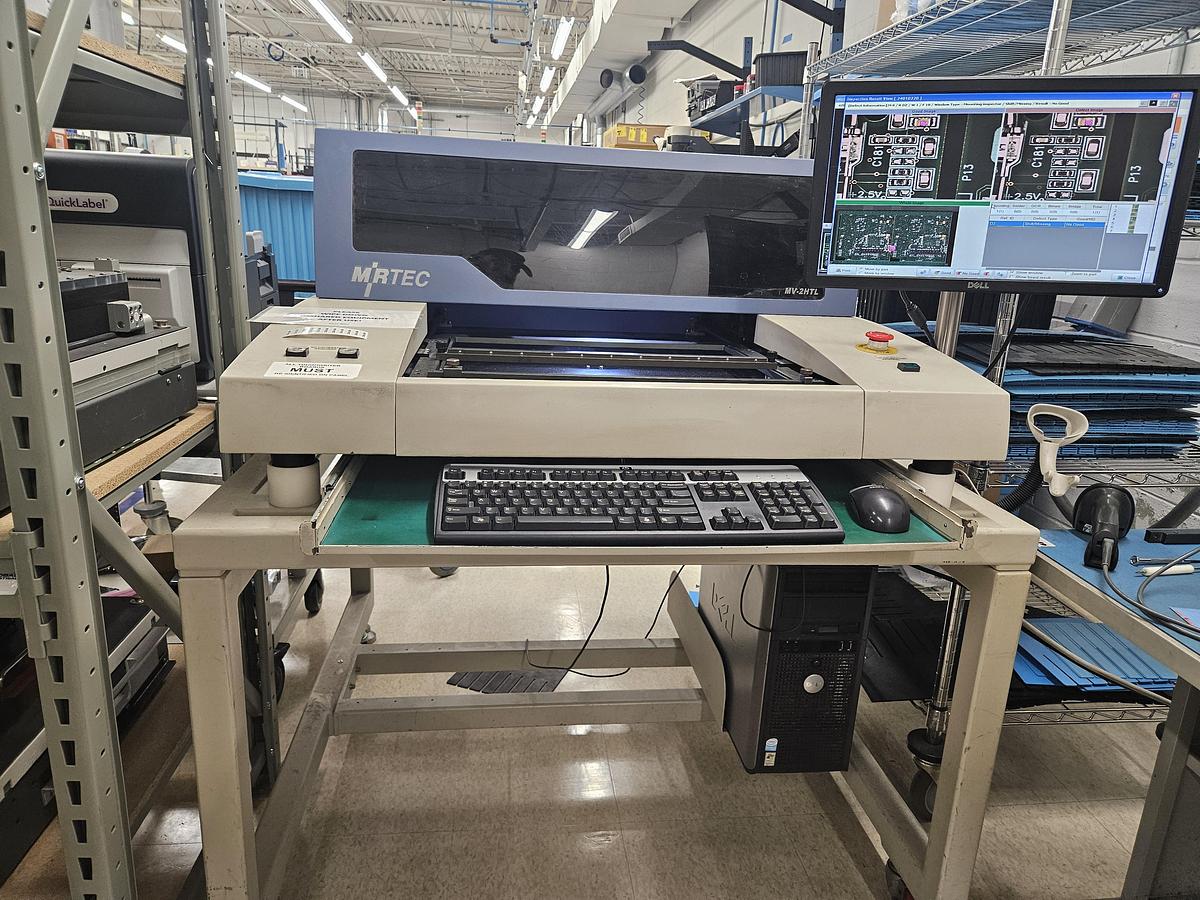

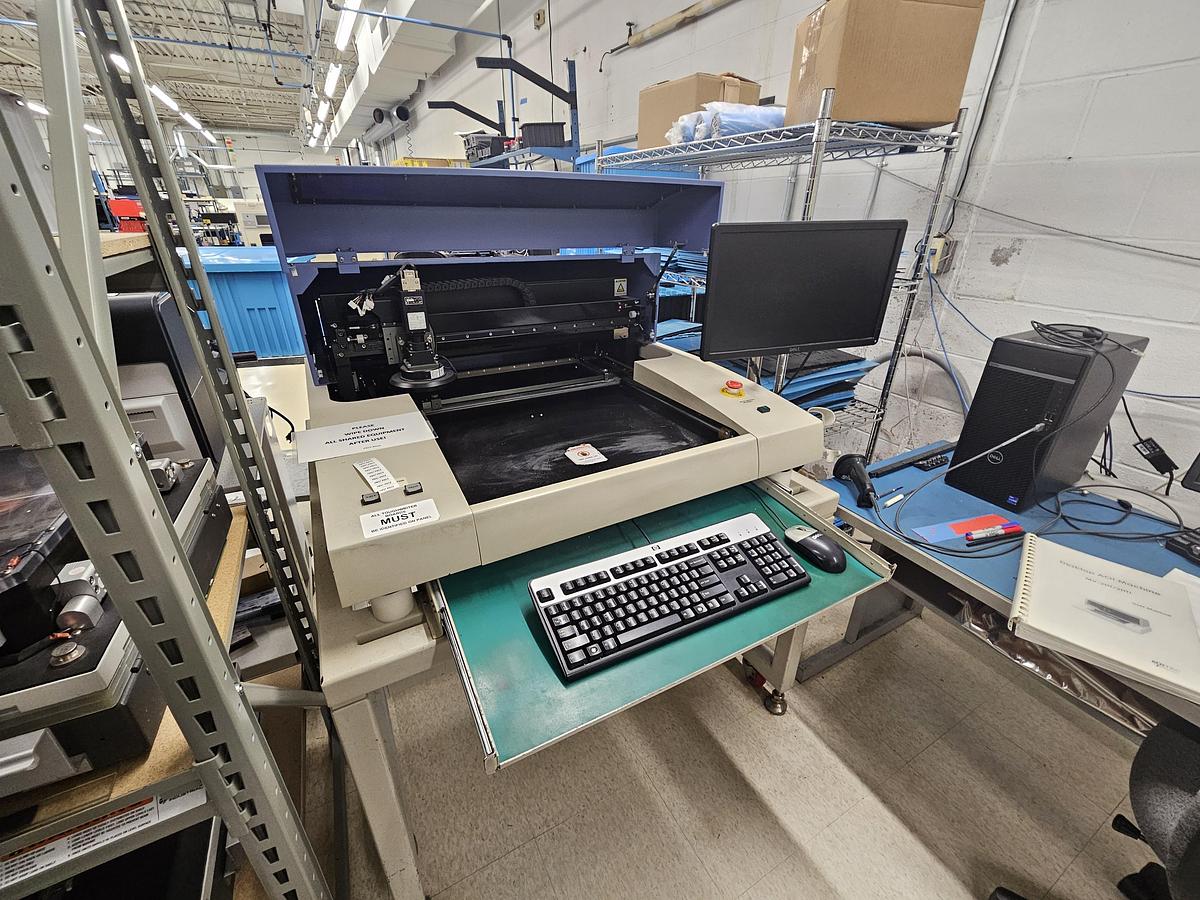

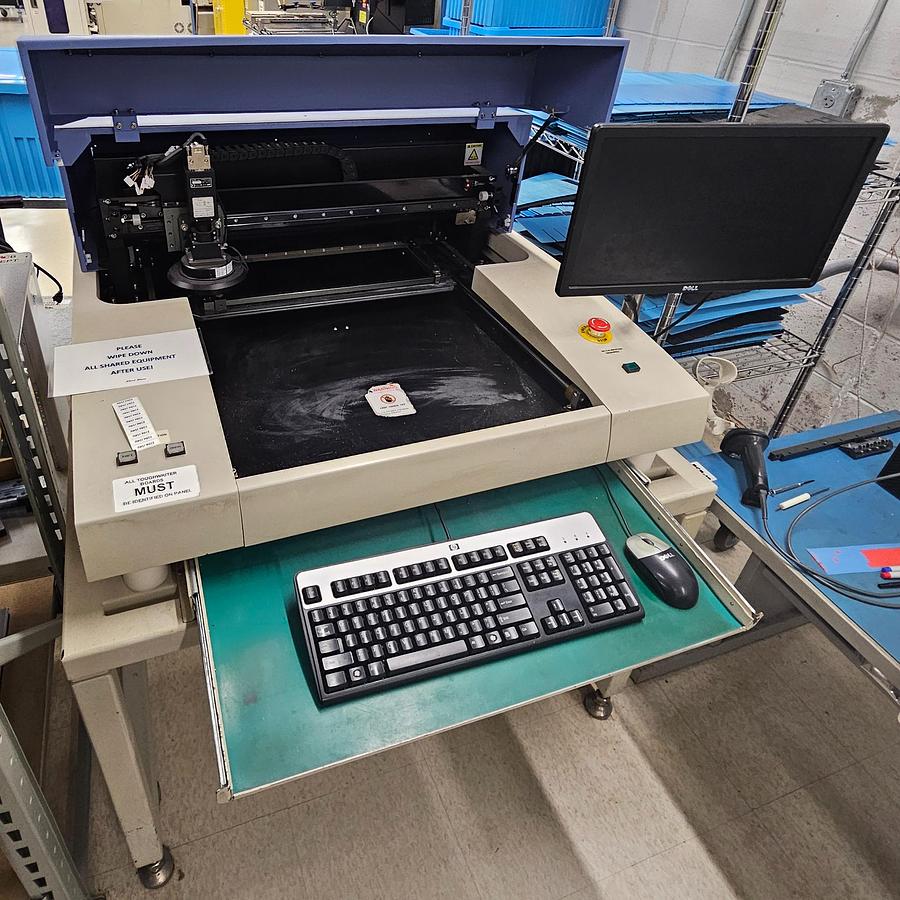

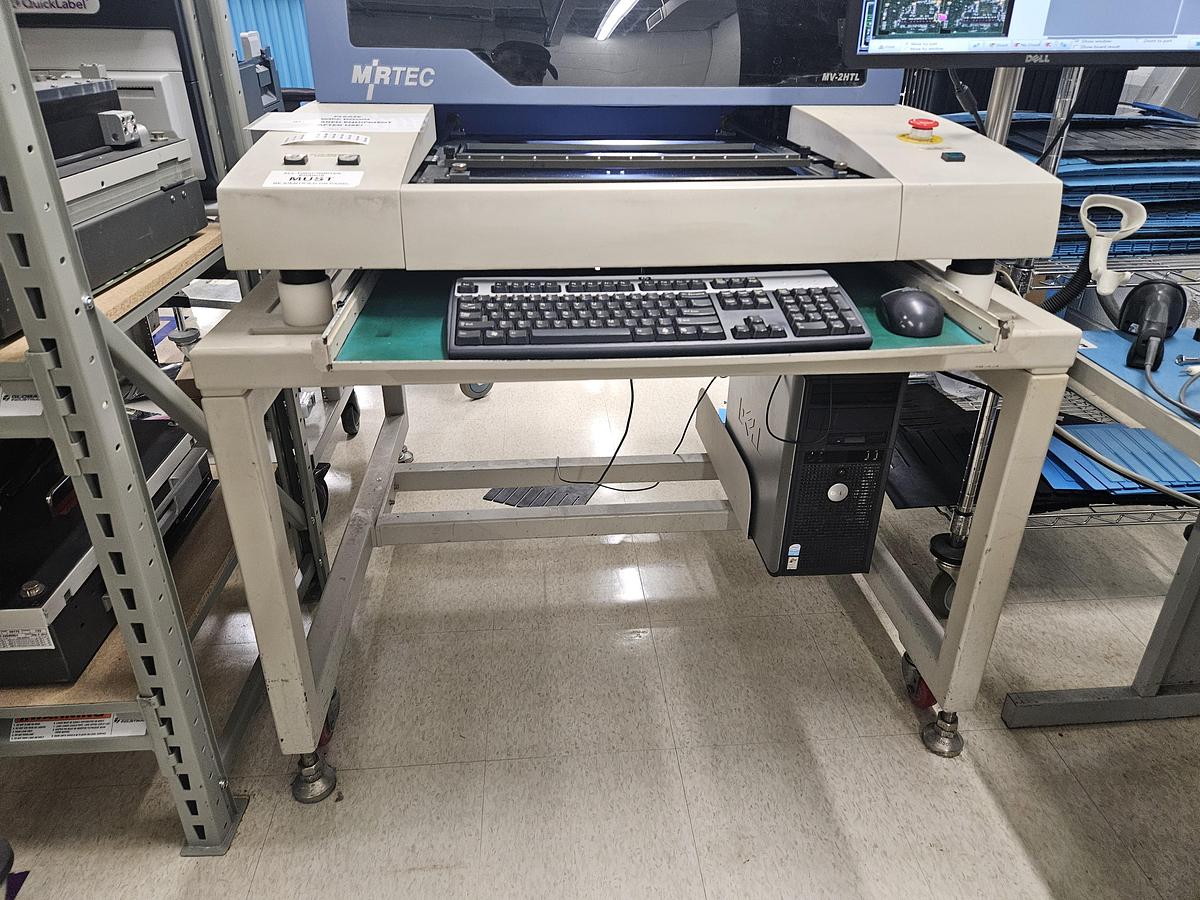

The system is equipped with its original inspection enclosure, camera system, integrated lighting, PC workstation, LCD monitor, keyboard, mouse, and emergency-stop control panel. The machine was observed capturing and displaying live PCB images on screen and is currently located in a clean electronics manufacturing environment.

This MIRTEC AOI system is ideal for contract manufacturers, laboratories, R&D facilities, educational institutions, and QA departments looking for a cost-effective offline inspection solution from a respected OEM.

SPECIFICATIONS

Manufacturer: MIRTEC

Model: MV-2HTL

Machine Type: Desktop AOI / Vision Inspection System

Year of Build: 2006

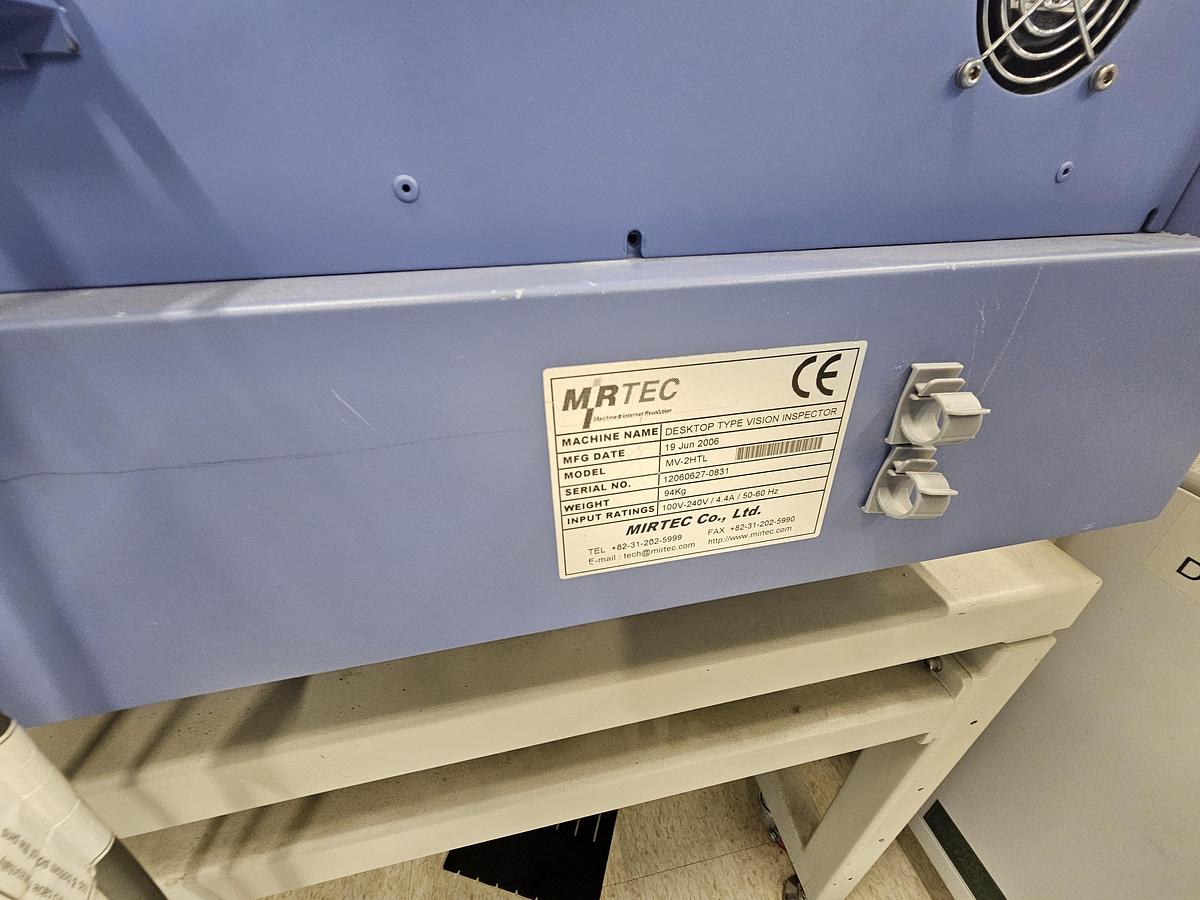

Serial No.: 12060627-0831

Electrical: 100–240 VAC, 50/60 Hz

Weight: Approx. 94 kg (207 lbs.)

Configuration: Offline / Desktop Inspection

Control: PC-Based Vision System

Safety: Emergency Stop Button

FEATURES

• Offline automated optical inspection (AOI)

• High-resolution PCB imaging

• Integrated lighting system

• Desktop enclosure with viewing window

• Emergency stop station

• PC-based control platform

• LCD monitor

• CPU, Keyboard and mouse included

• Suitable for SMT, through-hole, and mixed-technology boards

• Compact footprint for lab or production-support use

INCLUDES

• MIRTEC MV-2HTL AOI machine

• Integrated inspection enclosure

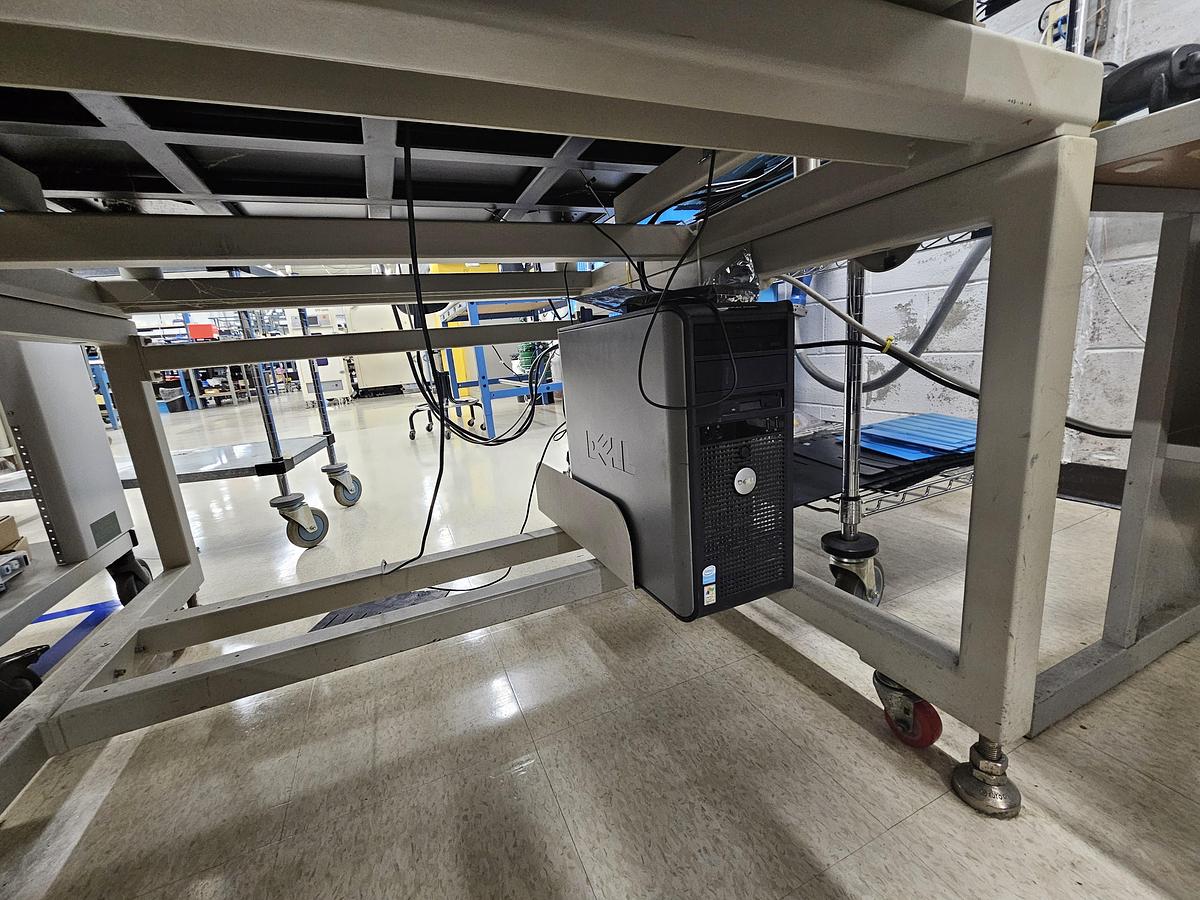

• PC workstation

• LCD monitor

• Keyboard & mouse

• Emergency stop panel

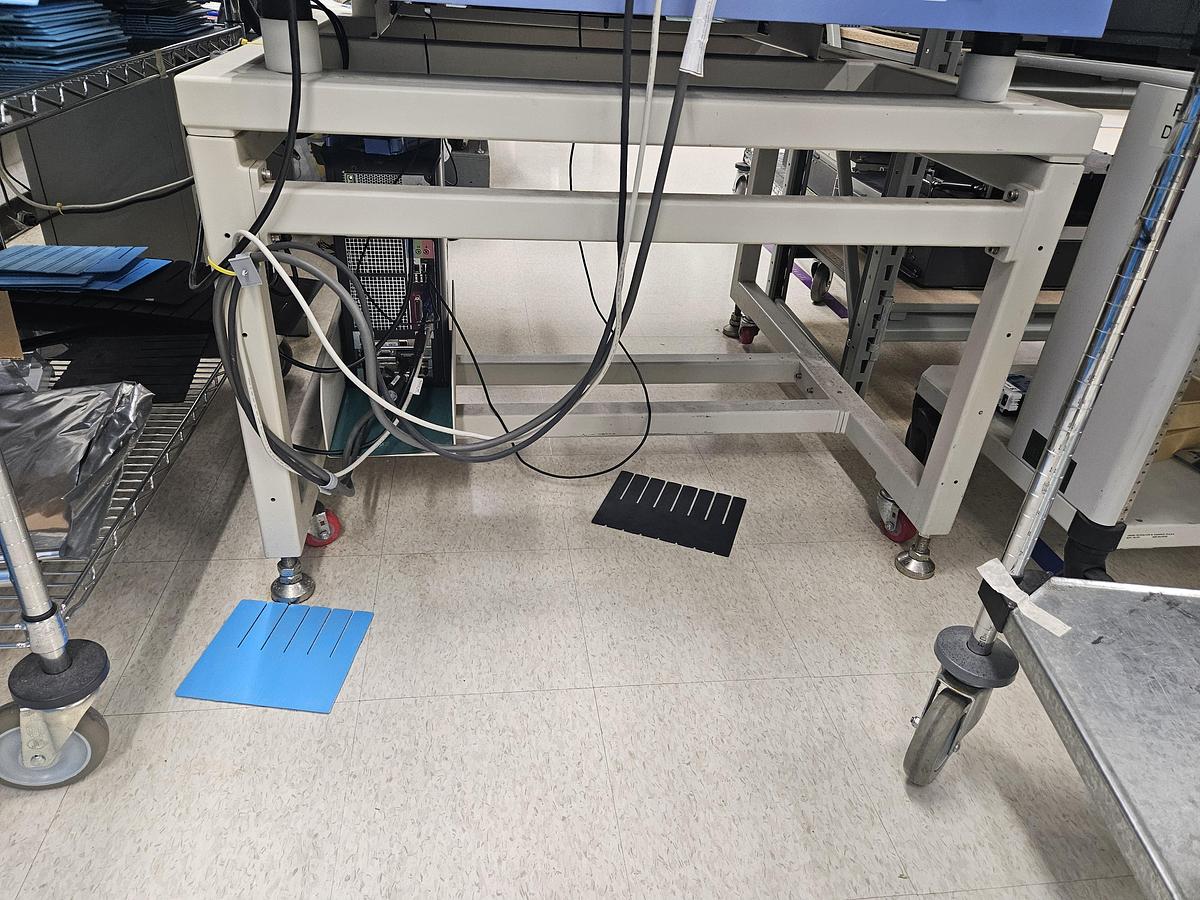

• Machine stand / table

Plus manuals & software

CONDITION

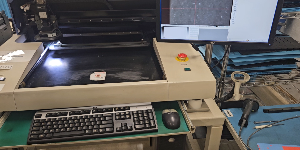

This system has been powered on and tested (see video). Live imaging was observed on the monitor at the time of inspection.

PTWS # LASTR-0000-012426-A

Picture# 012126

SHIPPING

Contact us for great rates on shipping.

We always get better rates.

Please contact us for a rigging and shipping quote; just include the zip code when inquiring and if you have a loading dock or ground level with forklift. Thank you!

Contact us at Four Zero One – Nine Six Five – Five Five Five Seven

We also ship worldwide.

OFFERED BY

L R Associates, Inc.

Machinery Dealers / Consultants / Appraisers / Auctioneers

25 Conduit St., Central Falls, RI 02863

Tel (401) 965-5557 Fax (866) 566-0102

www.larryrazza.com

ADDITIONAL INFORMATION

Photos and video available upon request.

Inspections welcome by appointment.

Specifications subject to verification.
