Cincinnati Sub-Zero CSZ ZP-8-1.5-1-H/AC Environmental Test Chamber

8 cu ft Workspace • Cascade Refrigeration • Touchscreen Control • Tested & Powered

DESCRIPTION

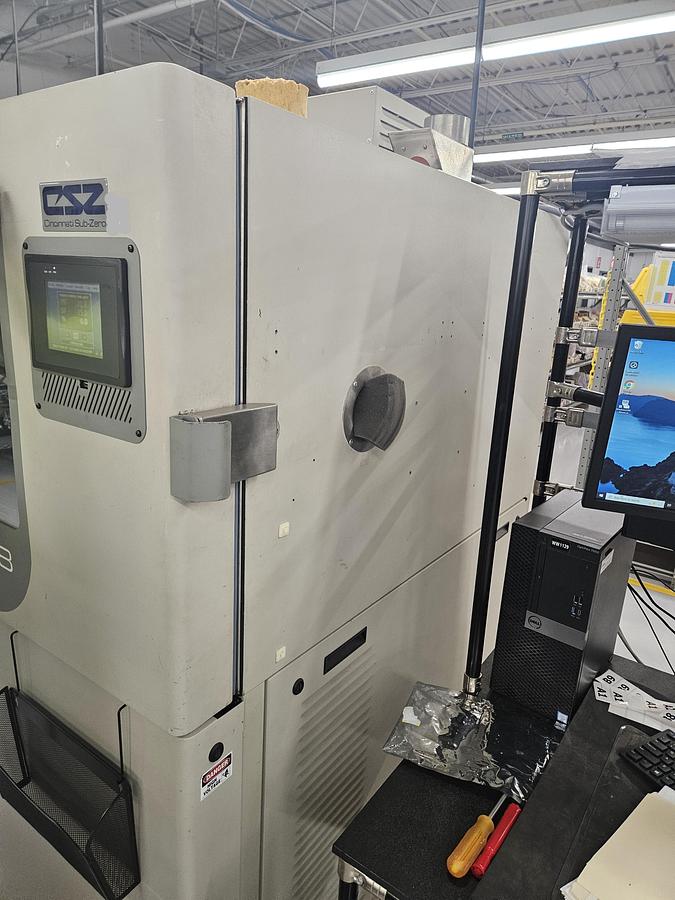

Available for immediate sale is this Cincinnati Sub-Zero (CSZ) Z-Plus Series Environmental Test Chamber, model ZP-8-1.5-1-H/AC, manufactured in the USA and recently powered on and observed in operation.

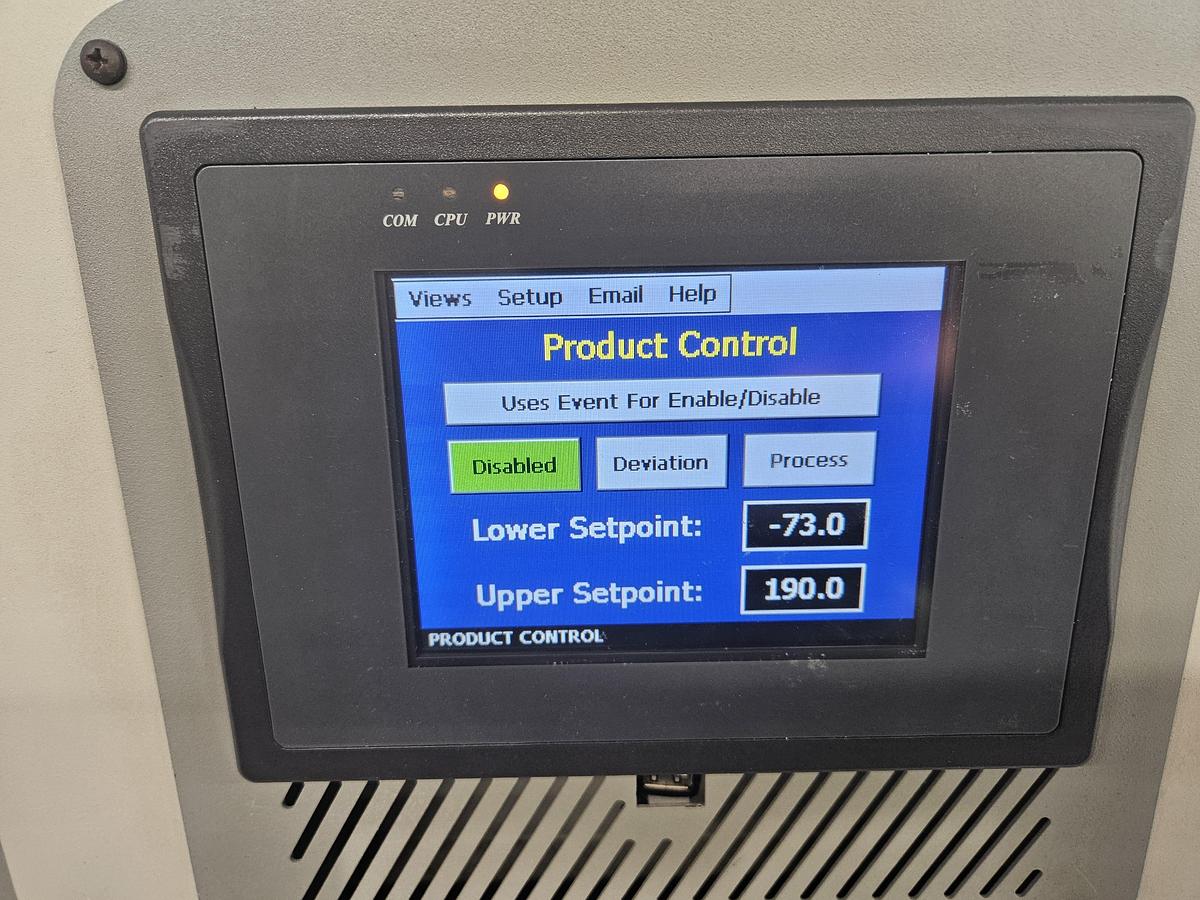

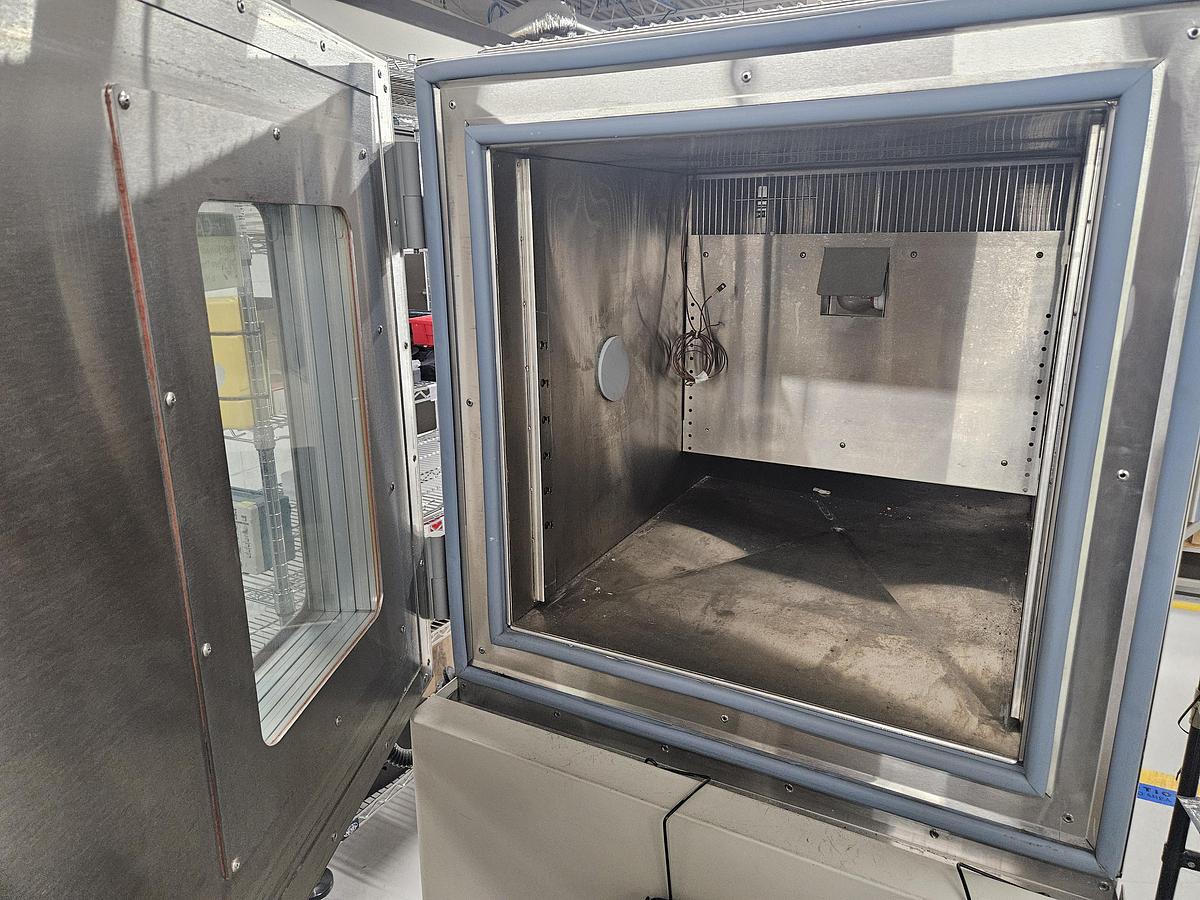

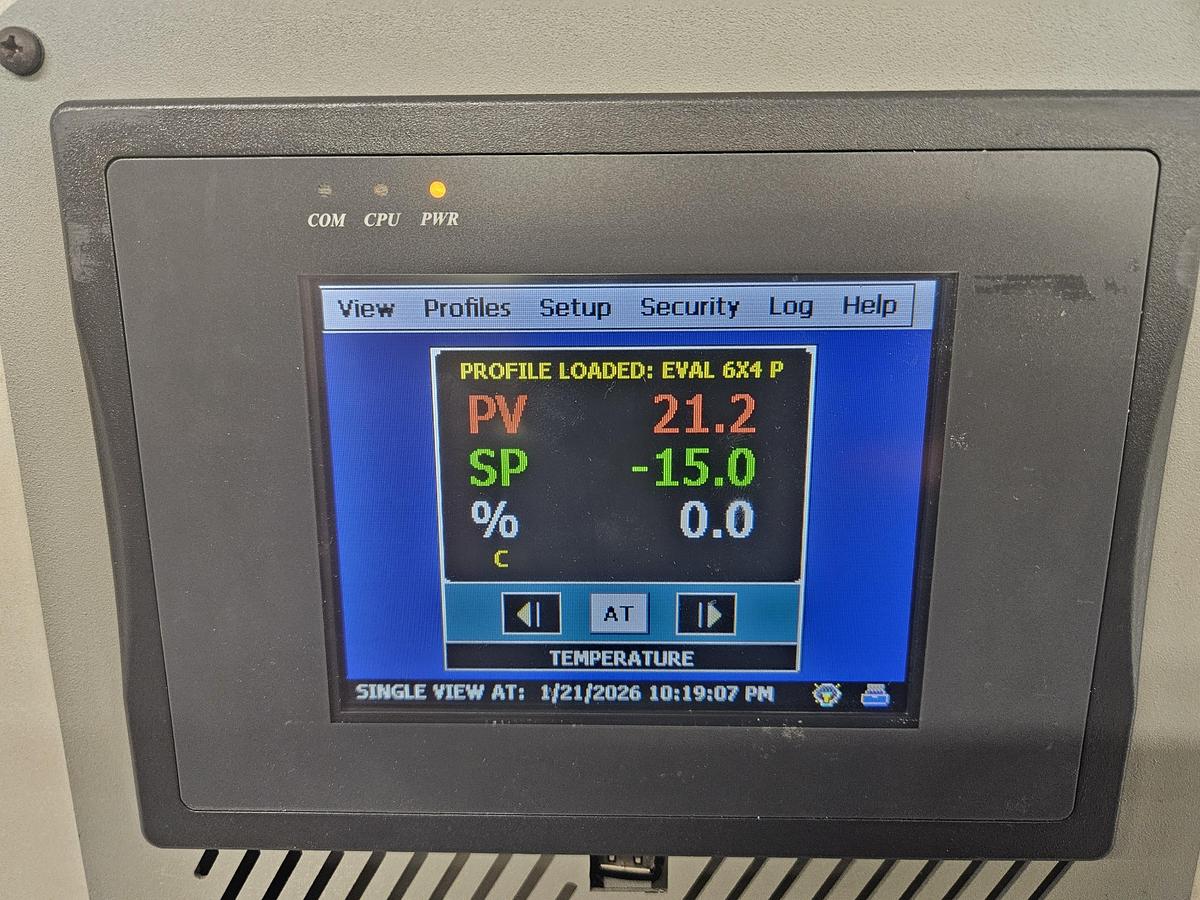

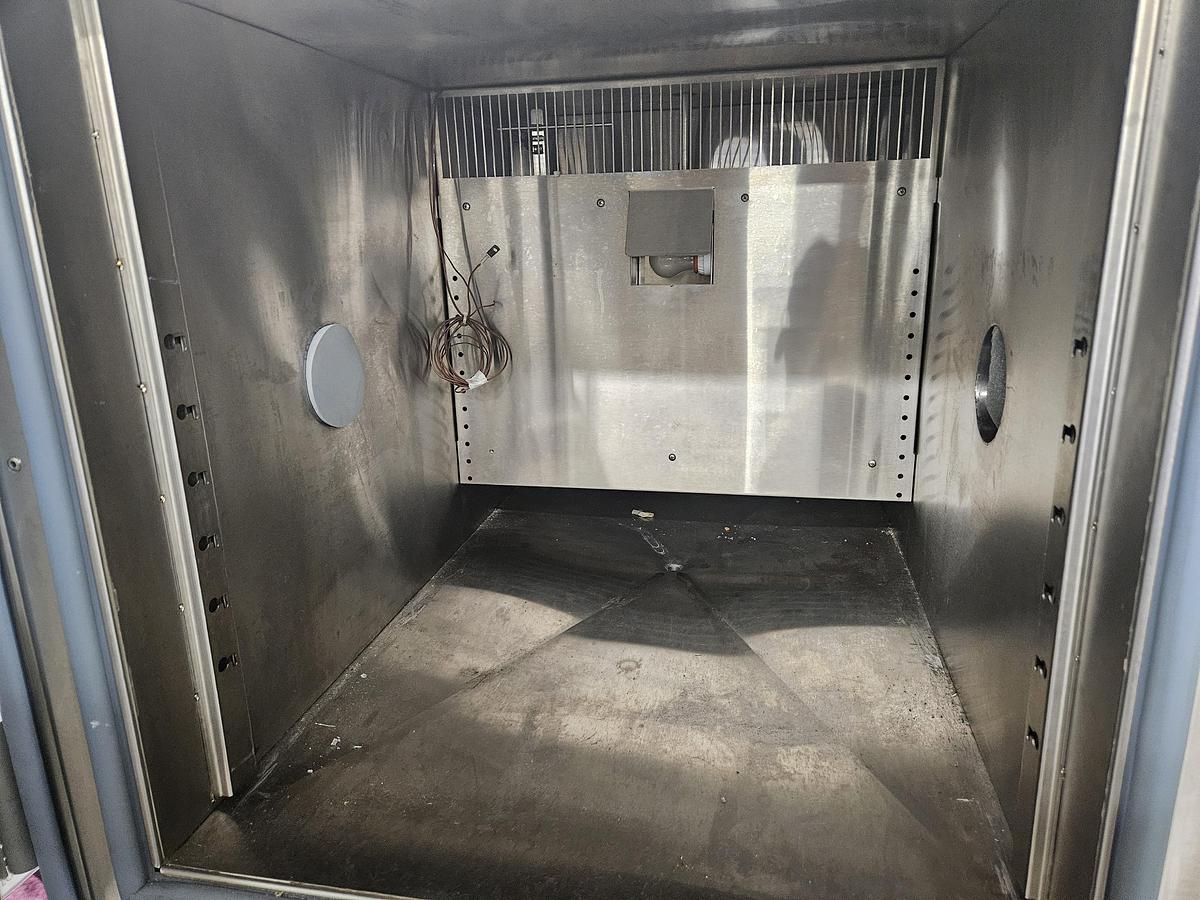

This chamber features a stainless-steel interior workspace of approximately 8 cubic feet (roughly 24" × 24" × 24"), heavy-duty insulation, forced-air circulation, and cascade refrigeration for low-temperature testing. The integrated touchscreen controller was live at the time of inspection and actively displaying temperature readings.

Cincinnati Sub-Zero chambers are widely used in aerospace, electronics, automotive, defense, EV battery testing, semiconductor qualification, reliability labs, and university research facilities.

This unit is ideal for thermal cycling, environmental stress screening, component validation, burn-in testing, and R&D applications where reliable temperature performance is required.

SPECIFICATIONS

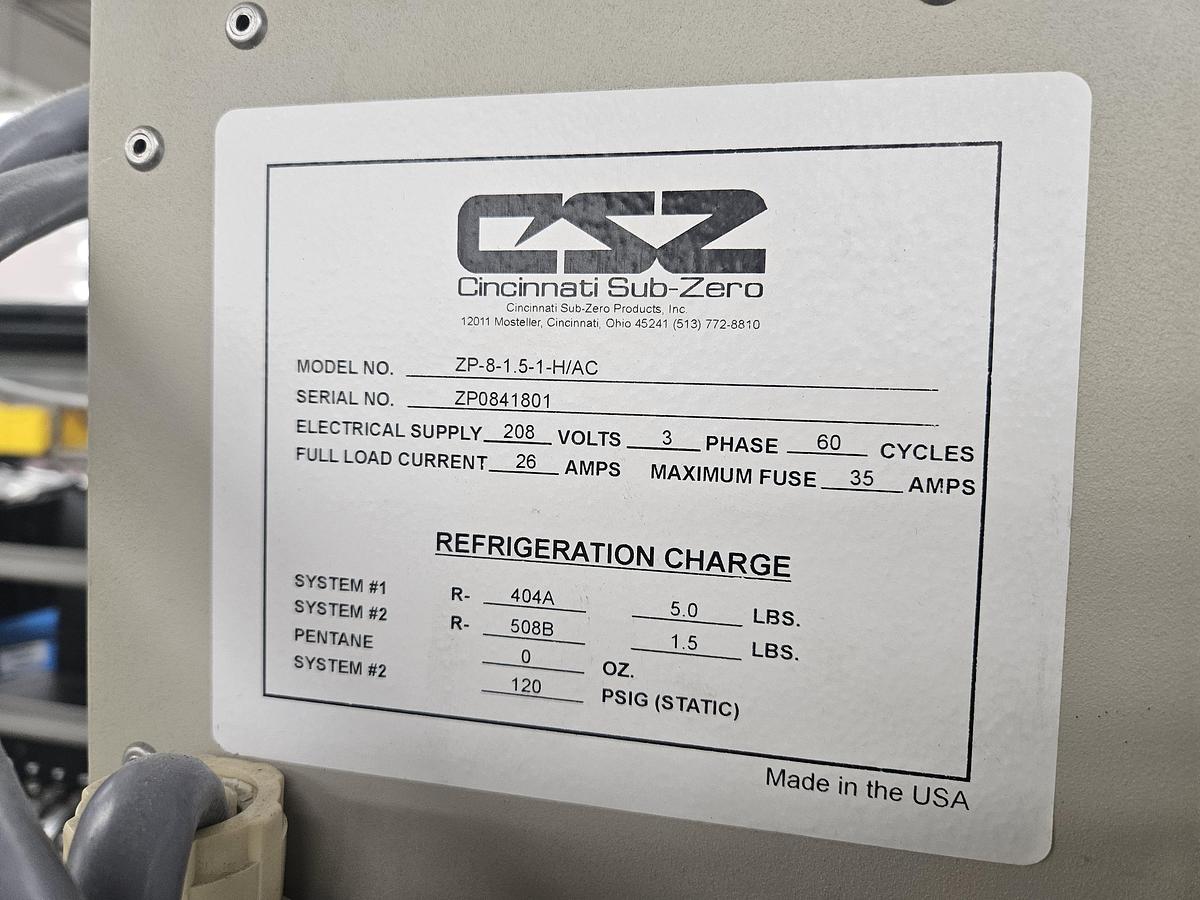

Manufacturer: Cincinnati Sub-Zero (CSZ)

Series: Z-Plus

Model: ZP-8-1.5-1-H/AC

Serial No.: ZP0841801

Interior Volume: Approx. 8 cu ft

Interior Dimensions: Approx. 24" W × 24" D × 24" H

Electrical: 208 Volts / 3-Phase / 60 Hz

Full Load Current: 26 Amps

Maximum Fuse: 35 Amps

Refrigeration: Cascade System

Refrigerants:

– R-404A (5.0 lbs)

– R-508B (1.5 lbs)

Cooling: Air-Cooled Condenser

Construction: Stainless-Steel Interior

Control: Touchscreen HMI

Country of Manufacture: USA

Year of Manufacture: Approx. 2008 (per serial number)

FEATURES

• Z-Plus Series industrial environmental chamber

• Approx. 8 cu ft stainless workspace

• Cascade refrigeration for deep-cold testing

• Forced-air circulation system

• Touchscreen temperature controller

• Air-cooled condenser (no chilled water required)

• Heavy-duty insulated enclosure

• Viewing window

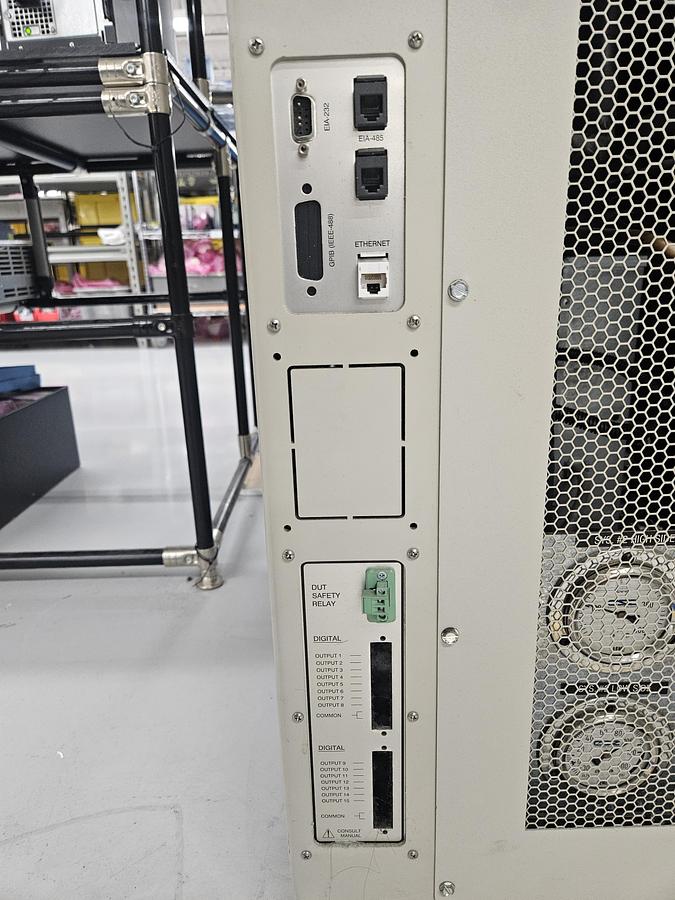

• Access ports

• Mobile base

• Designed for lab and production qualification use

INCLUDES

• Cincinnati Sub-Zero ZP-8 Environmental Chamber

• Integrated refrigeration system

• Touchscreen controller

• Viewing window

• Mobile base

WSPT# LASTR-0000-012426-B

Picture: 012126

CONDITION

This chamber has been powered on and observed operating, with the touchscreen controller active and temperature readings displayed at the time of inspection. No extended temperature-soak or performance certification testing has been performed. Sold as-is, where-is.

SHIPPING

Contact us for great rates on shipping.

We always get better rates.

Please contact us for a rigging and shipping quote; just include the zip code when inquiring and if you have a loading dock or ground level with forklift. Thank you!

Contact us at Four Zero One – Nine Six Five – Five Five Five Seven

We also ship worldwide.
