DURIRON FILTER PRESS SYSTEM MODEL EPG-630/32-11/17 – 13 PLATE CONFIGURATION – POLYPROPYLENE PLATES – HYDRAULIC CLOSURE – COMPLETE SYSTEM – TESTED & READY

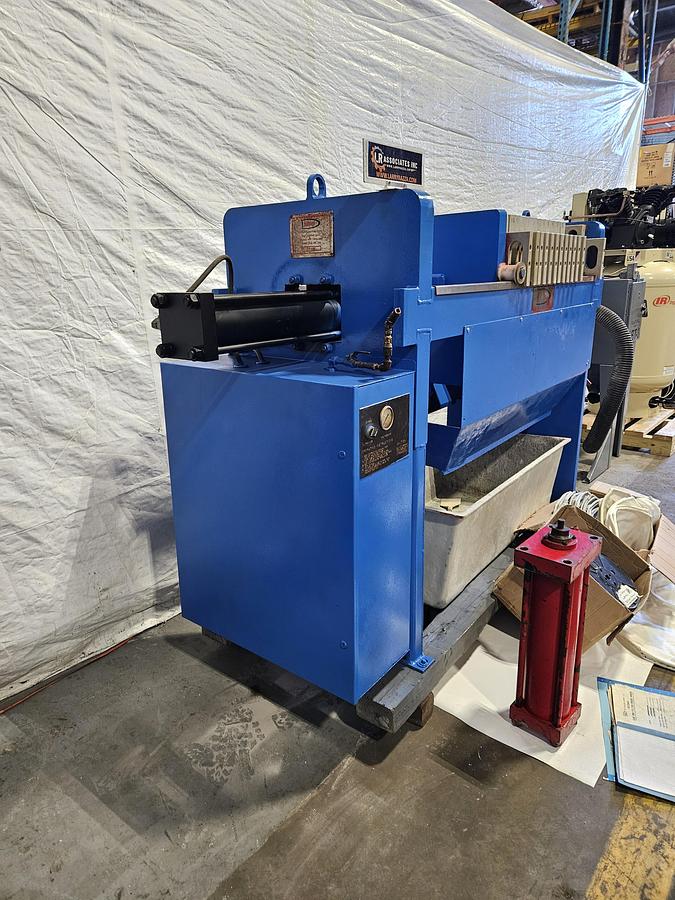

DURIRON FILTER PRESS SYSTEM

MODEL EPG-630/32-11/17 – 13 PLATE CONFIGURATION – POLYPROPYLENE PLATES – HYDRAULIC CLOSURE – COMPLETE SYSTEM – TESTED & READY

DESCRIPTION

Available for immediate sale is this Duriron industrial filter press system, designed for solid-liquid separation in chemical processing, wastewater treatment, plating operations, and industrial filtration applications.

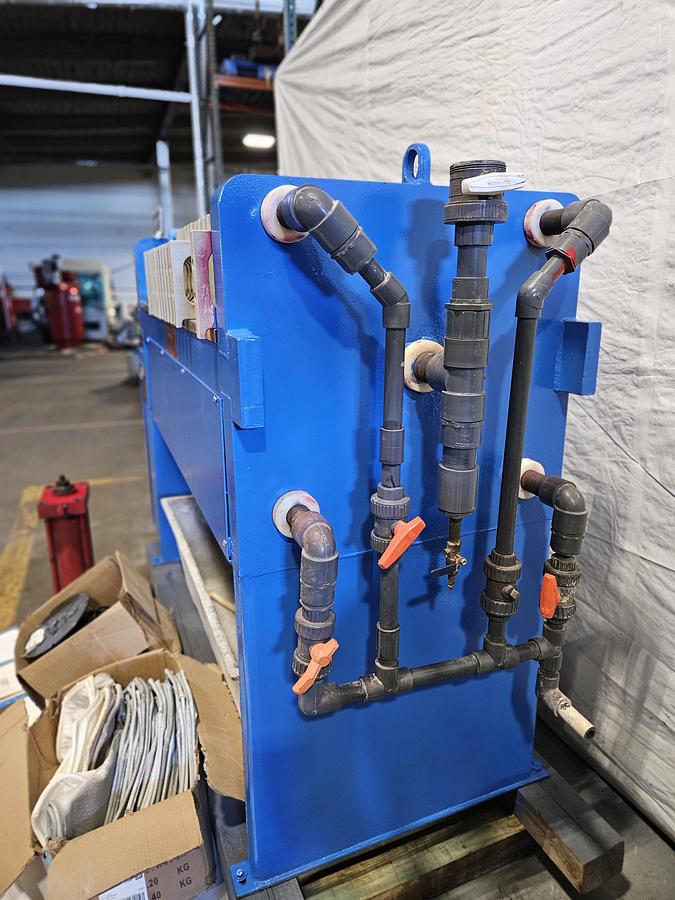

This unit features a polypropylene plate pack with manual plate transport and hydraulic ram closure system. The press is designed for reliable filtration performance and efficient cake discharge, making it suitable for a wide range of industrial slurry and liquid separation processes.

The machine includes a complete set of filtration cloths with rubber gasket materials, an additional hydraulic cylinder, and the original manufacturer documentation.

The system has been fully tested and is ready for service.

Built by Duriron (The Duriron Company, Inc.), a well-known manufacturer of industrial filtration and process equipment, this press represents a dependable filtration solution at a fraction of new replacement cost.

FILTER CONFIGURATION

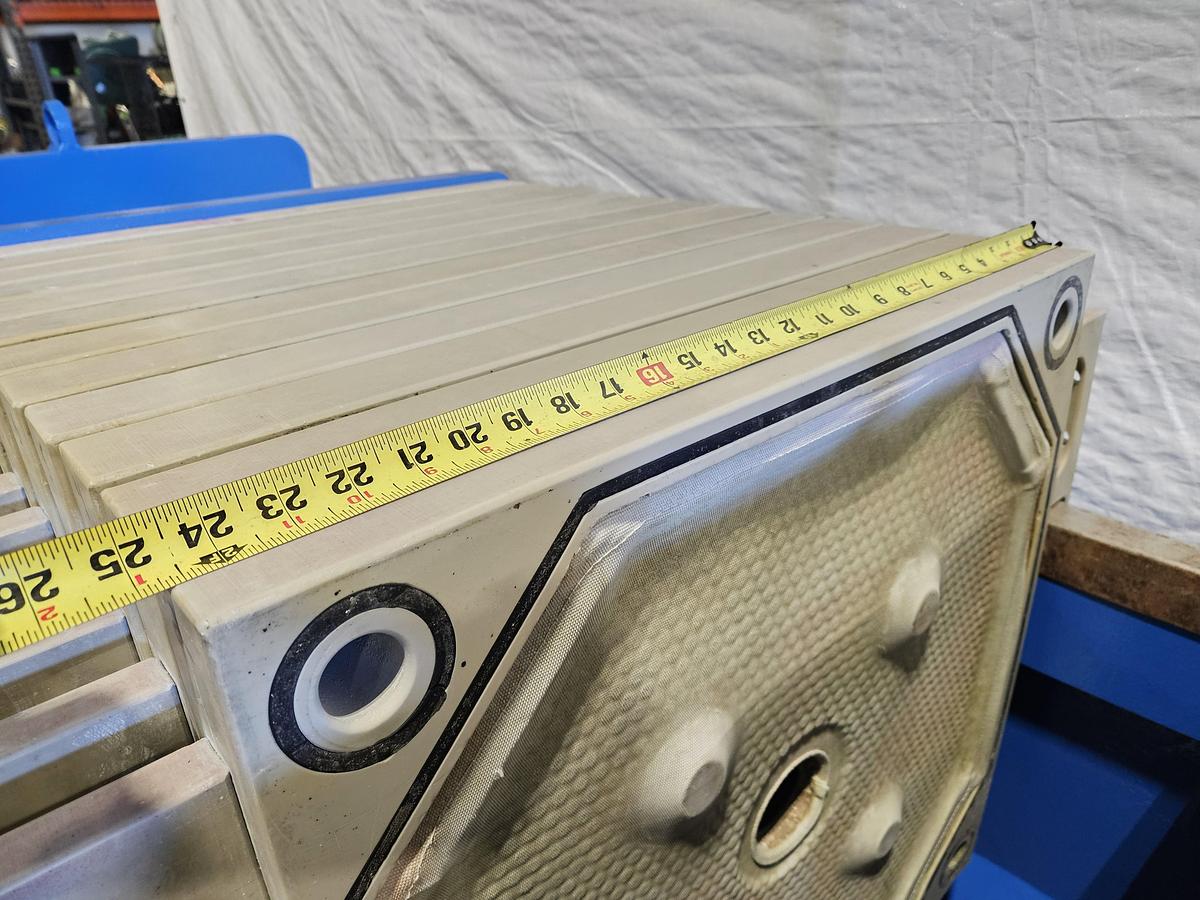

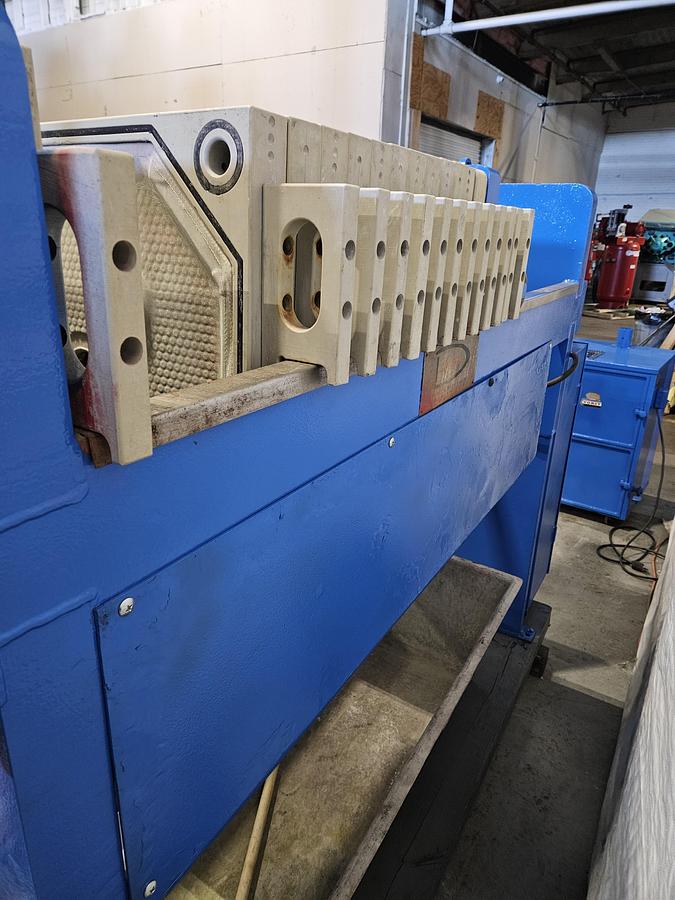

• 13 Plate Filter Press Configuration

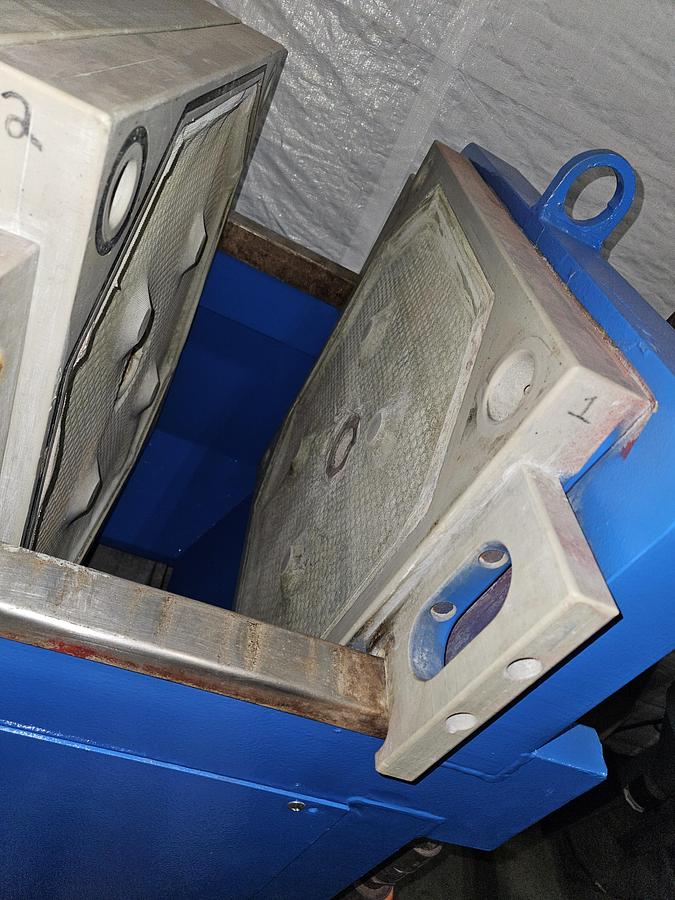

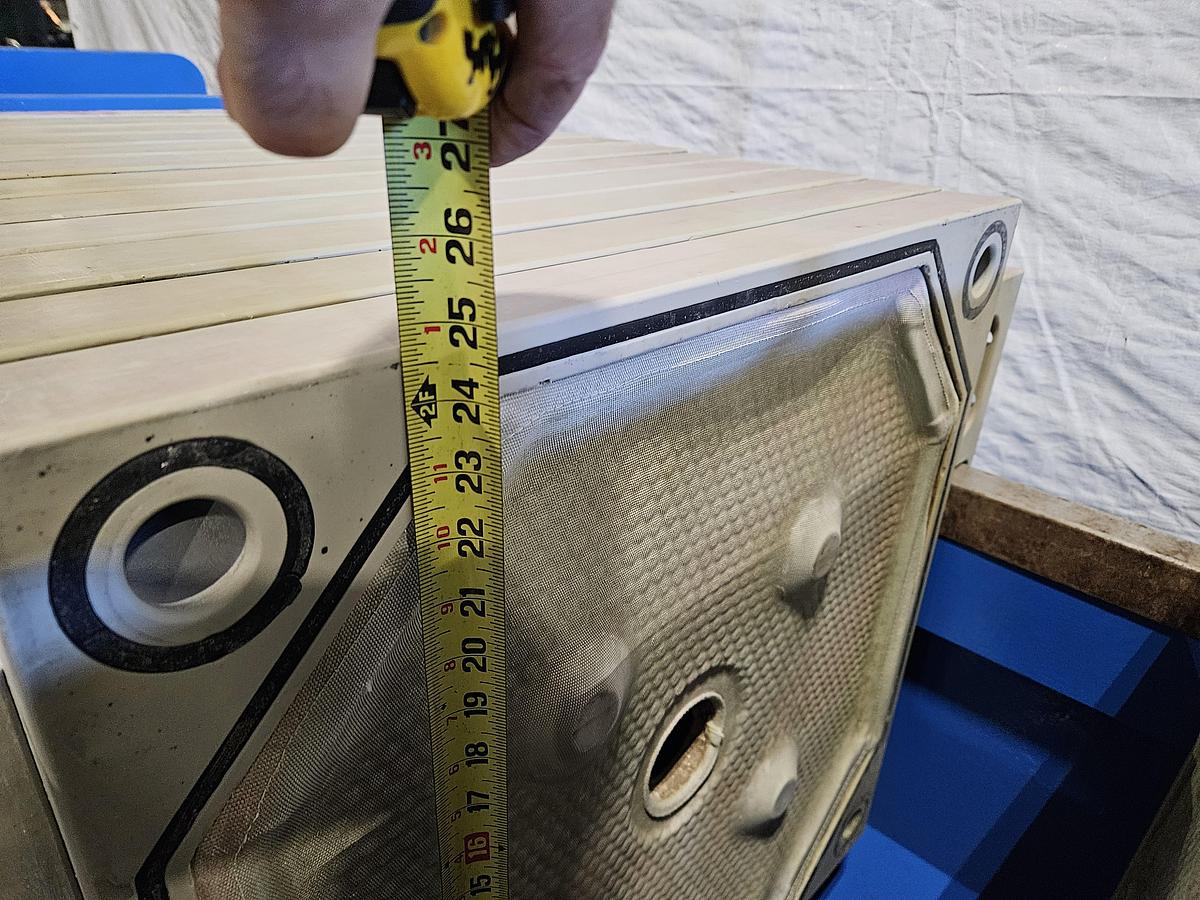

• Polypropylene Filter Plates

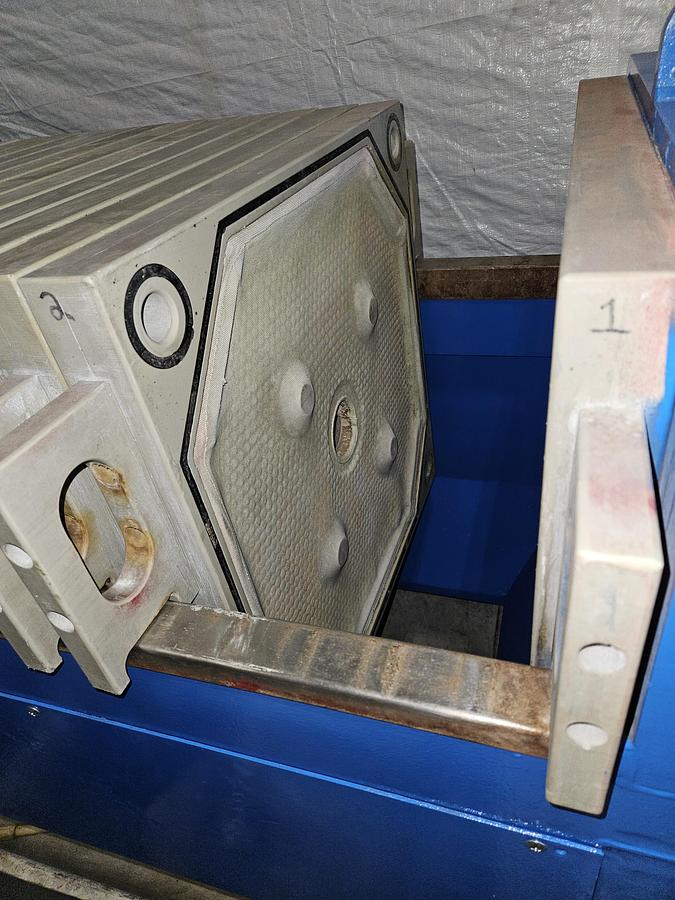

• Caulked & Gasketed Recessed Plate Design

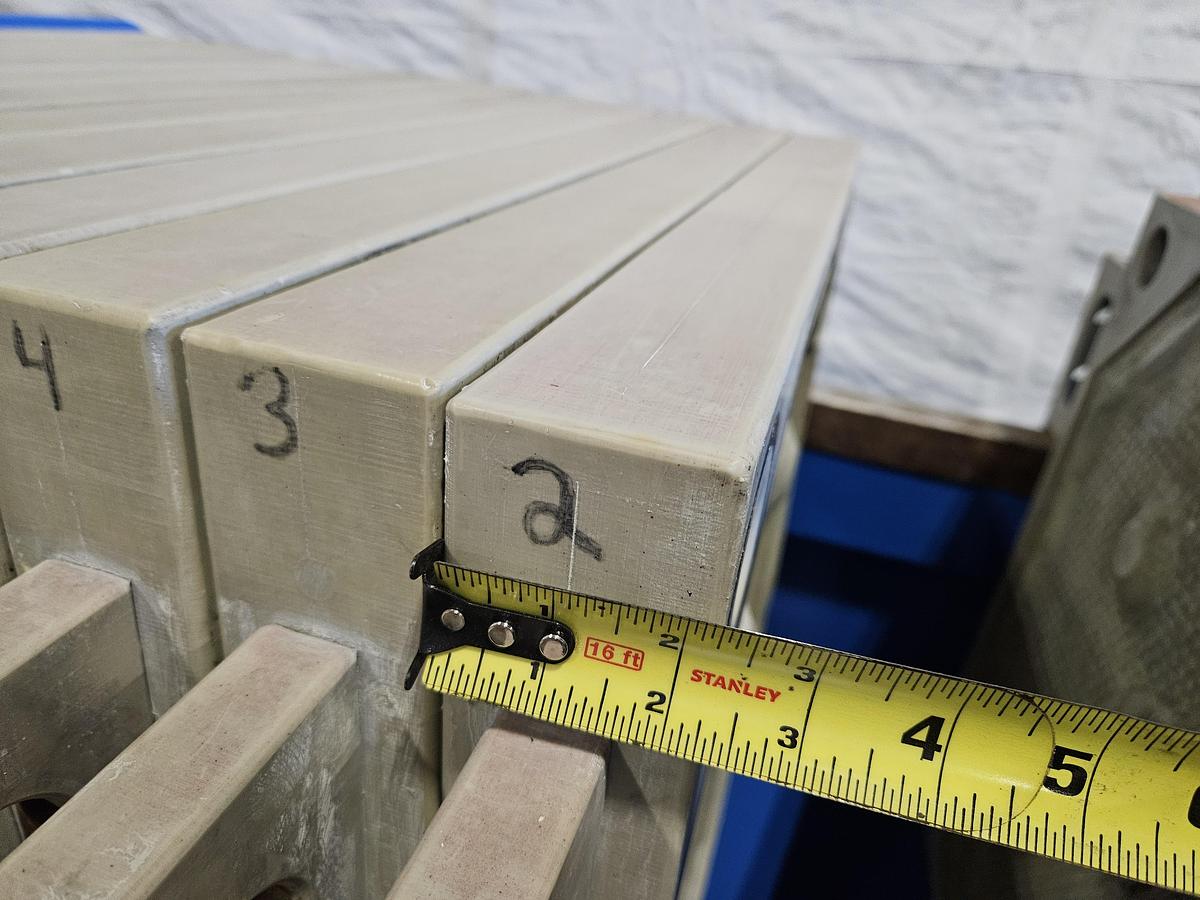

• Plate Cake Thickness: 32 mm (1-1/4")

• Manual Plate Transport System

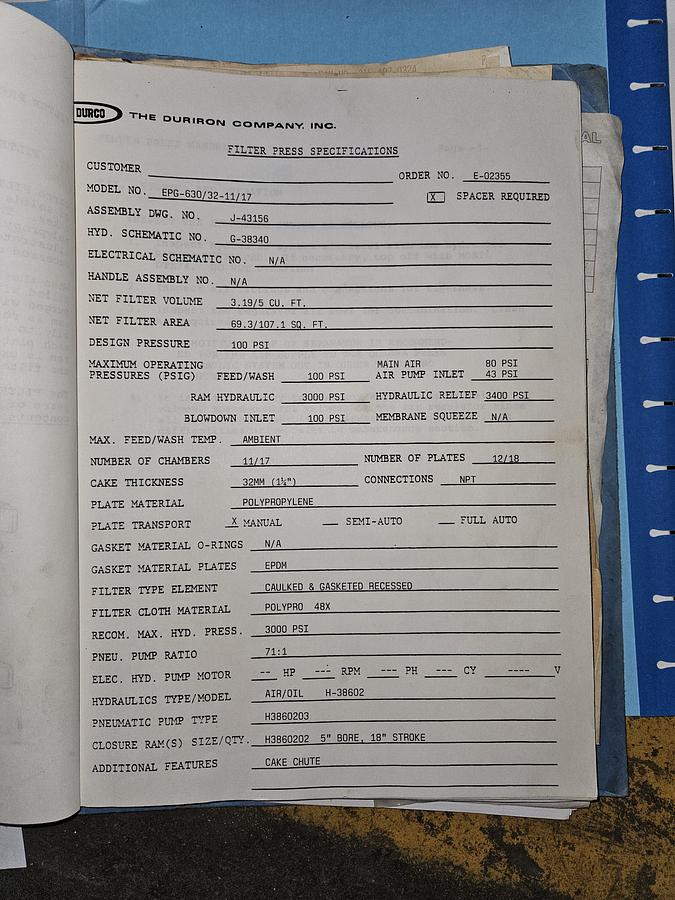

SPECIFICATIONS

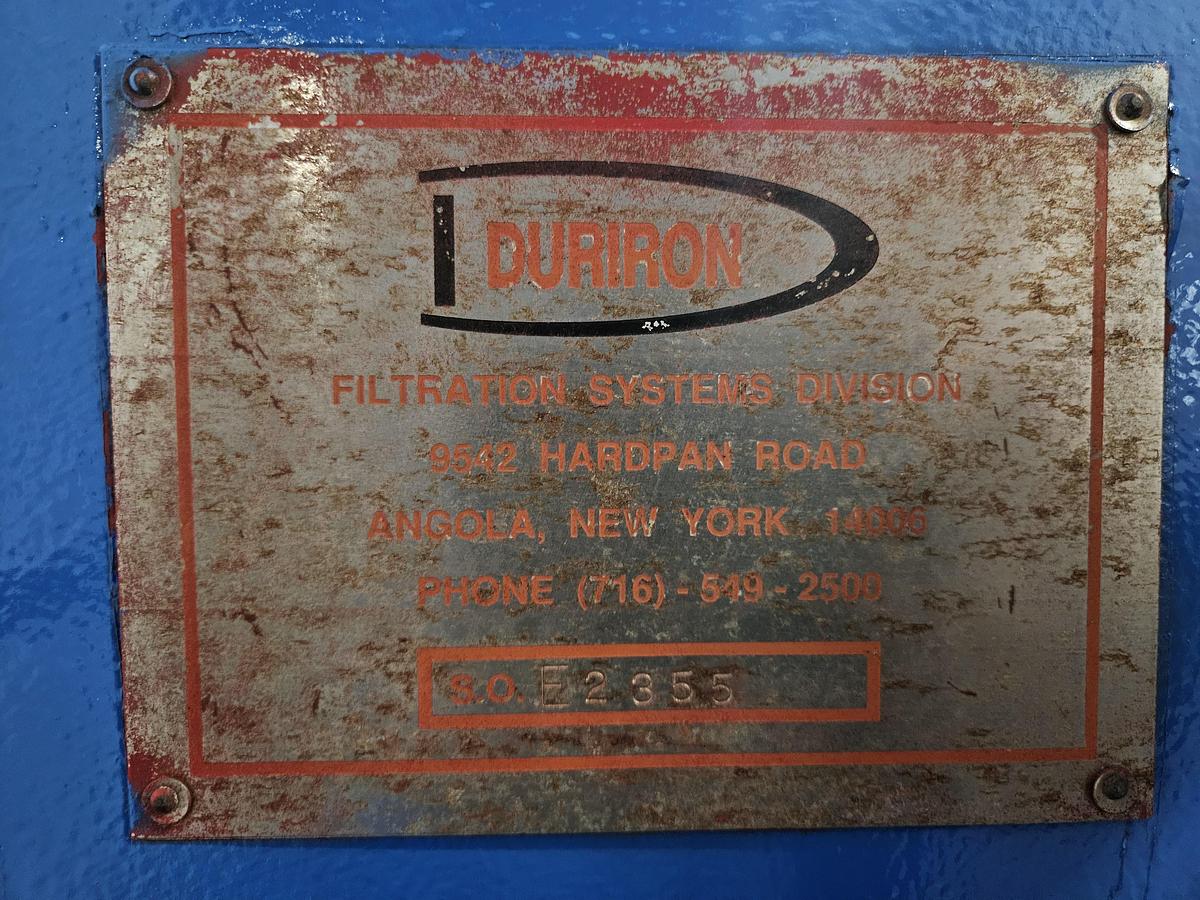

Manufacturer: Duriron (Durco – The Duriron Company, Inc.)

Model: EPG-630/32-11/17

Order Number: E-02355

Assembly Drawing No.: J-43156

Hydraulic Schematic No.: G-38340

Net Filter Volume: 3.19 – 5 Cu. Ft.

Net Filter Area: 69.3 – 107.1 Sq. Ft.

Design Pressure: 100 PSI

Maximum Operating Pressures (PSIG)

Feed / Wash: 100 PSI

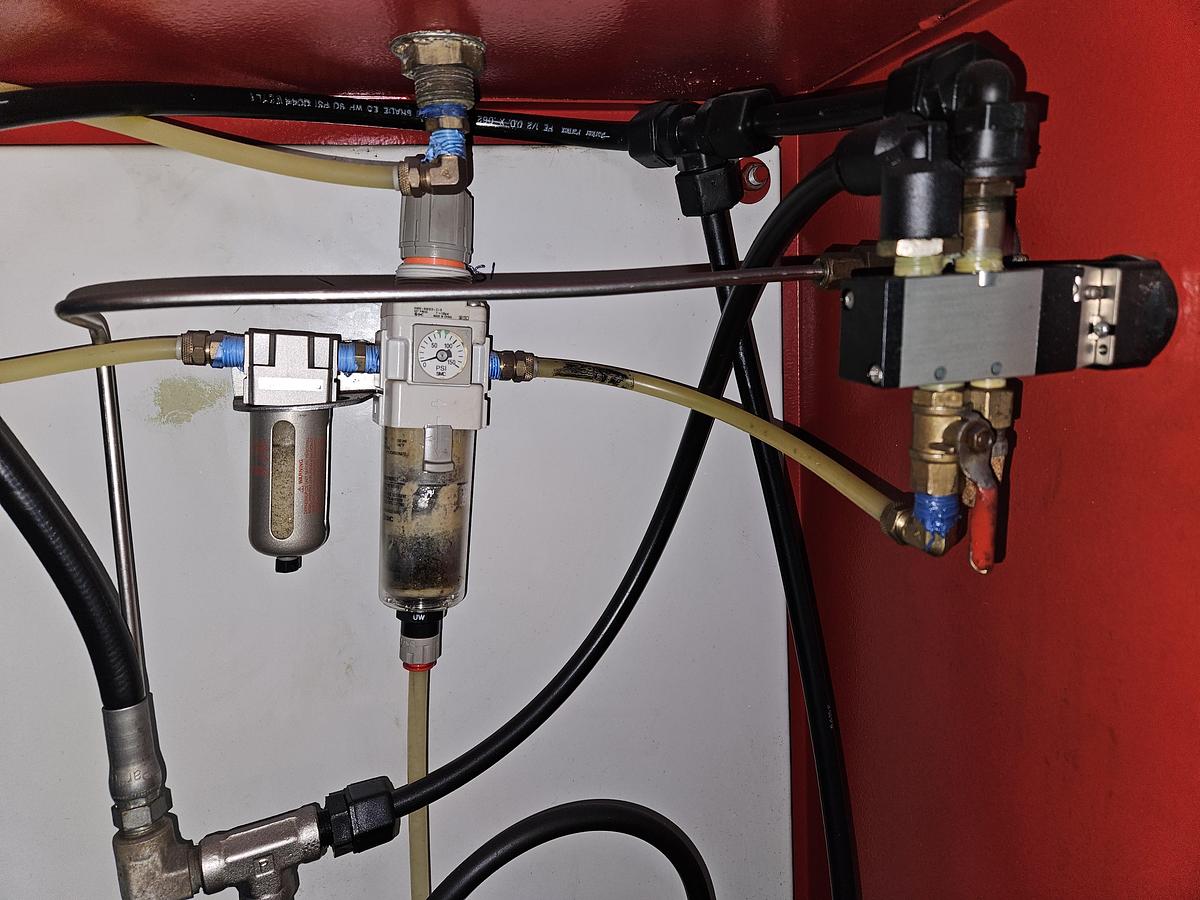

Main Air: 80 PSI

Air Pump Inlet: 43 PSI

Ram Hydraulic: 3000 PSI

Hydraulic Relief: 3400 PSI

Blowdown Inlet: 100 PSI

Maximum Feed/Wash Temperature: Ambient

Number of Chambers: 11 / 17

Number of Plates: 12 / 18 (configured with 13 plates installed)

Plate Material: Polypropylene

Filter Type Element: Caulked & Gasketed Recessed

Filter Cloth Material: Polypropylene 48X

Recommended Max Hydraulic Pressure: 3000 PSI

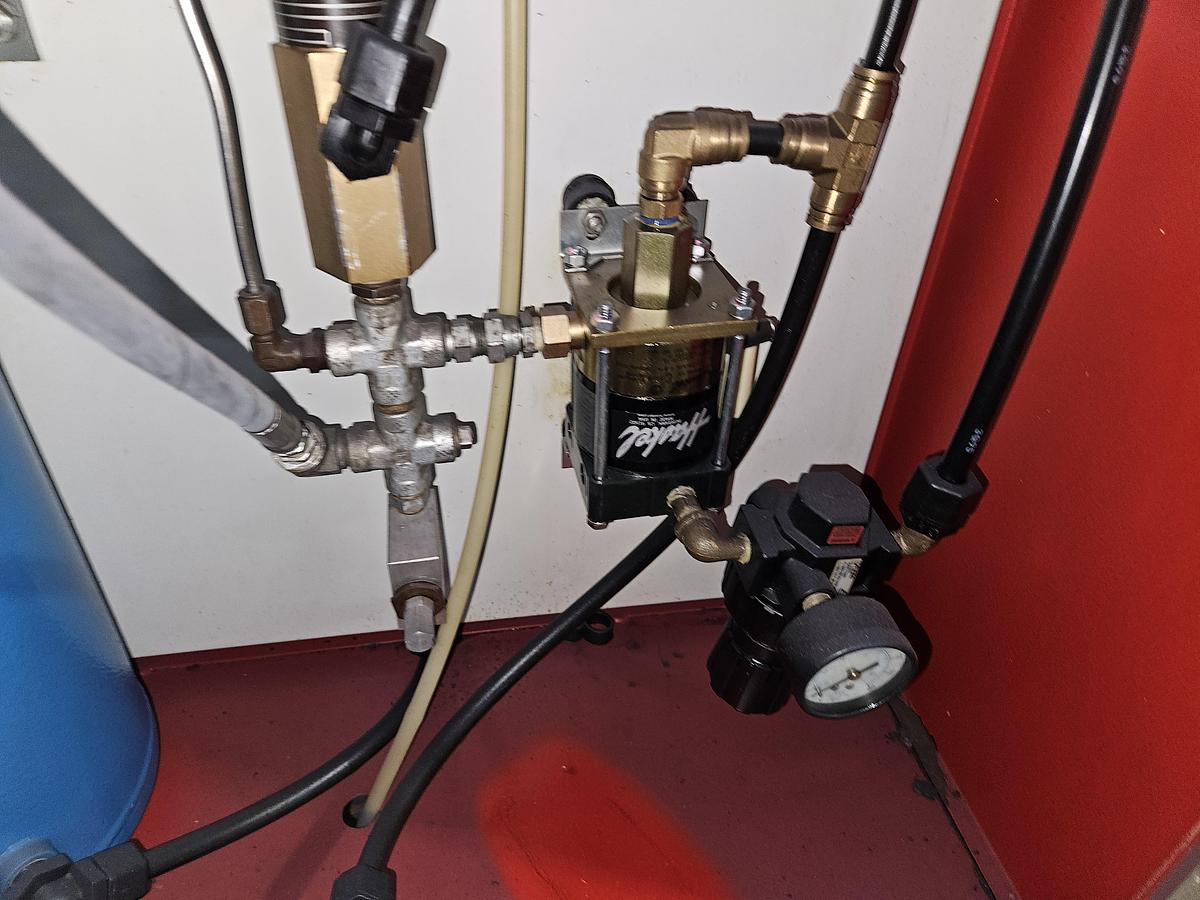

Pneumatic Pump Ratio: 71:1

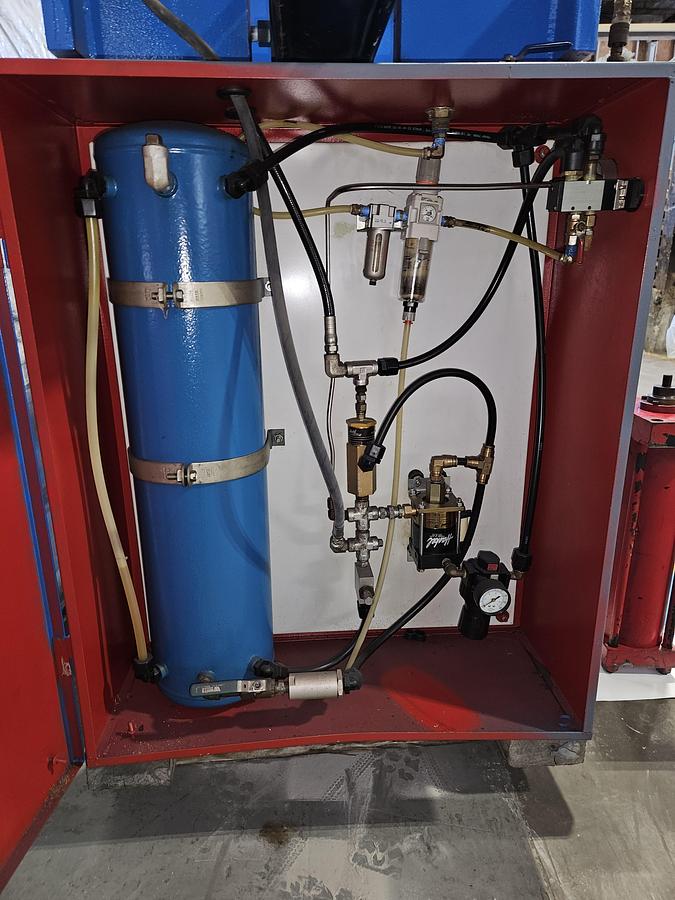

Hydraulic Type/Model: Air / Oil – H-38602

Pneumatic Pump Type: H3860203

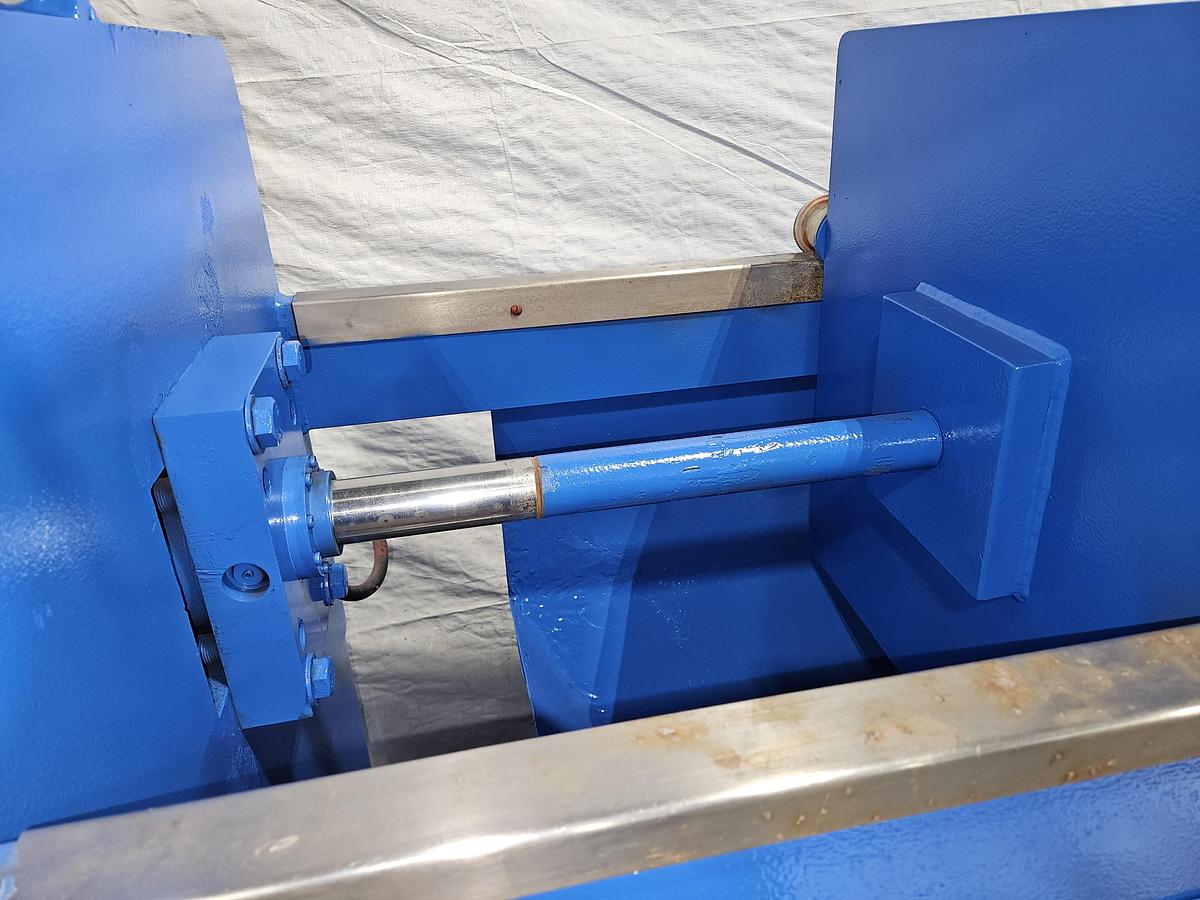

Closure Ram(s):

Model H3860202

5" Bore

18" Stroke

Connections: NPT

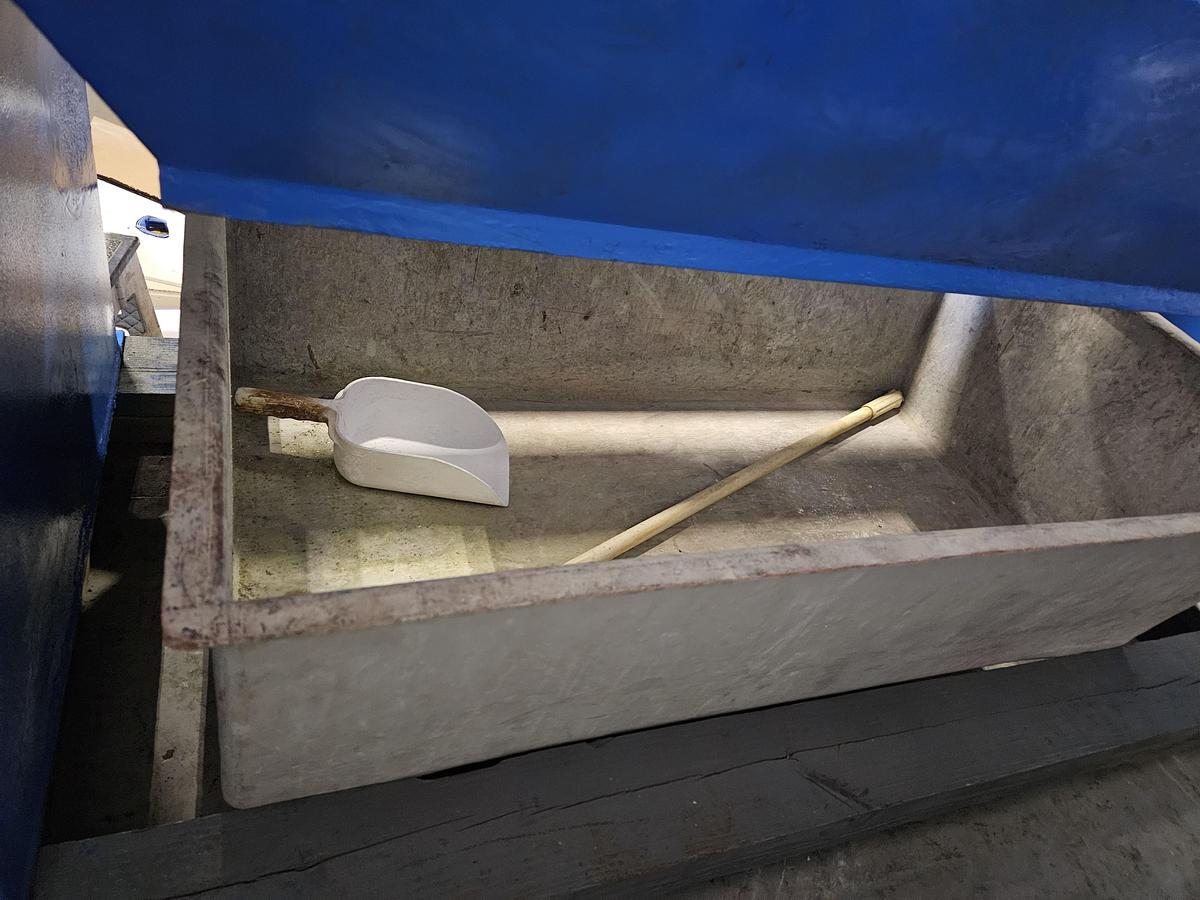

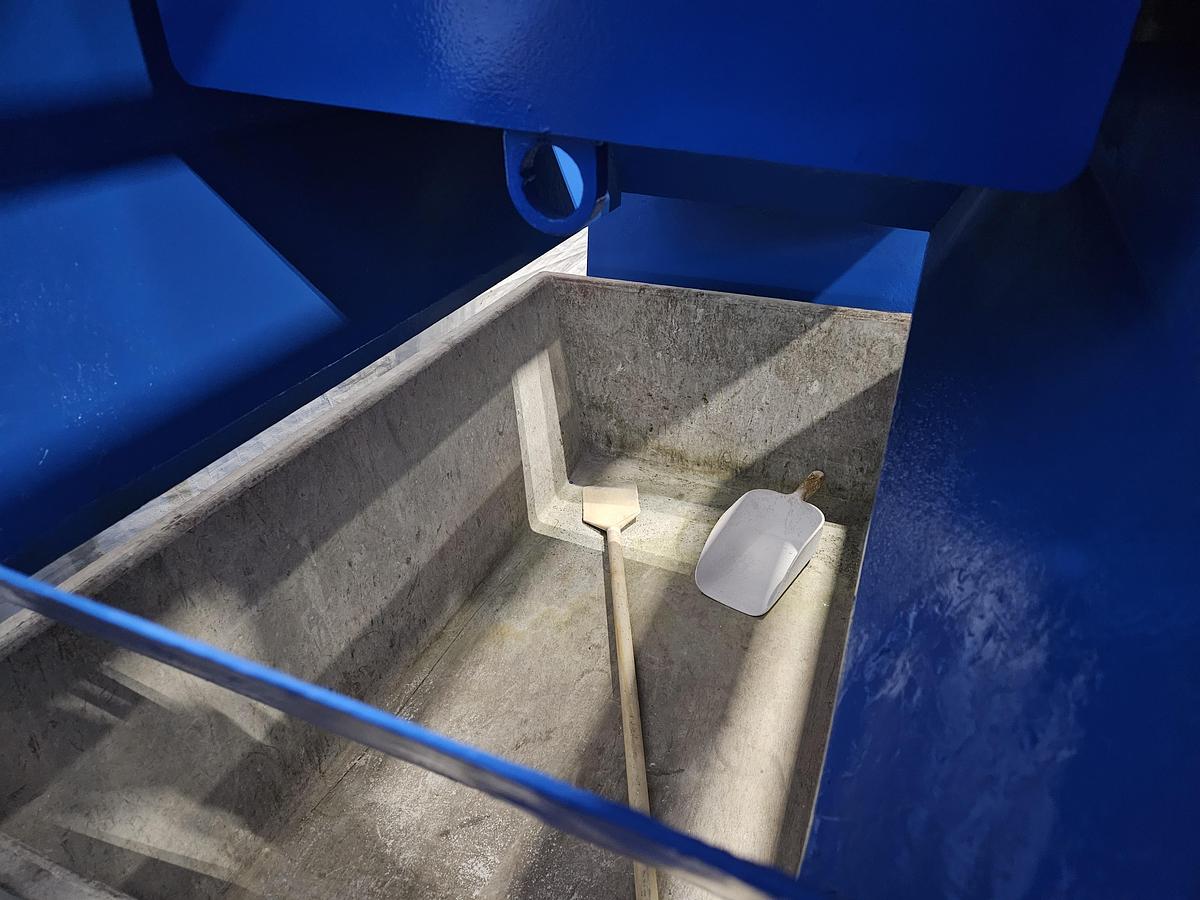

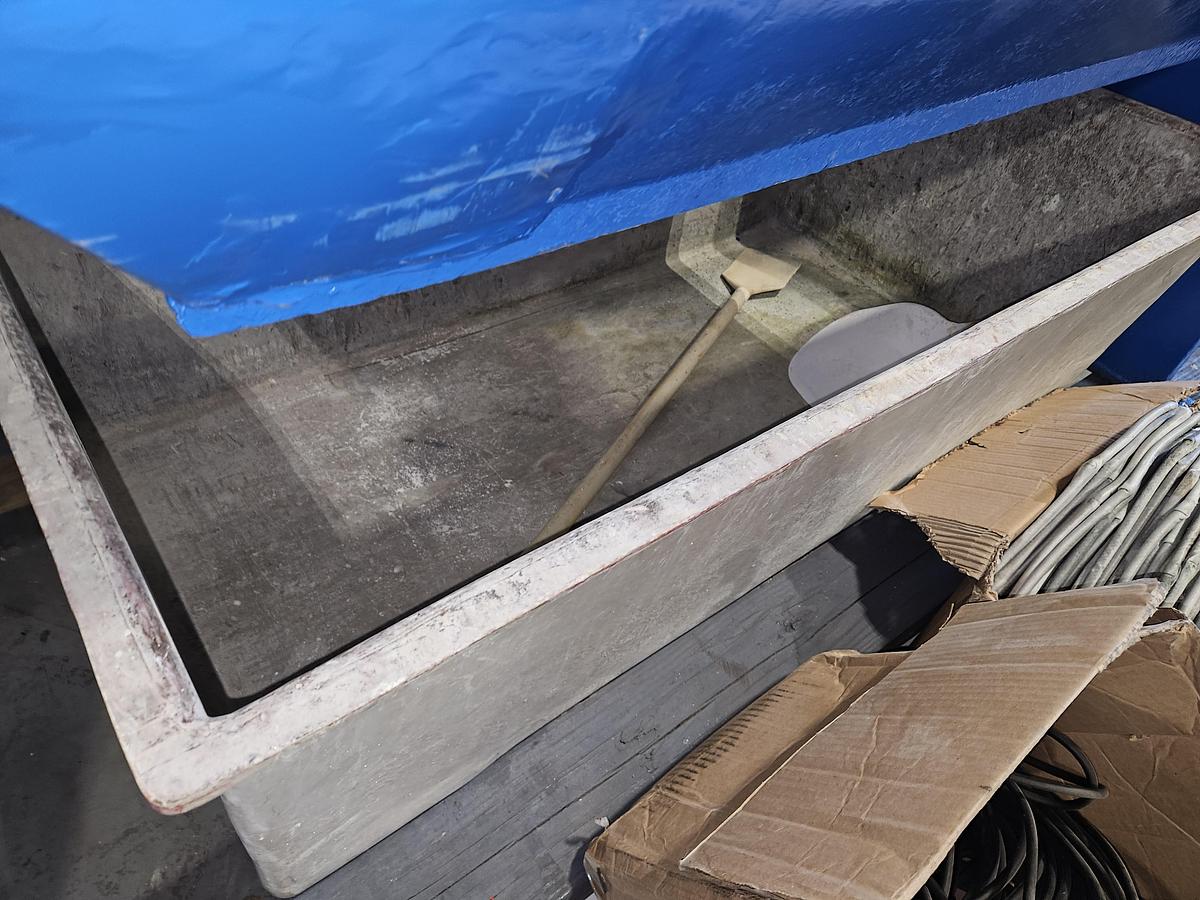

Additional Features: Cake Chute

FEATURES

Heavy-duty industrial filter press design

Polypropylene corrosion-resistant filter plates

Hydraulic ram closure system

Manual plate transport configuration

High-pressure filtration capability

Efficient cake separation and discharge

Compact footprint for industrial process use

Industrial-grade Duriron construction

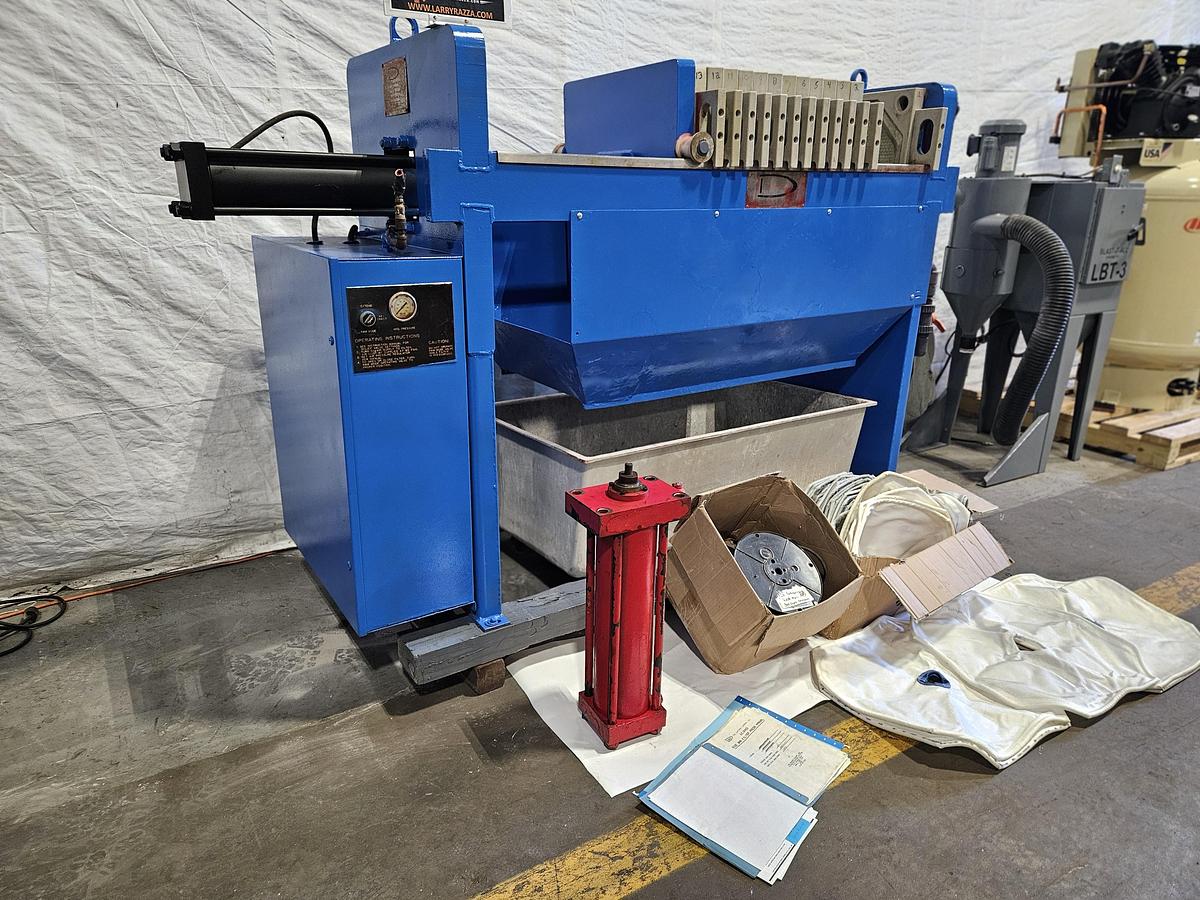

INCLUDES

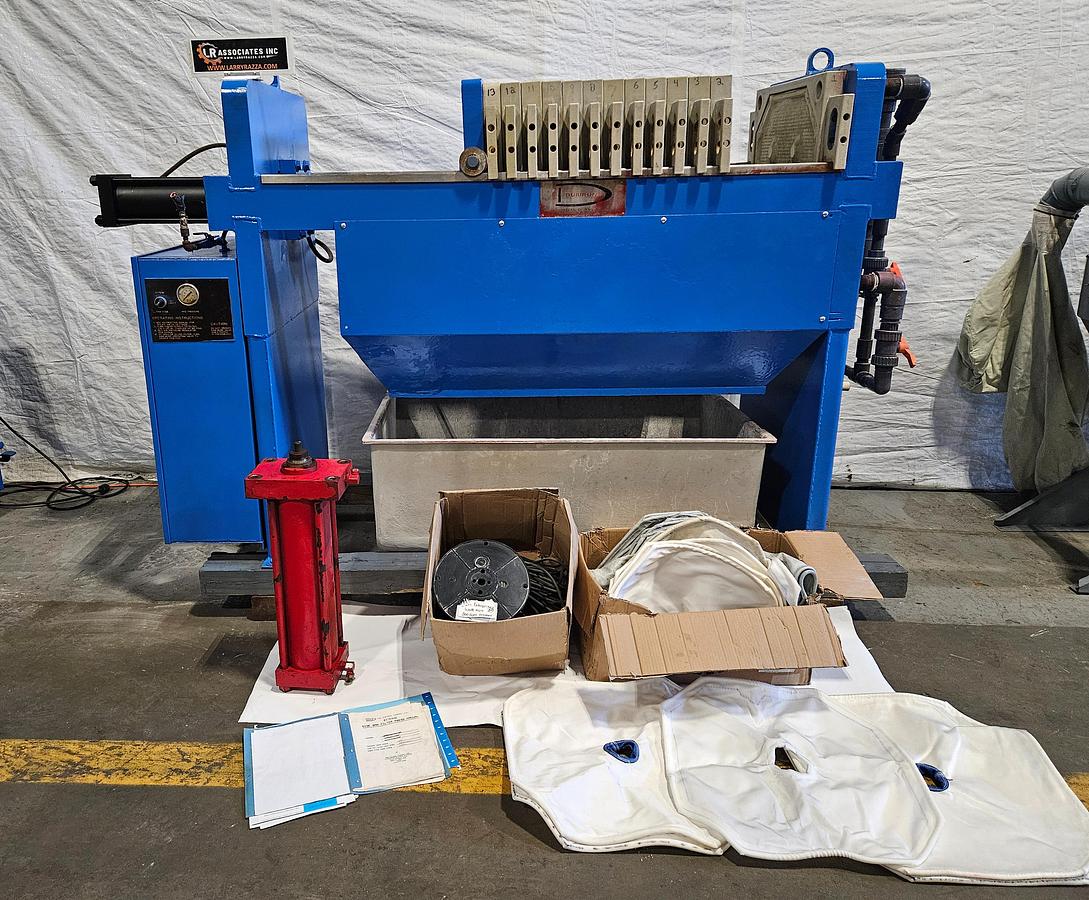

Duriron Filter Press Unit

13 Installed Filter Plates

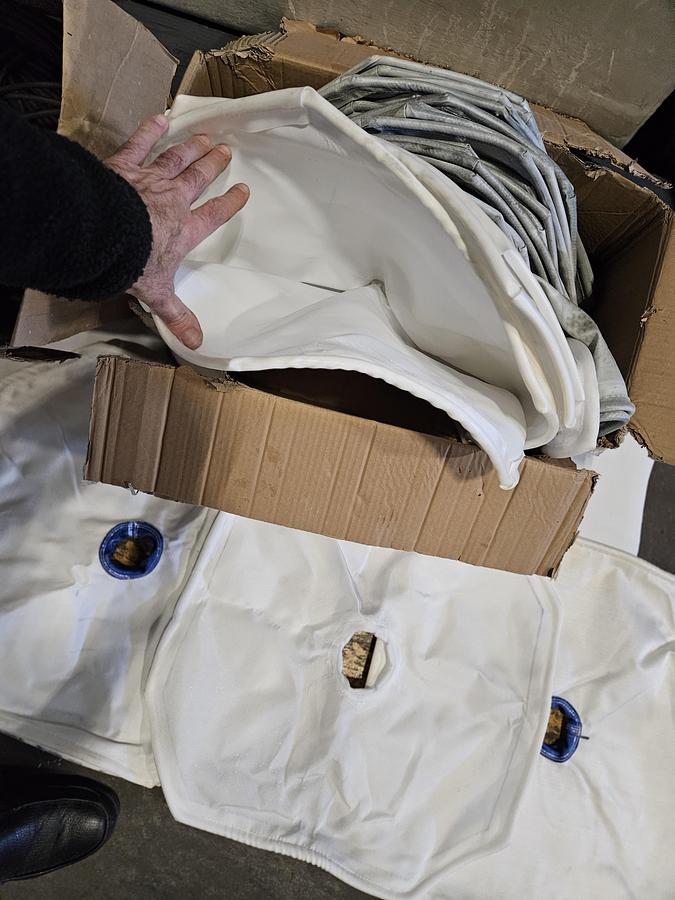

Complete Set of Additional Filter Cloths

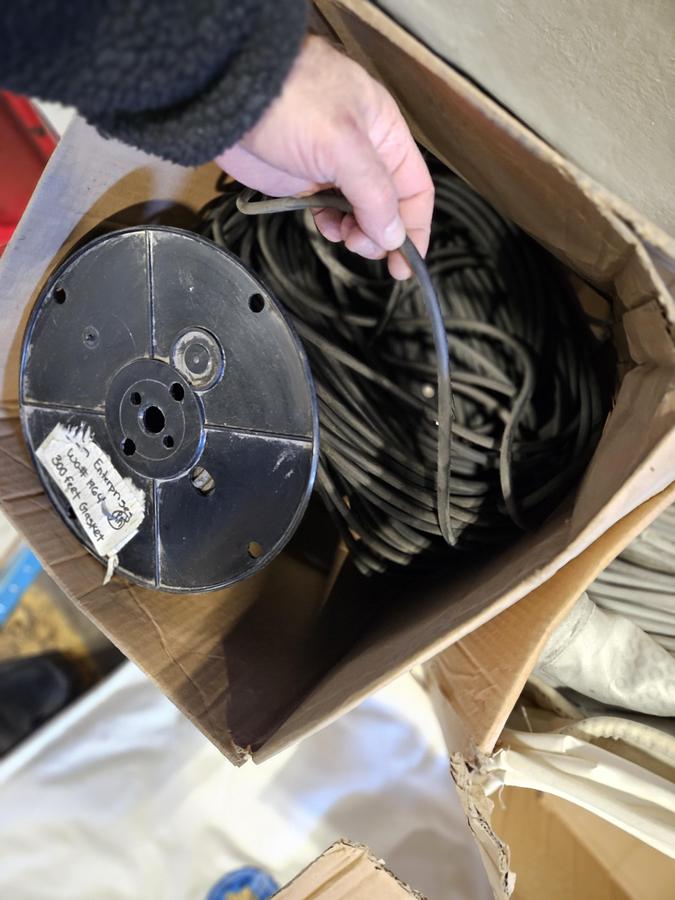

Rubber Gasket Material

Extra Hydraulic Cylinder

Original Manufacturer Manual and Documentation

WSPT# L-0000-030426-A

Picture# 030426

CONDITION

Unit has been fully tested and is in good overall operational condition. Plates, filtration cloths, and hydraulic components appear well maintained. The machine shows normal cosmetic wear consistent with industrial use.

Additional spare filter cloths, gasket materials, and spare hydraulic cylinder are included.

Buyer is welcome to inspect prior to purchase.
