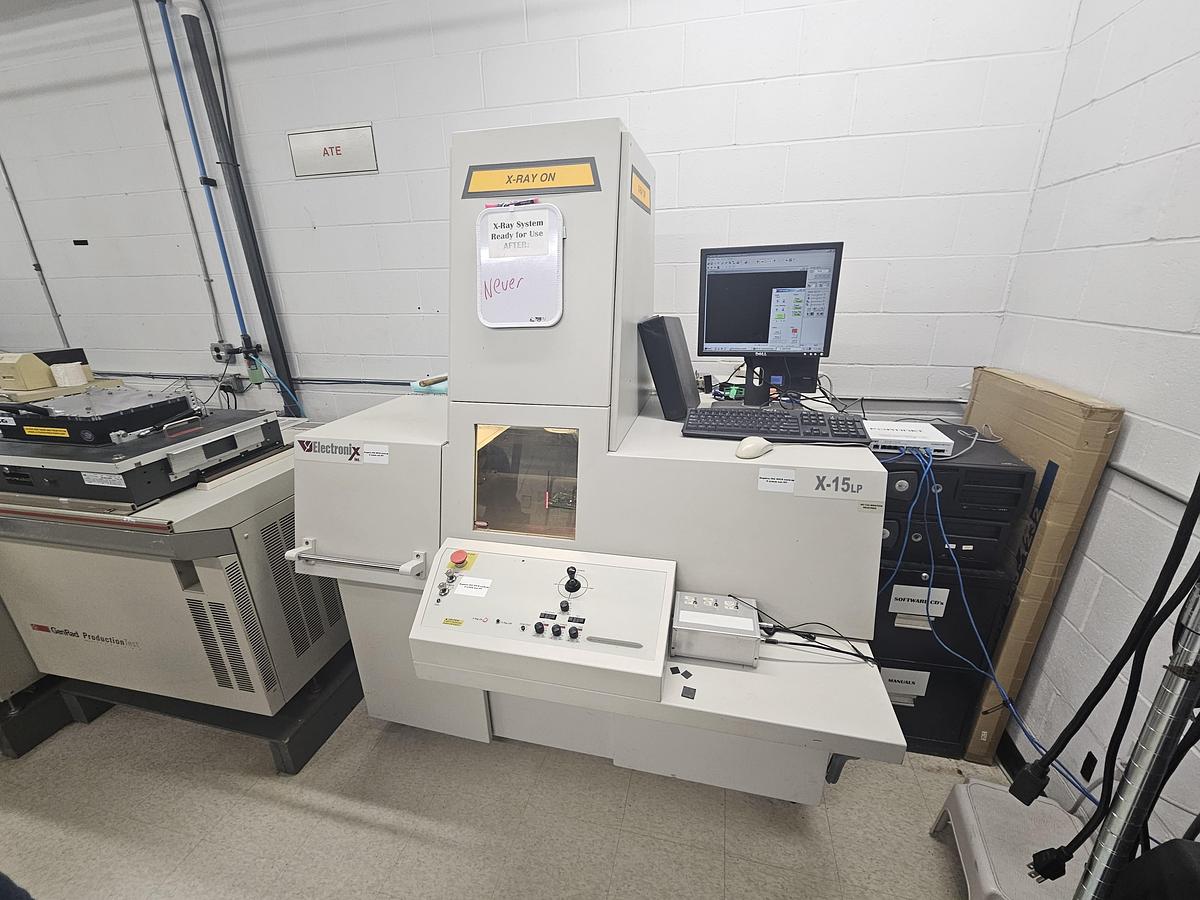

VJ ELECTRONIX X-15LP X-RAY INSPECTION SYSTEM – BGA / PCB / ELECTRONICS INSPECTION – LARGE PCB CAPACITY – COMPLETE WITH PC & SOFTWARE – TESTED & RUNNING EXCELLENT!

DESCRIPTION

Available for immediate sale is this VJ Electronix X-15LP X-Ray Inspection System, designed for high-quality, non-destructive inspection of printed circuit boards (PCBs), BGA solder connections, electronic components, assemblies, and other internal structures.

The X-15LP provides real-time X-ray imaging that allows an operator to inspect areas that cannot be visually examined using conventional optical inspection methods. It is particularly useful for evaluating BGA (Ball Grid Array) solder joints, hidden solder connections, component placement, solder defects, voids, bridges, opens, and other internal electronic assembly conditions.

This system features a large inspection tray/work area with full access through the lifting side cabinet section, allowing larger PCB assemblies to be easily loaded into the inspection area.

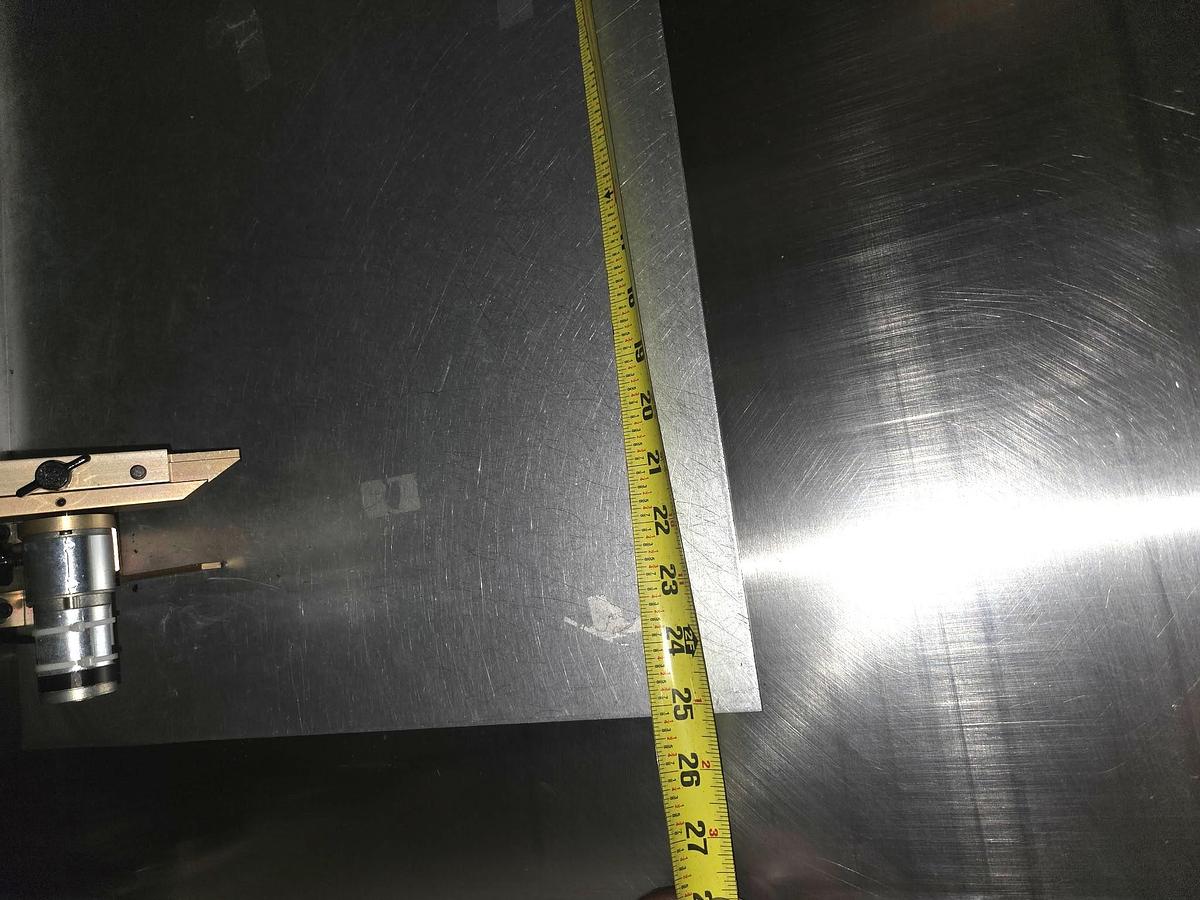

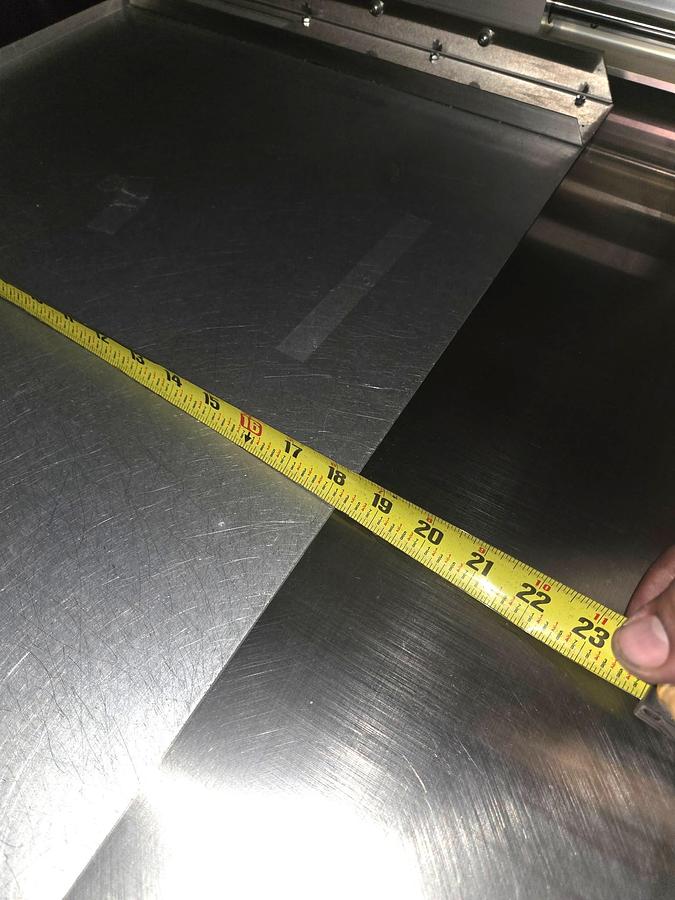

We have physically verified that an 18" x 16.5" PCB will fit on the inspection tray.

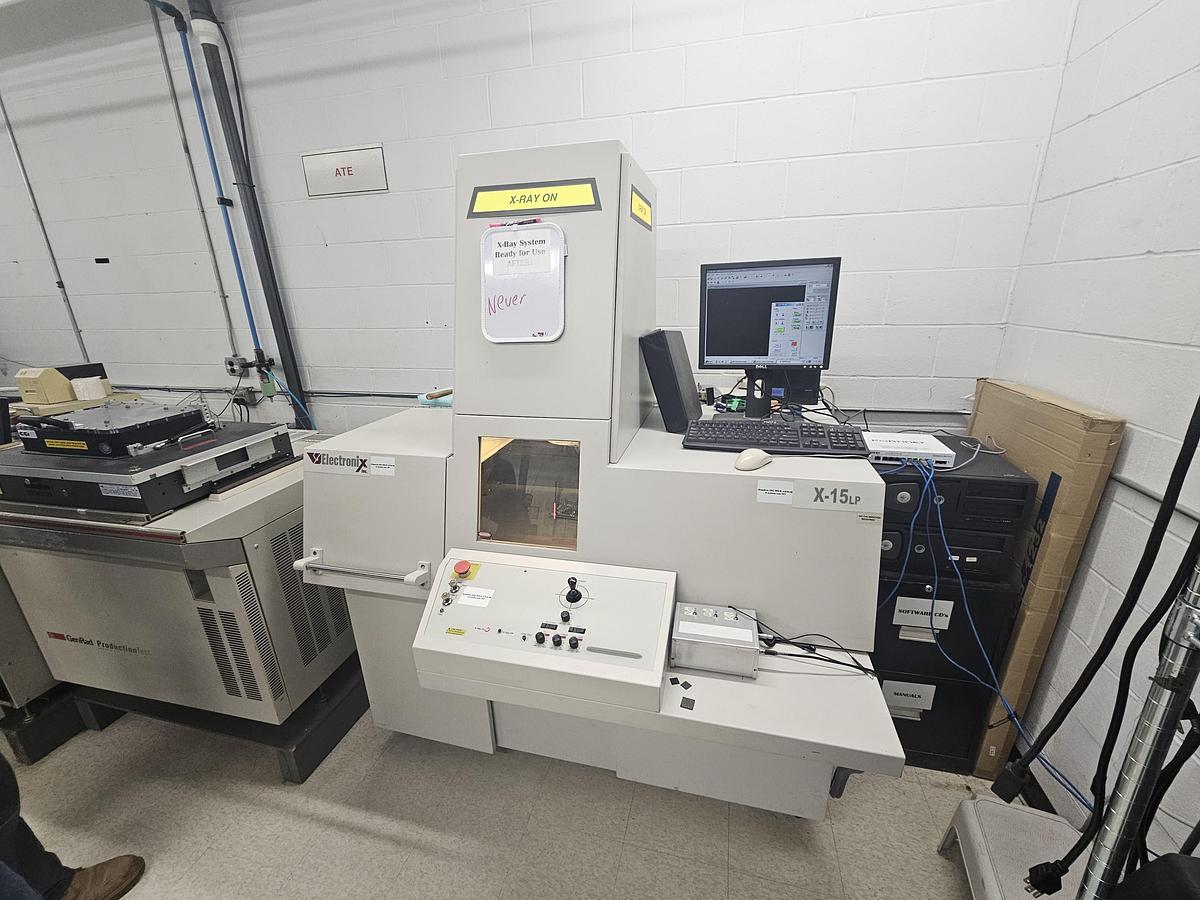

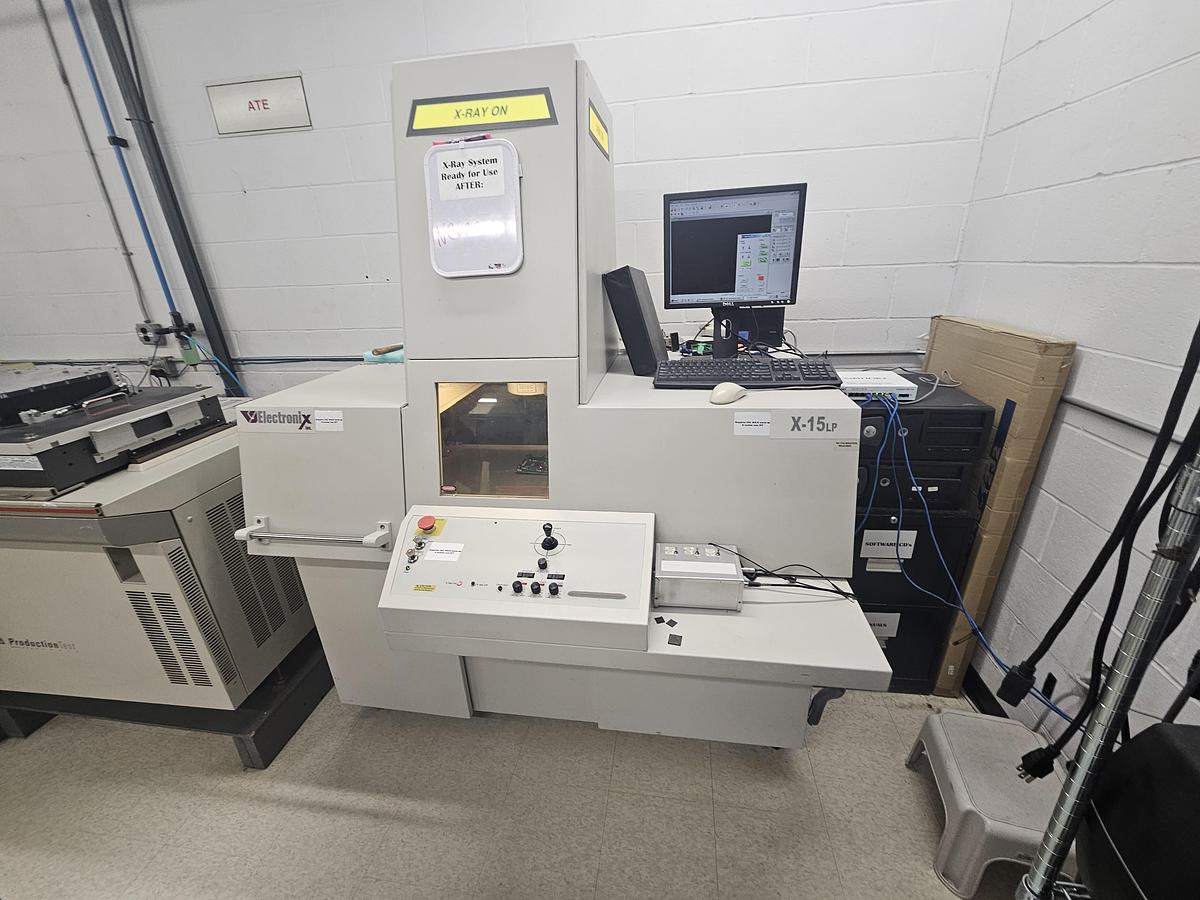

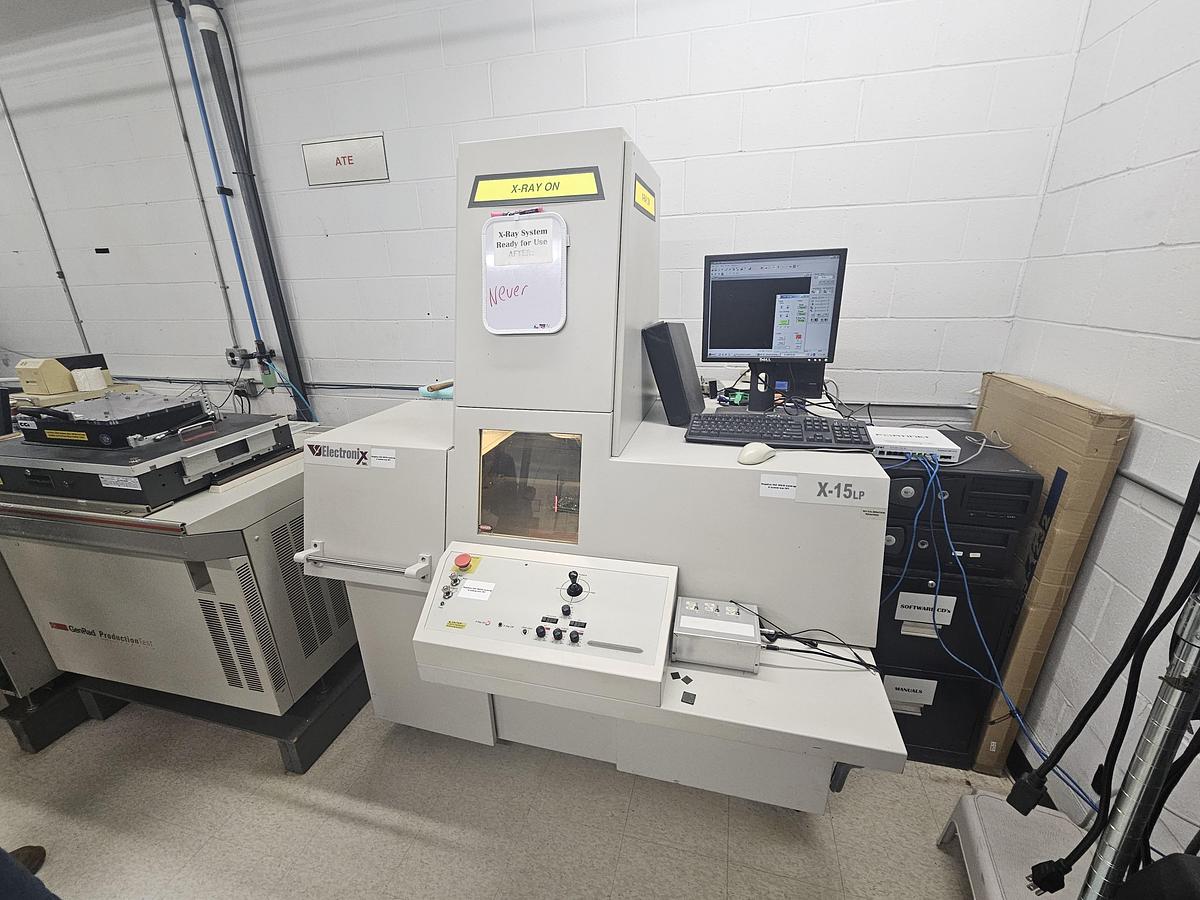

The system incorporates joystick-controlled positioning, an integrated operator control console, enclosed X-ray inspection cabinet, and a complete Dell computer workstation with the inspection software installed.

Unlike incomplete systems frequently found on the secondary market, this unit is being offered as a complete operational package with the computer, monitor, controls, software, and accessories shown in the photographs.

The machine has been tested and is running excellent and is available for inspection and demonstration by appointment.

An excellent economical X-ray inspection solution for electronics manufacturers, PCB assembly facilities, repair operations, quality-control departments, failure-analysis laboratories, R&D facilities, universities, and contract electronics manufacturers.

SPECIFICATIONS

• Manufacturer: VJ Electronix

• Model: X-15LP

• Type: Real-Time X-Ray Inspection System

• Primary Application: PCB / BGA / Electronics Inspection

• Inspection Method: Non-Destructive X-Ray Imaging

• Imaging: Real-Time X-Ray

• PCB Capacity: 18" x 16.5" PCB physically verified to fit inspection tray

• Work Area: Large-access inspection tray

• Loading Access: Lifting side cabinet provides access to full inspection tray

• Positioning: Manual joystick-controlled positioning

• System Configuration: Fully enclosed cabinet-style X-ray inspection system

• Operator Controls: Integrated control console

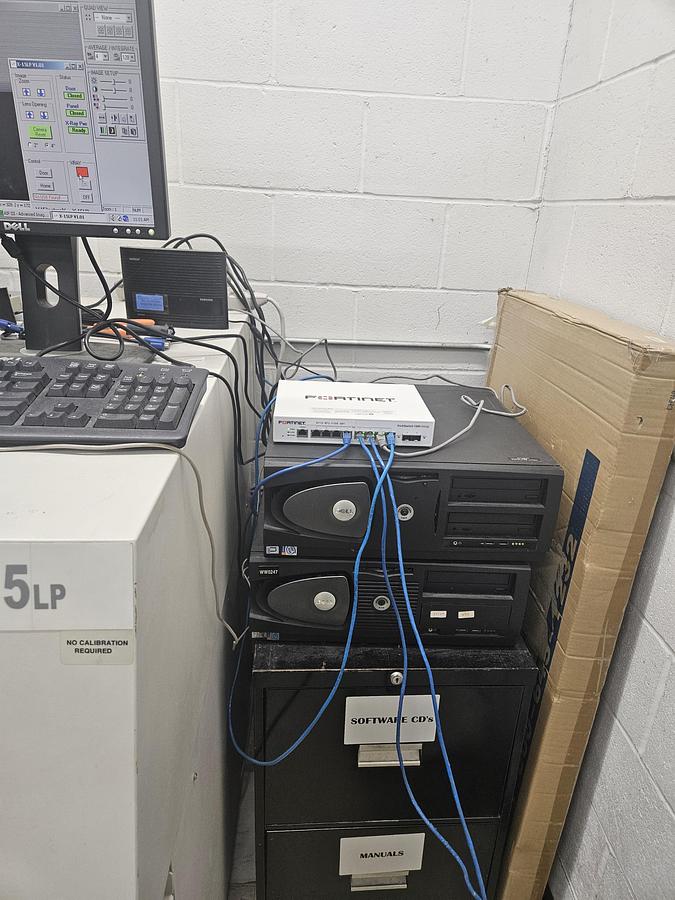

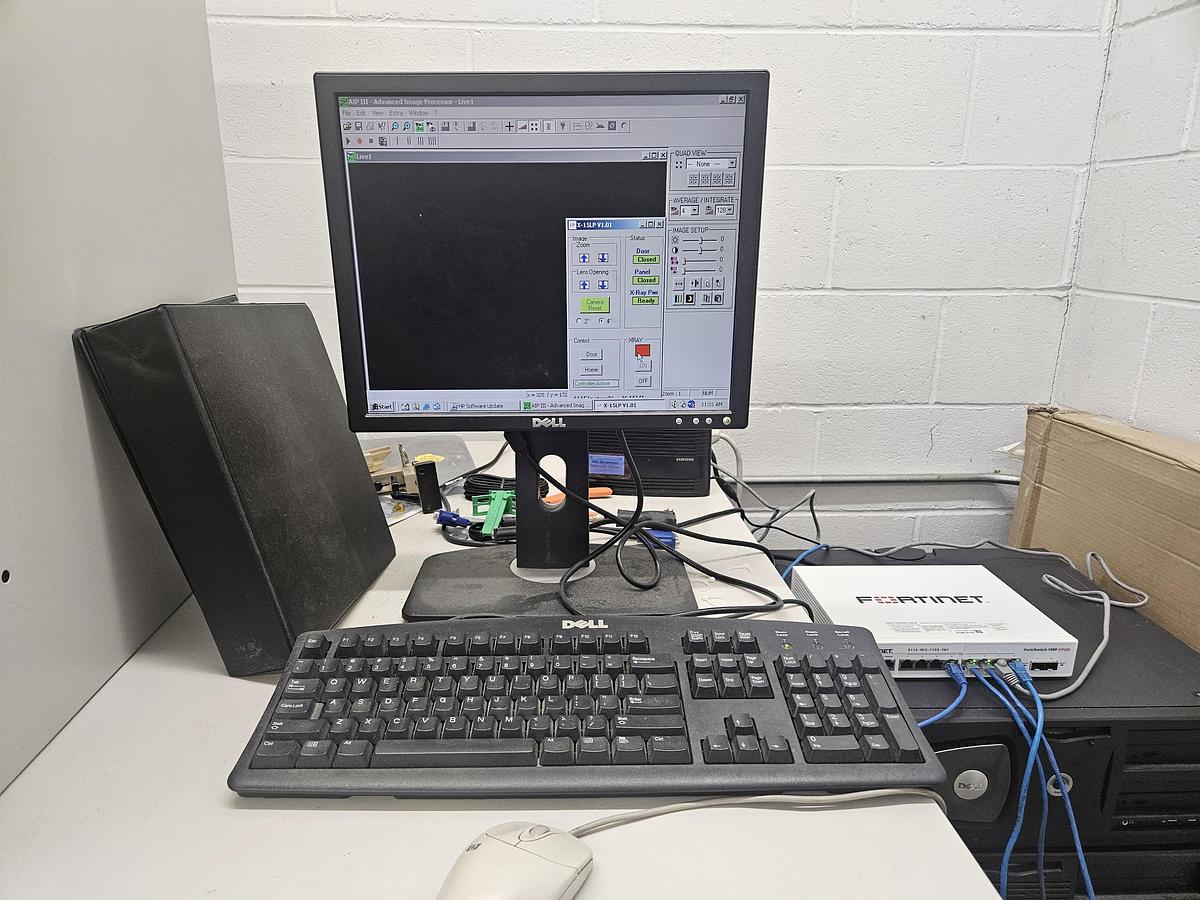

• Computer: Dell workstation included

• Monitor: Included

• Software: Inspection/imaging software installed

• Safety Configuration: Enclosed cabinet with safety interlock system

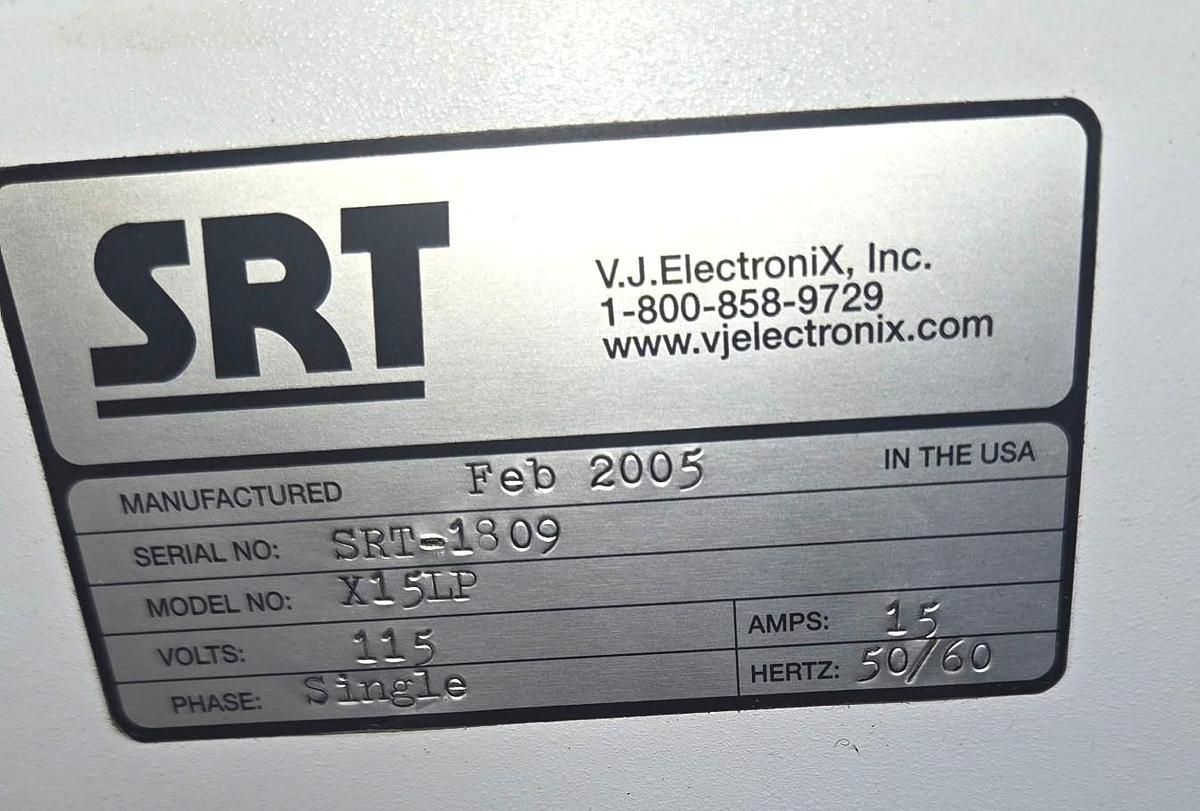

• Power Requirements: 115V Single Phase / 15 amps / 50-60 Hertz

• Serial Number: SRT-1809

APPLICATIONS

• BGA solder joint inspection

• PCB assembly inspection

• Hidden solder joint inspection

• Electronic component inspection

• Solder bridge detection

• Open / incomplete solder joint inspection

• Solder void inspection

• Component alignment and placement inspection

• Internal connection inspection

• Electronics failure analysis

• Quality-control inspection

• Prototype and R&D inspection

• Non-destructive internal examination of electronic assemblies

FEATURES

• Real-time X-ray inspection capability

• Designed for PCB, BGA and electronics inspection

• Large PCB inspection capability

• 18" x 16.5" PCB size physically verified on this machine

• Large inspection tray/work area

• Full tray access through lifting cabinet section

• Non-destructive internal inspection

• Joystick-controlled positioning

• Integrated operator control panel

• Fully enclosed cabinet-style system

• Computer and imaging software included

• Excellent system for identifying hidden solder and assembly defects

• Suitable for production, QA, R&D and failure-analysis applications

• Complete turnkey inspection package

• Compact self-contained design

• Tested and running excellent

INCLUDES

• VJ Electronix X-15LP X-Ray Inspection System

• Integrated X-ray imaging system

• Large PCB inspection tray

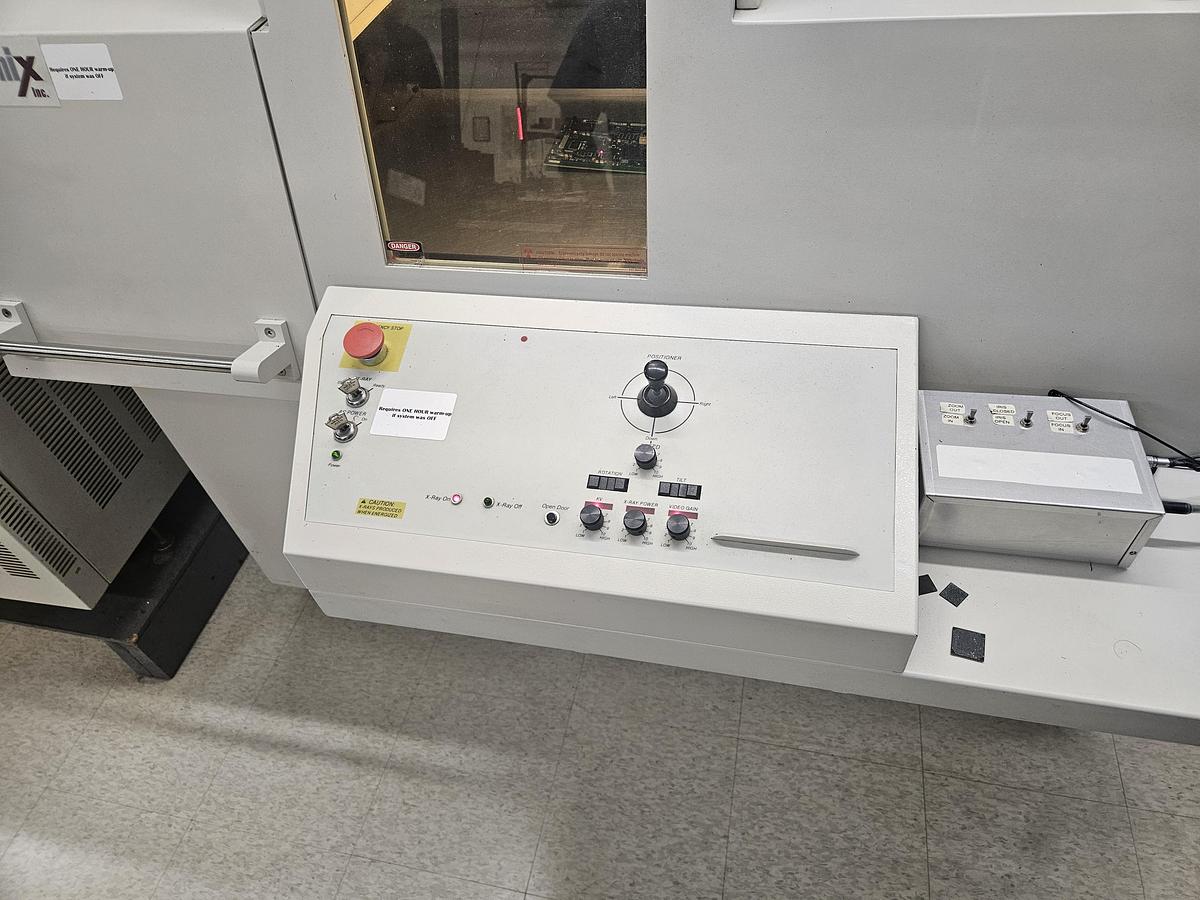

• Integrated operator control console

• Joystick positioning controls

• Dell computer workstation

• Monitor

• Keyboard

• Mouse

• Installed inspection/imaging software

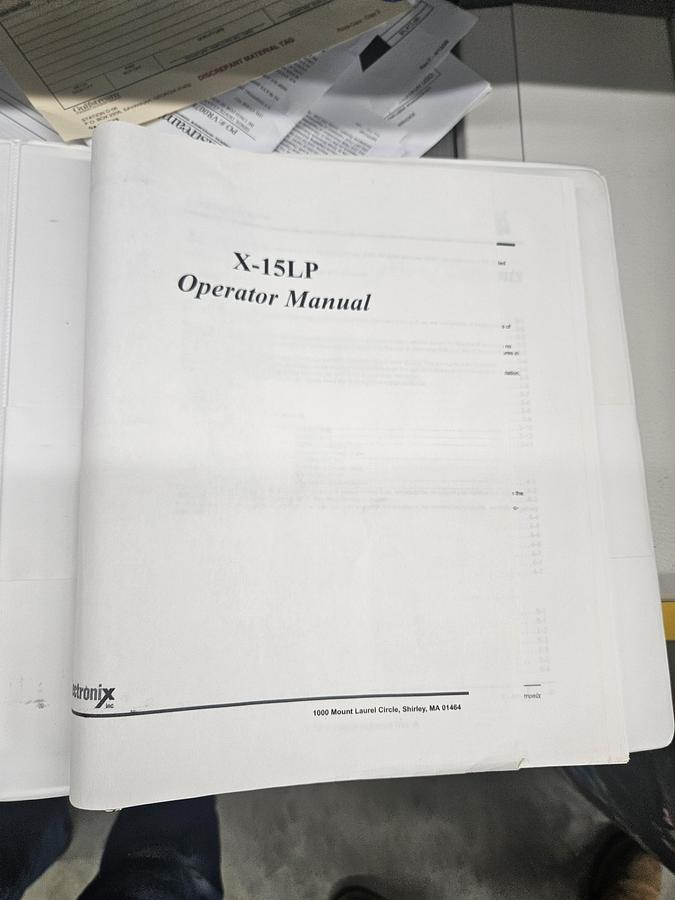

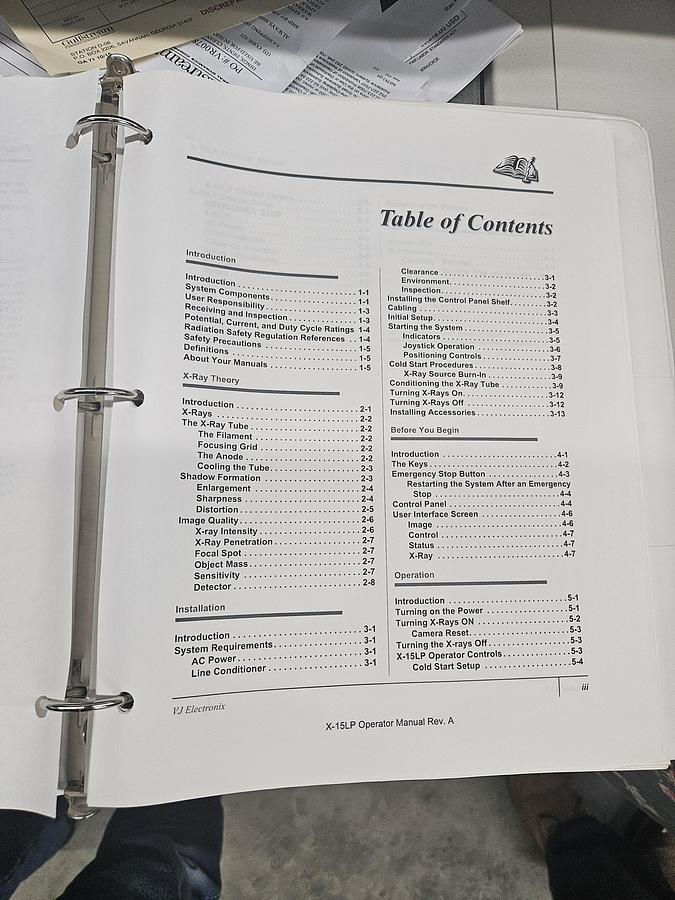

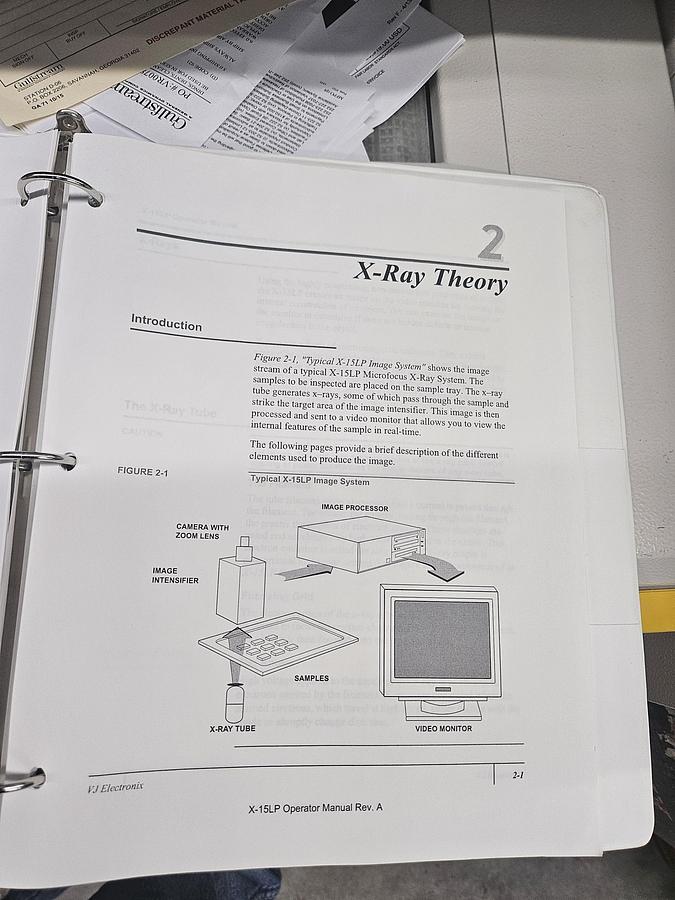

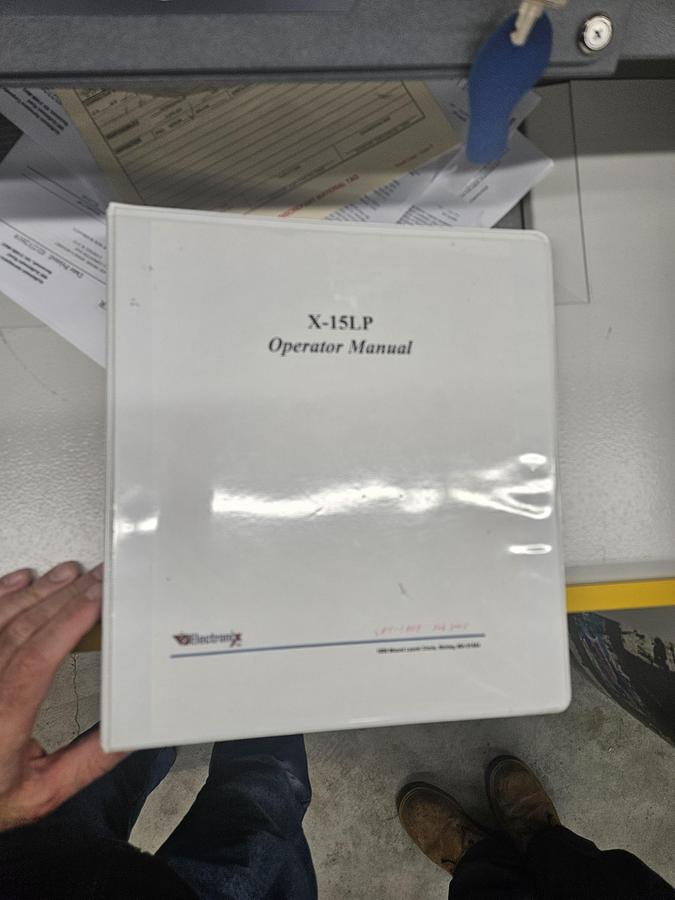

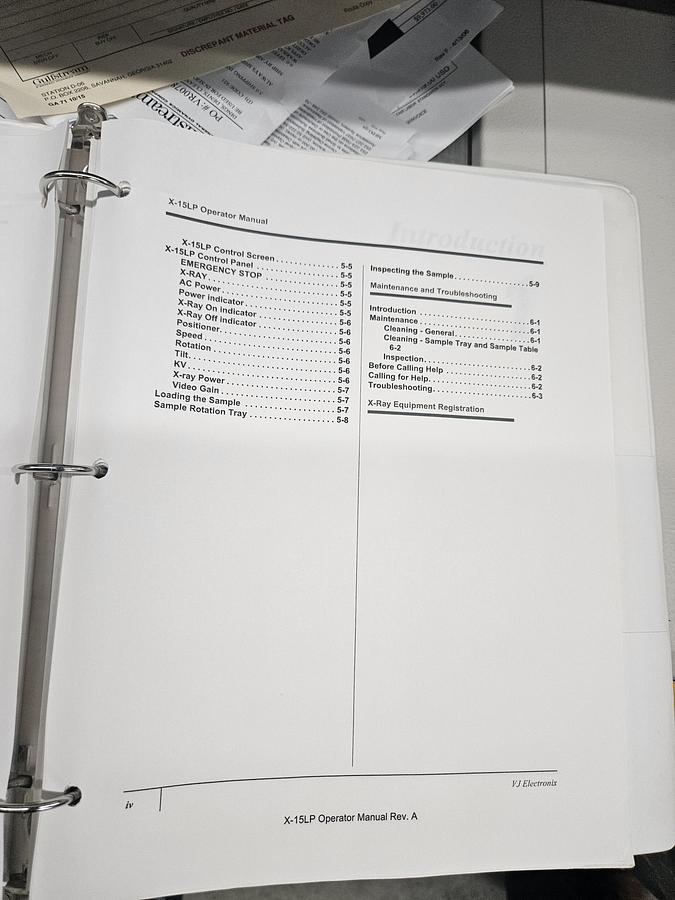

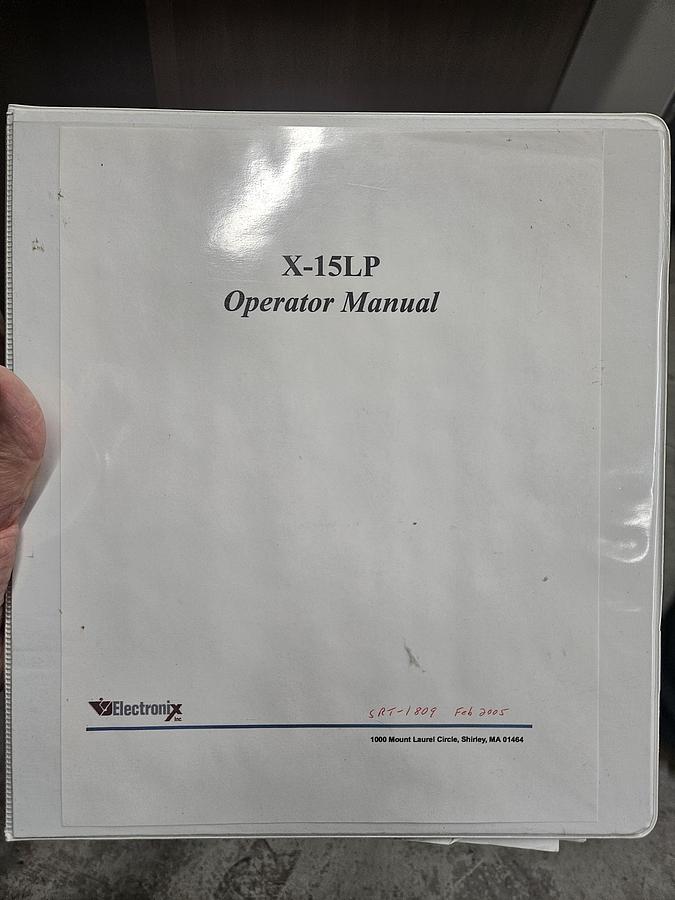

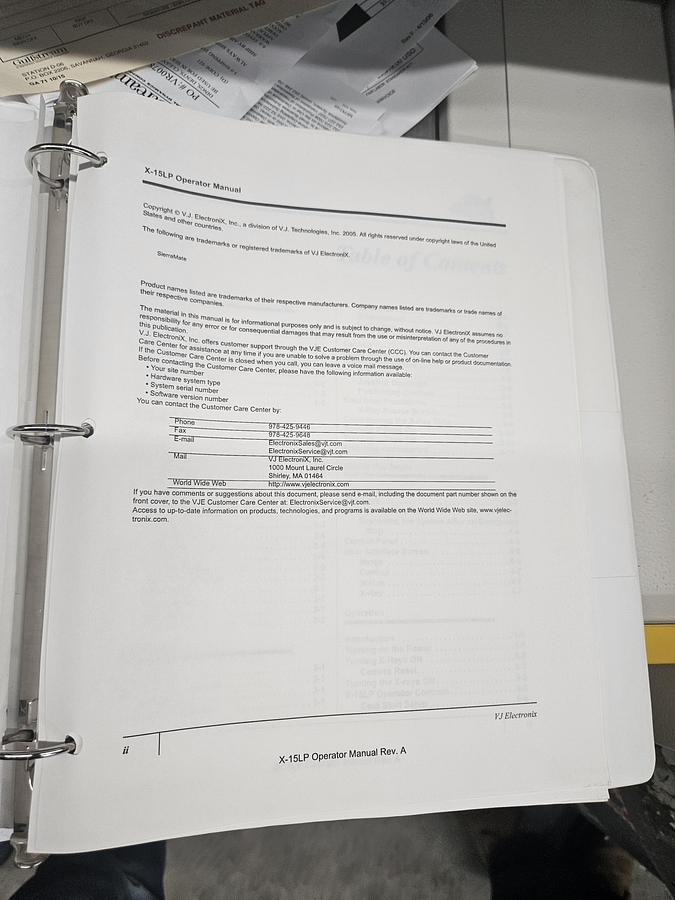

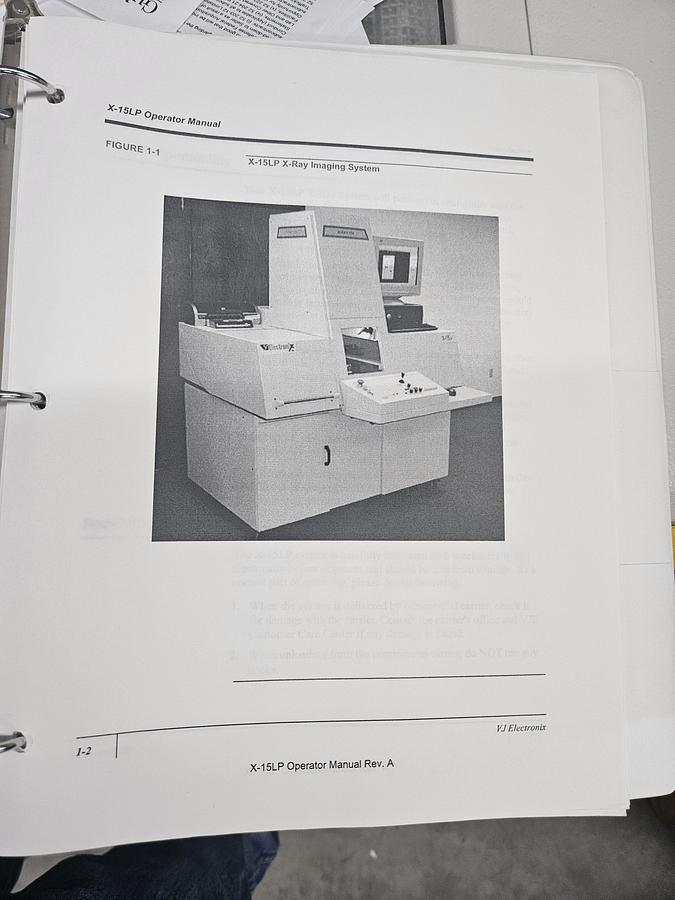

• Operator manual, as shown

• All components and accessories shown in photographs

CONDITION

This VJ Electronix X-15LP is in excellent used condition.

The system is clean and appears to have been well maintained.

Machine has been tested and is running excellent.

Computer and inspection software are included with the system.

The inspection tray and cabinet access have also been physically checked, and an 18" x 16.5" PCB will fit on the inspection tray.

Machine is available for inspection and demonstration by appointment.

PTWS# LASTR-0000-051026-A

R060126/071026/081626/091426

Picture# 112425

ADDITIONAL INFORMATION

Machine is available for inspection by appointment.

Video demonstration may be available upon request.

Additional photographs and information are available upon request.

International buyers are welcome.

We can arrange professional export packaging, crating, rigging and worldwide shipping.

Specifications are subject to verification.
