TORMACH PCNC 1100 CNC MILL – ATC – 4TH AXIS ROTARY – TTS TOOLING – COLLETS – CHUCKS – END MILLS – PATHPILOT SOFTWARE – LOADED PACKAGE

DESCRIPTION

Available for immediate sale is a Tormach PCNC 1100 CNC Vertical Milling Machine being offered as an unusually complete package with Automatic Tool Changer (ATC), Tormach Tooling System (TTS), rotary/4th-axis equipment, extensive tooling, collets, drill chucks, end mills, workholding accessories, computer workstation, PathPilot software, original manuals, and documentation.

The Tormach PCNC 1100 is a highly versatile compact CNC machining center widely used in prototype manufacturing, R&D facilities, educational institutions, toolrooms, job shops, and small-production environments.

This machine is equipped with the desirable Tormach Automatic Tool Changer, allowing multiple tools to be loaded and automatically changed during CNC programs. It also incorporates the Tormach Tooling System (TTS), and this particular machine comes with a substantial assortment of tooling and holders.

A large additional tooling package has now been located and is included with the machine. The package contains numerous TTS-style holders, collets, drill chucks, end mills/cutting tools, clamps and setup tooling, rotary/4th-axis equipment, chucks, coolant components, and additional accessories as shown in the photographs.

Also included is an extensive documentation package with Tormach PCNC 1100 Operator Manual, ATC Operator Manual, technical documents, PathPilot software, Tormach Tool Assistant software, and the original Certificate of Inspection.

This is considerably more than a bare PCNC 1100 — it is a complete machine, tooling and accessory package.

IMPORTANT CONDITION NOTE: The machine powers on; however, the control computer presently does not properly communicate with the machine and has displayed software/file-system startup errors. We have not diagnosed or repaired the communication issue. The machine is therefore being sold AS-IS, with all of the valuable tooling and accessories described below included.

SPECIFICATIONS

• Manufacturer: Tormach

• Model: PCNC 1100

• Type: CNC Vertical Milling Machine / Machining Center

• Configuration: Vertical CNC Mill

• Axes: 3-Axis CNC plus included rotary / 4th-axis equipment

• Tool Changer: Automatic Tool Changer (ATC)

• Tooling System: Tormach Tooling System (TTS)

• Control: Tormach computer-based CNC control

• Software: Tormach PathPilot software included

• Computer Workstation: Included

• Enclosure: Full machine enclosure

• Machine Vise: Included

• Rotary Equipment: Included

• Spindle Drive: Emerson Variable Frequency Drive

• Motion: CNC-controlled X, Y and Z axes

• Coolant System: Equipped

• Mounting: Floor-standing machine

EXTENSIVE TOOLING PACKAGE INCLUDED

This machine is being sold with a substantial assortment of tooling and accessories, including items shown in the photographs such as:

• Automatic Tool Changer (ATC)

• Tormach Tooling System (TTS)

• Multiple TTS tool holders

• Multiple collet holders

• Assorted collets

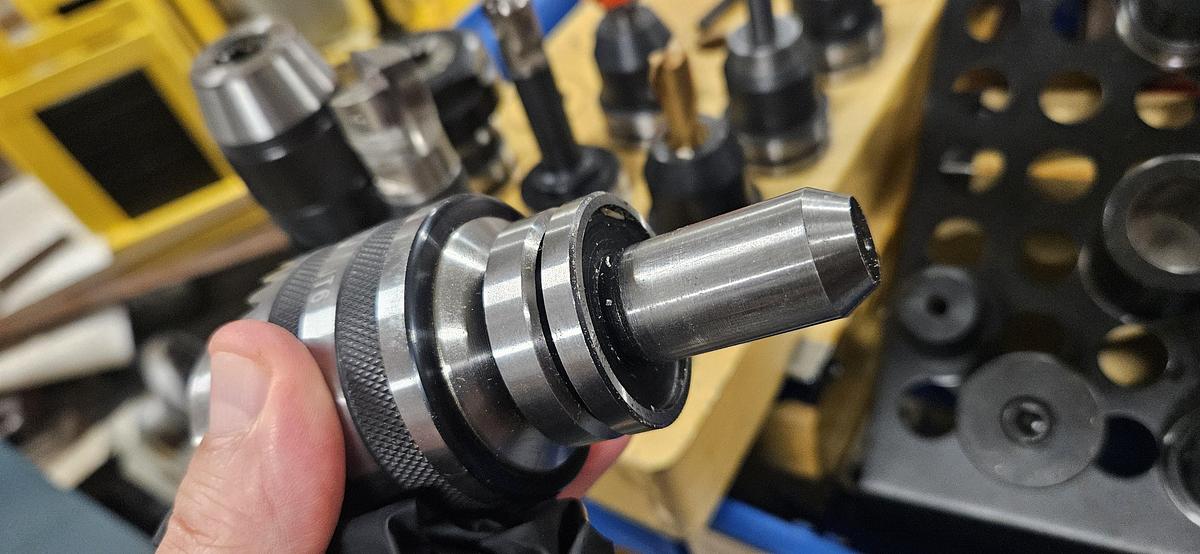

• Multiple drill chucks

• Chuck/arbor assemblies

• Assorted end mills and cutting tools

• Assorted drills

• Toolholder racks

• Setup and clamping hardware

• Assorted clamps

• Coolant nozzles and Loc-Line components

• Additional coolant accessories

• Tooling wrenches

• Assorted spindle/tooling adapters

• Machine vise

• Additional machining accessories

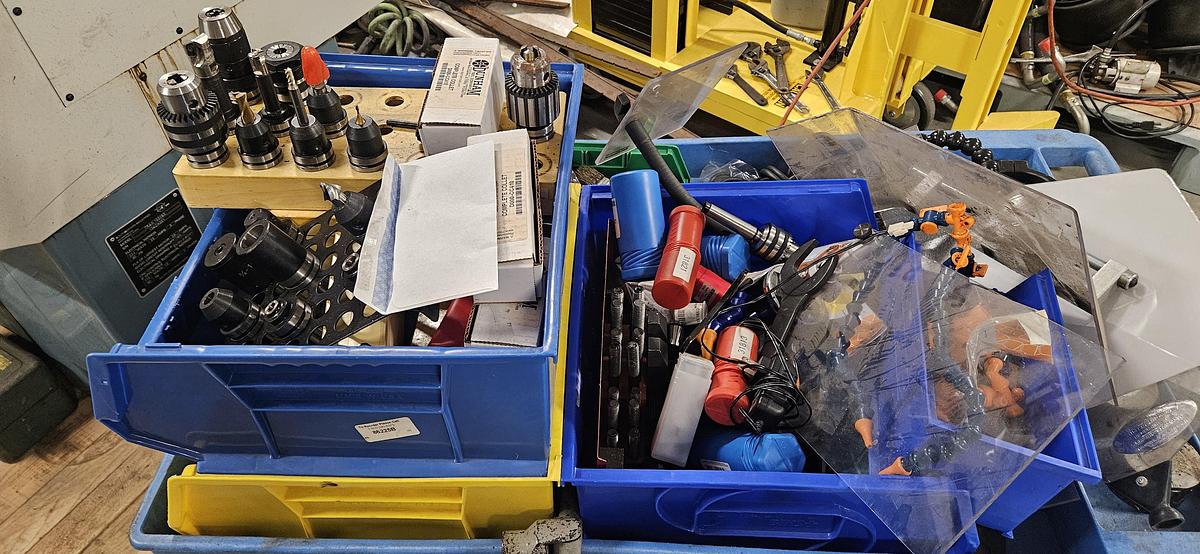

• Storage bins containing tooling and accessories

All tooling and accessories shown in the photographs are included with the sale.

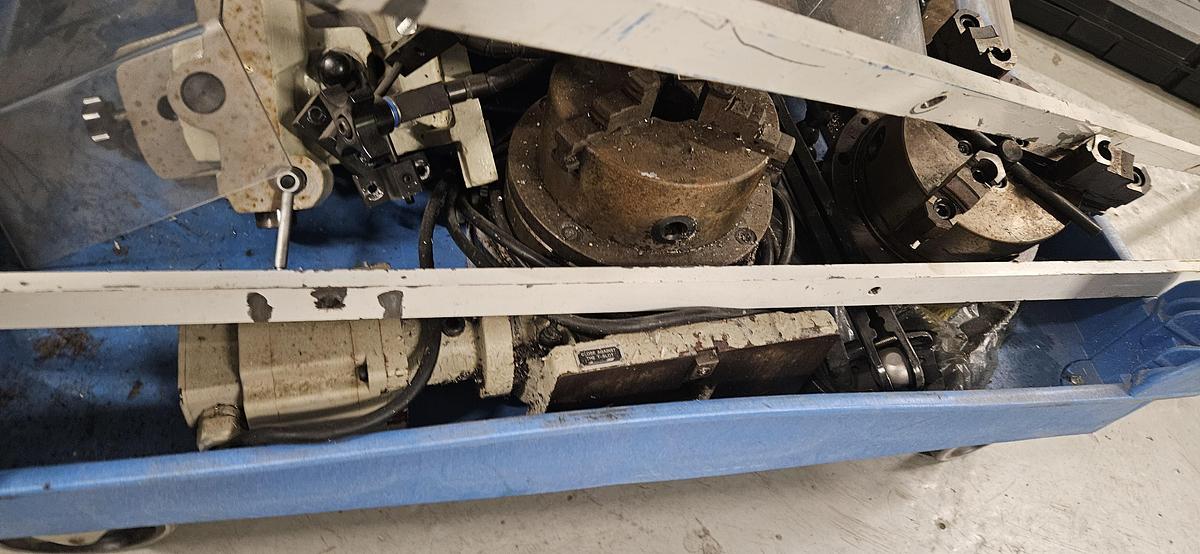

ROTARY / 4TH-AXIS EQUIPMENT

The package also includes rotary-axis equipment and workholding components for expanded CNC machining capability.

Included are:

• CNC rotary-axis assembly

• Rotary chuck(s)

• Associated rotary workholding

• Cabling/components as shown

• Additional chuck and rotary accessories

The machine itself is equipped for expanded rotary-axis operation, providing significantly greater versatility than a standard 3-axis PCNC 1100.

AUTOMATIC TOOL CHANGER

This machine is equipped with the desirable Tormach Automatic Tool Changer (ATC).

The ATC works in conjunction with the Tormach Tooling System and provides automatic tool changes during programmed machining operations.

The original Tormach TTS ATC Operator's Manual is included.

SOFTWARE & DOCUMENTATION PACKAGE

An unusually complete collection of original Tormach documentation and software is included:

• Tormach PCNC 1100 Operator Manual

• Tormach Automatic Tool Changer Operator Manual

• Tormach PCNC 1100 technical documentation

• Machine setup / assembly documentation

• Tormach PathPilot software disc

• Tormach Tool Assistant software

• Tool Assistant installation software

• Original Tormach Certificate of Inspection

• Additional Tormach technical documents

• Original machine paperwork as shown

Having the original manuals, software and inspection documentation is particularly useful for troubleshooting, restoration, setup, and future operation of the machine.

FEATURES

• Tormach PCNC 1100 CNC machining center

• Automatic Tool Changer

• Tormach TTS tooling system

• Rotary / 4th-axis equipment included

• Extensive tooling package

• Numerous tool holders

• Collets

• Drill chucks

• End mills and cutting tools

• Clamping and setup tooling

• Machine vise

• Full enclosure

• Coolant equipment

• Computer workstation

• PathPilot software

• Tool Assistant software

• Original operator manuals

• ATC manual

• Original Certificate of Inspection

• Excellent package for repair, retrofit, training or restoration

INCLUDES

• Tormach PCNC 1100 CNC Mill

• Automatic Tool Changer

• TTS tooling system

• Rotary / 4th-axis equipment

• Rotary chuck and accessories

• Machine vise

• Computer workstation

• Monitor

• Keyboard and mouse

• Extensive toolholder assortment

• Collets

• Drill chucks

• End mills

• Cutting tools

• Clamps and setup tooling

• Coolant accessories

• Tooling storage bins

• PathPilot software

• Tool Assistant software

• Operator manuals

• ATC manual

• Technical documentation

• Original Certificate of Inspection

• All additional tooling and accessories shown in the photographs

PTWS# LGD-00000-060126-B

Picture# 121725

CONDITION

Machine powers on.

The machine was acquired substantially complete with its original control, ATC, computer system, tooling and accessories.

The control computer currently displays startup/file-system errors and does not properly communicate with the machine.

We have not attempted to diagnose or repair the communication issue.

Because of this issue, the machine is being offered AS-IS and we are not representing it as presently production-ready.

However, the machine includes an unusually extensive assortment of valuable Tormach tooling, rotary equipment, ATC components, software, documentation, computer hardware, workholding and accessories.

This makes it an excellent candidate for a knowledgeable Tormach user to repair, update, retrofit or restore, while already having a substantial amount of the tooling required to put the machine to work.

ADDITIONAL INFORMATION

Machine is available for inspection by appointment.

All accessories and tooling shown are included unless otherwise noted.

Specifications are based upon available machine information, installed equipment, documentation and visual inspection and should be independently verified by the buyer.
