LYTRON AFFINITY FAE-12XL INDUSTRIAL PROCESS CHILLER – 12.9 HP COMPRESSOR – 3 HP PROCESS PUMP – R-407C – 460V – 2011 – EXCELLENT CONDITION

DESCRIPTION

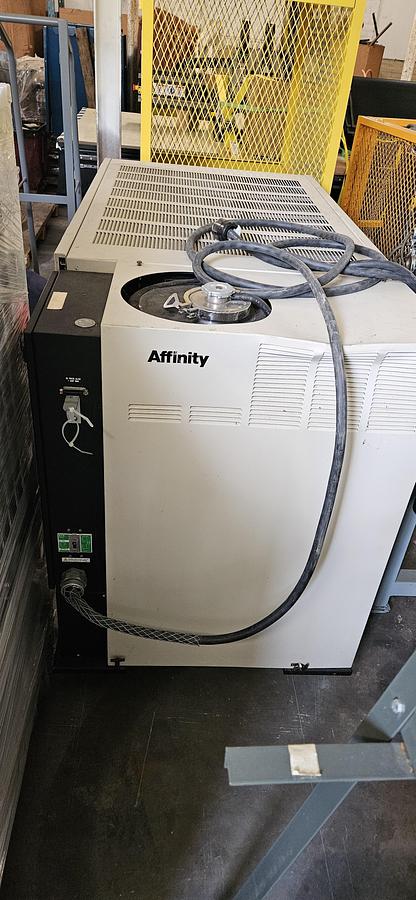

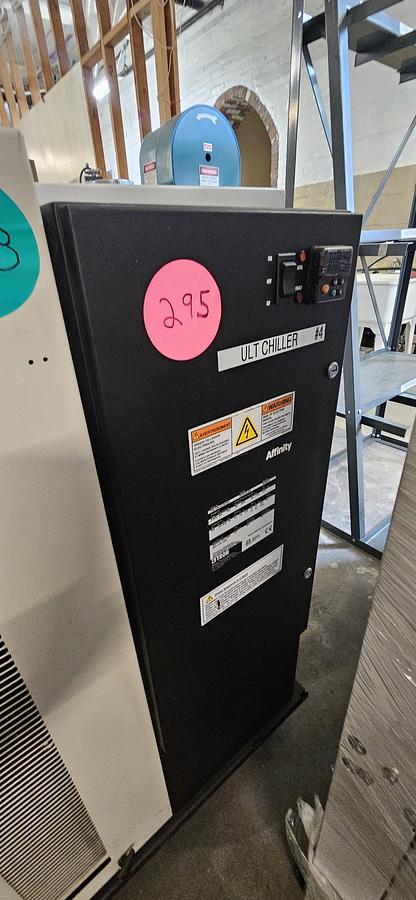

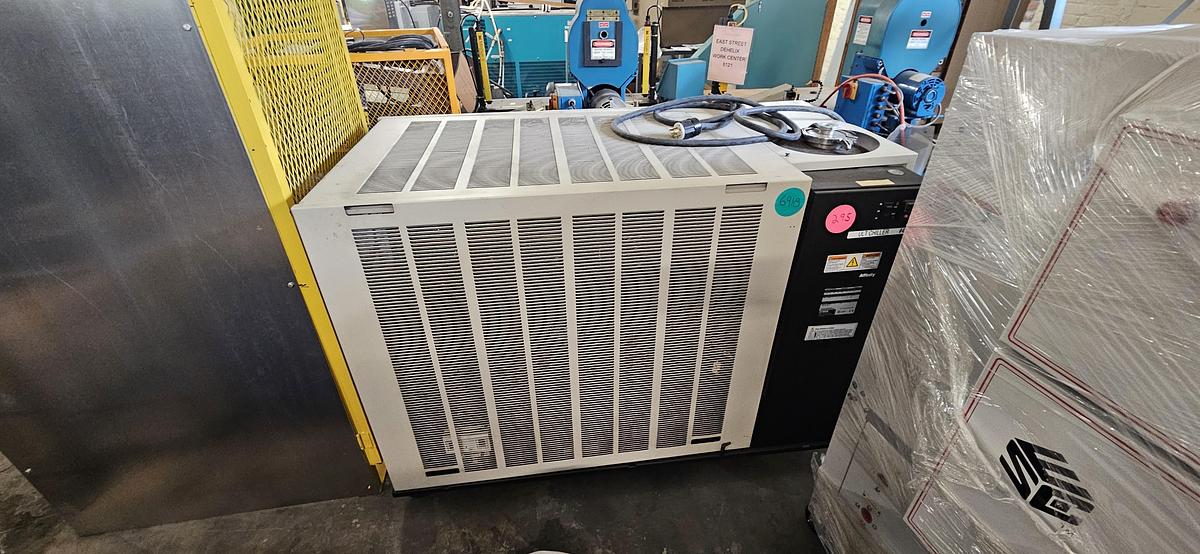

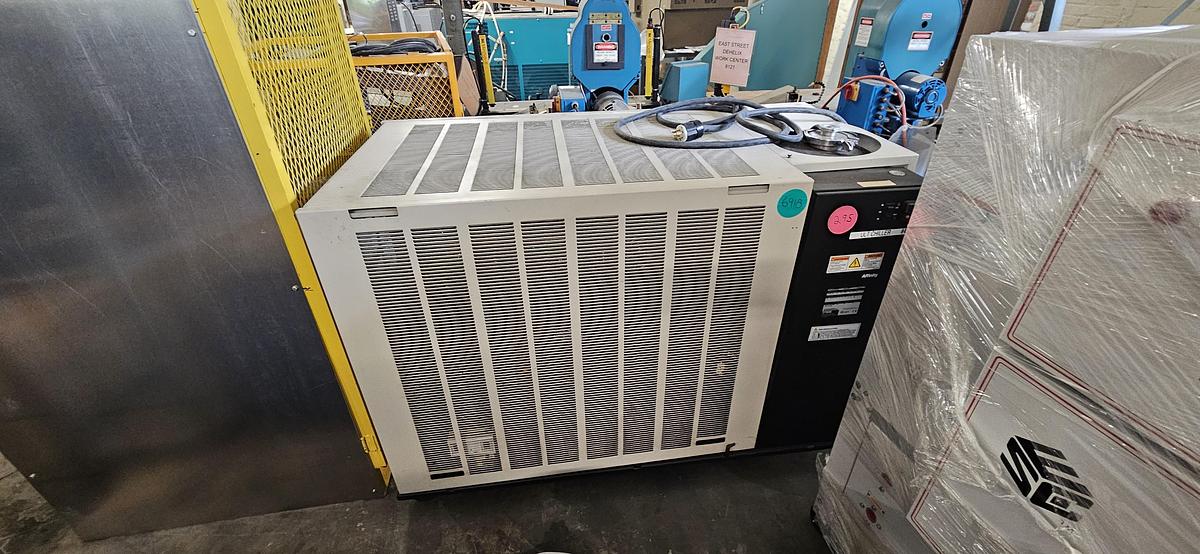

Available for immediate sale is this Lytron Affinity Thermal Systems Model FAE-12XL Industrial Process Chiller, engineered for demanding precision cooling applications requiring exceptional temperature stability, reliability, and continuous-duty operation.

Lytron has long been recognized as one of the industry's leading manufacturers of precision thermal management equipment for semiconductor manufacturing, laser systems, medical equipment, laboratory instrumentation, aerospace, electronics, plastics processing, and industrial manufacturing. Designed for mission-critical cooling applications, Lytron chillers are known for their premium construction, dependable performance, and excellent long-term reliability.

This self-contained industrial process chiller is equipped with a 12.9 HP refrigeration compressor, 3 HP process circulation pump, dual condenser fan package, Watlow digital temperature controller, integrated electrical controls, and heavy-duty air-cooled condenser.

The refrigeration system utilizes environmentally friendly R-407C refrigerant and is designed for dependable industrial process cooling while maintaining accurate fluid temperature control.

This unit appears to have seen very little use and presents exceptionally well cosmetically. The cabinet, condenser, controls, and refrigeration system all appear clean and well maintained.

Ideal applications include laser cooling, semiconductor manufacturing, medical equipment, laboratory systems, industrial process cooling, plastics machinery, packaging equipment, machine tools, heat exchangers, and numerous other precision cooling applications.

SPECIFICATIONS

Manufacturer: Lytron

Series: Affinity Thermal Systems

Model: FAE-12XL-EE19CB04

Part Number: 500-20122-000

Serial Number: 201448-01

Date of Manufacture: 11/2011

Cooling Type: Air-Cooled Industrial Process Chiller

Refrigerant: R-407C

Refrigerant Charge: 13.0 lbs. (5.9 kg)

Compressor Rating: 12.9 HP (9.6 kW)

Compressor RLA: 20.0 Amps

Compressor LRA: 125 Amps

Process Pump: 3.0 HP (2.2 kW)

Pump Full Load Amps: 2.7

Condenser Fans: Two (2)

Fan Motors: 0.5 HP Each

Heater Current: 4.2 Amps

Electrical: 460 Volt

Phase: 3 Phase

Frequency: 60 Hz

Total Running Current: 21.7 Amps

Minimum Circuit Ampacity: 37.9 Amps

Maximum Circuit Breaker: 50 Amps

FEATURES

• Premium Lytron Affinity industrial process chiller

• Designed for precision temperature control

• Heavy-duty 12.9 HP refrigeration compressor

• Industrial 3 HP process circulation pump

• Dual condenser fan package

• Air-cooled condenser

• Environmentally friendly R-407C refrigerant

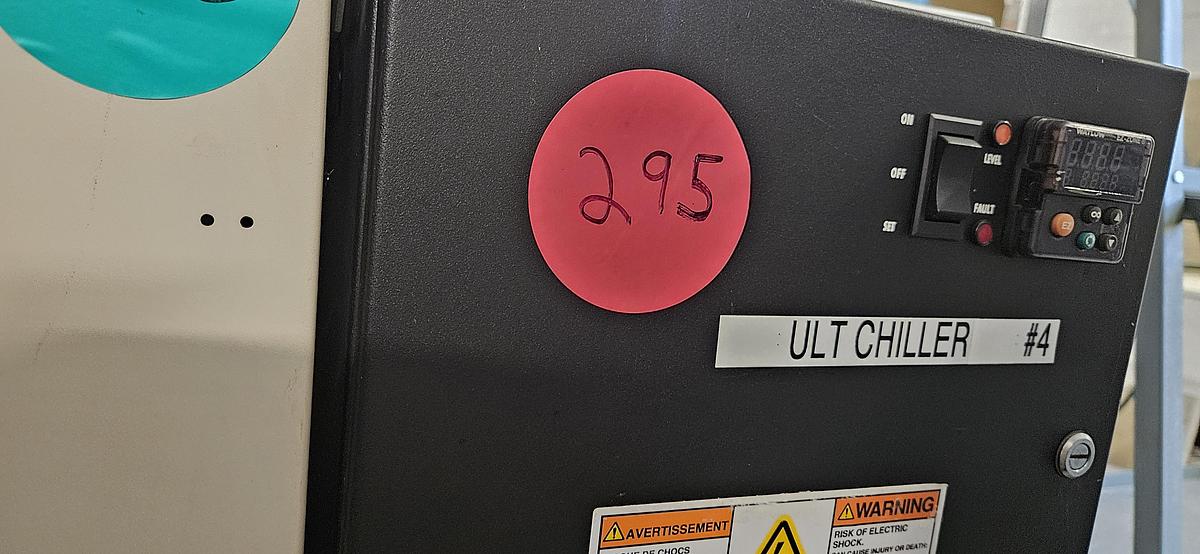

• Watlow digital temperature controller

• Integrated electrical control system

• Heavy-duty industrial cabinet

• Compact footprint

• Excellent laboratory / production condition

• Precision thermal management system

• Built for continuous industrial operation

• Manufactured in 2011

INCLUDES

• Lytron Affinity FAE-12XL Industrial Chiller

• Integrated Process Pump

• Refrigeration System

• Watlow Digital Controller

• Factory Electrical Controls

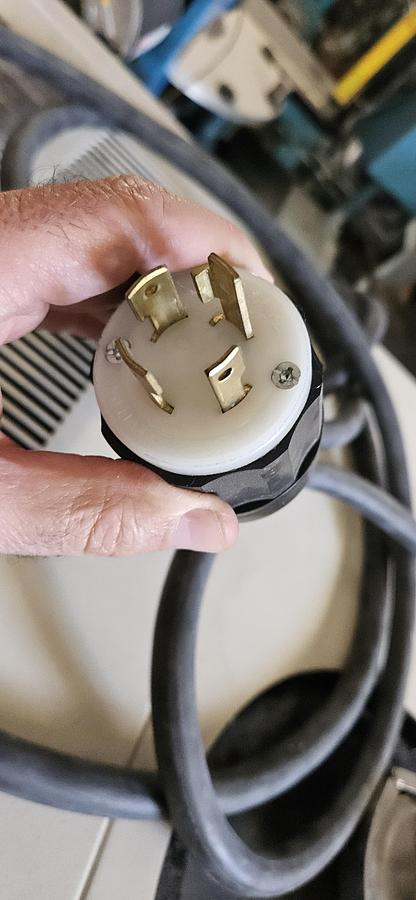

• Power Cord

• Accessories shown in photographs

WSPT# LGD-0000-062826-F

Picture# 061726

CONDITION

This Lytron Affinity process chiller is in excellent overall condition and appears to have seen very little service.

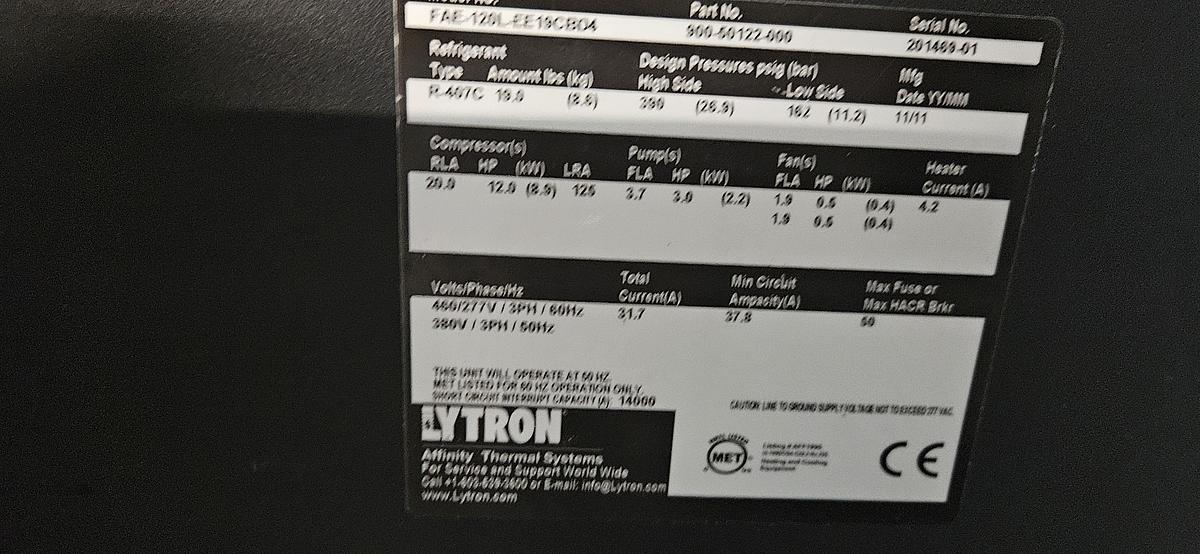

The cabinet is exceptionally clean, refrigeration components appear original, and the electrical controls present very well. The condenser is clean, and the unit retains its original factory identification labels.

Buyer is encouraged to inspect the equipment under power prior to purchase.
