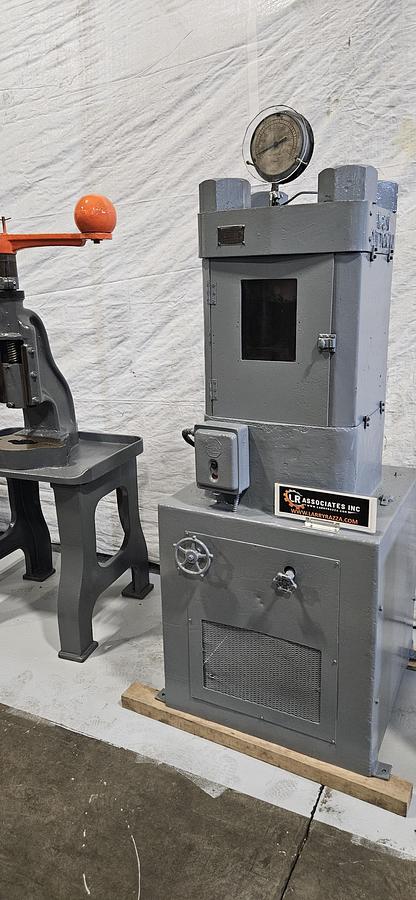

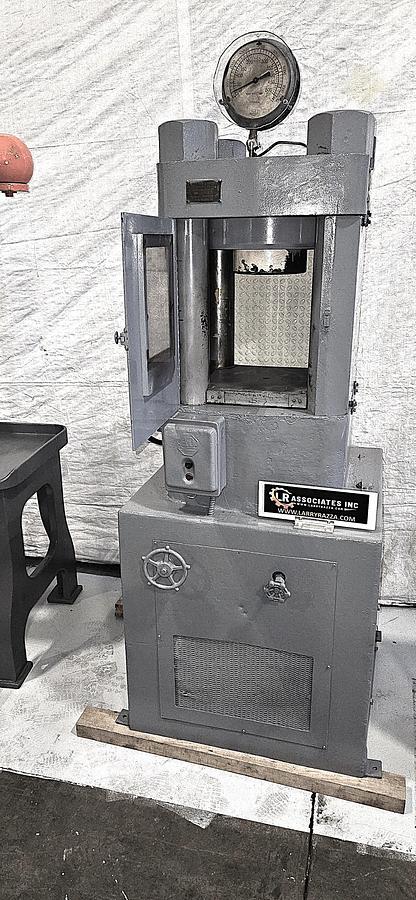

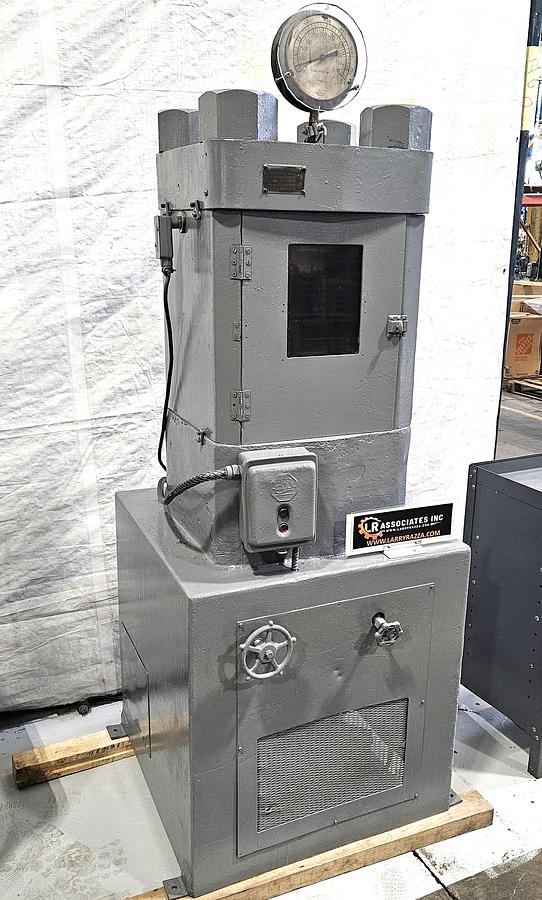

M&N CLIFTON 500 TON HYDRAULIC HOBBING PRESS – COINING – EMBOSSING – DEEP DRAWING – TOOL & DIE – 220V 3 PHASE

DESCRIPTION

Available for immediate sale is a M&N Clifton 500 Ton Hydraulic Hobbing Press, designed for heavy-duty precision forming, coining, embossing, deep drawing, and hobbing operations.

Hydraulic hobbing presses are highly specialized production machines capable of producing extremely high forming forces while maintaining exceptional control throughout the pressing cycle. Unlike conventional mechanical presses, hydraulic presses develop full tonnage throughout the entire stroke, making them ideal for precision tool and die work.

This machine is well suited for producing mold cavities, coining dies, embossing plates, medals, precision formed components, deep drawn parts, and numerous custom tooling applications.

The press features a robust four-post guided ram design, manual hydraulic controls, large daylight opening, and heavy-duty construction built for continuous industrial use.

Whether used in a toolroom, mold shop, research facility, government arsenal, mint, aerospace manufacturer, or production environment, this press offers exceptional versatility for a wide variety of precision metal forming operations.

SPECIFICATIONS

• Manufacturer: M&N Clifton

• Type: Hydraulic Hobbing Press

• Capacity: 500 Tons

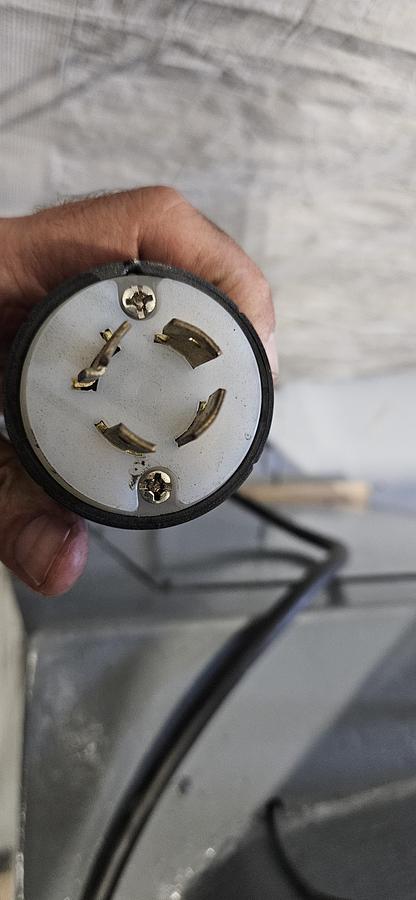

• Voltage: 220V

• Phase: 3 Phase

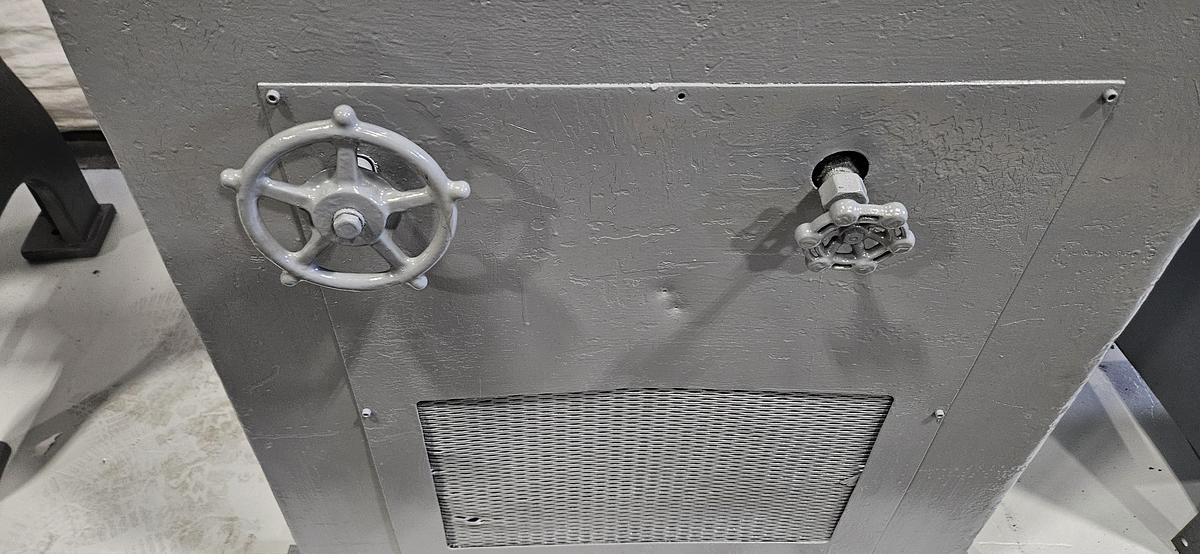

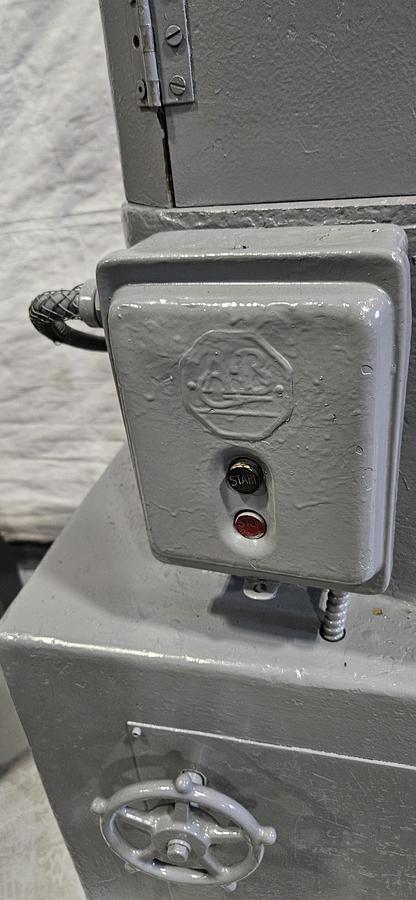

• Controls: Manual Hydraulic Valve Controls

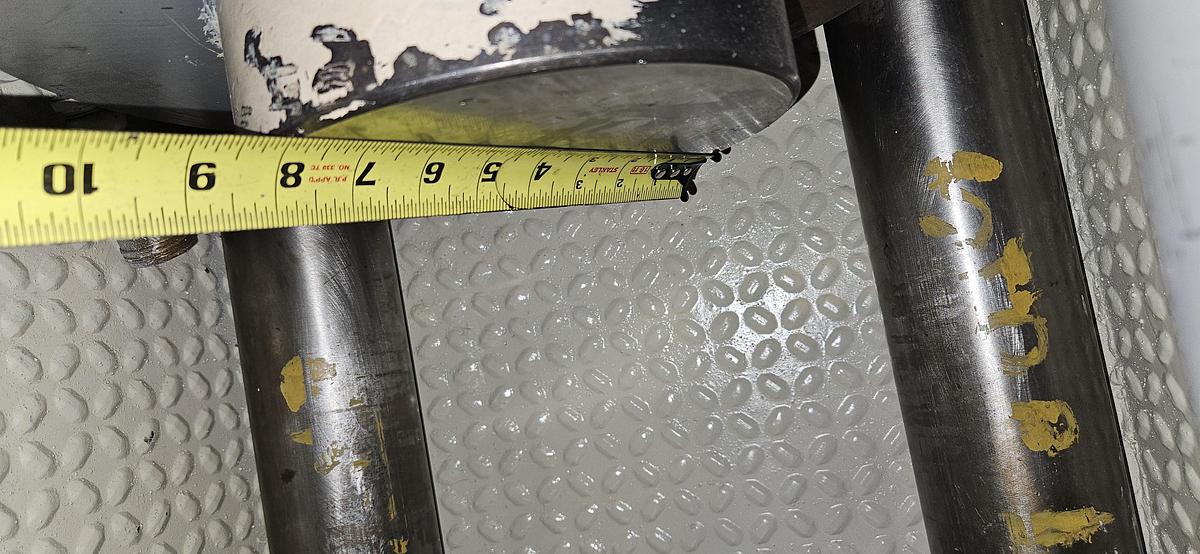

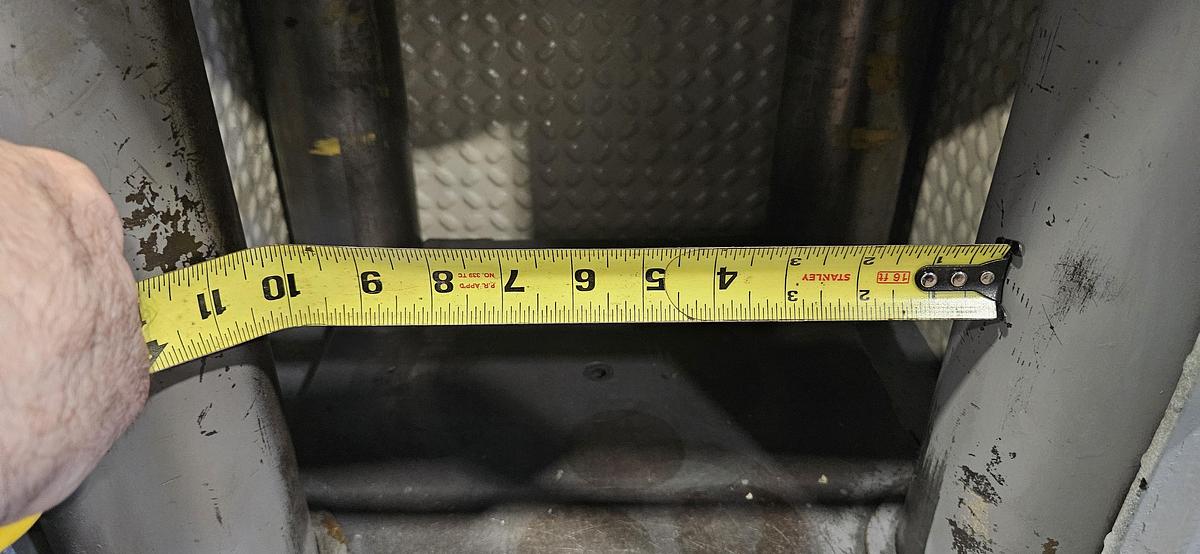

• Between Tie Bars (Front Opening): 10-1/2"

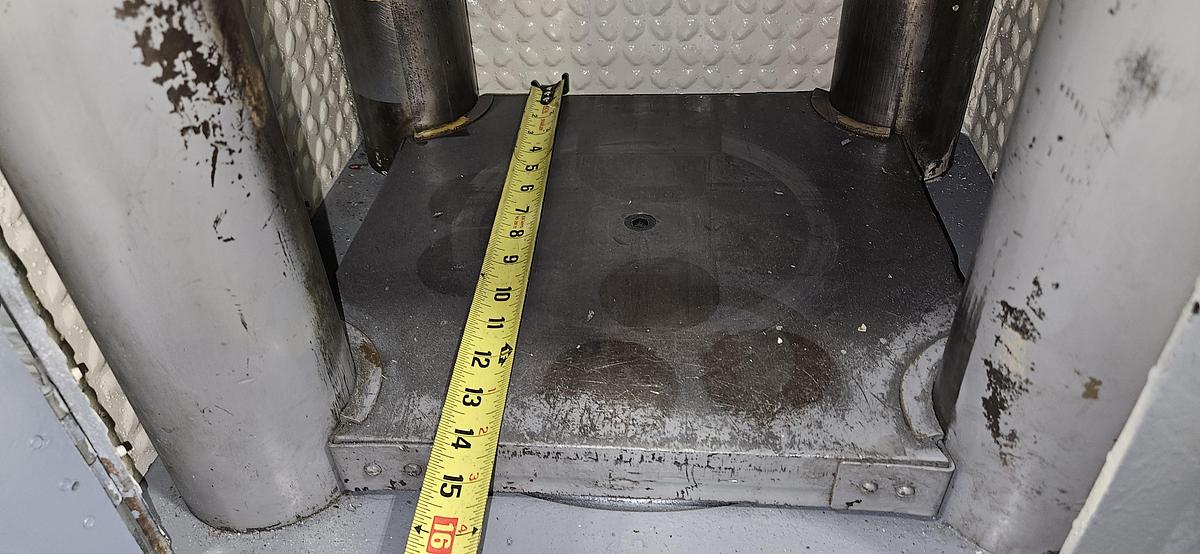

• Lower Platen Size: 14" x 14"

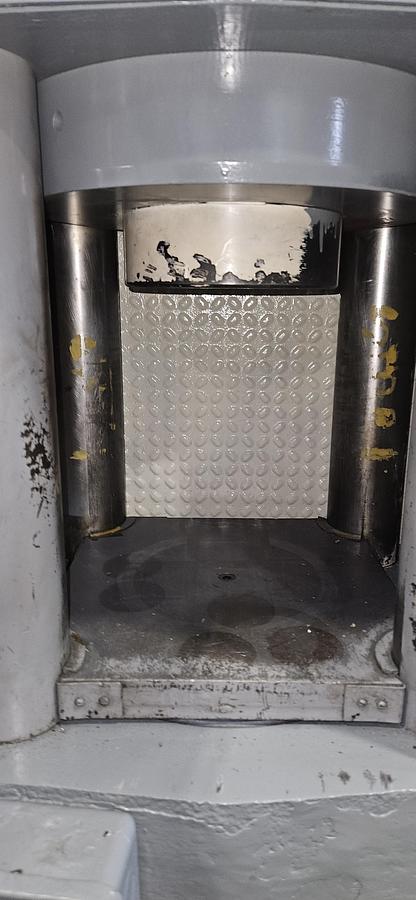

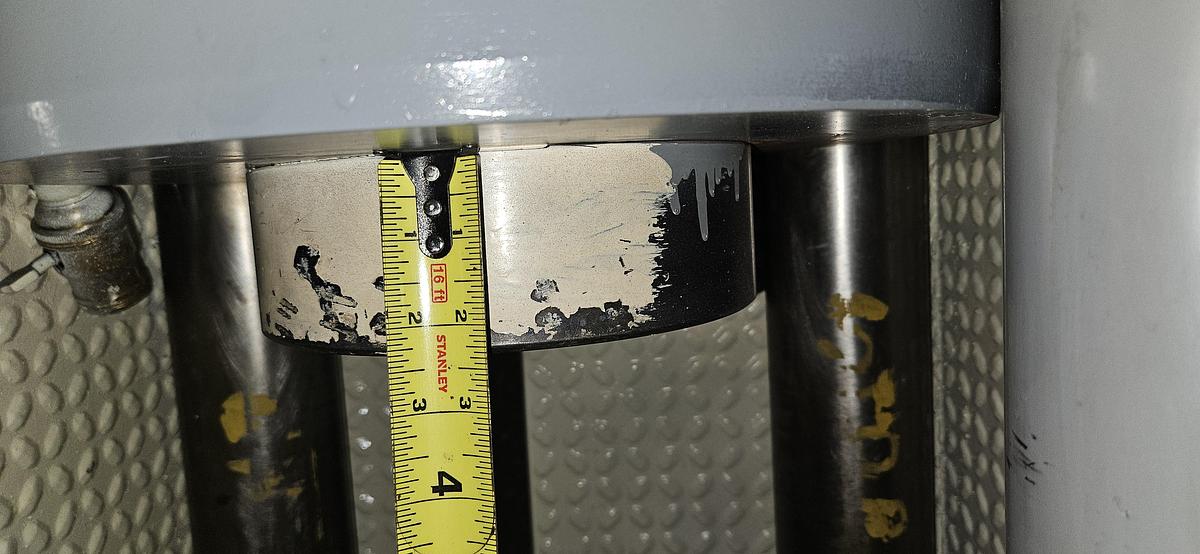

• Daylight Opening (Top Platen Installed): 12"

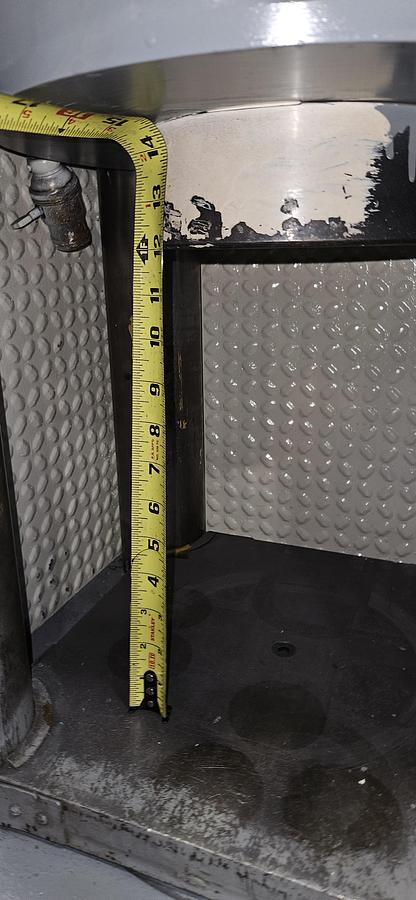

• Maximum Daylight Opening (Top Platen Removed): 14-1/2"

• Overall Height: 75"

• Footprint: 30" x 30"

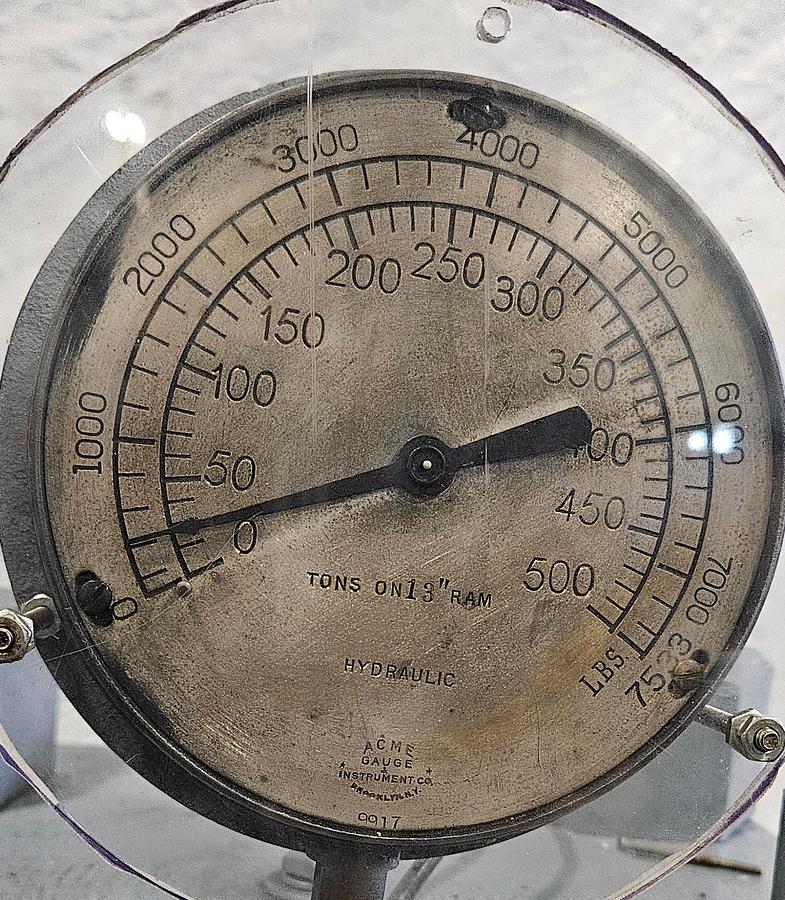

• Hydraulic Pressure Gauge: Included

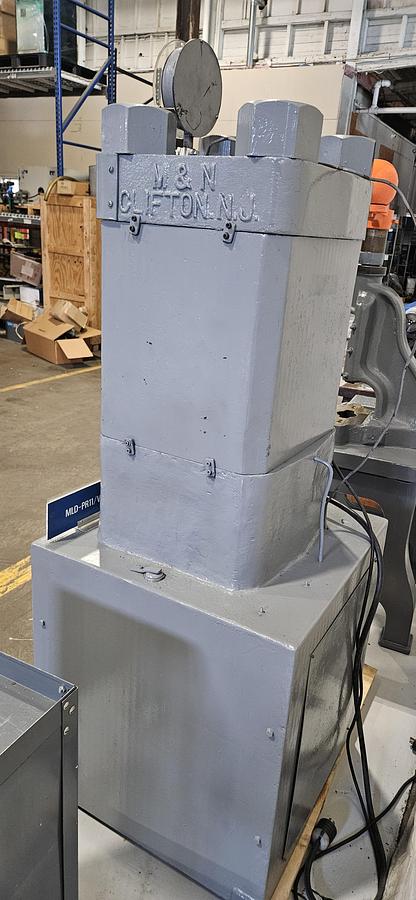

• Construction: Heavy Cast Steel Frame

• Four-Post Guided Ram Design

FEATURES

• Massive 500 Ton hydraulic capacity

• Full tonnage available throughout stroke

• Heavy-duty four-column guided ram

• Precision hydraulic pressure control

• Manual hydraulic valve operation

• Heavy cast steel construction

• Compact industrial footprint

• Large working opening

• Precision forming capability

• Excellent for custom tooling production

• Built for continuous industrial service

APPLICATIONS

This machine is ideal for:

• Tool & Die Manufacturing

• Mold Cavity Hobbing

• Coining Operations

• Embossing Dies

• Medal Manufacturing

• Precision Metal Forming

• Deep Drawing

• Compression Forming

• Powder Metal Compaction

• Prototype Tool Development

• Government Arsenal Applications

• Aerospace Tooling

• Research & Development

INCLUDES

• M&N Clifton 500 Ton Hydraulic Hobbing Press

• Hydraulic Pressure Gauge

• Manual Hydraulic Controls

• Installed Upper Platen

• Lower Platen

• All Components Shown

PTWS# L-0000-070826-A

Picture# 052826

CONDITION

Machine is in good used condition.

Hydraulic system appears complete.

Machine has been well maintained and is ready for inspection.

All specifications subject to verification.

ADDITIONAL INFORMATION

Machine is available for inspection by appointment.

Specifications subject to verification.
