BRIDGEPORT SERIES I VERTICAL MILLING MACHINE – PROTOTRAK MX2 2-AXIS CNC CONTROL – 3-AXIS DRO – 2 HP VARIABLE SPEED – 230V 3 PHASE – YUASA VISE – TOOLING PACKAGE – TESTED

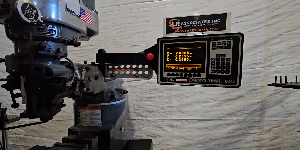

SEE VIDEO!!

DESCRIPTION

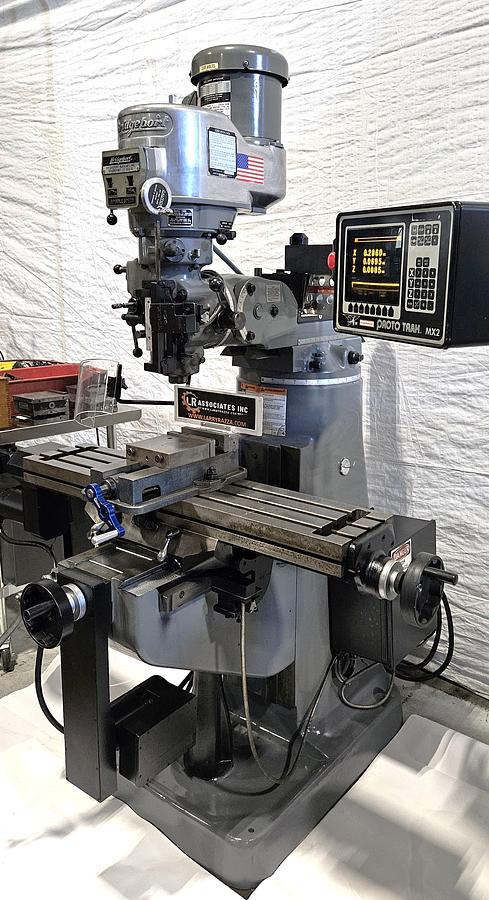

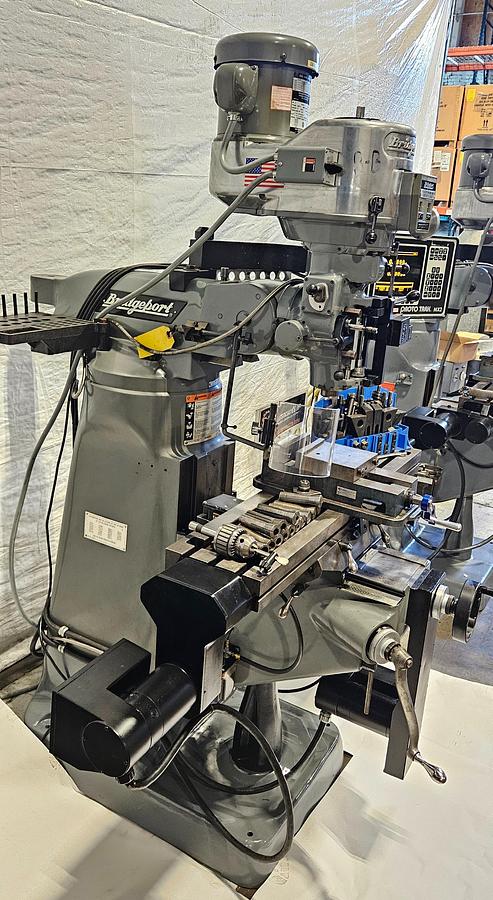

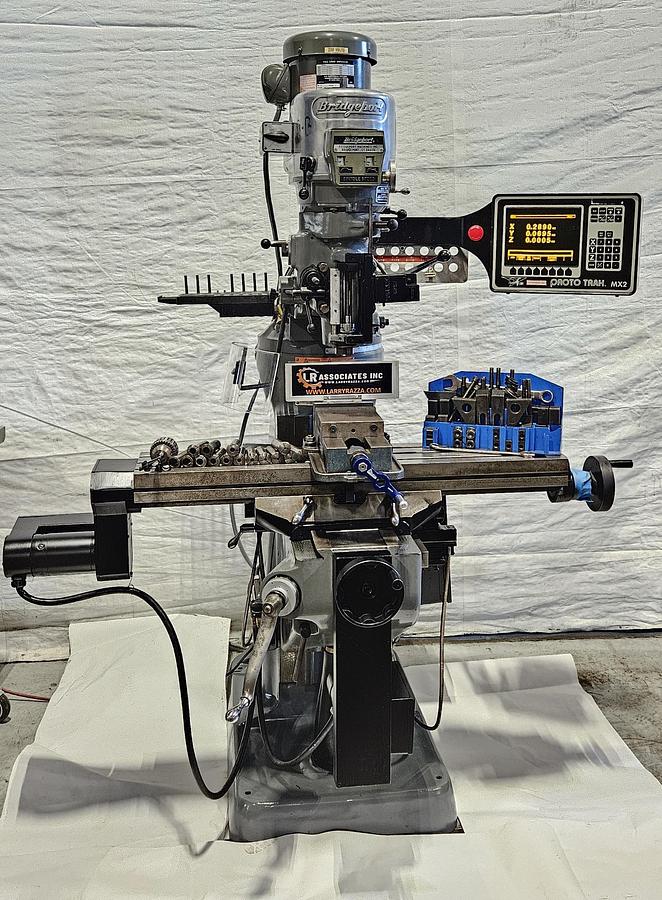

Available for immediate sale is this Bridgeport Series I Vertical Milling Machine, equipped with a Southwestern Industries ProtoTRAK MX2 2-Axis CNC Control with 3-Axis Digital Readout, variable-speed Bridgeport milling head, power feed system, Yuasa machine vise, and tooling package.

This is an exceptionally versatile configuration combining the simplicity and flexibility of the legendary Bridgeport manual knee mill with the productivity of the ProtoTRAK MX2 conversational CNC system.

The ProtoTRAK MX2 provides CNC-controlled X and Y axis movement, while displaying X, Y and Z position information through the control. This allows the machine to be used for conventional manual milling, positioning and DRO work, or programmed 2-axis CNC machining.

The ProtoTRAK conversational control is particularly well suited for prototype work, tooling, repair operations, maintenance departments and short-run production because many common milling operations can be programmed directly at the machine without requiring a separate CNC programming department.

Southwestern Industries continues to provide legacy MX2 software information and support documentation for this control.

The machine is powered by a heavy-duty U.S. Electrical Motors 2 HP, 230/460V, 3-phase spindle motor and is presently configured for 230-volt operation.

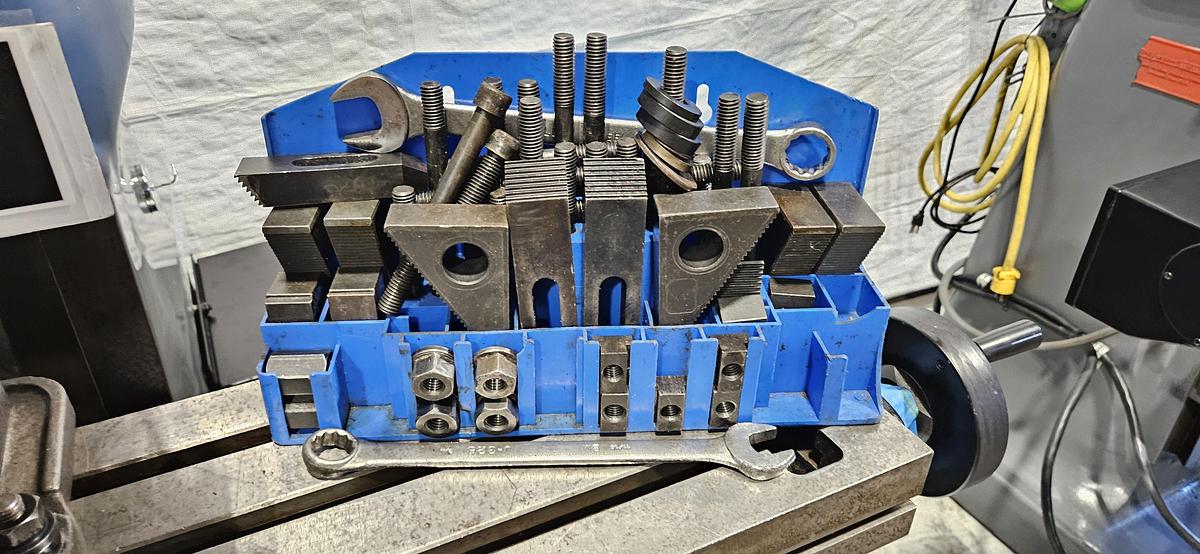

A useful tooling package is included, consisting of a Yuasa precision milling vise, collets/tool holders, drill chuck and assorted tooling as shown in the photographs.

This machine has been tested under power and is operating properly, including the ProtoTRAK control and axis movement.

SPECIFICATIONS

Manufacturer: Bridgeport

Model: Series I

Machine Type: Vertical Knee Milling Machine / ProtoTRAK CNC Mill

CNC Control: Southwestern Industries ProtoTRAK MX2

CNC Configuration: 2-Axis CNC – X & Y

Digital Position Display: 3-Axis – X, Y & Z

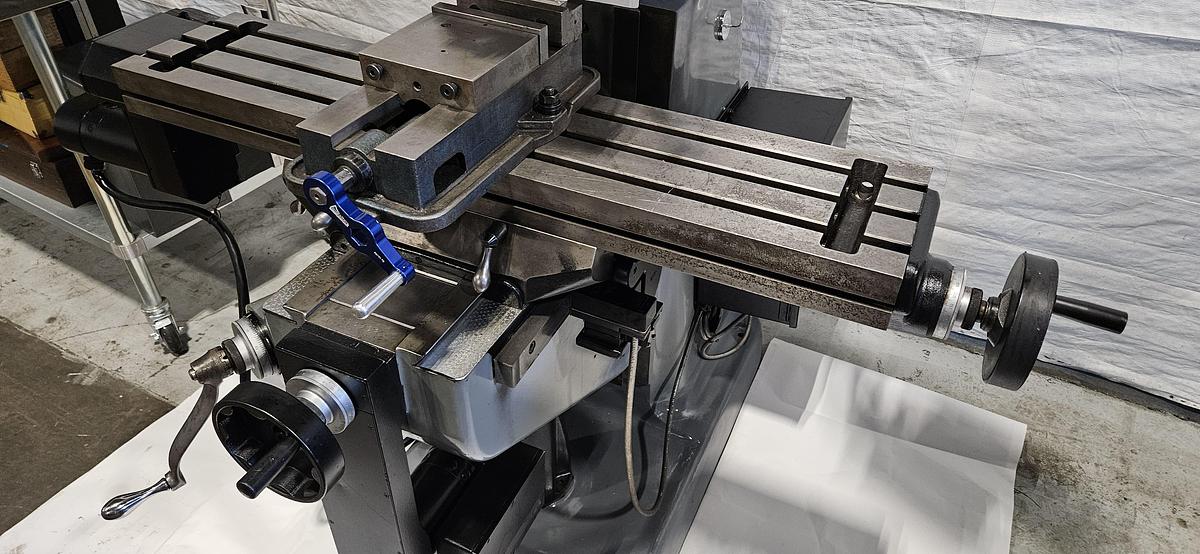

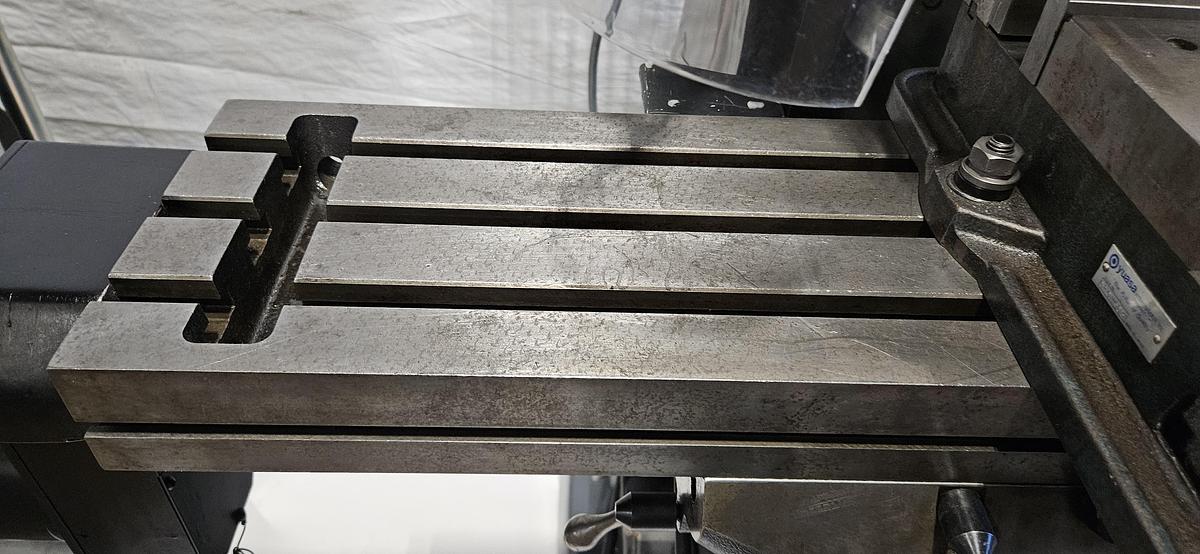

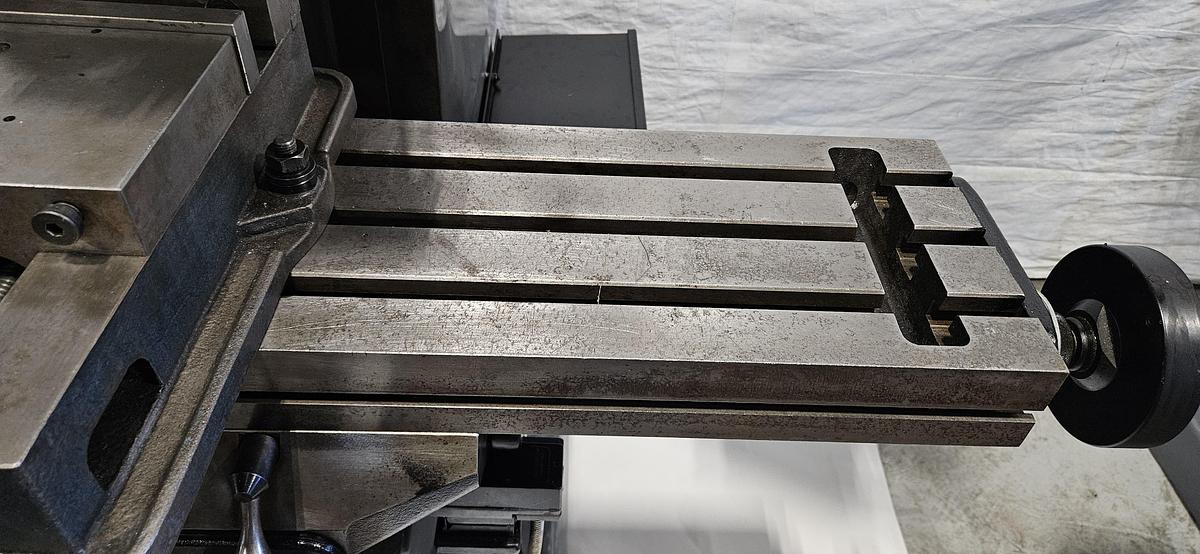

Table: Approx. 9" x 42"

Approximate X-Axis Travel: 28"

Approximate Y-Axis Travel: 12"

Quill Travel: Approx. 5"

Spindle Taper: R8

Spindle: Variable Speed

Approximate Spindle Speed Range: Up to 4,200 RPM

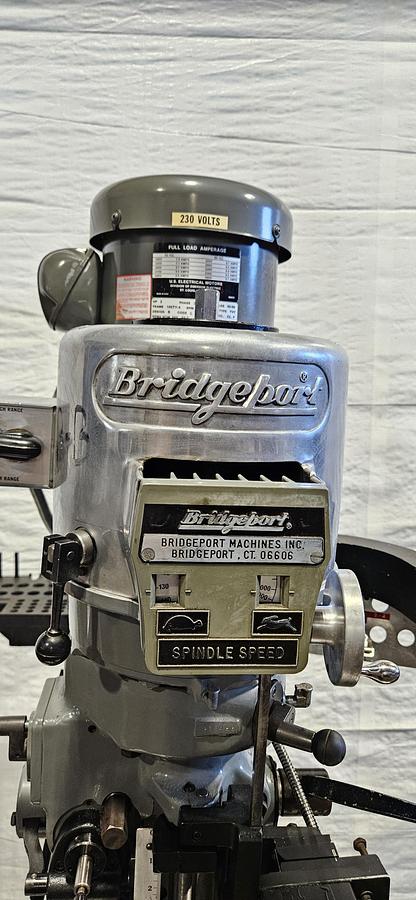

Spindle Motor: 2 HP

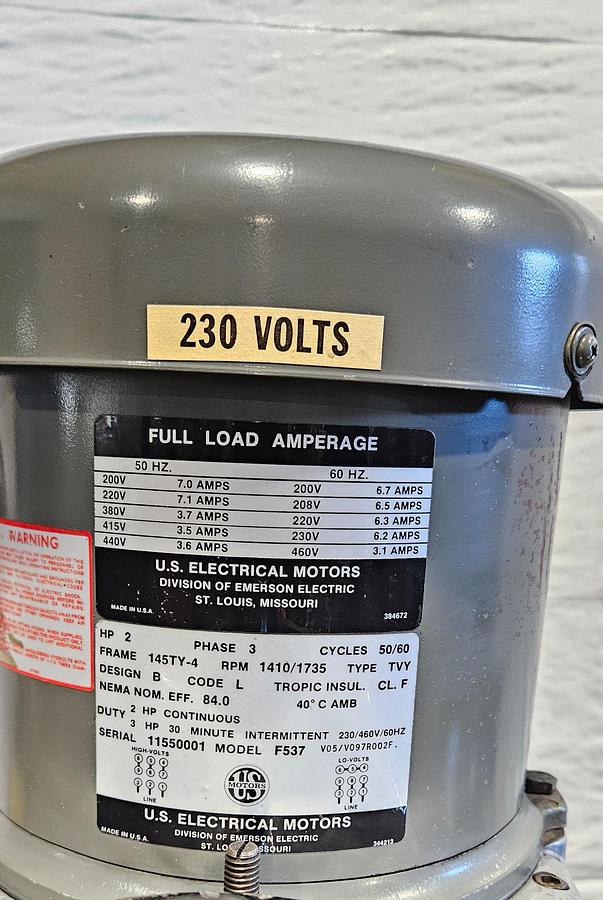

Motor Manufacturer: U.S. Electrical Motors / Emerson Electric

Motor Frame: 145TY-4

Electrical: 230 Volt, 3 Phase, 60 Hz

Motor Full Load Amperage @ 230V: 6.2 Amps

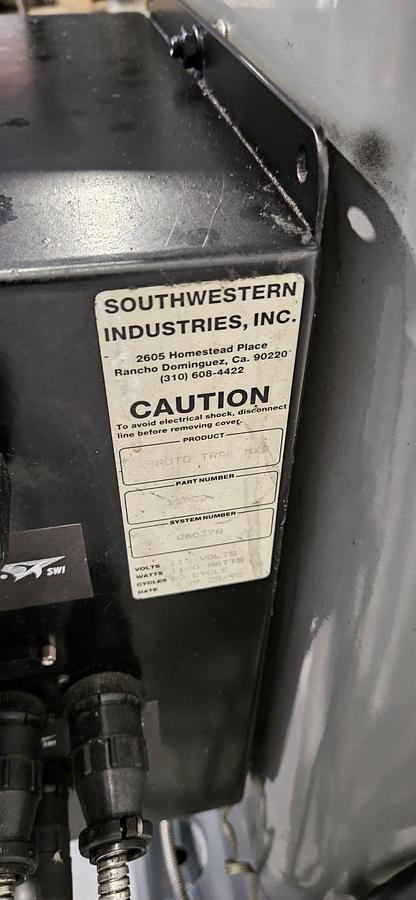

Control Manufacturer: Southwestern Industries, Inc.

Control Model: ProtoTRAK MX2

Control System No.: 080378

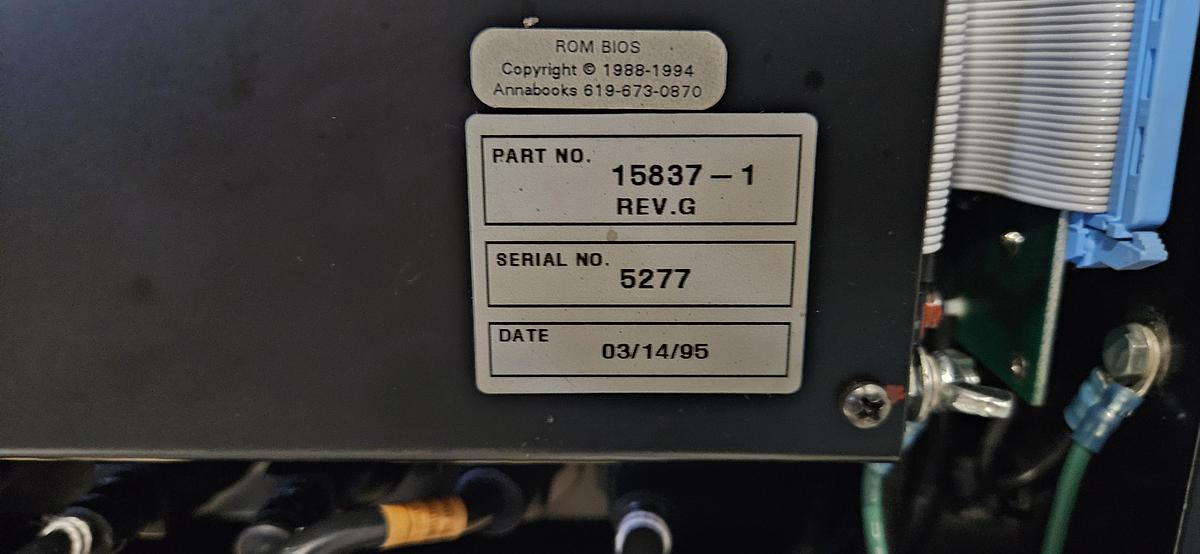

Control Computer Part No.: 15837-1, Rev. G

Control Computer Serial No.: 5277

Control Date: 03/14/1995

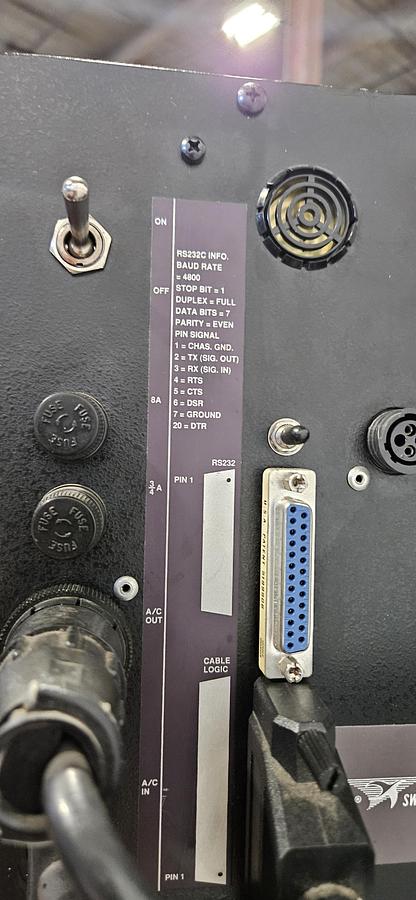

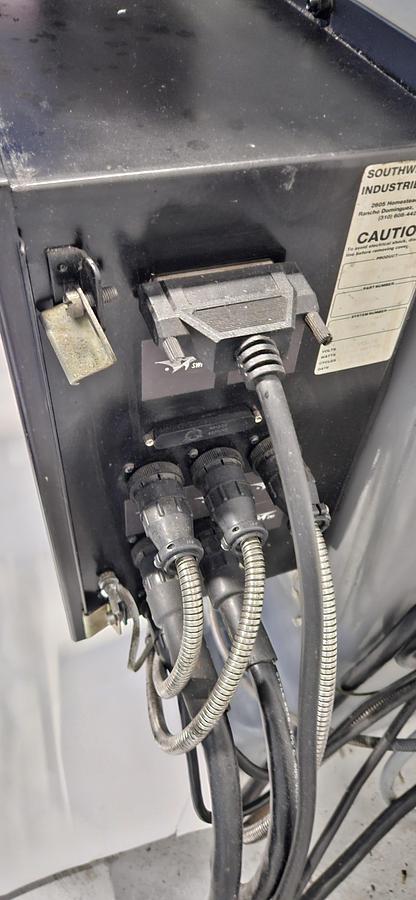

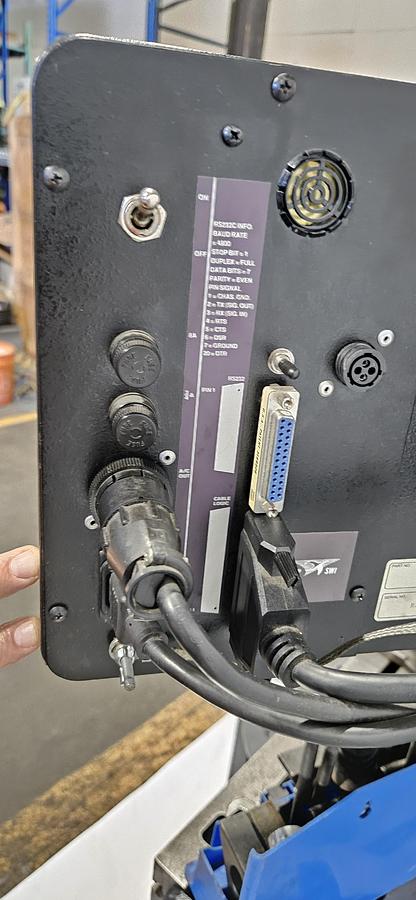

Control Communications: RS-232C

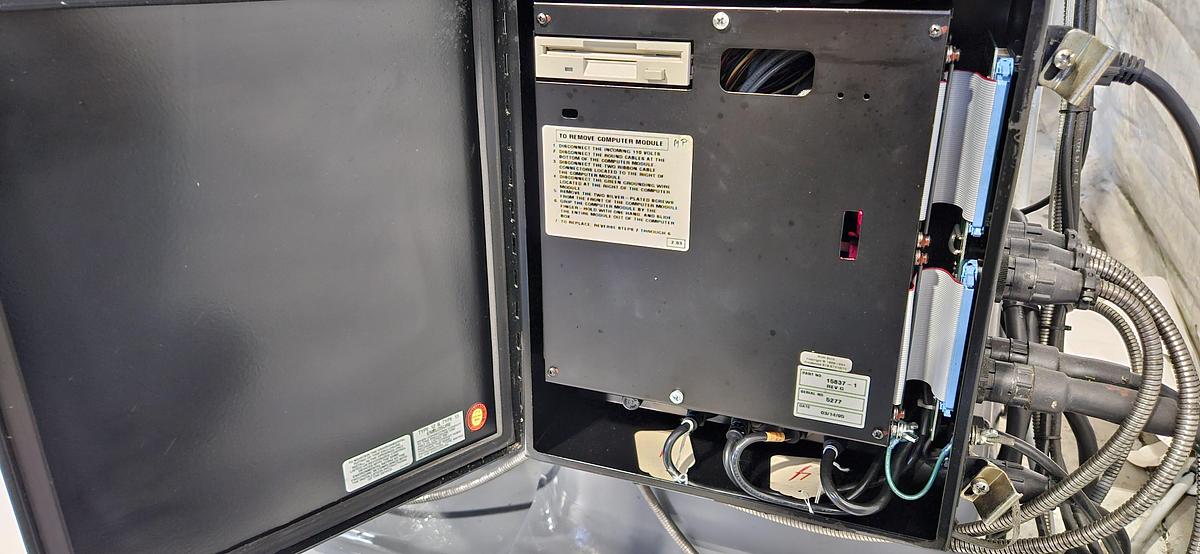

Program Storage: 3.5" Floppy Disk Drive

The MX2 uses legacy double-density floppy media for its original software/storage architecture; Southwestern Industries still provides the legacy MX2 Version 6.10 software.

FEATURES

• Genuine Bridgeport Series I vertical knee mill
• Southwestern Industries ProtoTRAK MX2 CNC retrofit
• 2-axis CNC control of X and Y
• 3-axis X/Y/Z digital position display
• Conversational CNC programming
• Manual or CNC operation

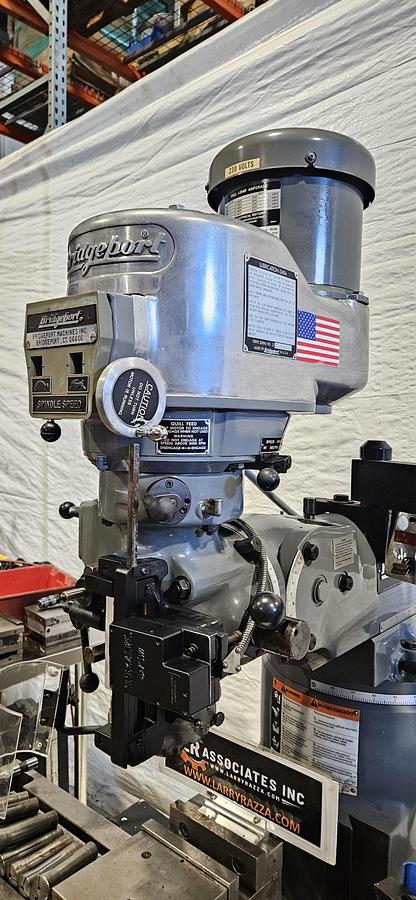

• Variable-speed Bridgeport milling head
• 2 HP spindle motor
• R8 spindle
• Power quill feed

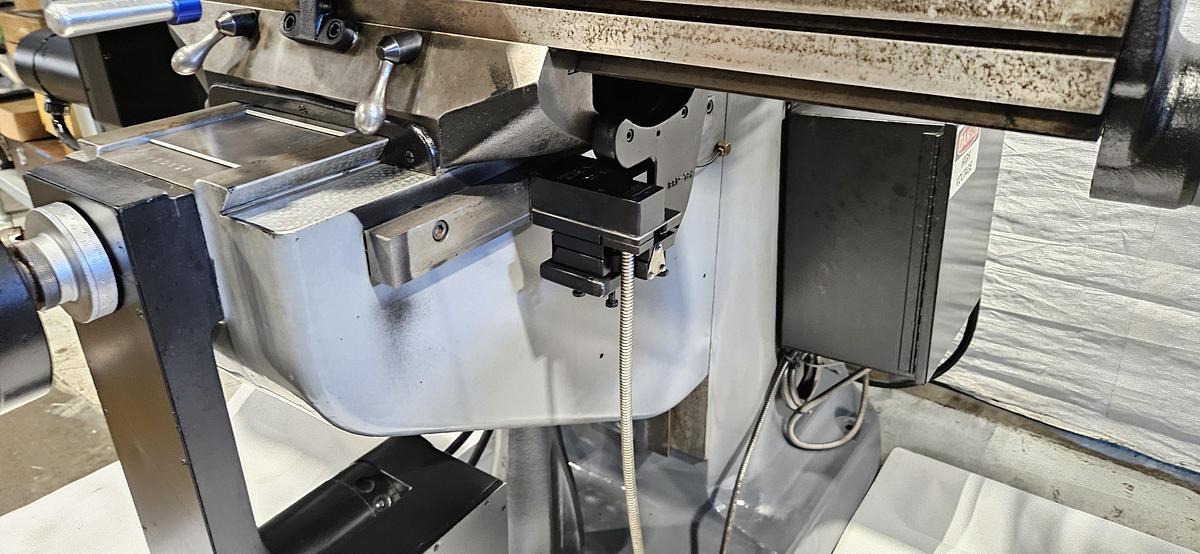

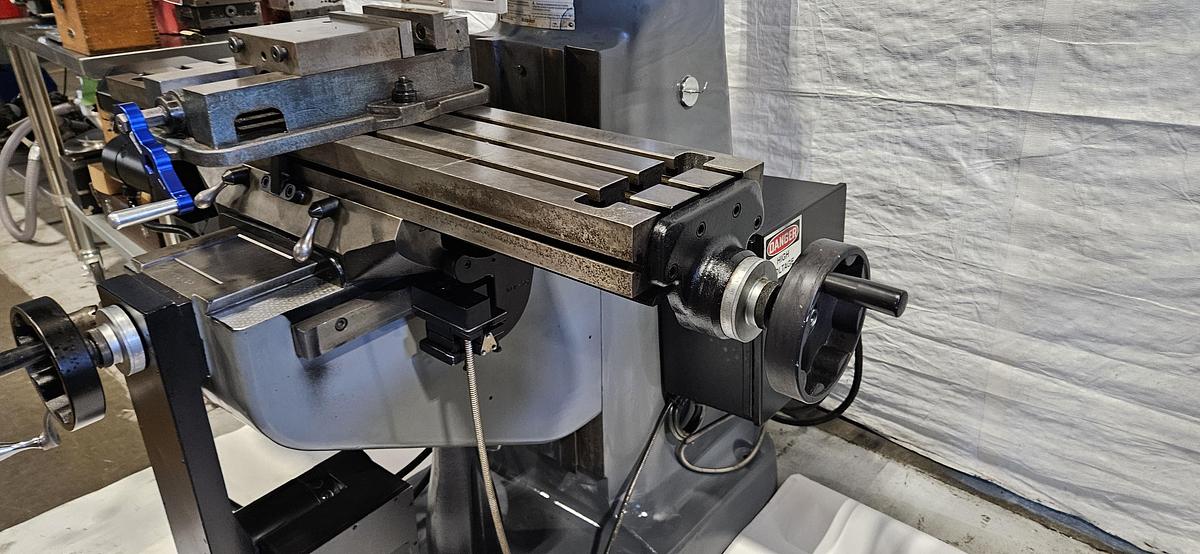

• CNC-controlled table movement
• Emergency Stop
• RS-232 communications interface
• 3.5" floppy disk drive

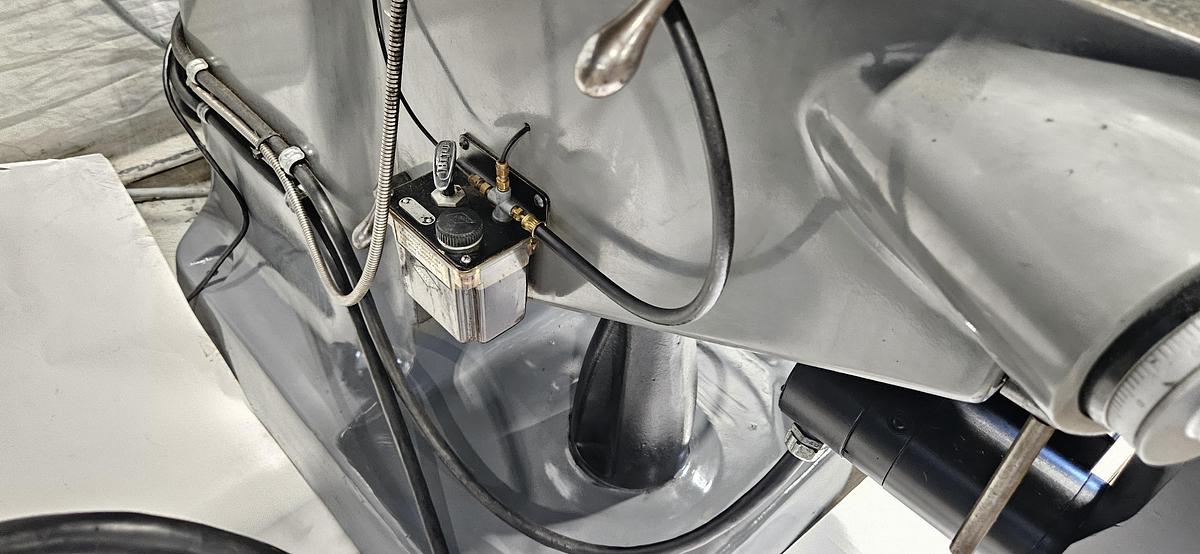

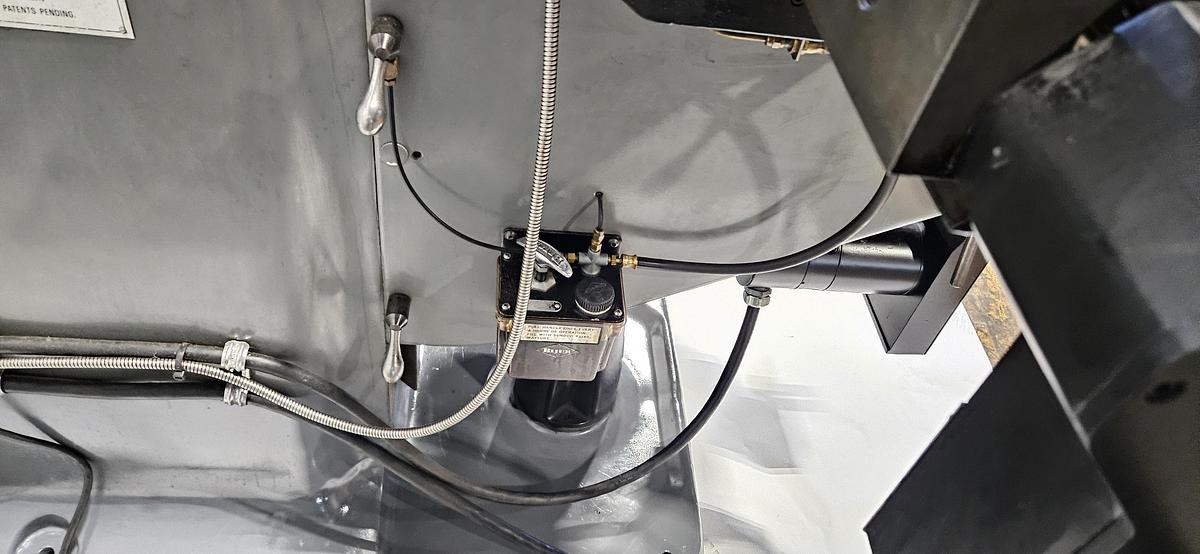

• One-shot lubrication system

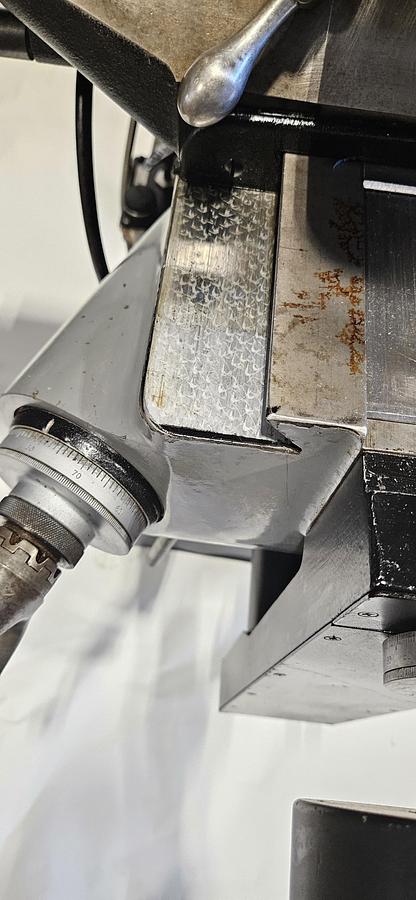

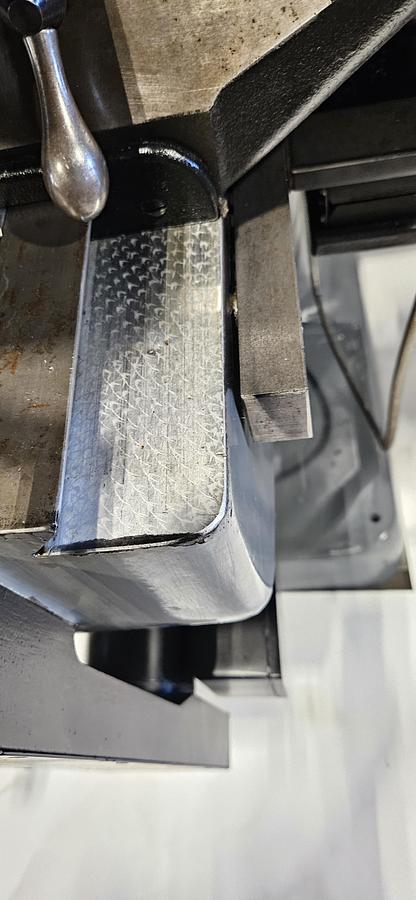

• Chrome Ways
• Heavy-duty Bridgeport cast-iron construction

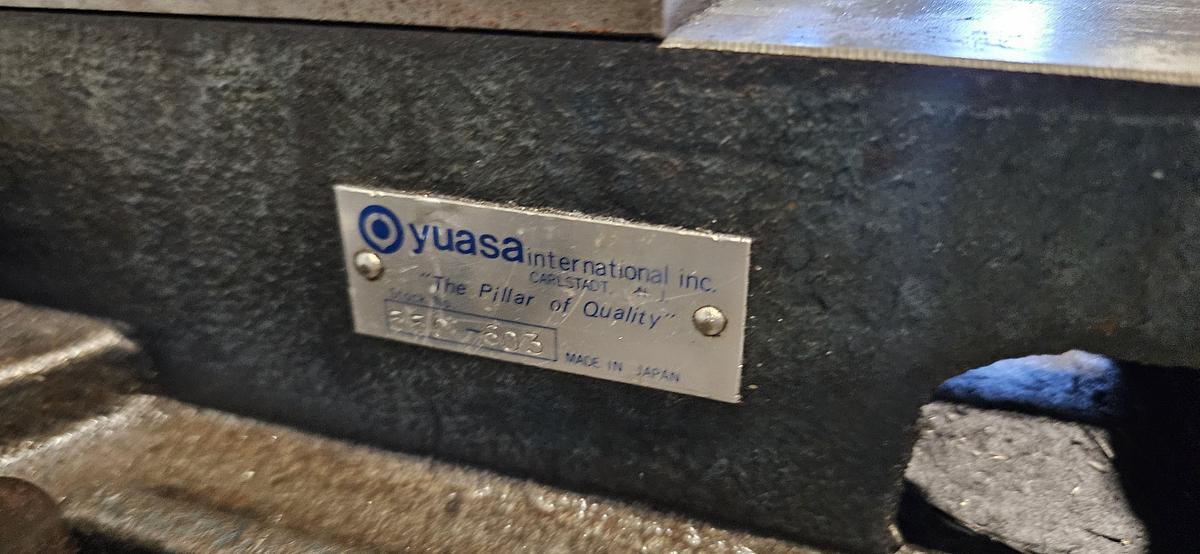

• Yuasa precision milling vise

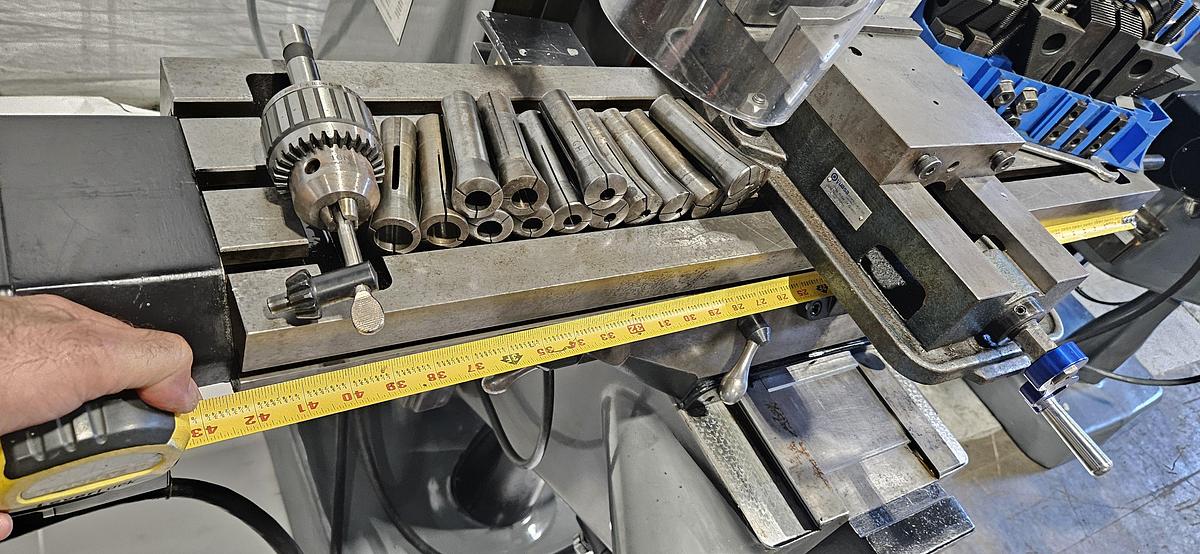

• Collet and tooling package
• Drill chuck

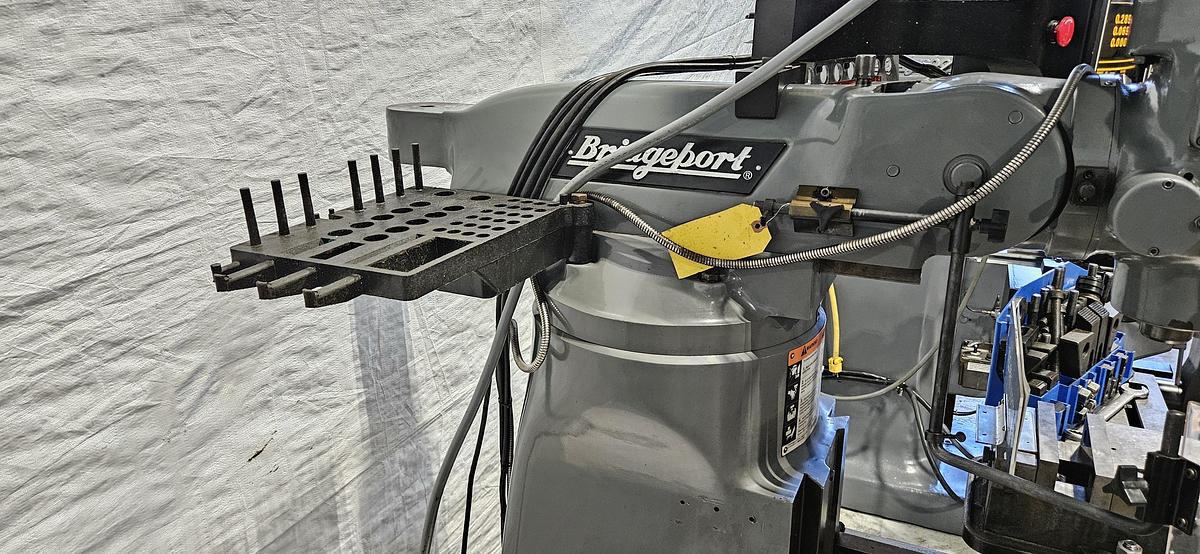

• Tooling rack
• 230V, 3-phase operation
• Tested and operating

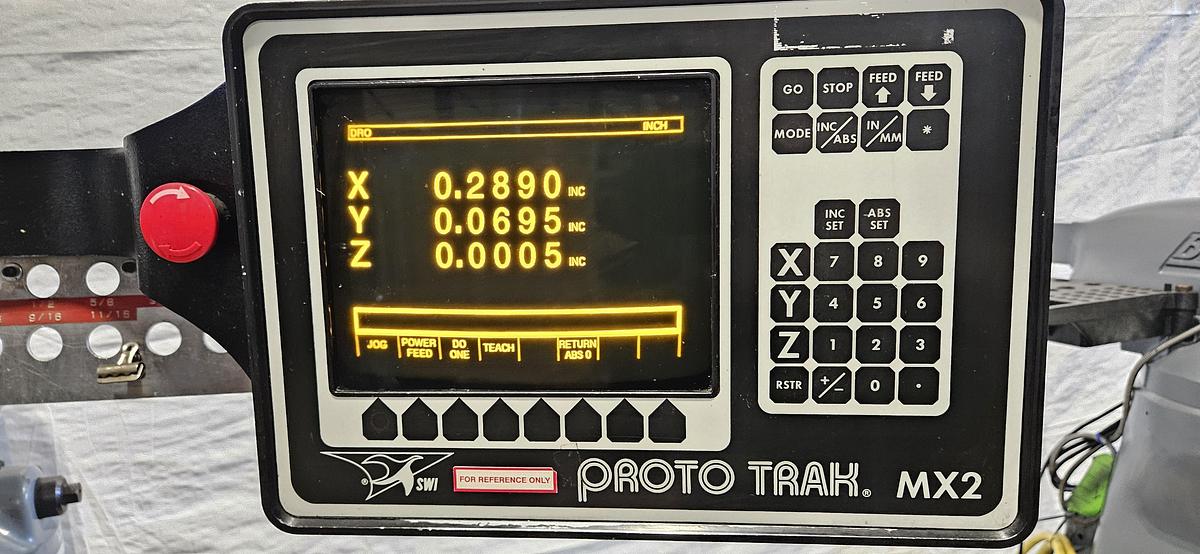

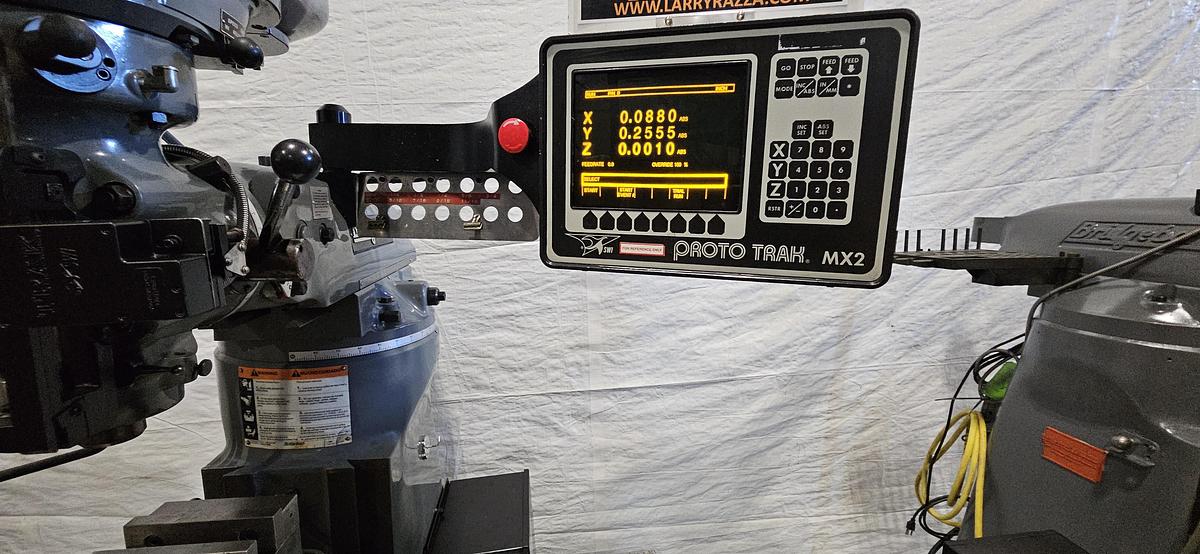

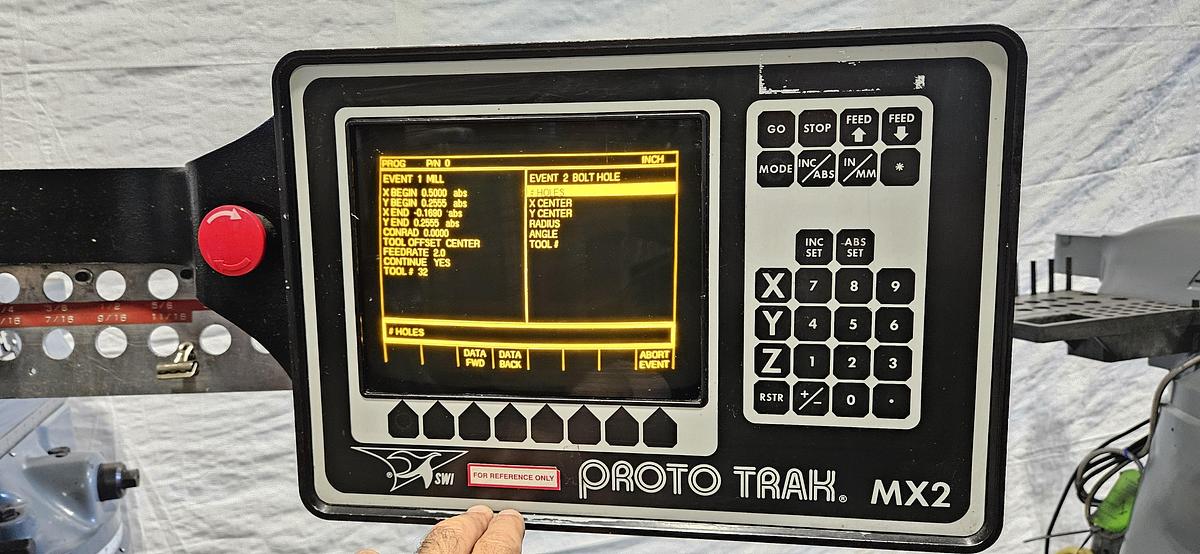

PROTOTRAK MX2 CNC CONTROL

The Southwestern Industries ProtoTRAK MX2 adds considerable productivity compared with a conventional manual Bridgeport.

The operator can perform programmed milling operations while retaining the ability to use the machine as a traditional manual knee mill.

The control provides functions for common machining operations such as:

• Linear milling
• Circular and arc milling
• Hole patterns
• Drilling operations
• Pocketing
• Contouring
• Positioning
• Repetitive machining operations
• Incremental and absolute positioning
• CNC power feed
• Jog operation
• Teach functions

The machine therefore offers an excellent combination of manual machining flexibility and CNC productivity, particularly for one-off components and short production runs.

INCLUDED TOOLING & ACCESSORIES

Included with the machine as shown:

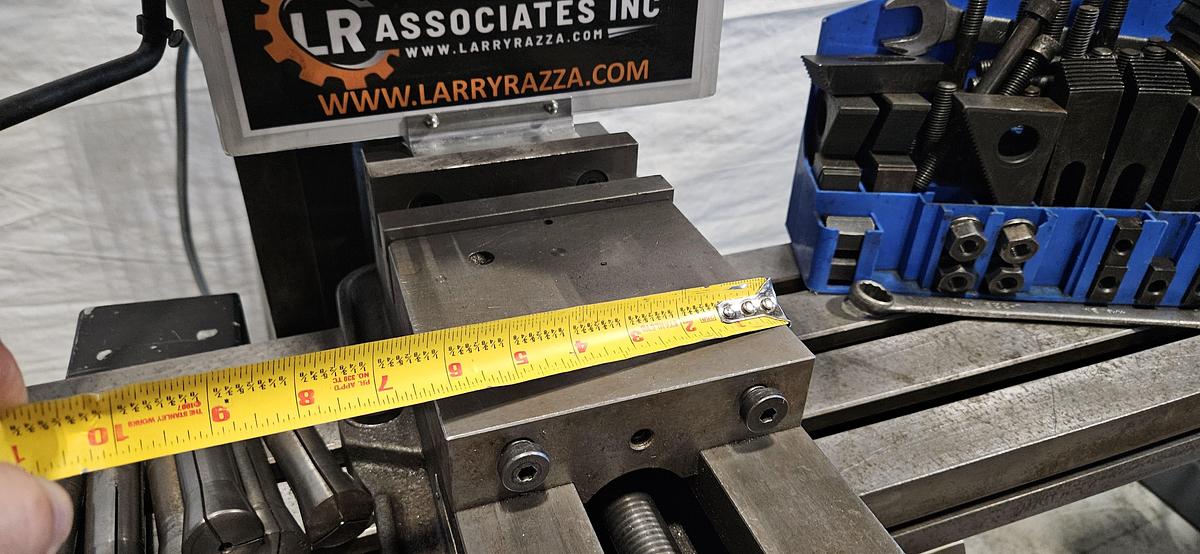

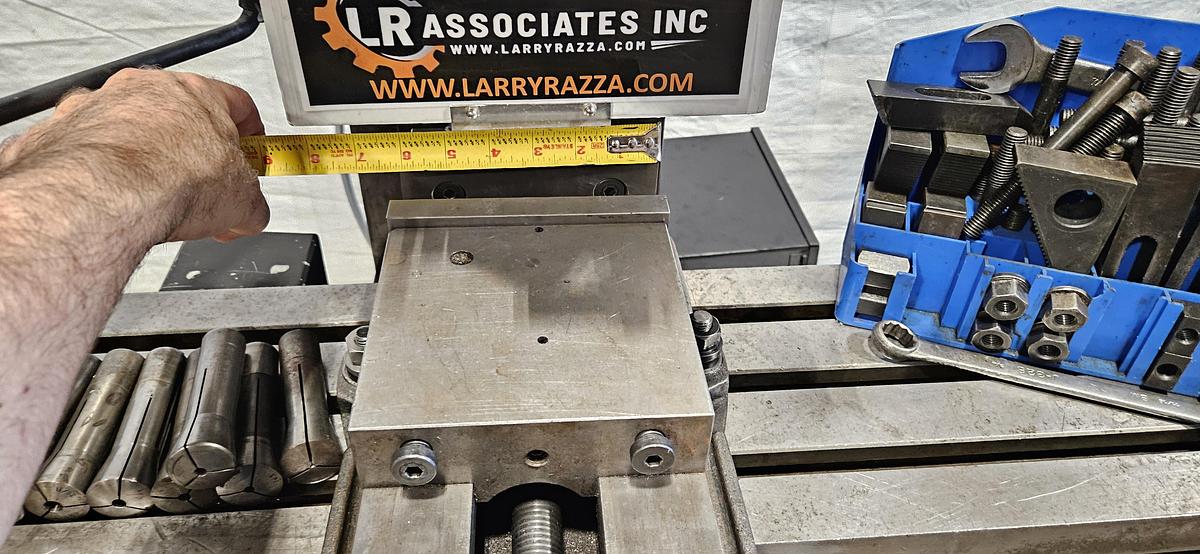

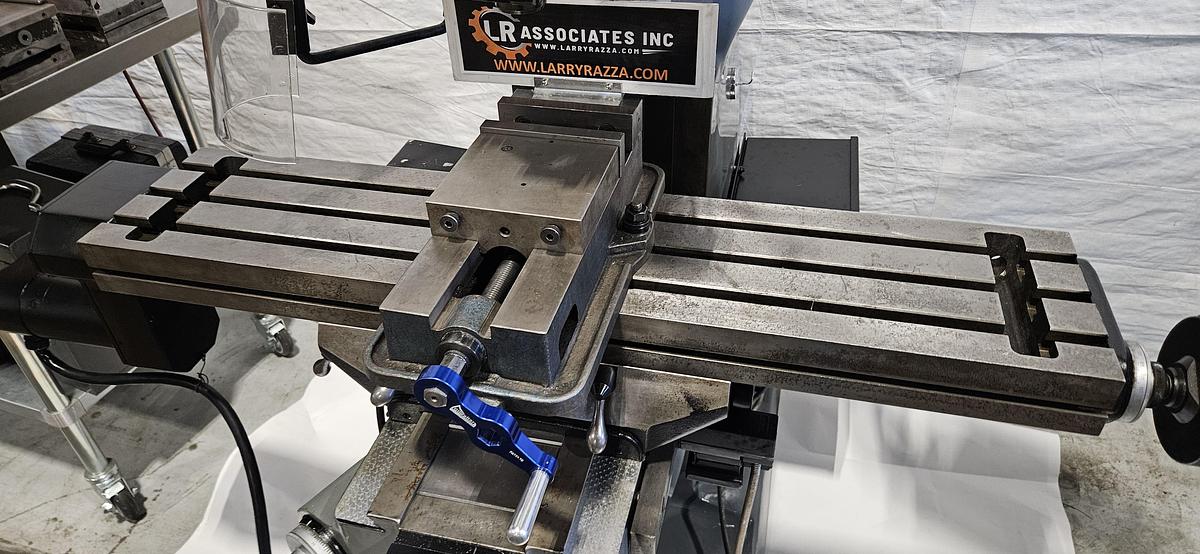

• Yuasa precision milling vise

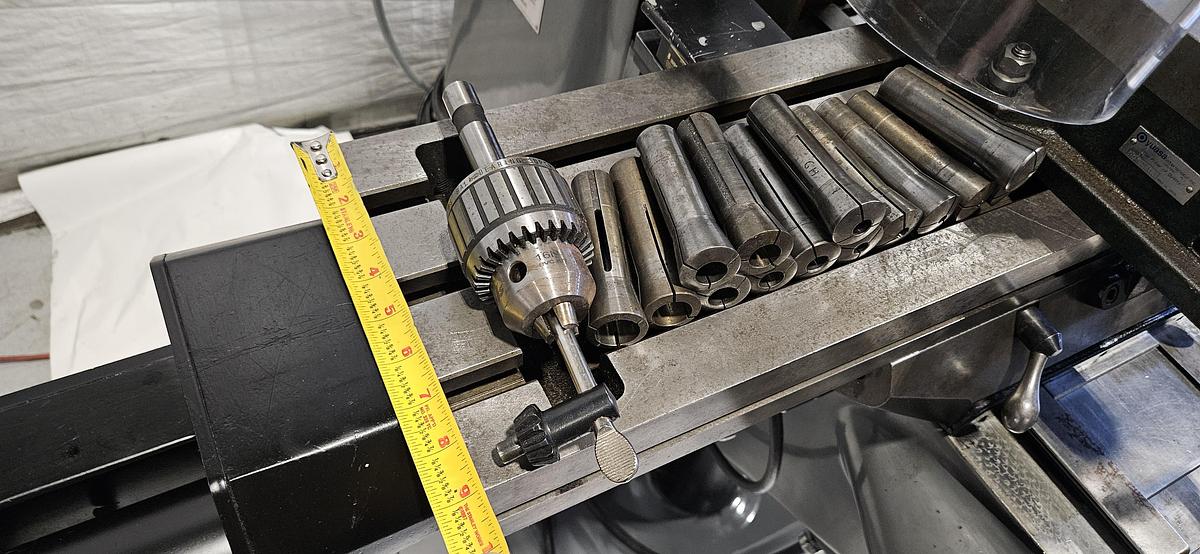

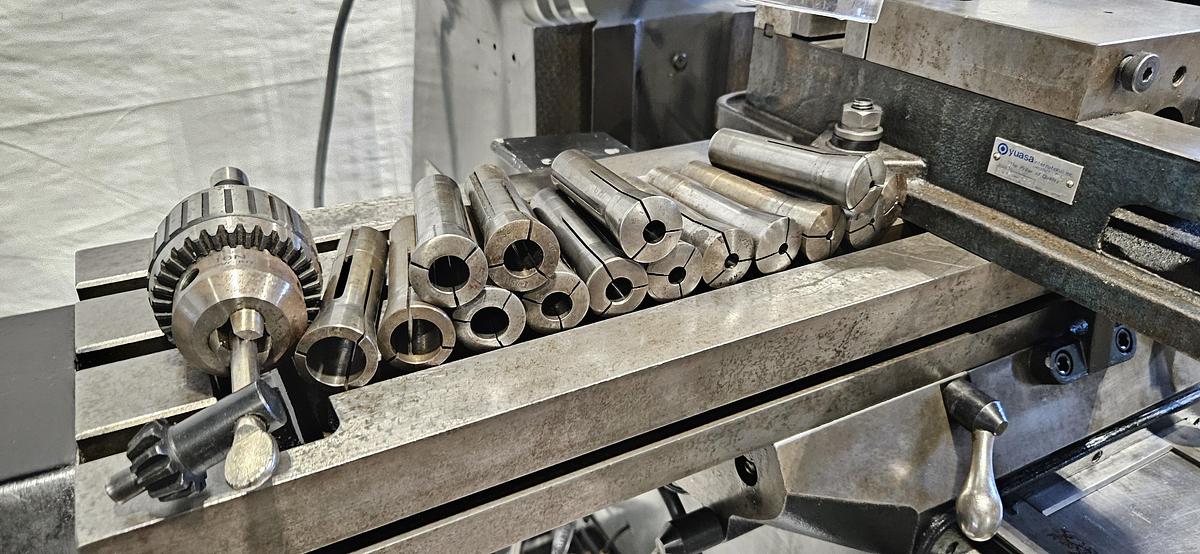

• R8 collets / tool holders
• Drill chuck
• Assorted milling tooling
• Tooling storage rack
• Quill handle
• Knee crank
• ProtoTRAK MX2 CNC control

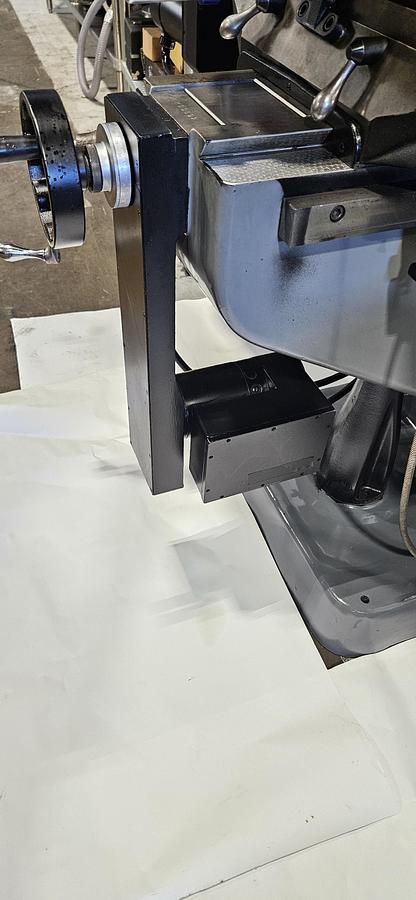

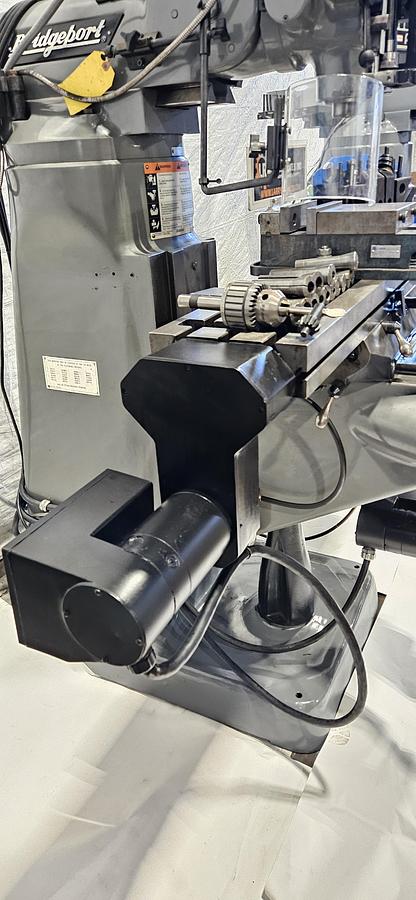

• CNC axis drive system
• One-shot lubrication system
• Machine and accessories as photographed

Tooling shown in photographs is included unless otherwise noted.

APPLICATIONS

Ideal for:

• Toolrooms
• Mold and die work
• Prototype machining
• Maintenance departments
• Precision machining
• Short-run production
• Repair facilities
• Fabrication shops
• Research and development
• Vocational and technical training
• General-purpose milling
• Drilling and boring
• CNC contouring and pocketing

CONDITION

This Bridgeport has been cleaned, inspected and tested under power.

The ProtoTRAK MX2 control powers up and operates, the digital position display is functioning, and the CNC-controlled table axes have been tested.

The spindle operates properly and the machine presents very well for its age.

As shown in the photographs, the machine is equipped with a substantial tooling package and is ready for inspection under power.

Buyer is encouraged to visit our facility and inspect and operate the machine prior to purchase.

SHIPPING

We can assist with professional rigging, loading and freight arrangements.

Approximate machines of this Bridgeport/MX2 configuration are commonly around 2,500 lbs.; final shipping dimensions and weight should be verified prior to shipment.

Please contact us for a Shipping Quote!

We ship anywhere!

OFFERED BY

L R Associates, Inc.

Machinery Dealers • Consultants • Appraisers • Auctioneers

25 Conduit Street

Central Falls, RI 02863

Contact us at Four Zero One – Nine Six Five – Five Five Five Seven

_______________________________________________

LR-0000-080926-A

Picture# 080426
