KENNAMETAL EXTRUDE HONE VECTOR 150 ABRASIVE FLOW MACHINING / AFM SYSTEM – 2015 – ALLEN-BRADLEY PLC & PANELVIEW PLUS 1000 – EXTENSIVE TOOLING – MANUALS – PRISTINE CONDITION

This machine has been tested and is fully operational. Machine can be powered up and demonstrated for prospective buyers by appointment.

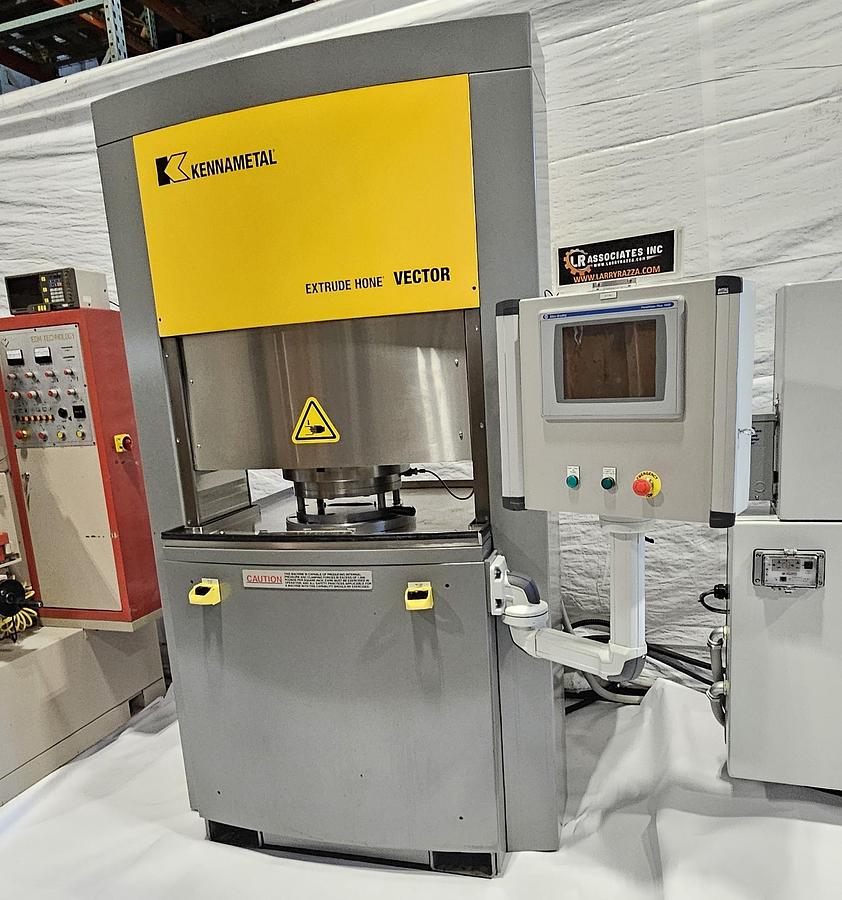

LATE-MODEL 2015 KENNAMETAL EXTRUDE HONE VECTOR 150

ABRASIVE FLOW MACHINING – PRECISION DEBURRING – POLISHING – RADIUSING – SURFACE FINISHING

ALLEN-BRADLEY PLC CONTROL WITH PANELVIEW PLUS 1000 TOUCHSCREEN

EXTENSIVE TOOLING PACKAGE & MACHINE MANUALS INCLUDED

EXCEPTIONALLY CLEAN / PRISTINE CONDITION

DESCRIPTION

Available for immediate sale is this 2015 Kennametal Extrude Hone Vector 150 Abrasive Flow Machining (AFM) System, an advanced precision finishing machine designed for controlled deburring, polishing, radiusing, surface improvement, and finishing of difficult internal passages and complex component geometries.

The Extrude Hone abrasive flow machining process utilizes a controlled, abrasive-laden flowable media that is hydraulically forced through or across selected areas of a workpiece. The process can remove burrs, improve surface finish, radius edges, polish internal passages, and produce highly repeatable finishing results in areas that can be difficult or impossible to access with conventional finishing methods.

This Vector 150 is a modern 2015 machine featuring an Allen-Bradley PLC-based control system with Allen-Bradley PanelView Plus 1000 touchscreen operator interface, hydraulic power system, opposed media cylinders, hydraulic workholding/clamping system, and integrated electrical controls.

The machine is in exceptionally clean, pristine overall condition.

A particularly important feature of this package is the extensive assortment of dedicated tooling and fixtures included with the machine, along with machine documentation and manuals.

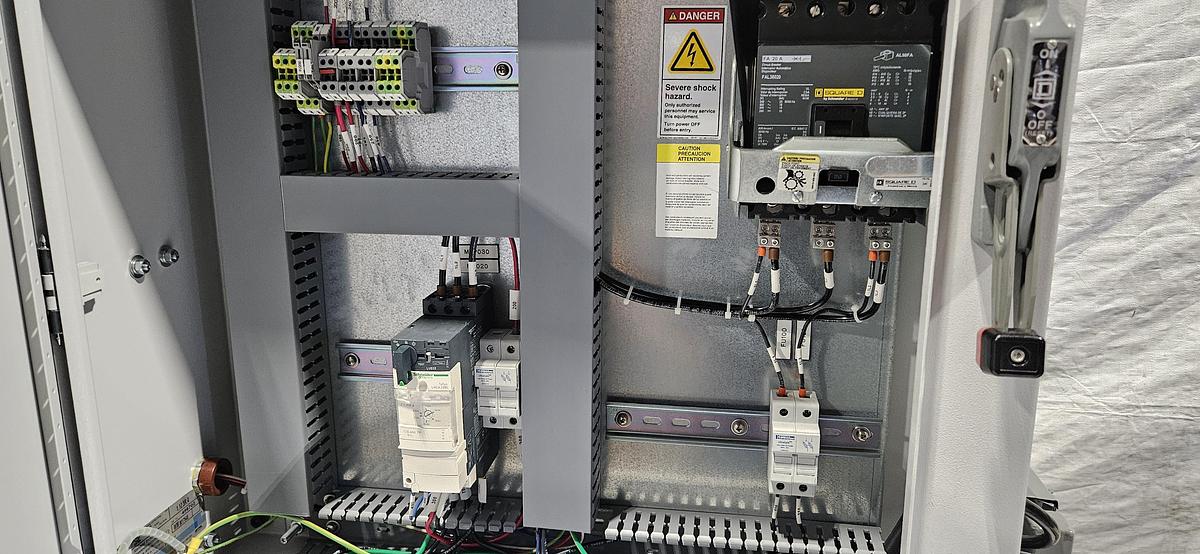

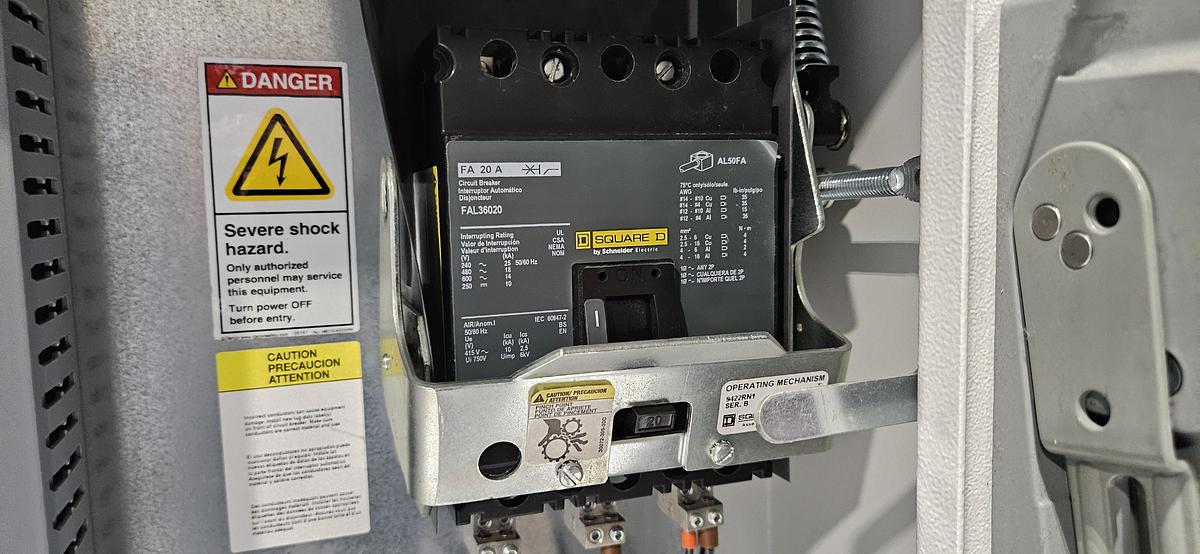

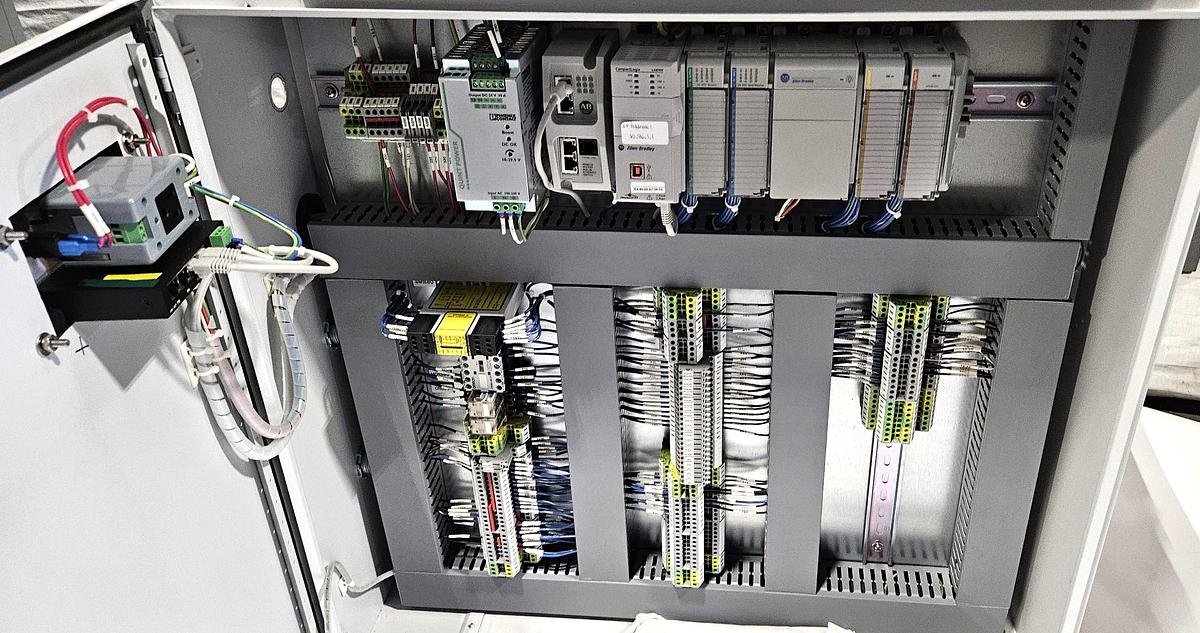

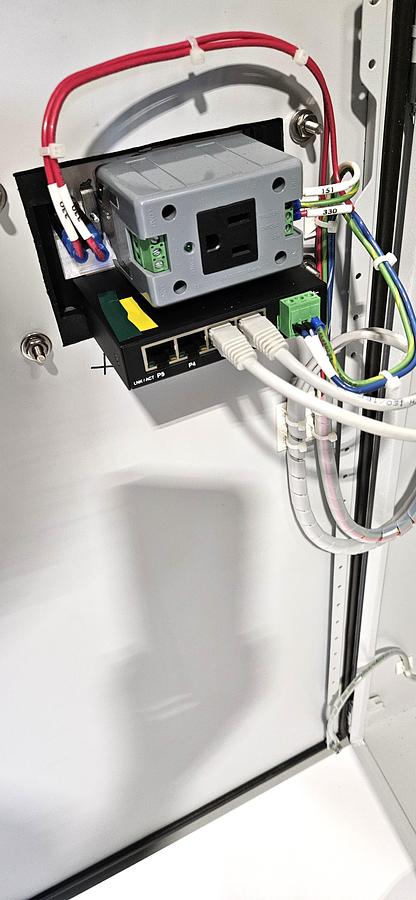

The electrical/control cabinet is exceptionally clean and incorporates Allen-Bradley PLC hardware, modular I/O, industrial power supplies, safety circuitry, and professionally wired terminal connections.

This is an excellent opportunity to acquire a relatively late-model Extrude Hone Vector AFM system with sophisticated controls, extensive tooling, and documentation.

SPECIFICATIONS

Manufacturer: Kennametal Extrude Hone

Model: Vector 150

Machine Type: Abrasive Flow Machining System (AFM)

Year: 2015

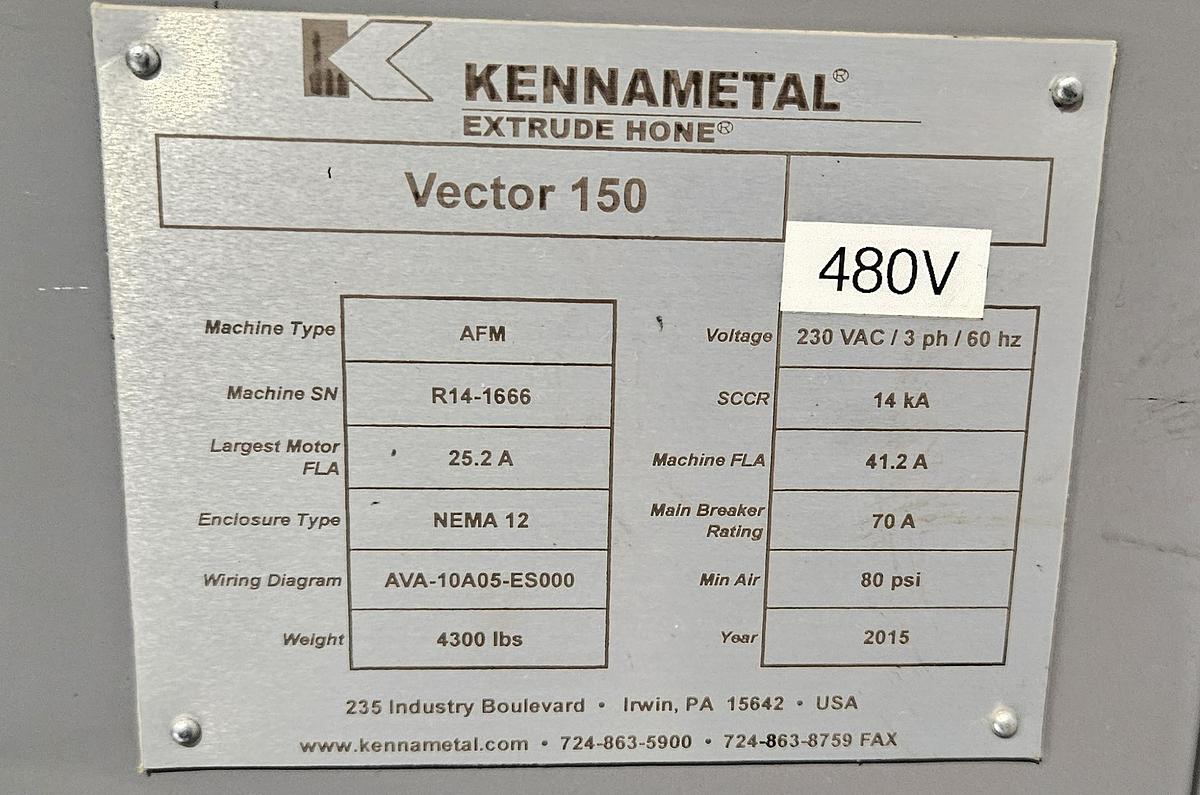

Machine Serial Number: R14-1666

Media Cylinder Diameter: 6" (150 mm)

Hydraulic Cylinder Diameter: 6" (150 mm)

Media Stroke Length: 12.5" (320 mm)

Media Capacity: 353 Cubic Inches / 5.8 Liters

Hydraulic Flow Rate: 5 GPM / 18.9 L/min

Media Flow Rate: 5 GPM / Approximately 19 L/min

Media Pressure Range: 350 – 2,400 PSI

Maximum Expansion Diameter: Approximately 6.5" / 165 mm

Clamp Cylinder Bore Diameter: 5" / 127 mm

Clamp Cylinder Stroke: 20" / 508 mm

Maximum Opening: Approximately 22" / 559 mm

Minimum Opening: Approximately 2" / 51 mm

Standard Hydraulic Reservoir: Approximately 20 Gallons / 75.7 Liters

Minimum Air Supply: 80 PSI

Machine FLA: 41.2 Amps

Main Breaker Rating: 70 Amps

SCCR: 14 kA

Largest Motor FLA: 25.2 Amps

Electrical Enclosure: NEMA 12

Machine Weight: 4,300 lbs.

Electrical: Machine data plate originally identifies 230 VAC / 3 Phase / 60 Hz; machine is presently marked 480V. Buyer should verify the present electrical configuration prior to installation.

Wiring Diagram: AVA-10A05-ES000

CONTROL SYSTEM

The Vector 150 is equipped with a modern industrial Allen-Bradley control package.

Controls include:

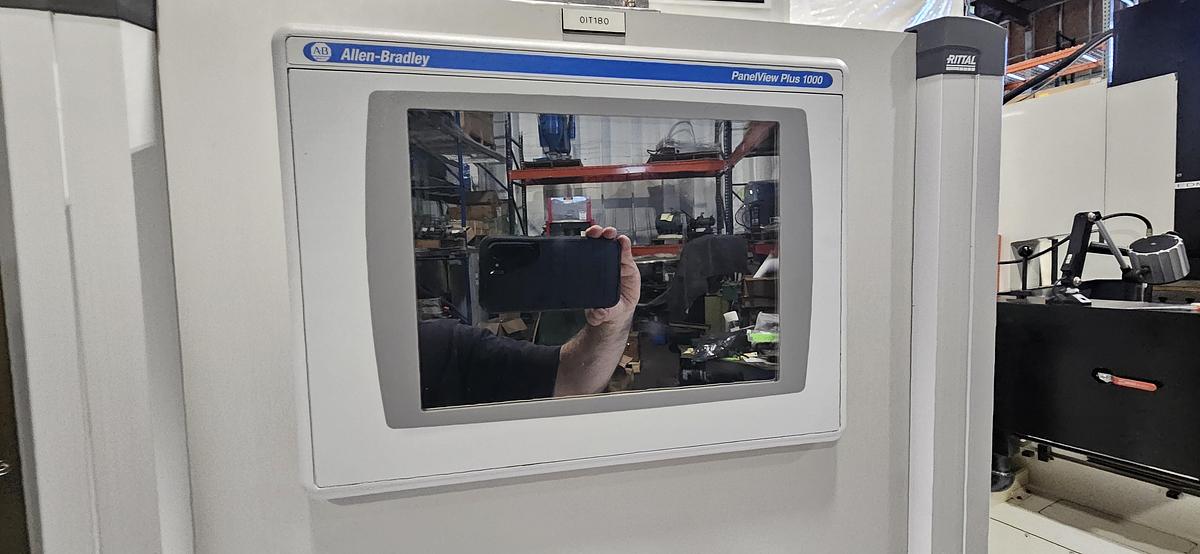

• Allen-Bradley PanelView Plus 1000 Touchscreen HMI

• Allen-Bradley PLC / Programmable Controller

• Allen-Bradley Modular I/O

• Industrial Ethernet Communication

• Phoenix Contact Industrial Power Supply

• Integrated Safety Circuitry

• Emergency Stop

• Start / Stop Controls

• Programmed Machine Sequencing

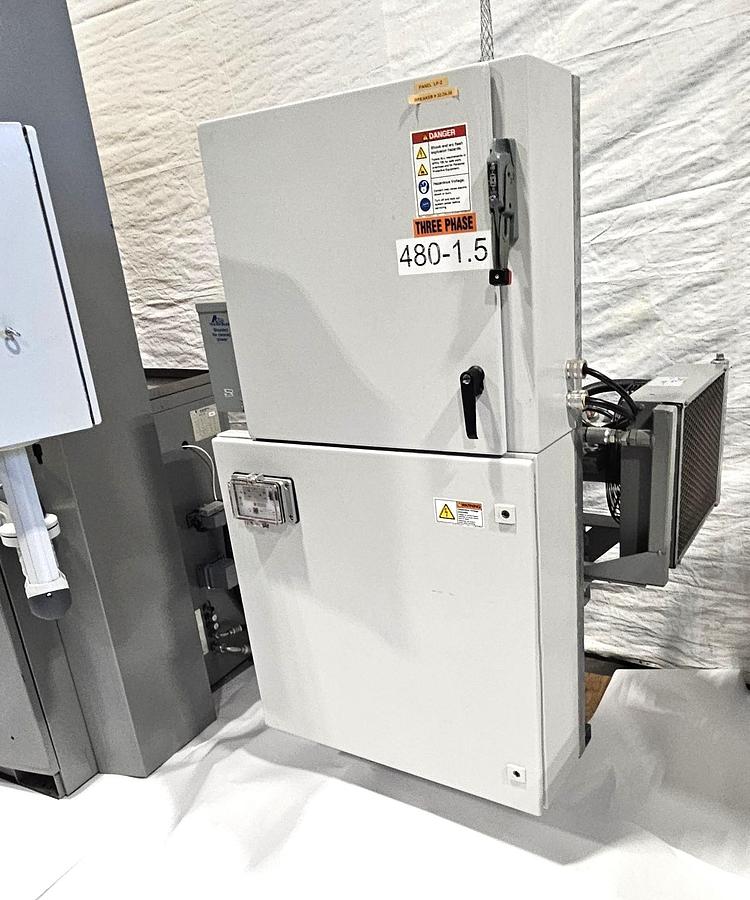

• Enclosed Rittal Electrical Cabinet

• Professionally Wired & Labeled Electrical System

The electrical/control cabinet is exceptionally clean and presents extremely well.

ABRASIVE FLOW MACHINING PROCESS

Abrasive Flow Machining is particularly valuable for components containing internal passages, intersecting holes, complex contours, difficult-to-reach edges, and surfaces that cannot easily be finished using conventional mechanical methods.

The process forces abrasive media through or across the workpiece under controlled hydraulic pressure.

Depending upon the tooling, media, pressure, cycle parameters, and component geometry, AFM can be used to:

• Remove Burrs

• Radius Sharp Edges

• Polish Internal Passages

• Improve Surface Finish

• Remove Surface Irregularities

• Blend Intersections

• Finish Complex Internal Geometries

• Produce Repeatable Edge Conditions

• Improve Flow Characteristics

• Process Multiple Passages Simultaneously

FEATURES

• 2015 Machine

• Kennametal Extrude Hone Vector Series

• Vector 150 Configuration

• Two-Way / Opposed Media Processing Configuration

• 6" Media Cylinders

• 12.5" Media Stroke

• 353 Cu. In. Media Capacity

• Up to Approximately 2,400 PSI Media Pressure

• Approximately 5 GPM Media Flow

• Hydraulic Workpiece Clamping

• Variable Process Control

• Allen-Bradley PLC

• Allen-Bradley PanelView Plus 1000 Touchscreen

• Modular Allen-Bradley I/O System

• Industrial Ethernet Communications

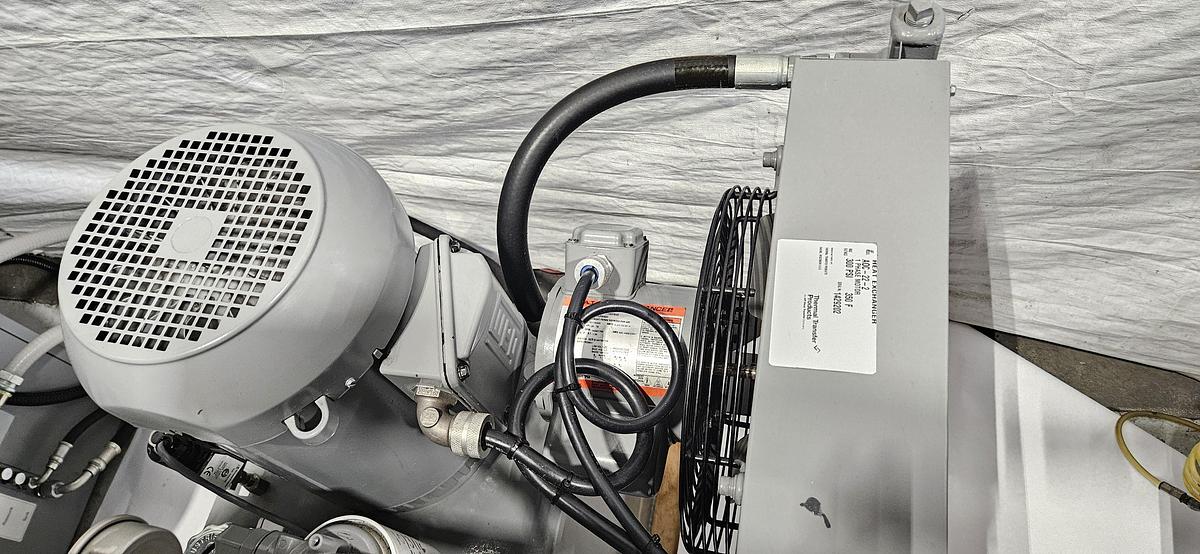

• Hydraulic Power Unit

• Hydraulic Oil Reservoir

• Pressure Gauges

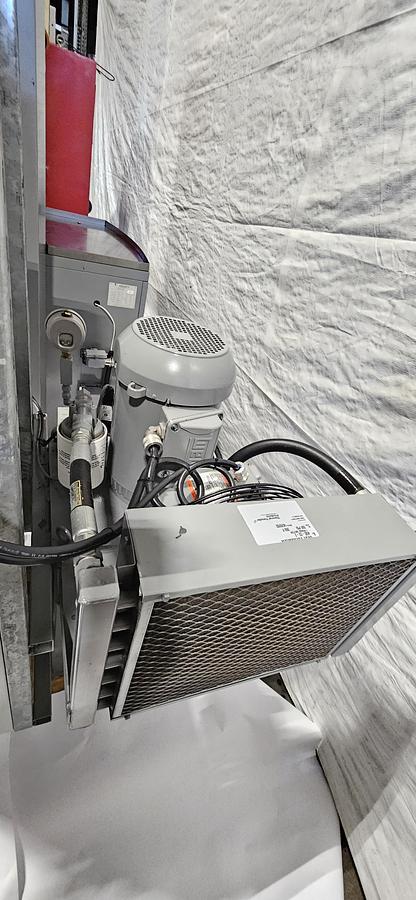

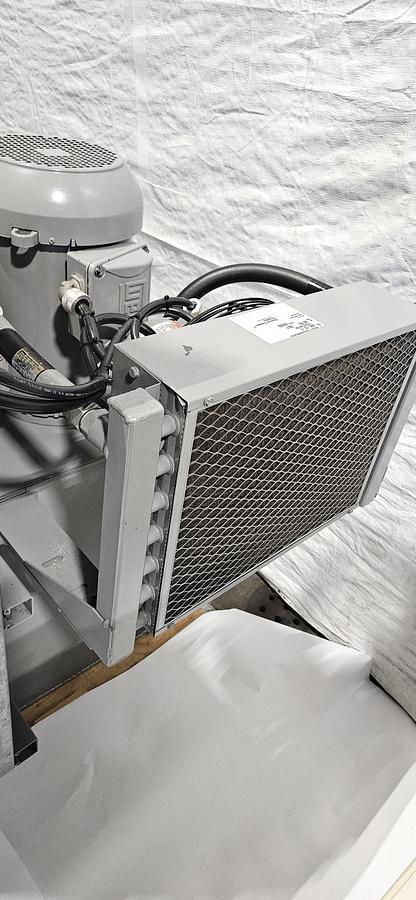

• Hydraulic Oil Cooler / Heat Exchanger

• Integrated Electrical Control Cabinet

• Emergency Stop

• Extensive Tooling Package

• Machine Manuals & Documentation

• Preventive Maintenance Documentation

• Heavy-Duty Industrial Construction

• Exceptionally Clean / Pristine Condition

TOOLING PACKAGE

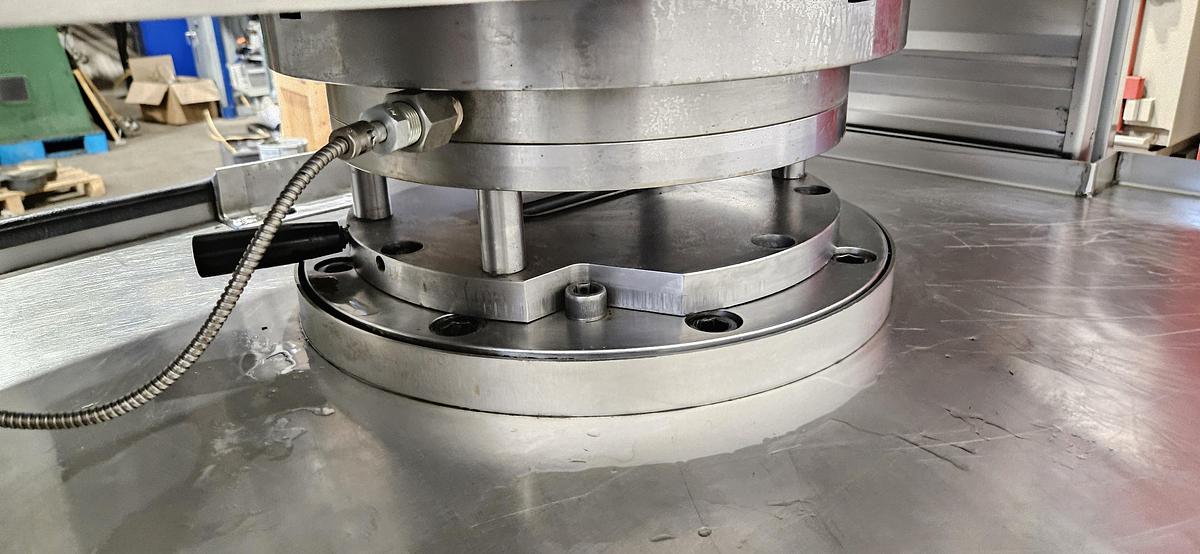

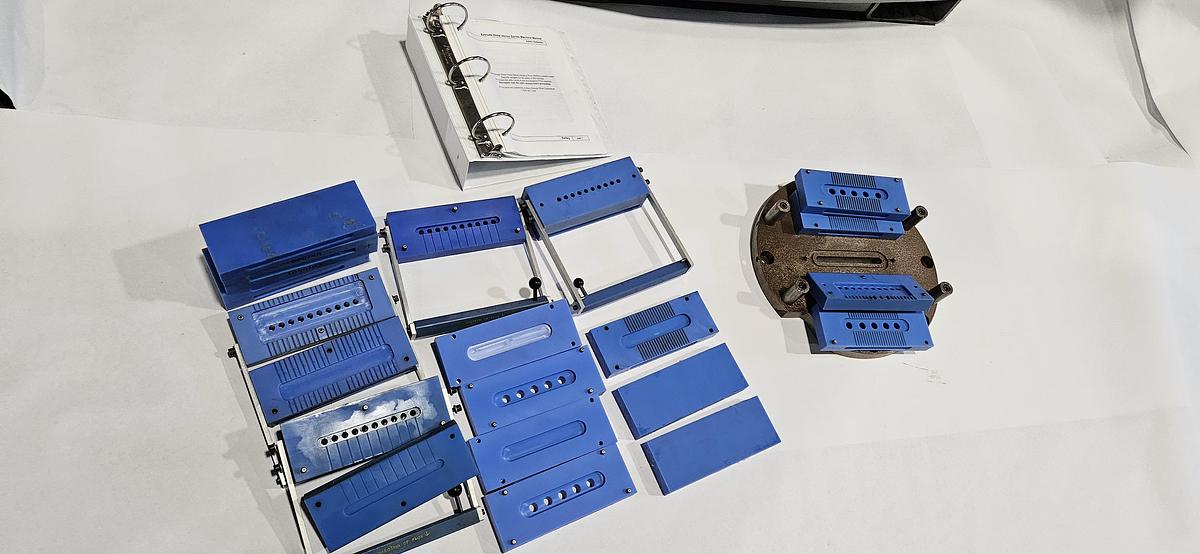

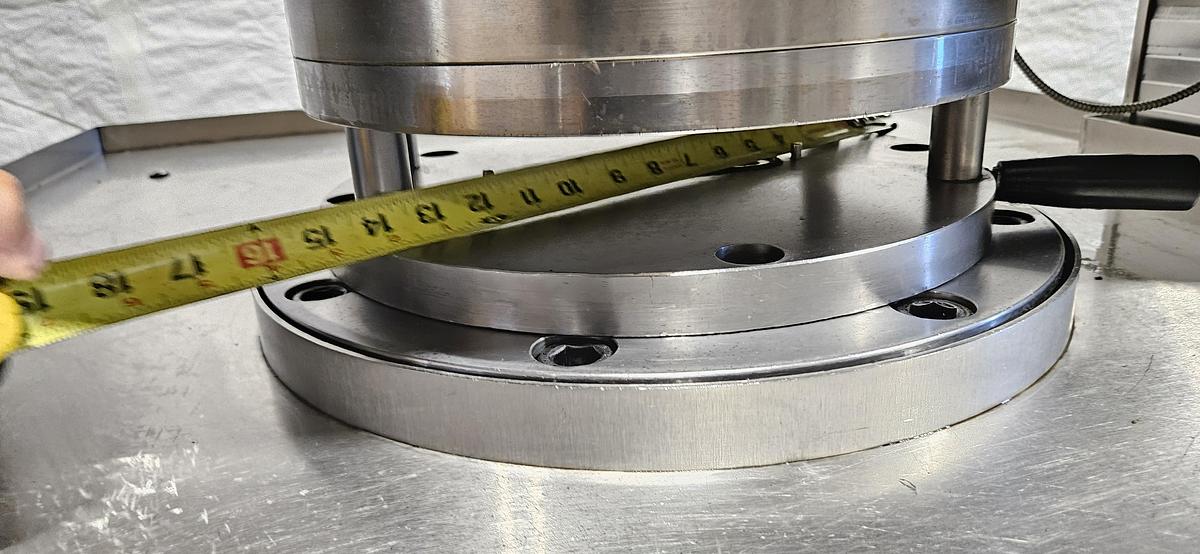

A substantial assortment of Extrude Hone tooling, fixture plates, workholding components, and process fixtures is included with this machine.

The tooling package includes numerous precision-machined fixture components and plates in multiple configurations.

This tooling represents significant additional value and provides a prospective buyer with a substantial foundation for adapting the machine to a variety of AFM applications.

All tooling shown in the photographs that belongs to the machine is included with the sale.

DOCUMENTATION

Machine documentation is included.

Documentation includes:

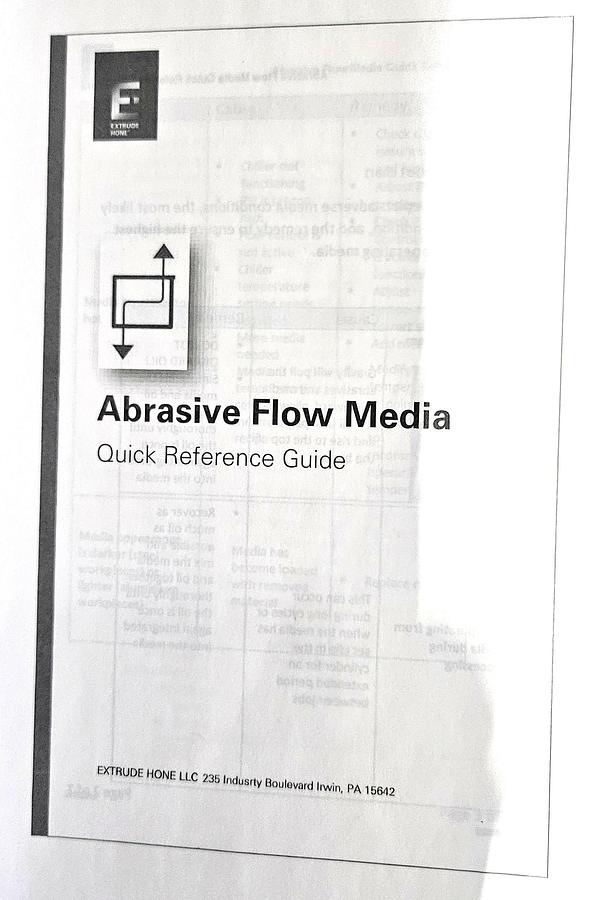

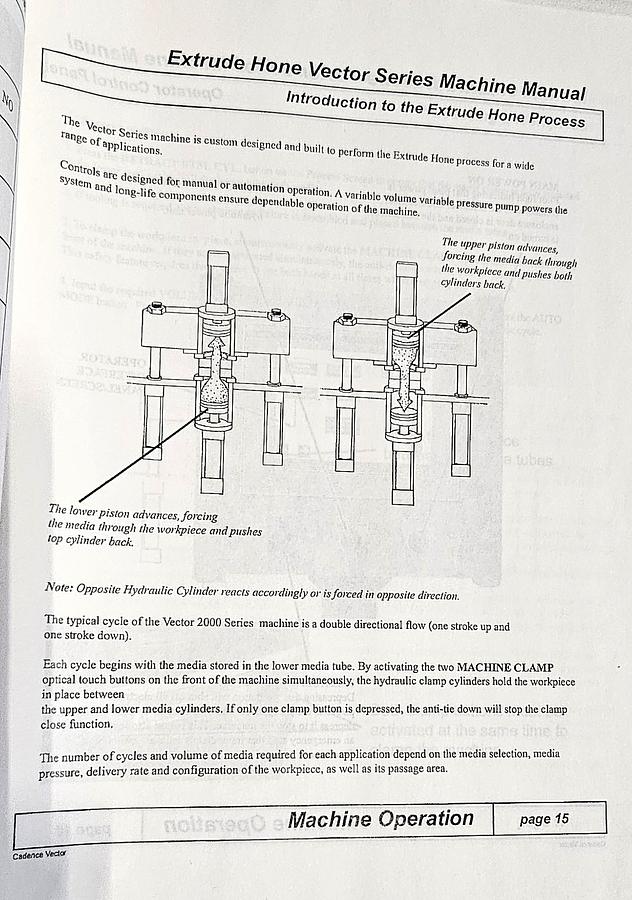

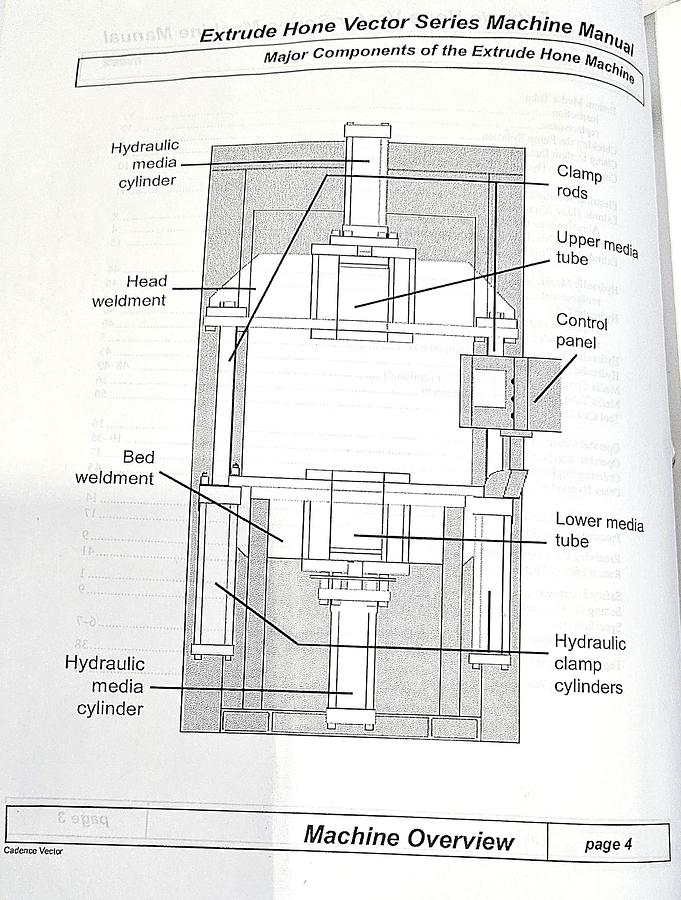

• Extrude Hone Vector Series Machine Manual

• Machine Operation Information

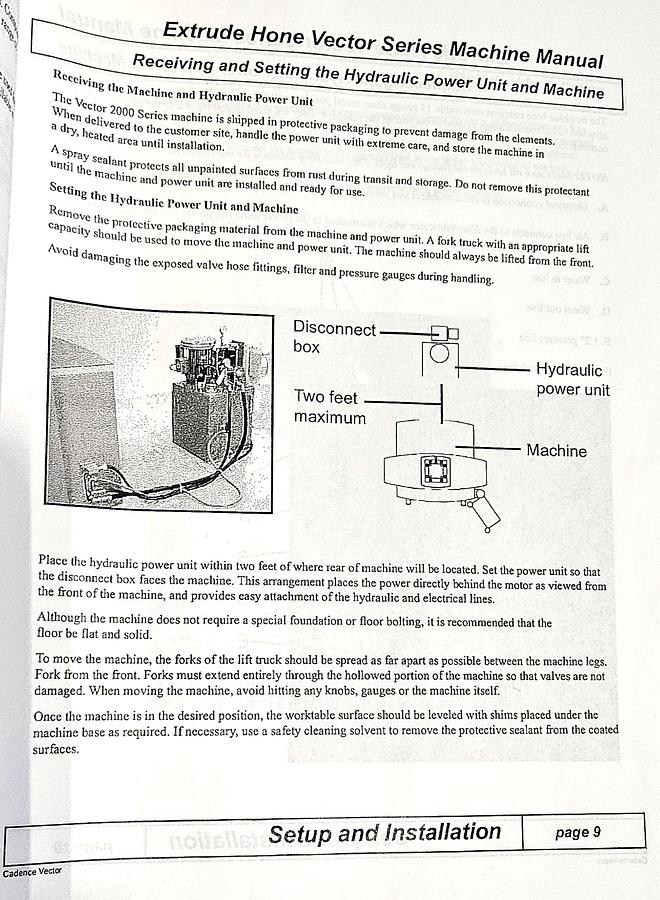

• Setup & Installation Information

• Hydraulic System Information

• Machine Component Information

• Maintenance Information

• Preventive Maintenance Documentation

• Available Machine Records

The available maintenance documentation indicates attention to items including control cabinet filters, motor and fan ventilation, oil filtration, dielectric / process fluid levels, pumps, and lubrication.

APPLICATIONS

Ideal for precision finishing of components used in:

• Aerospace

• Automotive

• Medical Device Manufacturing

• Mold & Die

• Tooling

• Hydraulics

• Fuel Systems

• Turbine Components

• Precision Machining

• Additive Manufacturing

• Injection Molding Tooling

• Flow Components

• Valve Bodies

• Manifolds

• Internal Passages

• Cross-Drilled Holes

• Complex Machined Components

• Precision Deburring Applications

• Surface Finishing Applications

TYPICAL PROCESSES

• Abrasive Flow Machining

• Internal Deburring

• Precision Edge Radiusing

• Surface Polishing

• Internal Passage Finishing

• Cross-Hole Deburring

• Surface Roughness Improvement

• Flow Passage Optimization

• Complex Geometry Finishing

• Precision Component Finishing

INCLUDES

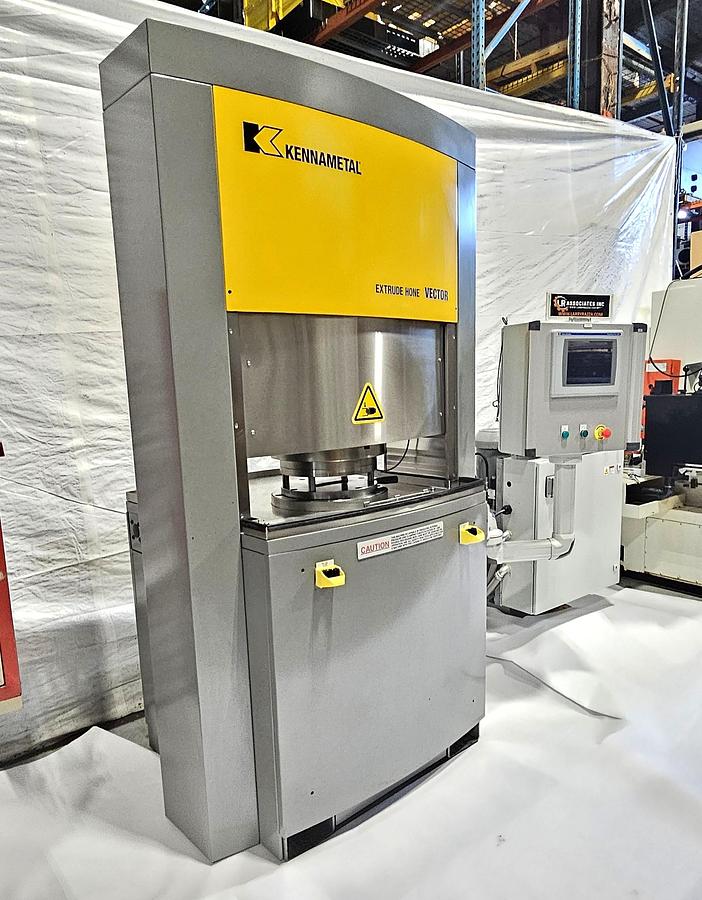

• 2015 Kennametal Extrude Hone Vector 150 AFM Machine

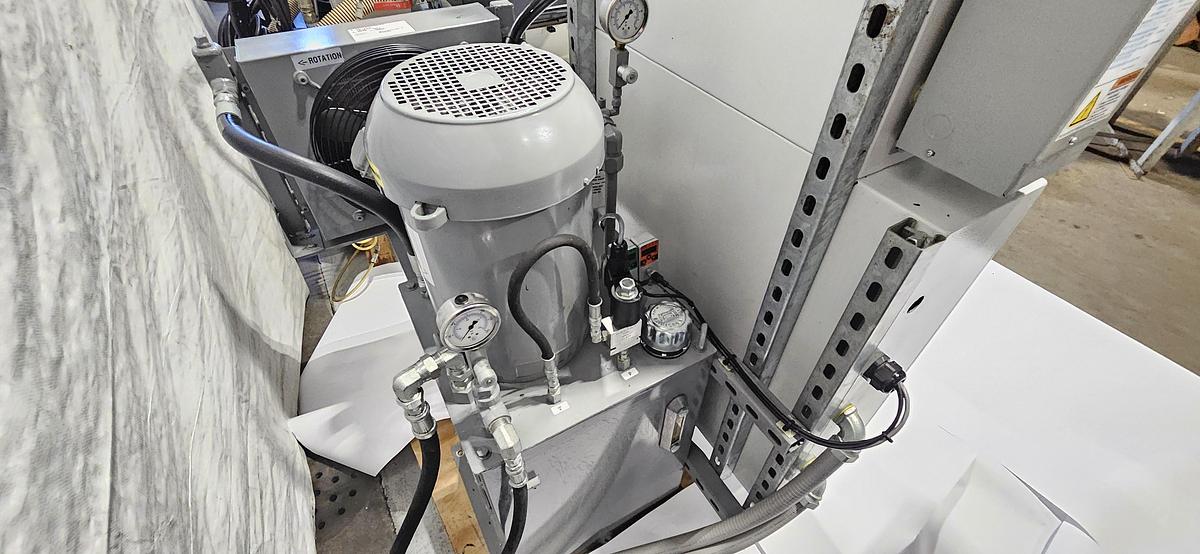

• Hydraulic Power Unit

• Allen-Bradley PLC Control

• Allen-Bradley PanelView Plus 1000 Touchscreen HMI

• Integrated Electrical Control Cabinet

• Hydraulic Oil Reservoir

• Oil Cooler / Heat Exchanger

• Associated Hydraulic Components

• Extensive Tooling & Fixture Package as Shown

• Machine Manuals

• Setup / Operating Documentation

• Maintenance Documentation

• Associated Components Presently With Machine

CONDITION

This 2015 Kennametal Extrude Hone Vector 150 is in exceptionally clean, pristine overall condition.

The machine presents extremely well both mechanically and cosmetically.

The electrical cabinet is exceptionally clean and orderly, with Allen-Bradley PLC controls, modular I/O, power supplies, safety circuitry, and associated industrial control components appearing extremely well maintained.

The hydraulic system, machine structure, work area, control enclosure, and associated components all present exceptionally well.

The machine includes an extensive tooling package along with machine manuals and maintenance documentation.

Buyer is encouraged to inspect the machine and verify operation and specifications prior to purchase.

SHIPPING

We can assist with professional rigging, loading, preparation, and freight quotes upon request.

Machine Weight: Approximately 4,300 lbs.

Please contact us for a Shipping Quote!

We ship anywhere!

WSPT# L-0000-081426-A
