BELMONT TECHNOLOGIES MAXI-CUT CNC SINKER EDM – 100 AMP POWER SUPPLY – PROGRAMMABLE CONTROL – ROTARY / INDEXING FIXTURE – DIELECTRIC FILTRATION SYSTEM – 220V 3 PHASE

BELMONT TECHNOLOGIES MAXI-CUT CNC DIE-SINKING EDM SYSTEM

100 AMP EDM POWER SUPPLY – PROGRAMMABLE CNC / ZNC CONTROL – LARGE WORK TANK

INCLUDES ROTARY / INDEXING WORKHOLDING FIXTURE

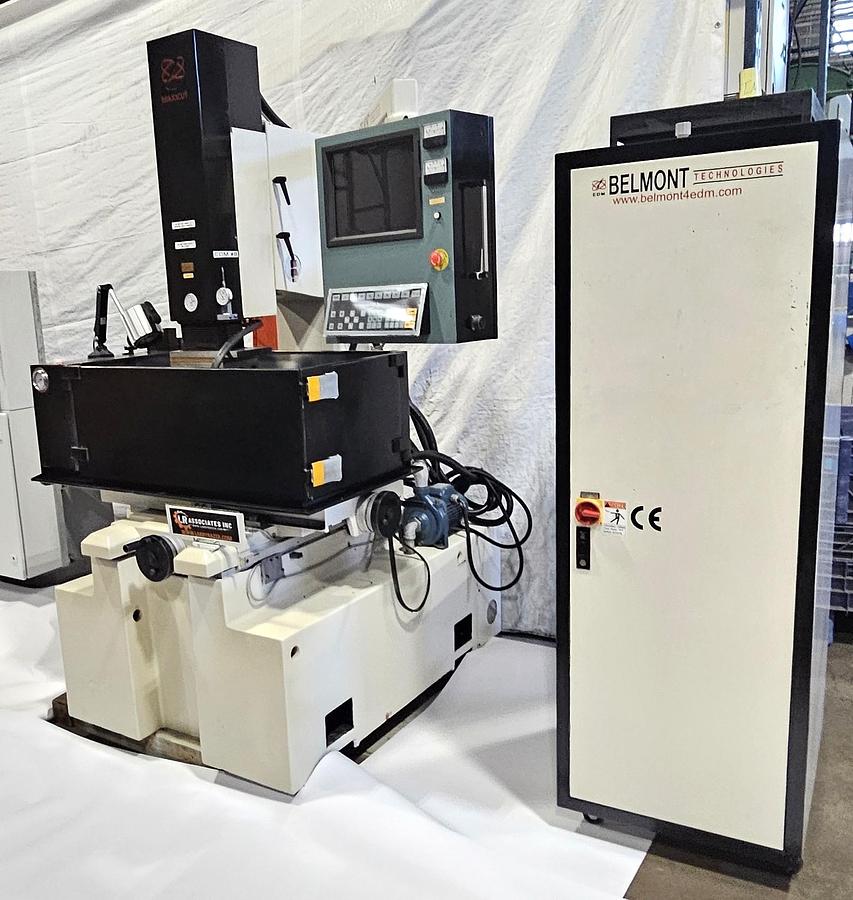

SEPARATE BELMONT GENERATOR / ELECTRICAL CABINET

PRODUCTION-GRADE ELECTRICAL DISCHARGE MACHINING SYSTEM

DESCRIPTION

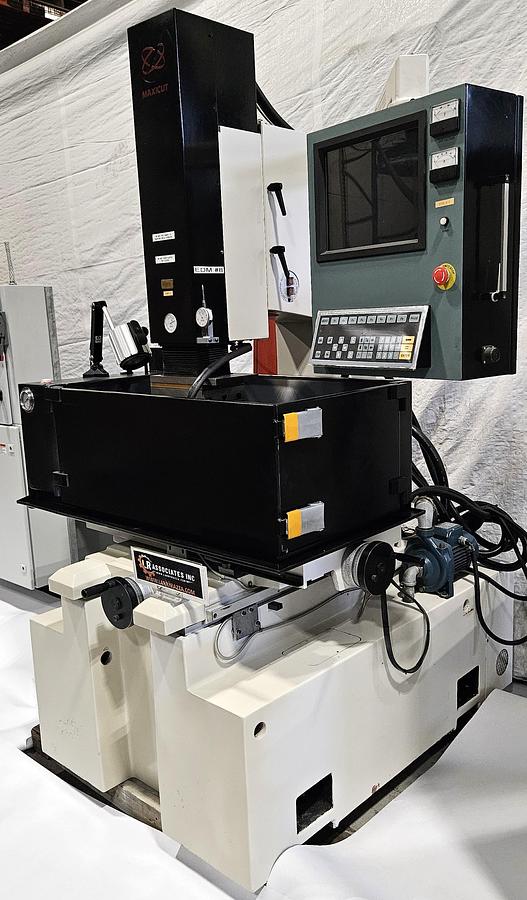

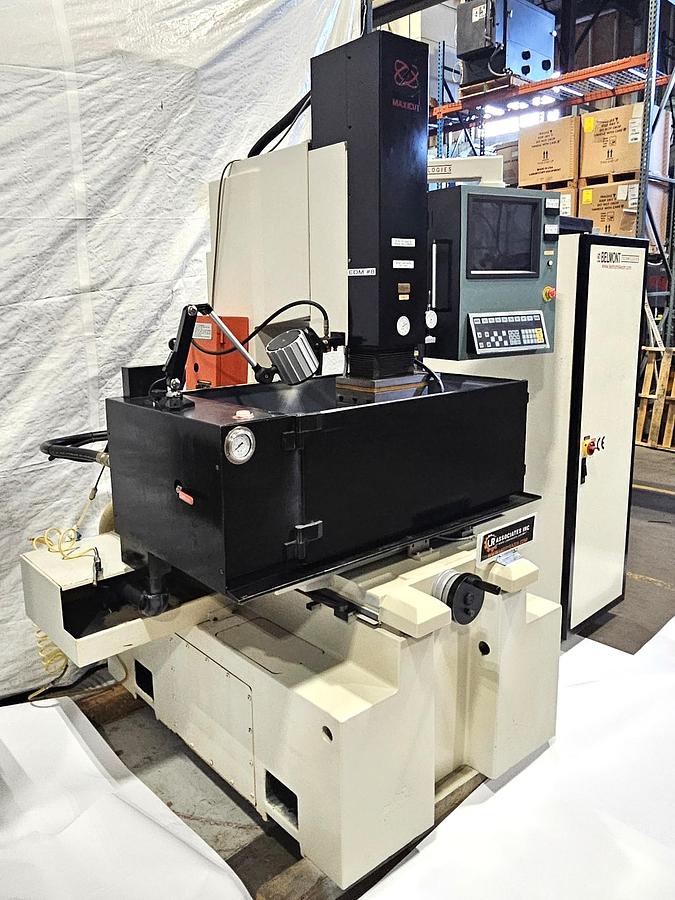

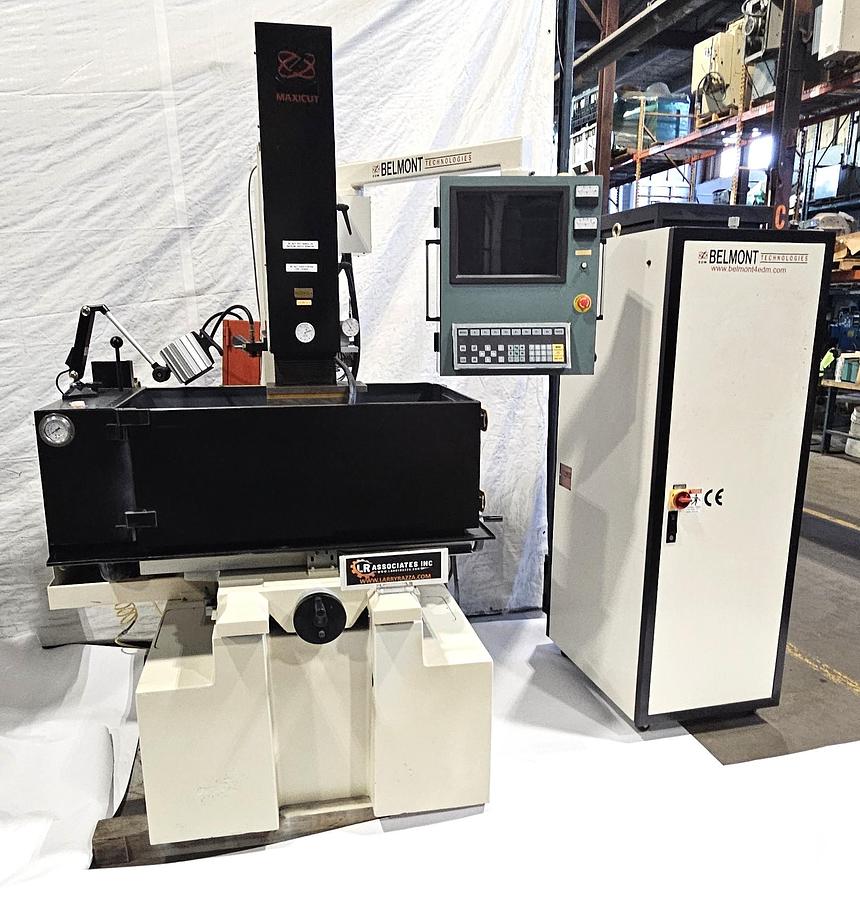

Available for immediate sale is this Belmont Technologies Maxi-Cut CNC Sinker-Type Electrical Discharge Machine (EDM) equipped with a 100-amp EDM power supply, programmable operator control, large dielectric work tank, hydraulic / powered machine functions, dielectric circulation and filtration system, and separate Belmont electrical / generator cabinet.

This is a substantial industrial die-sinking EDM designed for precision machining of hardened steels, tool steels, carbide, and other electrically conductive materials through the controlled electrical discharge machining process.

Unlike conventional machining, sinker EDM removes material through precisely controlled electrical discharges between a shaped electrode and the workpiece while submerged in dielectric fluid. This allows complex cavities, sharp internal features, deep forms, intricate geometries, and hardened materials to be machined without conventional cutting forces.

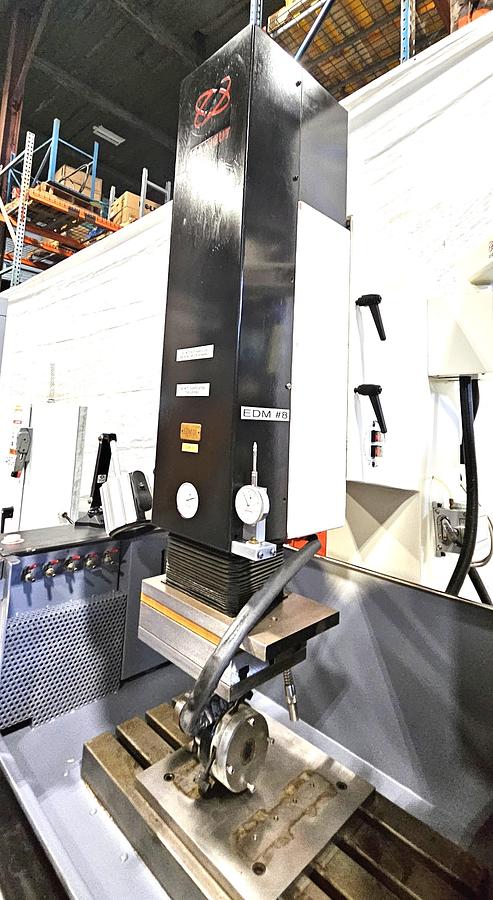

The machine incorporates a large T-slotted worktable within an enclosed dielectric tank, vertical EDM head, programmable machine control, gap voltage and working-current monitoring, dielectric flushing provisions, and a separate Belmont Technologies electrical / generator cabinet.

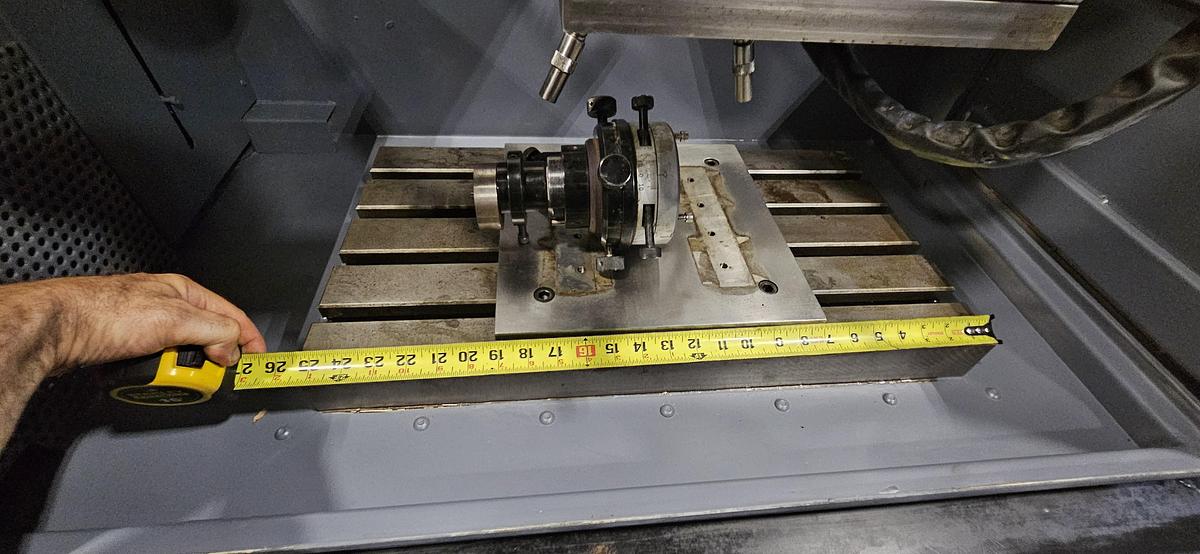

A rotary / indexing fixture is presently installed on the worktable, providing additional capability for specialized EDM operations.

The machine also includes maintenance documentation showing routine attention to control cabinet filters, motor and fan ventilation, oil filters, dielectric fluid levels, pumps, and lubrication.

This is an excellent candidate for tool rooms, mold shops, die shops, aerospace manufacturers, precision machining facilities, and other operations requiring heavy-duty sinker EDM capability.

SPECIFICATIONS

Manufacturer: Belmont Technologies

Division: Cleary Developments, Inc.

Model: Maxi-Cut

Machine Type: CNC / Programmable Sinker EDM

Process: Electrical Discharge Machining

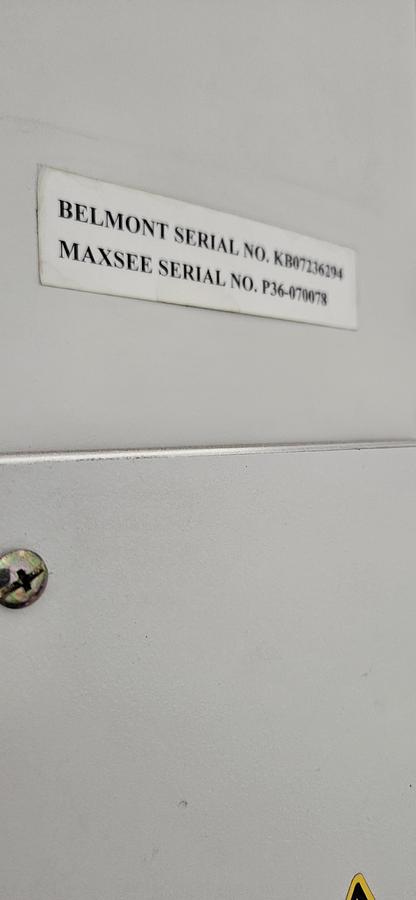

Serial Number: KB07236294

Power Supply Output: 100 Amps

Electrical Input: 220 Volt

Phase: 3 Phase

EDM Type: Die-Sinking / Ram-Type EDM

Work Area: Large Enclosed Dielectric Work Tank

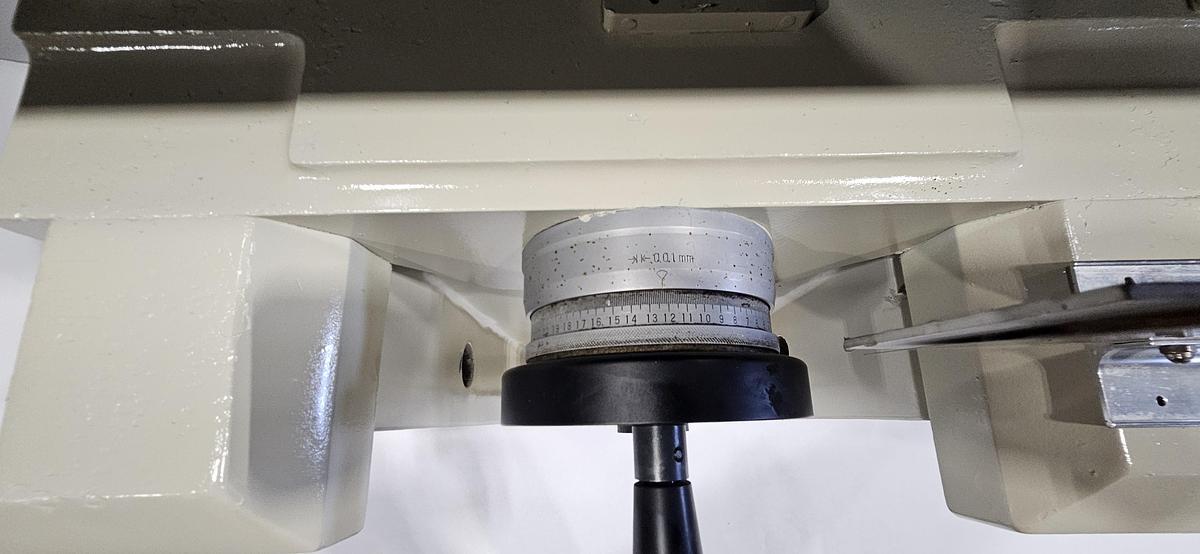

Worktable: T-Slotted Precision Worktable

Machine Head: Vertical Ram / Electrode Head

Dielectric System: Integrated Circulation / Filtration System

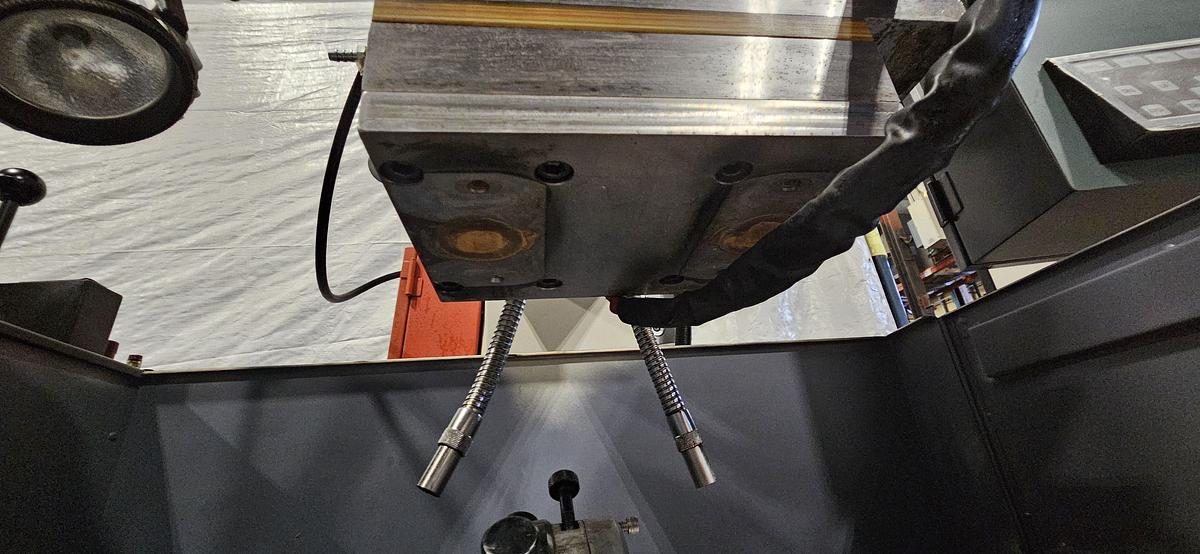

Flushing: Adjustable Dielectric Flushing Provisions

Operator Control: Programmable Digital Control

Voltage Monitoring: Analog Gap Voltage Meter

Current Monitoring: Analog Working Current Meter

Emergency Stop: Included

Separate Generator / Electrical Cabinet: Included

CONTROL SYSTEM

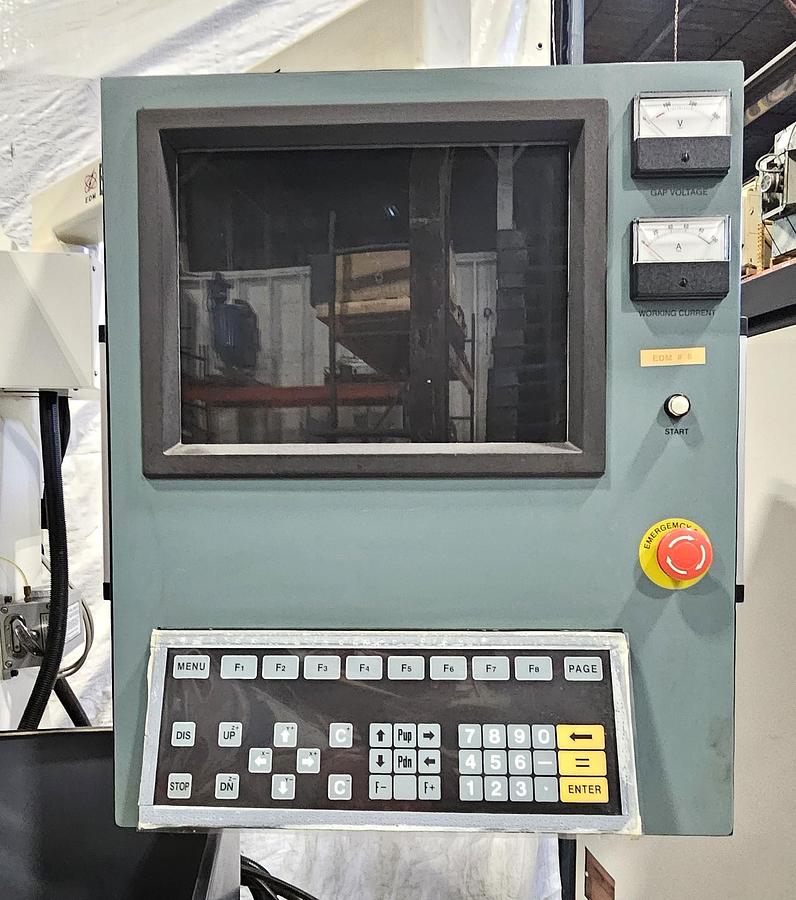

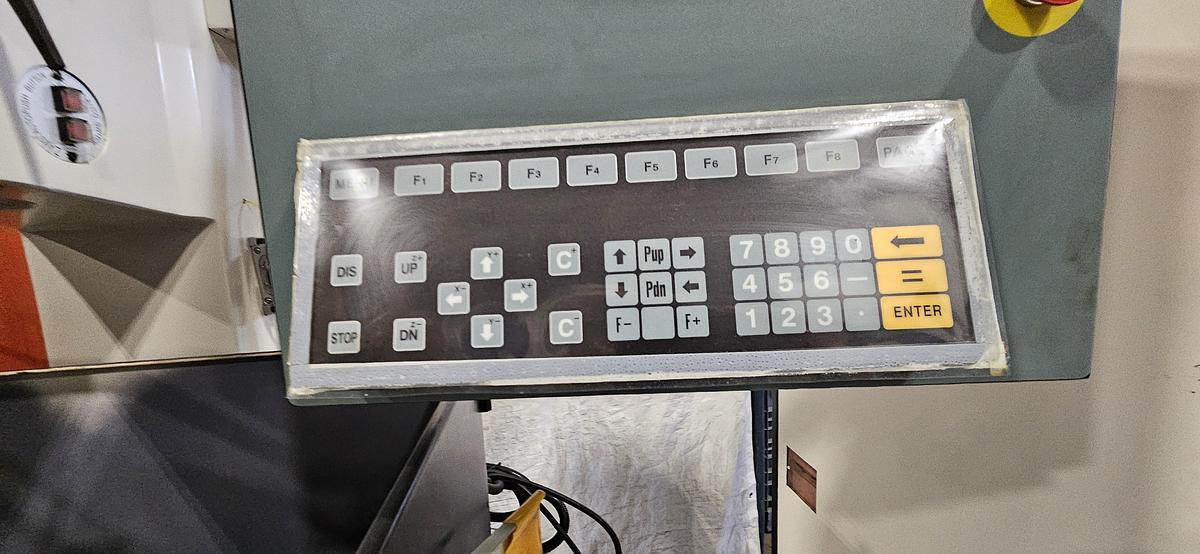

The Belmont Maxi-Cut is equipped with a dedicated programmable EDM operator control system.

Control features include:

• Digital Display

• Programmable Machine Functions

• X-Axis Controls

• Y-Axis Controls

• Z-Axis Up / Down Controls

• Pump Controls

• Function Keys

• Numerical Keypad

• Enter / Programming Functions

• Feed / Process Controls

• Start Control

• Stop Control

• Emergency Stop

• Gap Voltage Monitoring

• Working Current Monitoring

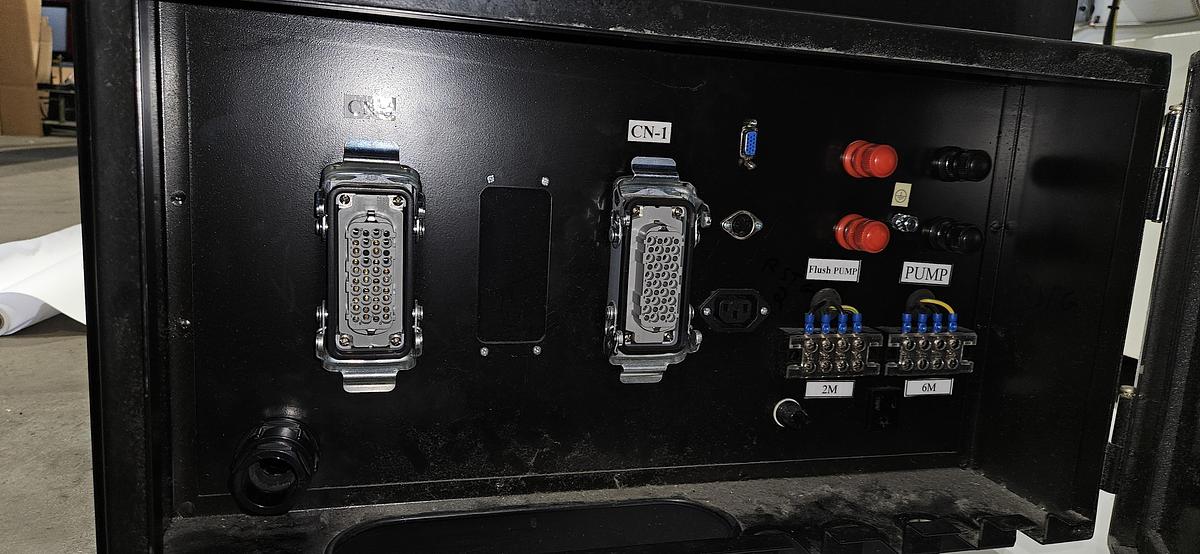

The machine incorporates a dedicated control pendant positioned adjacent to the work area for convenient operator access.

100 AMP EDM POWER SUPPLY

The machine is equipped with a Belmont Technologies 100-Amp EDM Power Supply / Generator System.

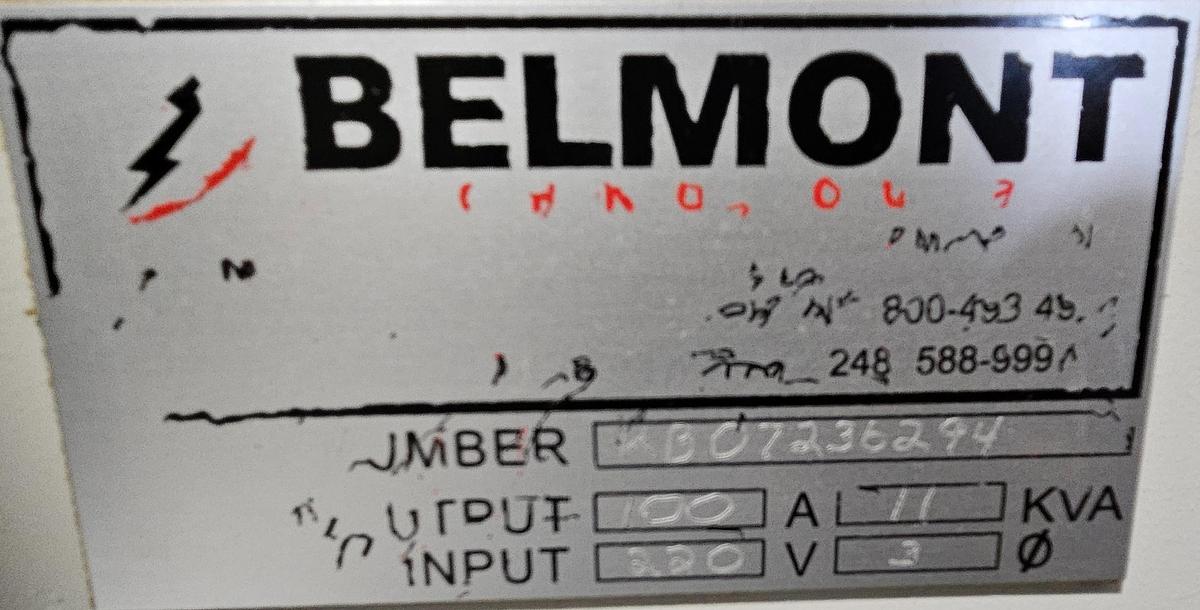

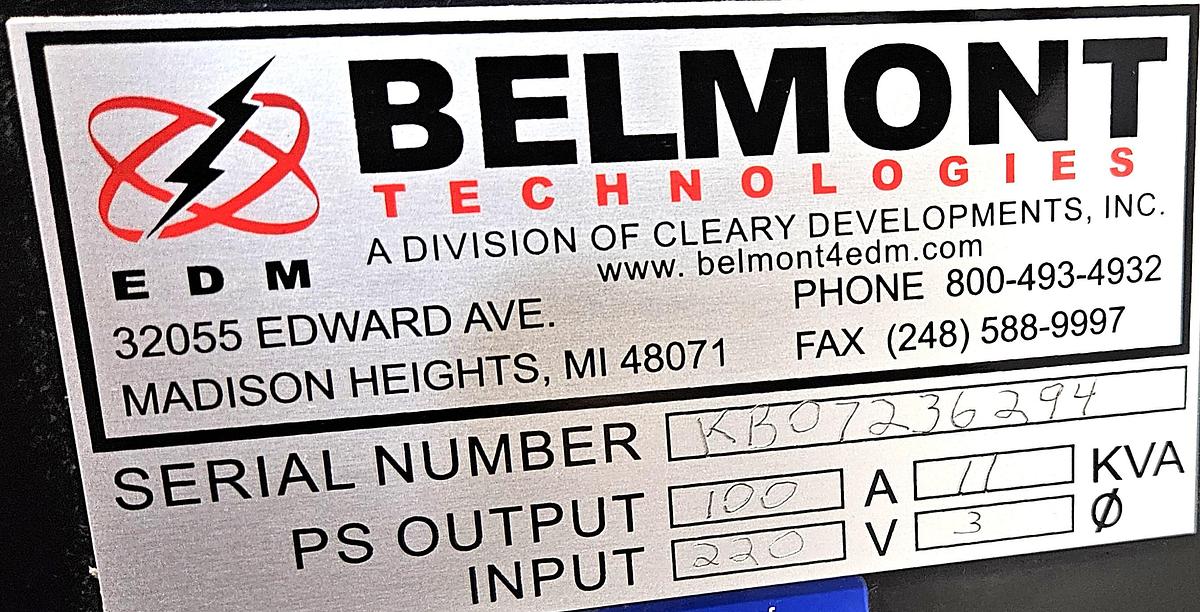

Power supply nameplate information indicates:

Manufacturer: Belmont Technologies

Power Supply Output: 100 Amps

Input Voltage: 220 Volts

Phase: 3 Phase

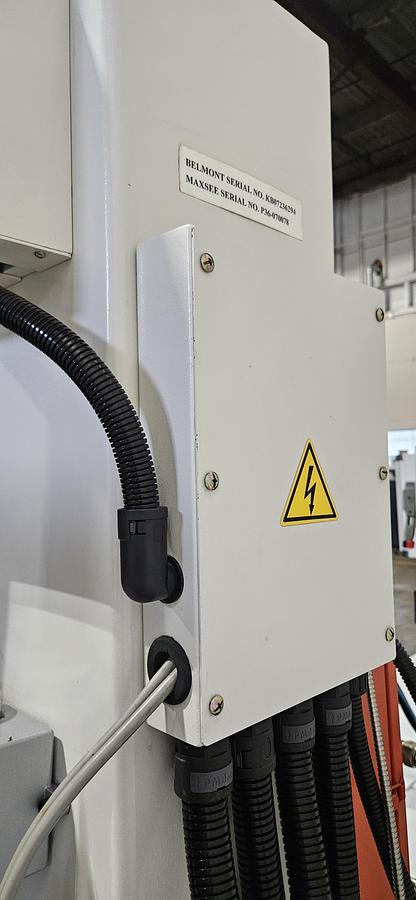

Serial Number: KB07236294

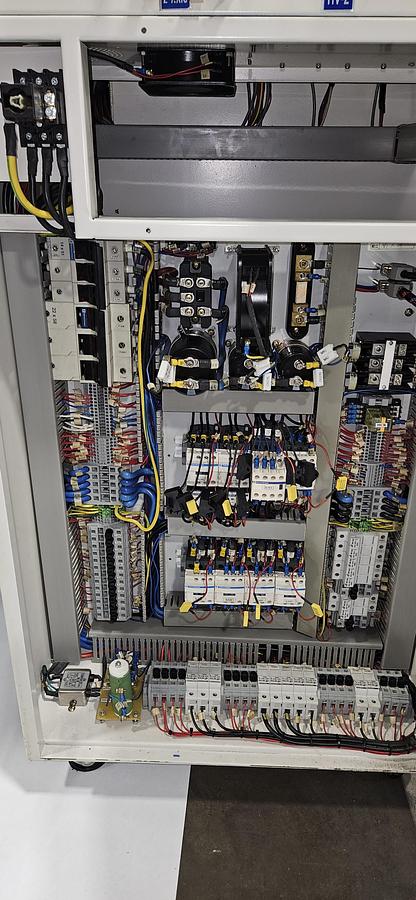

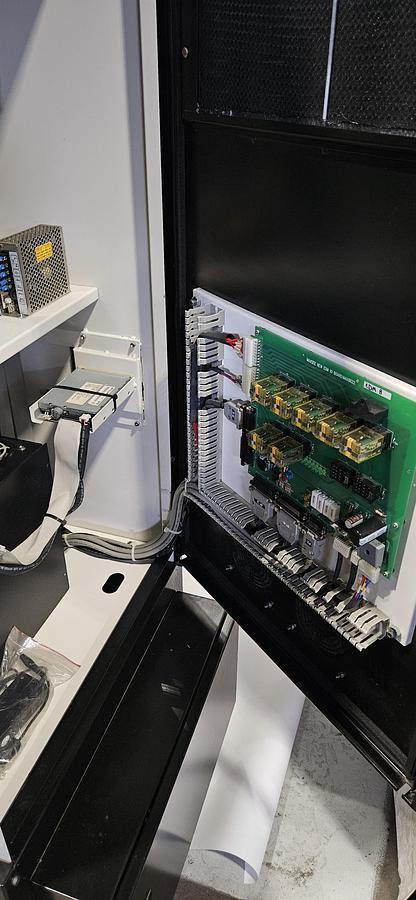

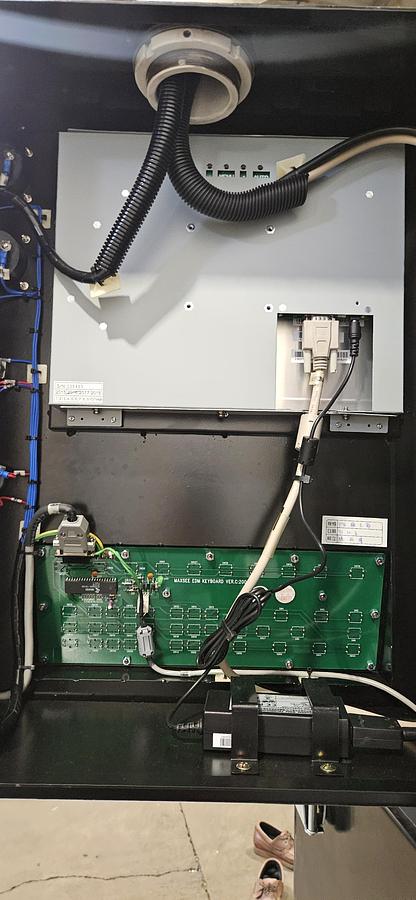

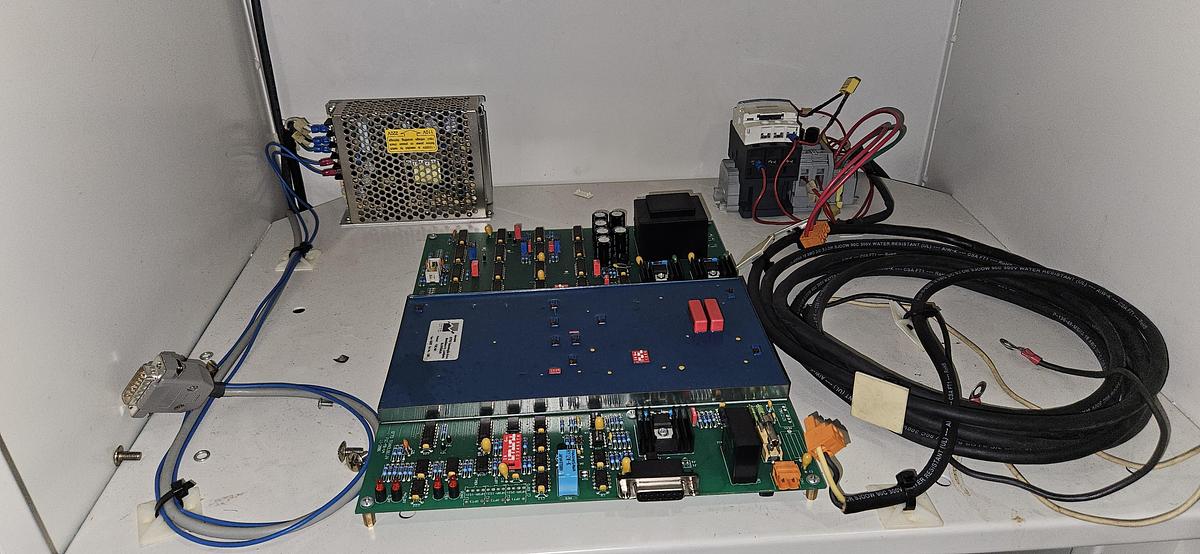

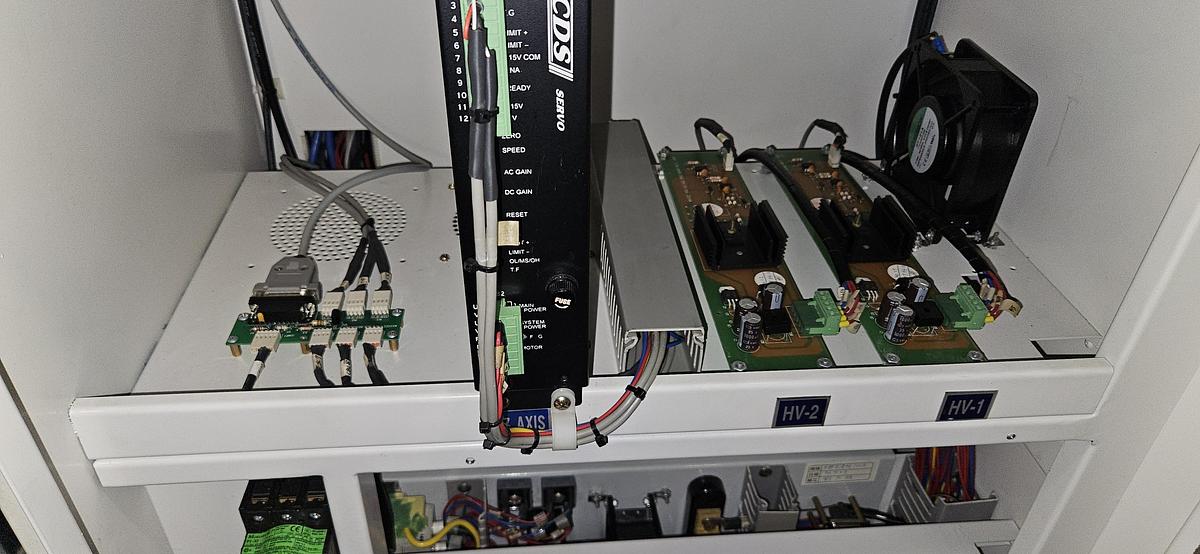

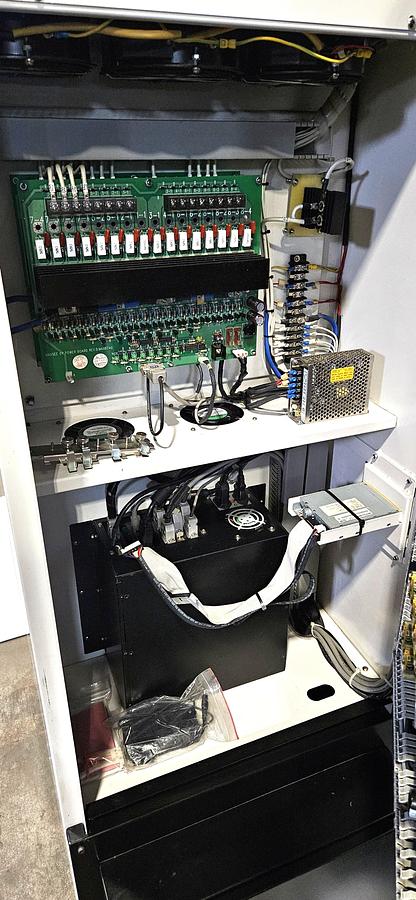

The separate electrical / generator cabinet contains the machine's EDM power electronics, control circuitry, servo electronics, power supplies, contactors, relays, terminal blocks, and associated electrical components.

DIELECTRIC SYSTEM

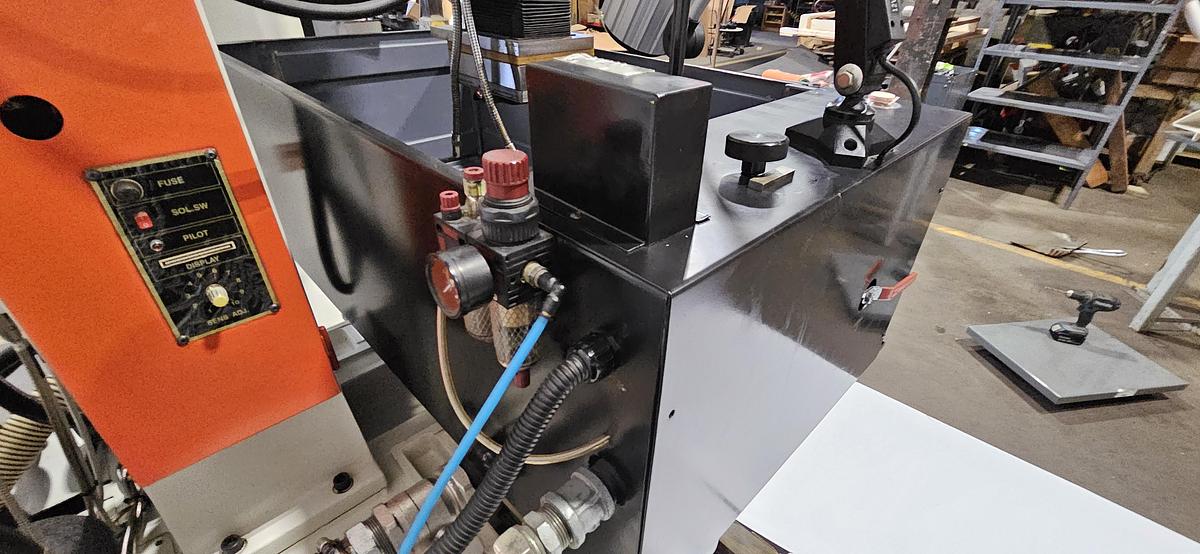

The machine incorporates a complete dielectric fluid system for sinker EDM operation.

Features include:

• Large Enclosed Work Tank

• Dielectric Fluid Reservoir

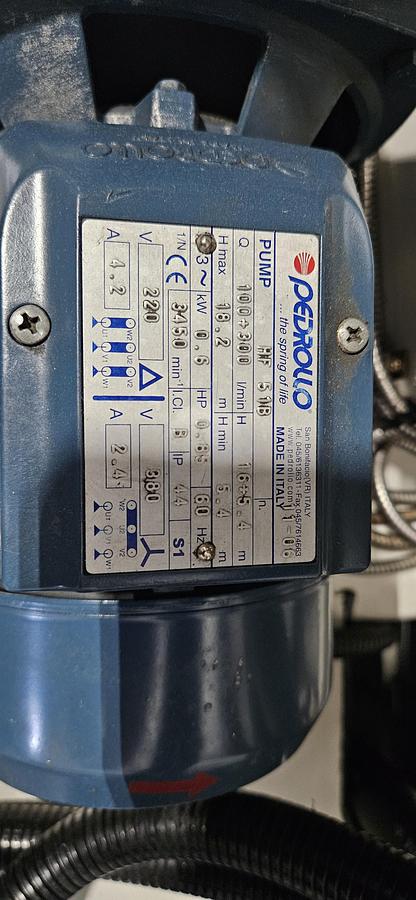

• Circulation Pump

• Flushing Pump

• Filtration System

• Pressure Monitoring

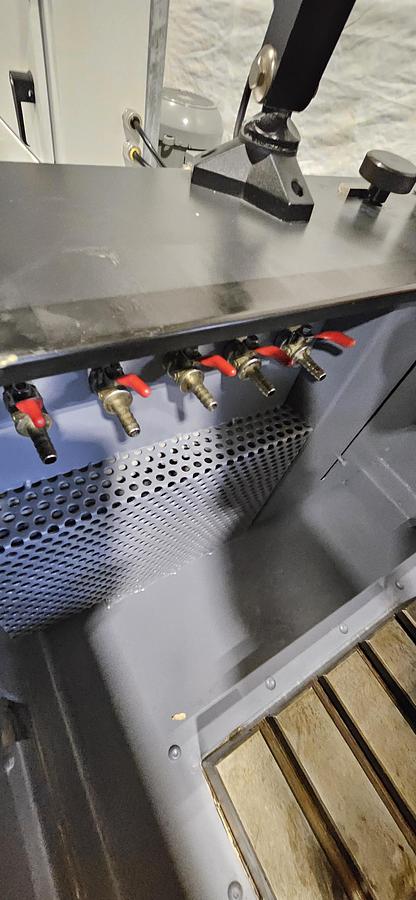

• Adjustable Flushing Nozzles

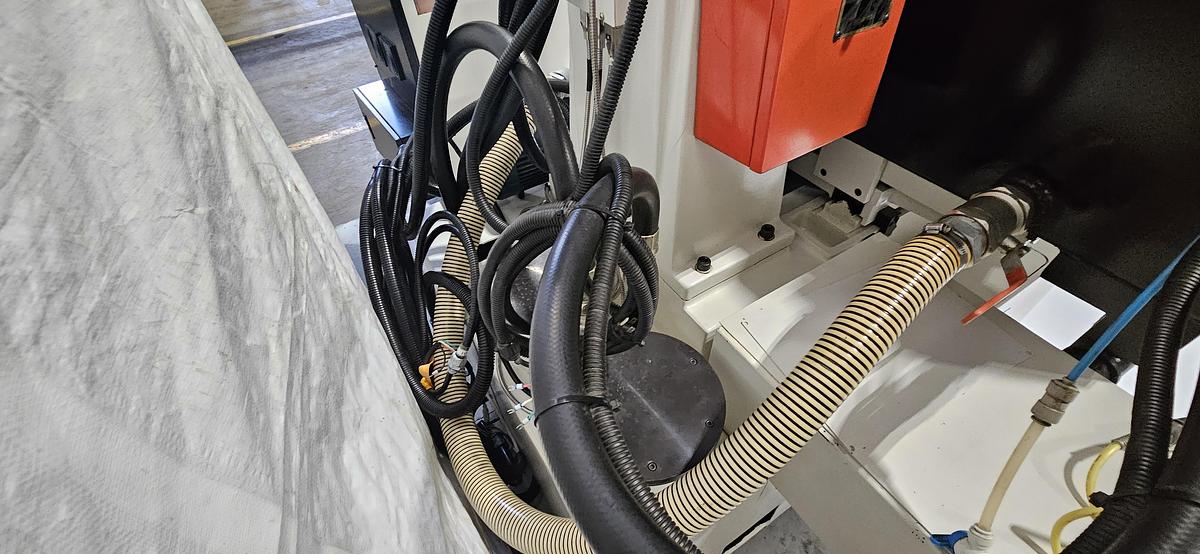

• Fluid Connections

• Pump Controls

• Dielectric Level / Maintenance Provisions

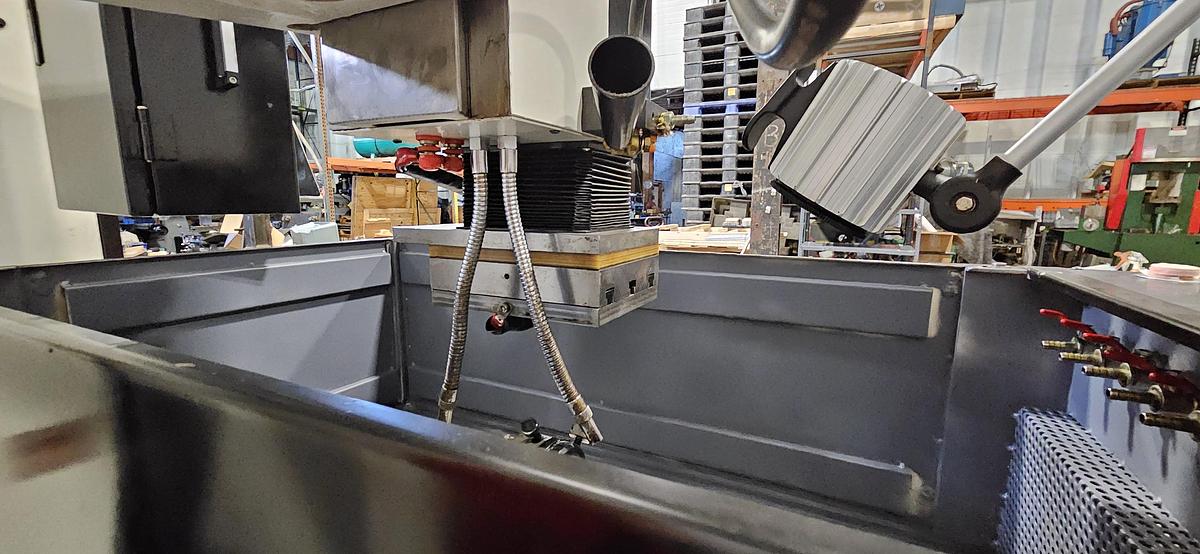

The work tank is designed to surround the workpiece and electrode with dielectric fluid during the EDM process, providing flushing, cooling, and removal of EDM debris from the cutting zone.

ROTARY / INDEXING FIXTURE

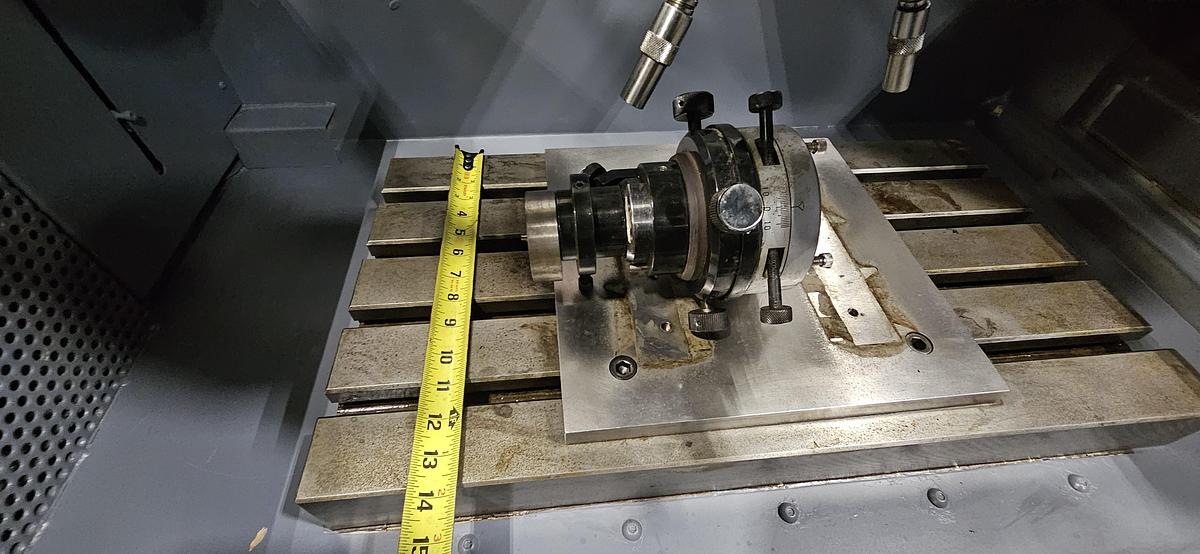

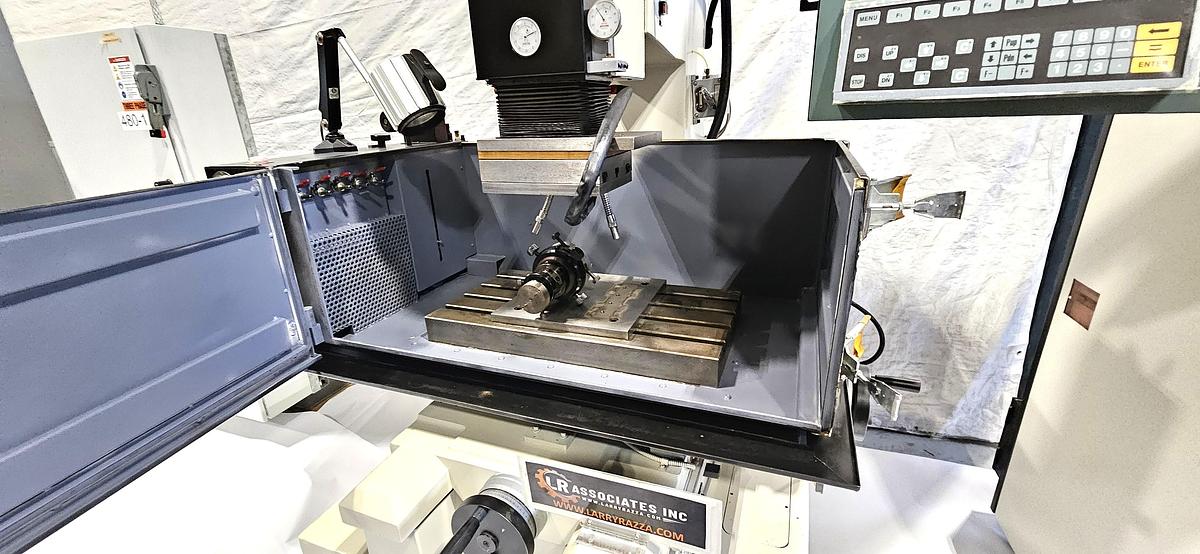

Included with the machine is the rotary / indexing workholding fixture presently mounted on the machine table.

This fixture provides additional flexibility for specialized EDM operations and cylindrical or rotationally oriented components.

The fixture includes adjustable workholding and is mounted to a substantial fixture plate on the machine's T-slotted table.

Rotary / indexing fixture included as shown.

FEATURES

• Belmont Technologies Maxi-Cut

• CNC / Programmable Sinker EDM

• 100 Amp Power Supply

• 220 Volt / 3 Phase Input

• Large Dielectric Work Tank

• Heavy-Duty T-Slotted Worktable

• Vertical EDM Ram / Electrode Head

• Programmable Operator Control

• Digital Display

• X / Y / Z Machine Controls

• Gap Voltage Meter

• Working Current Meter

• Dielectric Circulation System

• Dielectric Filtration

• Flush Pump

• Adjustable Flushing Nozzles

• Pressure Gauges

• Rotary / Indexing Fixture

• Separate Belmont Generator / Electrical Cabinet

• Servo Control Electronics

• Emergency Stop

• Work-Area Lighting

• Maintenance Documentation

• Heavy-Duty Industrial Construction

APPLICATIONS

Ideal for:

• Mold Manufacturing

• Die Manufacturing

• Tool & Die Shops

• Injection Mold Cavities

• Die-Casting Tooling

• Precision Cavities

• Blind Cavities

• Complex Internal Shapes

• Hardened Tool Steel

• Carbide Components

• Aerospace Components

• Medical Tooling

• Precision Manufacturing

• Electrode Machining Applications

• Tool Room Applications

• Production EDM

• Prototype Tooling

• Complex Geometry Machining

• Precision Metal Removal

EDM PROCESS CAPABILITIES

Sinker EDM is particularly valuable for machining electrically conductive materials where conventional cutting methods may be difficult or impractical.

Typical capabilities include:

• Complex Cavity Burning

• Deep Cavity Machining

• Sharp Internal Corner Generation

• Hardened Material Machining

• Fine Detail Machining

• Mold Cavity Production

• Die Cavity Production

• Precision Surface Generation

• Intricate Geometry Machining

• Electrode Replication

• Burr-Free Material Removal

• Low Mechanical Cutting Force

MAINTENANCE DOCUMENTATION

Maintenance documentation supplied with the machine identifies this unit as:

Asset: EDM 08 – EDM

Manufacturer: Belmont

Model: Maxi-Cut

Serial Number: KB07236294

Maintenance items documented include:

• Control Cabinet Filter Inspection / Cleaning

• Motor Cover & Fan Cleaning

• Coolant / Cabinet Vent Cleaning

• Oil Filter Inspection

• Dielectric Fluid / EDM Oil Level Inspection

• Pump Inspection

• Oil Reservoir Inspection

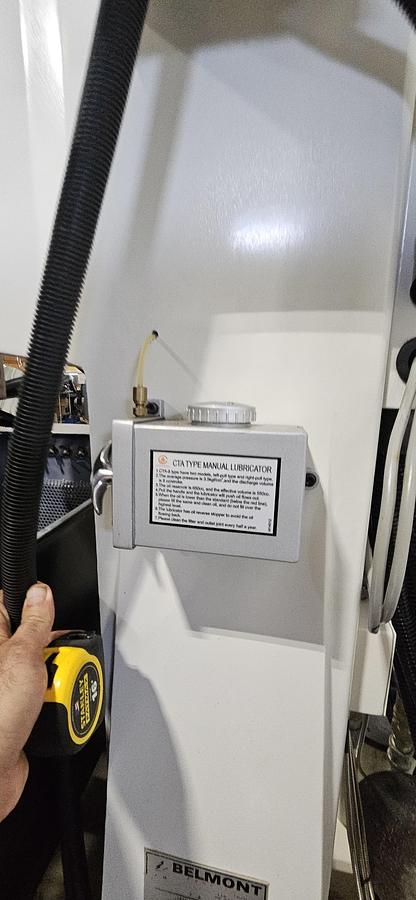

• Lubrication Checks

The presence of this maintenance documentation provides additional history regarding the care of the machine.

INCLUDES

• Belmont Technologies Maxi-Cut CNC Sinker EDM

• 100-Amp EDM Power Supply

• Separate Belmont Generator / Electrical Cabinet

• Programmable Operator Control

• Large Dielectric Work Tank

• T-Slotted Worktable

• Rotary / Indexing Fixture as Shown

• Dielectric Reservoir

• Filtration System

• Circulation Pump

• Flush Pump

• Adjustable Flush Nozzles

• Pressure Gauges

• Electrical / Servo Control System

• Associated Cables & Connections

• Maintenance Documentation

• Components Presently With Machine as Shown

CONDITION

This Belmont Technologies Maxi-Cut CNC Sinker EDM is in good overall used industrial condition and presents well for a production EDM of this type.

The machine is complete with its separate Belmont generator / electrical cabinet, programmable control, dielectric system, pumps, work tank, and rotary / indexing fixture.

The electrical cabinets appear clean and organized, and maintenance documentation is included with the machine.

Operational status should be verified prior to publication.

Buyer is encouraged to inspect and test the machine prior to purchase.

SHIPPING

We can assist with professional rigging, loading, preparation, and freight quotes upon request.

Please contact us for a Shipping Quote!

We ship anywhere!

PRICE

$____________

OFFERED BY

L R Associates, Inc.

Machinery Dealers / Consultants / Appraisers / Auctioneers

25 Conduit Street

Central Falls, Rhode Island 02863

Contact us at Four Zero One – Nine Six Five – Five Five Five Seven

ADDITIONAL INFORMATION

Specifications are based upon machine nameplate information, maintenance documentation, available manufacturer information, and visual inspection.

Care is taken to provide reliable specifications, but these are not guaranteed. Buyer is responsible for independently verifying all specifications, capacities, electrical requirements, accessories, and suitability for the intended application.

Subject to prior sale.

FINANCING

Financing available to qualified buyers.

Get LOW Monthly Payment!!

Quick & Easy Application Approval!

PAYMENTS

Wire transfer, company check, all major credit cards.

CONDITIONS

All quotations are for immediate acceptance. They are subject to withdrawal, change and prior sale without notice. Shipping dates are only approximate and contingent upon delays beyond our control. All orders received are binding only when they have been accepted and acknowledged by us in writing. Provisions in customer's purchase orders contrary to these conditions shall not be binding upon us unless accepted in writing. Unless otherwise specified, prices quoted are F.O.B. shipping point, exclusive of State, County and Federal taxes which must be added where applicable. Insurance on shipment must be requested by email; there will be an additional charge for shipping insurance. Shipping destination must be available to receive the shipment; any costs incurred due to delays at the buyer's destination or additional services required will be the responsibility of the buyer. Care is taken to provide reliable specifications, but these are not guaranteed. We reserve the right to correct typographical errors. All used equipment is sold "AS IS."

INDEMNIFICATION

Used machines may not incorporate approved activating mechanisms, operator safety devices, or safety guards as required by OSHA or otherwise. It is the user's responsibility to ensure such machines are properly equipped and safeguarded to meet OSHA and all other applicable requirements before placing the machinery into operation. User agrees to indemnify and hold Seller harmless from any and all claims or liabilities arising from accidents involving these machines caused by failure of the user, employees, or agents to follow manufacturer or seller instructions, warnings, or recommendations, or by failure to comply with Federal, State, or Local laws, including the Occupational Safety and Health Act of 1970. User shall notify Seller promptly after any accident involving these machines and cooperate fully with Seller or Seller's representatives in investigating the cause of such accident.
