EDM TECHNOLOGY OMEGA 405-B SINKER EDM – 30 AMP POWER SUPPLY – MITUTOYO DIGITAL READOUT – MAGNETIC CHUCK – 220V 3 PHASE – 1990

EDM TECHNOLOGY OMEGA 405-B RAM / DIE-SINKING EDM

30 AMP EDM POWER SUPPLY

MITUTOYO DIGITAL POSITION READOUT

MAGNETIC WORKHOLDING CHUCK – DIELECTRIC FLUSHING SYSTEM

220 VOLT / 3 PHASE / 60 HZ

DESCRIPTION

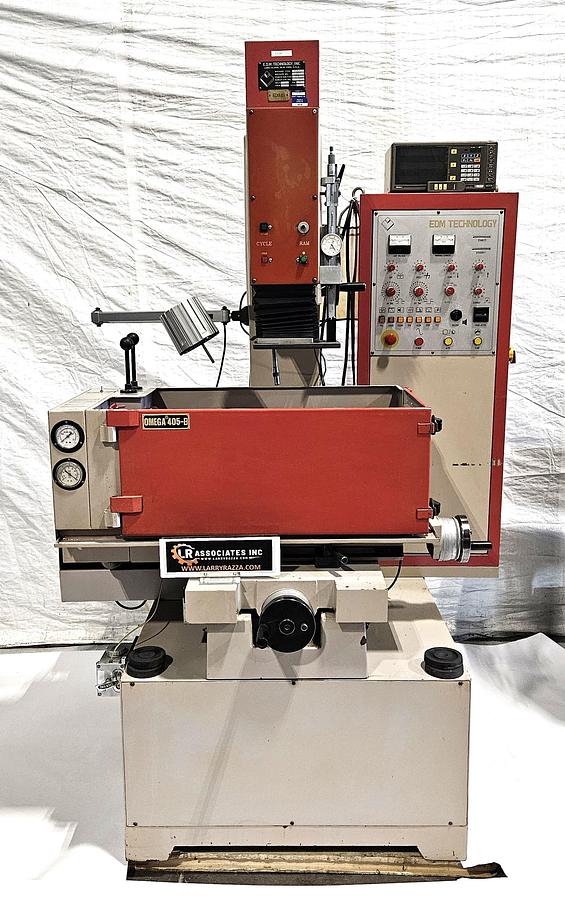

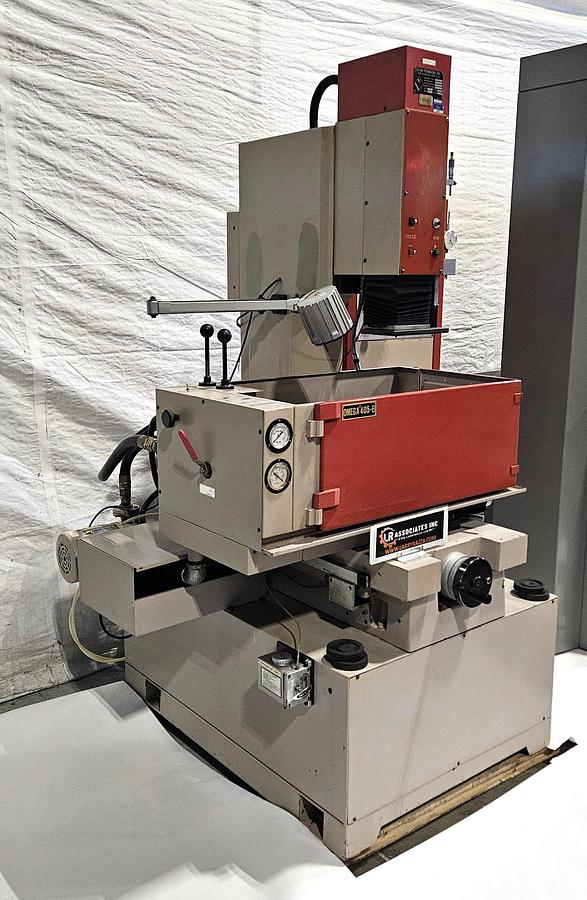

Available for immediate sale is this EDM Technology Omega 405-B Sinker-Type Electrical Discharge Machine, equipped with a 30-amp EDM power supply, Mitutoyo digital position readout, magnetic workholding chuck, large dielectric work tank, adjustable flushing system, and integrated dielectric circulation system.

Manufactured in 1990, this Omega 405-B is a traditional industrial ram / die-sinking EDM designed for precision machining of electrically conductive materials including hardened tool steels, carbide, mold steels, and other difficult-to-machine materials.

The electrical discharge machining process removes material through controlled electrical discharges between a shaped electrode and the workpiece while submerged in dielectric fluid. Because the process does not depend upon conventional cutting forces, EDM is particularly well suited for producing complex cavities, blind forms, intricate details, sharp internal geometries, and precision features in hardened materials.

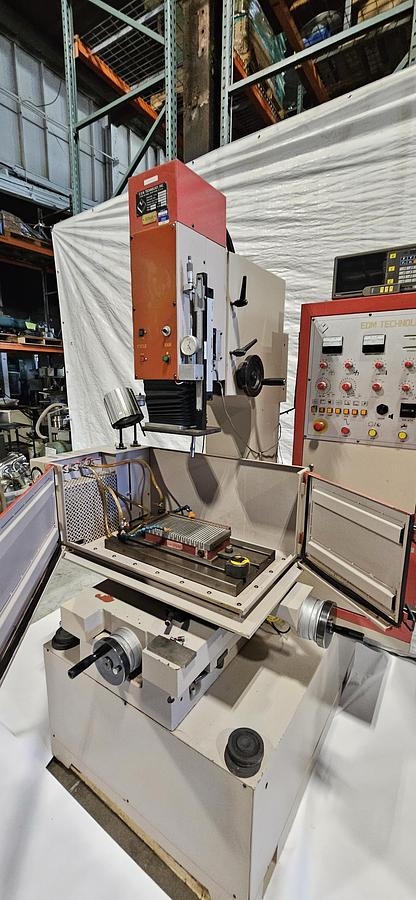

This machine features a substantial enclosed dielectric work tank, precision worktable, vertical EDM ram, adjustable dielectric flushing nozzles, analog gap-voltage and working-current monitoring, programmable EDM process controls, and a Mitutoyo digital position readout.

A magnetic workholding chuck is presently mounted on the machine table and is included with the machine.

The machine also comes with documented preventive maintenance information covering control cabinet cleaning, oil filtration, dielectric fluid levels, pumps, and lubrication.

This is a straightforward, heavy-duty conventional sinker EDM suitable for tool rooms, mold shops, die shops, maintenance departments, prototype facilities, and general precision EDM applications.

SPECIFICATIONS

Manufacturer: EDM Technology, Inc.

Location of Manufacture: Long Island, New York, USA

Model: Omega 405-B

Machine Type: Ram / Die-Sinking EDM

Year: 1990

Machine Serial Number: 12061

Power Supply Type: 30A

Power Supply Output: 30 Amps

Electrical: 220 Volt

Phase: 3 Phase

Frequency: 60 Hz

EDM Process: Sinker / Ram Electrical Discharge Machining

Operator Control: EDM Technology Process Control

Position Display: Mitutoyo Digital Readout

Work Area: Enclosed Dielectric Tank

Workholding: Magnetic Chuck / Workholding Fixture

Dielectric System: Integrated

Flushing System: Adjustable Multi-Nozzle

Gap Voltage Monitoring: Analog Meter

Working Current Monitoring: Analog Meter

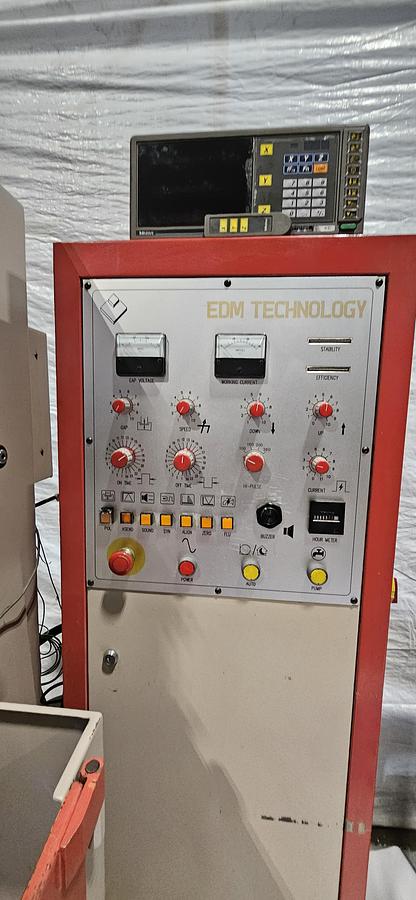

EDM CONTROL SYSTEM

The Omega 405-B incorporates a dedicated EDM process control system allowing the operator to adjust the principal electrical discharge machining parameters.

Controls include:

• Gap Adjustment

• Servo / Feed Speed Adjustment

• Down Control

• Up Control

• On-Time Adjustment

• Off-Time Adjustment

• High-Pulse Adjustment

• Working Current Adjustment

• Polarity Control

• Ascending / Process Functions

• Synchronization Control

• Alignment Function

• Zero Function

• Flushing Control

• Automatic Cycle Control

• Pump Control

• Gap Voltage Meter

• Working Current Meter

• Hour Meter

• Emergency Stop

The control configuration provides direct operator access to the primary EDM process variables required for roughing, finishing, cavity burning, and general sinker EDM applications.

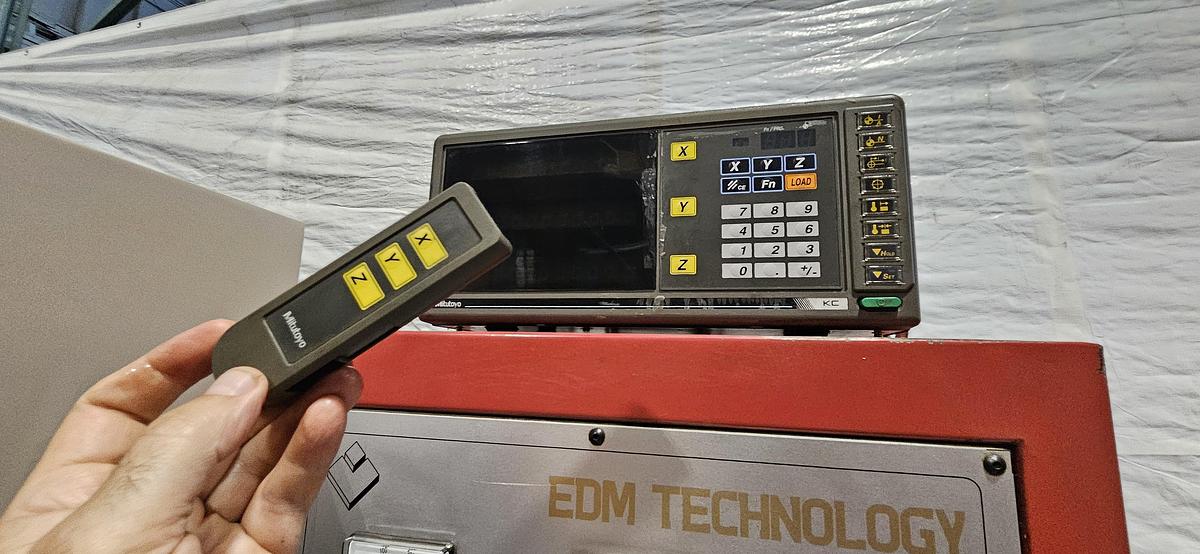

MITUTOYO DIGITAL READOUT

The machine is equipped with a Mitutoyo digital position readout system mounted above the EDM control cabinet.

The DRO provides convenient digital position indication for machine setup and electrode positioning.

This is a desirable addition compared with a completely manual position-indicating system and assists with accurate setup and repeatability.

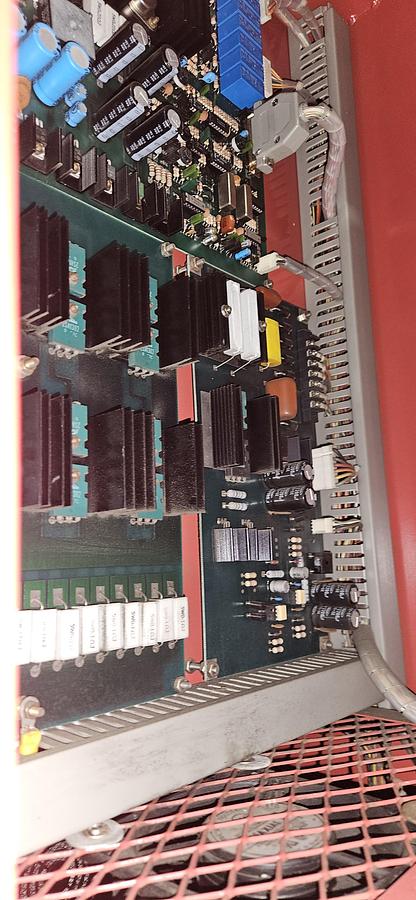

30 AMP EDM POWER SUPPLY

The machine is equipped with the original EDM Technology 30-Amp power supply.

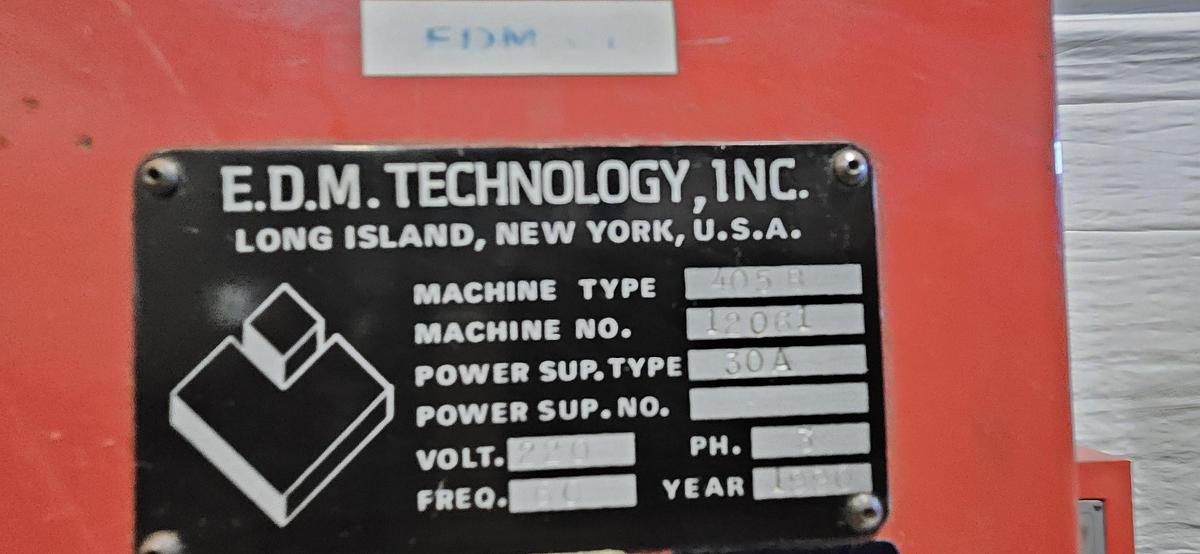

Manufacturer nameplate information confirms:

Power Supply Type: 30A

Input Voltage: 220 Volt

Phase: 3 Phase

Frequency: 60 Hz

The 30-amp configuration is well suited for general tool room, mold, die, repair, maintenance, and precision cavity-burning applications.

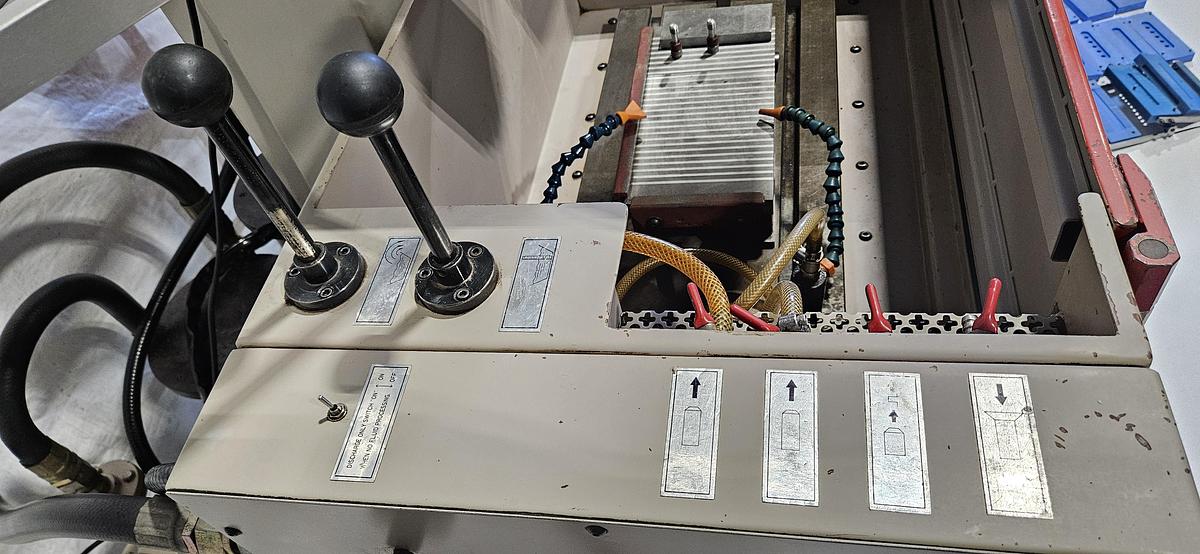

DIELECTRIC SYSTEM

The Omega 405-B incorporates a complete dielectric fluid system for sinker EDM operation.

Features include:

• Large Enclosed Work Tank

• Dielectric Fluid Reservoir

• Circulation Pump

• Filtration System

• Multiple Adjustable Flushing Lines

• Flexible Loc-Line Style Flush Nozzles

• Flow Control Valves

• Pressure Monitoring

• Pump Control

• Accessible Work Area

The dielectric system provides the fluid circulation, cooling, flushing, and debris removal required during the electrical discharge machining process.

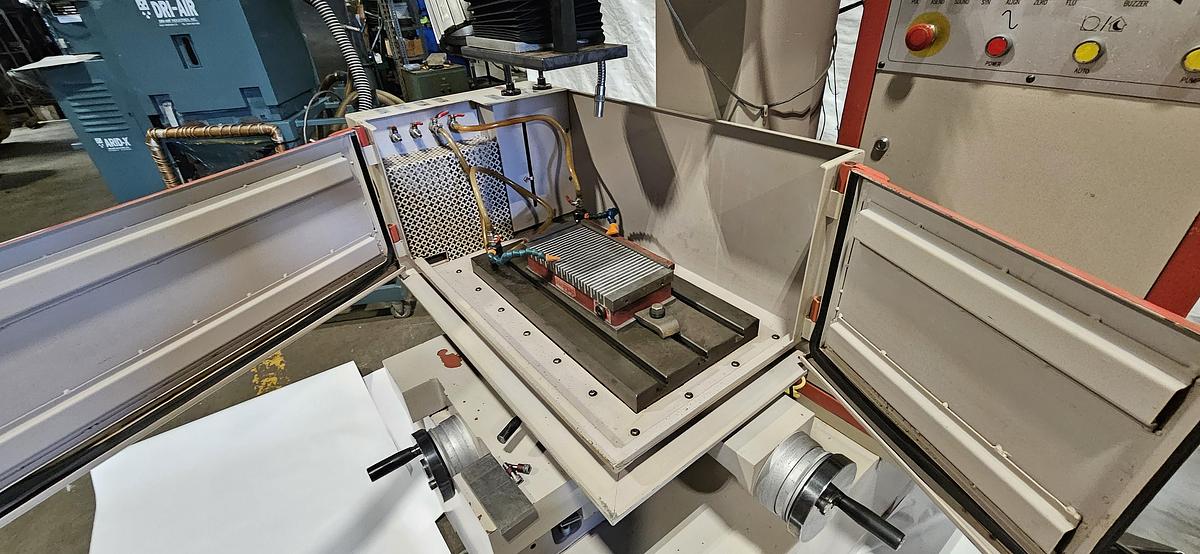

MAGNETIC WORKHOLDING CHUCK

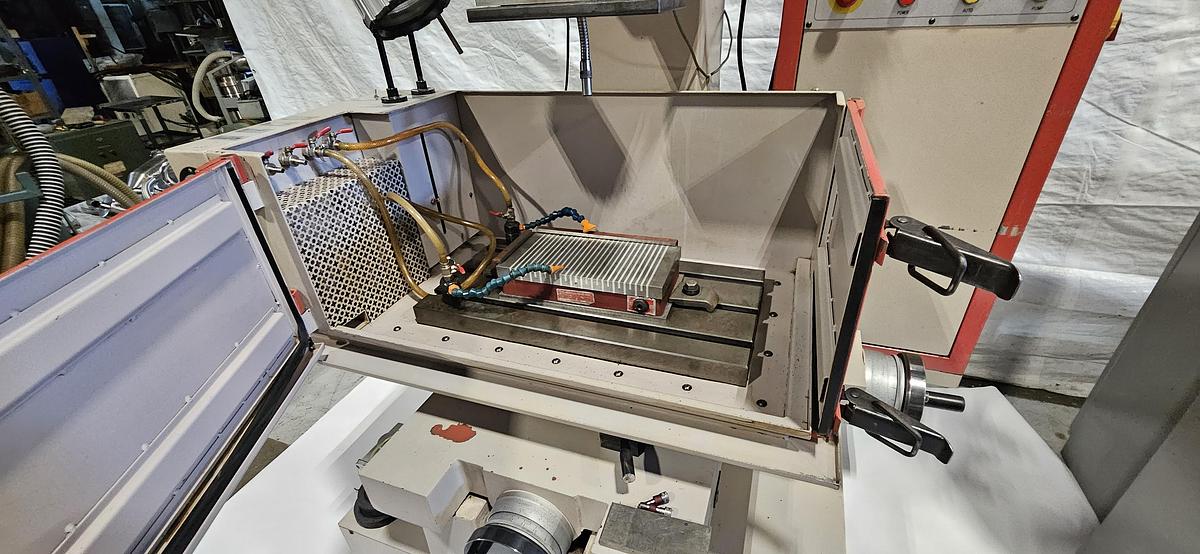

Included with the machine is the magnetic workholding chuck presently mounted on the worktable.

The chuck provides convenient workholding for compatible ferrous workpieces and represents a useful additional accessory for tool room and general EDM applications.

Magnetic chuck included as shown.

FEATURES

• EDM Technology Omega 405-B

• 1990 Machine

• Ram / Die-Sinking EDM

• 30-Amp EDM Power Supply

• 220 Volt / 3 Phase / 60 Hz

• Mitutoyo Digital Readout

• Large Dielectric Work Tank

• Magnetic Workholding Chuck

• Vertical EDM Ram / Electrode Head

• Gap Voltage Monitoring

• Working Current Monitoring

• Adjustable Current

• Adjustable On-Time

• Adjustable Off-Time

• High-Pulse Control

• Automatic Cycle Control

• Adjustable Dielectric Flushing

• Multiple Flushing Nozzles

• Dielectric Circulation Pump

• Dielectric Filtration

• Pressure Gauges

• Work-Area Lighting

• Emergency Stop

• Hour Meter

• Maintenance Documentation

• Heavy-Duty Industrial Construction

APPLICATIONS

Ideal for:

• Tool & Die Shops

• Mold Manufacturing

• Mold Repair

• Die Repair

• Injection Mold Cavities

• Precision Cavities

• Blind Cavities

• Hardened Tool Steel

• Carbide Components

• Punch & Die Work

• Tool Room Applications

• Maintenance Departments

• Prototype Tooling

• Electrode Replication

• Precision Metal Removal

• General Sinker EDM Applications

TYPICAL EDM CAPABILITIES

• Cavity Burning

• Mold Cavity Production

• Die Cavity Production

• Hardened Material Machining

• Blind Feature Machining

• Complex Geometry Machining

• Internal Detail Generation

• Fine Feature Machining

• Electrode Replication

• Burr-Free Material Removal

• Precision Tooling Repair

• Low Mechanical-Force Machining

MAINTENANCE DOCUMENTATION

Preventive maintenance documentation supplied with the machine identifies the unit as:

Asset: EDM 01 – EDM

Manufacturer: Omega

Model: 405-B

Serial Number: 12061

Documented maintenance items include:

• Control Cabinet Filter Inspection / Cleaning

• Motor Cover & Fan Cleaning

• Coolant / Cabinet Vent Cleaning

• Oil Filter Inspection

• Dielectric Fluid / EDM Oil Level Inspection

• Pump Inspection

• Oil Reservoir Inspection

• Lubrication Checks

The available documentation provides useful maintenance history and indicates that routine preventive maintenance procedures were established for this machine.

INCLUDES

• EDM Technology Omega 405-B Sinker EDM

• 30-Amp EDM Power Supply

• EDM Process Control System

• Mitutoyo Digital Readout

• Magnetic Workholding Chuck

• Dielectric Work Tank

• Dielectric Fluid Reservoir

• Circulation Pump

• Filtration System

• Adjustable Flushing Lines & Nozzles

• Pressure Gauges

• Work Light

• Maintenance Documentation

• Associated Components Presently With Machine as Shown

CONDITION

This 1990 EDM Technology Omega 405-B is in good overall used industrial condition for its age.

The machine appears complete with its EDM power supply, control system, Mitutoyo digital readout, dielectric system, pumps, work tank, magnetic workholding chuck, and associated components.

The previous owner's maintenance documentation indicates routine preventive maintenance procedures were established for the machine.

Operational status is to be verified prior to sale.

Buyer is encouraged to inspect and test the machine prior to purchase.

SHIPPING

We can assist with professional rigging, loading, preparation, and freight quotes upon request.

Please contact us for a Shipping Quote!

We ship anywhere!

WSPT# L-0000-081426-C

P# 081426

OFFERED BY

L R Associates, Inc.

Machinery Dealers / Consultants / Appraisers / Auctioneers

25 Conduit Street

Central Falls, Rhode Island 02863

Contact us at Four Zero One – Nine Six Five – Five Five Five Seven
