BRIDGEPORT SERIES I 2HP VERTICAL MILL – PROTOTRAK MX2 2-AXIS CNC / CONVERSATIONAL CONTROL – POWER FEED – VISE – COLLETS – 480V 3 PHASE – RUNNING

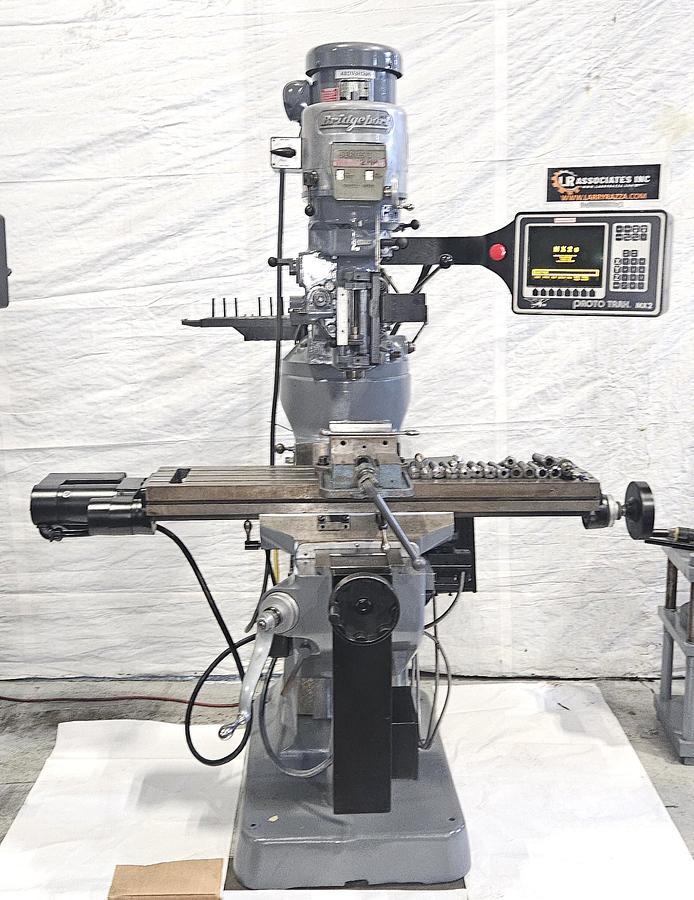

BRIDGEPORT SERIES I VERTICAL MILLING MACHINE

SOUTHWESTERN INDUSTRIES PROTOTRAK MX2 2-AXIS CNC / CONVERSATIONAL CONTROL

2 HP VARIABLE-SPEED HEAD – POWERED X/Y AXIS SYSTEM

VISE & LARGE ASSORTMENT OF COLLETS / TOOLING INCLUDED

CONTROL POWERS UP – MACHINE RUNNING

DESCRIPTION

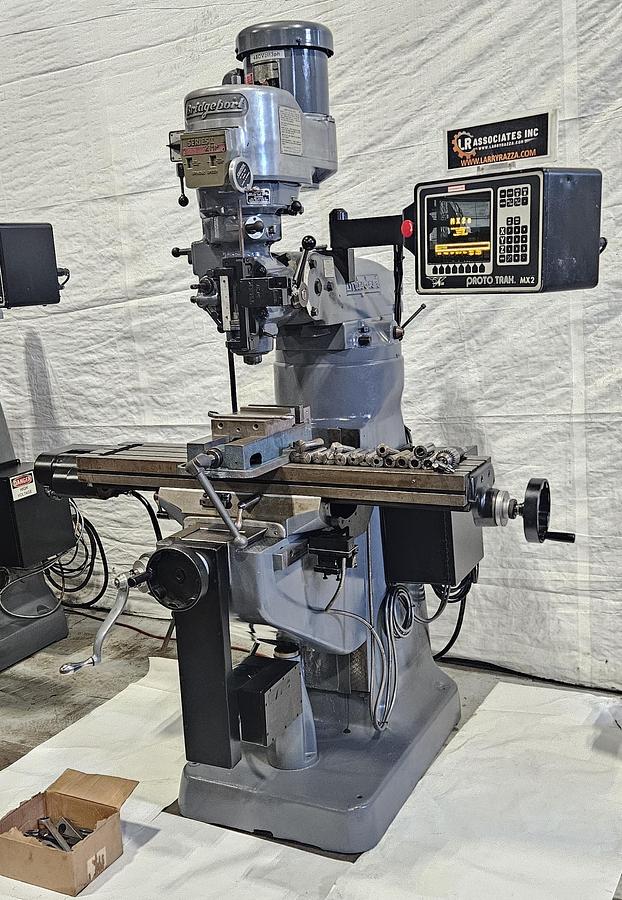

Available for immediate sale is this Bridgeport Series I Vertical Milling Machine, upgraded with a Southwestern Industries ProtoTRAK MX2 2-Axis CNC / Conversational Control System.

This machine combines the versatility and familiarity of the legendary Bridgeport Series I knee mill with the productivity of a ProtoTRAK conversational control, making it an excellent choice for tool rooms, maintenance departments, prototype shops, mold and die facilities, repair shops, educational facilities, and low-volume production applications.

The ProtoTRAK MX2 provides programmable control of the table axes while retaining the ability to operate the Bridgeport in a conventional manual milling environment.

This combination is particularly useful for shops performing one-off components, prototypes, repair work, short production runs, bolt-hole patterns, pockets, contours, slots, and other milling operations where full production CNC equipment may be unnecessary.

The machine is equipped with a 2 HP Bridgeport variable-speed milling head, power-operated table axes, ProtoTRAK MX2 operator control, substantial T-slotted table, machine vise, and a large assortment of collets and related tooling.

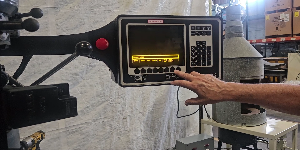

The ProtoTRAK control has been powered up and is shown operating in the photographs.

The machine presents well for its age and appears to have been maintained as a working toolroom / production machine.

SPECIFICATIONS

Manufacturer: Bridgeport

Model: Series I

Machine Type: Vertical Knee Mill / ProtoTRAK CNC Mill

Control Manufacturer: Southwestern Industries, Inc.

Control: ProtoTRAK MX2

Control Type: 2-Axis CNC / Conversational Milling Control

Control Software: MX2e Version 1.02

ProtoTRAK Control Date: 10/24/2003

Spindle Motor: 2 HP

Spindle Head: Bridgeport Variable-Speed

Spindle Motor Electrical: 480 Volt / 3 Phase

Table Size: Approximately 42" Long

Table Type: T-Slotted

Machine Vise: Approximately 6" Jaw Width

Quill: Manual

Knee: Manual

X/Y Positioning: ProtoTRAK Powered / Programmable

Manual Milling Capability: Yes

Tooling: Assorted Collets & Toolholding Included

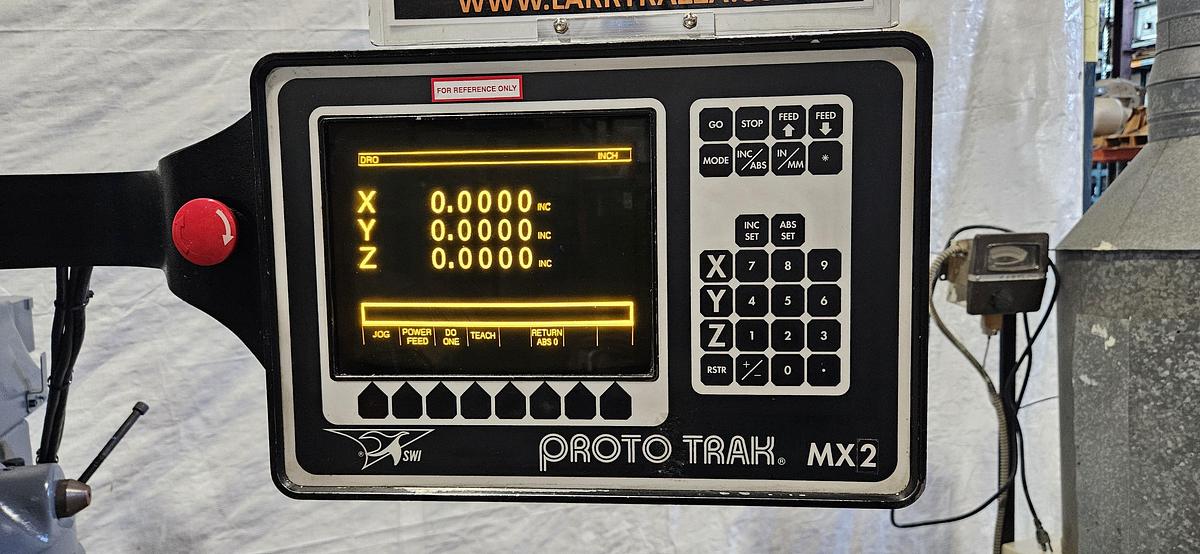

PROTOTRAK MX2 CONTROL

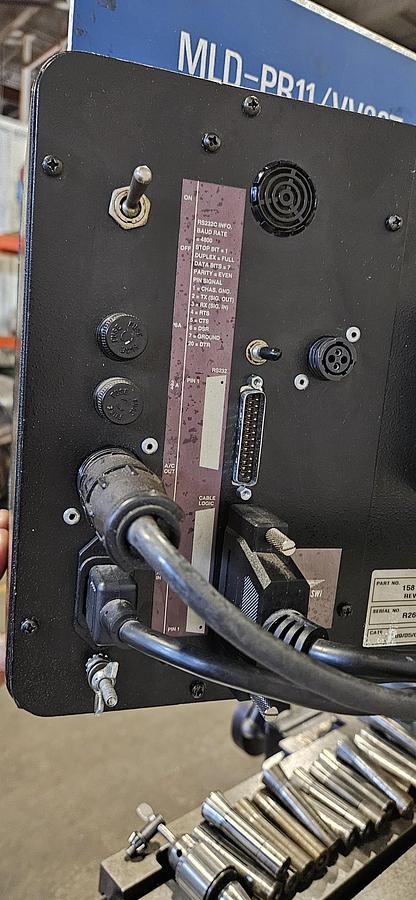

The machine is equipped with a Southwestern Industries ProtoTRAK MX2 conversational CNC control system.

The ProtoTRAK family of controls was specifically developed for toolroom and short-run machining, allowing an operator to program common milling operations directly at the machine without requiring conventional G-code programming for many routine jobs.

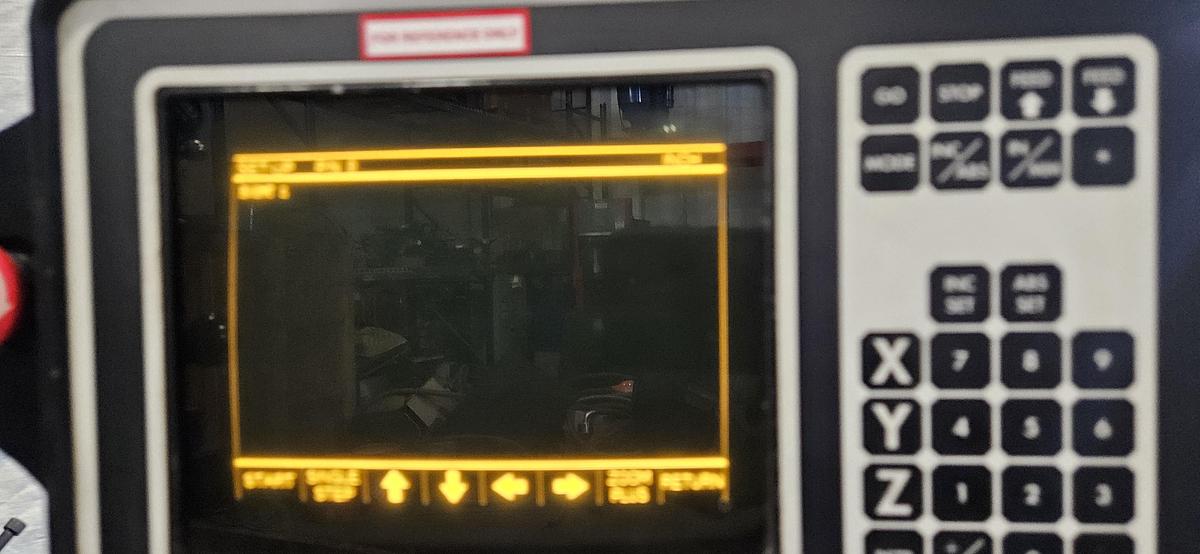

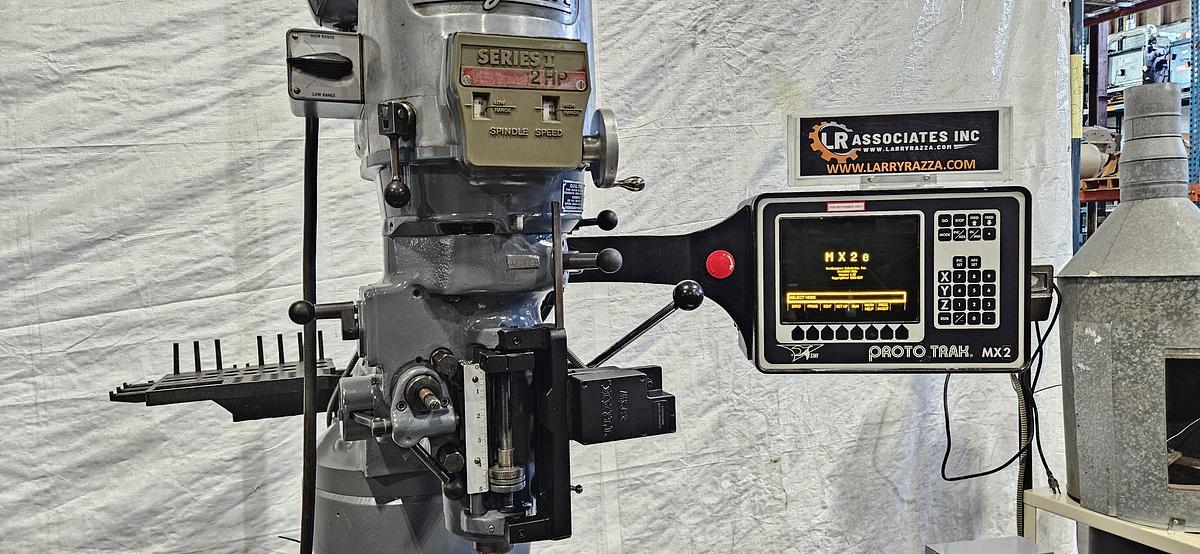

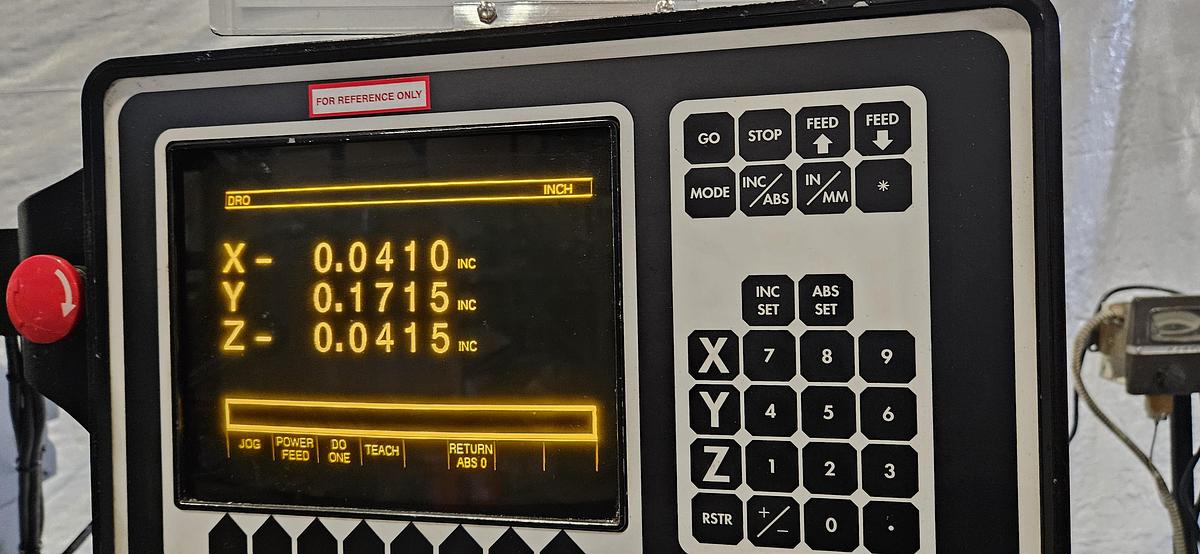

The control powers up and displays:

ProtoTRAK MX2e

Software Version 1.02

Control functions shown include:

• DRO Mode

• Program Mode

• Edit Mode

• Setup Mode

• Run Mode

• Math / Help Functions

• Program In / Out

• X-Axis Control

• Y-Axis Control

• Incremental / Absolute Positioning

• Inch / Metric Operation

• Feed Controls

• Numerical Programming Keypad

• Programmable Positioning

• Digital Position Display

2-AXIS CNC / CONVERSATIONAL CAPABILITY

The ProtoTRAK MX2 system provides powered programmable movement of the machine table axes while preserving the conventional Bridgeport manual milling format.

This makes the machine particularly attractive for shops requiring both manual machining and programmable CNC capability from the same machine.

Typical programmable operations can include:

• Straight-Line Milling

• Circular Milling

• Bolt-Hole Patterns

• Hole Locations

• Pockets

• Slots

• Profiles

• Contours

• Multiple Position Operations

• Repetitive Milling Operations

• Short-Run Production

• Prototype Components

• Repair Components

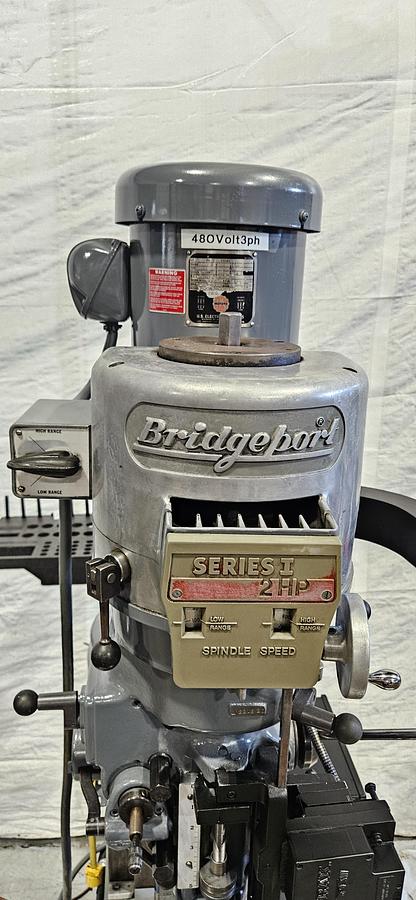

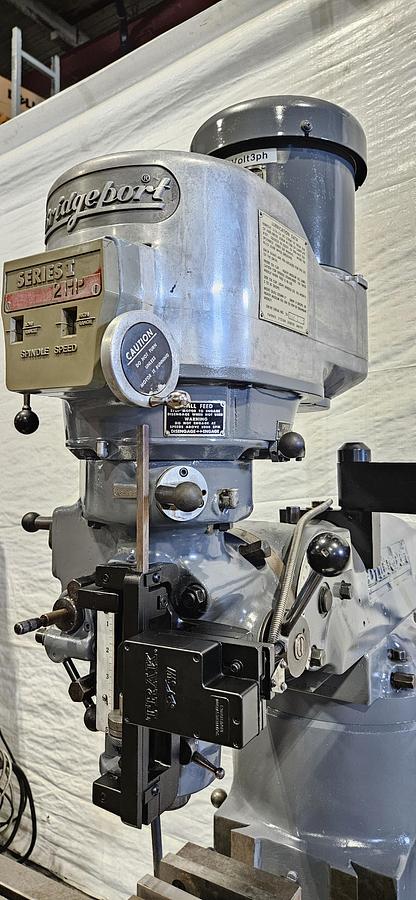

BRIDGEPORT SERIES I MILLING HEAD

The machine is equipped with the classic Bridgeport Series I variable-speed vertical milling head.

Features include:

• 2 HP Spindle Motor

• Variable Spindle Speed

• Forward / Reverse Spindle Operation

• Manual Quill Feed

• Fine Quill Feed

• Adjustable Ram

• Swiveling / Tilting Milling Head

• Rigid Bridgeport Knee-Mill Construction

• Proven Bridgeport Spindle Design

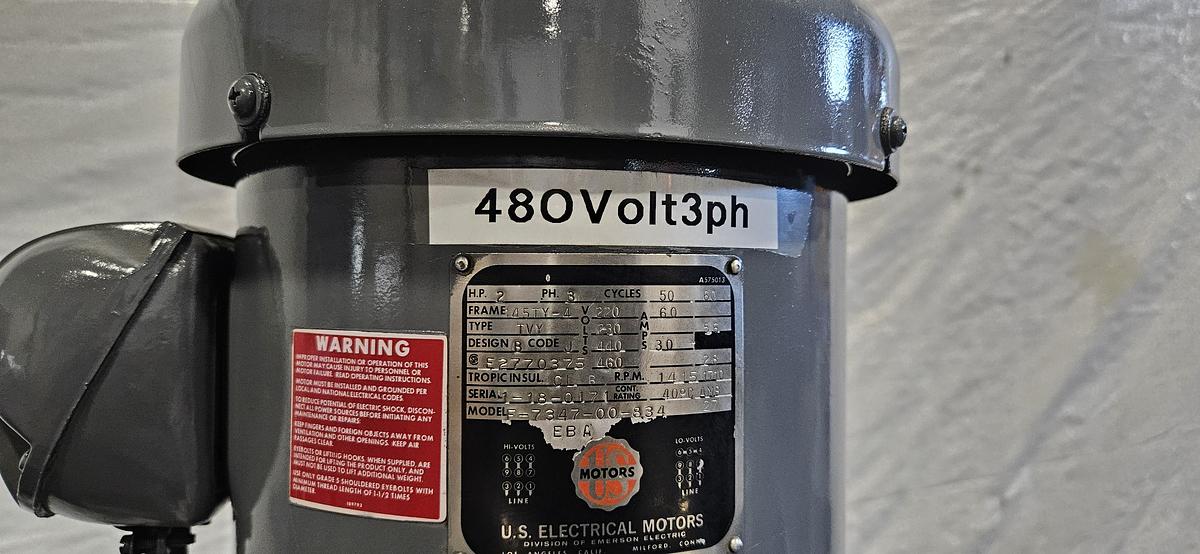

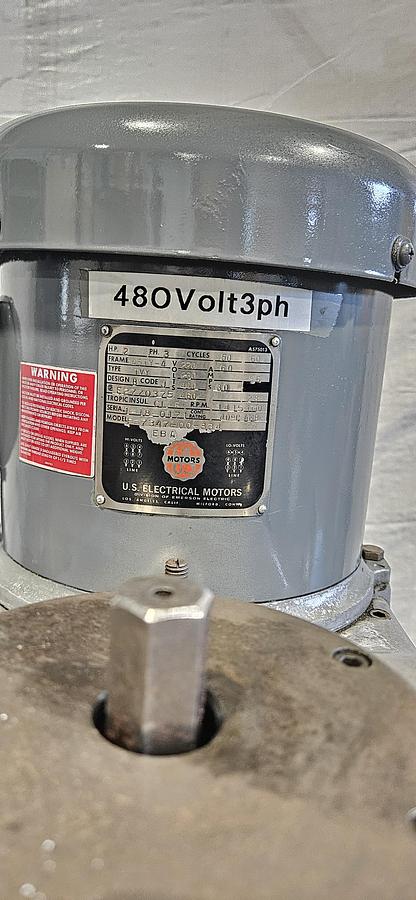

The spindle motor is presently marked for 480 Volt, 3 Phase operation.

TABLE & WORKHOLDING

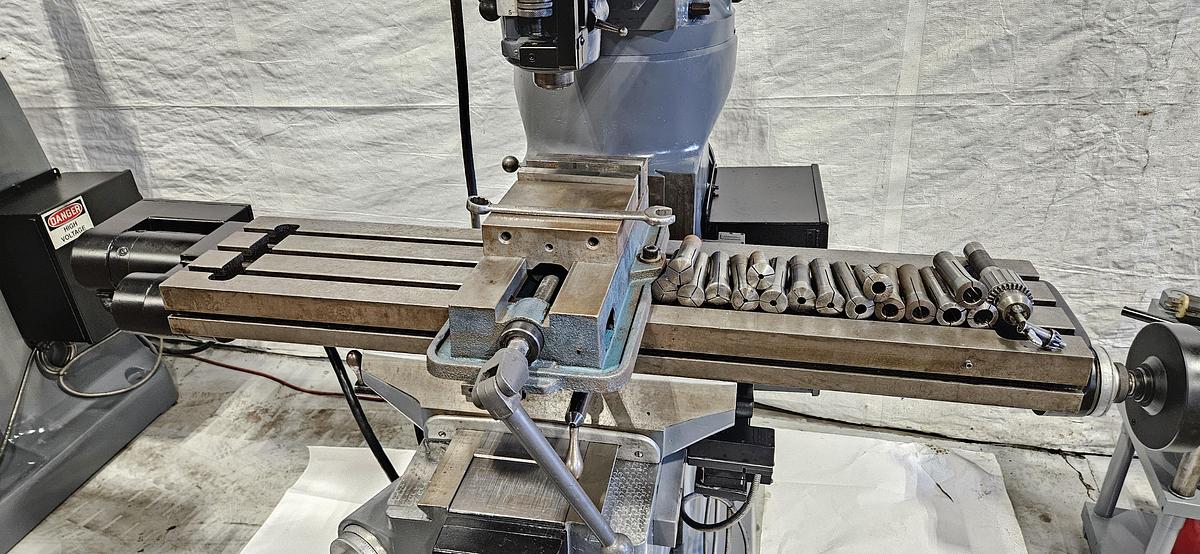

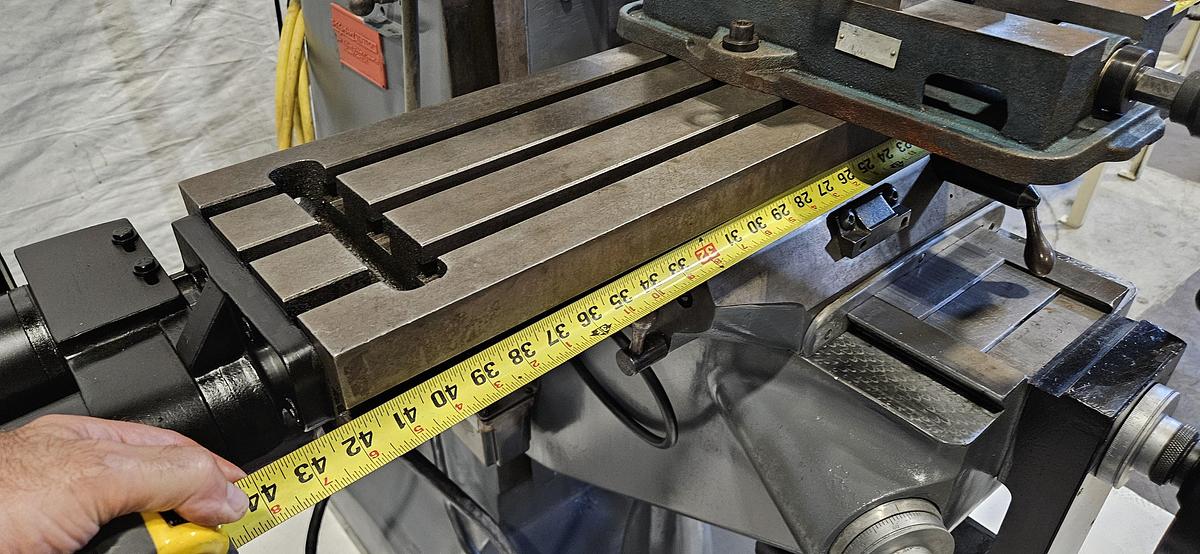

The machine is equipped with a substantial T-slotted milling table measuring approximately 42" in overall length.

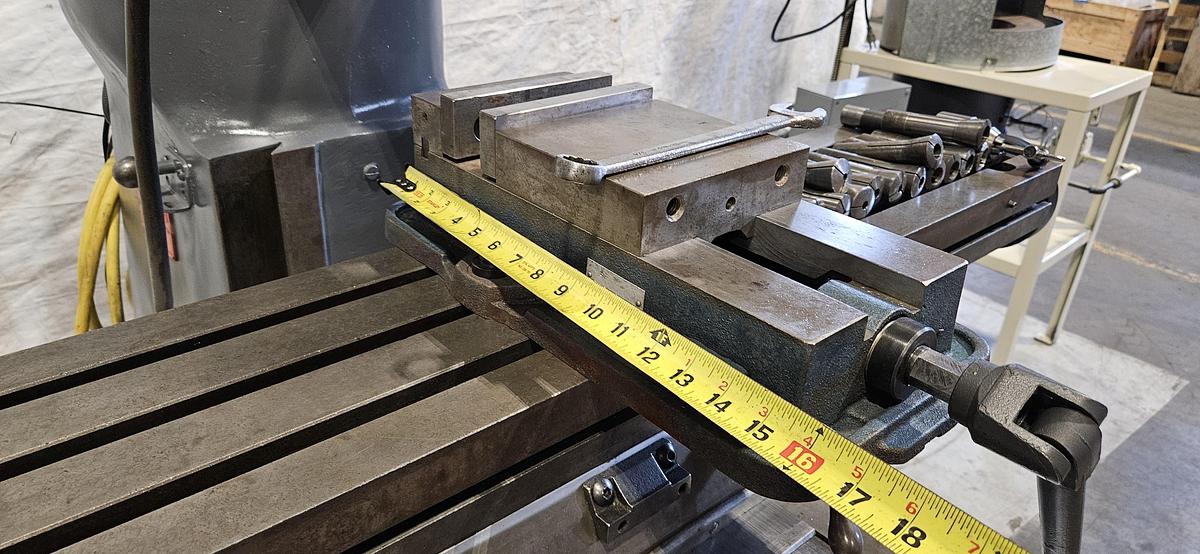

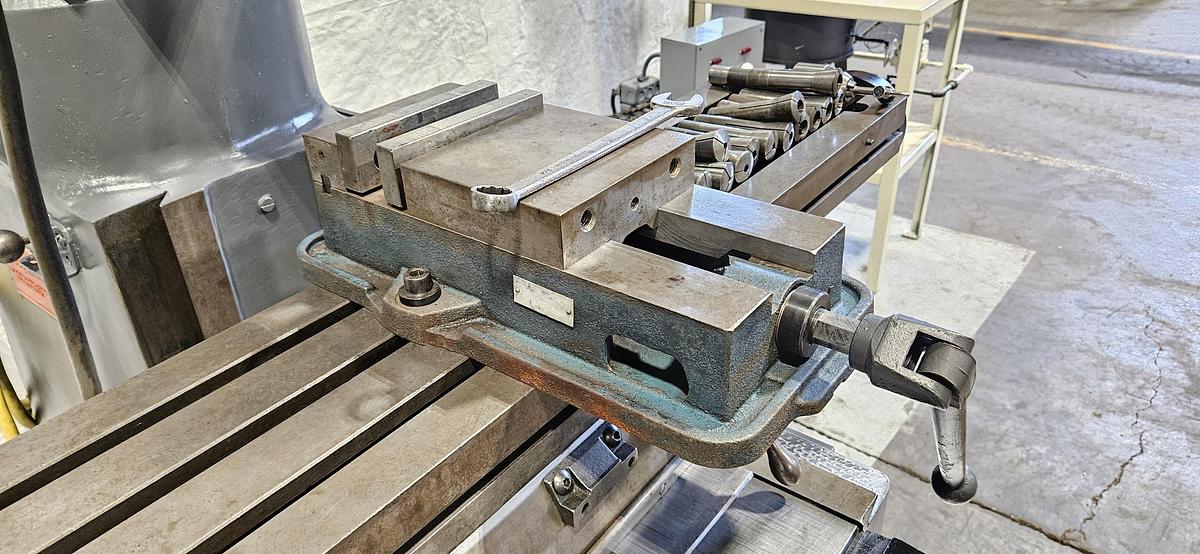

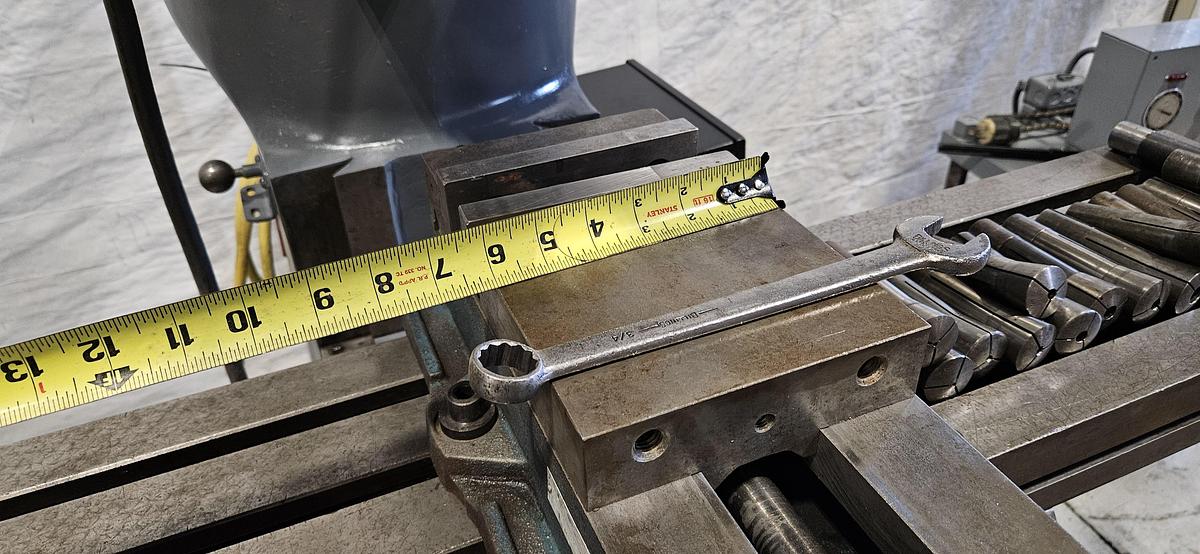

Included on the table is a heavy-duty machine vise with approximately 6" wide jaws.

The table and saddle provide the familiar manual setup flexibility of a Bridgeport while the ProtoTRAK system adds powered programmable X/Y positioning.

TOOLING PACKAGE

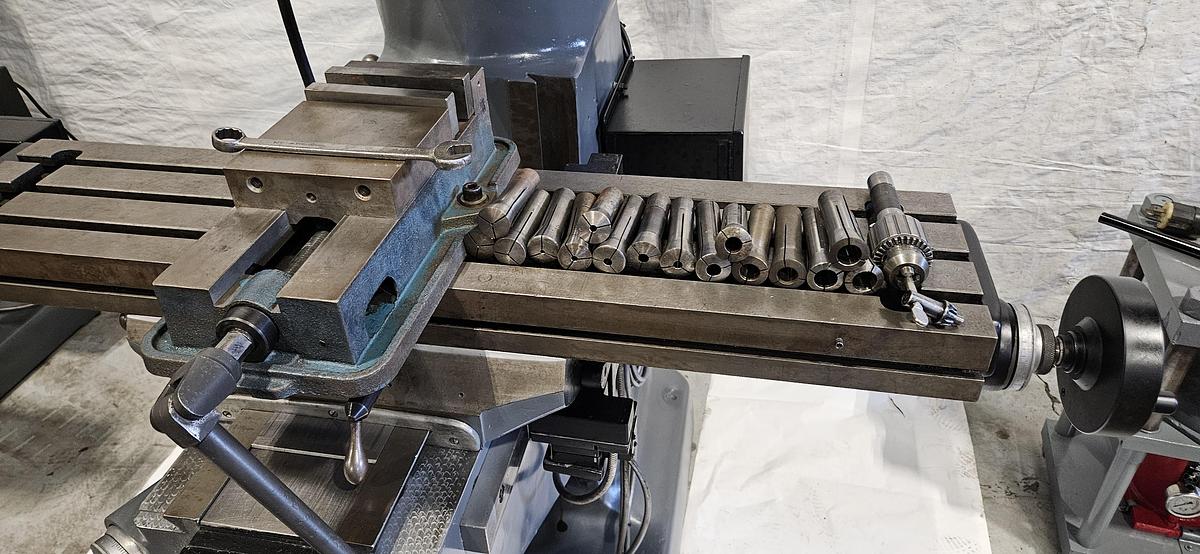

Included with this machine is a useful assortment of milling tooling and workholding accessories.

Tooling shown includes:

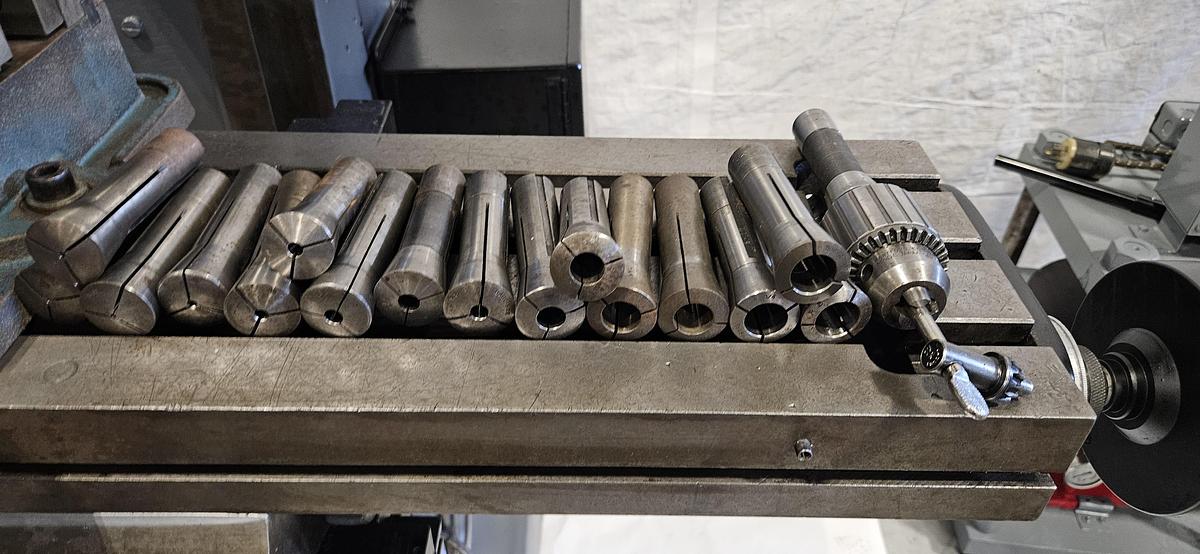

• Large Assortment of Collets

• Multiple Collet Sizes

• Drill Chuck

• Drill Chuck Arbor

• Machine Vise

• Miscellaneous Toolholders

• Associated Milling Tooling as Shown

All tooling and accessories shown with the machine that belong to this unit are included with the sale.

The included tooling package allows a prospective buyer to put the machine into service without having to source all basic workholding and toolholding separately.

FEATURES

• Bridgeport Series I

• 2 HP Variable-Speed Head

• Southwestern Industries ProtoTRAK MX2 Control

• 2-Axis CNC / Conversational Operation

• Manual Milling Capability

• ProtoTRAK MX2e Software

• Powered X/Y Axis Movement

• Digital Position Display

• Conversational Programming

• Inch / Metric Operation

• Incremental / Absolute Positioning

• Manual Quill

• Manual Knee

• Adjustable Ram

• Swiveling / Tilting Head

• T-Slotted Table

• Machine Vise

• Large Assortment of Collets

• Drill Chuck

• Tooling Included

• 480 Volt / 3 Phase Spindle Motor

• Heavy-Duty Bridgeport Construction

• Control Powers Up

• Machine Running

APPLICATIONS

Ideal for:

• Tool Rooms

• Prototype Shops

• Maintenance Departments

• Mold & Die Shops

• Machine Shops

• Repair Facilities

• Short-Run Production

• One-Off Components

• Fixtures

• Jigs

• Tooling

• Replacement Parts

• Precision Milling

• Drilling

• Boring

• Pocket Milling

• Slot Milling

• Bolt-Hole Patterns

• Contour Milling

• Educational / Training Facilities

• General Manufacturing

INCLUDES

• Bridgeport Series I Vertical Milling Machine

• 2 HP Variable-Speed Milling Head

• Southwestern Industries ProtoTRAK MX2 Control

• ProtoTRAK X/Y Axis Drive System

• Approximately 42" T-Slotted Table

• Approximately 6" Machine Vise

• Large Assortment of Collets

• Drill Chuck

• Drill Chuck Arbor

• Tooling & Accessories Shown With Machine

CONDITION

This Bridgeport Series I ProtoTRAK MX2 Vertical Milling Machine is in good overall used industrial condition.

The ProtoTRAK MX2 control powers up properly and is shown operating in the photographs.

The machine is complete with its Bridgeport 2 HP variable-speed head, ProtoTRAK control and axis-drive equipment, vise, collets, drill chuck, and associated tooling.

The machine presents well for a Bridgeport of this vintage and retains the desirable combination of conventional manual operation with ProtoTRAK programmable machining capability.

Machine is running. Additional operational testing can be performed prior to shipment.

Buyer is encouraged to inspect and test the machine prior to purchase.

SHIPPING

We can assist with professional rigging, loading, preparation, and freight quotes upon request.

Please contact us for a Shipping Quote!

We ship anywhere!

WSPT# L-0000-081426-D

P# 081226
