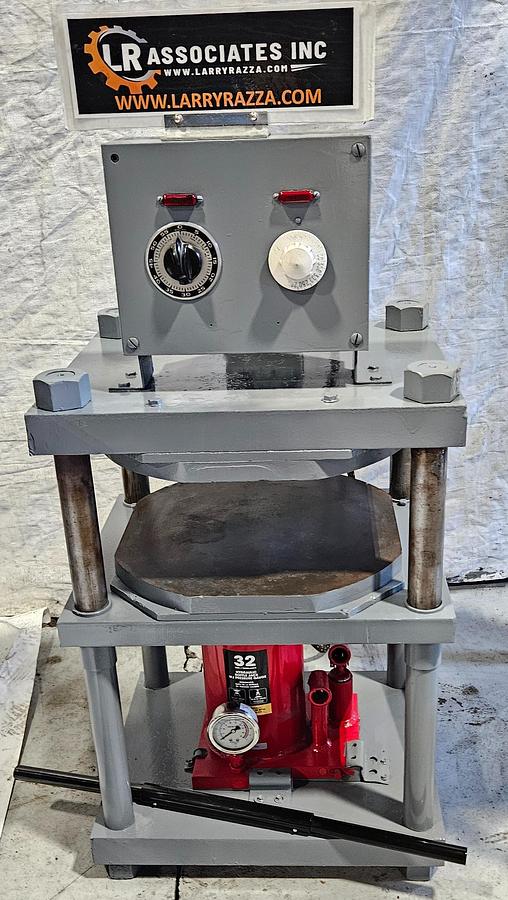

PERTOT 12" RUBBER MOLD VULCANIZER – 32-TON HYDRAULIC PRESS – SPIN CAST MOLD MAKING – FISHING JIGS, SINKERS, WEIGHTS & PEWTER – 220V – REFURBISHED – TESTED & RUNNING

DESCRIPTION

Available for immediate sale is this Pertot 12" Rubber Mold Vulcanizer, professionally refurbished, tested, and running excellent.

This heavy-duty vulcanizing press is designed for producing 12" heat-cured rubber molds used in centrifugal spin casting, and is an excellent machine for manufacturers producing:

• Fishing Jig Heads
• Lead Sinkers
• Fishing Weights
• Lead & Pewter Components
• Jewelry
• Buckles
• Medallions
• Decorative Hardware
• Small Cast Metal Parts
• Prototype & Production Castings

AN EXCELLENT STEP UP FROM INDIVIDUAL HAND-POUR MOLDS

For fishing tackle manufacturers, spin casting can provide a major production advantage over traditional single-cavity or limited-cavity aluminum hand-pour molds.

Instead of individually pouring one or only a few jig heads, sinkers, or weights at a time, a properly designed 12" centrifugal spin-cast rubber mold can contain multiple cavities arranged around the mold.

Molten lead, pewter, or other suitable low-melting-point casting alloy is introduced into the center of the spinning mold, where centrifugal force distributes the metal through runners into the individual cavities.

This allows multiple parts to be cast during a single production cycle, greatly increasing output for repetitive products such as:

• Jig Heads
• Bank Sinkers
• Egg Sinkers
• Pyramid Sinkers
• Bullet Weights
• Specialty Fishing Weights
• Lead Components
• Pewter Components

For a growing fishing tackle manufacturer, this system can provide an economical transition from manual hand pouring to true batch production.

HOW THE VULCANIZER WORKS

The vulcanizer is used to manufacture the rubber production mold that will later be installed in a centrifugal spin casting machine.

A master pattern or group of master patterns is arranged between layers of uncured mold rubber inside an appropriate mold frame.

The mold assembly is then placed between the heated platens of the vulcanizer.

The hydraulic press applies compression while the electrically heated platens bring the rubber to the required curing temperature.

The combination of:

HEAT + PRESSURE + TIME

cures the rubber around the master patterns and produces a durable production mold.

After vulcanization, the mold is removed, separated, and finished by cutting the appropriate center sprue, runners, gates, vents, and other required passages.

The finished rubber mold can then be installed in a compatible 12" centrifugal spin casting machine for production.

SPECIFICATIONS

Manufacturer: Pertot

Machine Type: Rubber Mold Vulcanizing Press

Application: Spin Casting Rubber Mold Production

Nominal Mold Diameter: 12"

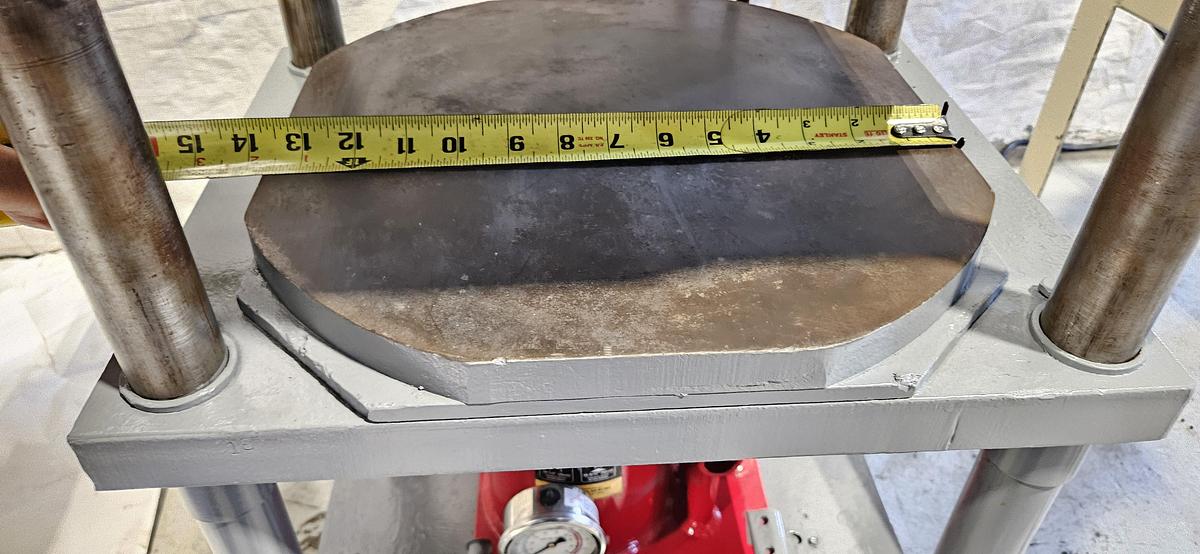

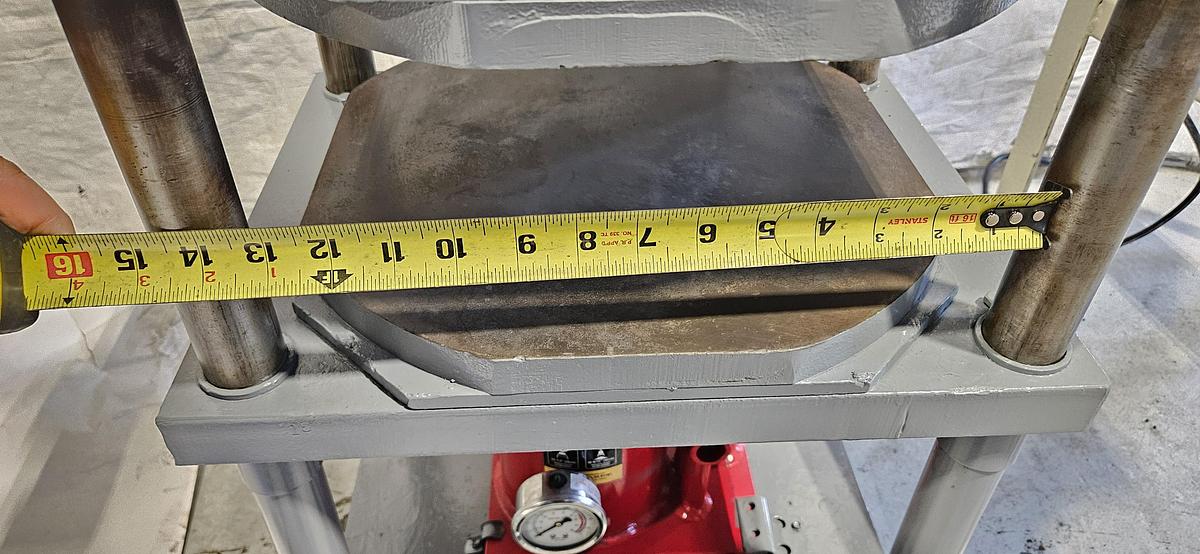

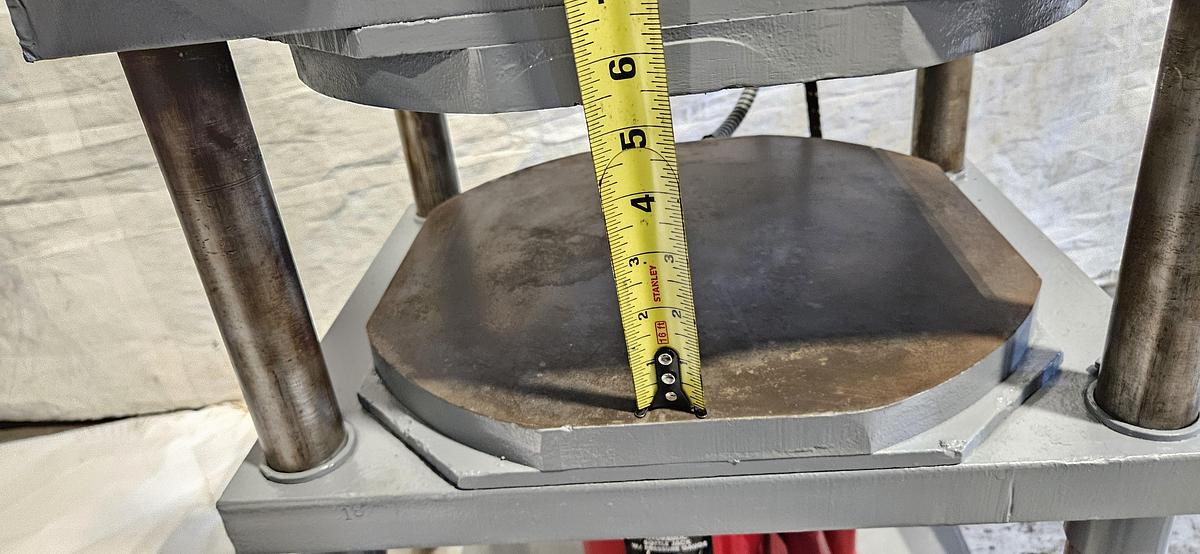

Approximate Platen Diameter: 12"

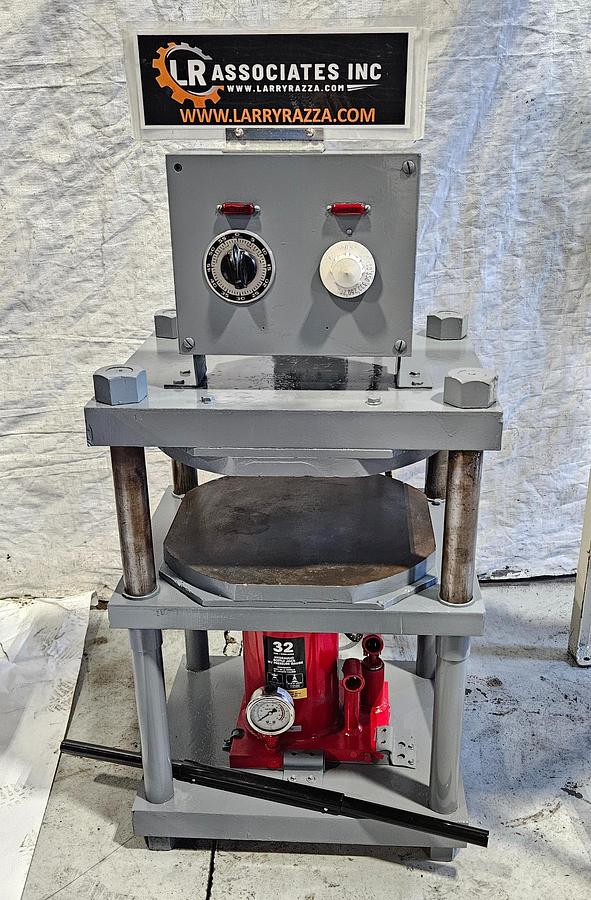

Press Type: Four-Post Hydraulic Vulcanizing Press

Hydraulic Power: Manual Hydraulic Bottle Jack

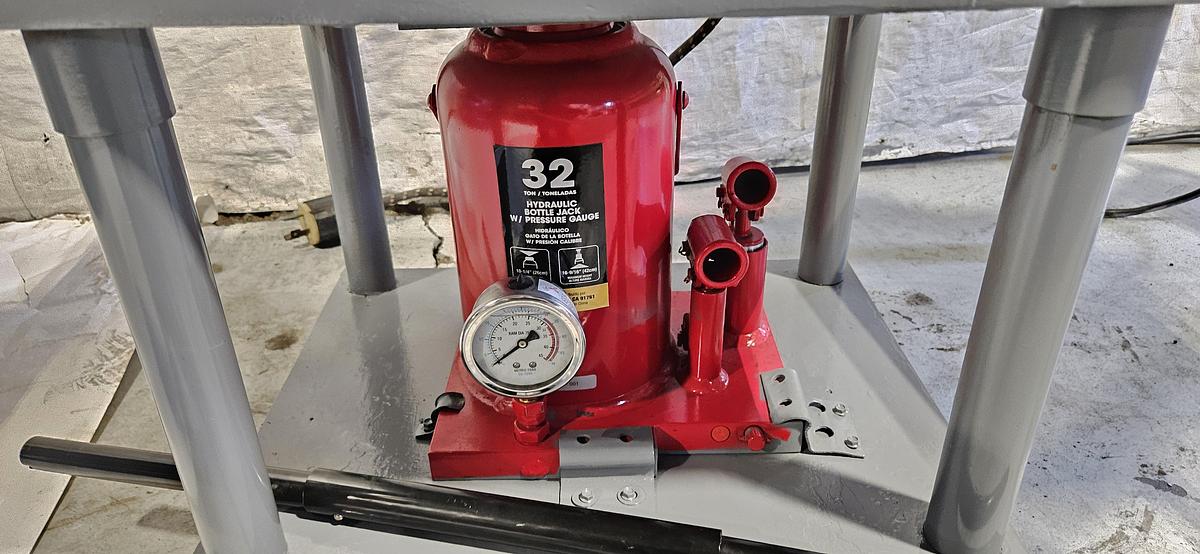

Hydraulic Jack Rating: 32 Tons

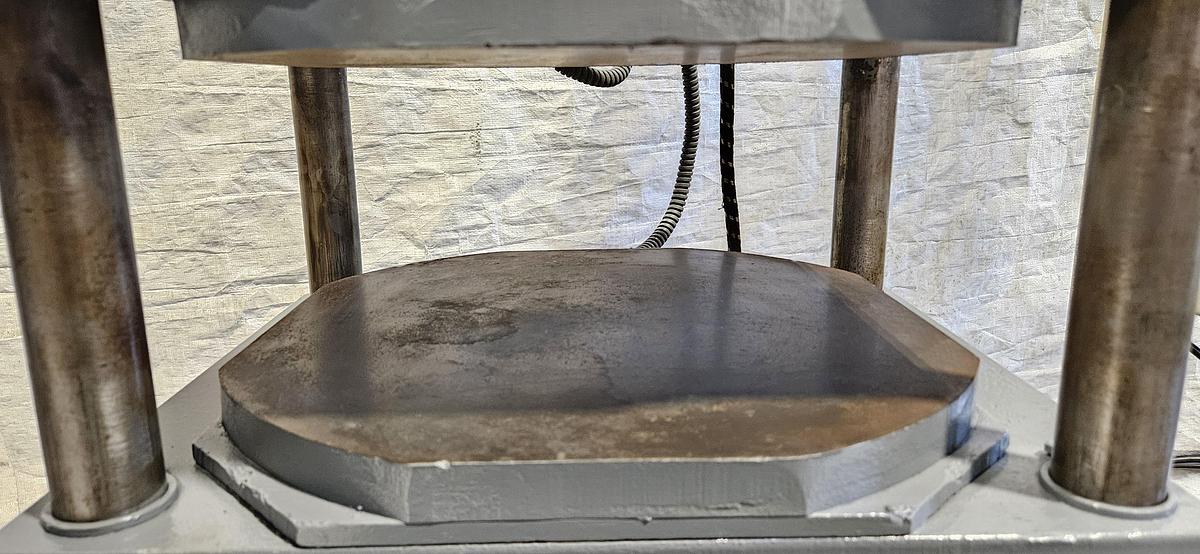

Platen Configuration: Upper & Lower Heated Platens

Heat: Electric

Temperature Control: Adjustable

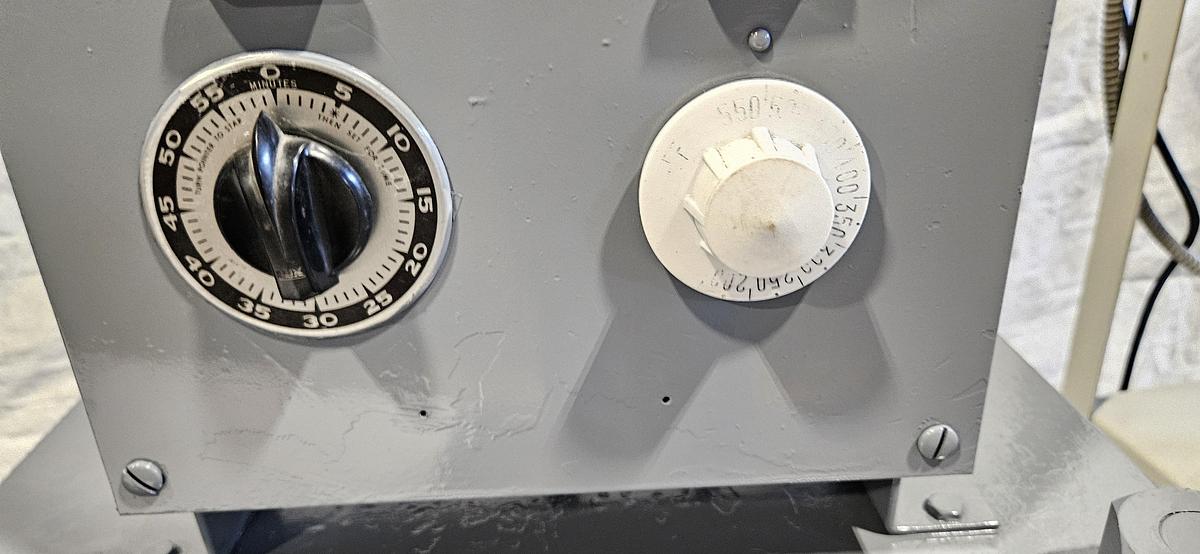

Cure Timer: Adjustable Mechanical Timer

Timer Range: Approximately 0–60 Minutes

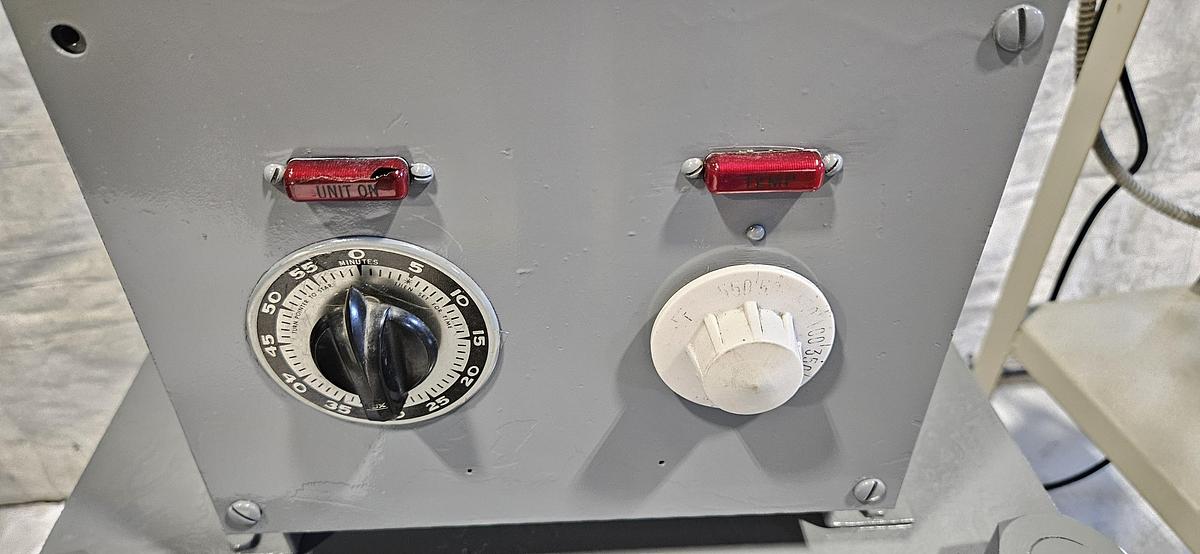

Indicator Lights: Power / Unit On & Temperature

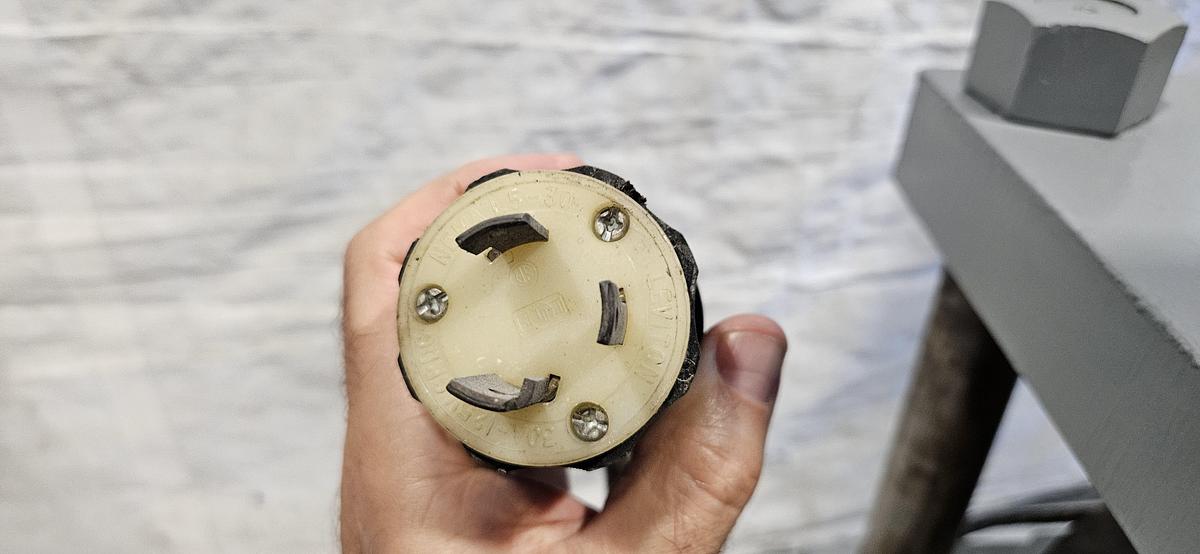

Electrical: 220 Volts

Phase: Single Phase

Heating Load: Approximately 2,350 Watts

Operation: Manual Hydraulic / Electrically Heated

FEATURES

• 12" Spin Casting Mold Capacity
• Heavy-Duty Four-Post Construction
• 32-Ton Rated Hydraulic Bottle Jack
• Heated Upper Platen
• Heated Lower Platen
• Adjustable Temperature Control
• Adjustable Cure Timer
• Temperature Indicator
• Unit-On Indicator
• Manual Hydraulic Pressure Control
• Heavy Steel Platens
• Compact Floor-Standing Design
• Simple Mechanical Construction
• Excellent for Production Mold Making
• 220 Volt Single-Phase Electrical Service
• No Three-Phase Power Required

IDEAL FOR FISHING TACKLE MANUFACTURERS

This machine is particularly attractive to manufacturers currently producing fishing tackle using individual aluminum molds.

A spin casting operation can allow a manufacturer to place numerous jig heads, sinkers, weights, or other components into a single 12" production mold.

Once the mold has been properly developed, the operator can repeatedly cast batches of components rather than manually filling individual cavities one at a time.

For the right product, this can substantially increase production throughput while reducing repetitive hand-pouring labor.

The system is especially useful for manufacturers producing repeat quantities of the same fishing tackle components.

COMPLETE SPIN CASTING SYSTEMS AVAILABLE

WE HAVE MANY OF THESE VULCANIZERS IN STOCK!

L R Associates also stocks additional equipment used to establish or expand a complete centrifugal casting operation.

Depending upon current inventory, we may have:

• 12" Rubber Mold Vulcanizers
• Mold Frames
• Centrifugal Spin Casting Machines
• Lead Melting Furnaces
• Pewter Melting Furnaces
• Mold-Making Equipment
• Casting Accessories
• Related Production Equipment

Whether you need one replacement vulcanizer or equipment for a more complete spin casting operation, please contact us.

MOLD-MAKING VIDEO AVAILABLE

Want to see how the rubber molds are actually produced?

Search Google for:

"Larry Razza Mold Making"

Our mold-making video demonstrates the basic process used to produce spin casting rubber molds with this type of vulcanizer.

CONDITION

REFURBISHED – TESTED – RUNNING EXCELLENT

This Pertot vulcanizer has been professionally refurbished and tested.

The machine has been cleaned, serviced, repainted where appropriate, and checked for proper operation.

The hydraulic press operates properly and the heating / control system has been tested.

The machine presents very well and is ready to be placed back into service.

Please review all photographs carefully for actual condition and configuration.
