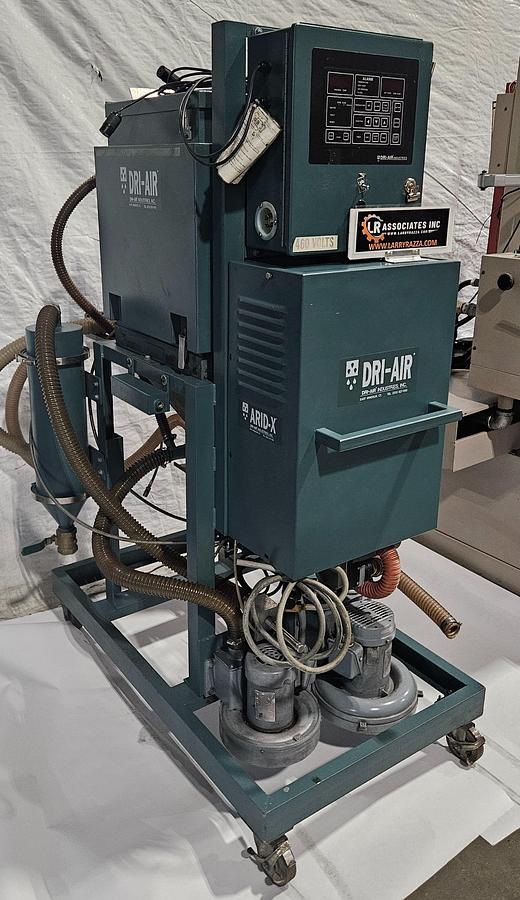

DRI-AIR ARID-X 35 HPPD HIGH-PERFORMANCE / HIGH-TEMPERATURE DESICCANT RESIN DRYER – HOPPER – MATERIAL RECEIVER – DIGITAL DEW POINT CONTROL – 460V – TESTED & RUNNING

DESCRIPTION

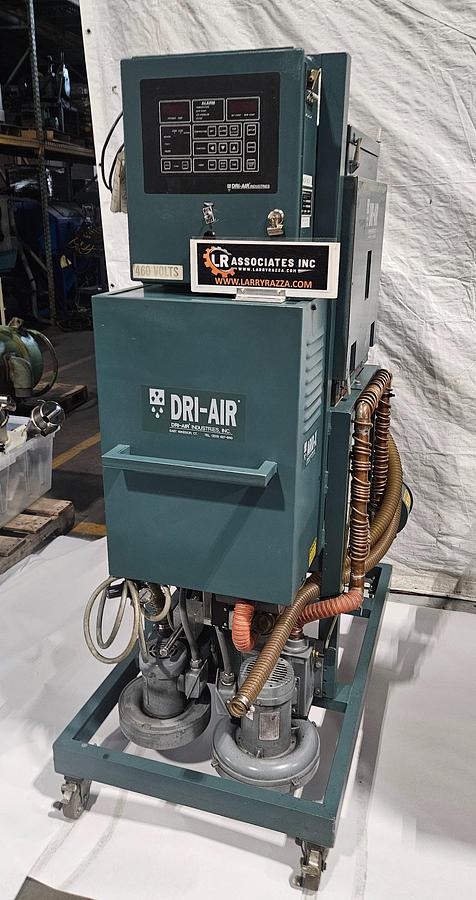

Available for immediate sale is this Dri-Air ARID-X 35 HPPD High-Performance Desiccant Resin Drying System, complete with integrated drying hopper, Dri-Air material receiver, digital process / dew-point control, regenerative desiccant drying system, and mobile floor-mounted frame.

TESTED & RUNNING

This machine has been powered up and operationally tested by L R Associates.

The ARID-X 35 HPPD is designed for demanding plastics processing applications requiring reliable removal of moisture from hygroscopic engineering resins prior to injection molding, extrusion, blow molding, or other processing operations.

The HPPD configuration is a high-performance / high-temperature version of Dri-Air's proven ARID-X desiccant dryer platform, making this unit particularly attractive for processors working with demanding engineering resins and applications requiring elevated drying temperatures.

WHY PROPER RESIN DRYING MATTERS

Many engineering-grade thermoplastic resins absorb moisture directly from the surrounding atmosphere.

Simply heating these materials may not adequately remove internally absorbed moisture.

Processing inadequately dried hygroscopic resin can contribute to:

• Splay
• Silver Streaking
• Bubbles
• Surface Defects
• Reduced Mechanical Properties
• Hydrolytic Degradation
• Dimensional Problems
• Poor Part Appearance
• Inconsistent Processing
• Increased Scrap

A regenerative desiccant dryer removes moisture from the drying air before that air is heated and circulated through the resin, allowing moisture to migrate out of the material before processing.

DRI-AIR ARID-X DESICCANT TECHNOLOGY

The ARID-X series utilizes regenerative desiccant drying technology to provide a continuous supply of low-dew-point process air.

While one desiccant bed is drying the process air, the alternate bed can be regenerated so the dryer can maintain continuous operation.

This approach provides substantially more effective moisture removal from hygroscopic plastics than conventional hot-air-only drying.

Comparable ARID-X 35 systems are rated at approximately 35 CFM process airflow, with low-dew-point drying capability designed for demanding plastics applications.

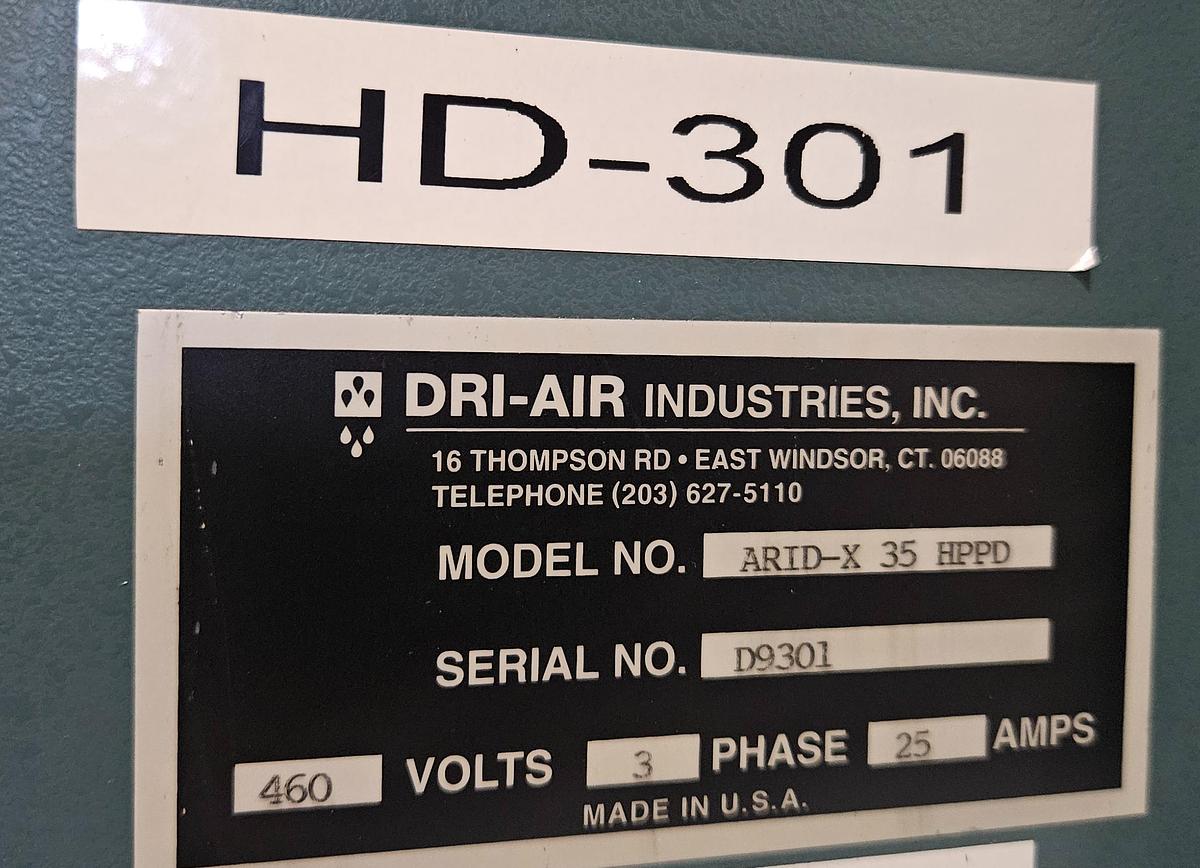

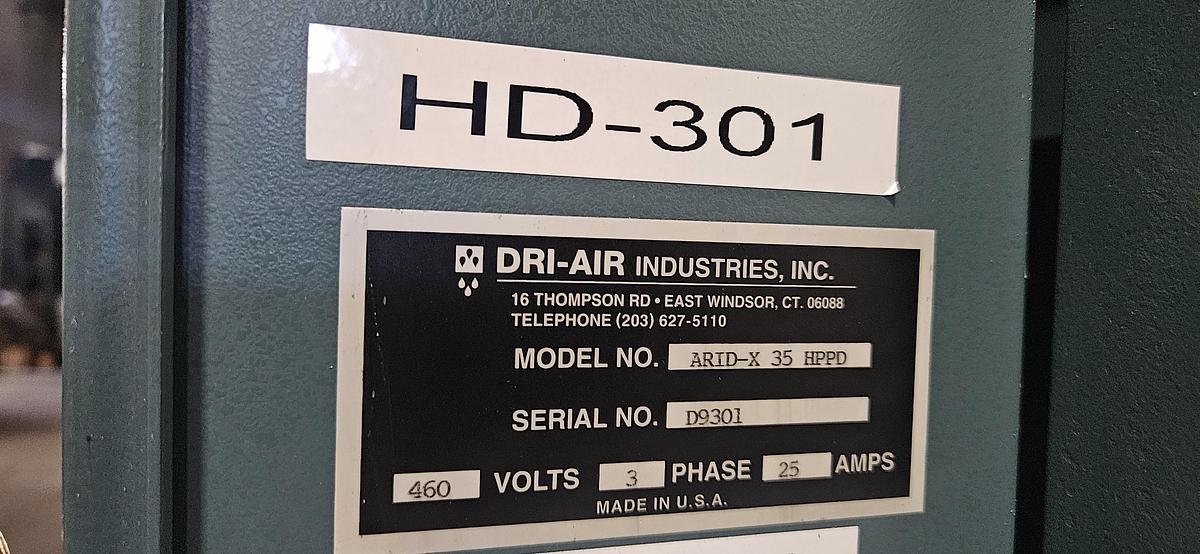

SPECIFICATIONS

Manufacturer: Dri-Air Industries, Inc.

Series: ARID-X

Model: ARID-X 35 HPPD

Serial Number: D9301

Machine Type: High-Performance / High-Temperature Desiccant Resin Dryer

Drying Technology: Regenerative Desiccant

Nominal Dryer Size: ARID-X 35 Class

Approximate Process Airflow: 35 CFM Class

Control: Dri-Air Digital Microprocessor Process Control

Process Temperature Display: Digital

Temperature Set Point: Digital

Dew Point Display / Monitoring: Yes

Alarm Monitoring: Yes

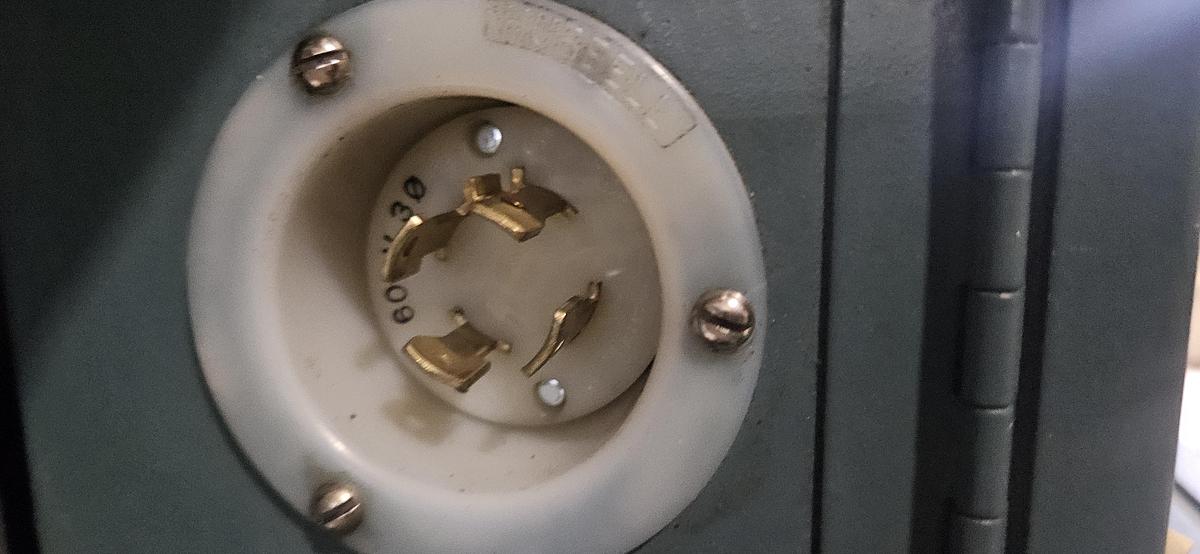

Electrical: 460 Volts

Phase: 3 Phase

Full Load: 25 Amps

Mounting: Heavy-Duty Mobile Floor Frame

Country of Manufacture: USA

HPPD HIGH-PERFORMANCE / HIGH-TEMPERATURE CONFIGURATION

This is not simply a basic ARID-X 35 dryer.

The machine is identified by Dri-Air as:

ARID-X 35 HPPD

The HPPD configuration is intended for higher-performance and elevated-temperature resin drying applications.

This makes the unit particularly useful for processors working with demanding engineering polymers where moisture removal and accurate process-temperature control are critical.

Actual maximum operating temperature should be confirmed for the buyer's specific resin and application.

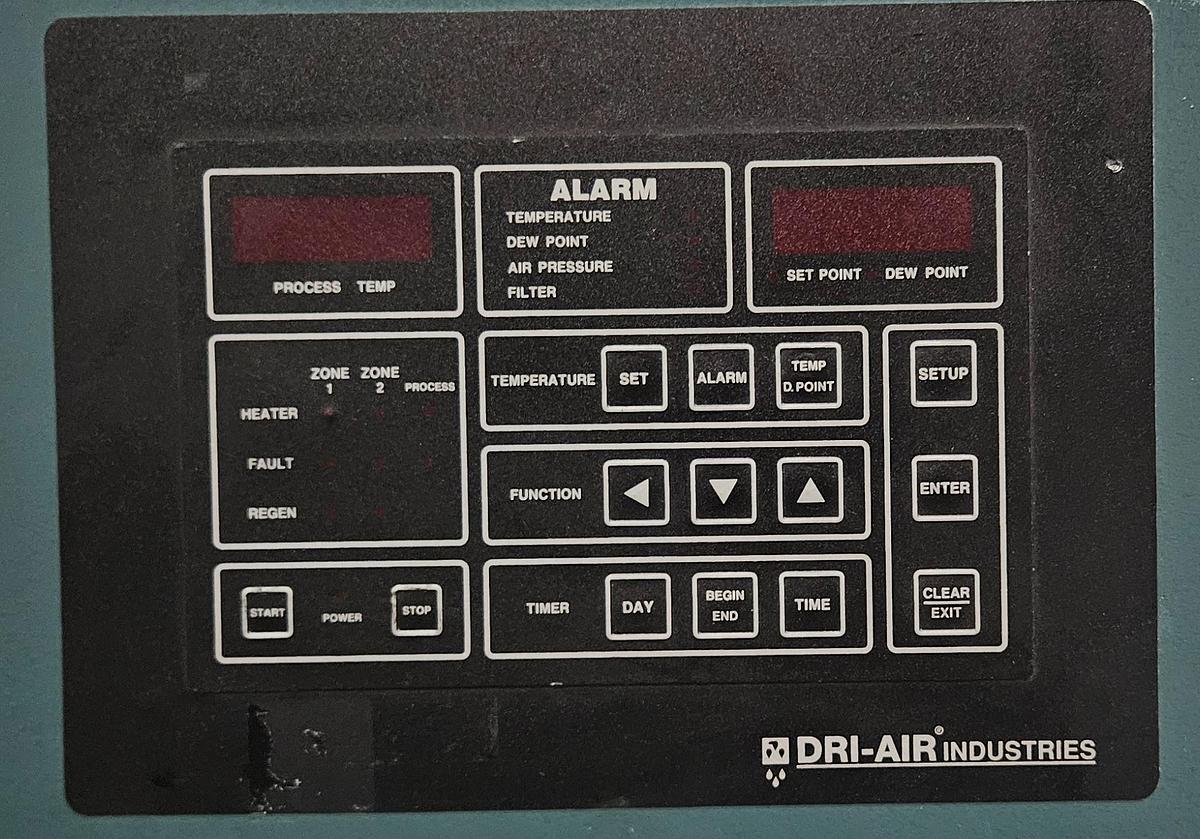

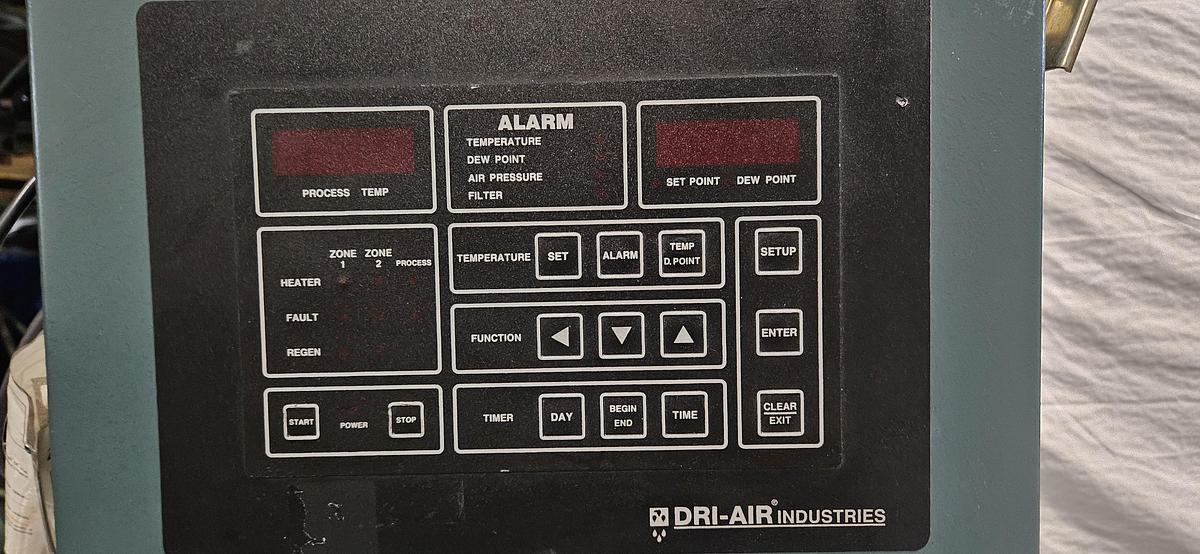

DIGITAL PROCESS & DEW POINT CONTROL

The integrated Dri-Air control provides centralized monitoring and adjustment of the drying process.

Control functions visible on the machine include:

• Process Temperature Display
• Temperature Set Point
• Dew Point Display
• Temperature Alarm
• Dew Point Alarm
• Air Pressure Alarm
• Filter Alarm
• Heater Status
• Heater Fault Monitoring
• Regeneration Status
• Zone 1 Monitoring
• Zone 2 Monitoring
• Process Zone Monitoring
• Timer Functions
• Day Programming
• Begin / End Programming
• Time Programming
• Setup Functions

This is a considerably more sophisticated control package than a basic hot-air resin dryer.

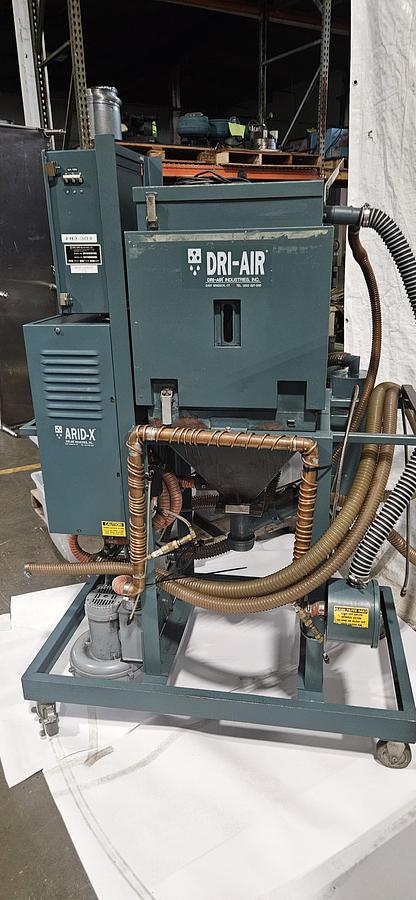

INTEGRATED DRYING HOPPER

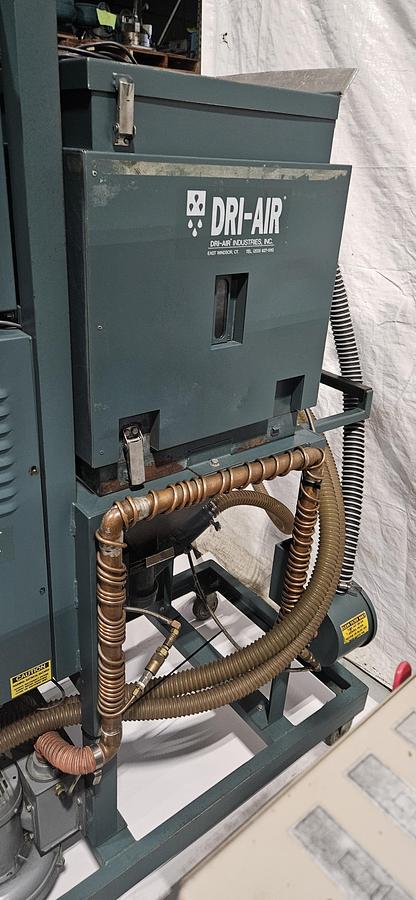

The machine includes a substantial Dri-Air drying hopper mounted directly to the system.

The hopper provides the residence time required for heated, low-dew-point air to pass through the resin and remove absorbed moisture prior to processing.

Features include:

• Insulated Hopper Construction
• Sight Level Window
• Hinged / Removable Access
• Process Air Connections
• Return Air Connections
• Material Discharge
• Integrated Dryer Mounting

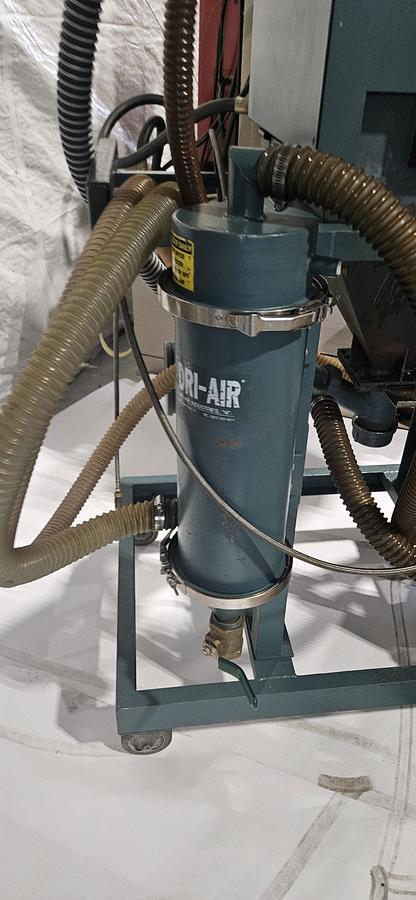

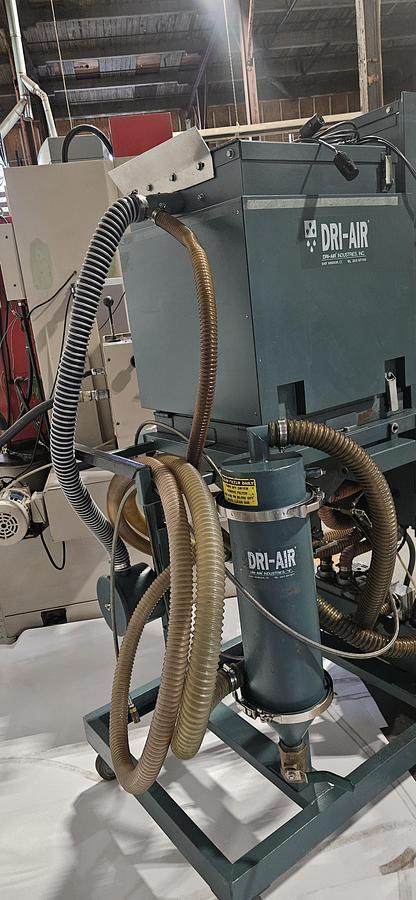

DRI-AIR MATERIAL RECEIVER INCLUDED

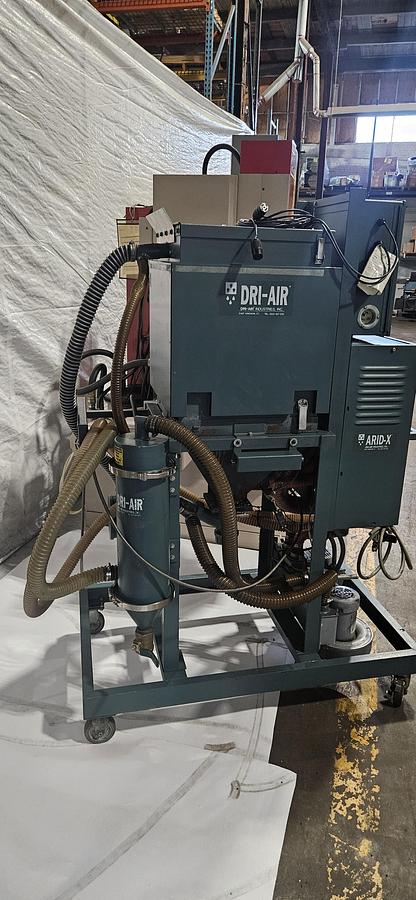

This system also includes a Dri-Air material receiver mounted with the dryer package.

The receiver can be incorporated into a pneumatic resin loading / conveying arrangement to reduce manual handling of material.

This is especially useful when feeding resin from a gaylord, material bin, storage container, or other source into the drying system.

FEATURES

• Dri-Air ARID-X 35 HPPD
• High-Performance Desiccant Drying
• High-Temperature Configuration
• Regenerative Desiccant Technology
• Approximately 35 CFM Dryer Class
• Digital Process Temperature Control
• Digital Dew Point Monitoring
• Temperature Alarm
• Dew Point Alarm
• Air Pressure Alarm
• Filter Alarm
• Dual-Zone Heater Monitoring
• Regeneration Monitoring
• Programmable Timer Functions
• Integrated Drying Hopper
• Dri-Air Material Receiver
• Multiple Process / Return Air Connections
• Heavy-Duty Blower System
• Mobile Steel Frame
• Industrial Casters
• 460 Volt / 3 Phase
• Made in USA
• TESTED & RUNNING

IDEAL FOR ENGINEERING RESINS

Depending upon the manufacturer's recommended drying conditions, this type of desiccant dryer may be used for hygroscopic engineering resins including:

• Nylon / Polyamide
• Polycarbonate
• PET
• PBT
• ABS
• Acetal
• TPU
• Acrylic
• Polyurethane Materials
• Engineering Thermoplastics
• Other Moisture-Sensitive Resins

Drying temperature, residence time, airflow, and dew-point requirements must always be selected according to the resin manufacturer's specifications.

APPLICATIONS

Ideal for use with:

• Injection Molding Machines
• Extrusion Lines
• Blow Molding Equipment
• Engineering Plastics Processing
• Medical Molding
• Automotive Components
• Electrical / Electronic Components
• Precision Plastic Components
• Technical Molding
• Resin Compounding
• Research & Development
• Production Plastics Processing

INCLUDES

This system includes:

• Dri-Air ARID-X 35 HPPD Dryer
• Integrated Digital Process Controller
• Desiccant Drying System
• Drying Hopper
• Dri-Air Material Receiver
• Process Blower System
• Regeneration Blower System
• Process / Return Air Plumbing
• Flexible High-Temperature Hoses
• Mobile Steel Frame
• Industrial Casters
• Related Components Shown in Photographs

Only equipment and accessories specifically pictured or described are included.

CONDITION

GOOD CLEAN CONDITION – TESTED & RUNNING

This Dri-Air ARID-X 35 HPPD has been powered up and tested by L R Associates.

The dryer is complete with its digital control, hopper, material receiver, blowers, desiccant system, hoses, frame, and related components as pictured.

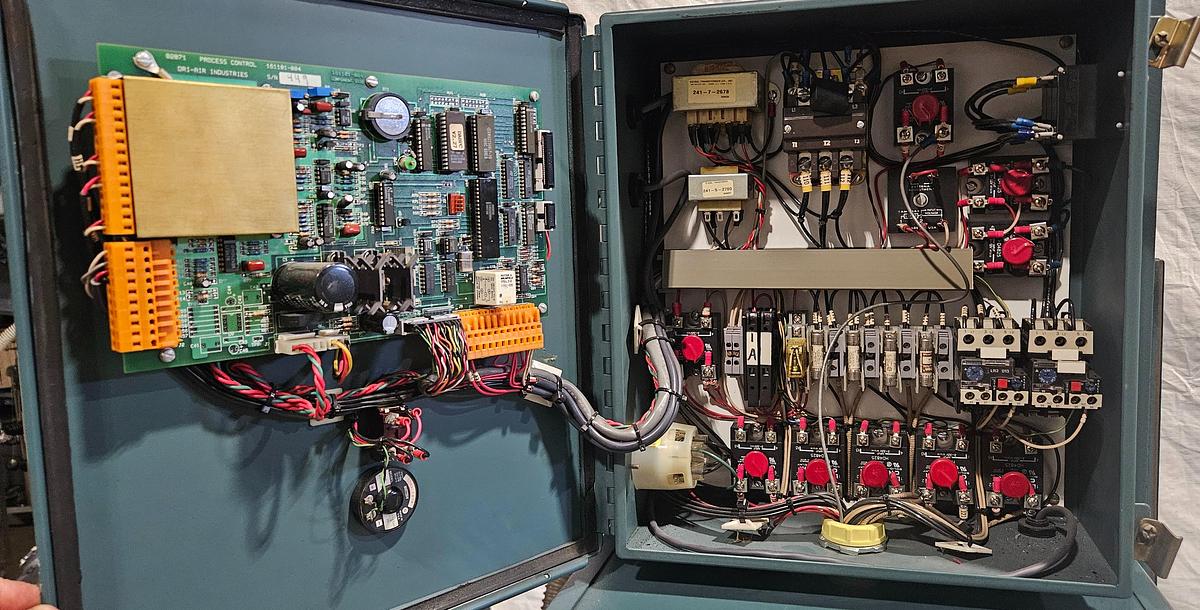

The electrical control cabinet appears clean and complete, with circuit boards, contactors, overloads, transformers, relays, and wiring in place.

The machine presents very well for its age and is being offered as a tested, operating industrial resin drying system.

Please review all photographs carefully for actual condition and configuration.

ADDITIONAL DRI-AIR EQUIPMENT AVAILABLE

WE STOCK A LARGE SELECTION OF DRI-AIR EQUIPMENT

L R Associates regularly has additional plastics material-handling and drying equipment available, including:

• Dri-Air Desiccant Dryers
• High-Temperature Dryers
• Stainless-Steel Drying Hoppers
• Vacuum Receivers
• Material Receivers
• Vacuum Loaders
• Pneumatic Resin Loaders
• Material Conveying Hose
• Hopper Adapters
• Dryer Components
• Complete Dryer / Hopper / Loader Systems

If this particular dryer is not the correct size for your application, please contact us with your requirements.

We may have another Dri-Air system available that is a better match.
