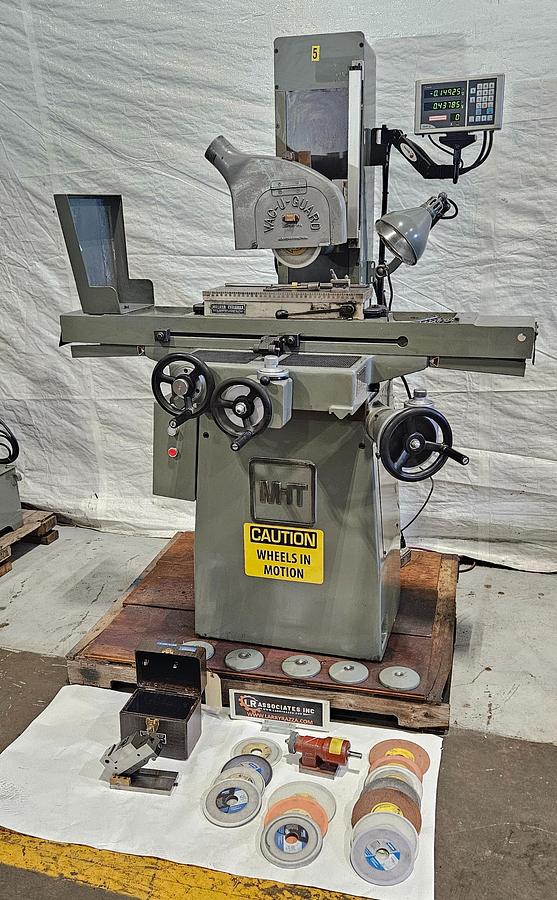

MITSUI HIGH-TEC MSG-205MH 6" × 18" PRECISION SURFACE GRINDER – FAGOR 2-AXIS DRO – WALKER CERAMAX MAGNETIC CHUCK – PRECISION SINE VISE – EXTRA WHEELS, HUBS & TOOLING – 220V 3 PHASE – TESTED & RUNNING

DESCRIPTION

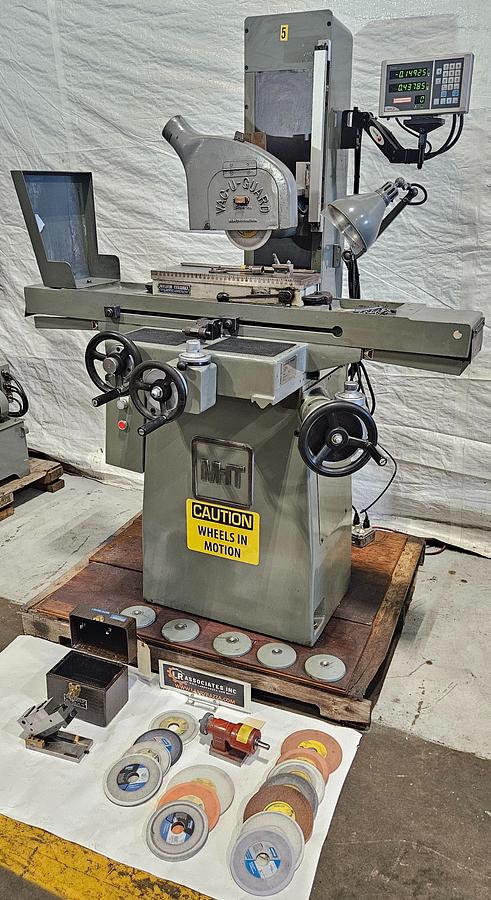

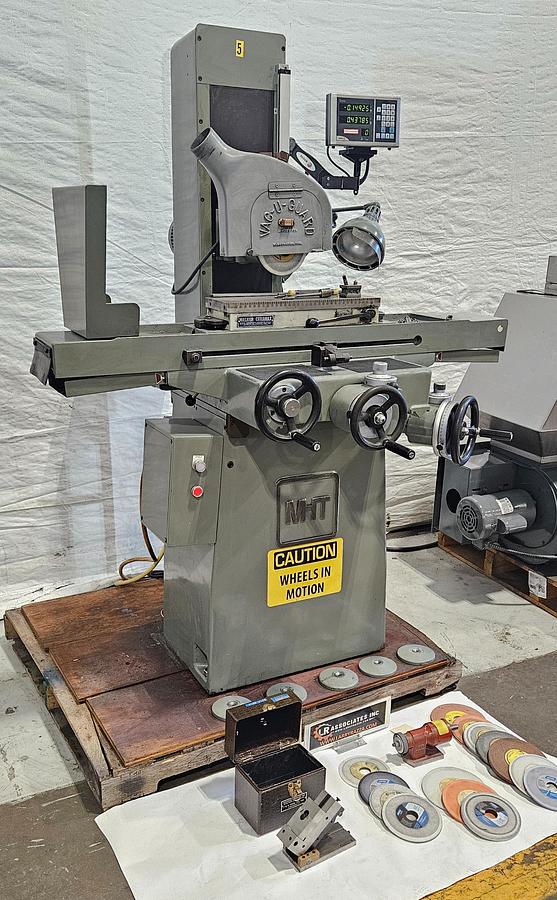

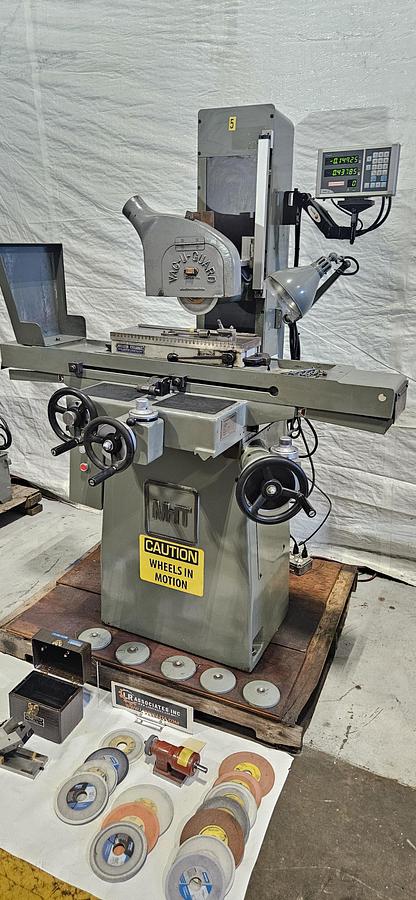

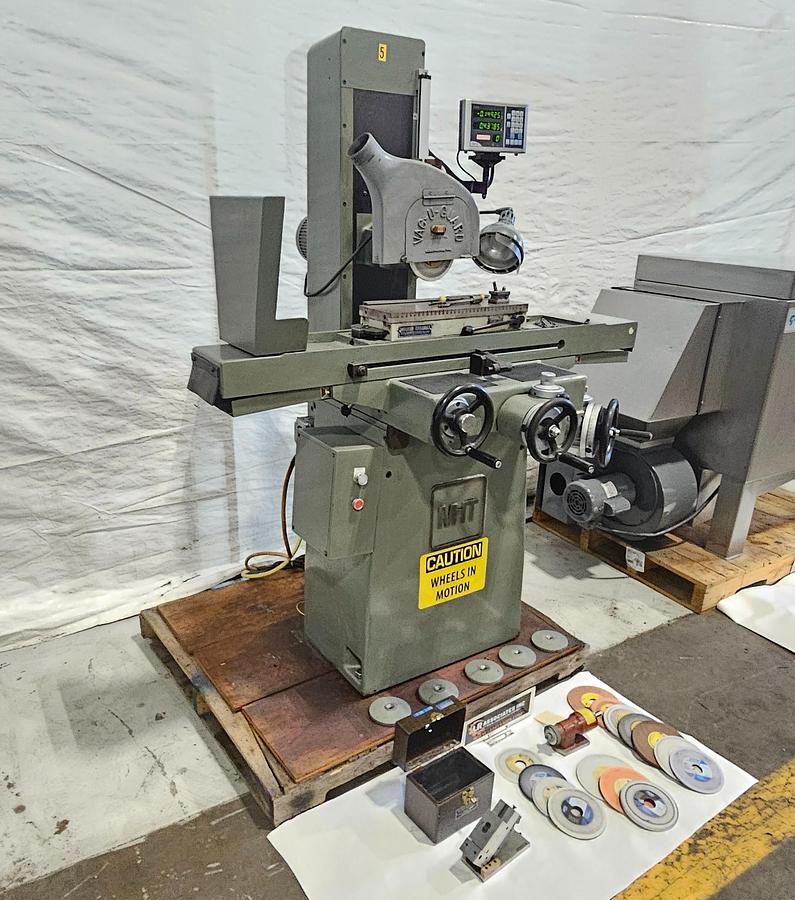

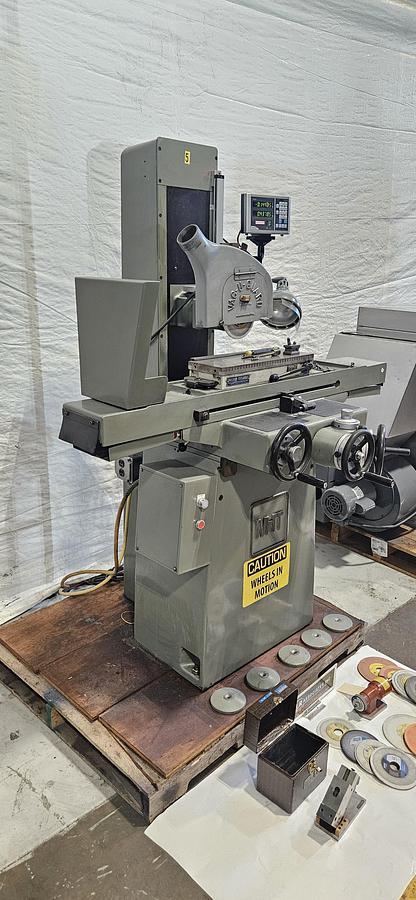

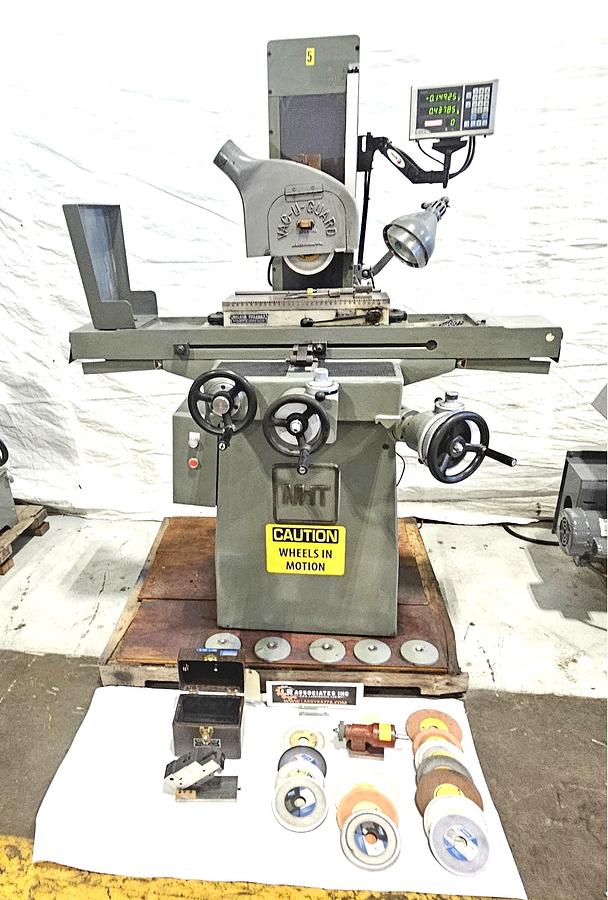

Available for immediate sale is this Mitsui High-Tec MSG-205MH Precision Surface Grinder, equipped with a Fagor Innova 20i-T 2-Axis Digital Readout, approximately 6" × 18" Walker Ceramax Permanent Magnetic Chuck, automatic lubrication system, precision fine downfeed, work light, precision grinding / sine vise, and an extensive assortment of grinding wheels, wheel hubs, tooling, and accessories.

TESTED & RUNNING EXCELLENT

This machine has been powered up, operated, and tested by L R Associates and is running properly.

The Mitsui MSG series is highly regarded throughout the precision grinding industry for its rigid construction, precision spindle, smooth hand-feed operation, fine downfeed capability, and ability to produce extremely accurate flat surfaces and close tolerances.

Manufactured in Kitakyushu, Japan, the MSG-205MH is an excellent choice for mold shops, tool & die facilities, precision machine shops, maintenance departments, and production environments requiring a high-quality manual surface grinder.

This particular machine is especially attractive because it is being offered as a very complete toolroom package, including numerous extra grinding wheels, wheel hubs / adapters, precision sine vise with original fitted case, additional grinding / spindle attachment, setup tools, and related accessories.

SPECIFICATIONS

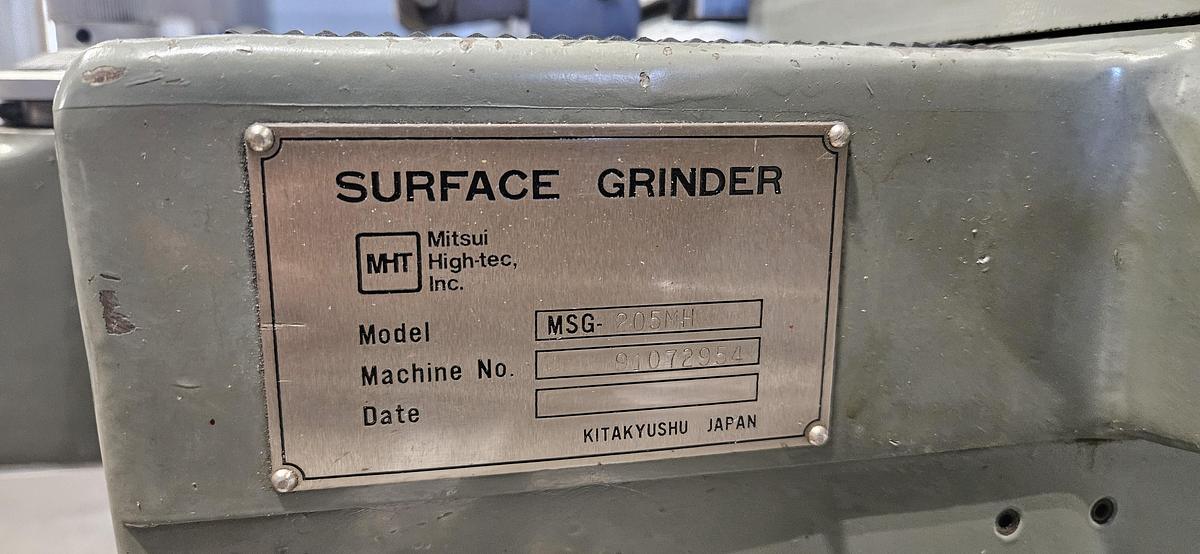

Manufacturer: Mitsui High-Tec, Inc.

Machine Type: Precision Surface Grinder

Model: MSG-205MH

Machine Number: 01072954

Table / Chuck Class: 6" × 18"

Magnetic Chuck: Walker Ceramax Permanent Magnetic Chuck

Approximate Magnetic Chuck Size: 6" × 18"

Digital Readout: Fagor Innova 20i-T

DRO Configuration: 2-Axis – X & Z

Table Travel: Approximately 19" Longitudinal Class

Cross Travel: Approximately 7" Class

Vertical Downfeed: Precision Manual

Fine Downfeed Dial: 0.00005" Per Division

Graduated Positioning Dial: 0.0001" Graduations

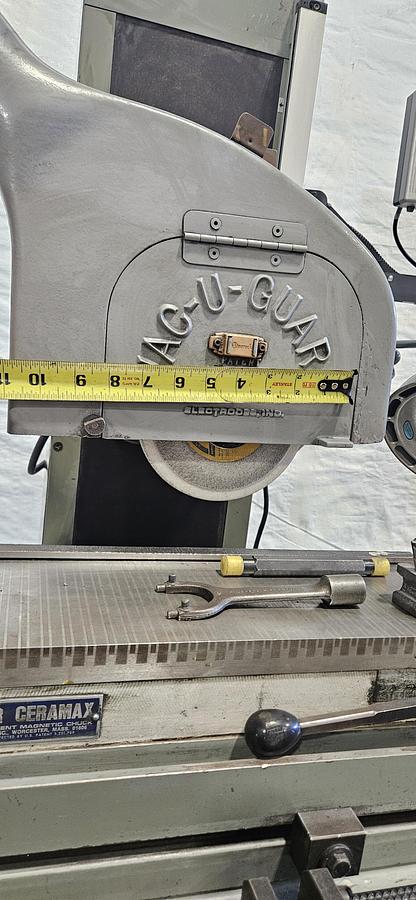

Grinding Wheel Diameter: Approximately 7" Class

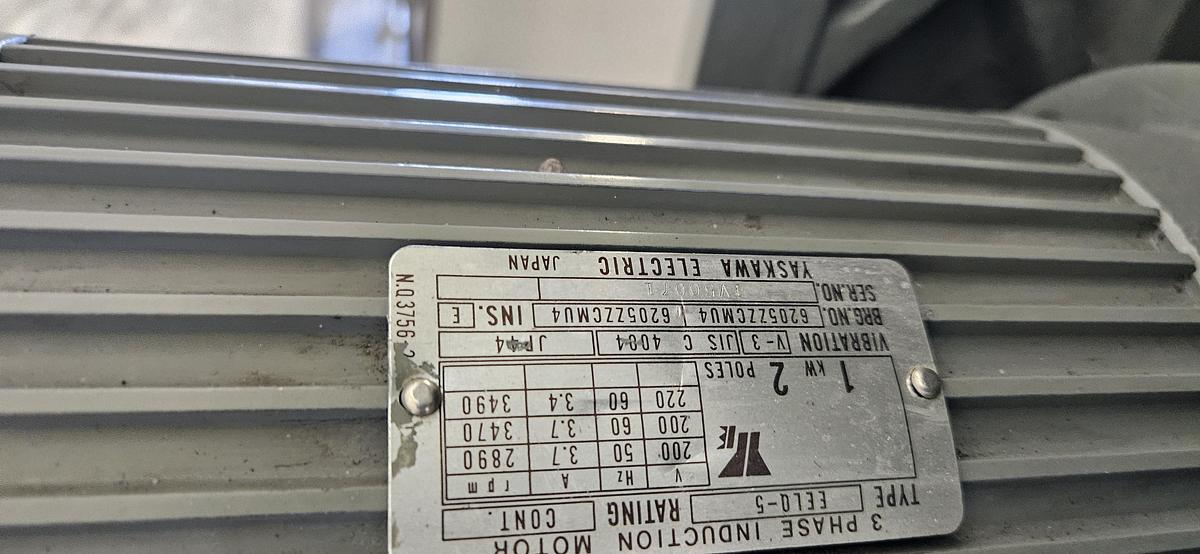

Spindle Motor: 1 kW

Motor Type: 3-Phase Induction

Motor Poles: 2

Electrical: 220 Volts

Phase: 3 Phase

Frequency: 60 Hz

Spindle Motor Speed: Approximately 3,490 RPM

Lubrication: Automatic Lubrication System

Country of Manufacture: Japan

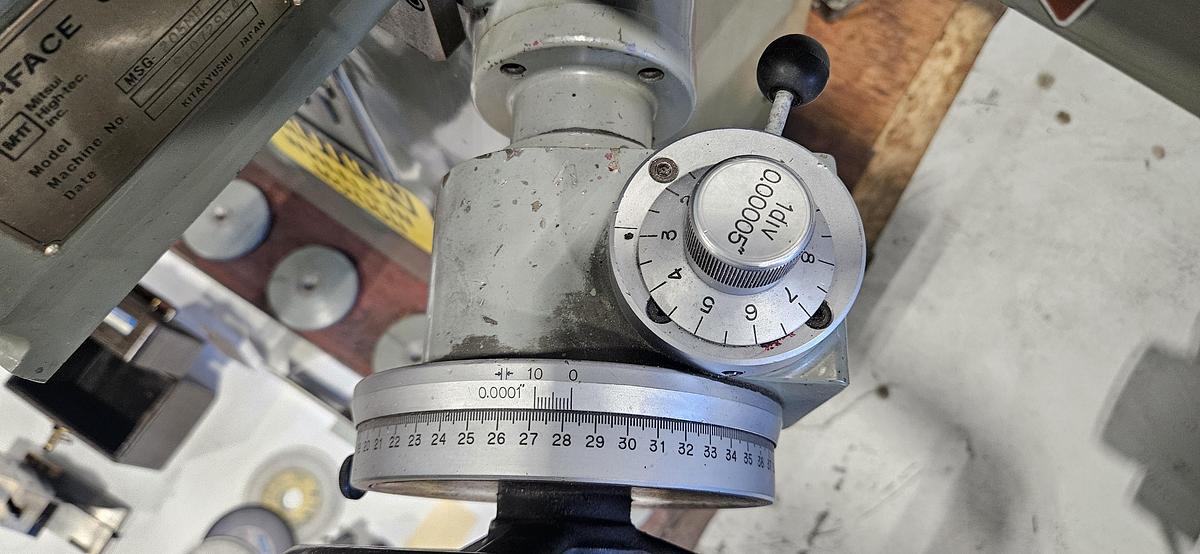

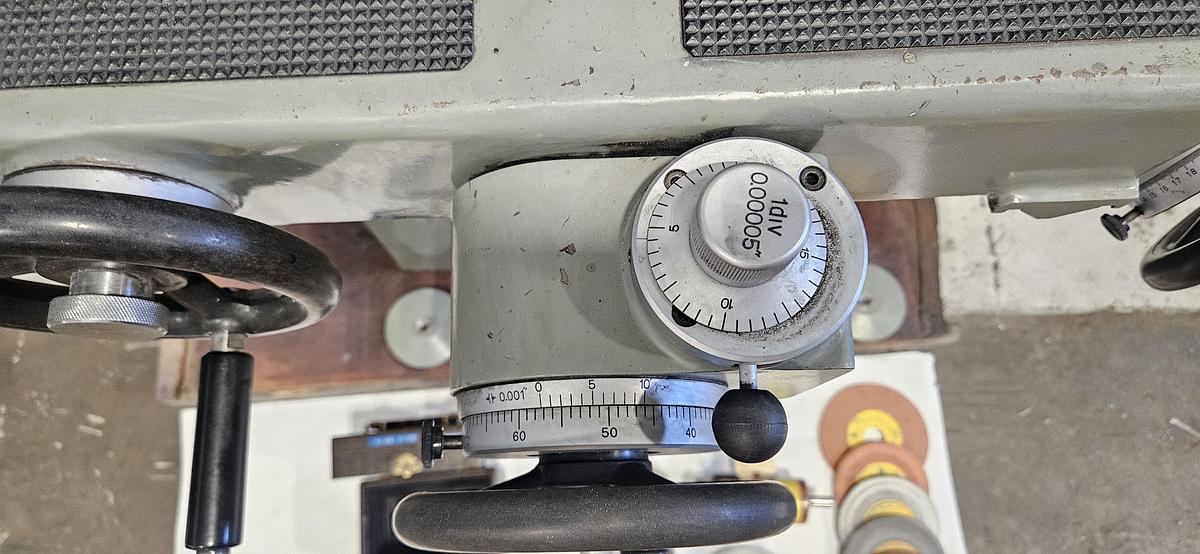

PRECISION 0.00005" FINE DOWNFEED

One of the important features of this Mitsui is its extremely fine vertical downfeed control.

The fine-feed dial is graduated at:

0.00005" PER DIVISION

This allows the operator to make extremely small, controlled incremental passes for precision finishing, sizing, toolroom work, and close-tolerance grinding.

This fine mechanical control is one of the characteristics that makes the Mitsui MSG series particularly desirable for precision grinding applications.

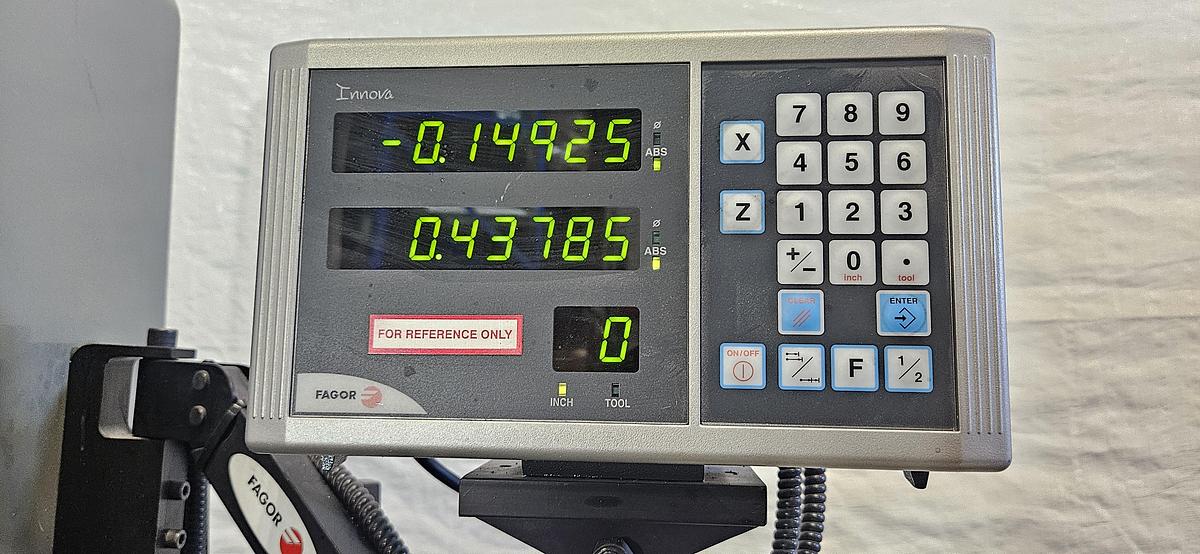

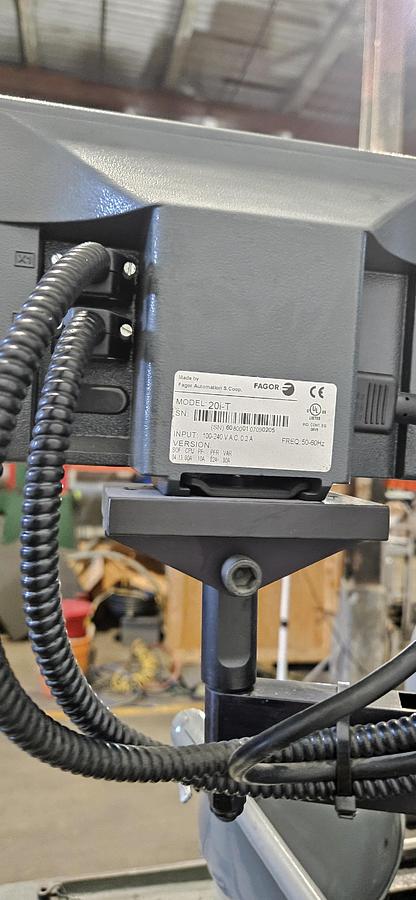

FAGOR INNOVA 20i-T 2-AXIS DIGITAL READOUT

The grinder is equipped with a Fagor Innova Model 20i-T Digital Readout System.

The DRO is powered and operating as shown in the photographs.

The digital readout provides precise position information for the machine axes and greatly simplifies:

• Precision Positioning
• Repeatable Setup
• Incremental Grinding
• Dimension Tracking
• Zero Setting
• Absolute / Incremental Measurements
• Close-Tolerance Work
• Reduced Dependence on Manual Dial Calculations

This is a substantial upgrade over a basic manual surface grinder relying exclusively on handwheel graduations.

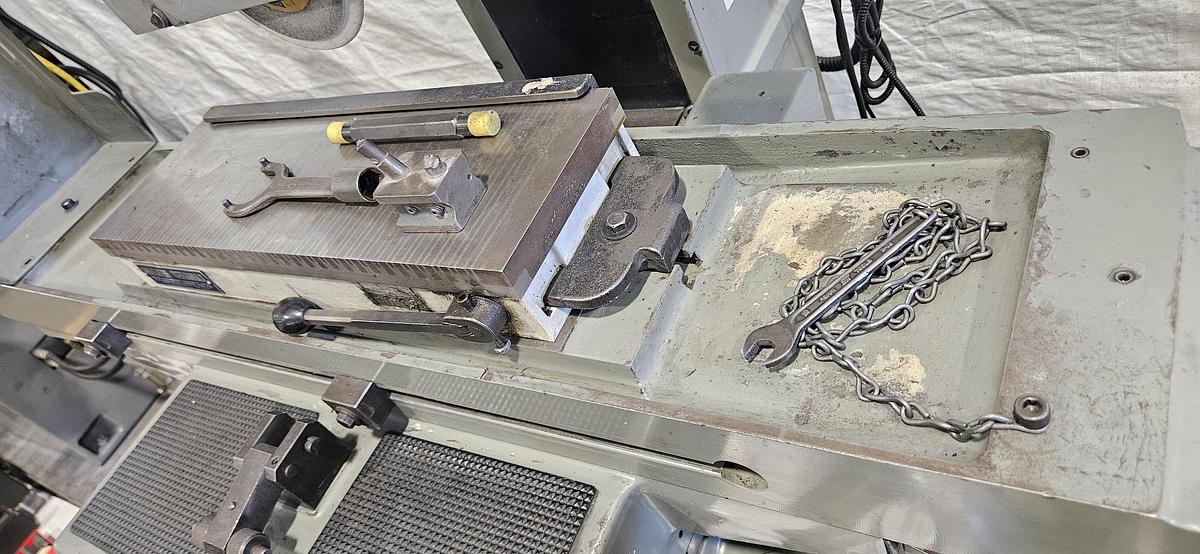

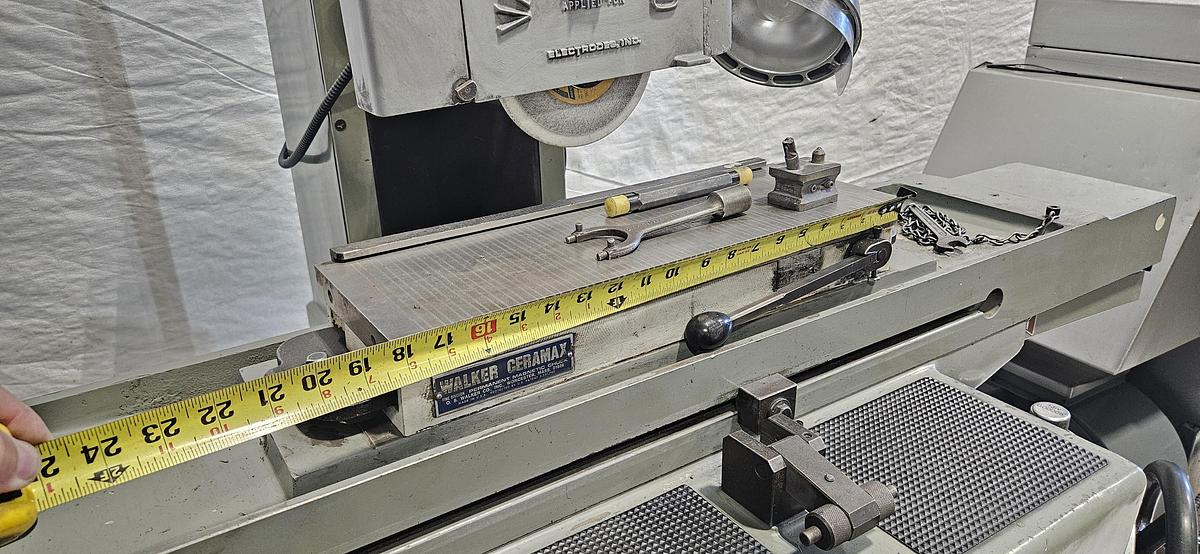

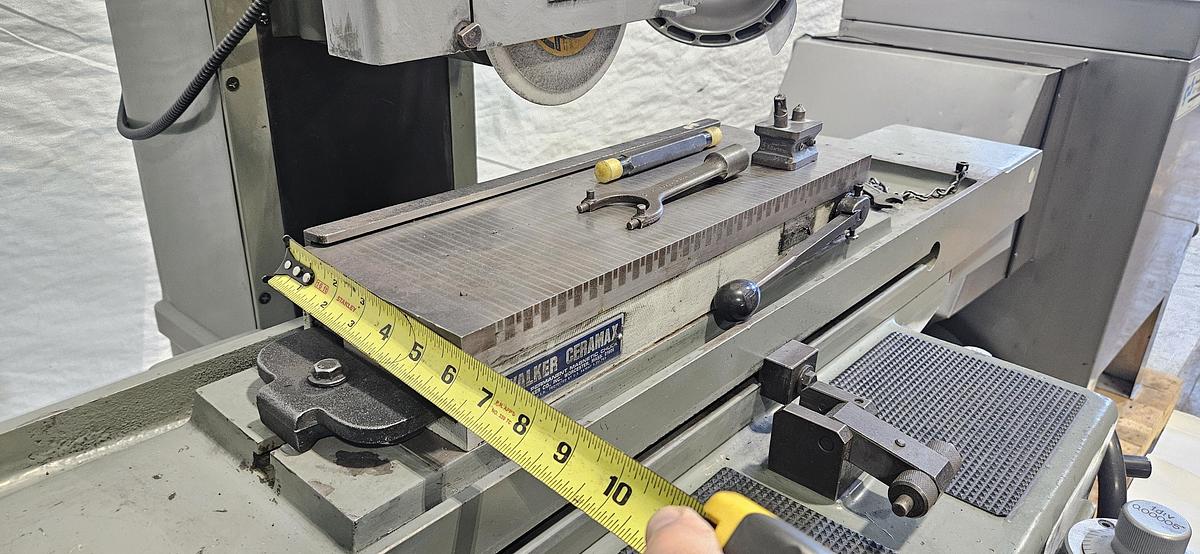

WALKER CERAMAX PERMANENT MAGNETIC CHUCK

The machine is equipped with a quality Walker Ceramax Permanent Magnetic Chuck measuring approximately:

6" × 18"

The Walker Ceramax provides secure workholding for ferrous components during precision surface grinding.

The permanent magnetic design also eliminates the need for a separate electrical magnetic chuck controller.

Walker magnetic chucks are widely used throughout the precision grinding and toolroom industries and are a desirable addition to this machine.

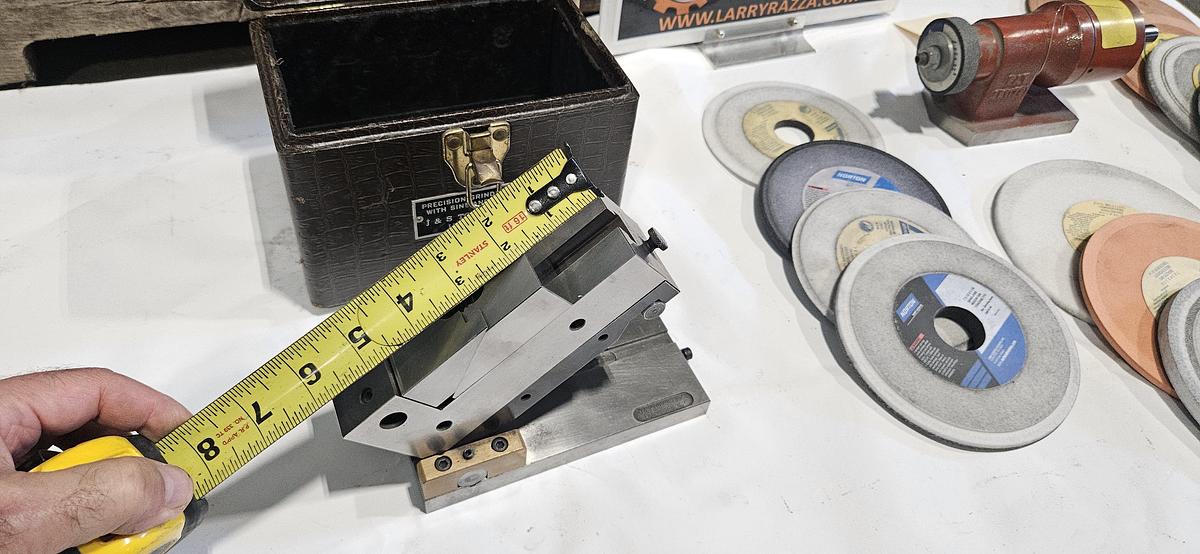

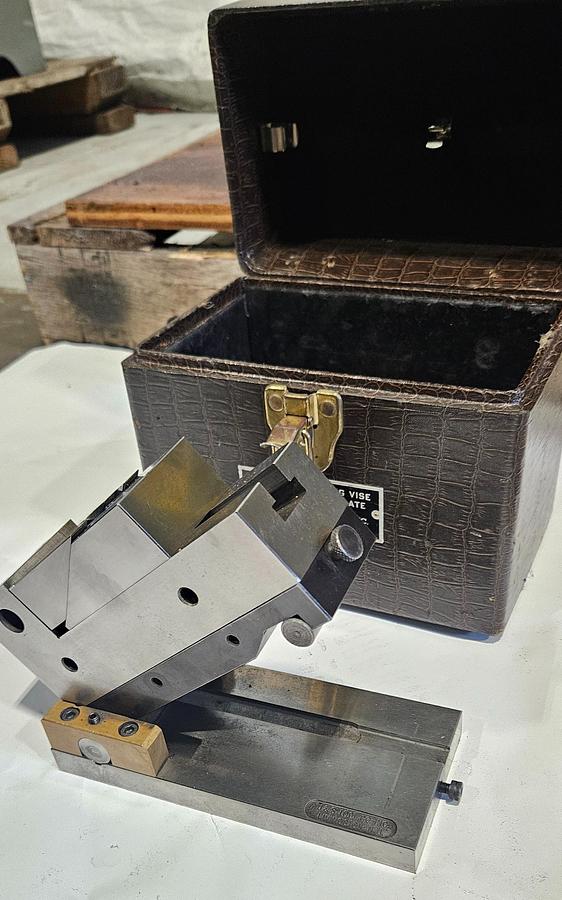

PRECISION SINE VISE INCLUDED

A particularly valuable accessory included with this grinder is the:

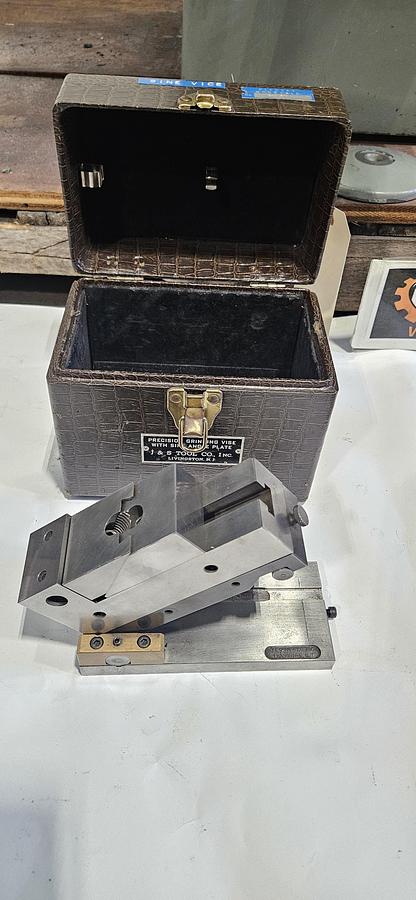

J & S TOOL CO. PRECISION GRINDING VISE WITH SINE ANGLE PLATE

The vise includes its original fitted storage case.

A precision sine vise allows components to be accurately positioned at controlled angles for grinding operations that cannot be performed with the workpiece lying flat directly on the magnetic chuck.

Typical applications include:

• Precision Angle Grinding
• Tool & Die Work
• Punches
• Dies
• Mold Components
• Gauge Work
• Small Precision Components
• Toolroom Applications
• Inspection Tooling

This is a valuable precision accessory that would normally need to be purchased separately.

EXTENSIVE GRINDING WHEEL PACKAGE

NUMEROUS EXTRA GRINDING WHEELS INCLUDED

This machine comes with a substantial assortment of grinding wheels in various sizes, compositions, and grades.

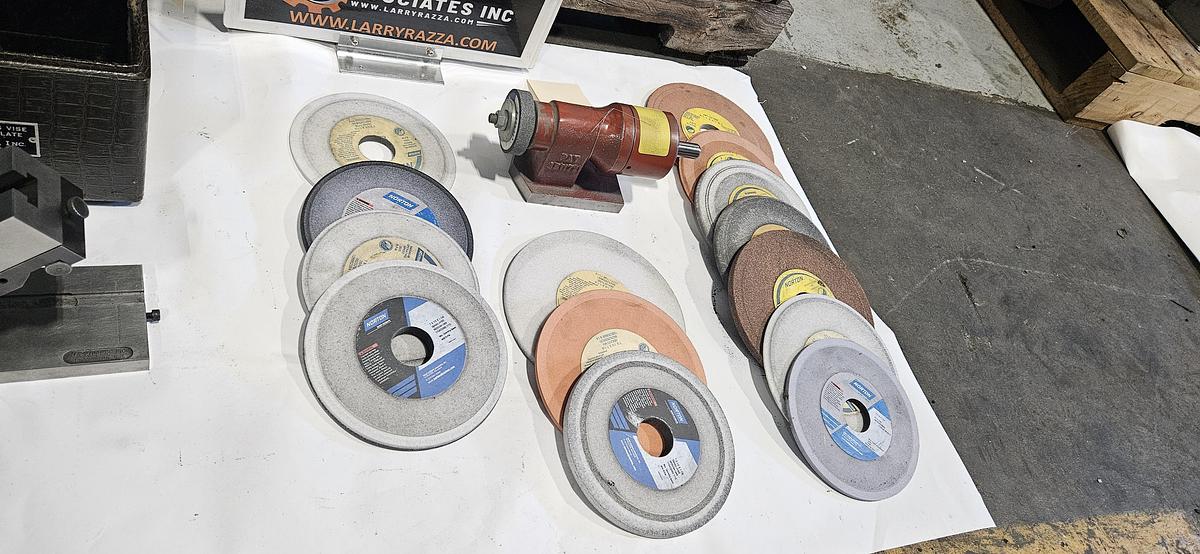

The photographs show numerous industrial grinding wheels, including Norton wheels and other quality abrasives.

The assortment provides the buyer with a useful selection for different grinding applications and materials.

Also included are multiple:

• Grinding Wheels

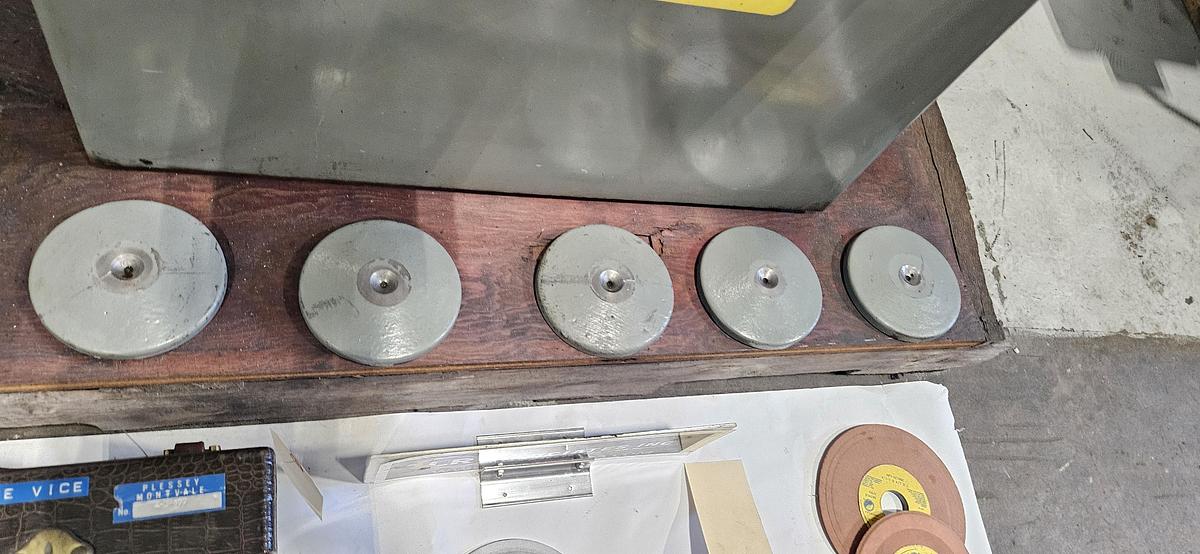

• Wheel Hubs
• Wheel Adapters
• Mounted Wheel Assemblies
• Related Grinding Tooling

Having multiple hubs can be particularly useful because different grinding wheels can remain mounted and prepared for faster changeover between jobs.

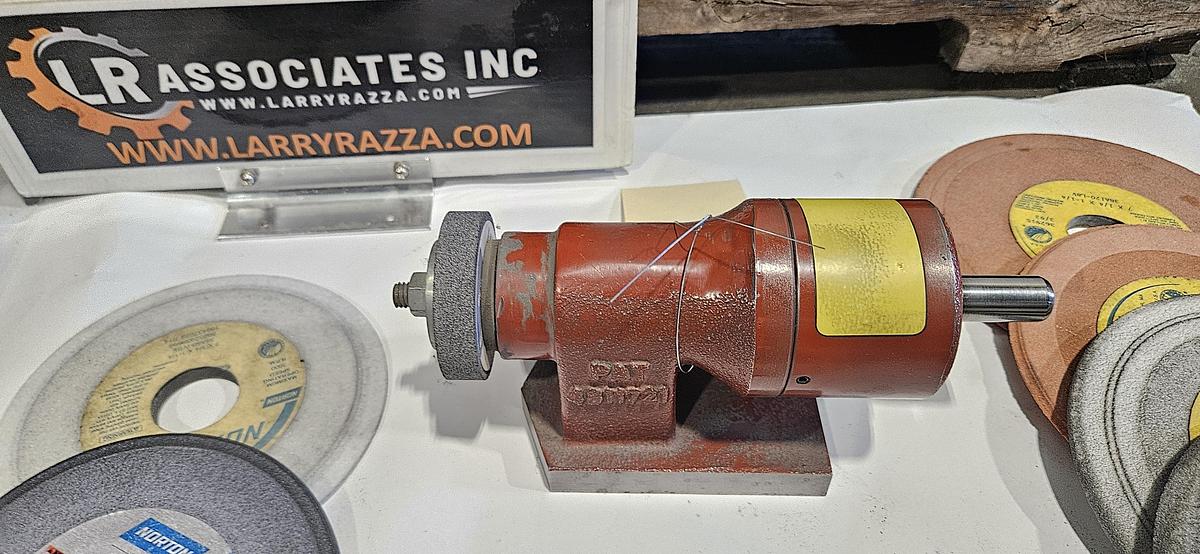

ADDITIONAL GRINDING / SPINDLE ATTACHMENT

Also included is the separate precision grinding / spindle attachment shown in the photographs.

This accessory adds additional flexibility for specialized grinding and toolroom operations.

The attachment is supplied as pictured and should be evaluated by the buyer for their particular intended application.

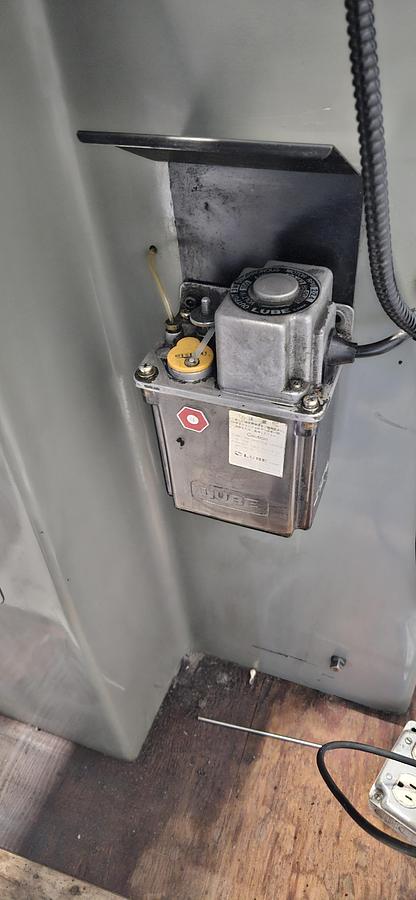

AUTOMATIC LUBRICATION SYSTEM

The machine is equipped with an automatic lubrication system that provides metered lubrication to critical machine components.

Proper way lubrication is particularly important on a precision surface grinder because smooth, consistent machine movement directly affects:

• Surface Finish
• Table Movement
• Accuracy
• Repeatability
• Way Life
• Long-Term Machine Condition

The automatic lubrication system reduces reliance on repetitive manual lubrication and helps protect the machine's precision sliding surfaces.

FEATURES

• Mitsui High-Tec MSG-205MH
• Precision 6" × 18" Class Surface Grinder
• Made in Japan
• Fagor Innova 20i-T 2-Axis DRO
• Walker Ceramax 6" × 18" Permanent Magnetic Chuck
• Precision Manual Longitudinal Feed
• Precision Cross Feed
• Precision Vertical Downfeed
• 0.00005" Fine Downfeed Graduations
• 0.0001" Graduated Positioning Dial
• 1 kW Precision Grinding Spindle
• Approximately 3,490 RPM Spindle Motor
• Automatic Lubrication System

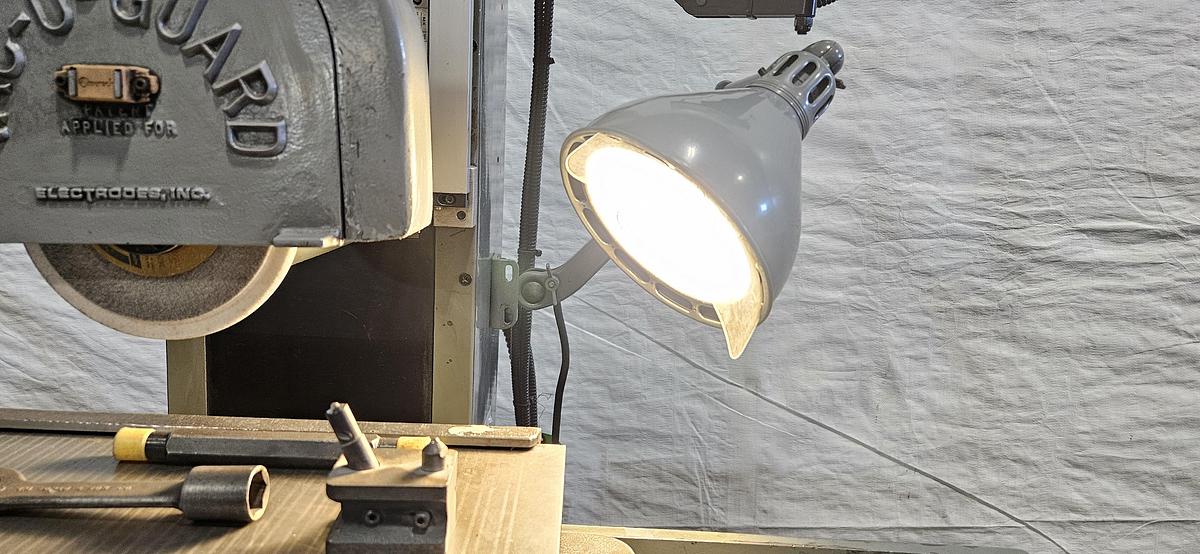

• Adjustable Work Light
• Heavy Cast-Iron Construction
• Precision Handwheel Controls
• Extensive Grinding Wheel Package
• Multiple Wheel Hubs / Adapters
• Precision Sine Vise
• Original Sine Vise Storage Case
• Additional Grinding / Spindle Attachment
• Setup Tools & Accessories
• 220 Volt / 3 Phase
• TESTED & RUNNING

IDEAL APPLICATIONS

The Mitsui MSG-205MH is an excellent choice for:

• Tool & Die Shops
• Mold Shops
• Precision Machine Shops
• Aerospace Manufacturing
• Medical Manufacturing
• Gauge Manufacturing
• Toolrooms
• Maintenance Departments
• Research & Development
• Prototype Manufacturing
• Punch & Die Grinding
• Fixture Manufacturing
• Precision Flat Grinding
• Small Production Components
• Surface Finishing
• Close-Tolerance Machining

INCLUDES

This machine is being offered with the extensive tooling and accessory package shown, including:

• Mitsui MSG-205MH Surface Grinder
• Fagor Innova 20i-T 2-Axis DRO
• Walker Ceramax Permanent Magnetic Chuck
• J & S Precision Grinding / Sine Vise
• Original Fitted Sine Vise Storage Case
• Numerous Grinding Wheels
• Multiple Wheel Hubs / Adapters
• Additional Grinding / Spindle Attachment
• Setup Tools
• Wheel-Change Tools
• Automatic Lubrication System
• Adjustable Work Light
• Additional Accessories Shown in Photographs

VERY COMPLETE TOOLROOM GRINDING PACKAGE

Rather than purchasing a bare surface grinder and then sourcing the required workholding, grinding wheels, hubs, vise, and accessories separately, this Mitsui includes a substantial selection of tooling to help put the machine directly into productive use.

CONDITION

TESTED & RUNNING – GOOD CLEAN CONDITION

This Mitsui MSG-205MH has been powered up, operated, and tested by L R Associates.

THE MACHINE IS RUNNING PROPERLY.

The grinding spindle has been operated, the machine movements and controls have been checked, and the Fagor digital readout is powered and functioning as shown in the photographs.

The machine presents very well for its age and shows normal cosmetic evidence of previous industrial use.

The handwheels, precision feed controls, Walker magnetic chuck, automatic lubrication system, DRO, spindle assembly, table, and related components are present and operating.

The machine is being offered complete with the extensive accessory and tooling package pictured.

Inspection and demonstration are welcomed.

Please review all photographs carefully for actual condition, tooling, accessories, and configuration.
