MITSUI MSG-250-2A AUTOMATIC PRECISION SURFACE GRINDER – 8" × 18" WALKER ELECTRIC MAGNETIC CHUCK – AUTO DOWNFEED – HYDRAULIC TABLE – WALKER SINE PLATE – GRIND-ALL NO. 1 – TOOLING PACKAGE – COOLANT – 220V 3 PH – TESTED & RUNNING EXCELLENT

DESCRIPTION

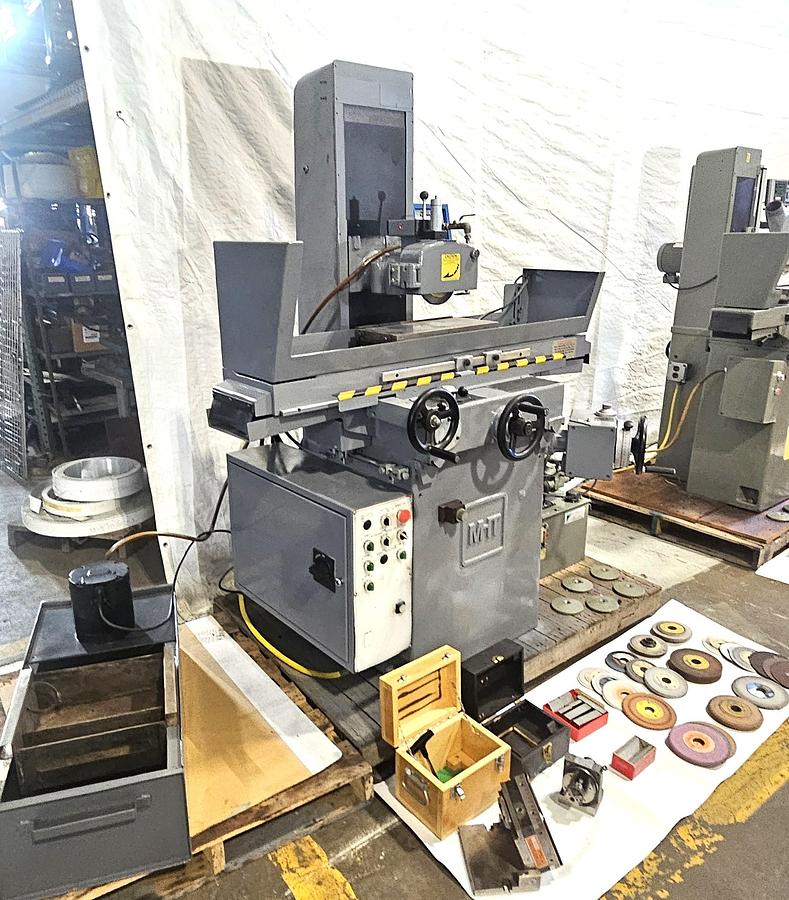

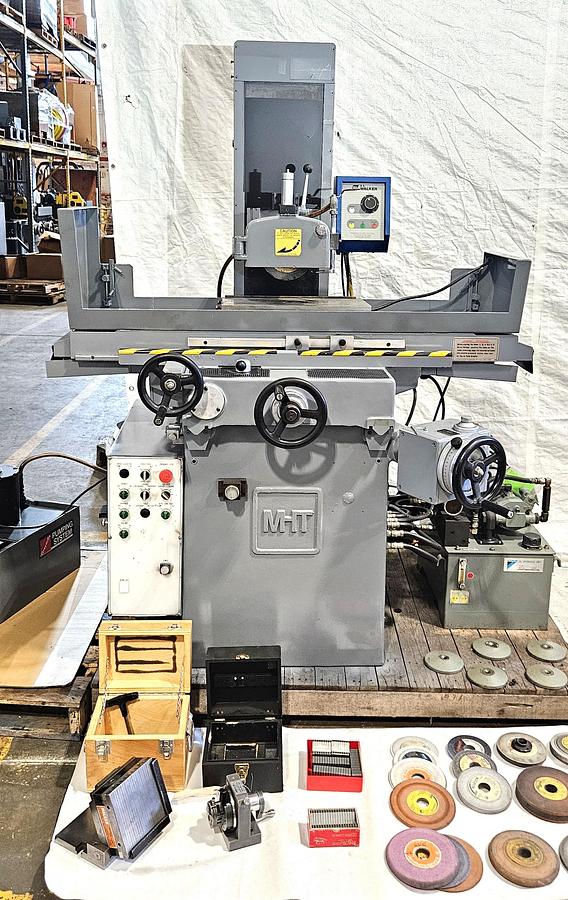

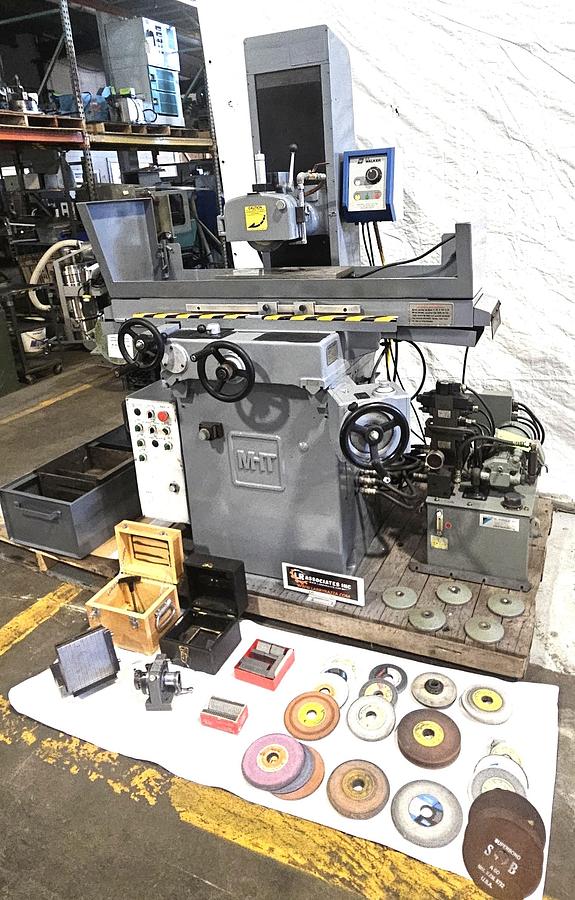

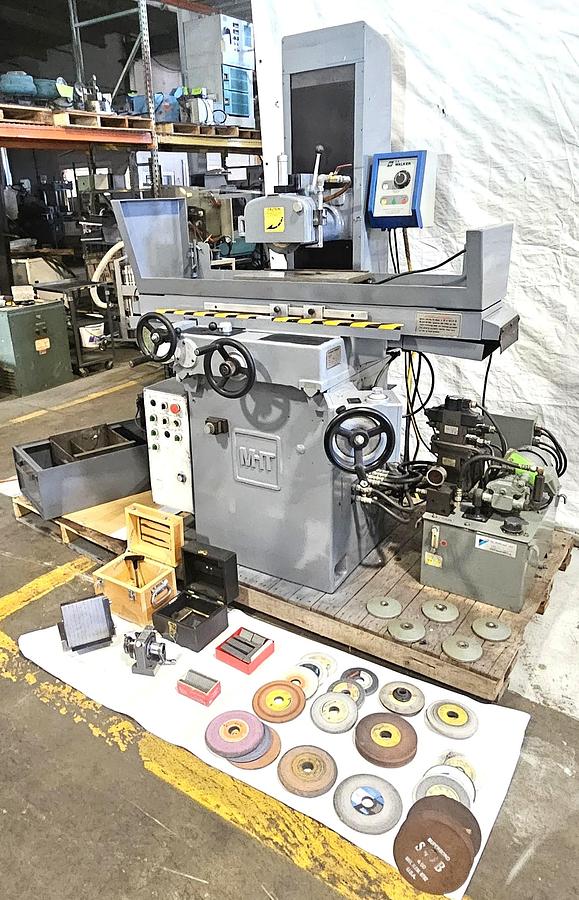

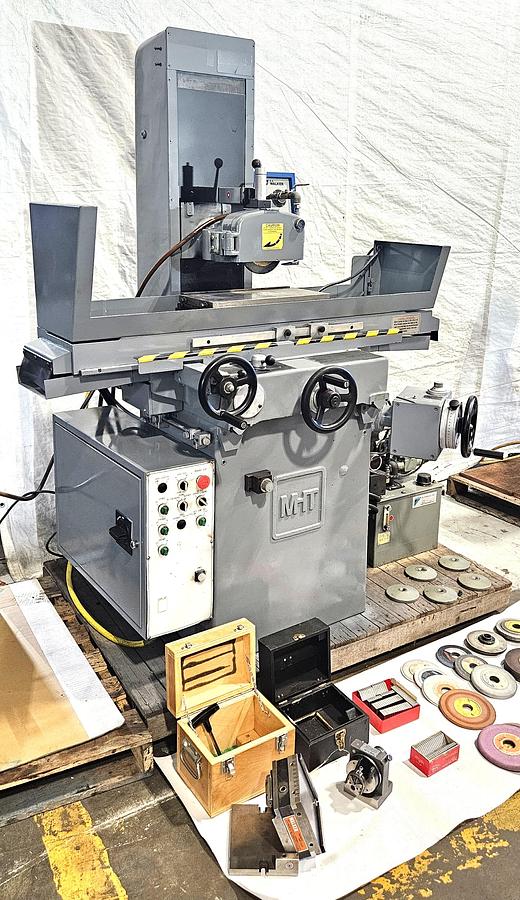

Available for immediate sale is this Mitsui High-Tec MSG-250-2A Automatic Precision Surface Grinder, manufactured in Japan and equipped with automatic hydraulic longitudinal table travel, automatic cross feed, automatic downfeed, multiple grinding cycle modes, rapid wheelhead elevation, Walker 8" × 18" electric magnetic chuck, built-in wheel dresser, Daikin hydraulic system, coolant system, and an extensive precision grinding accessory package.

TESTED & RUNNING EXCELLENT

We have powered up, operated, and tested this machine, and it is running and functioning properly.

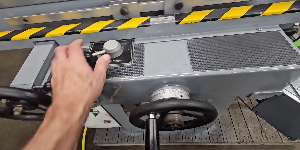

A video of the machine operating will be included with the listing, allowing prospective buyers to see the grinder under power.

This is considerably more than a basic hand-feed surface grinder. The MSG-250-2A incorporates automatic grinding functions that allow the operator to establish a grinding cycle and have the machine automatically control table movement, cross feed, and incremental wheel downfeed.

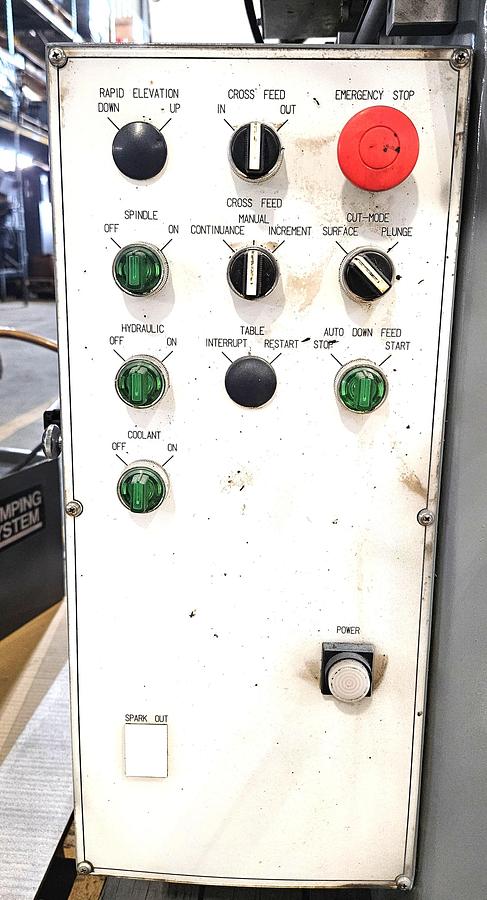

The control panel provides selectable Surface and Plunge grinding modes, continuous or incremental cross feed, automatic downfeed, rapid wheelhead elevation, hydraulic operation, coolant control, table interrupt/restart, and spark-out functions.

For production grinding, toolroom work, mold making, die work, gauge work, and precision manufacturing, these automatic functions can substantially reduce operator involvement compared with a conventional manual grinder.

SPECIFICATIONS

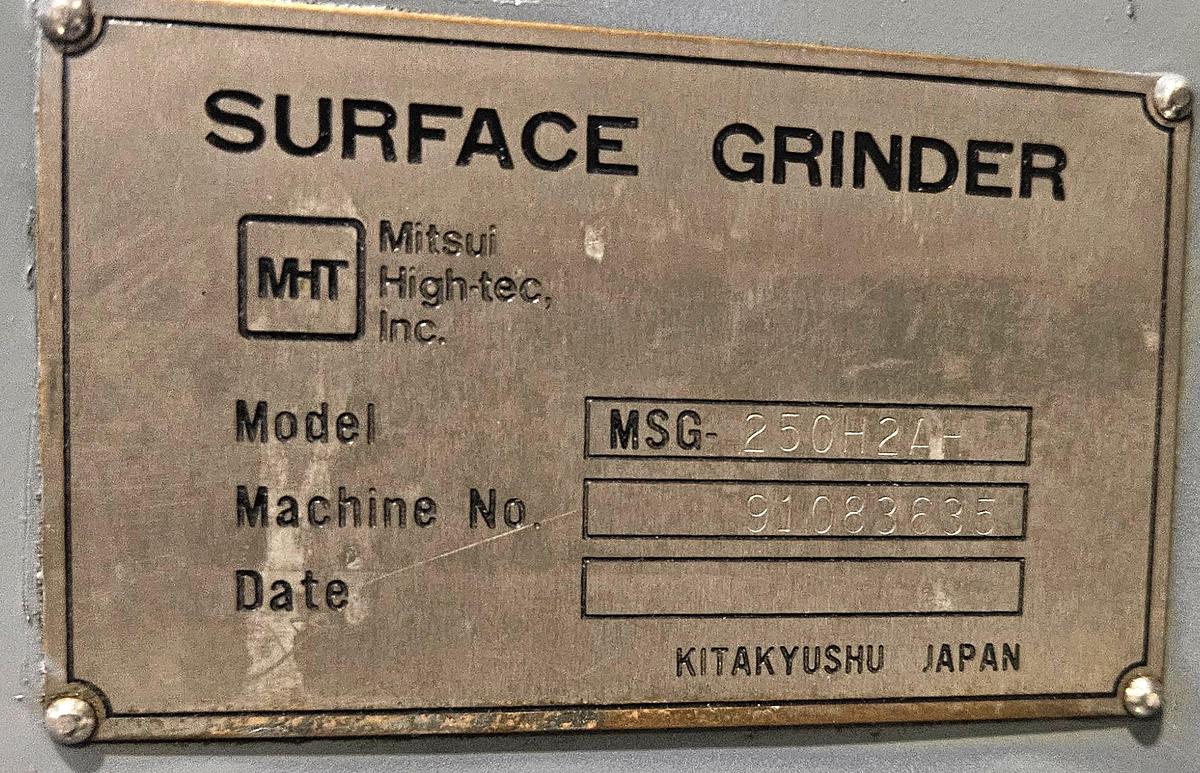

Manufacturer: Mitsui High-Tec, Inc.

Machine Type: Automatic Precision Surface Grinder

Model: MSG-250-2A

Machine No.: 91083235

Country of Manufacture: Japan

Magnetic Chuck: Walker Electric Permanent/Electromagnetic Grinding Chuck

Chuck Size: Approximately 8" × 18"

Electrical: 220 Volt / 3 Phase

Longitudinal Table Feed: Hydraulic Automatic

Cross Feed: Automatic / Manual Selectable

Vertical Wheelhead Feed: Automatic Downfeed / Manual Fine Feed

Rapid Wheelhead Elevation: Yes

Grinding Modes: Surface / Plunge

Spark-Out Function: Yes

Coolant System: Included

Hydraulic System: Daikin Oil Hydraulic Unit

Daikin Hydraulic Unit Type: Y486075-1

Hydraulic Unit Date: 1991

Built-In Wheel Dresser: Yes

AUTOMATIC GRINDING SYSTEM

One of the major advantages of this machine is the automatic grinding cycle capability.

Unlike a basic manual surface grinder, this Mitsui incorporates controls for:

• Automatic Hydraulic Table Reciprocation
• Automatic Cross Feed
• Continuous Cross Feed
• Incremental Cross Feed
• Automatic Wheel Downfeed
• Surface Grinding Mode
• Plunge Grinding Mode
• Rapid Wheelhead Up / Down
• Table Interrupt
• Table Restart
• Automatic Downfeed Start / Stop
• Spark-Out Cycle
• Hydraulic System Control
• Coolant Control
• Emergency Stop

This makes the machine particularly well suited to repetitive precision grinding and production work, while still retaining manual control for setup and specialized toolroom operations.

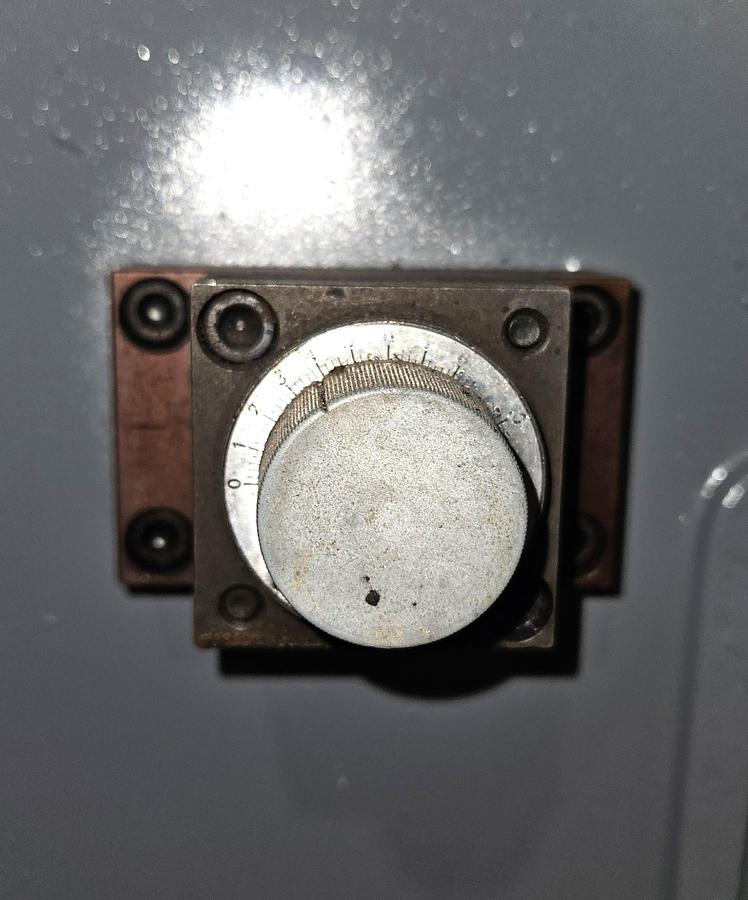

PRECISION DOWNFEED

The wheelhead incorporates precision graduated feed controls for extremely fine grinding adjustments.

The photographs show 0.0001" graduations together with a separate fine-feed adjustment.

This allows controlled incremental stock removal for close-tolerance finishing operations and precision surface generation.

WALKER 8" × 18" ELECTRIC MAGNETIC CHUCK

The machine is equipped with a quality Walker electric magnetic grinding chuck measuring approximately:

8" × 18" CHUCK

The larger chuck provides substantially more usable grinding area than the common 6" × 12" and 6" × 18" class grinders and makes the MSG-250-2A suitable for a wider range of workpieces.

The magnetic chuck system is installed on the machine and included with the sale.

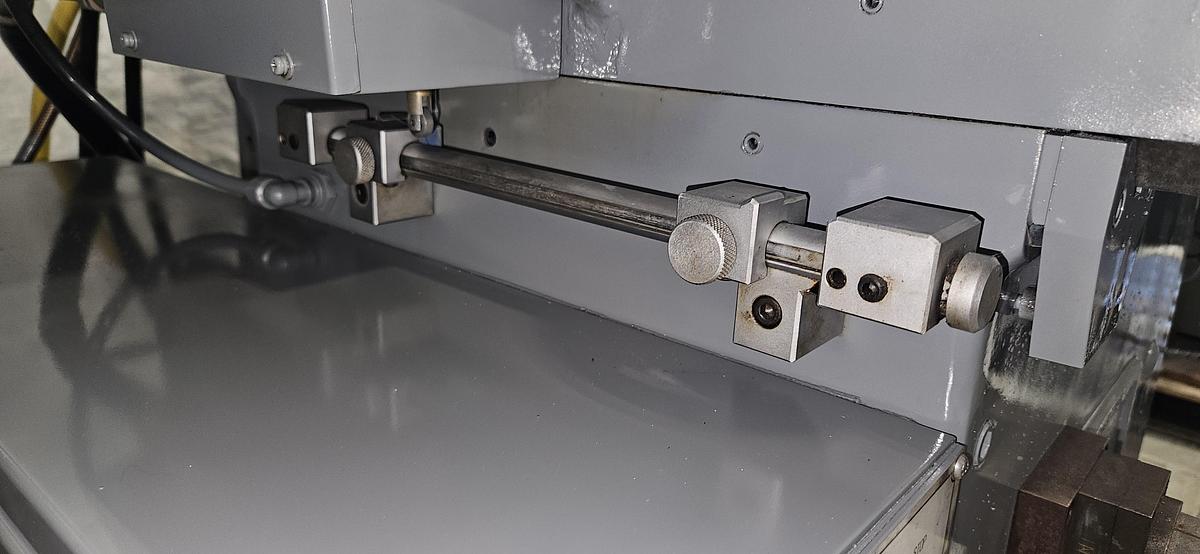

BUILT-IN WHEEL DRESSER

This machine is equipped with an integral grinding-wheel dressing system.

Wheel dressing is critical to maintaining:

• Wheel Geometry
• Cutting Efficiency
• Surface Finish
• Dimensional Accuracy
• Grinding Performance
• Repeatability

Having the dresser incorporated directly into the machine simplifies setup and production grinding operations.

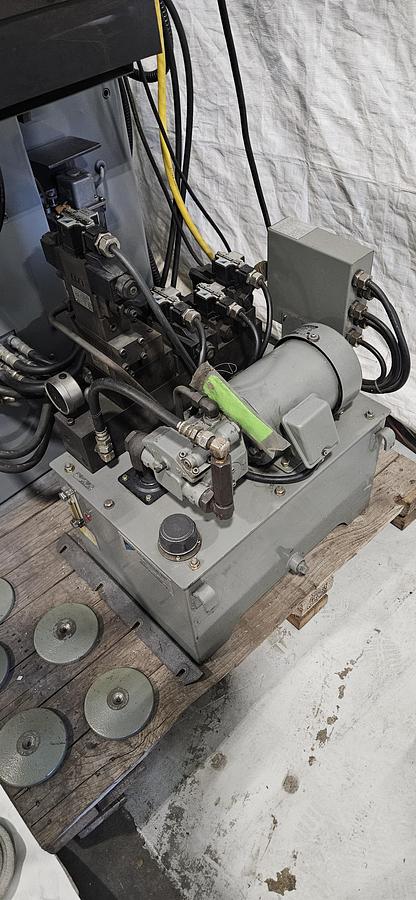

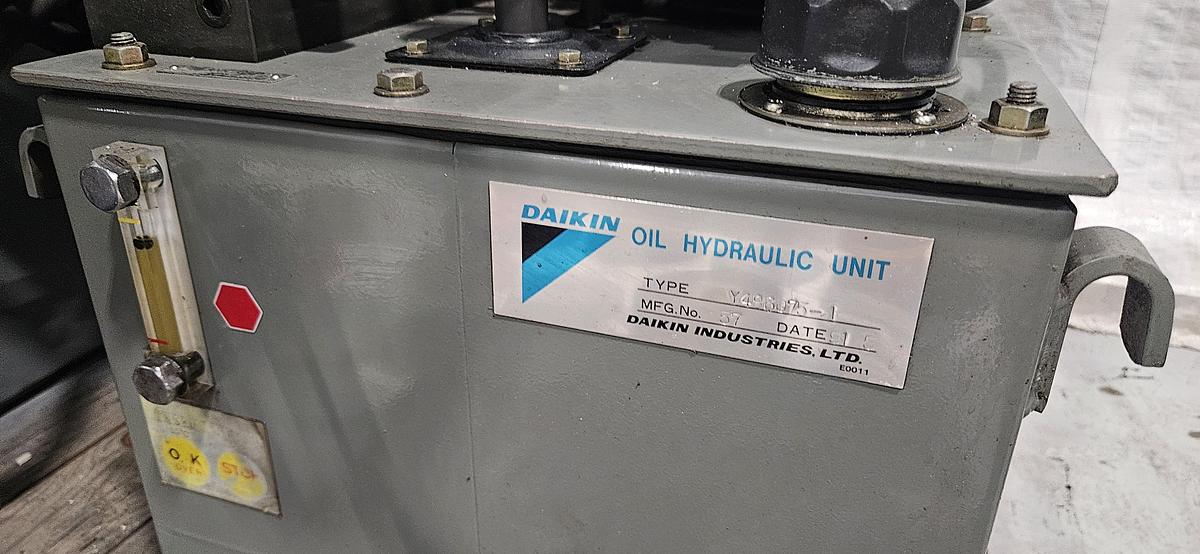

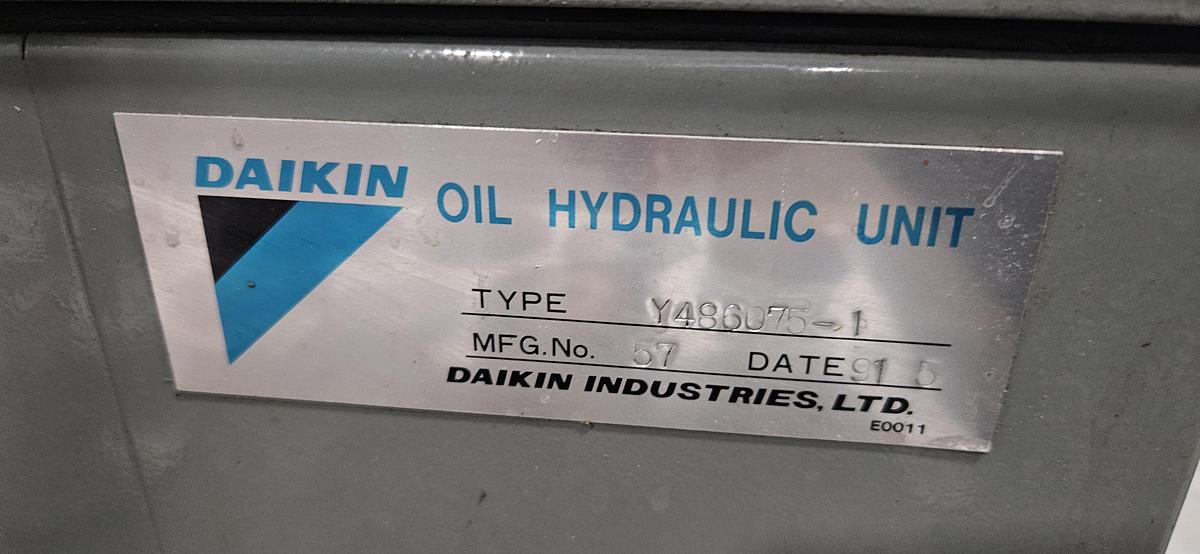

DAIKIN HYDRAULIC SYSTEM

The grinder is equipped with a separate Daikin Oil Hydraulic Unit.

The hydraulic system powers the automatic longitudinal table movement and provides the smooth, consistent reciprocating motion required for precision surface grinding.

The hydraulic system was operated during our machine testing.

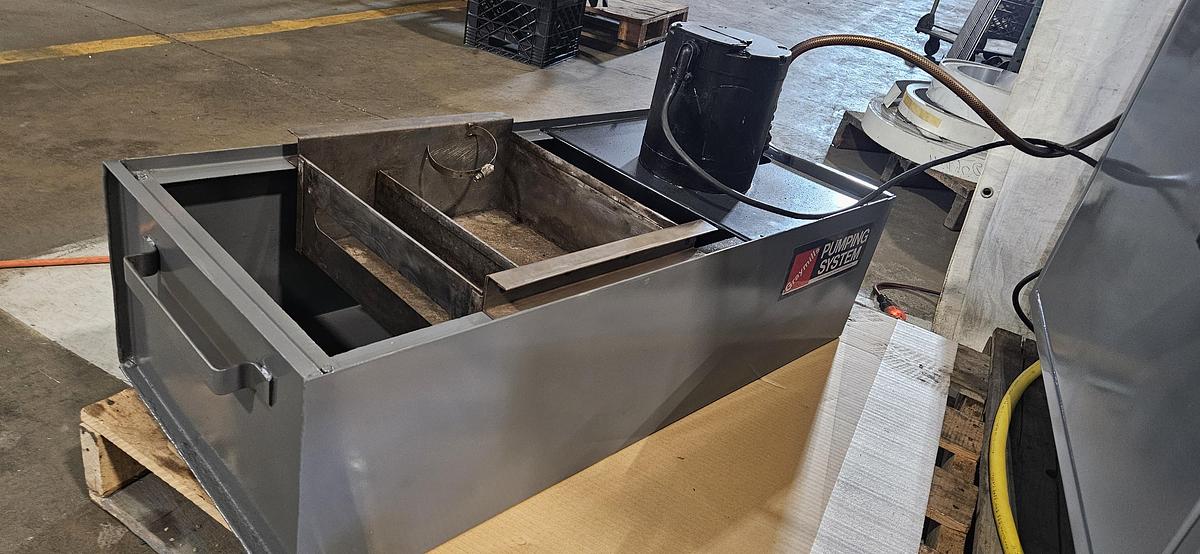

COOLANT SYSTEM WITH TANK & PUMP

Also included is the machine's coolant tank, coolant pump, and associated plumbing.

Flood coolant is particularly useful for production grinding because it helps:

• Control Workpiece Temperature
• Reduce Grinding Burn
• Improve Surface Finish
• Flush Grinding Swarf
• Improve Wheel Performance
• Reduce Thermal Distortion

The coolant equipment is included with the machine as pictured.

EXTENSIVE PRECISION TOOLING PACKAGE

A major advantage of this particular machine is the amount of quality precision grinding tooling and accessories included with it.

This is not being offered as a stripped or bare machine.

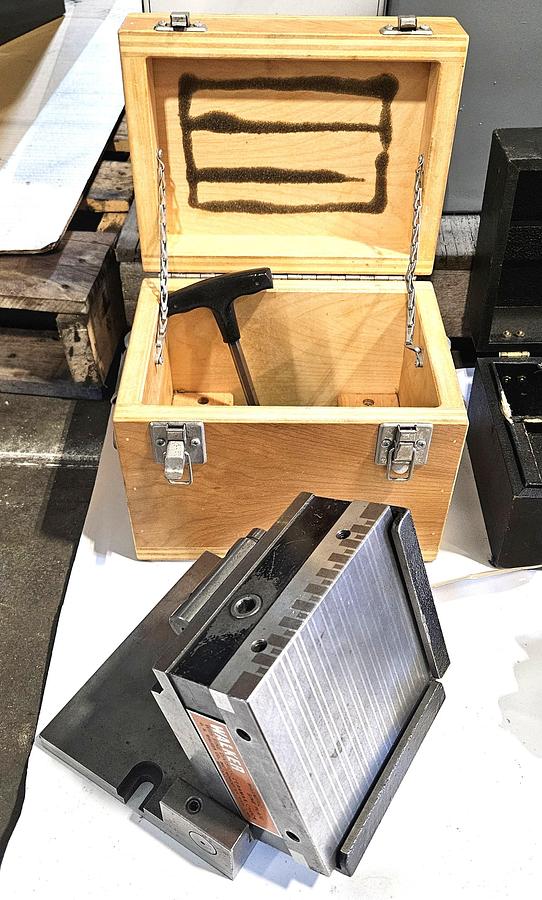

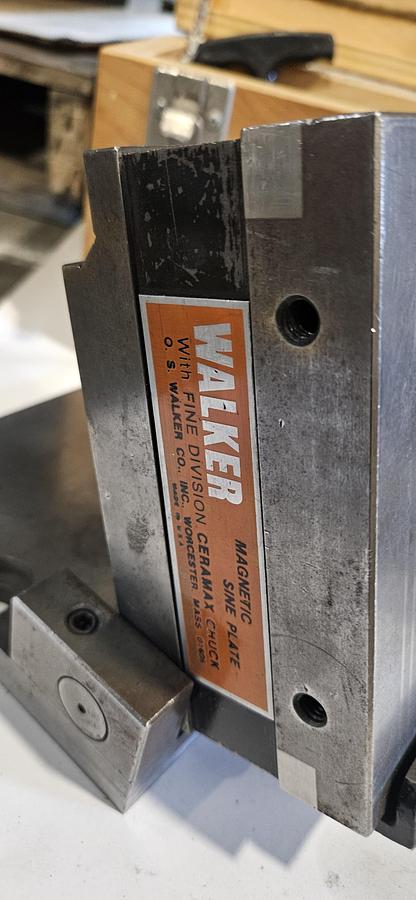

WALKER MAGNETIC SINE PLATE

Included is a Walker Fine Division Ceramax Magnetic Sine Plate.

This precision accessory allows workpieces to be magnetically held and accurately positioned at controlled angles for grinding.

It is particularly valuable for:

• Tool & Die Work
• Angle Grinding
• Mold Components
• Punches & Dies
• Gauges
• Precision Tooling
• Compound Setup Work

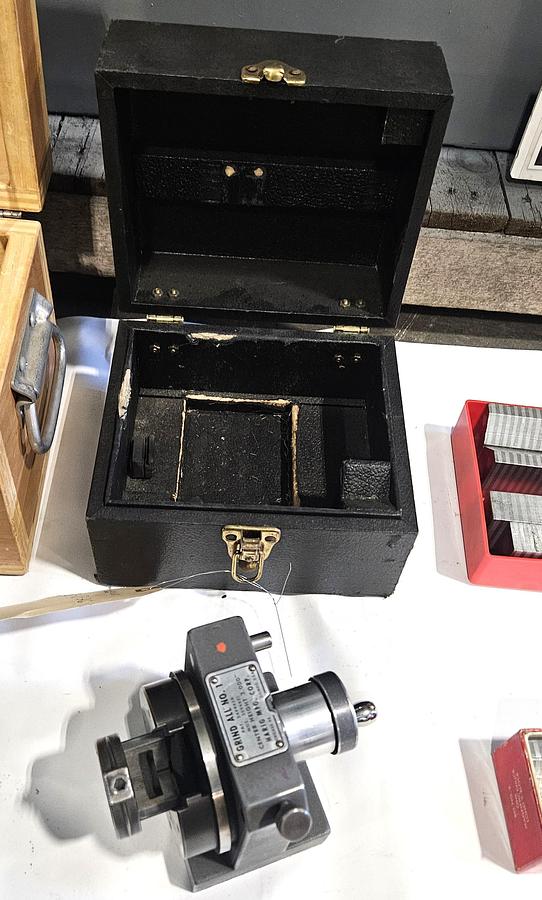

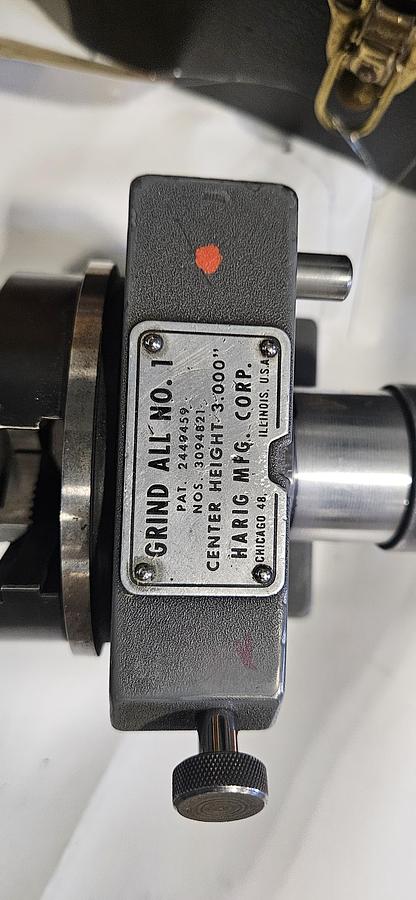

HARIG GRIND-ALL NO. 1

Also included is a:

HARIG GRIND-ALL NO. 1

The identification plate shows:

Harig Mfg. Corp. – Chicago, Illinois

Center Height: 3.000"

The Grind-All is a very desirable precision grinding fixture used for cylindrical, concentric, angular, and specialized grinding operations on a surface grinder.

This accessory significantly expands the types of work that can be performed on the machine.

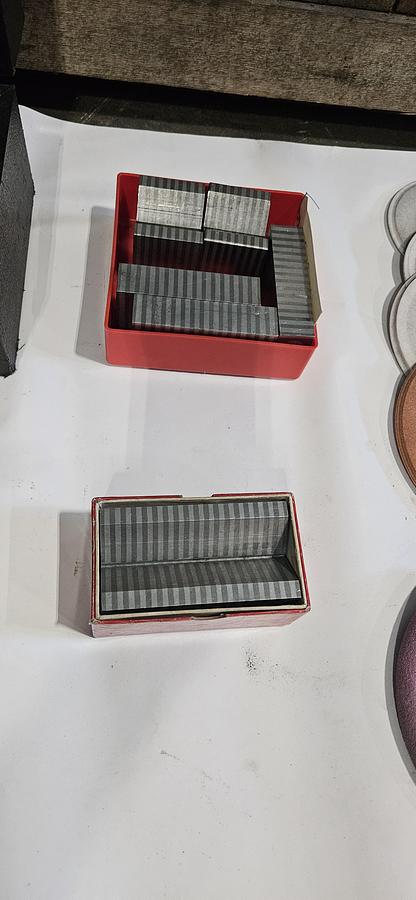

MAGNETIC V-BLOCKS & PRECISION BLOCKS

Also included is an assortment of precision magnetic V-blocks, magnetic blocks, parallels / setup blocks and related workholding equipment.

These accessories are particularly useful for holding:

• Round Workpieces
• Shafts
• Pins
• Tooling Components
• Small Precision Parts
• Angled Components
• Irregular Workpieces

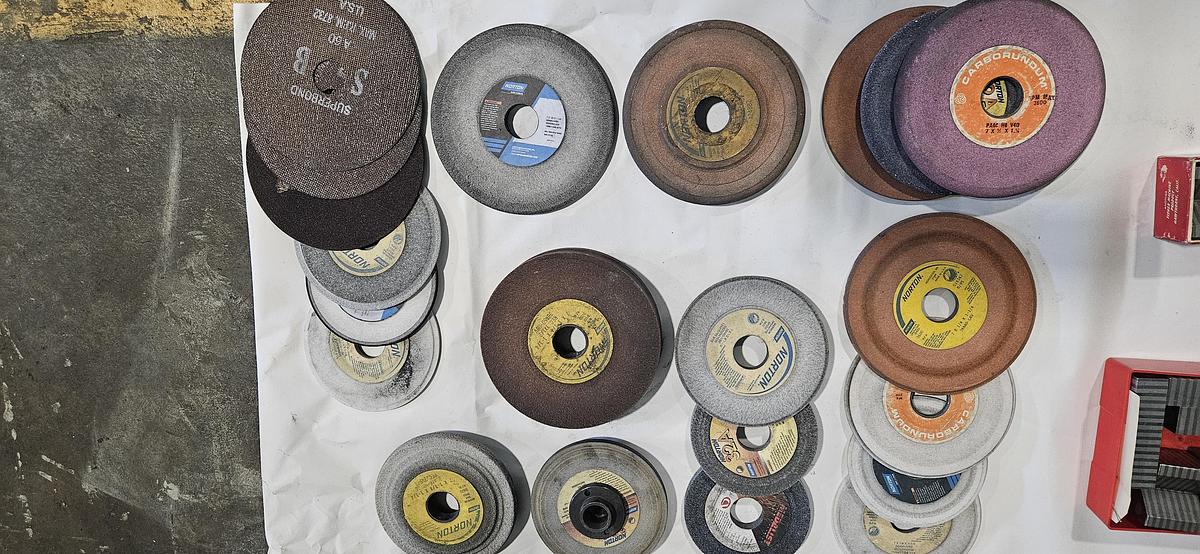

ASSORTED GRINDING WHEELS

The machine comes with a large assortment of grinding wheels in various grades and configurations.

The package includes wheels from recognized industrial abrasive manufacturers including Norton and others.

Numerous wheels are included as pictured, providing the buyer with a useful starting inventory for different materials and grinding applications.

FEATURES

• Mitsui High-Tec MSG-250-2A
• Japanese Precision Surface Grinder
• Automatic Hydraulic Table
• Automatic Cross Feed
• Automatic Downfeed
• Surface Grinding Cycle
• Plunge Grinding Cycle
• Continuous Cross Feed
• Incremental Cross Feed
• Rapid Wheelhead Elevation
• Spark-Out Function
• Precision Fine Downfeed
• Walker 8" × 18" Electric Magnetic Chuck
• Built-In Wheel Dresser
• Daikin Hydraulic Power Unit
• Coolant Tank
• Coolant Pump
• Emergency Stop
• Automatic / Manual Grinding Controls
• Extensive Precision Tooling
• Walker Magnetic Sine Plate
• Harig Grind-All No. 1
• Magnetic V-Blocks
• Magnetic Flat / Setup Blocks
• Assorted Precision Workholding
• Large Assortment of Grinding Wheels
• 220 Volt / 3 Phase
• TESTED & RUNNING EXCELLENT
• VIDEO AVAILABLE

INCLUDES

This package includes:

• Mitsui MSG-250-2A Automatic Surface Grinder
• Walker 8" × 18" Electric Magnetic Chuck
• Walker Magnetic Sine Plate
• Harig Grind-All No. 1
• Magnetic V-Blocks
• Magnetic Flat Blocks / Setup Blocks
• Assorted Precision Grinding Fixtures
• Assorted Grinding Wheels

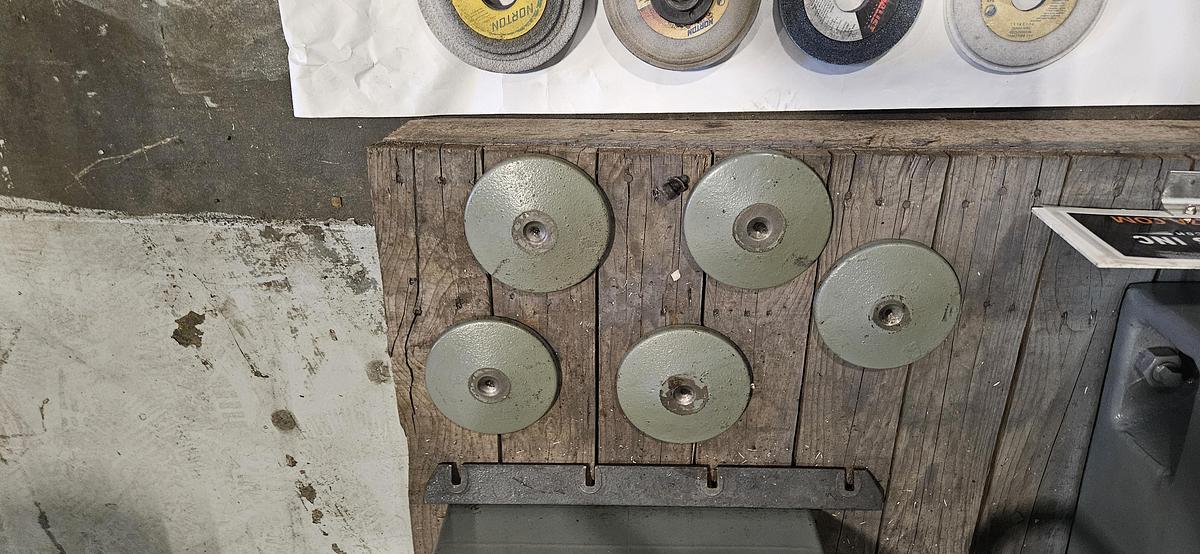

• Grinding Wheel Hubs / Accessories as pictured
• Built-In Wheel Dresser
• Daikin Hydraulic Power Unit
• Coolant Tank
• Coolant Pump
• Coolant Plumbing
• Electrical / Control System

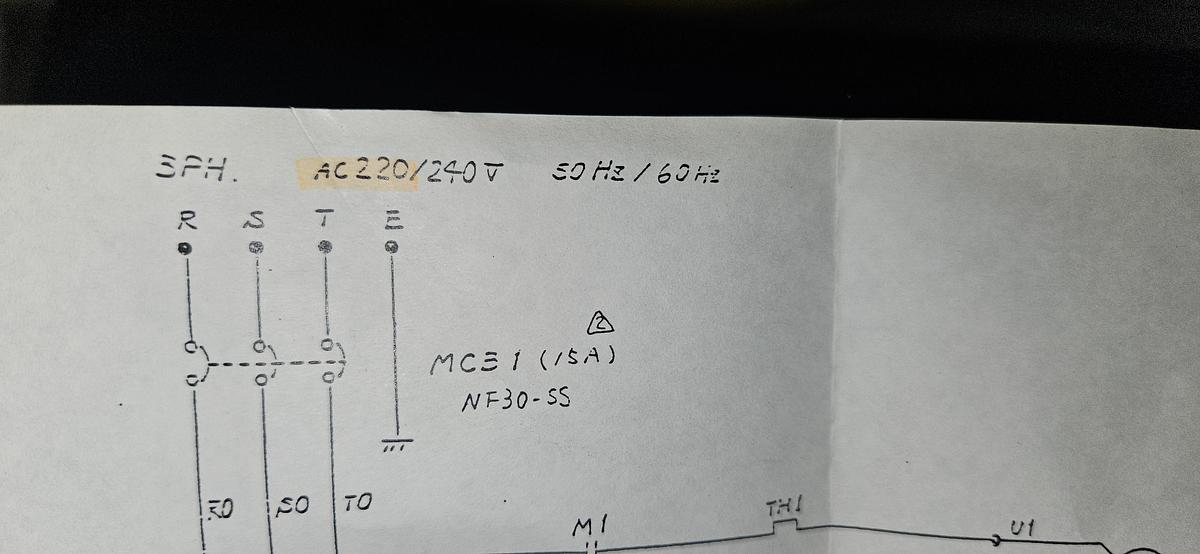

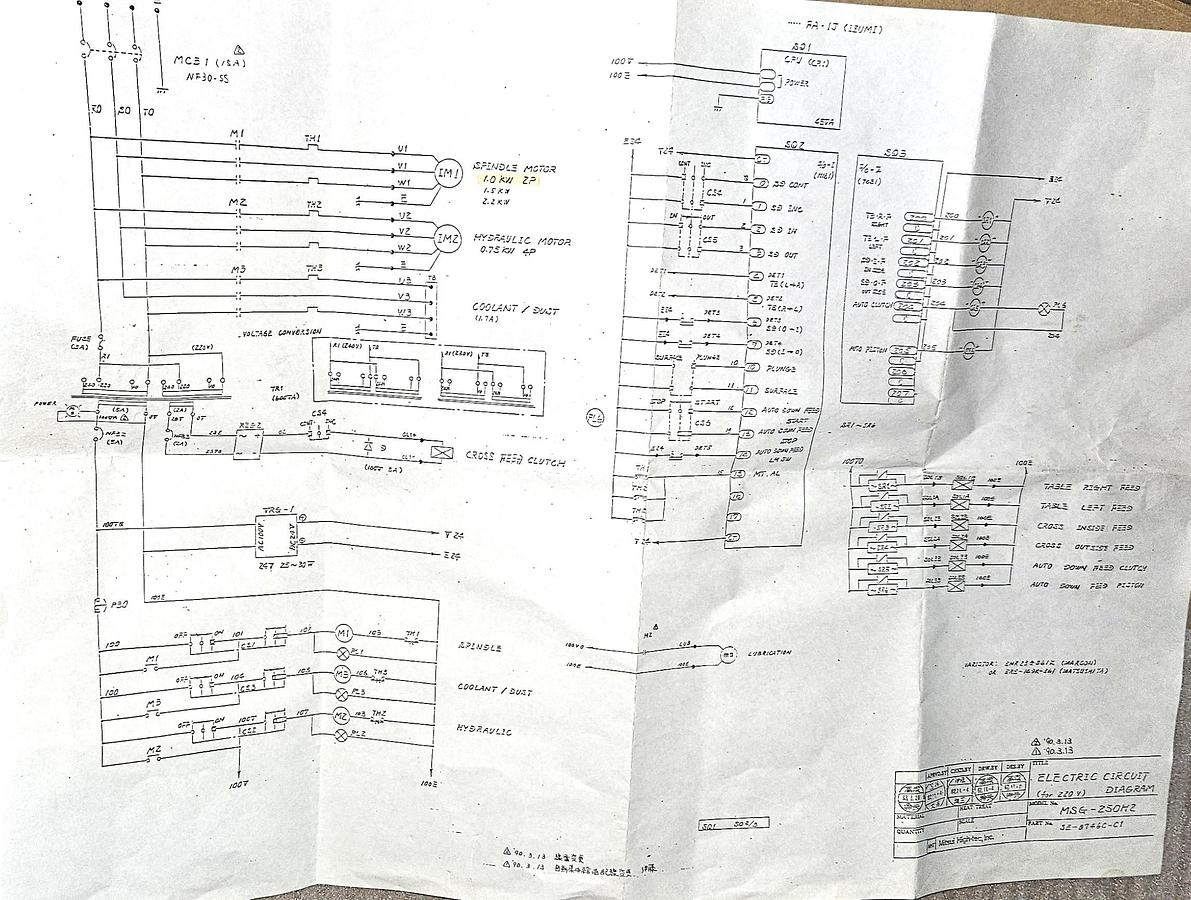

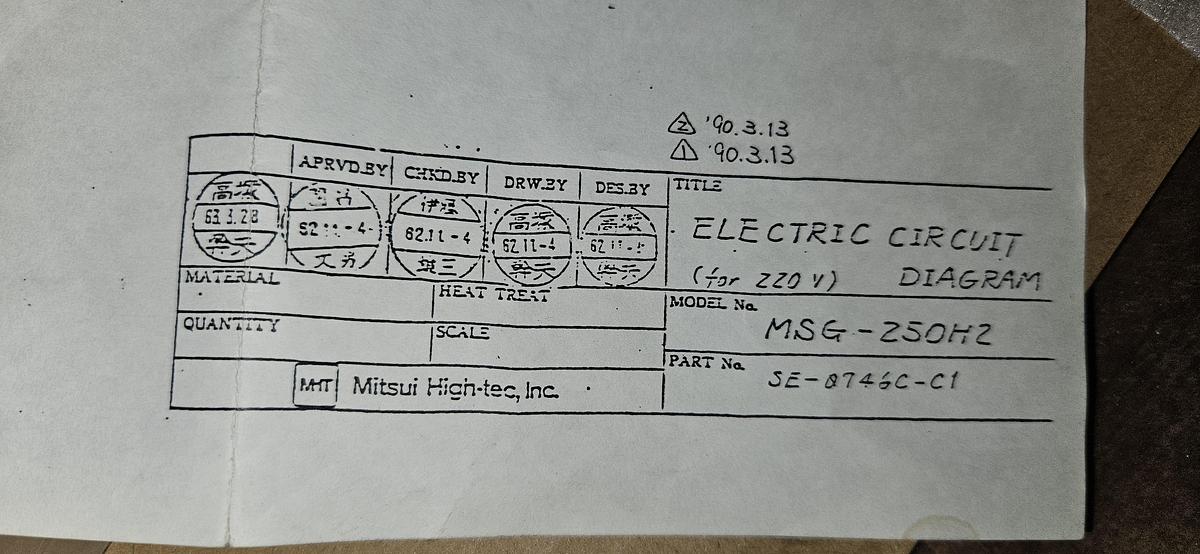

• Machine Documentation / Electrical Diagram shown
• Additional Tooling & Accessories Shown in Photographs

VERY COMPLETE PRECISION GRINDING PACKAGE

The tooling alone makes this machine considerably more attractive than a typical used MSG-250 being offered with only a magnetic chuck.

CONDITION

TESTED – RUNNING – WORKS EXCELLENT

This machine has been powered up and operationally tested by L R Associates.

The spindle, hydraulic table system, machine movements, automatic functions, and controls were operated during testing, and the machine is running and working properly.

A video showing the machine operating will be included in the listing... or Google Larry Razza Machinery to see this machine and more!

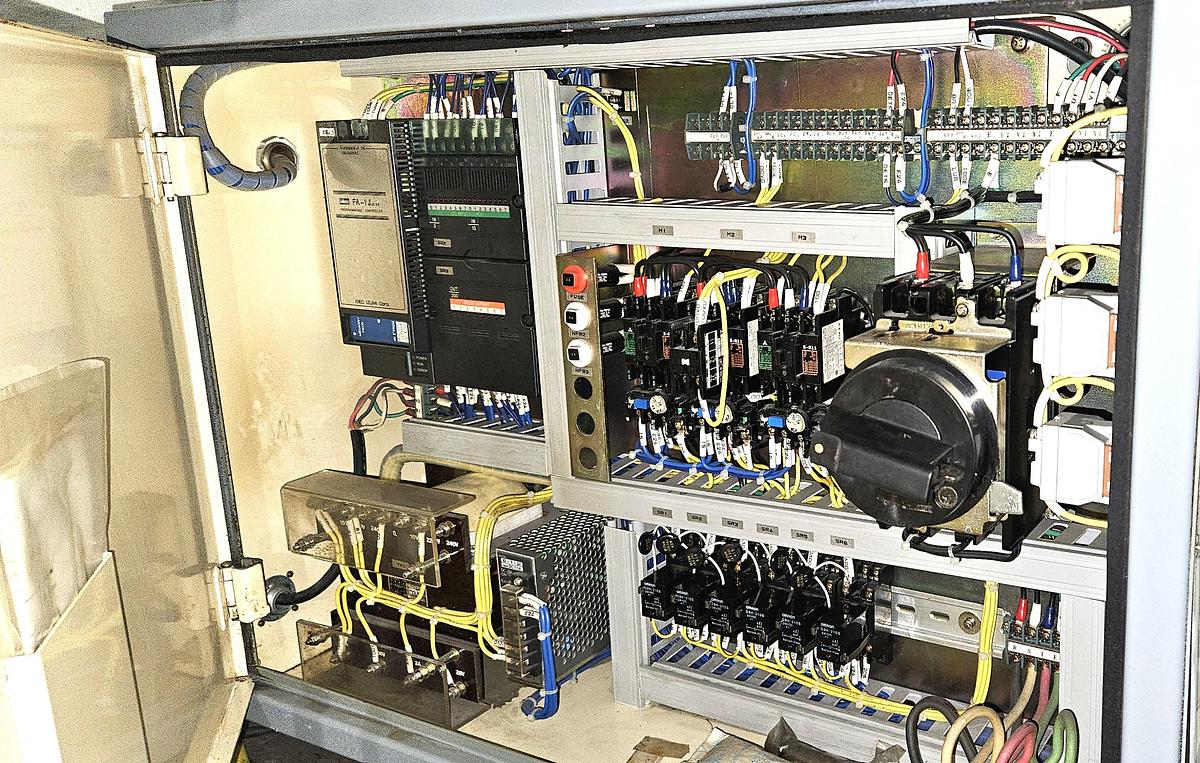

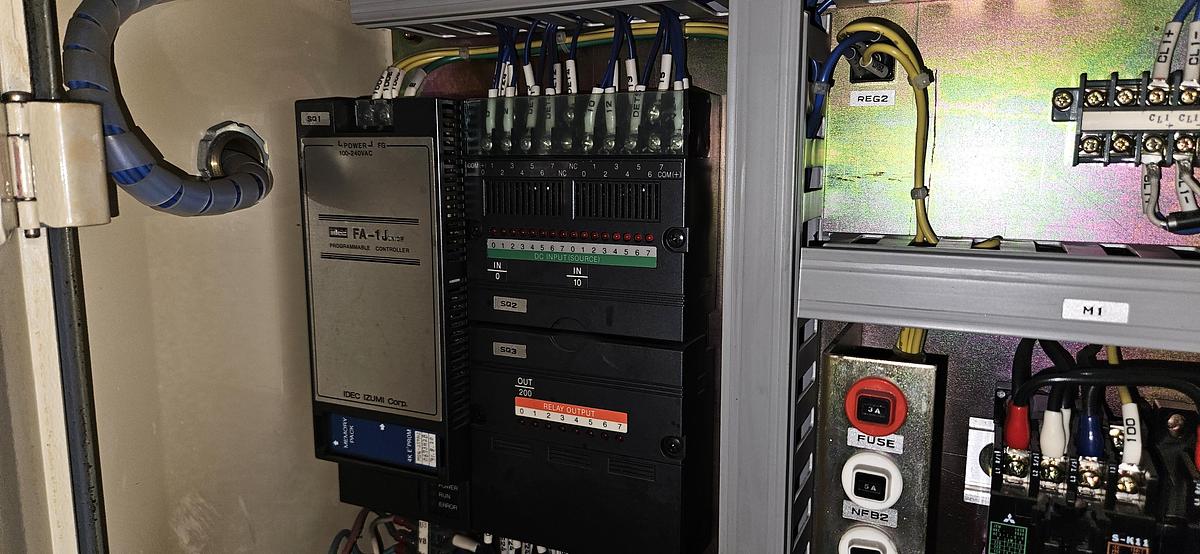

The grinder appears to have been well maintained and the electrical cabinet is notably clean and orderly.

The machine presents very well for its age and is being offered with the extensive tooling and accessory package pictured.

Inspection and demonstration are welcomed.

IDEAL APPLICATIONS

Excellent for tool & die shops, mold shops, precision machine shops, aerospace manufacturing, medical manufacturing, gauge shops, production grinding, maintenance departments, punch and die work, fixture manufacturing, precision flat grinding, angle grinding, toolroom applications, and repetitive close-tolerance grinding.
