RAYJET R500 100 WATT CO2 LASER CUTTING & ENGRAVING SYSTEM – ONLY 74 LASER HOURS – 51" x 35" WORK AREA – BOFA AD 1500 iQ FUME EXTRACTION SYSTEM – S&A CW-5200 INDUSTRIAL CHILLER – COMPUTER & SOFTWARE – 2023 INSTALLATION – EXCEPTIONALLY LOW USE

This machine has only 74 hours, 38 minutes of actual laser operating time and presents in exceptionally clean condition. Complete system including BOFA AD 1500 iQ industrial fume extractor, S&A CW-5200 chiller, computer/workstation, software and associated equipment.

RAYJET R500 – 100 WATT CO2 LASER CUTTING & ENGRAVING SYSTEM

LARGE 51" x 35" WORKING AREA

ONLY 74 HOURS, 38 MINUTES ACTUAL LASER TIME

BOFA AD 1500 iQ HIGH-CAPACITY INDUSTRIAL LASER FUME EXTRACTION SYSTEM

S&A CW-5200 INDUSTRIAL WATER CHILLER

COMPUTER / WORKSTATION & SOFTWARE INCLUDED

PURCHASED & PROFESSIONALLY INSTALLED IN 2023

EXCEPTIONALLY CLEAN / EXTREMELY LOW USE

DESCRIPTION

Available for immediate sale is this Rayjet R500 100 Watt CO2 Laser Cutting & Engraving System, complete with BOFA AD 1500 iQ High-Capacity Laser Fume Extraction System, S&A CW-5200 Industrial Water Chiller, computer/workstation, Rayjet software, air-assist equipment, cutting grid, exhaust equipment and associated accessories.

This is an exceptionally clean, extremely low-use commercial laser system that was purchased and professionally installed in 2023.

A particularly important feature of this machine is its extraordinarily low documented operating time.

The machine's internal diagnostic screen currently shows:

Total Engraver Hours: 244 Hours, 12 Minutes, 43 Seconds

ACTUAL LASER HOURS: ONLY 74 HOURS, 38 MINUTES, 47 SECONDS

This represents exceptionally low usage for an industrial CO2 laser system and is a significant advantage when compared with many used commercial laser systems currently available.

The Rayjet R500 combines a large 51" x 35" working area with a powerful 100 Watt sealed-off CO2 laser source, providing an excellent platform for professional cutting, engraving and marking of a wide variety of non-metallic materials.

Typical materials include acrylic, wood, MDF, textiles, leather, cardboard, plastics, foam, film and paper.

Applications range from commercial signage, woodworking and display manufacturing to prototyping, trophies and awards, promotional products, model making, fabric cutting and custom fabrication.

The R500 incorporates RayPack laser technology, Rayjet Manager software, air-cooled optics, air assist, 2.0" focusing lens, industrial water cooling and a large-format cutting grid.

Adding considerable value to this package is the included BOFA AD 1500 iQ Industrial Laser Fume Extraction System, manufactured in March 2023 and originally purchased specifically to support this laser installation.

The BOFA AD 1500 iQ is a sophisticated high-capacity extraction and filtration system designed for demanding laser cutting, marking and engraving applications.

Also included is the dedicated S&A CW-5200 Industrial Water Chiller, along with the computer/workstation presently being used with the laser.

This is not simply a bare laser machine. It is a complete, professionally configured commercial laser cutting and engraving package with extremely low operating hours and substantial supporting equipment included.

SPECIFICATIONS

Manufacturer: Rayjet

Model: R500

Machine Type: CO2 Laser Cutting & Engraving System

Laser Power: 100 Watts

Laser Type: Sealed-Off CO2, DC

Working Area: 51" x 35"

Maximum Processing Speed: Approximately 39 Inches / Second

Cooling System: Water Cooled

Software: Rayjet Manager

Standard Focal Length Lens: 2.0"

Z-Axis: Fixed Table / Adjustable Lens

Maximum Material Height: Approximately 1.75" with 2.0" Lens

Air Assist: Standard

Cutting Table: Aluminum Cutting Grid

Laser Electrical Requirement: 100–120V / 20 Amp

Chiller Electrical Requirement: 100–120V / 15 Amp

Approximate Machine Dimensions: 76" W x 66" D x 43" H

Approximate Machine Weight: 1,256 lbs.

DOCUMENTED OPERATING HOURS

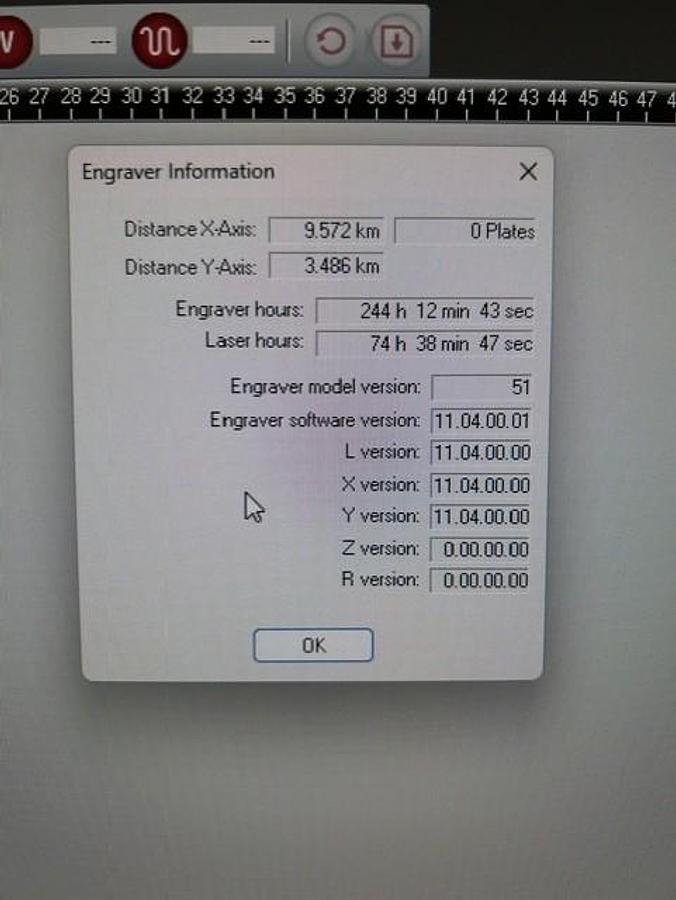

The Rayjet internal machine information screen documents the following usage:

Total Engraver Operating Hours:

244 Hours, 12 Minutes, 43 Seconds

Actual Laser Operating Hours:

ONLY 74 HOURS, 38 MINUTES, 47 SECONDS

Recorded X-Axis Travel:

9.572 km

Recorded Y-Axis Travel:

3.486 km

Engraver Model Version: 51

Engraver Software Version: 11.04.00.01

The extremely low recorded laser operating time is an important feature of this machine and indicates very limited actual laser usage.

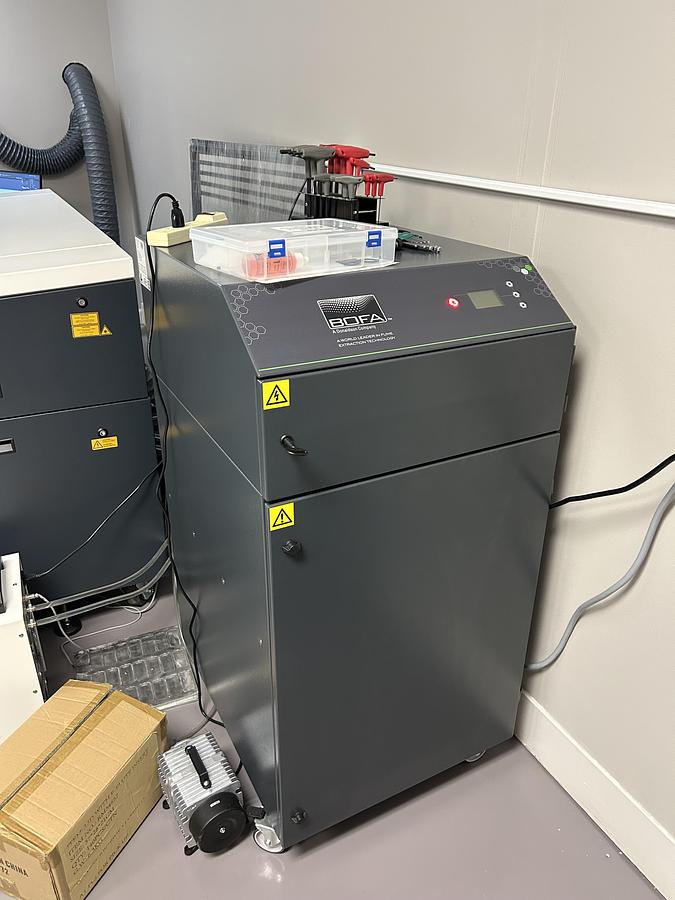

BOFA AD 1500 iQ FUME EXTRACTION SYSTEM

A premium BOFA AD 1500 iQ Industrial Laser Fume Extraction & Filtration System is included with the package.

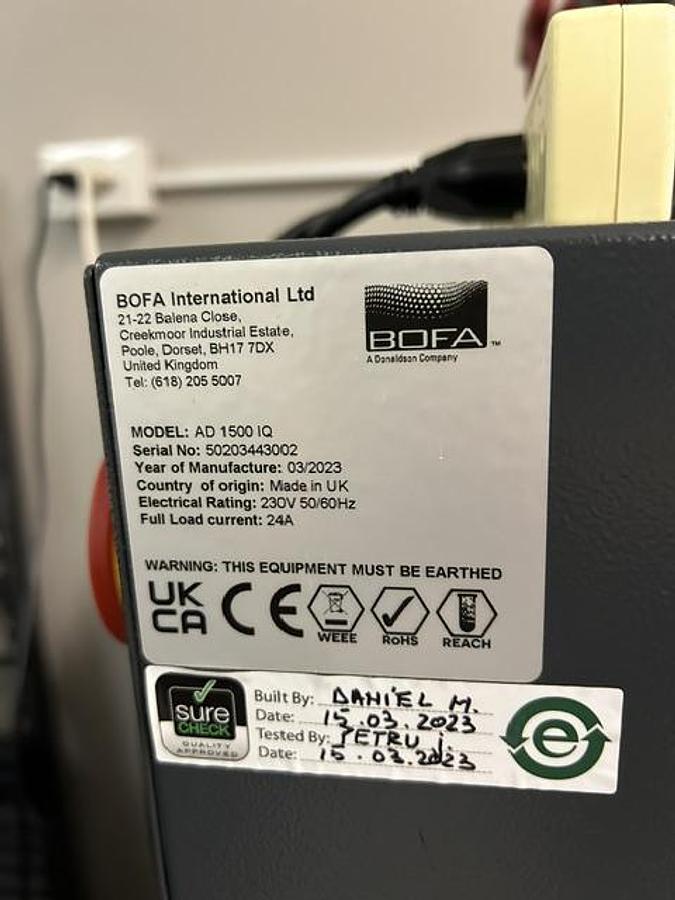

Manufacturer: BOFA International Ltd.

Model: AD 1500 iQ

Serial Number: 50203443002

Year of Manufacture: 03/2023

Country of Origin: United Kingdom

Electrical Rating: 230V / 50-60 Hz

Full Load Current: 24 Amps

The AD 1500 iQ is designed for high-demand laser marking, cutting and engraving applications where substantial particulate and gaseous contaminants may be produced.

BOFA FEATURES

• Intelligent iQ Operating System

• High Airflow & High Pressure Capability

• DeepPleat DUO Pre-Filter

• HEPA Filtration

• Combined HEPA / Gas Filtration

• Advanced Carbon Filter Technology

• Automatic Flow Control System

• Real-Time Airflow Monitoring

• Independent Filter Condition Monitoring

• High-Contrast Display

• Reverse-Flow Air Filter Technology

• Remote Diagnostics Capability

• "Run Safe" Operation

• Long-Life Industrial Filter Design

• Remote Stop / Start Capability

The BOFA AD 1500 iQ represents a significant additional component of this complete laser package.

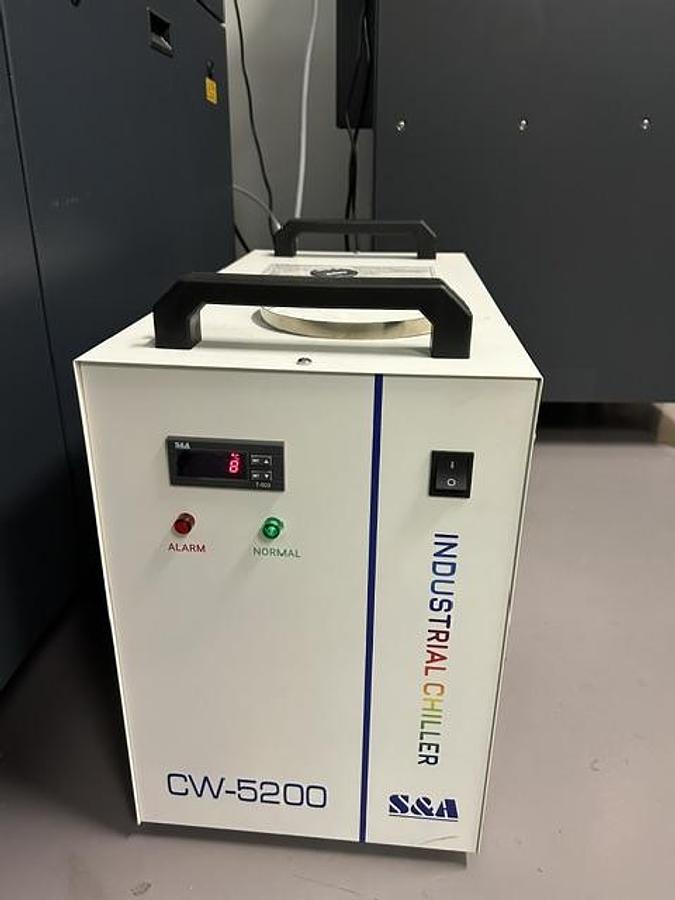

S&A CW-5200 INDUSTRIAL WATER CHILLER

The system includes a dedicated S&A CW-5200 Industrial Water Chiller.

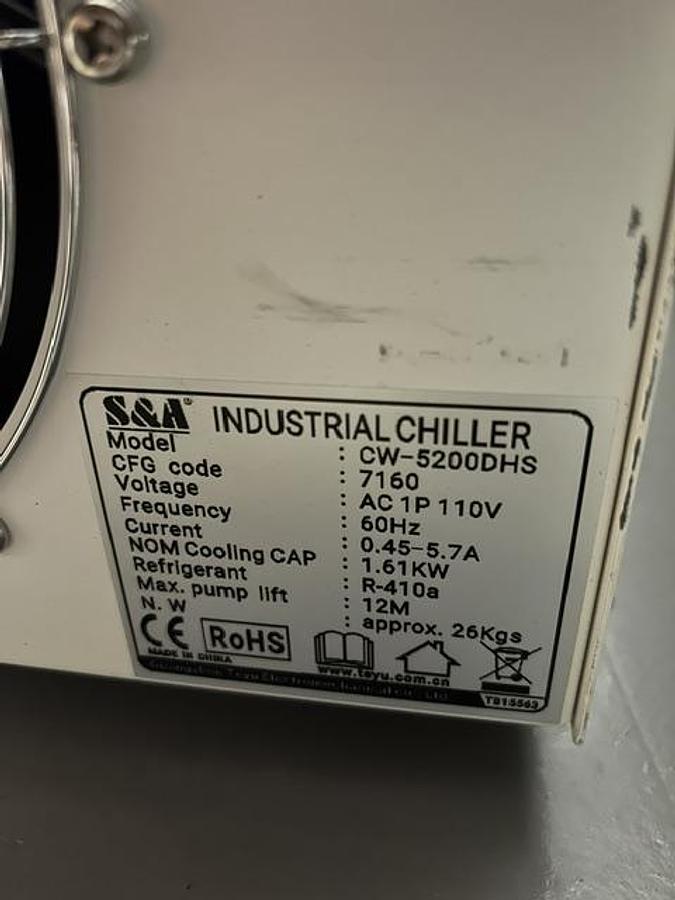

Manufacturer: S&A

Model: CW-5200DHS

CFG Code: 7160

Voltage: 110V / Single Phase

Frequency: 60 Hz

Nominal Cooling Capacity: 1.61 kW

Refrigerant: R-410A

Maximum Pump Lift: Approximately 12 Meters

Approximate Weight: 26 kg

The CW-5200 provides dedicated closed-loop cooling for the CO2 laser system.

FEATURES

• 100 Watt CO2 Laser

• Only 74 Hours, 38 Minutes Actual Laser Time

• Large 51" x 35" Working Area

• Sealed-Off CO2 DC Laser Source

• RayPack Laser Technology

• Rayjet Manager Software

• 2.0" Focusing Lens

• Air-Cooled Optics

• Air Assist

• Aluminum Cutting Grid

• Water-Cooled Laser System

• S&A CW-5200 Industrial Chiller

• BOFA AD 1500 iQ Industrial Fume Extractor

• Intelligent iQ Extraction Control

• HEPA / Gas / Carbon Filtration

• Automatic Extraction Flow Control

• Computer / Workstation

• Monitor

• Keyboard & Mouse

• Exhaust Ducting

• Associated Hoses & Cables

• Commercial / Industrial Construction

• Purchased & Installed in 2023

• Exceptionally Low Use

• Excellent Overall Condition

MATERIAL CAPABILITIES

Depending upon material type, thickness, lens configuration and machine settings, the R500 is designed for processing materials including:

• Acrylic

• Wood

• MDF

• Textiles

• Leather

• Cardboard

• Plastics

• Foam

• Film

• Paper

• Similar Laser-Compatible Non-Metallic Materials

APPLICATIONS

Ideal for:

• Sign Manufacturing

• Acrylic Cutting & Engraving

• Wood Cutting & Engraving

• Display Manufacturing

• Architectural Models

• Prototyping

• Trophies & Awards

• Promotional Products

• Model Making

• Textile Cutting

• Fabric Cutting

• Film Cutting

• Foam Cutting

• Leather Processing

• Packaging Prototypes

• Custom Fabrication

• Educational / Technical Applications

• Commercial Engraving

• Production Laser Cutting

INCLUDES

• Rayjet R500 100 Watt CO2 Laser Cutting & Engraving Machine

• BOFA AD 1500 iQ Industrial Laser Fume Extraction System

• S&A CW-5200 Industrial Water Chiller

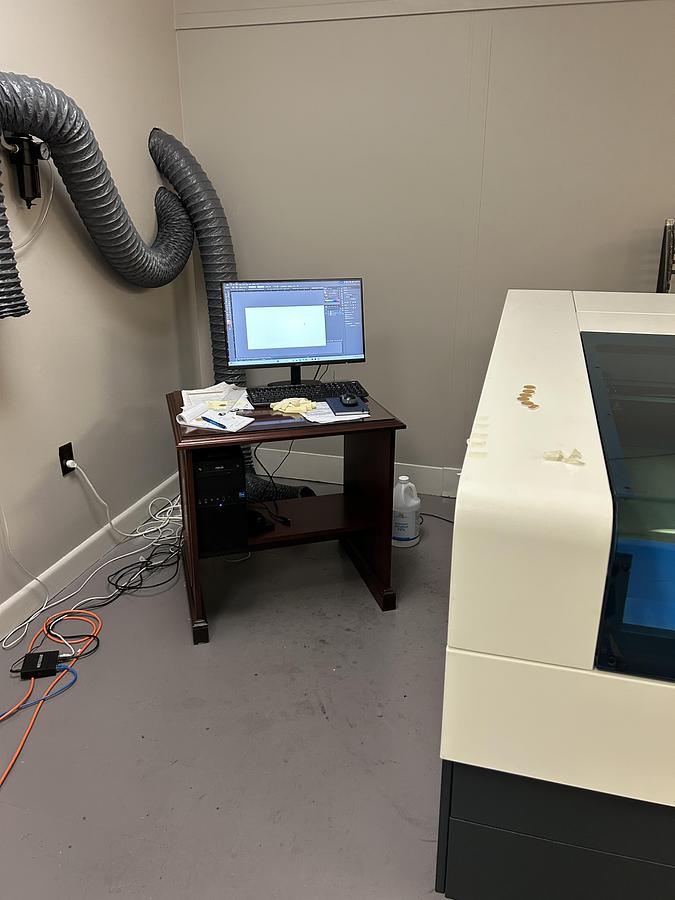

• Computer / Workstation

• Monitor

• Keyboard

• Mouse

• Rayjet Manager Software presently associated with system

• 2.0" Focusing Lens

• Aluminum Cutting Grid

• Air Assist System

• External Air Pump

• Exhaust Equipment

• Exhaust Ducting

• Associated Hoses

• Associated Cables

• Components & Accessories Presently With Machine

CONDITION

This Rayjet R500 100 Watt CO2 Laser System is in exceptionally clean overall condition with extremely low documented operating hours.

The machine was purchased and professionally installed in 2023.

The internal diagnostic screen currently shows only:

244 Hours, 12 Minutes Total Engraver Time

and, most importantly:

ONLY 74 HOURS, 38 MINUTES ACTUAL LASER TIME

The machine presents extremely well both mechanically and cosmetically.

The included BOFA AD 1500 iQ fume extraction system was manufactured in March 2023 and also presents in excellent condition.

The dedicated S&A CW-5200 industrial water chiller, computer/workstation, exhaust equipment and associated components are included as shown.

This represents an excellent opportunity to acquire a very lightly used commercial large-format CO2 laser system with its expensive supporting equipment already in place.

Buyer is encouraged to inspect the machine and verify operation and specifications prior to purchase.

ORIGINAL EQUIPMENT INVESTMENT

Available purchase documentation indicates that the Rayjet R500 laser package was acquired in 2023 together with supporting equipment, professional installation and training.

The BOFA AD 1500 iQ industrial fume extraction system was purchased separately as part of the installation.

Documented combined acquisition cost for the equipment package was approximately:

$25,000

The extremely low operating hours make this package particularly attractive for a buyer seeking a commercial laser system without the cost associated with purchasing comparable equipment new.

SHIPPING

We can assist with professional rigging, loading, preparation, and freight quotes upon request.

Machine Weight: Approximately 1,256 lbs. plus associated BOFA extraction system, chiller and accessories.

Please contact us for a Shipping Quote!

We ship anywhere!

WSPT# LBOC-0000-081726-A
