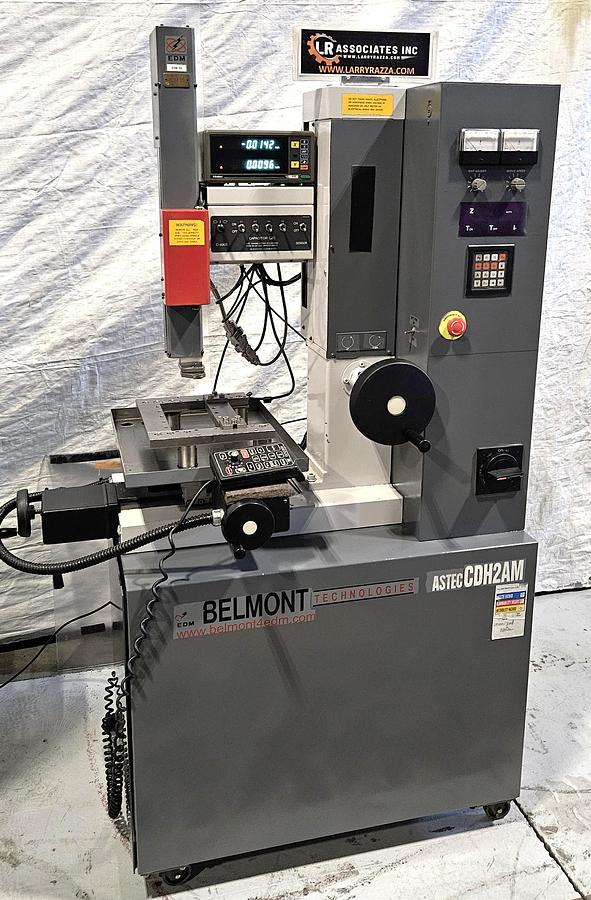

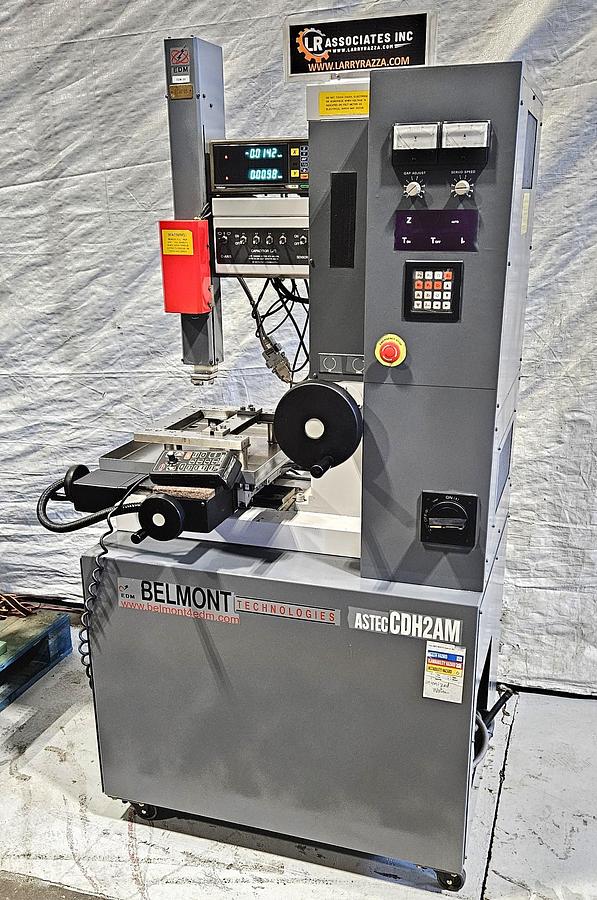

BELMONT ASTEC CDH-2AM HIGH-SPEED EDM HOLE DRILL / HOLE POPPER – 30 AMP – SERVO II PROGRAMMABLE X/Y – C-AXIS – MITUTOYO DRO – 2007 – 220V

BELMONT / ASTEC HIGH-SPEED SMALL-HOLE EDM DRILLING MACHINE

CDH-2AM – 30 AMP – .008" TO .118" ELECTRODE CAPACITY

SERVO II PROGRAMMABLE X/Y TABLE CONTROL

C-AXIS / ROTATING ELECTRODE SYSTEM – MITUTOYO DIGITAL READOUT

YEAR 2007 – MADE IN JAPAN

DESCRIPTION

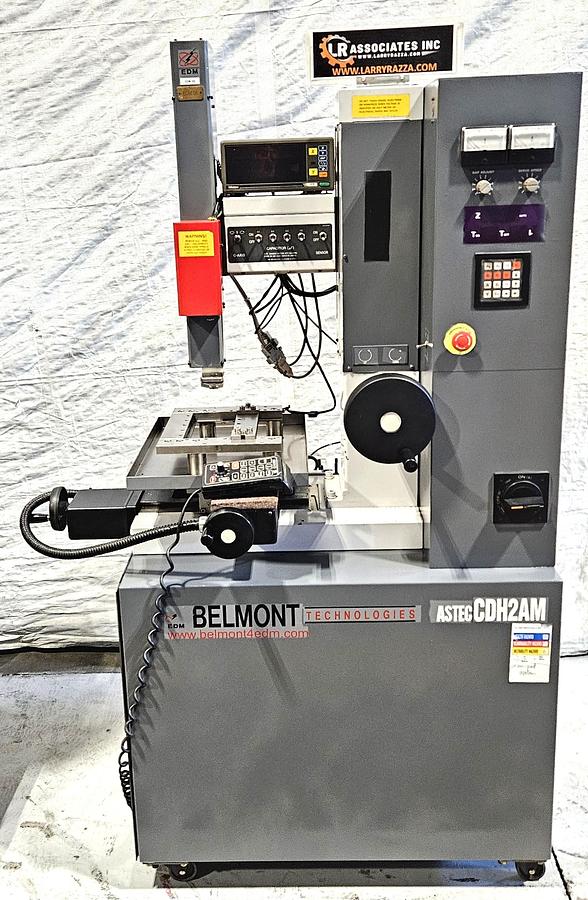

Available for immediate sale is this Belmont / ASTEC CDH-2AM High-Speed Small-Hole EDM Drilling Machine, commonly referred to as an EDM Hole Popper, EDM Drill, or Start-Hole EDM.

This is a professional industrial small-hole EDM system designed for producing extremely small, deep, and precision holes in electrically conductive materials regardless of material hardness.

The CDH-2AM uses a rotating tubular electrode combined with high-pressure dielectric flushing and controlled electrical discharge machining to rapidly produce small-diameter holes in materials that can be extremely difficult or impossible to drill conventionally.

This machine is particularly well suited for producing start holes for wire EDM, cooling holes, vent holes, ejector-pin holes, turbine and aerospace component holes, mold and die applications, and precision deep-hole work.

The machine is equipped with a Servo II programmable X/Y table positioning system, Mitutoyo 2-axis digital readout, C-axis / rotating electrode system, programmable EDM controls, DC servo Z-axis, precision work table, and integrated power supply.

Factory specifications for the ASTEC CDH-2AM provide a 0.2 mm to 3.0 mm electrode diameter range, approximately .008" to .118", with 200 mm X/Y table travel and 400 mm Z-axis servo feed.

This is a compact but highly capable industrial EDM drilling system ideal for tool rooms, mold shops, die shops, aerospace manufacturers, medical manufacturers, precision machining facilities, and wire EDM departments.

SPECIFICATIONS

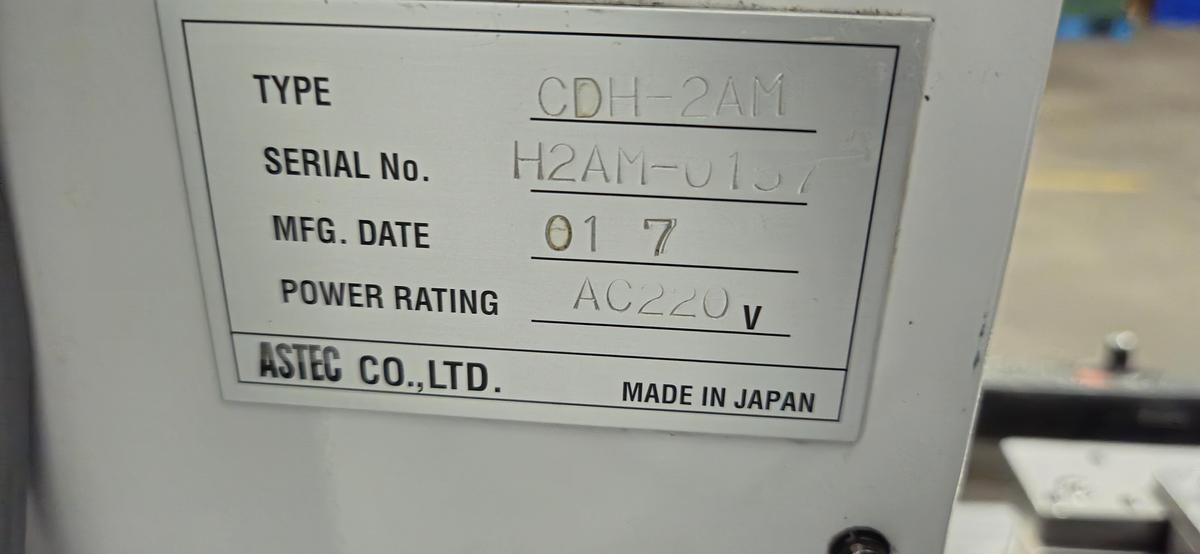

Manufacturer: ASTEC Co., Ltd.

Distributed / Branded By: Belmont Technologies

Model: CDH-2AM

Serial: H2AM0157

Machine Type: High-Speed Small-Hole EDM Drill / Hole Popper

Manufacture Date: 2007

Country of Manufacture: Japan

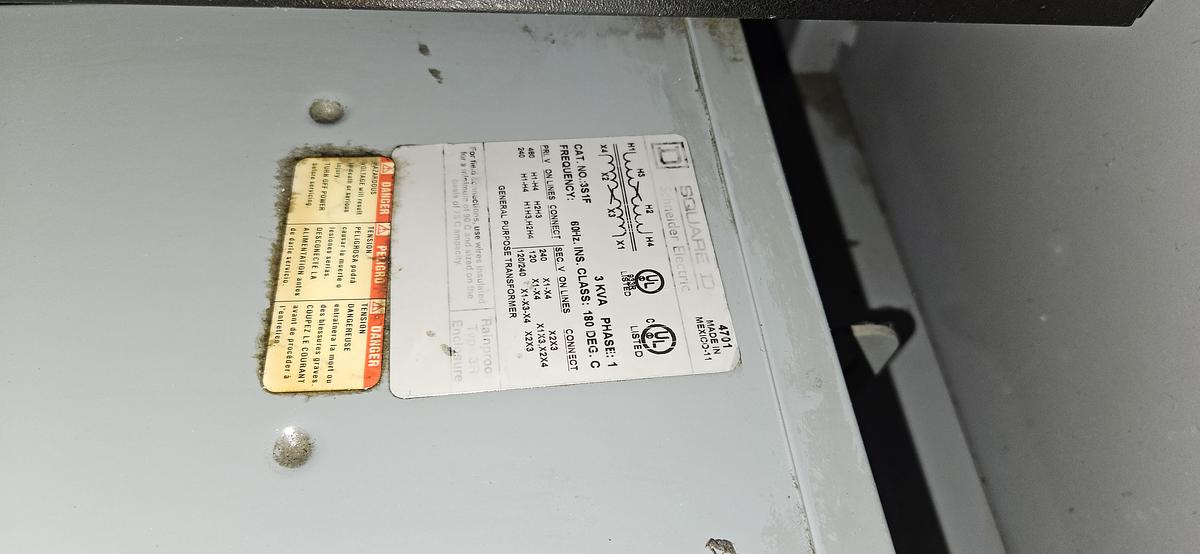

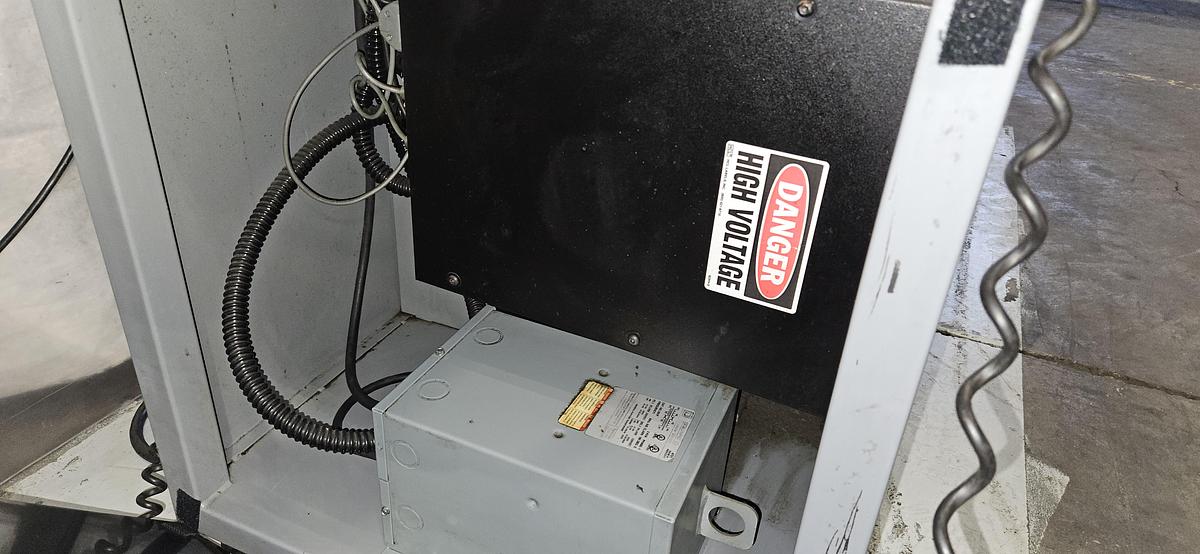

Electrical: AC 220 Volt

Maximum Average Machining Current: 30 Amps

Maximum Input: 3.5 kVA

Electrode Diameter Range: 0.2 – 3.0 mm

Approximate Electrode Diameter Range: .008" – .118"

X-Axis Travel: 200 mm / 7.87"

Y-Axis Travel: 200 mm / 7.87"

Z-Axis Servo Feed Travel: 400 mm / 15.75"

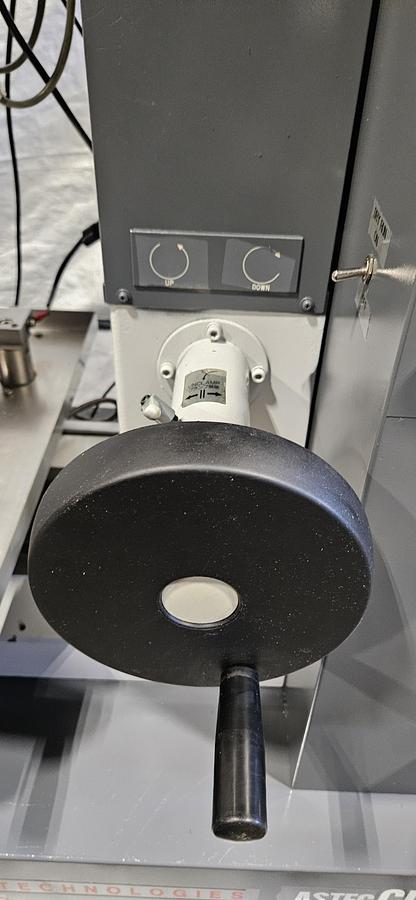

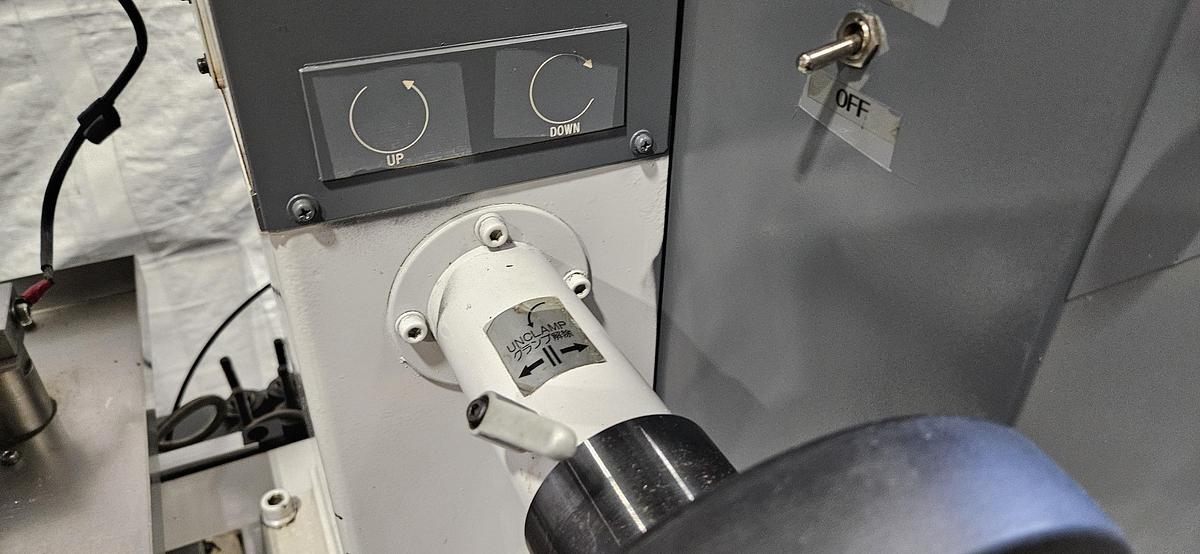

Z-Axis Head Vertical Adjustment: 245 mm / 9.65"

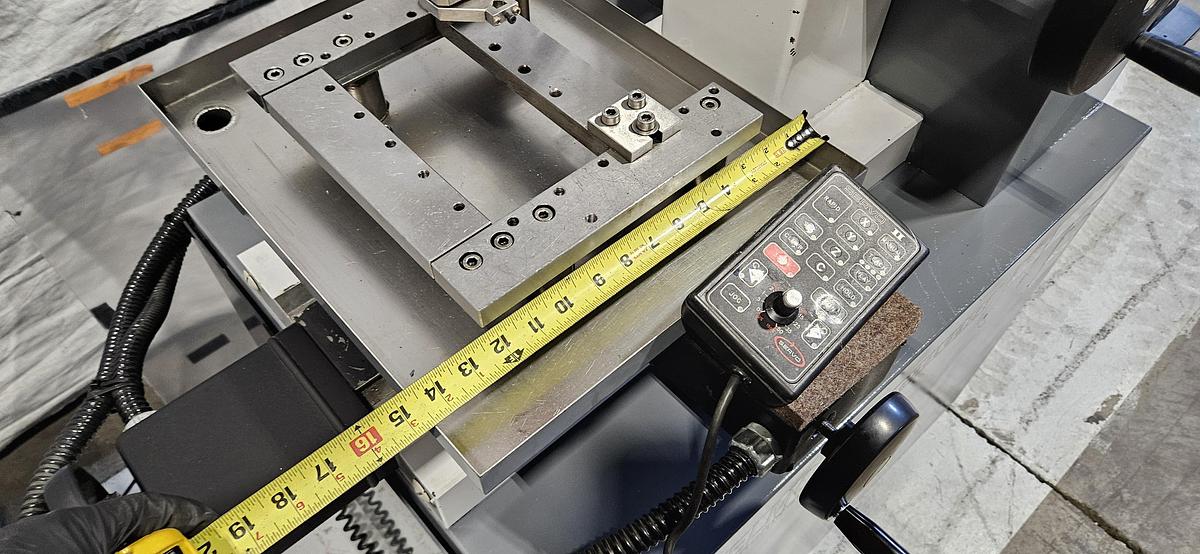

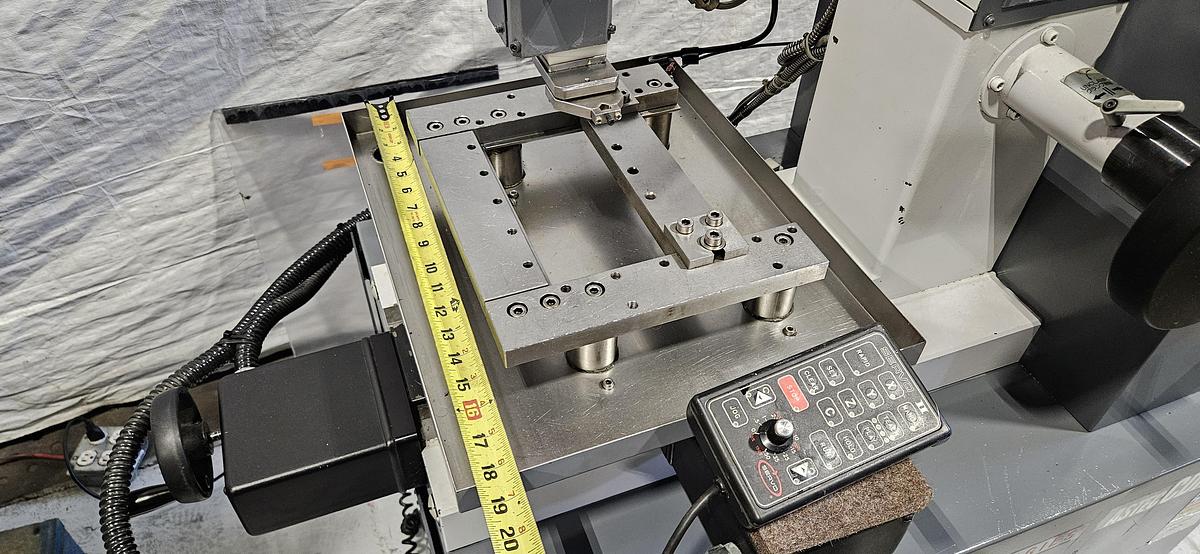

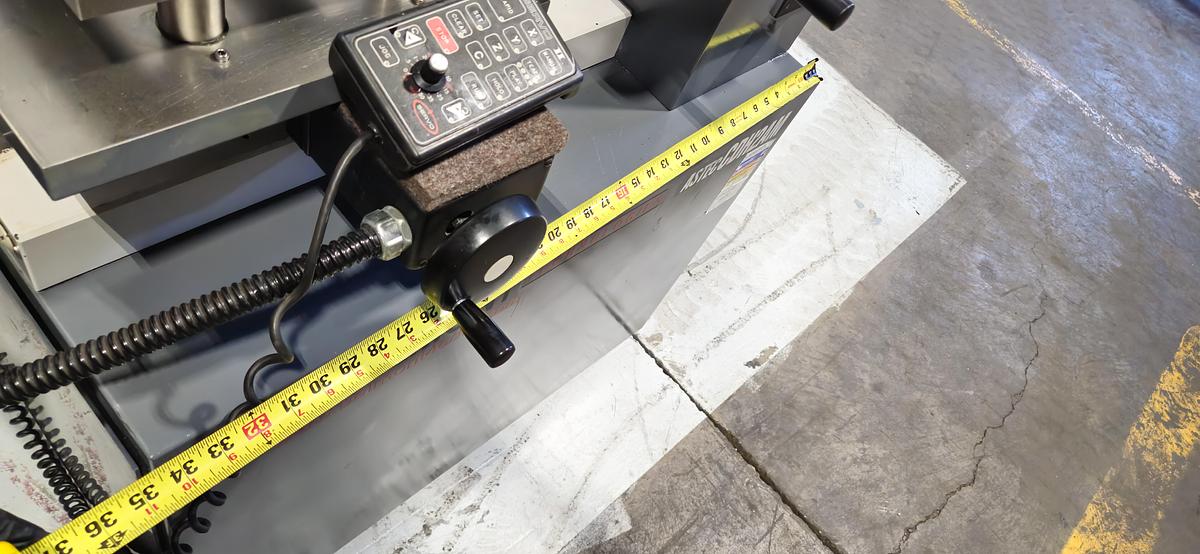

Work Table Size: 260 × 314 mm / Approximately 10.24" × 12.36"

Work Tank Inside Dimensions: 368 × 463 mm / Approximately 14.49" × 18.23"

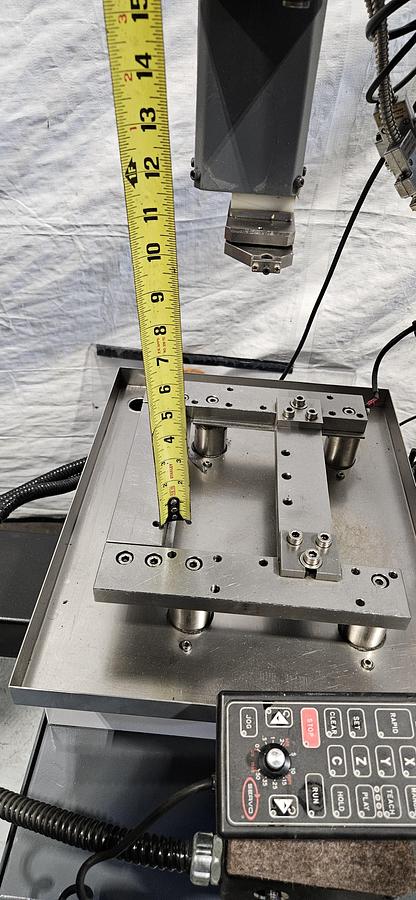

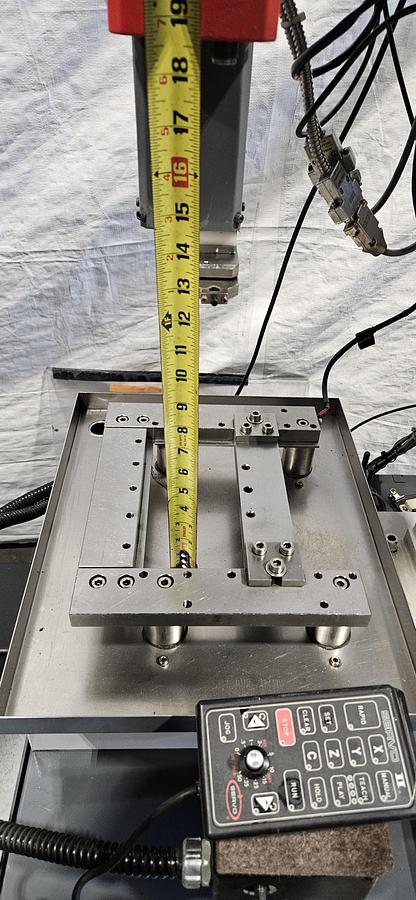

Maximum Workpiece Height: 225 mm / Approximately 8.86"

Maximum Workpiece Weight: 100 kg / Approximately 220 lbs.

Processing Fluid Tank Capacity: 20 Liters / Approximately 5.3 Gallons

Z-Axis Servo System: DC Servo

Electrode Rotation: DC Motor

Position Readout: Mitutoyo 2-Axis Digital Readout

Programmable Table Control: Servo II

C-Axis / Electrode Rotation: Included

HIGH-SPEED EDM HOLE DRILLING

The CDH-2AM is designed specifically for high-speed EDM drilling of small-diameter holes.

Unlike conventional drilling, the EDM process does not depend upon mechanical cutting action or material hardness.

A rotating tubular electrode is advanced toward the workpiece while electrical discharges remove material. Dielectric fluid is pumped through the electrode to cool the cutting area and evacuate EDM debris from the hole.

This process allows precision holes to be produced in electrically conductive materials including:

• Hardened Tool Steel

• Stainless Steel

• Carbide

• Titanium

• Inconel

• Nickel Alloys

• High-Speed Steel

• Mold Steel

• Die Steel

• Copper Alloys

• Other Electrically Conductive Materials

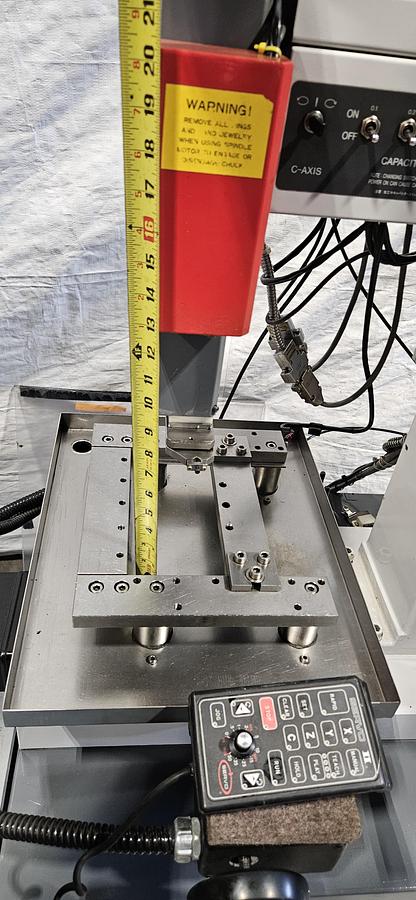

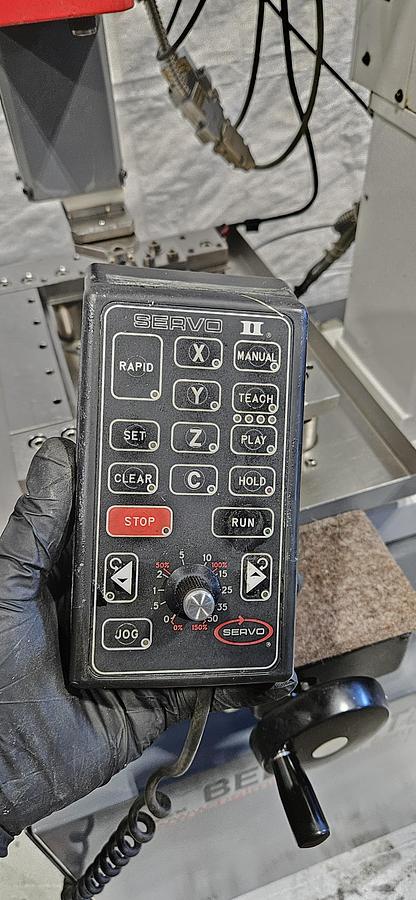

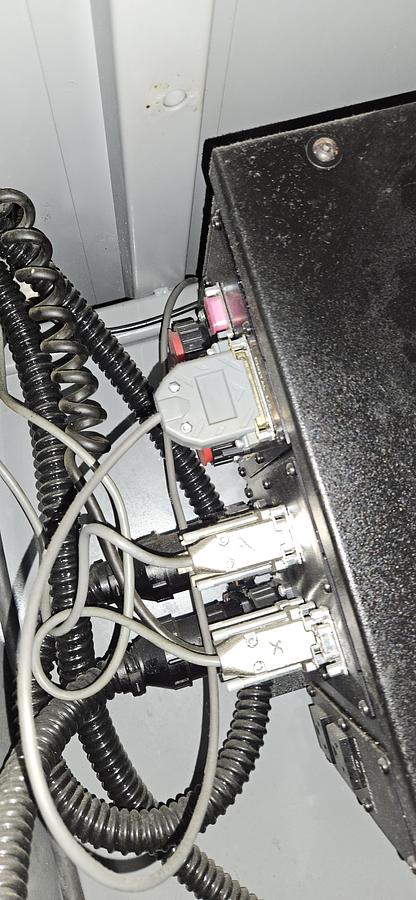

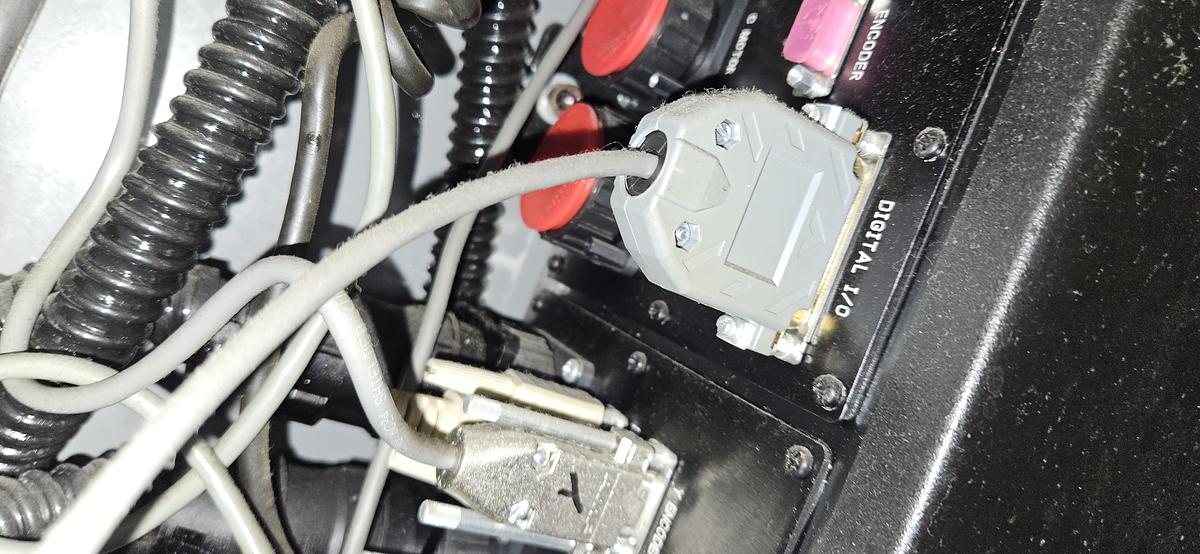

SERVO II PROGRAMMABLE X/Y TABLE CONTROL

This machine is equipped with a Servo II programmable table control system.

The handheld controller provides powered and programmable positioning of the machine table.

Control functions include:

• X-Axis Control

• Y-Axis Control

• Z Control

• C-Axis Control

• Rapid Positioning

• Manual Mode

• Teach Mode

• Play / Program Mode

• Set Function

• Hold

• Run

• Stop

• Jog

• Adjustable Feed / Speed Control

This system provides substantially greater positioning capability than a basic manually positioned EDM hole drill.

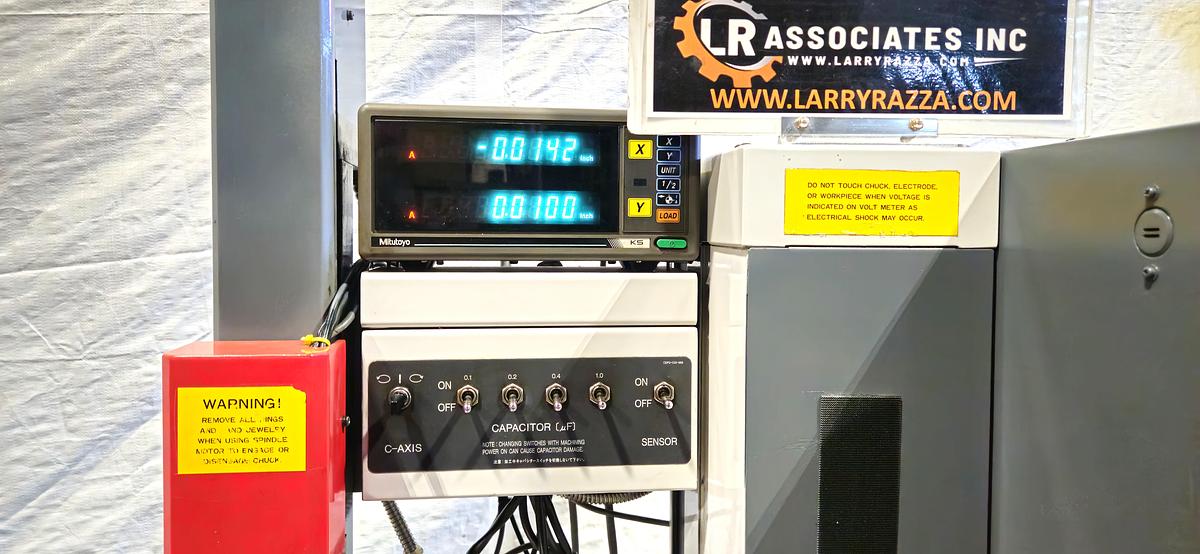

MITUTOYO DIGITAL READOUT

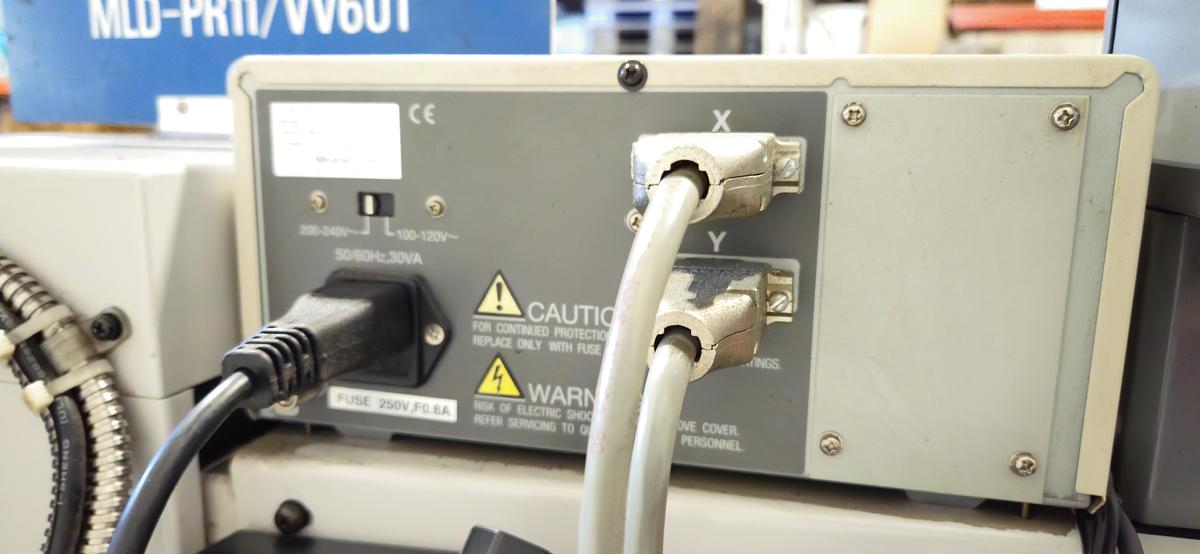

The machine is equipped with a Mitutoyo 2-Axis Digital Readout System.

The DRO provides precision digital indication of:

• X-Axis Position

• Y-Axis Position

Features include:

• Inch / Metric Selection

• Absolute / Incremental Positioning

• Zero / Datum Functions

• Digital Position Display

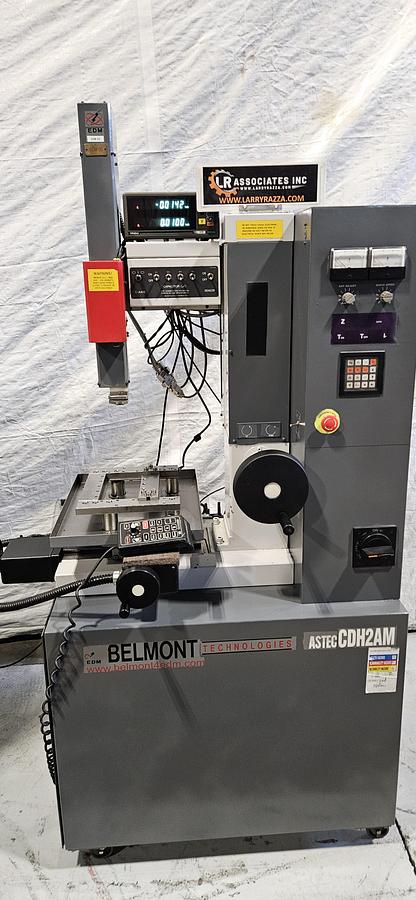

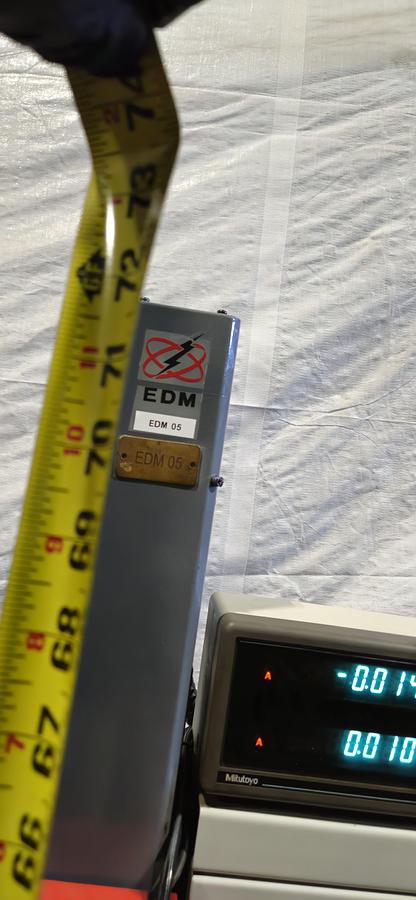

The Mitutoyo DRO is shown powered and displaying axis position in the photographs.

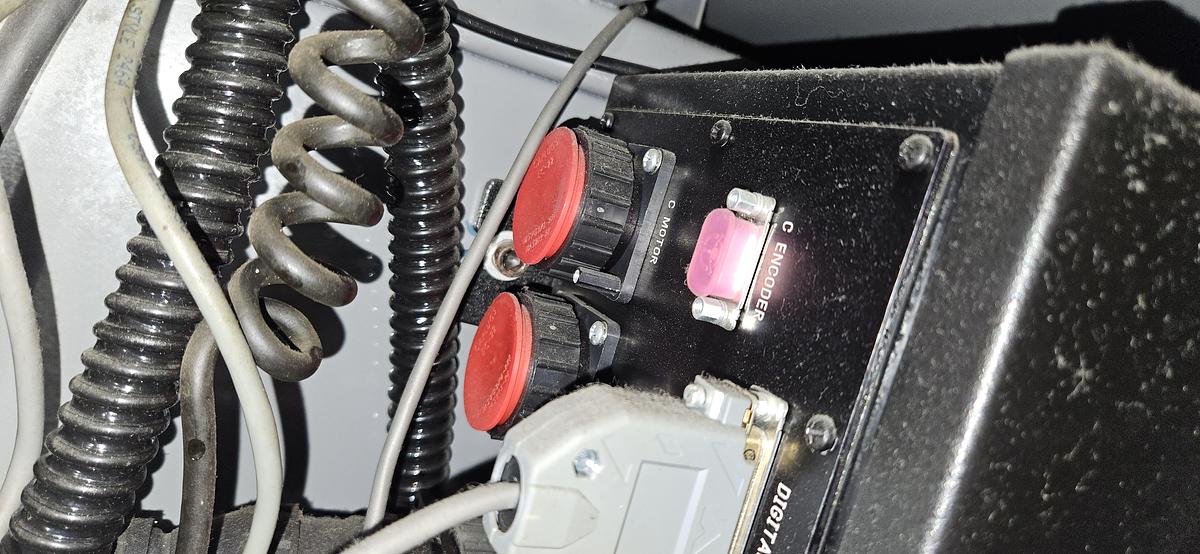

C-AXIS / ELECTRODE ROTATION SYSTEM

The CDH-2AM incorporates a DC-motor-driven electrode rotation system.

Rotating the tubular electrode during EDM drilling assists with:

• Improved Flushing

• More Consistent Hole Geometry

• Efficient Debris Removal

• Reduced Electrode Instability

• Improved Deep-Hole Performance

• More Consistent EDM Cutting

The machine also incorporates dedicated C-Axis controls.

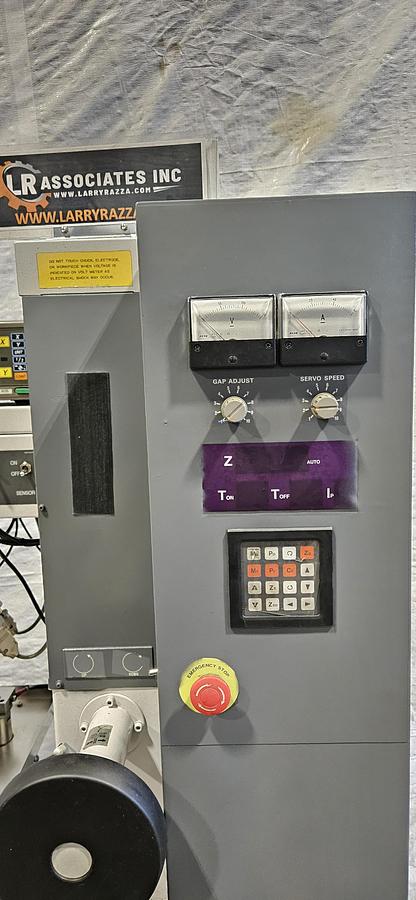

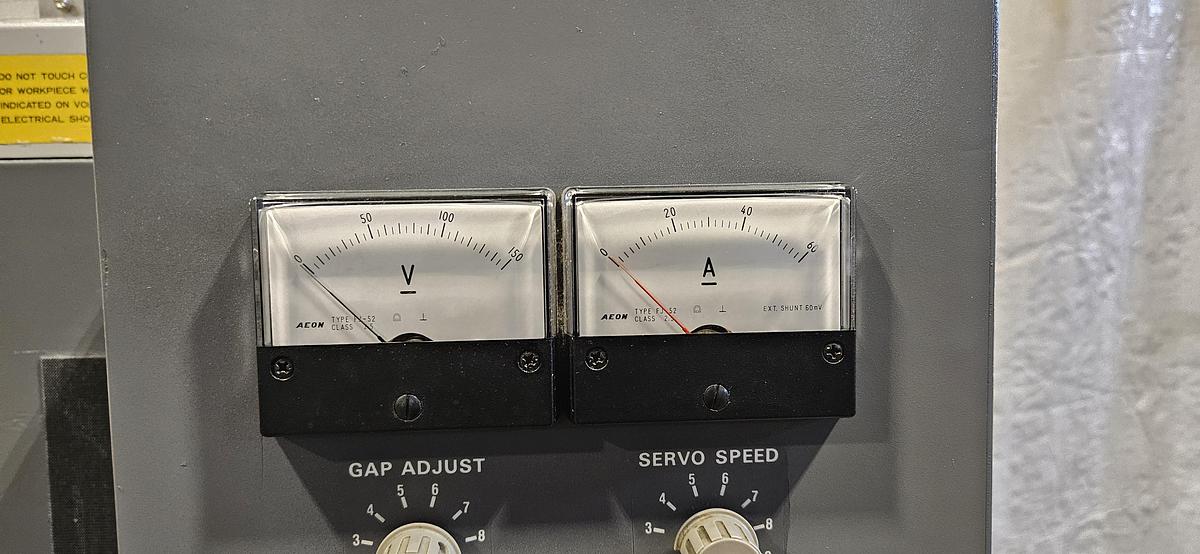

EDM PROCESS CONTROL

The machine incorporates adjustable EDM process controls including:

• Gap Adjustment

• Servo Speed

• Z-Axis Control

• Automatic Machining Mode

• On-Time Control

• Off-Time Control

• Machining Current Control

• Gap Voltage Monitoring

• Working Current Monitoring

• Programmable Process Functions

• Emergency Stop

The control system allows the operator to optimize EDM parameters for varying electrode sizes, workpiece materials, and hole requirements.

CAPACITOR SELECTION

The machine incorporates selectable machining capacitance for fine-hole EDM applications.

Selectable capacitor values include:

• 0.1 µF

• 0.2 µF

• 0.4 µF

• 1.0 µF

This allows the operator to tailor discharge characteristics to the electrode diameter and desired machining conditions.

FEATURES

• Belmont / ASTEC CDH-2AM

• High-Speed Small-Hole EDM Drill

• EDM Hole Popper

• Start-Hole EDM Machine

• Approx. 2007

• Made in Japan

• 30 Amp Maximum Machining Current

• 0.2 – 3.0 mm Electrode Range

• Approximately .008" – .118" Hole / Electrode Range

• 200 mm X-Axis Travel

• 200 mm Y-Axis Travel

• 400 mm Z-Axis Servo Feed

• DC Servo Z-Axis

• Servo II Programmable X/Y Table Control

• Mitutoyo 2-Axis Digital Readout

• C-Axis / Electrode Rotation

• DC Electrode Rotation Motor

• Programmable EDM Controls

• Gap Voltage Meter

• Working Current Meter

• Adjustable Gap Control

• Adjustable Servo Speed

• Adjustable On-Time / Off-Time

• Selectable Capacitors

• Integrated Work Table

• Compact Industrial Design

• Emergency Stop

• 220V Electrical

APPLICATIONS

Ideal for:

• Wire EDM Start Holes

• Aerospace Components

• Turbine Components

• Cooling Holes

• Vent Holes

• Mold Manufacturing

• Mold Repair

• Die Manufacturing

• Tool & Die Shops

• Carbide Tooling

• Hardened Tool Steel

• Medical Components

• Precision Machining

• Deep Small-Diameter Holes

• Ejector Pin Holes

• Injection Mold Tooling

• Prototype Components

• Difficult-to-Drill Materials

• General EDM Drilling

TYPICAL INDUSTRIES

• Aerospace

• Medical

• Tool & Die

• Mold Manufacturing

• Automotive

• Turbine Manufacturing

• Precision Machining

• Wire EDM Shops

• Defense Manufacturing

• General Manufacturing

INCLUDES

• Belmont / ASTEC CDH-2AM EDM Hole Drilling Machine

• Integrated EDM Power Supply

• Servo II Programmable Table Controller

• Mitutoyo 2-Axis Digital Readout

• C-Axis / Electrode Rotation System

• DC Servo Z-Axis System

• Precision Work Table

• Electrode Head Assembly

• Integrated Fluid / Process System

• Associated Controls & Components Presently With Machine

CONDITION

This Belmont / ASTEC CDH-2AM High-Speed EDM Hole Drilling Machine is in good overall used industrial condition.

The machine appears complete with its EDM power supply, Mitutoyo digital readout, Servo II programmable X/Y table controller, C-axis / electrode rotation system, work table, and associated controls.

The Mitutoyo DRO has been powered up and is shown displaying X/Y axis position in the photographs.

The machine presents well for its age and appears to have been maintained in a professional industrial environment.

Full operational testing to be confirmed prior to sale.

Buyer is encouraged to inspect and test the machine prior to purchase.

SHIPPING

We can assist with professional rigging, loading, preparation, and freight quotes upon request.

Please contact us for a Shipping Quote!

We ship anywhere!

WSPT# L-0000-082326-A

P#081926

OFFERED BY

L R Associates, Inc.

Machinery Dealers / Consultants / Appraisers / Auctioneers

25 Conduit Street

Central Falls, Rhode Island 02863

Contact us at Four Zero One – Nine Six Five – Five Five Five Seven

ADDITIONAL INFORMATION

Specifications are based upon manufacturer information, machine nameplate information, component identification, physical inspection, and available factory specifications.

Care is taken to provide reliable specifications, but these are not guaranteed. Buyer is responsible for independently verifying all specifications, electrical requirements, capacities, accessories, and suitability for the intended application.
