OGP SMARTSCOPE FLASH 200 3D MULTISENSOR VIDEO MEASURING SYSTEM – TTL LASER – TOUCH PROBE – MEASUREMIND 3D – DUAL MONITORS – CERTIFIED CALIBRATION – TESTED – PRISTINE

OGP SMARTSCOPE FLASH 200 PRECISION 3D MULTISENSOR MEASUREMENT SYSTEM

VIDEO + THROUGH-THE-LENS (TTL) LASER + TOUCH PROBE

MEASUREMIND 3D MULTISENSOR SOFTWARE – MEASUREFIT – QC-CALC REAL TIME

DUAL MONITORS – CERTIFIED CALIBRATION BALL INCLUDED

PROFESSIONALLY CALIBRATED BY CERTIFIED OGP TECHNICIAN

TESTED – CALIBRATION SUCCESSFUL – PRISTINE CONDITION – READY FOR PRODUCTION

DESCRIPTION

Available for immediate sale is this OGP SmartScope Flash 200 Precision 3D Multisensor Video Measurement System, equipped with non-contact video measurement, Through-the-Lens (TTL) laser measurement, and tactile touch-probe capability.

This is a particularly well-equipped Flash 200 package featuring MeasureMind 3D MultiSensor measurement software, MeasureFit software, QC-CALC Real-Time with SmartReport Plus, dual monitors, computer workstation, touch probe, TTL laser, and certified calibration ball.

Unlike a basic video-only measurement machine, this Flash 200 combines multiple sensing technologies within one precision measurement platform, allowing the operator to select the most appropriate measurement method for a particular feature or component.

The machine has been fully tested and professionally calibrated by a Certified OGP Technician.

Calibration routines were successfully completed, and calibration results are shown in the accompanying photographs.

The system is in pristine overall condition and is ready for production use.

The OGP SmartScope Flash 200 is widely used for precision dimensional inspection, quality control, first-article inspection, production inspection, tooling verification, medical component inspection, aerospace components, electronics, plastics, precision machining, and other demanding metrology applications.

This machine provides an excellent opportunity to acquire a fully equipped, calibrated, tested, multisensor OGP system at a fraction of replacement cost.

MACHINE IDENTIFICATION

Manufacturer: Optical Gaging Products / OGP

Model: SmartScope Flash 200

Machine Type: 3D Multisensor Video Measurement System

Category: CMM / Video Measuring Machine / Optical Measuring System

Serial Number: SVL-2003013

Configuration: Benchtop Precision Measuring System

Country of Manufacture: USA

Measurement Methods:

• Non-Contact Video Measurement

• Through-the-Lens (TTL) Laser Measurement

• Tactile Touch-Probe Measurement

MEASUREMENT CAPABILITIES

This Flash 200 provides true multisensor dimensional measurement capability through the combination of:

VIDEO MEASUREMENT

Precision non-contact optical measurement for:

• Edges

• Diameters

• Radii

• Angles

• Slots

• Hole Locations

• Profiles

• Geometric Features

• Complex Part Geometry

TTL LASER MEASUREMENT

Integrated Through-the-Lens Laser provides non-contact surface measurement capability.

Typical applications include:

• Surface Height Measurement

• Z-Axis Feature Measurement

• Surface Profiling

• Autofocus

• Non-Contact Height Measurement

• Features unsuitable for tactile probing

TOUCH PROBE MEASUREMENT

Tactile touch-probe capability allows physical contact measurement of features that may be difficult or impossible to evaluate optically.

Typical applications include:

• Internal Features

• Side Walls

• Bores

• Datum Surfaces

• Three-Dimensional Geometry

• Features inaccessible to optical measurement

SPECIFICATIONS

Manufacturer: OGP / Optical Gaging Products

Model: SmartScope Flash 200

Serial Number: SVL-2003013

Machine Type: 3D Multisensor Measuring System

X-Axis Travel: 200 mm / 7.87"

Y-Axis Travel: 200 mm / 7.87"

Z-Axis Travel: 150 mm / 5.91"

XYZ Scale Resolution: 0.1 Micron

Drive System: Precision Servo-Controlled

Measurement Sensors:

• Precision Video / Optical System

• TTL Through-the-Lens Laser

• Touch Probe

Measurement Software: MeasureMind 3D MultiSensor

Reported Repeatability: ±0.000200"

Reported Accuracy: ±0.000400"

Mounting Configuration: Benchtop

Computer System: Included

Monitors: Dual Monitor Configuration

Calibration Ball: Certified Calibration Ball Included

SOFTWARE PACKAGE

This system includes a substantial metrology software package.

OGP MEASUREMIND 3D MULTISENSOR

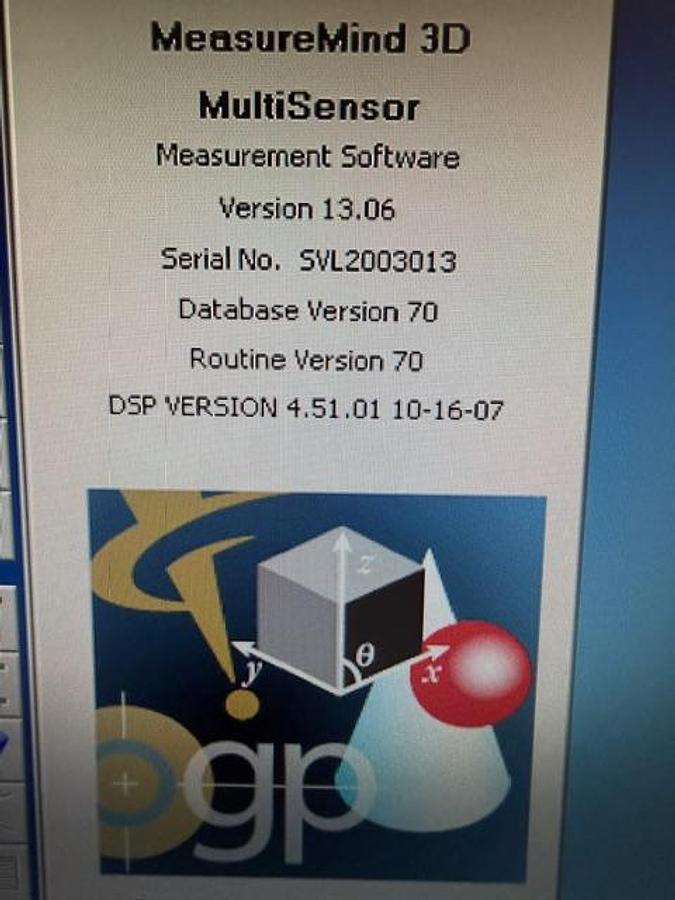

Software: MeasureMind 3D MultiSensor

Version: 13.06

Serial Number: SVL2003013

Database Version: 70

Routine Version: 70

DSP Version: 4.51.01

DSP Date: 10-16-07

Operating Platform: Windows XP

MeasureMind 3D provides integrated control and measurement functionality for the machine's multiple sensing technologies.

Capabilities include:

• Video Measurement

• TTL Laser Measurement

• Touch-Probe Measurement

• Feature Construction

• Geometric Measurement

• Part Programming

• Automated Measurement Routines

• Multisensor Measurement Programs

• Calibration Functions

• Autofocus

• Data Collection

• Measurement Reporting

ADDITIONAL SOFTWARE

Also installed with the system:

MEASUREFIT

OGP measurement / analysis software for additional dimensional measurement and fitting applications.

QC-CALC REAL-TIME

Version: 3.2

Includes SmartReport Plus

Provides real-time data collection and reporting capability for quality-control applications.

CERTIFIED OGP CALIBRATION

A particularly important feature of this system is that the machine has been professionally calibrated by a Certified OGP Technician.

Calibration procedures have been completed successfully.

The accompanying photographs document:

• Successful System Calibration

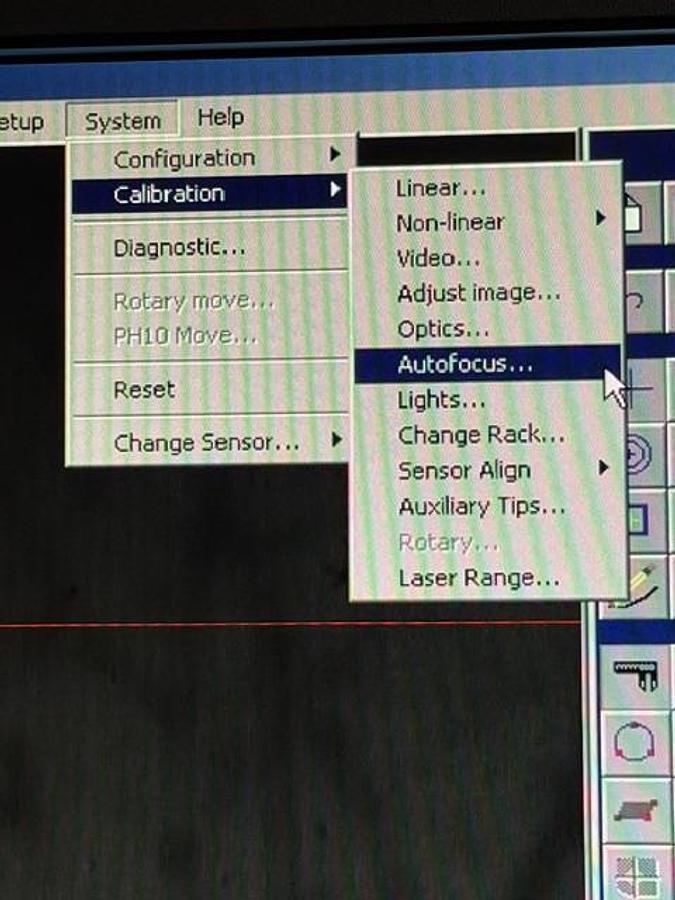

• Autofocus Calibration

• Optical Calibration Functions

• Multisensor Calibration

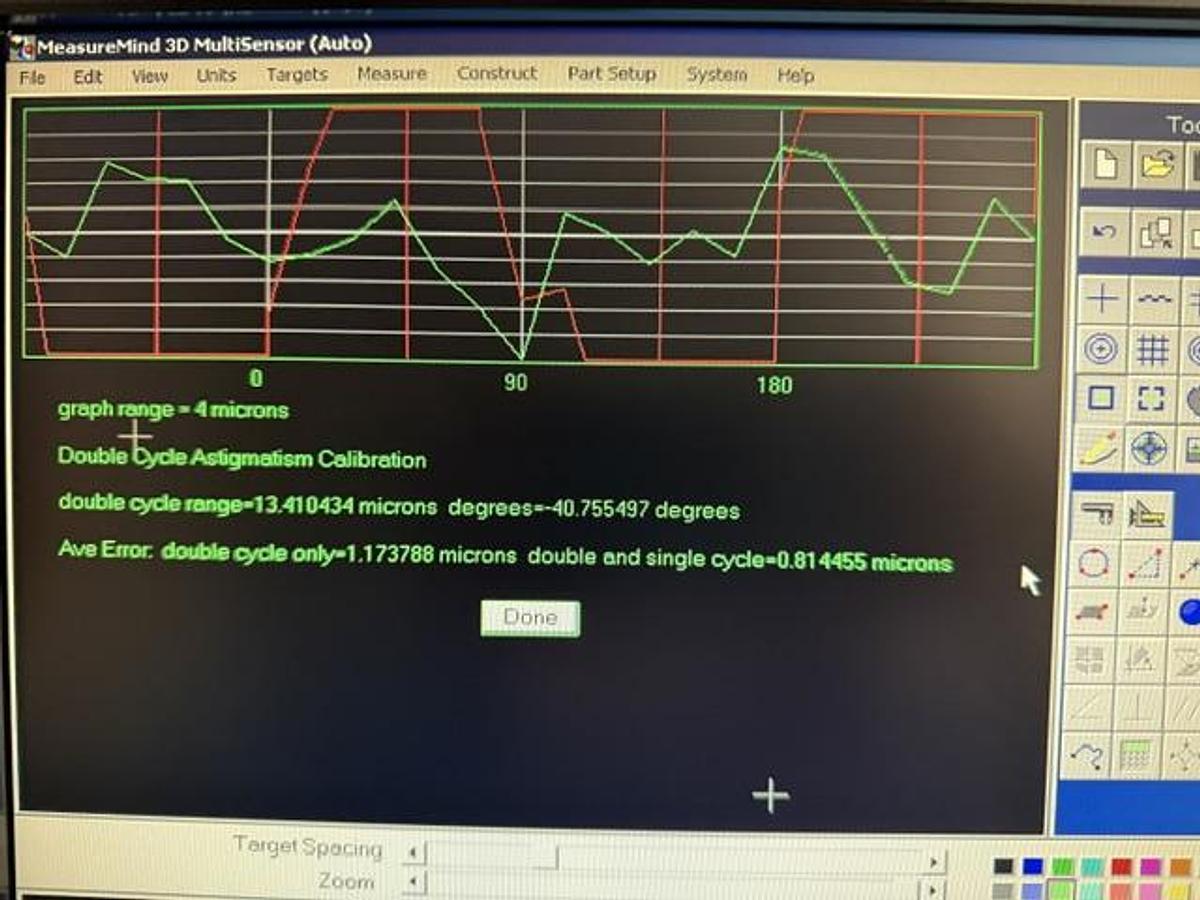

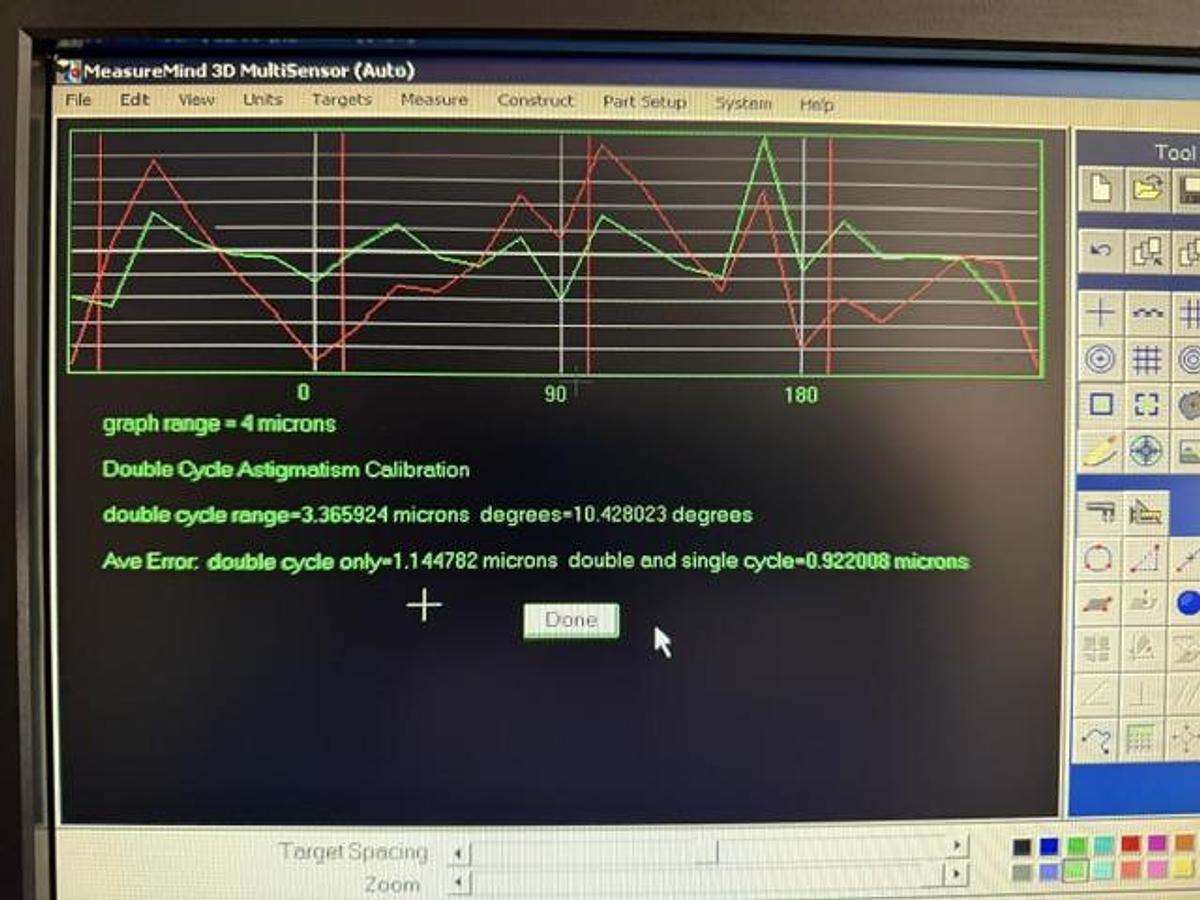

• Double-Cycle Astigmatism Calibration

• Measurement Calibration Results

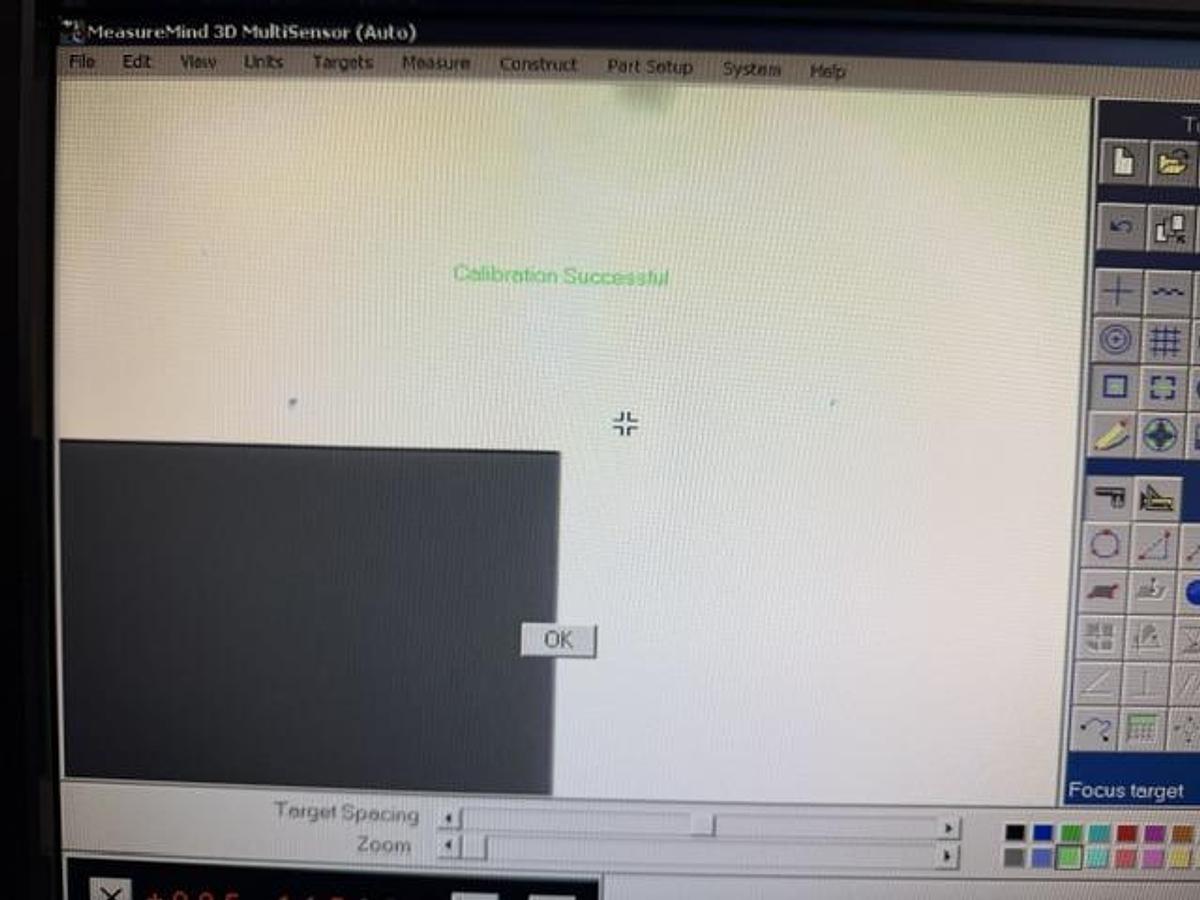

The calibration screens show successful calibration completion and micron-level calibration results.

This substantially increases buyer confidence compared with an untested or uncalibrated used vision system.

CERTIFIED CALIBRATION BALL

A Certified Calibration Ball is included with the machine.

The calibration artifact is used in conjunction with multisensor calibration and verification procedures and provides an important reference for maintaining system accuracy.

Certified Calibration Ball Included.

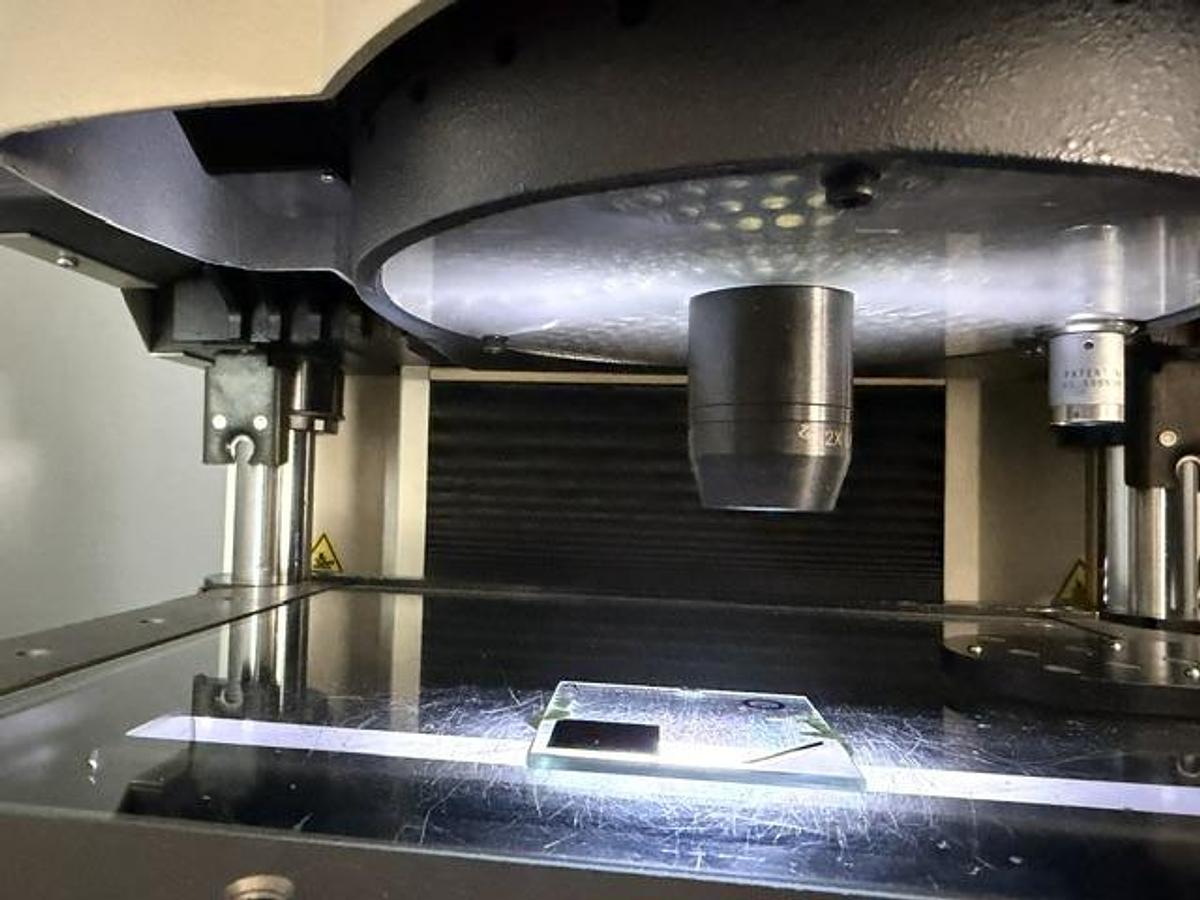

OGP OPTICAL SYSTEM

The SmartScope Flash 200 incorporates OGP's precision optical measurement technology designed for accurate automated dimensional inspection.

Features include:

• Precision Optical Zoom System

• Automatic Focus

• Profile / Back Lighting

• Surface Illumination

• Programmable Lighting

• High-Resolution Video Measurement

• Edge Detection

• Automated Feature Measurement

• Precision Servo Positioning

• Multisensor Integration

TTL THROUGH-THE-LENS LASER

The installed TTL laser adds true non-contact Z-axis surface measurement capability to the Flash 200.

Because the laser measurement is integrated through the optical system, the machine can transition between optical measurement and laser-based surface measurement within programmed inspection routines.

Typical TTL laser functions include:

• Non-Contact Surface Measurement

• Surface Profiling

• Autofocus

• Single-Point Measurement

• Linear Scanning

• Area Measurement

• Precision Z-Axis Measurement

TOUCH PROBE SYSTEM

The installed tactile touch-probe system expands the machine beyond conventional optical inspection.

The touch probe allows measurement of physical features where line-of-sight optical measurement may not be practical.

This provides additional flexibility for:

• Internal Features

• Bores

• Side Surfaces

• Datum Features

• Three-Dimensional Components

• Complex Machined Parts

FEATURES

• OGP SmartScope Flash 200

• 3D Multisensor Measurement

• Video Measurement

• TTL Through-the-Lens Laser

• Touch Probe

• MeasureMind 3D MultiSensor Software

• MeasureFit Software

• QC-CALC Real-Time

• SmartReport Plus

• 200 mm X Travel

• 200 mm Y Travel

• 150 mm Z Travel

• 0.1 Micron Scale Resolution

• Precision Servo Drive System

• Automatic Focus

• Programmable Illumination

• Surface Lighting

• Profile Lighting

• Precision Optical Zoom

• Dual Monitor Configuration

• Computer Workstation

• Certified Calibration Ball

• Professionally Calibrated

• Calibration Completed by Certified OGP Technician

• Calibration Successful

• Tested & Fully Operational

• Pristine Overall Condition

• Ready for Production

APPLICATIONS

Ideal for:

• Precision Quality Control

• Dimensional Inspection

• First Article Inspection

• Production Inspection

• Aerospace Components

• Medical Components

• Precision Machined Parts

• Mold & Die Components

• Plastic Components

• Electronics

• Semiconductor Components

• Automotive Components

• Tooling

• Gauges

• Fixtures

• Small Precision Components

• Research & Development

• Metrology Laboratories

• Inspection Departments

• Manufacturing Quality Assurance

INCLUDES

• OGP SmartScope Flash 200 Measuring Machine

• TTL Through-the-Lens Laser System

• Tactile Touch Probe

• MeasureMind 3D MultiSensor Software

• MeasureFit Software

• QC-CALC Real-Time Version 3.2

• SmartReport Plus

• Computer Workstation

• Dual Monitors

• Keyboard

• Mouse / Operator Controls

• Certified Calibration Ball

• Associated Machine Controls

• Installed Measurement Hardware

• Associated Cables & Connections

CONDITION

This OGP SmartScope Flash 200 is in pristine overall condition.

The machine has been fully tested and is operating properly.

All major measurement systems, including non-contact video measurement, TTL laser, and tactile touch-probe functionality, have been tested.

The machine has been professionally calibrated by a Certified OGP Technician, and calibration was completed successfully.

The MeasureMind 3D software is installed and operational, along with MeasureFit and QC-CALC Real-Time / SmartReport Plus.

The machine includes its dual-monitor computer system and certified calibration ball.

TESTED – CALIBRATED – FULLY OPERATIONAL – READY FOR PRODUCTION.

Buyer is encouraged to inspect and demonstrate the machine prior to purchase.

SHIPPING

We can assist with professional preparation, packaging, crating, and freight quotes upon request.

Precision metrology equipment should be professionally prepared and protected for transportation.

Please contact us for a Shipping Quote!

We ship anywhere!

WSPT# LRQ-00052-082326-B

P# File OGP
