SCHLÄFLI ACUWIRE-S HIGH-PRECISION SMALL-BORE WIRE HONING MACHINE – SIEMENS SIMATIC TOUCHSCREEN – LARGE HONING WIRE & DIAMOND SLURRY PACKAGE – LOW USE – TESTED

DESCRIPTION

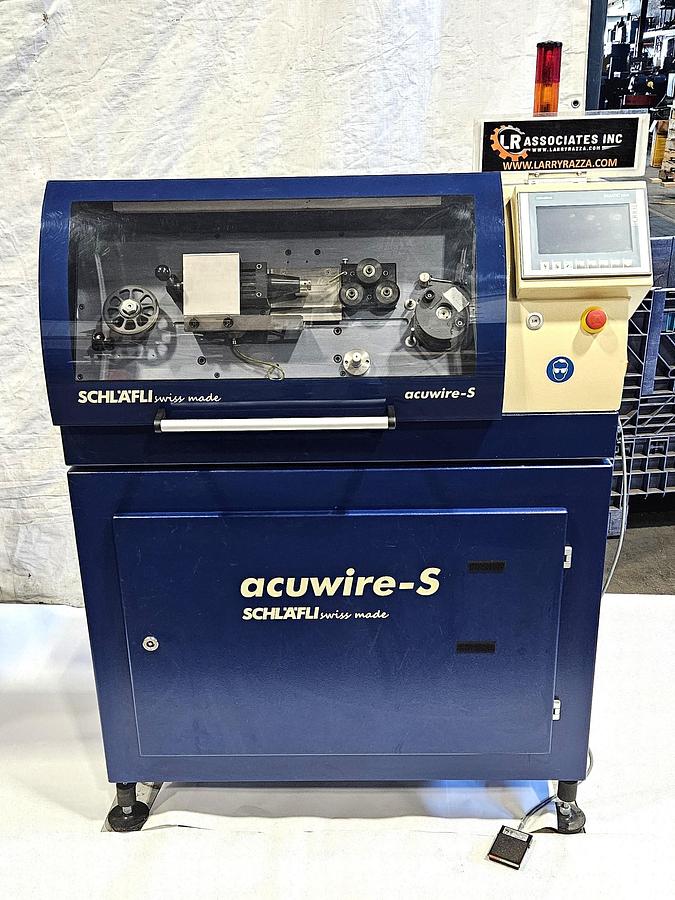

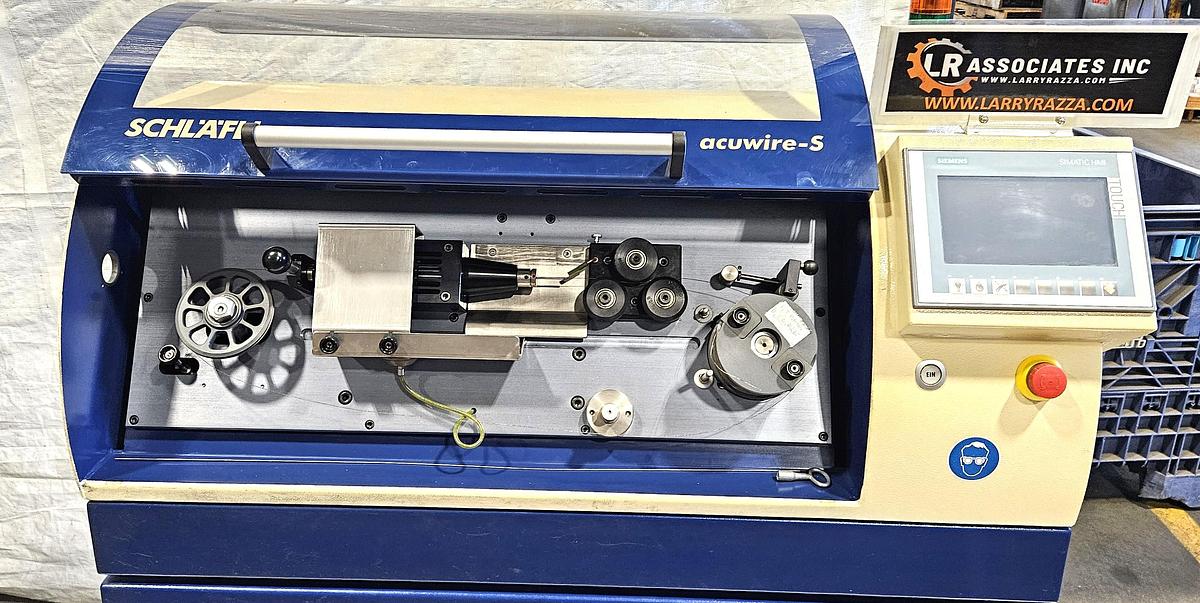

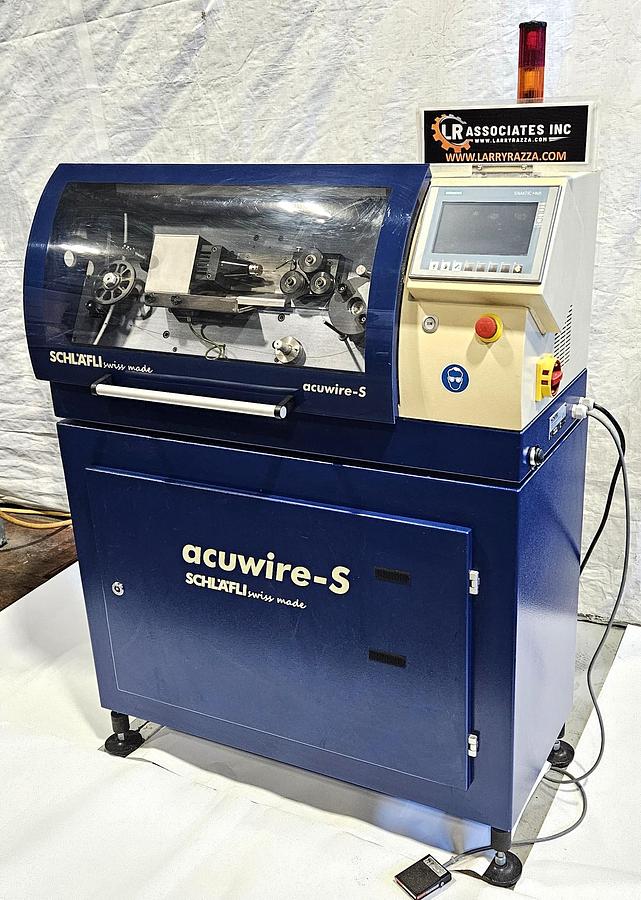

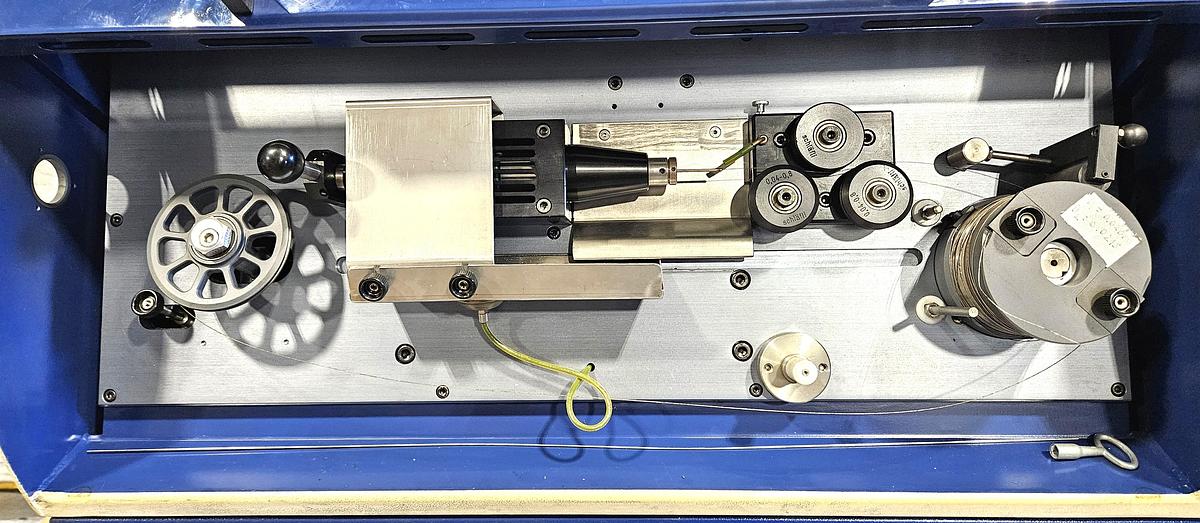

Available for immediate sale is this Schläfli Engineering acuwire-S High-Precision Small-Bore Wire Honing Machine, Swiss manufactured and designed specifically for precision finishing, sizing, geometry correction, and surface improvement of extremely small internal bores.

The Schläfli acuwire-S utilizes a highly specialized precision wire-honing process for finishing extremely small holes that are difficult or impossible to accurately process using conventional honing or grinding equipment.

This process is capable of improving bore diameter, roundness, cylindricity, concentricity, and internal surface finish in precision components manufactured from materials including carbide, technical ceramics, ruby, sapphire, steel, medical alloys, and other hard or precision materials.

The acuwire-S is designed for extremely small bore diameters ranging approximately from 0.04 mm through 0.80 mm.

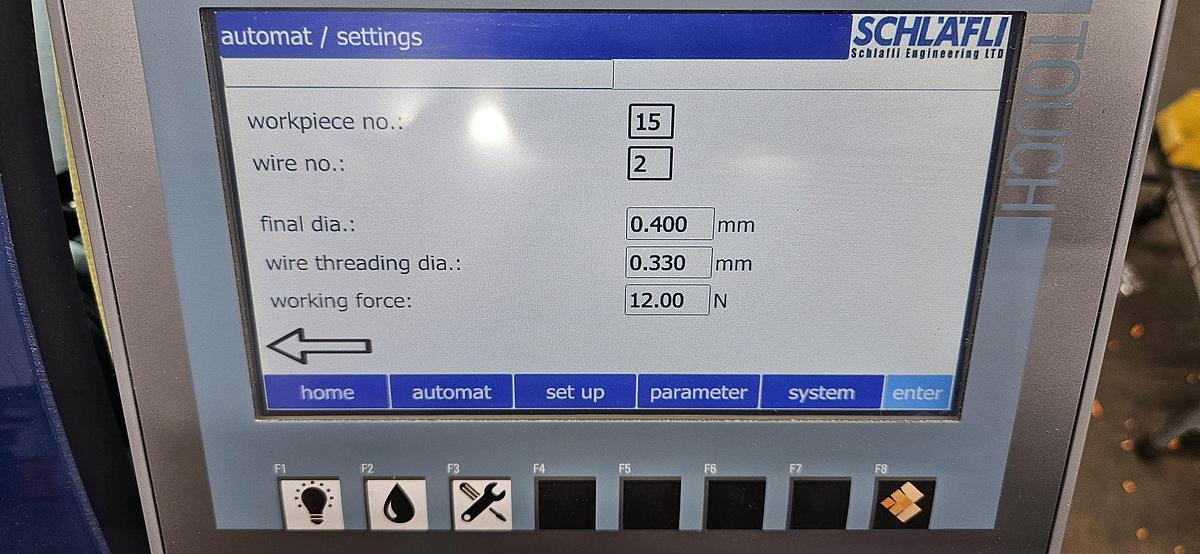

This machine is equipped with a Siemens SIMATIC touchscreen HMI control system providing programmable automatic operation and convenient adjustment of honing parameters including final diameter, wire threading diameter, working force, spindle speed, wire movement, grinding method, and process cycles.

This particular machine has seen very little use and is in excellent overall condition.

Included with the machine is an extensive assortment of original Schläfli accessories including numerous precision honing wire spools, diamond suspensions / slurries, tooling, spare components, bearings, O-rings, guides, and related process accessories.

The machine has been powered up and tested and is operating properly.

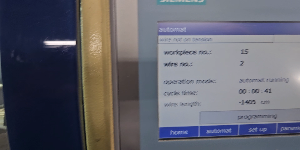

Video of the machine operating is available.

SPECIFICATIONS

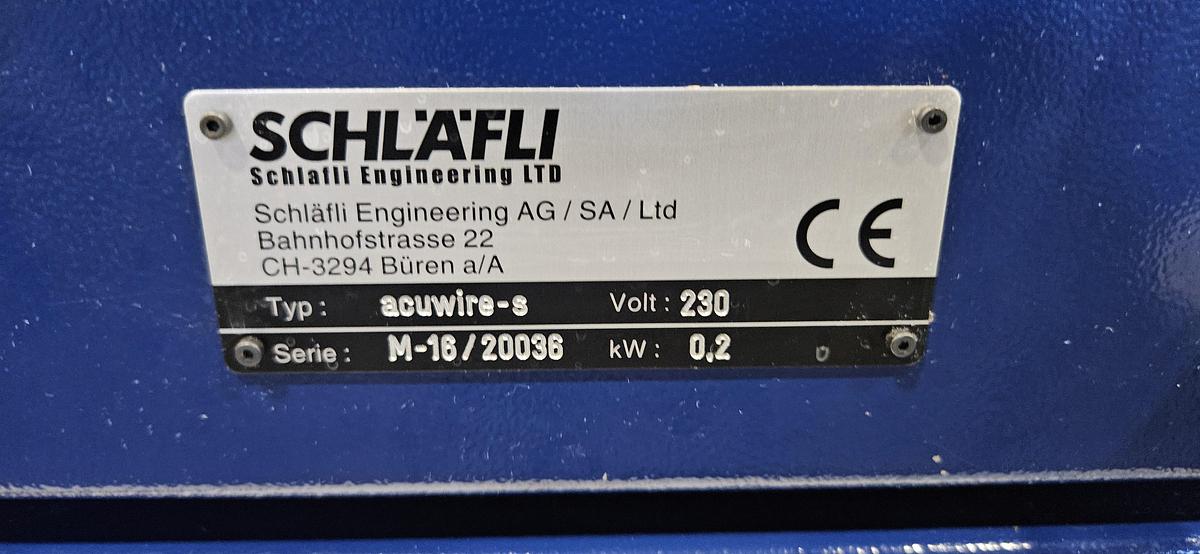

Manufacturer: Schläfli Engineering AG / SA / Ltd.

Model: acuwire-S

Machine Type: High-Precision Small-Bore Wire Honing Machine

Application: Precision Micro-Bore Finishing

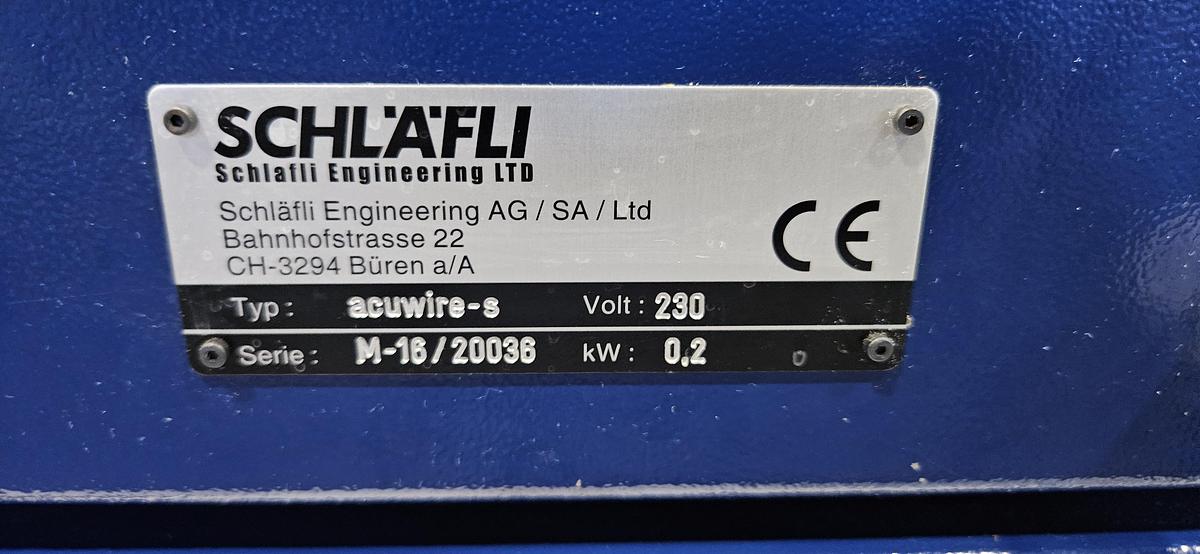

Series / Serial Number: M-16/20036

Country of Manufacture: Switzerland

Bore Diameter Range: Approx. 0.04 – 0.800 mm

Maximum Honing / Workpiece Length: Approx. 200 mm

Maximum Standard Workpiece Diameter: Approx. 10 mm

Honing Spindle Speed: Up to Approx. 3,000 RPM

Control: Siemens SIMATIC S7

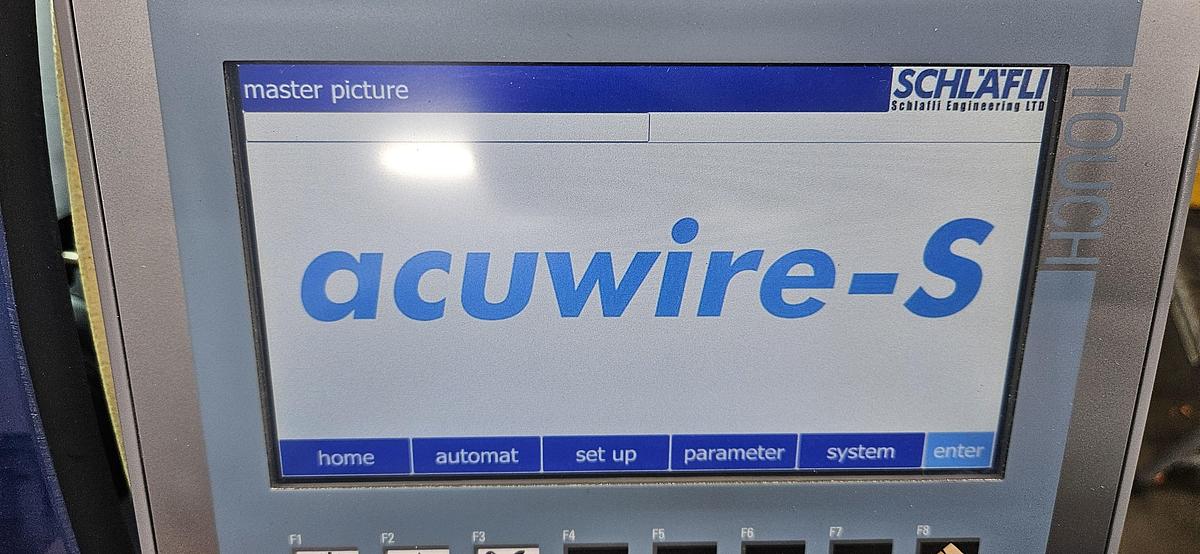

Operator Interface: Siemens SIMATIC Touchscreen HMI

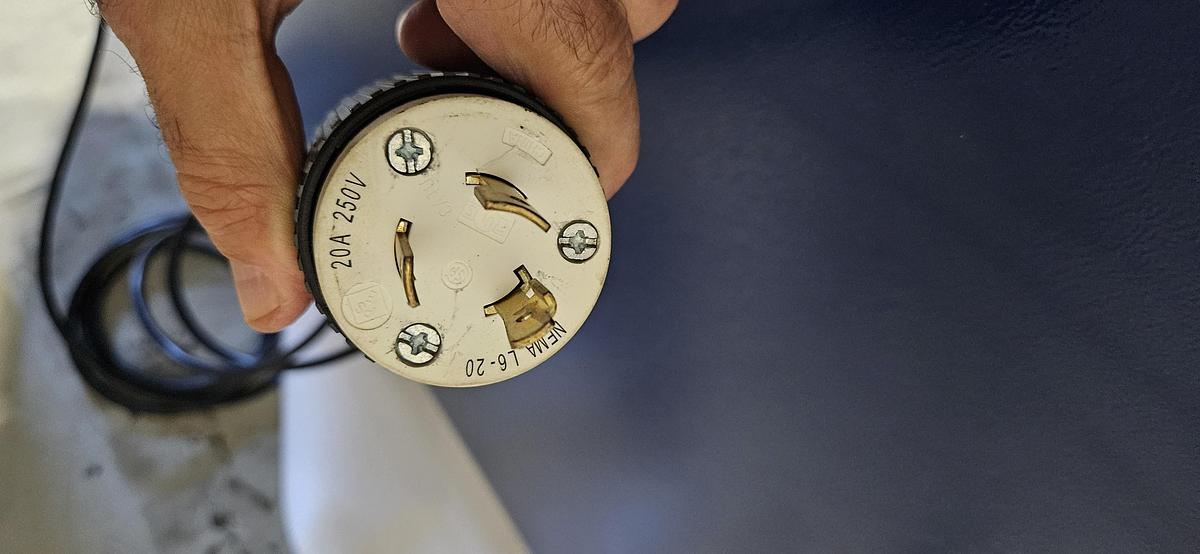

Electrical: 230 Volt Single Phase

Machine Nameplate Power: 0.2 kW

Approximate Dimensions: 40.6" L × 18.7" W × 59.4" H

Approximate Machine Weight: 287 lbs. / 130 kg

CONTROL / SOFTWARE

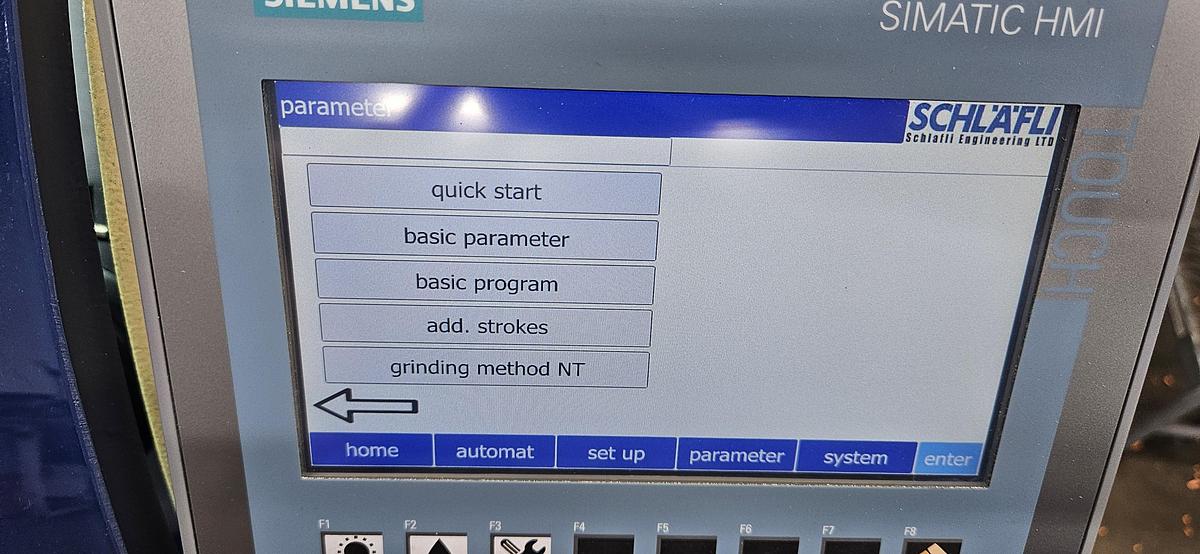

• Siemens SIMATIC touchscreen operator interface

• Schläfli acuwire-S operating software

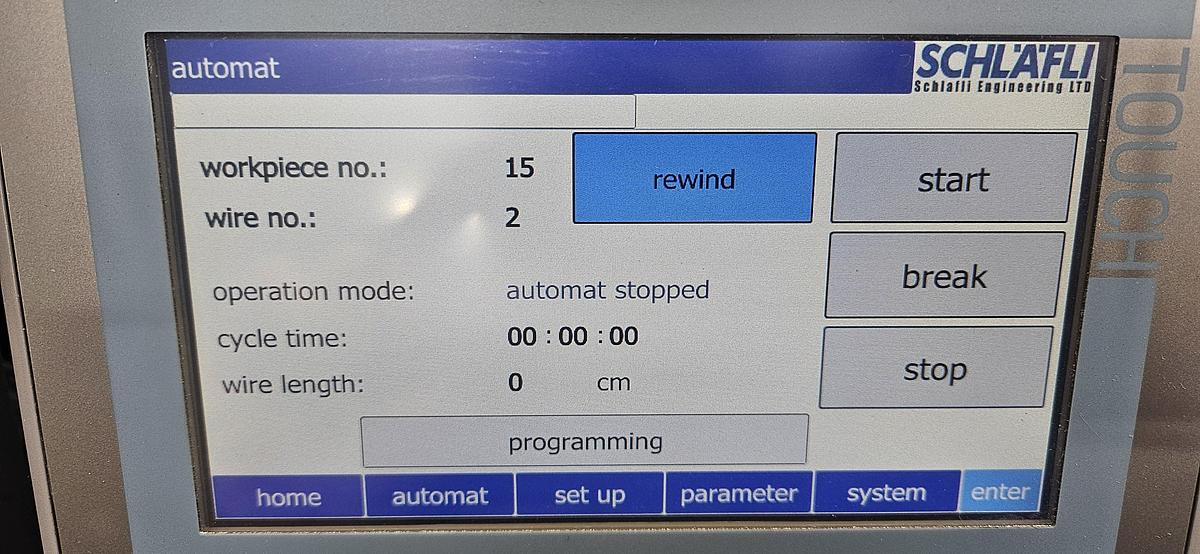

• Automatic operating mode

• Programmable workpiece numbers

• Programmable honing wire numbers

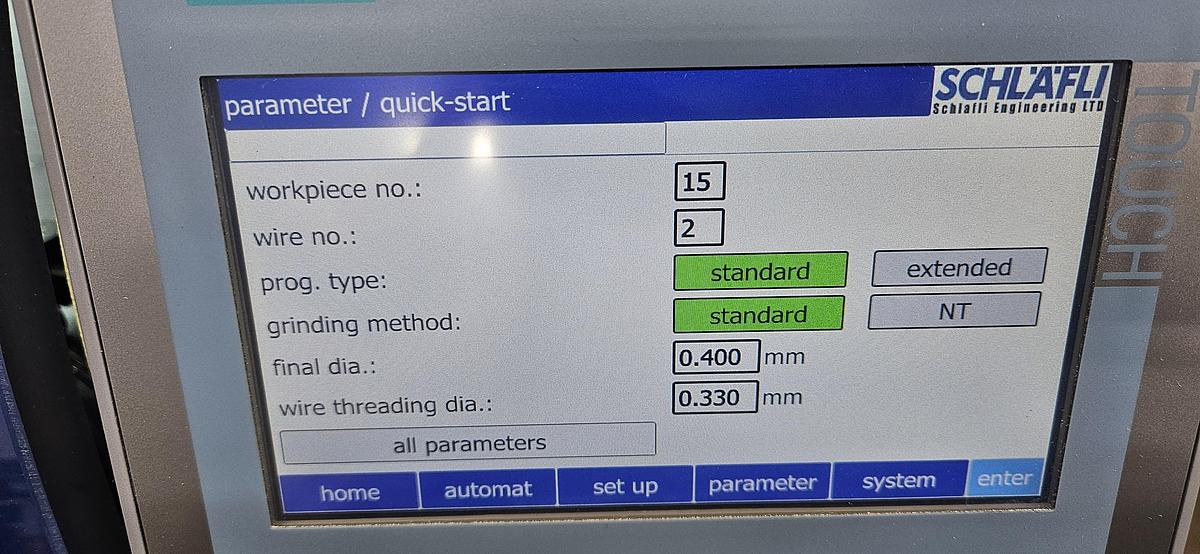

• Adjustable final bore diameter

• Adjustable wire threading diameter

• Adjustable working force

• Programmable spindle speed

• Standard and extended programs

• Standard and NT grinding / honing methods

• Additional stroke programming

• Wire motor controls

• Diamond pump controls

• Automatic rewind function

• Parameter storage

• Setup menus

• System diagnostics

• Manual and automatic operating functions

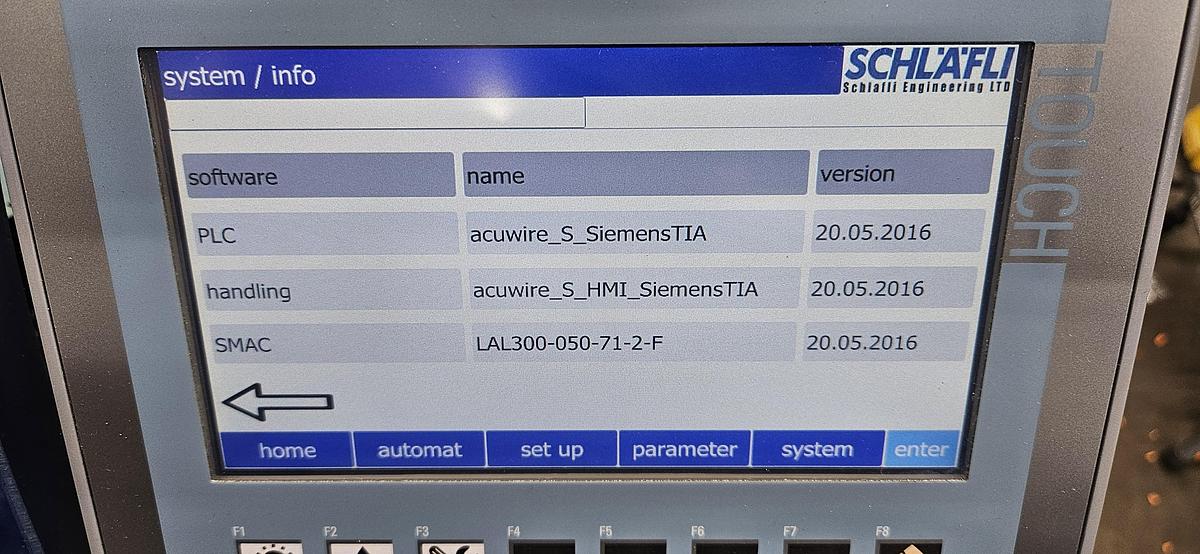

Observed software information:

PLC: acuwire_S_SiemensTIA

HMI: acuwire_S_HMI_SiemensTIA

SMAC: LAL300-050-71-2-F

Software / System Date: 20.05.2016

FEATURES

• Swiss-built precision machinery

• High-precision micro-bore finishing

• Extremely small bore capability

• Approx. 0.04 – 0.80 mm bore diameter range

• Precision wire honing technology

• Siemens SIMATIC touchscreen control

• Programmable automatic cycles

• Adjustable honing parameters

• Programmable spindle speed

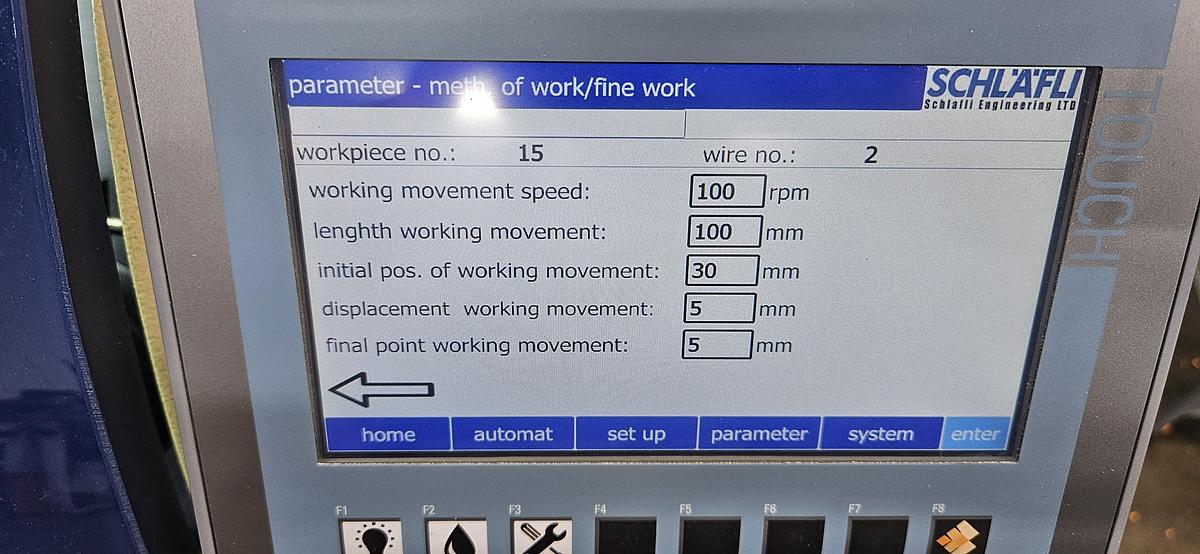

• Programmable wire movement

• Adjustable working force

• Diamond abrasive suspension system

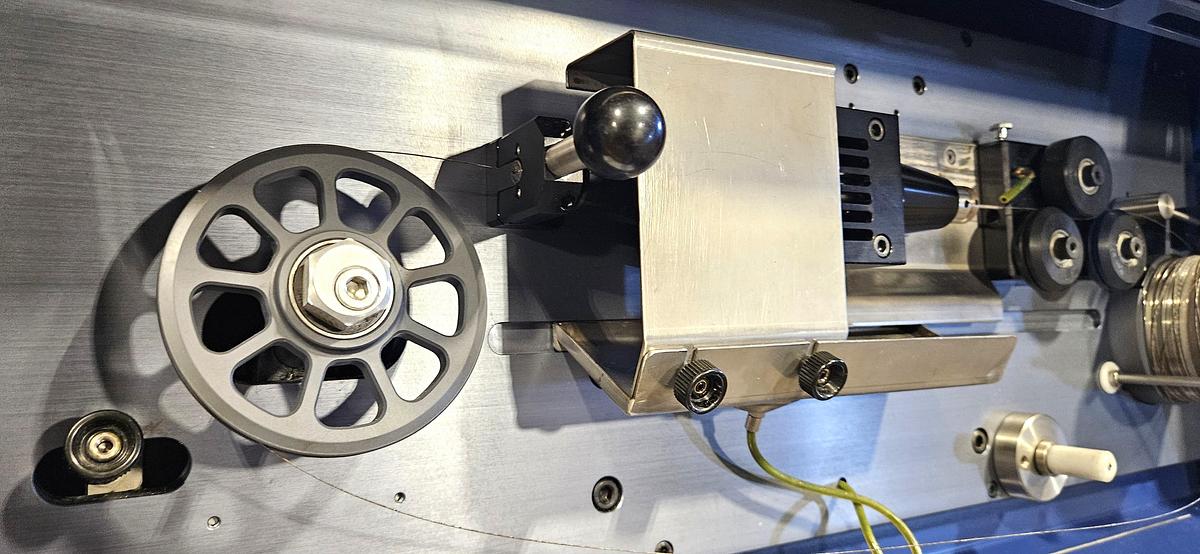

• Automatic wire handling

• Precision spindle assembly

• Heavy-duty enclosed machine cabinet

• Large accessory package

• Numerous honing wire sizes included

• Diamond honing suspension / slurry included

• Very little use

• Excellent cosmetic condition

• Tested and operating properly

• Video available showing machine running

APPLICATIONS

Ideal for precision finishing of:

• Medical tubing

• Precision stainless-steel tubing

• Fuel injection components

• Micro nozzles

• Precision orifices

• Carbide dies

• Drawing dies

• Ceramic components

• Ruby components

• Sapphire components

• Ferrules

• Bushings

• Precision bearings

• Thread guides

• Watch components

• Instrument components

• Microfluidic components

• Aerospace components

• Precision tooling

• Automotive precision components

• Other micro-bore components

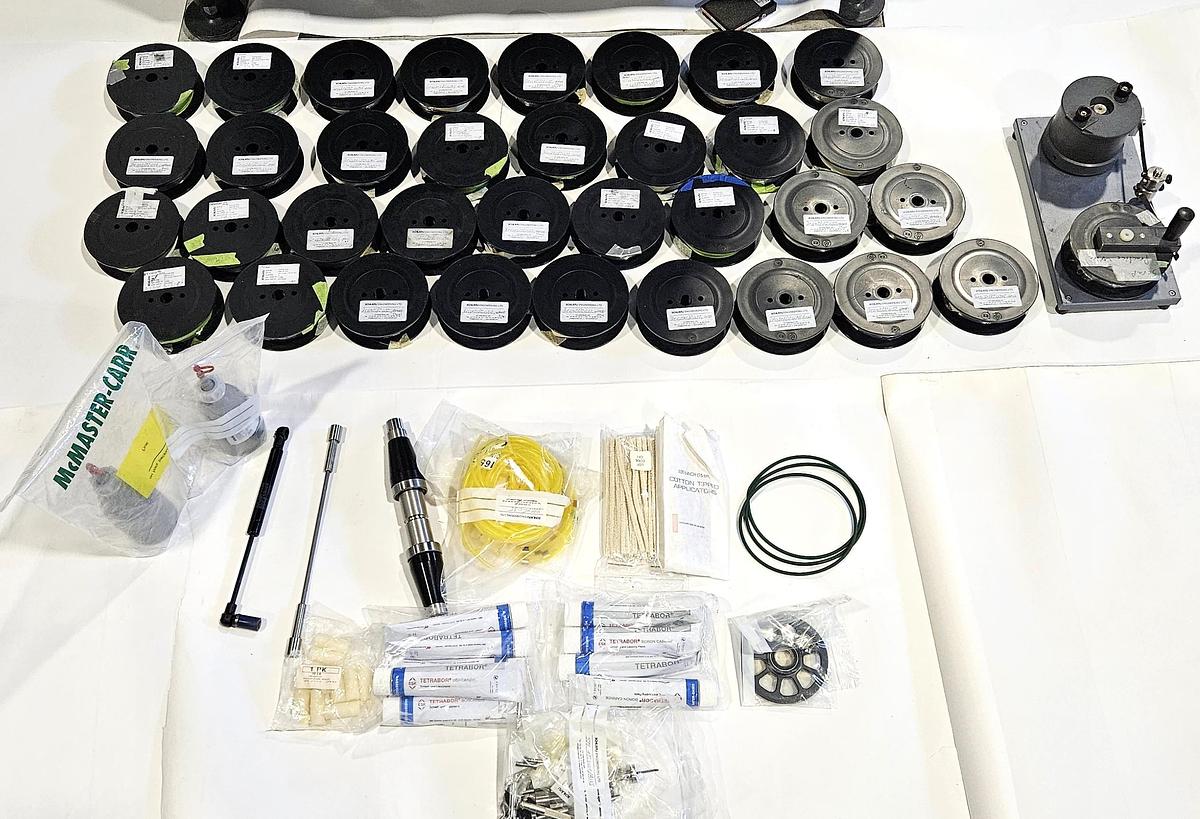

INCLUDES

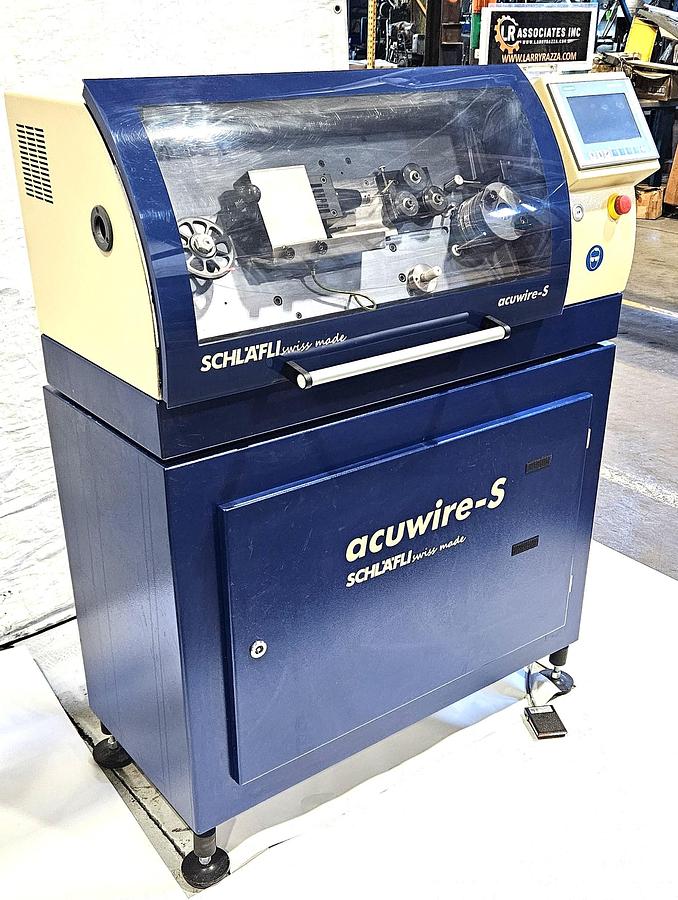

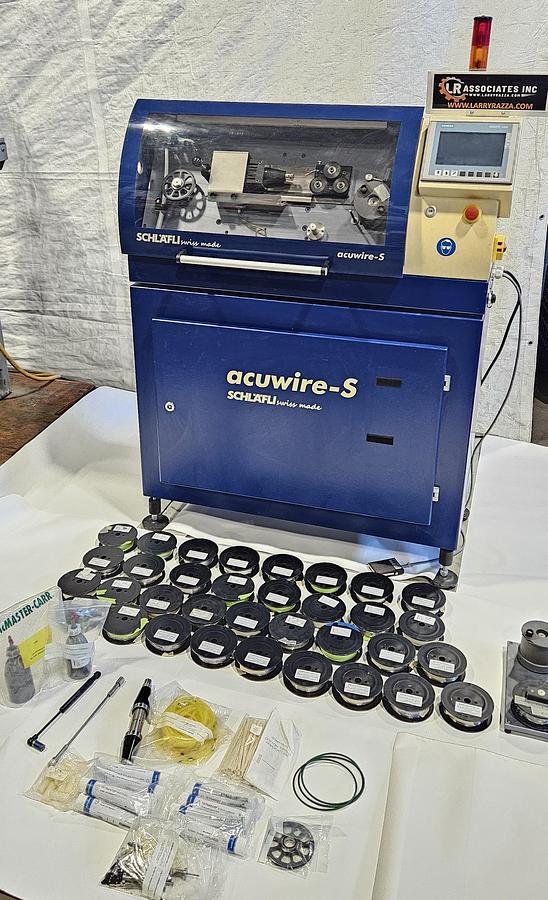

• Schläfli acuwire-S Precision Wire Honing Machine

• Siemens SIMATIC Touchscreen HMI

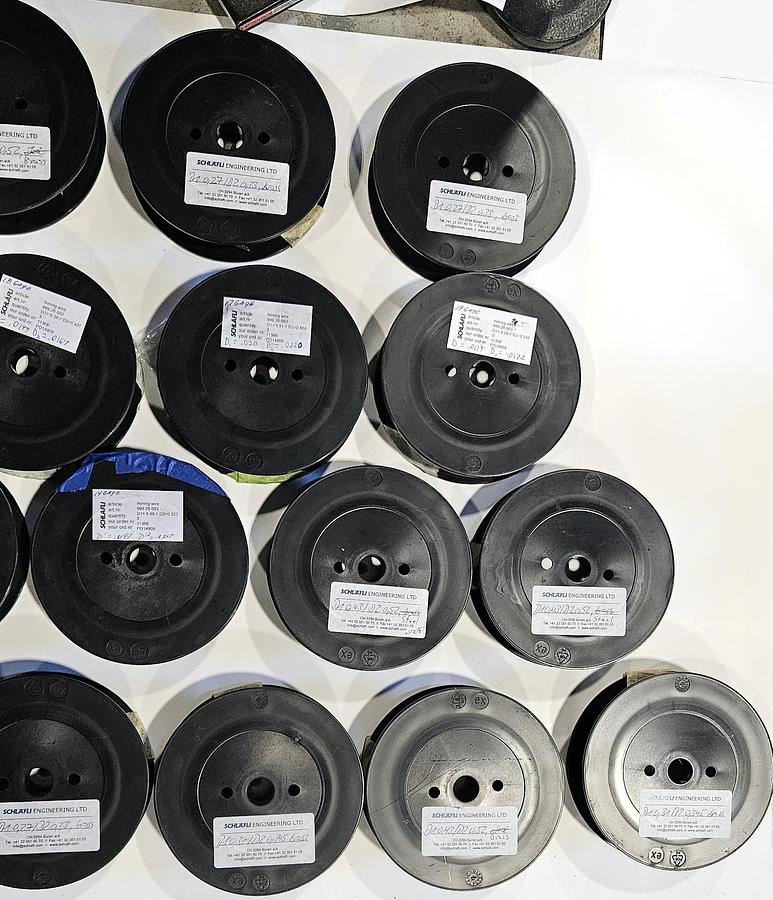

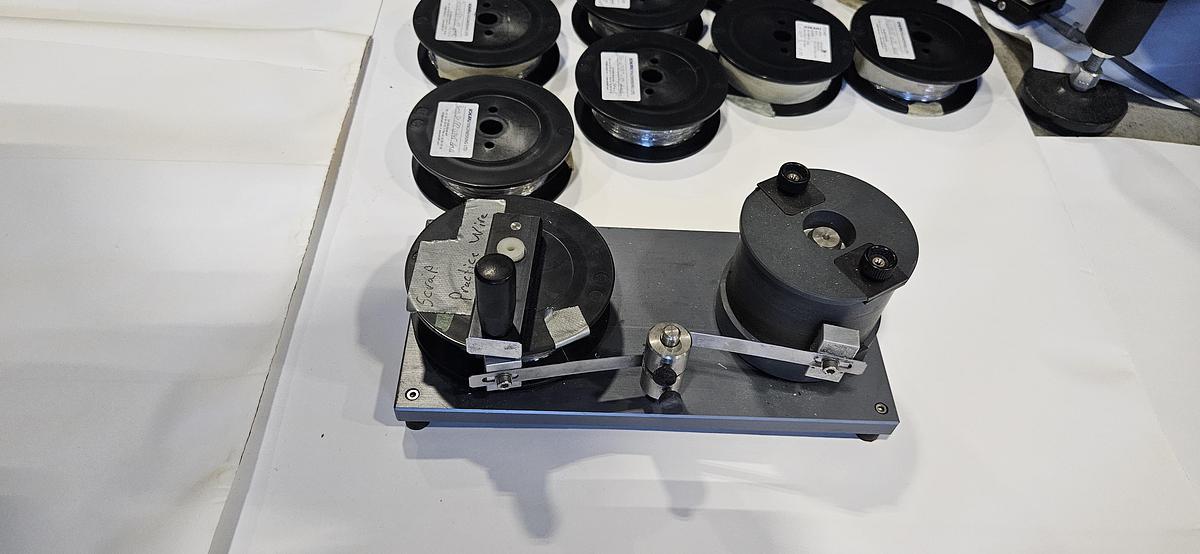

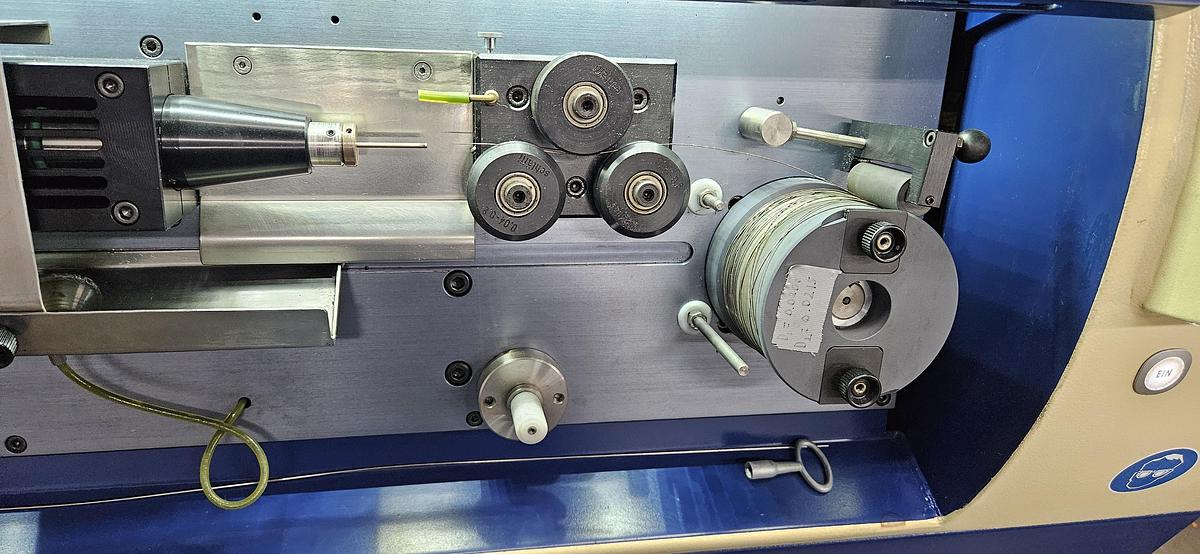

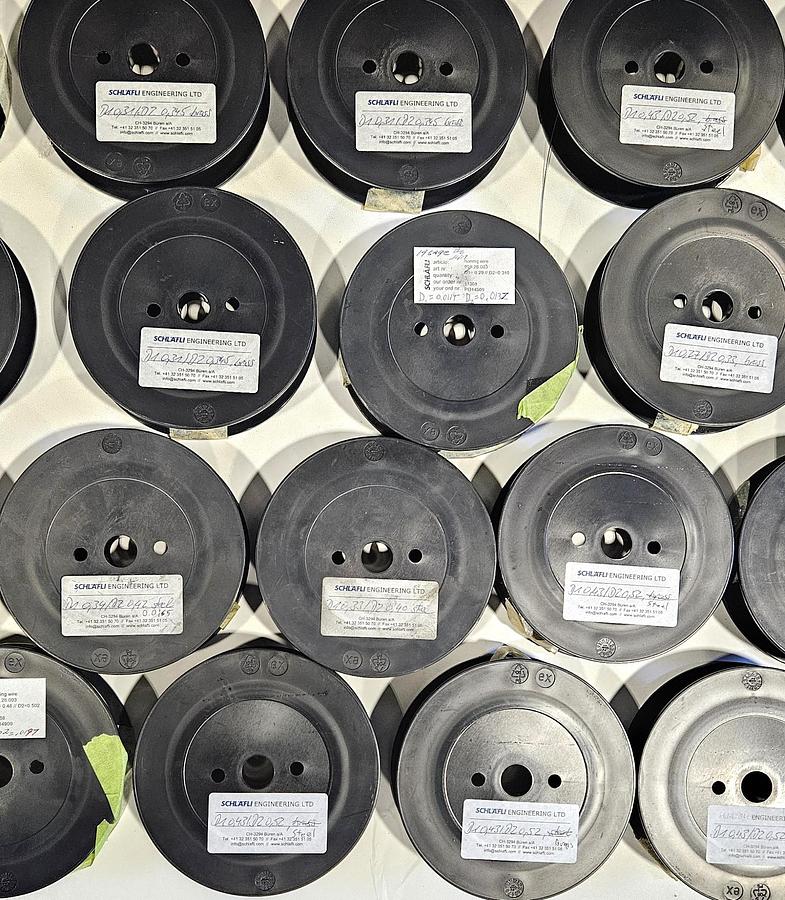

• Large assortment of Schläfli precision honing wire

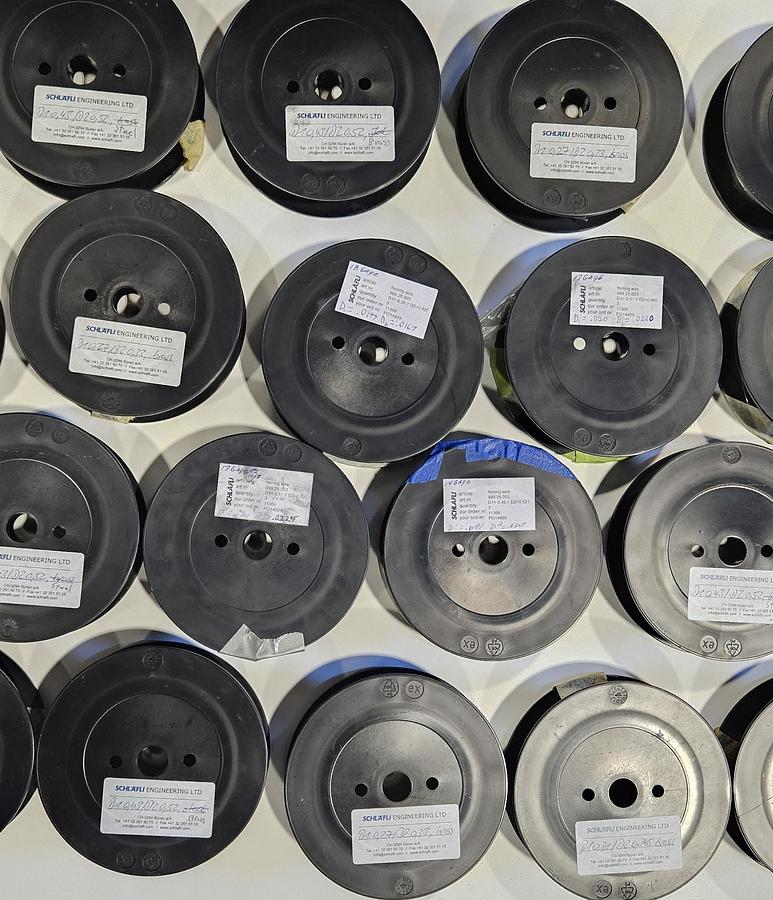

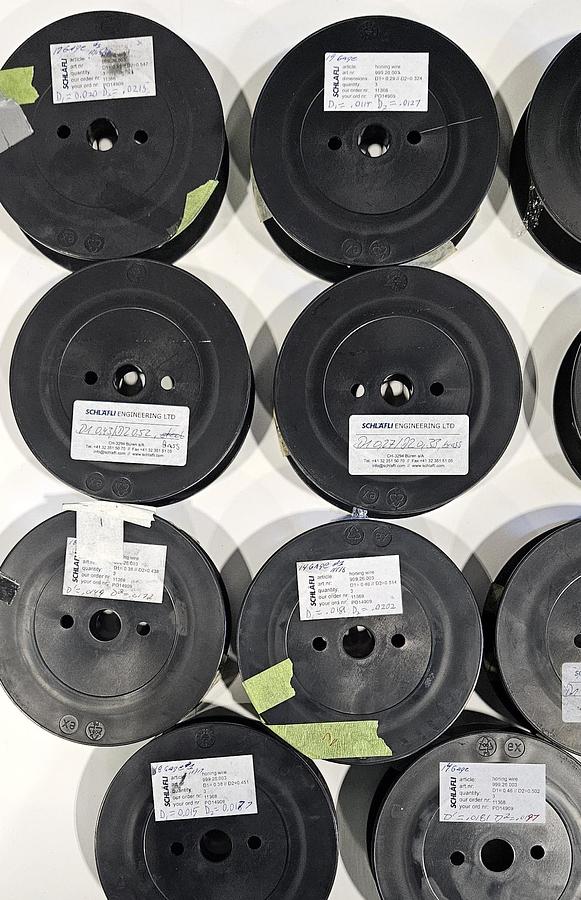

• Numerous labeled honing wire spools... see pictures for info

• Multiple wire diameters and configurations

• Schläfli Diamond Suspension / Slurry

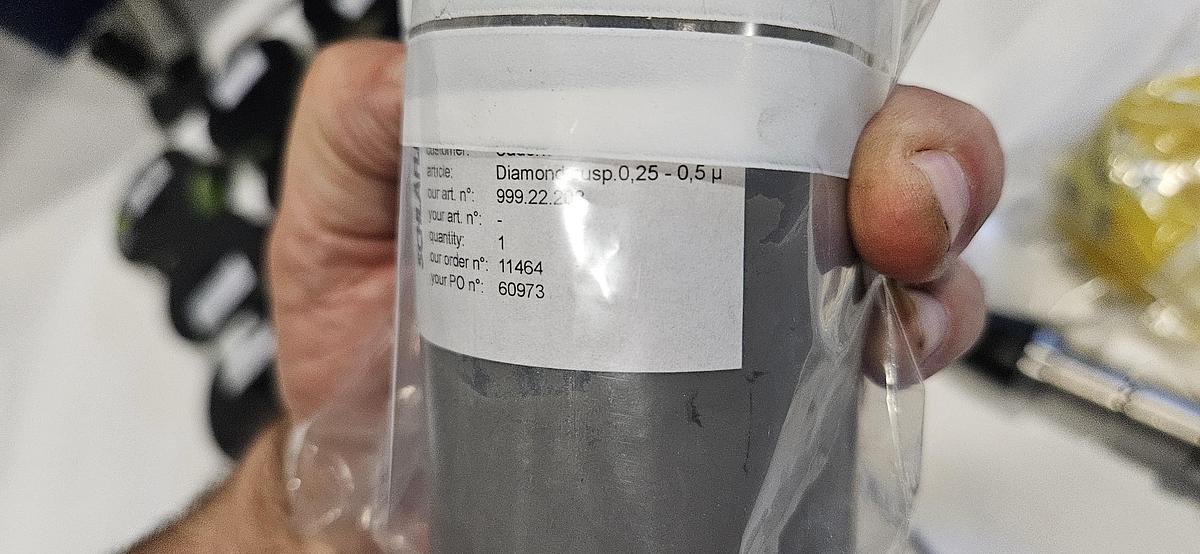

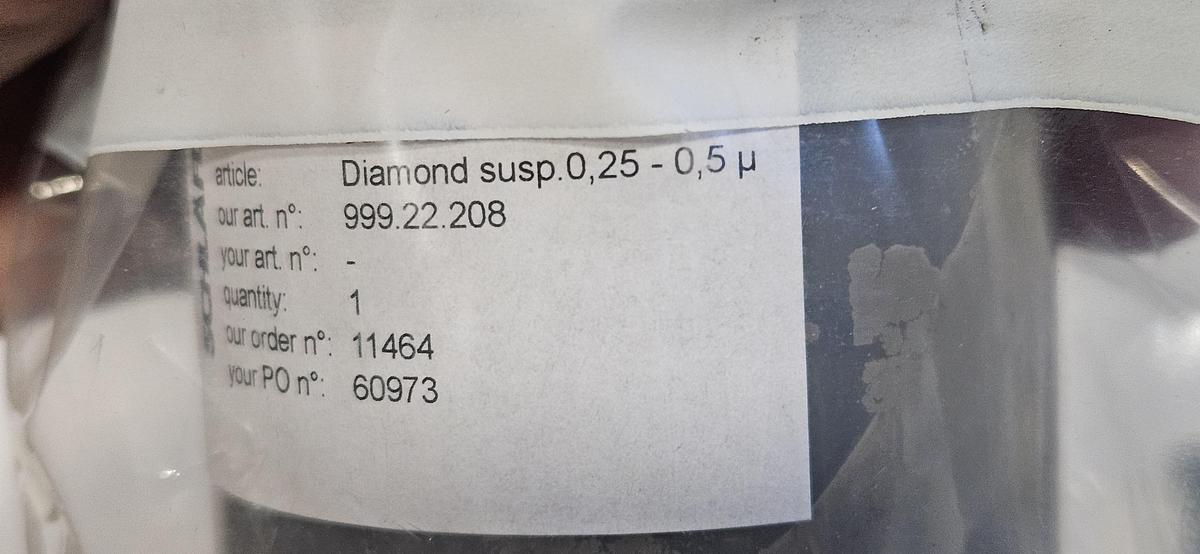

• Diamond Suspension including 0.25 – 0.5 µm material

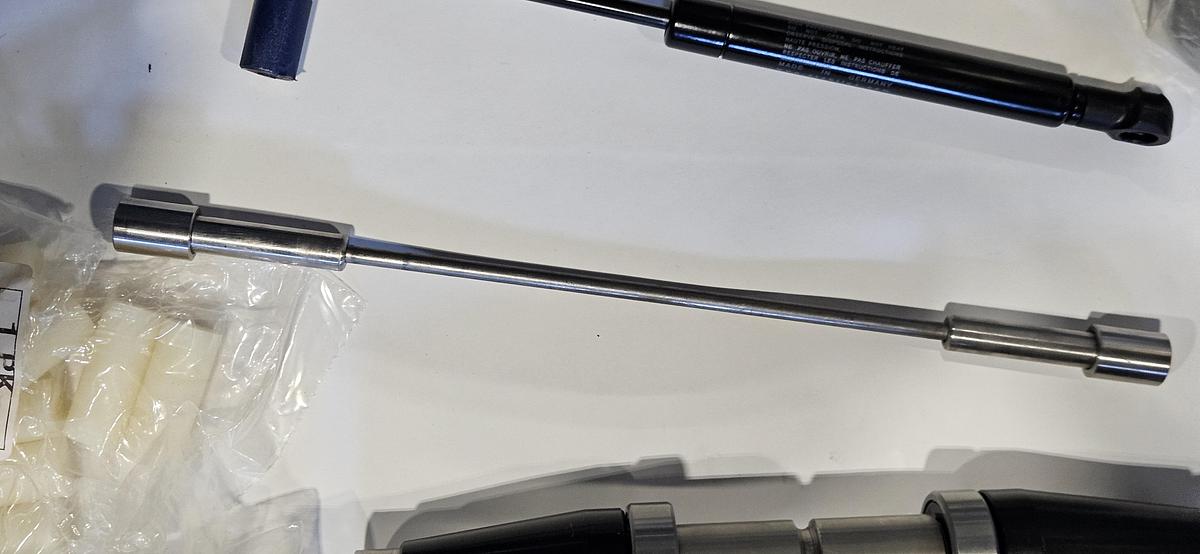

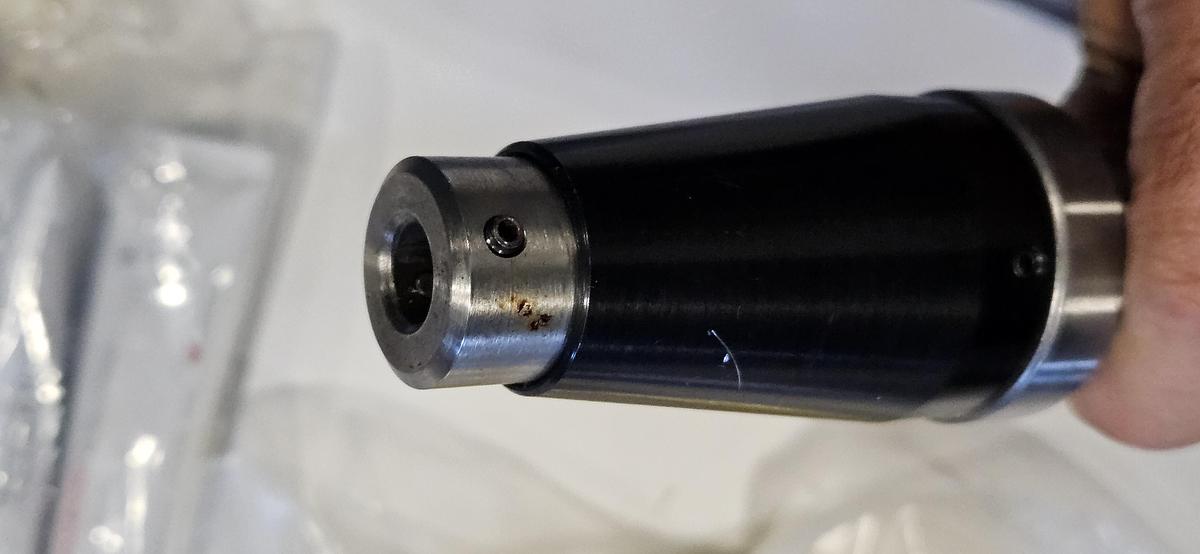

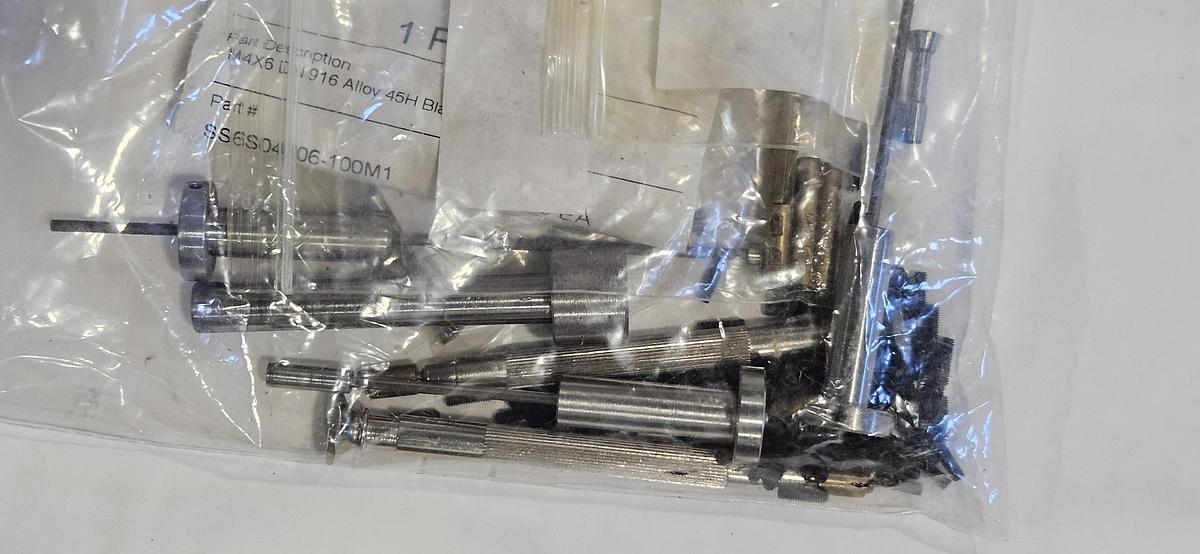

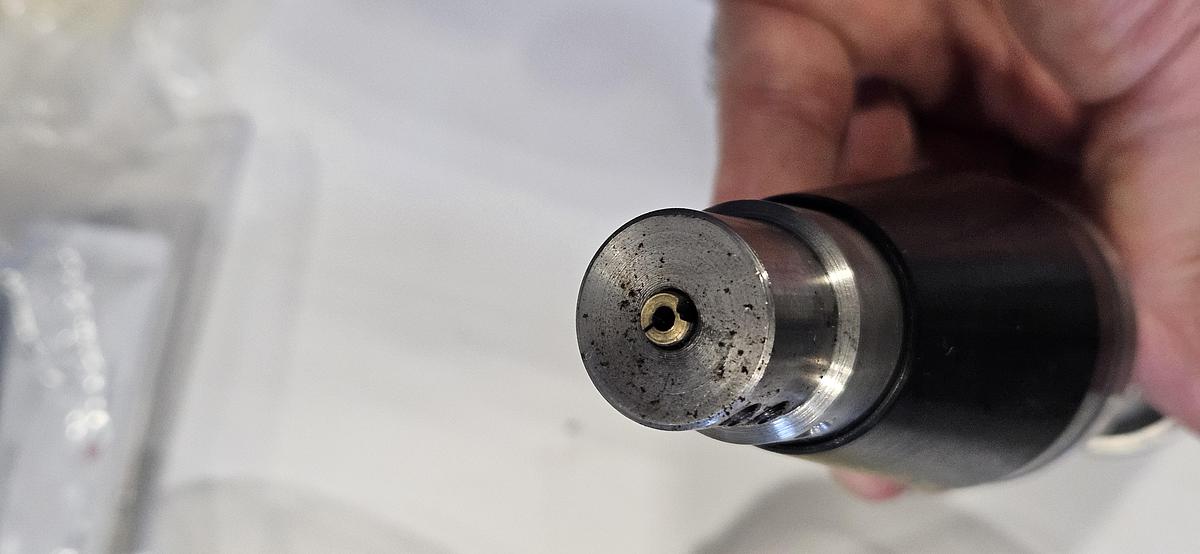

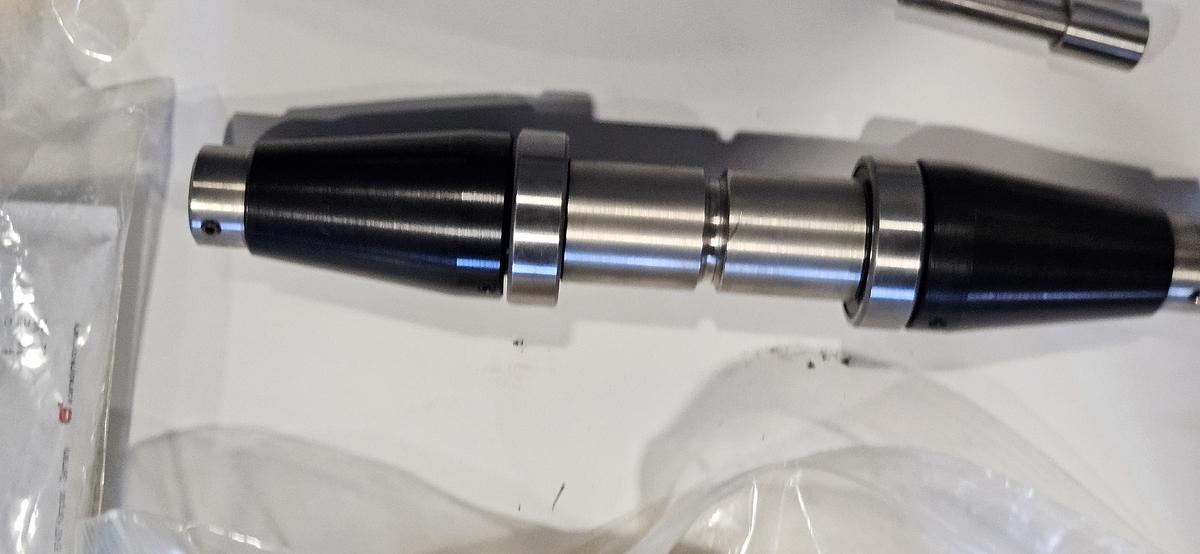

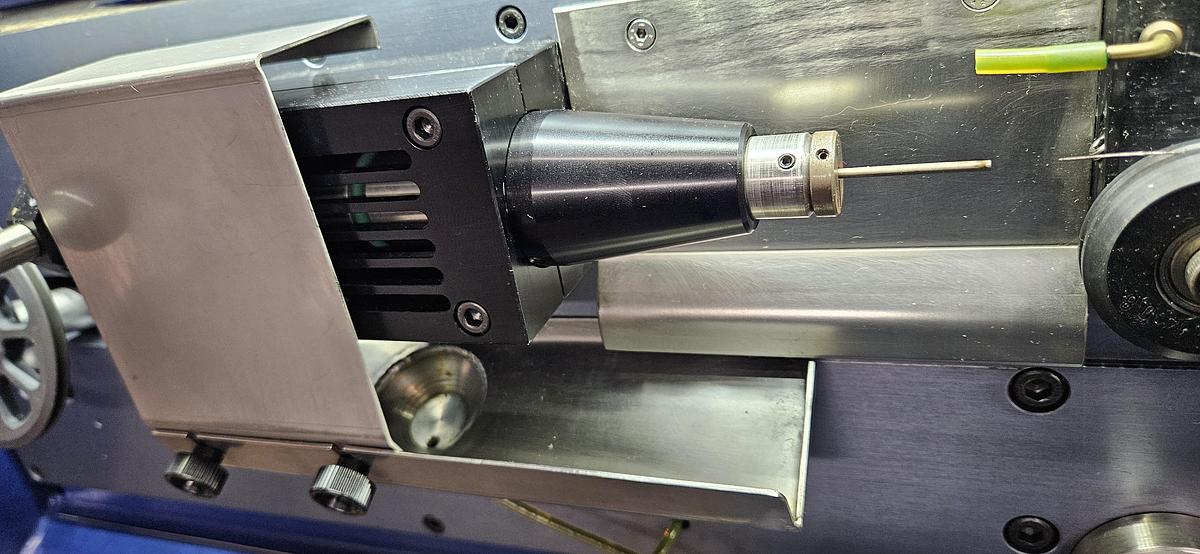

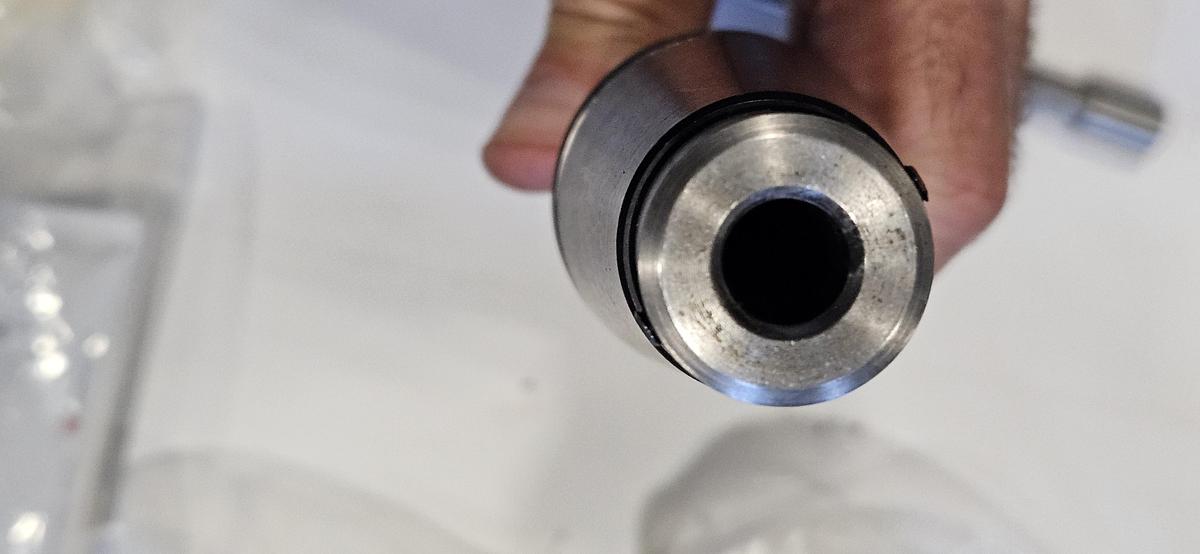

• Precision spindle / arbor tooling

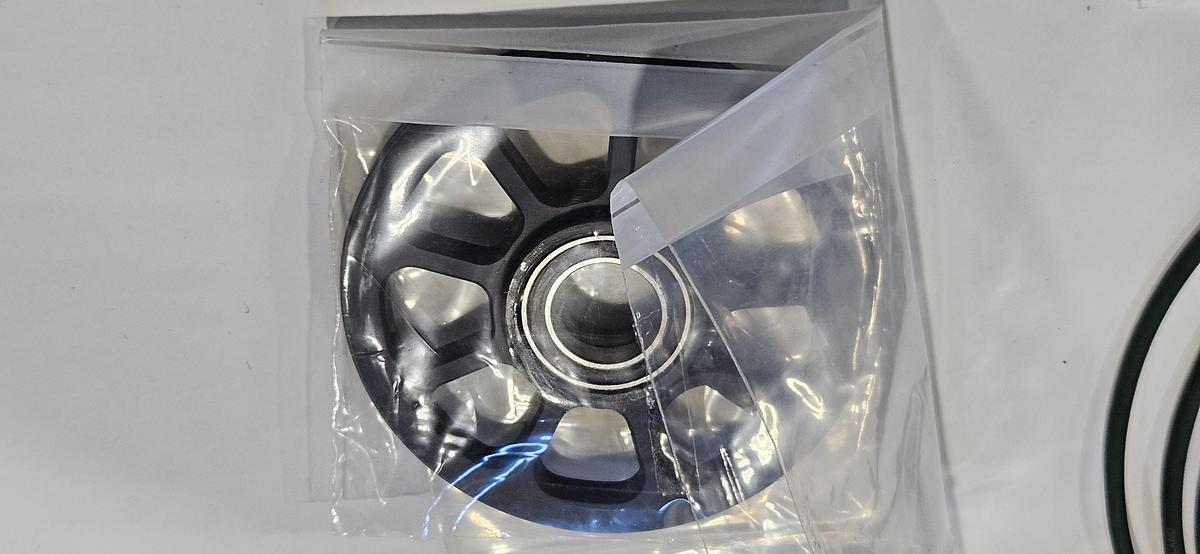

• Wire guides

• Bearings

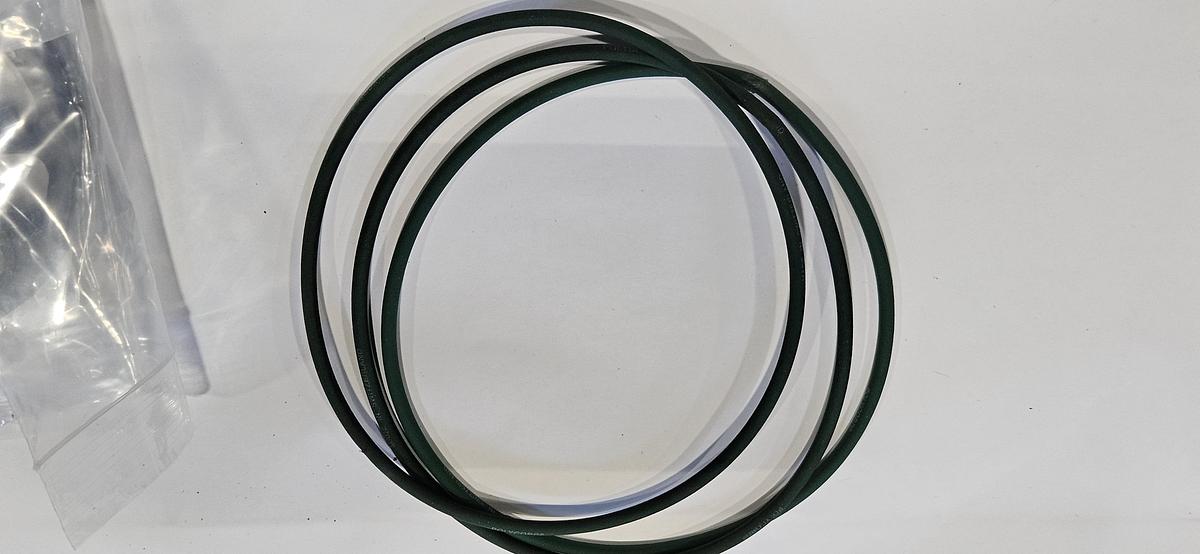

• O-rings

• Spare components

• Setup tooling

• Miscellaneous Schläfli OEM parts

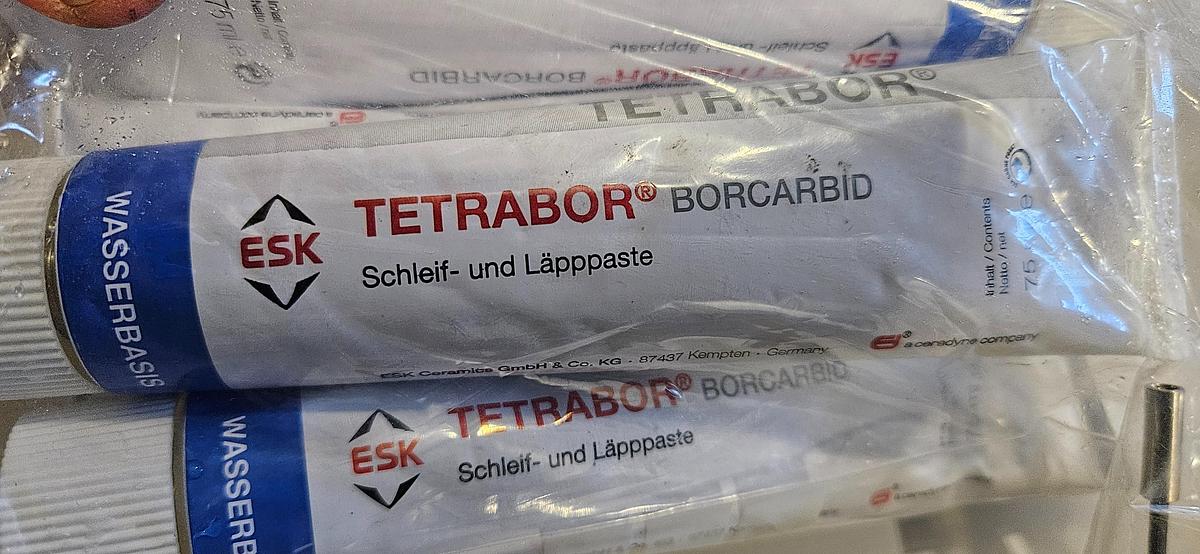

• Additional process consumables

• Accessories shown in photographs

LR# L-0000-082726-000

Picture# 082626

CONDITION

This Schläfli acuwire-S is in excellent overall condition and appears to have seen very little production use.

The machine presents extremely well cosmetically and includes an exceptionally large assortment of original Schläfli tooling, honing wire, diamond suspension / slurry, spare components, and accessories.

The Siemens SIMATIC touchscreen control powers up properly and provides access to the machine operating, setup, parameter, and automatic cycle functions.

The machine has been powered up, tested, and is operating properly.

Video of the machine running is available upon request.

Buyer is encouraged to inspect and test the machine prior to purchase.
