BELMONT TECHNOLOGIES CNC SINKER EDM – 60 AMP POWER SUPPLY – ORBITAL EDM HEAD – DROP TANK – FIRE SUPPRESSION – 220V 3 PHASE

DESCRIPTION

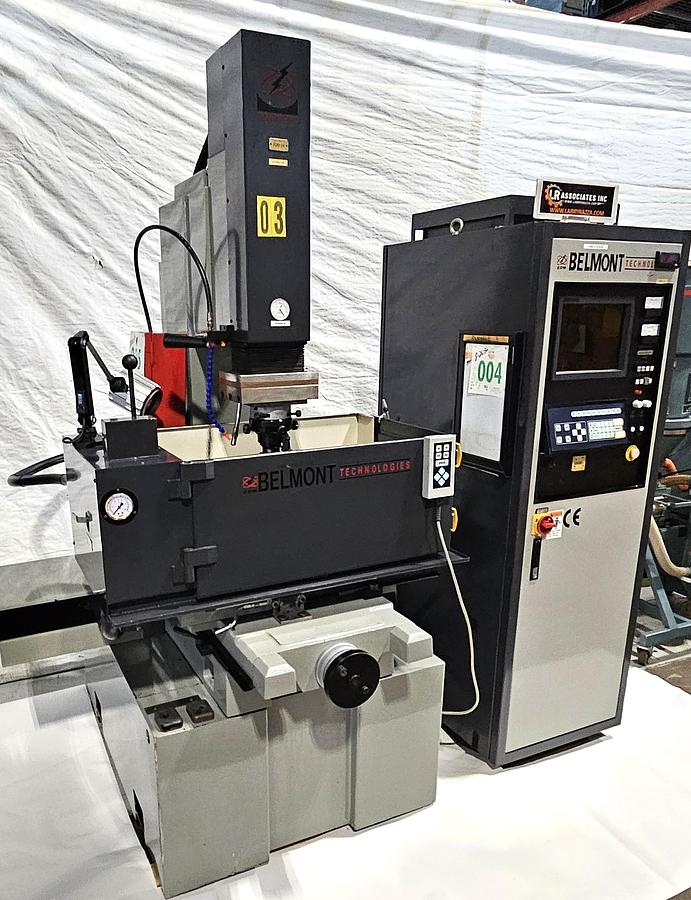

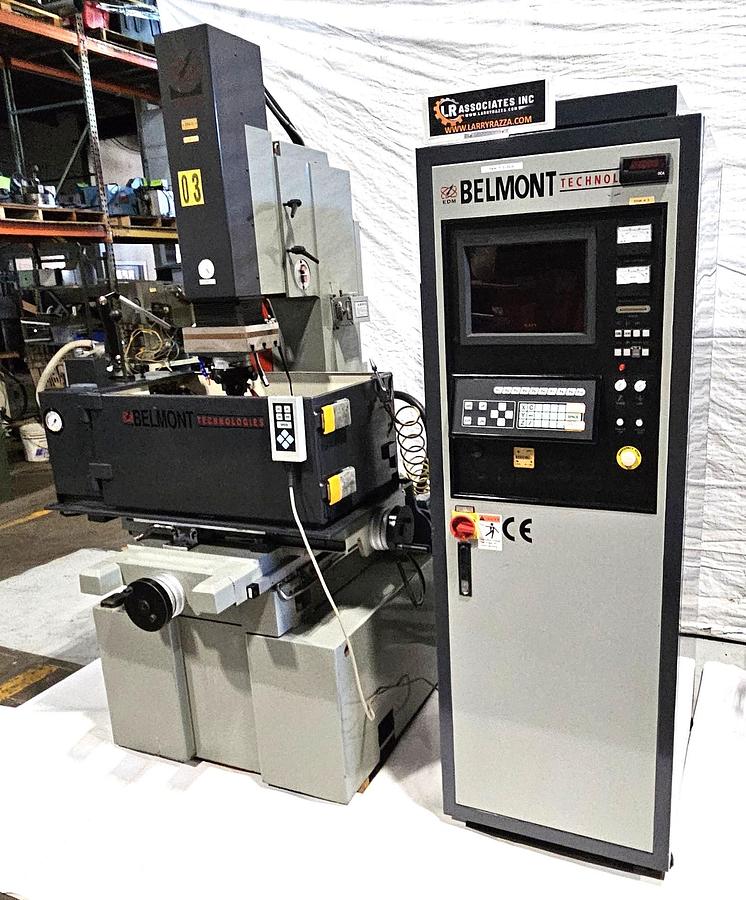

Available for immediate sale is this Belmont Technologies CNC Sinker EDM System, a heavy-duty ram-type electrical discharge machine designed for precision mold, die, tooling, cavity, and electrode machining applications.

This machine is equipped with a 60 Amp EDM power supply, CNC/digital operator control system, adjustable orbital EDM head / orbiting electrode fixture, drop-style dielectric work tank, integrated dielectric circulation and filtration system, and an automatic fire suppression system.

A particularly desirable feature of this machine is the orbital electrode head mounted beneath the ram. The orbital system allows controlled eccentric/orbiting movement of the electrode during the EDM process rather than relying solely on straight Z-axis penetration. This capability is useful for controlling cavity size and clearance, improving dielectric flushing, producing more uniform finishes, and performing precision finishing operations.

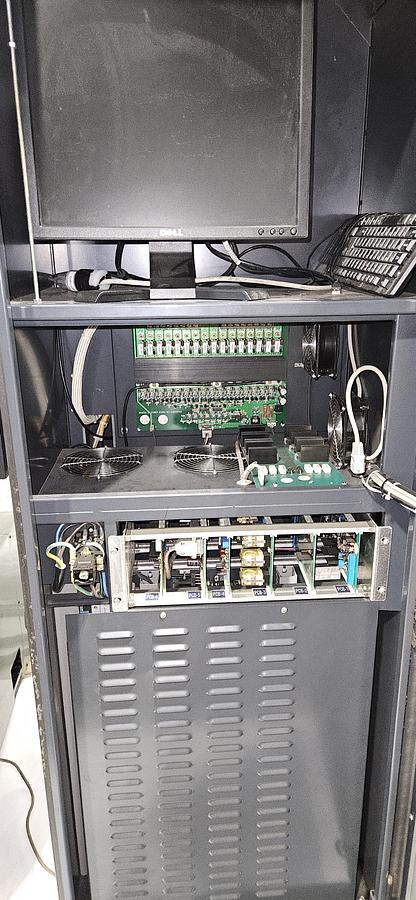

The machine also incorporates an integrated dielectric tank and circulation system with external hoses and controls, along with a dedicated electrical control/power cabinet.

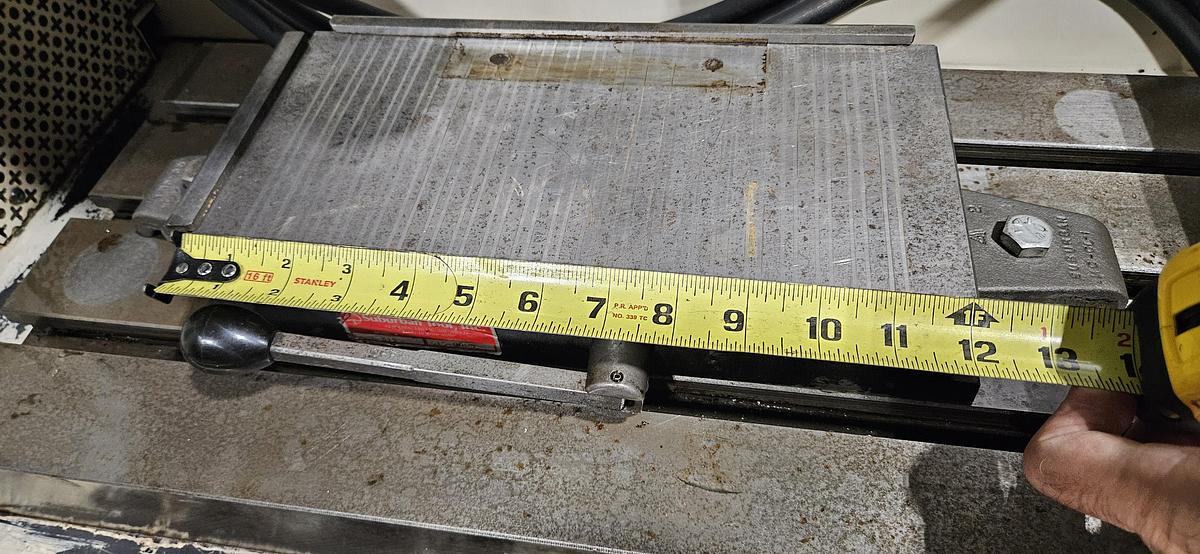

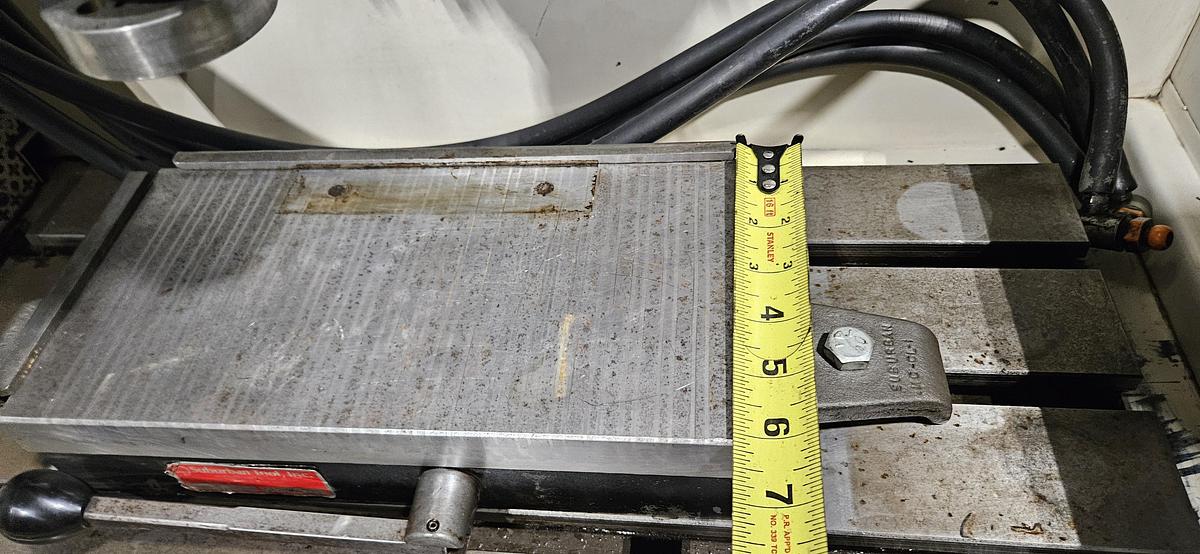

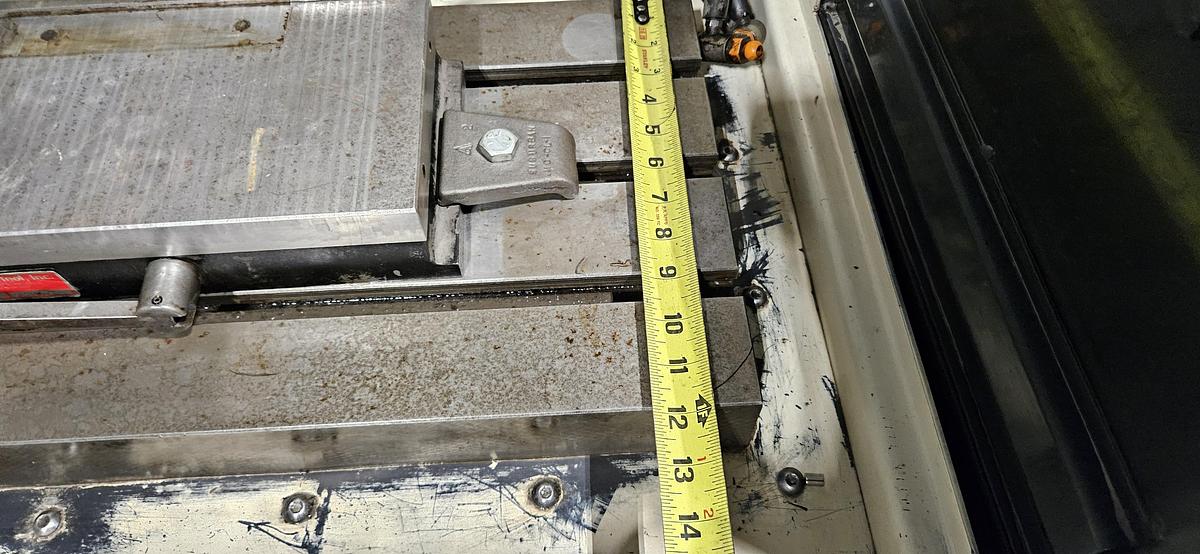

The work area includes a substantial approximately 13" x 6" magnetic chuck/workholding surface, providing a convenient platform for holding tooling and workpieces during EDM operations.

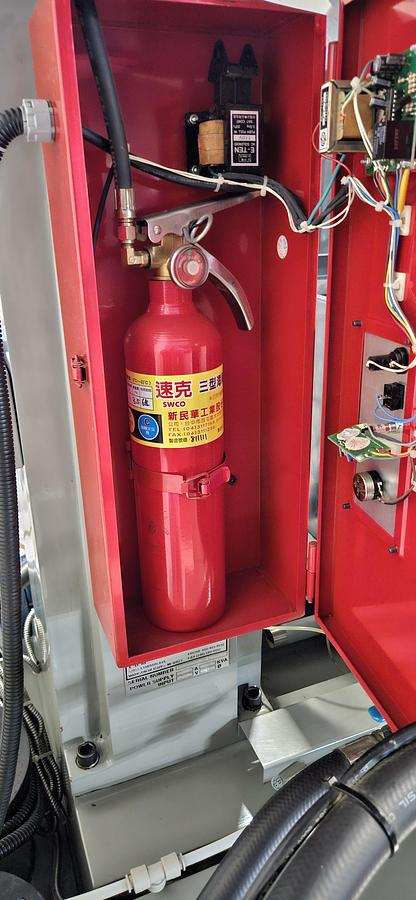

An integrated automatic fire suppression system is mounted directly on the machine, an important feature for sinker EDM applications utilizing combustible dielectric fluids.

The machine is presently configured for 220 Volt, 3 Phase power.

This is a well-equipped industrial sinker EDM suitable for tool rooms, mold shops, die manufacturers, precision machining facilities, aerospace suppliers, medical tooling operations, and general EDM work.

SPECIFICATIONS

Manufacturer: Belmont Technologies

Machine Type: CNC / Ram-Type Sinker EDM

Model# Maxicut

Serial# BB00226139

EDM Type: Die-Sinking / Ram EDM

Power Supply Output: 60 Amps

Input Voltage: 220 Volt

Phase: 3 Phase

Control: Belmont Technologies CNC / Digital Control

Ram Configuration: Vertical

Electrode System: Orbital EDM Head / Orbiting Electrode Fixture

Orbital Adjustment: Graduated / Adjustable

Workholding: Magnetic Chuck / Workholding Plate

Approximate Chuck Size: 13" x 6"

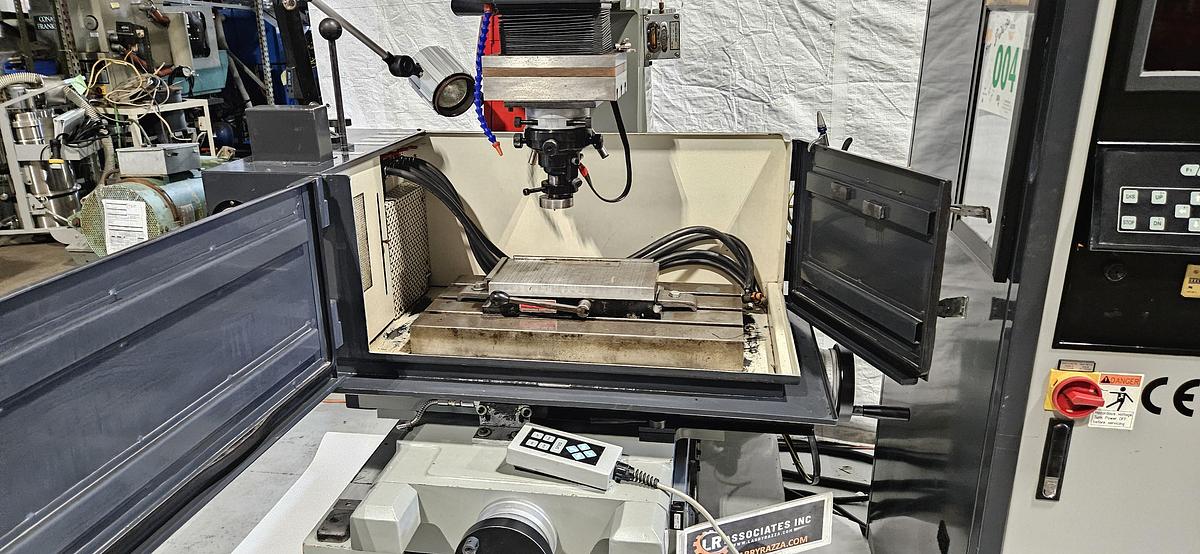

Work Tank: Drop-Style / Adjustable Dielectric Tank

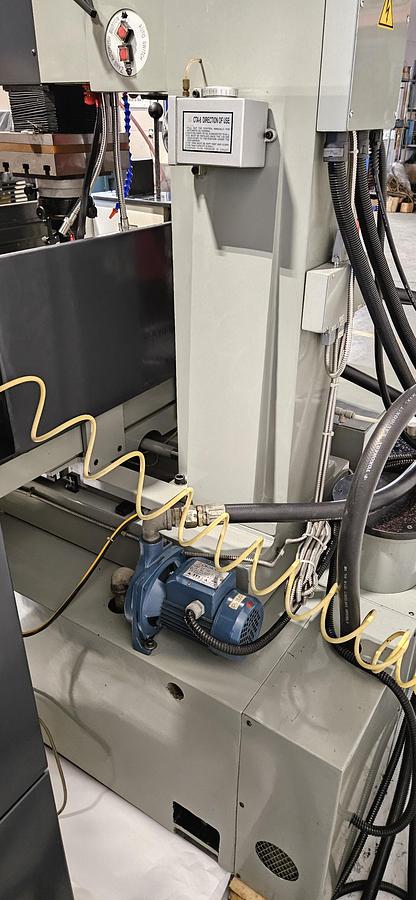

Dielectric System: Integrated Circulation / Pumping System

Fire Protection: Integrated Automatic Fire Suppression System

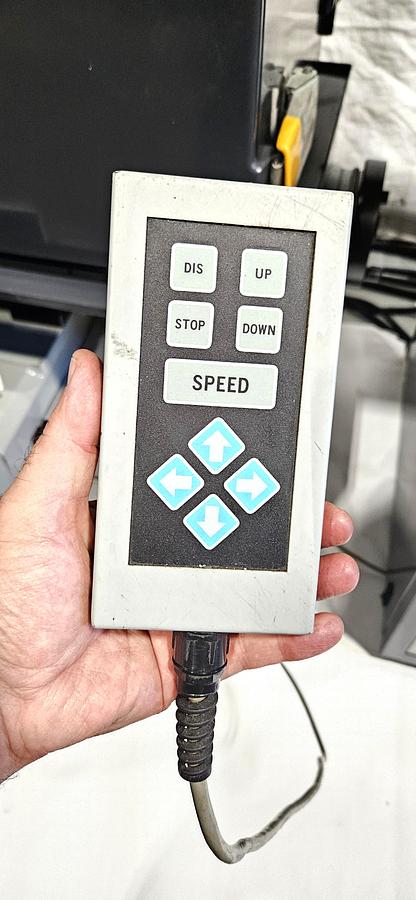

Remote Control: Handheld Machine Control Pendant

Construction: Heavy-Duty Industrial Cast Base

FEATURES

• 60 Amp EDM power supply

• CNC / digital EDM control system

• Orbital EDM head / orbiting electrode fixture

• Adjustable electrode orbit/eccentric movement

• Graduated orbital adjustment

• Allows controlled cavity enlargement

• Excellent for precision cavity finishing

• Helps improve dielectric flushing around the electrode

• Useful for controlling final cavity clearance

• Vertical ram-type EDM configuration

• Drop-style dielectric work tank

• Integrated dielectric circulation system

• Dielectric pump and plumbing

• Approximately 13" x 6" magnetic chuck/workholding surface

• Adjustable work positioning

• Handheld remote control pendant

• Gap voltage monitoring

• Working current monitoring

• Programmable EDM functions

• Heavy-duty industrial machine base

• Separate electrical/control cabinet

• Integrated automatic fire suppression system

• 220 Volt / 3 Phase operation

• Designed for precision mold and die work

• Industrial toolroom construction

ORBITAL EDM HEAD

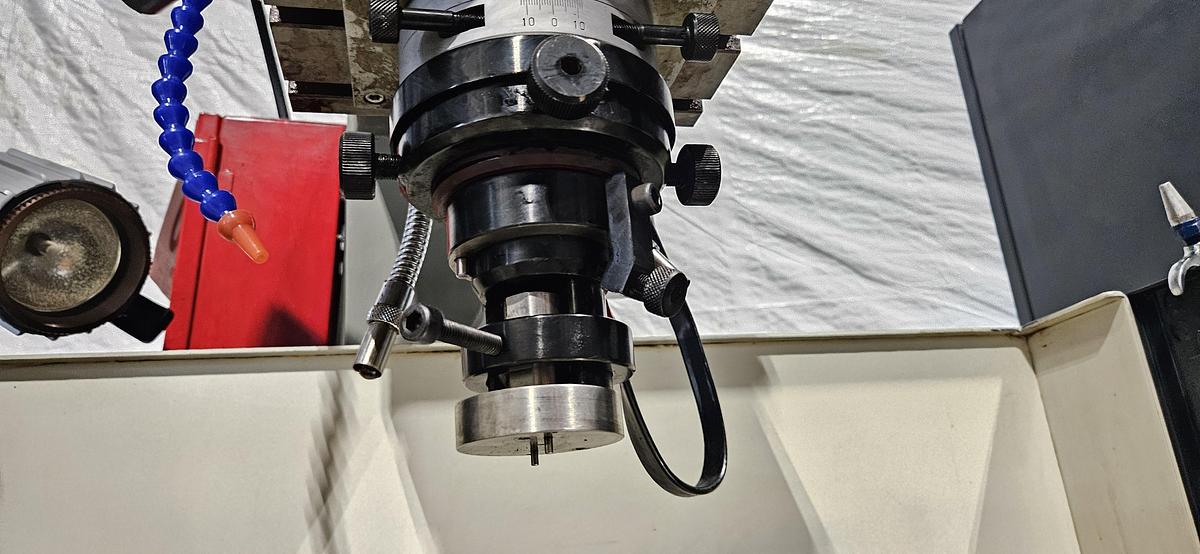

This machine is equipped with an adjustable orbital EDM head / electrode orbiting attachment mounted beneath the vertical ram.

Unlike a conventional fixed electrode holder that feeds the electrode only vertically into the workpiece, an orbital system provides controlled eccentric movement of the electrode during the EDM cycle.

This capability can provide several advantages, including:

• Controlled enlargement of EDM cavities

• Adjustment of electrode-to-cavity clearance

• Improved dielectric flushing

• More uniform material removal

• Improved cavity finishing

• Reduced need for multiple finishing electrodes in certain applications

• Improved control during precision mold and die work

The orbital assembly includes a graduated adjustment scale and mechanical adjustment/locking controls.

APPLICATIONS

Ideal for:

• Mold making

• Die making

• Tool and die manufacturing

• Precision cavity machining

• Injection mold tooling

• Aerospace tooling

• Medical tooling

• Punch and die manufacturing

• Blind cavities

• Internal profiles

• Hardened tool steel

• Carbide machining

• Complex electrode work

• Precision finishing

• Toolroom EDM applications

INCLUDES

• Belmont Technologies Sinker EDM Machine

• 60 Amp EDM Power Supply

• CNC / Digital EDM Control System

• Orbital EDM Head / Orbiting Electrode Fixture

• Electrode Holder / Tooling Shown

• Drop-Style Dielectric Work Tank

• Magnetic Chuck / Workholding Surface

• Dielectric Pumping / Circulation System

• Handheld Remote Control Pendant

• Separate Electrical / Power Cabinet

• Integrated Automatic Fire Suppression System

• Associated Hoses and Cabling Shown

CONDITION

This Belmont Technologies Sinker EDM is in good overall industrial condition, tested and works well, and has been professionally cleaned and prepared for resale.

The machine is equipped with a substantial range of desirable features including the 60 Amp power supply, orbital EDM head, drop-style dielectric tank, magnetic workholding surface, remote pendant, and integrated automatic fire suppression system.

Electrical cabinets and machine components appear clean and substantially complete based upon inspection.

Buyer is encouraged to inspect and test the machine prior to purchase.

SHIPPING

We can assist with rigging and freight quotes upon request.

Please contact us for a Shipping Quote!

We ship anywhere!
