TORMACH PCNC 1100 SERIES 3 CNC VERTICAL MILL – 2012 – 4TH AXIS ROTARY TABLE – COMPUTER / CPU – R8 SPINDLE – 230V – RUNNING WHEN REMOVED

DESCRIPTION

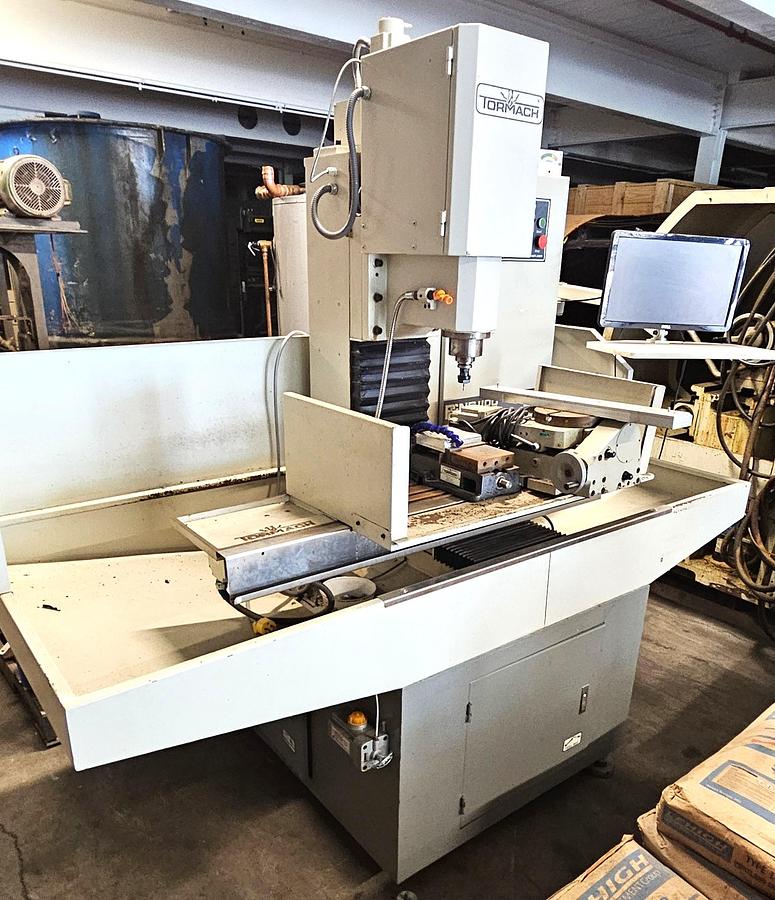

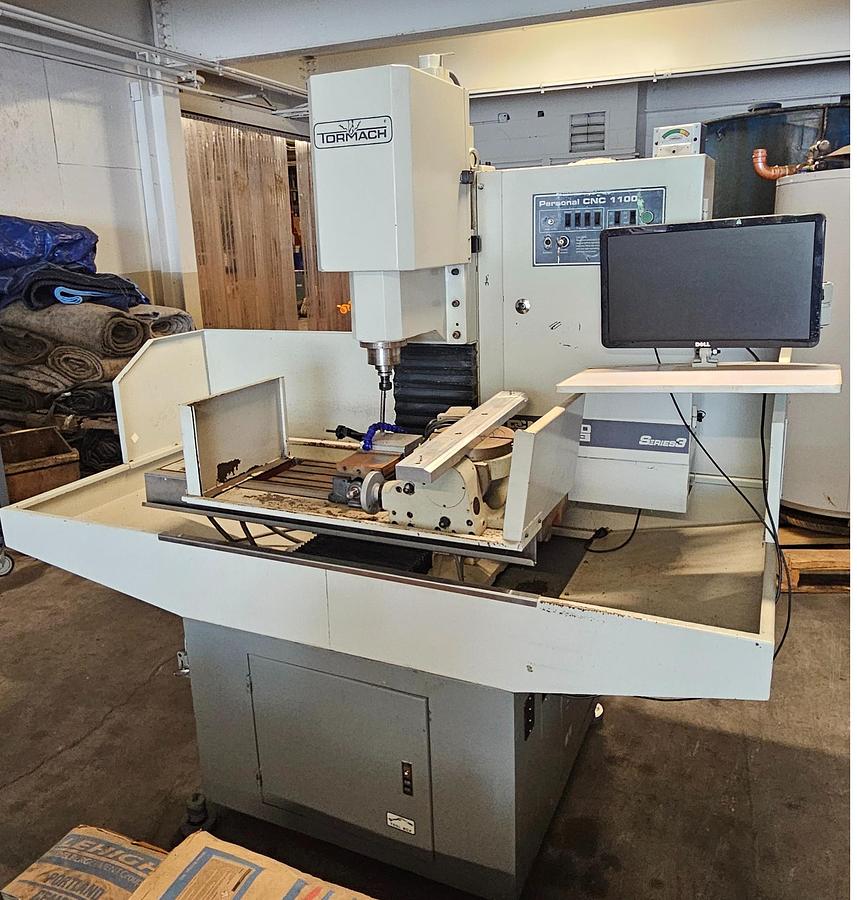

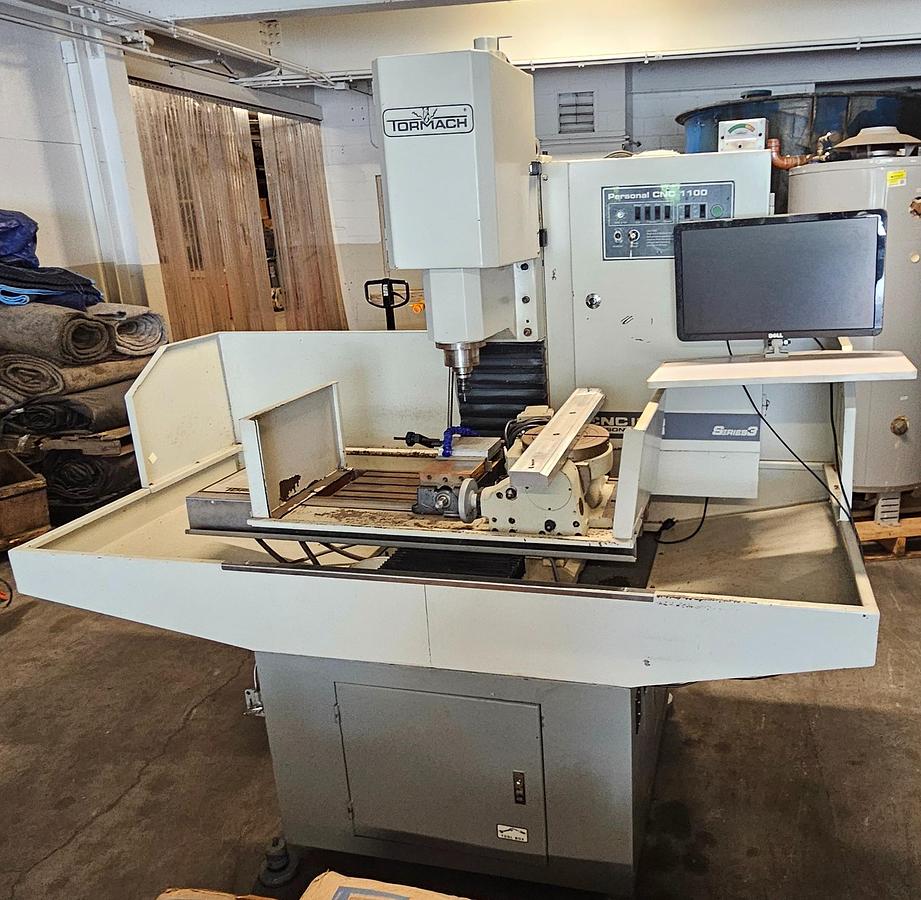

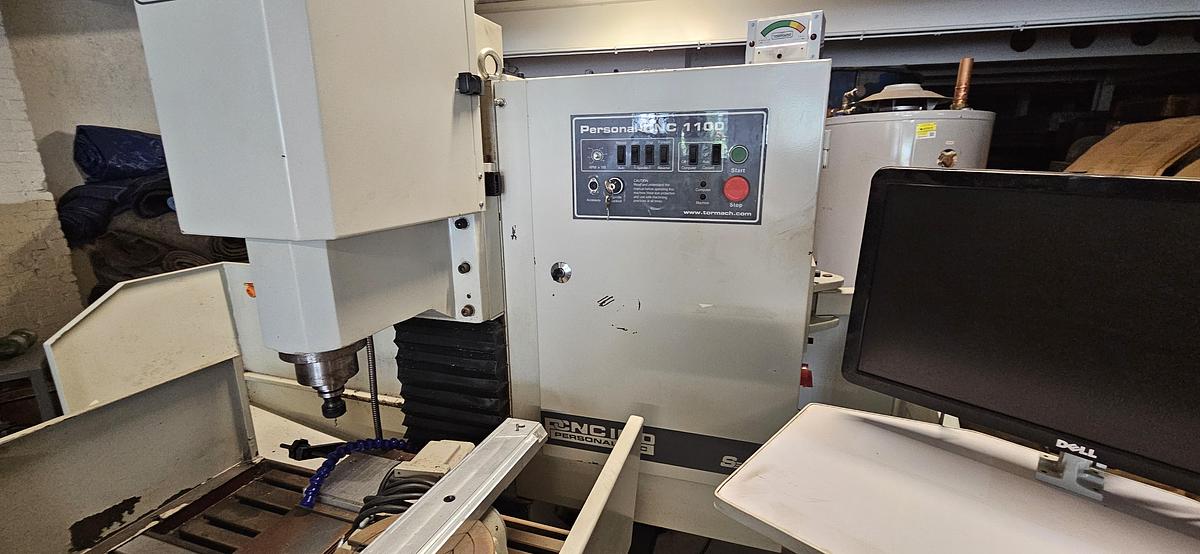

Available for immediate sale is this 2012 Tormach PCNC 1100 Series 3 CNC Vertical Milling Machine, Serial Number 2543, equipped with a Tormach motorized rotary table / 4th-axis system, dedicated CNC computer / CPU, monitor, coolant system, vise, and additional accessories.

The PCNC 1100 Series 3 is a versatile CNC machining center designed to provide full CNC milling capability in a compact footprint. These machines are widely used in precision machine shops, prototype departments, engineering facilities, R&D operations, educational facilities, mold and die work, small production environments, and specialty manufacturing.

This particular machine is substantially more complete than a basic PCNC 1100. Of particular value is the Tormach rotary table and dedicated rotary-table motor connection, providing the machine with 4th-axis machining capability.

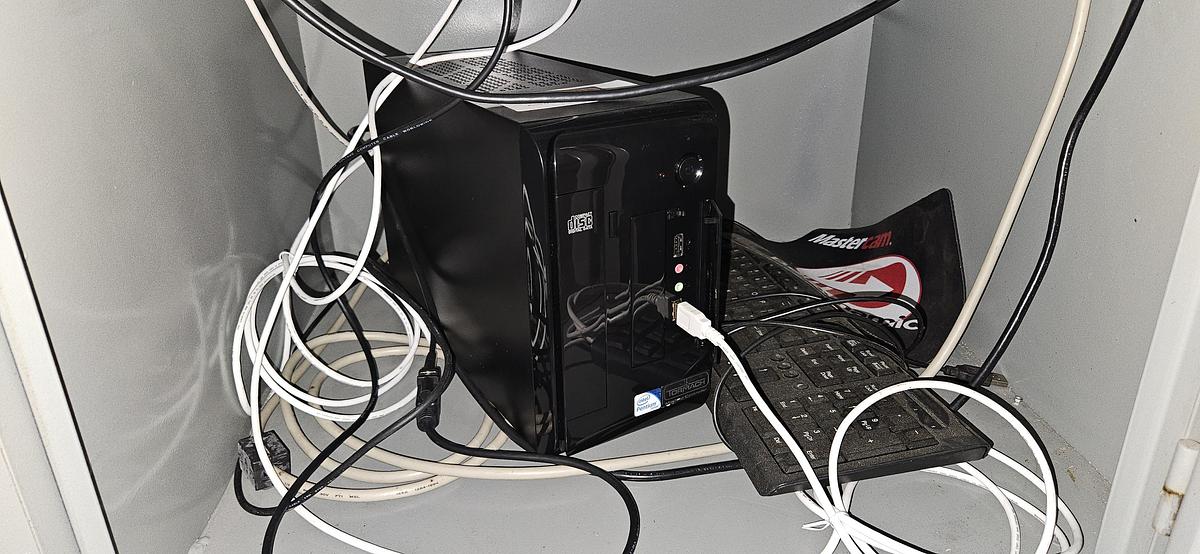

Also included is the dedicated CNC computer / CPU, monitor, keyboard, machine control electronics, full enclosure, coolant system, machine stand, vise, and accessories shown in the photographs.

The machine was reported to be running when removed from service. It appears complete and intact; however, L R Associates has not presently powered up or operationally tested the machine, and it is therefore being offered as an untested machine.

SPECIFICATIONS

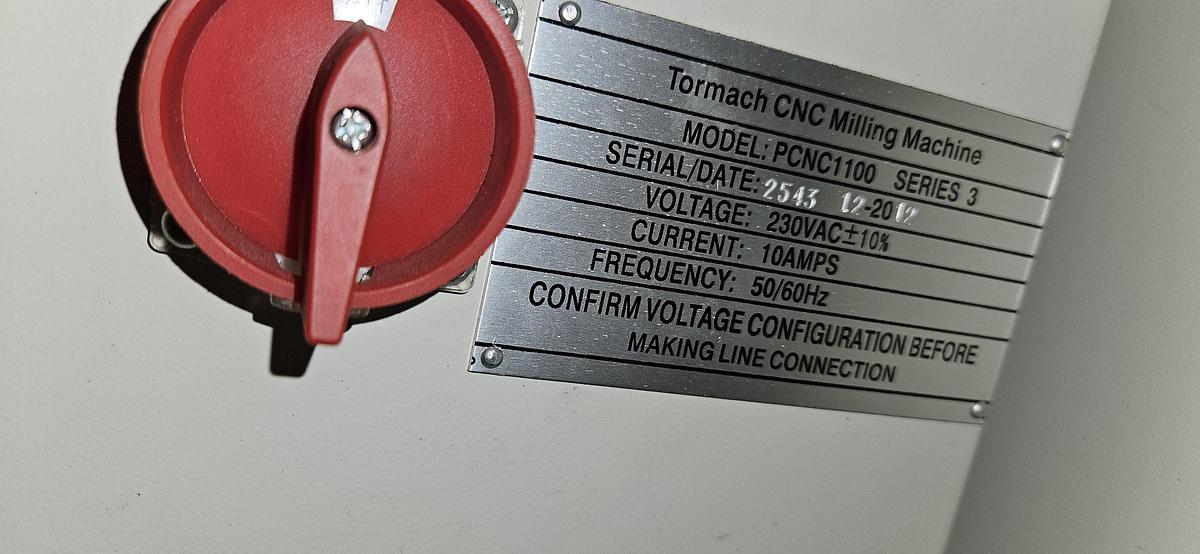

Manufacturer: Tormach

Model: PCNC 1100 Series 3

Serial Number: 2543

Manufacture Date: 12/2012

Year: 2012

Machine Type: CNC Vertical Milling Machine

Configuration: 3-Axis CNC + 4th-Axis Rotary Capability

Voltage: 230 VAC ±10%

Current: 10 Amps

Frequency: 50/60 Hz

Machine Type: CNC Vertical Milling Machine

Configuration: 3-Axis CNC + 4th-Axis Rotary Capability

Table Size: 34" x 9.5"

X-Axis Travel: 18"

Y-Axis Travel: 9.5"

Z-Axis Travel: 16.5"

Maximum Table Load: 500 lbs.

Spindle Nose to Table: Approximately 1" – 17"

Spindle Center to Column Face: 11"

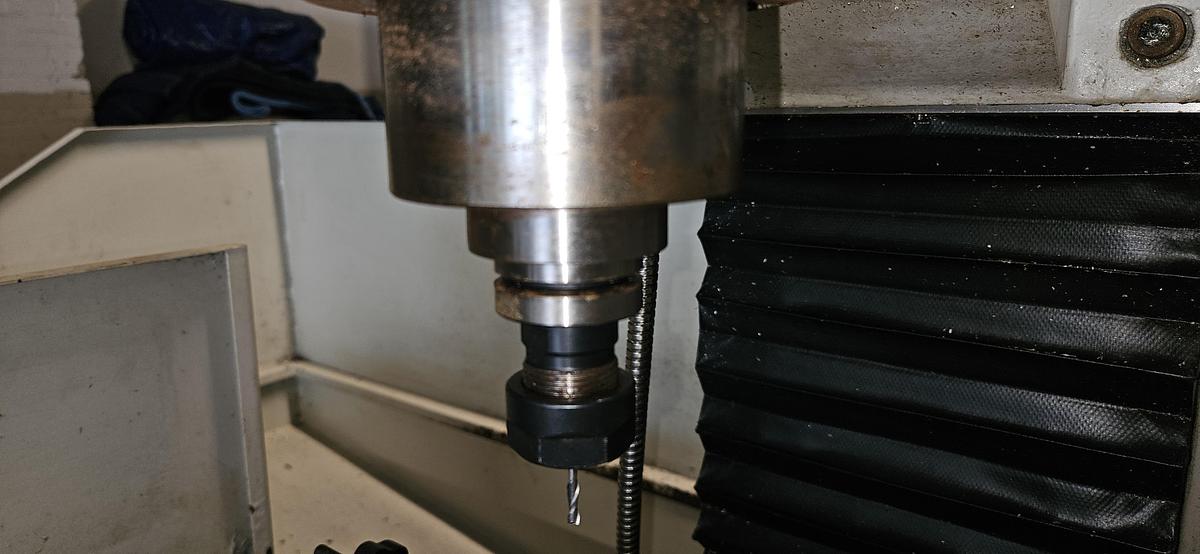

Spindle Taper: R8

Spindle Speed Range: 100 – 5,140 RPM

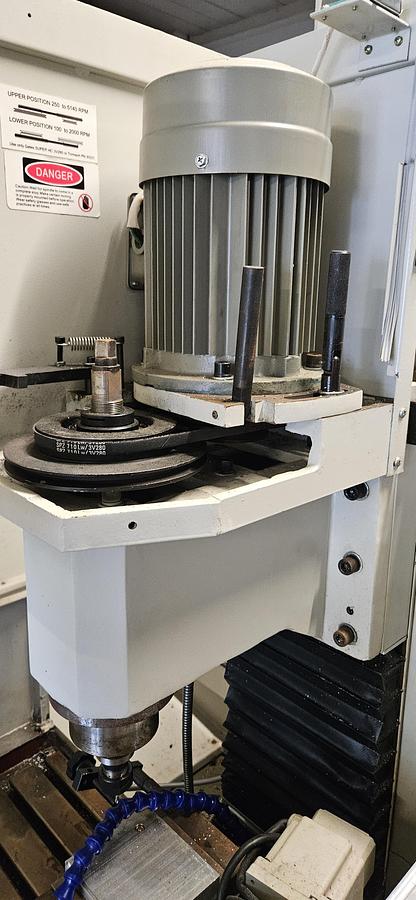

Spindle Drive: Belt Drive – Two Speed Ranges

Low Range: 100 – 2,000 RPM

High Range: 250 – 5,140 RPM

Spindle Rating: 1.5 HP Continuous / 2 HP Peak

X-Axis Rapid: 110 IPM

Y-Axis Rapid: 110 IPM

Z-Axis Rapid: 90 IPM

Machine Voltage: 230 VAC

Frequency: 50/60 Hz

Machine Nameplate Current: 10 Amps

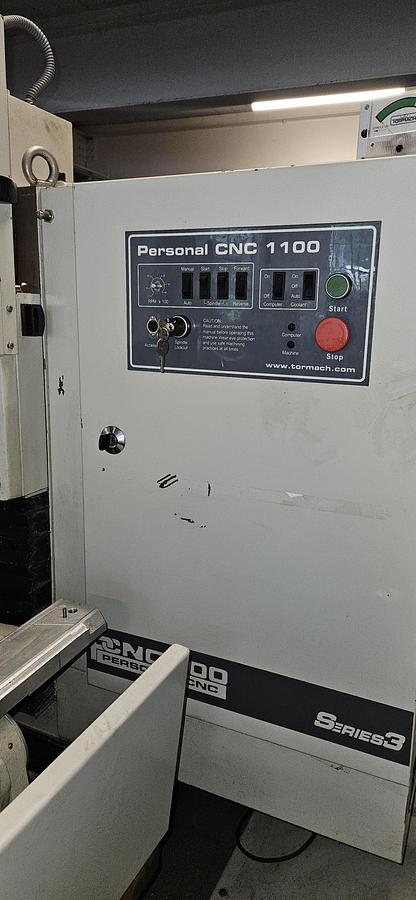

Control: Tormach CNC Control System

Computer: Dedicated CNC Computer / CPU Included

4th Axis: Tormach Motorized Rotary Table System

Coolant: Equipped

Machine Enclosure: Chip & Coolant Pan System

Tormach's published Series 3 specifications confirm the travels, table dimensions, spindle range, R8 taper and related specifications above.

4TH AXIS ROTARY SYSTEM

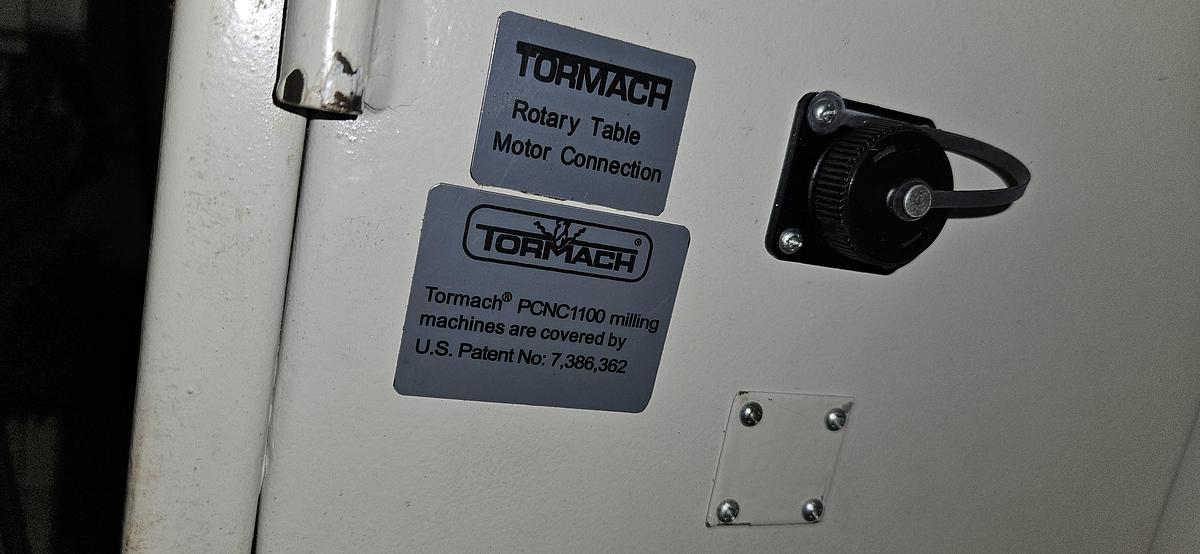

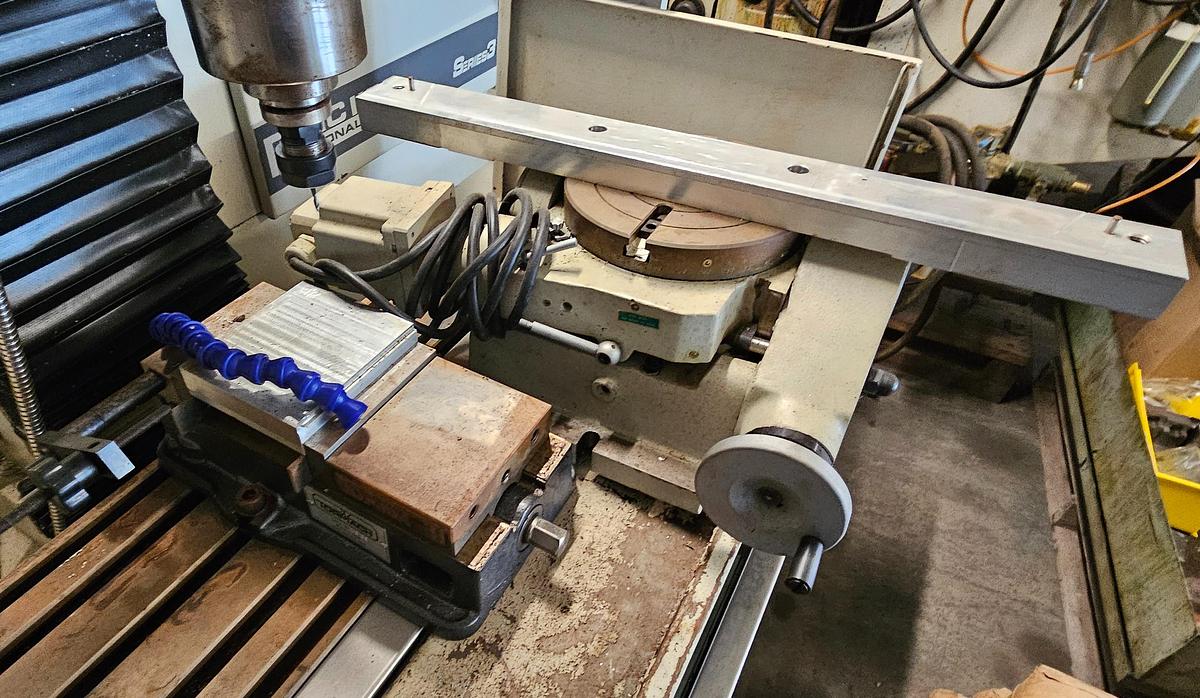

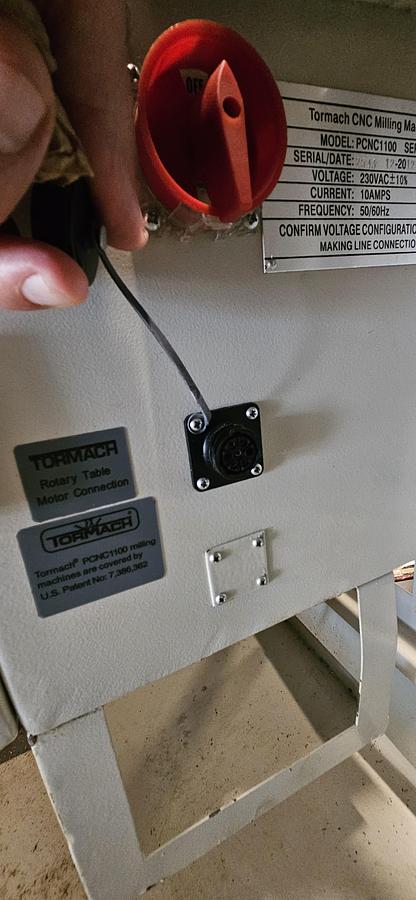

This machine includes a Tormach motorized rotary table along with the corresponding machine-side Rotary Table Motor Connection.

The rotary axis can be used for operations including:

• Precision indexing

• Radial drilling

• Bolt-circle machining

• Machining multiple sides of a component

• Cylindrical machining

• Engraving around cylindrical components

• Gear and spline-type operations

• Indexed milling

• Repetitive angular positioning

Tormach specifically describes its rotary tables as a means of converting the PCNC 1100 from conventional three-axis machining to four-axis operation.

FEATURES

• Tormach PCNC 1100 Series 3

• CNC vertical milling machine

• 3-axis CNC machining

• 4th-axis equipped

• Tormach motorized rotary table included

• Dedicated rotary table motor connection

• R8 spindle

• Variable spindle speed

• Two-range belt-driven spindle

• Approximately 5,140 RPM maximum spindle speed

• Dedicated CNC computer / CPU

• Computer monitor

• Keyboard

• Integrated machine electronics

• Individual axis drives

• Spindle drive / VFD

• Coolant system

• Chip / coolant containment

• Machine stand / base

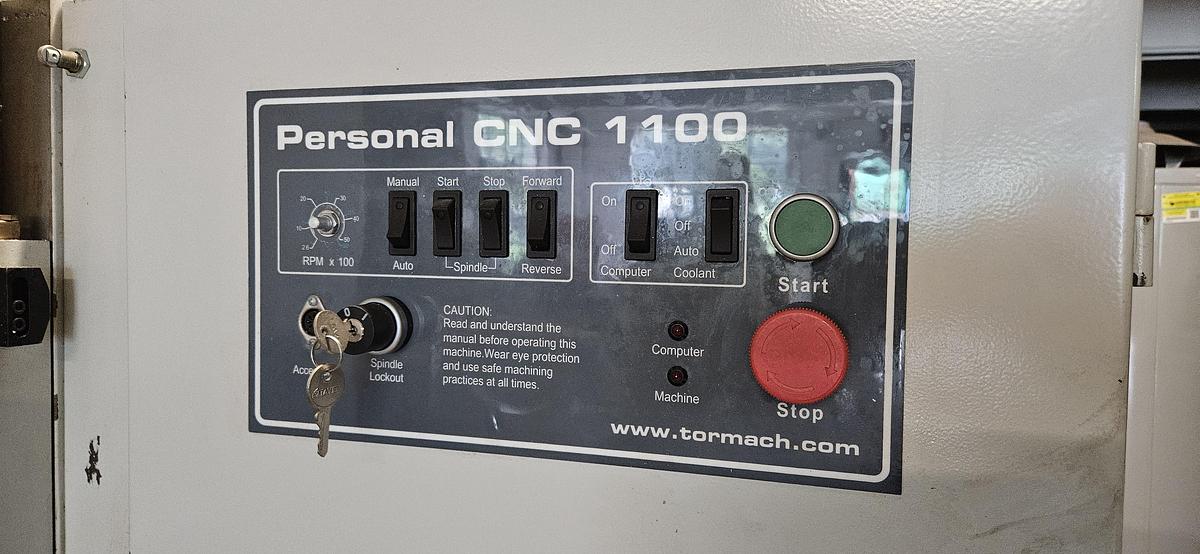

• Emergency stop

• Manual / automatic spindle controls

• Forward / reverse spindle controls

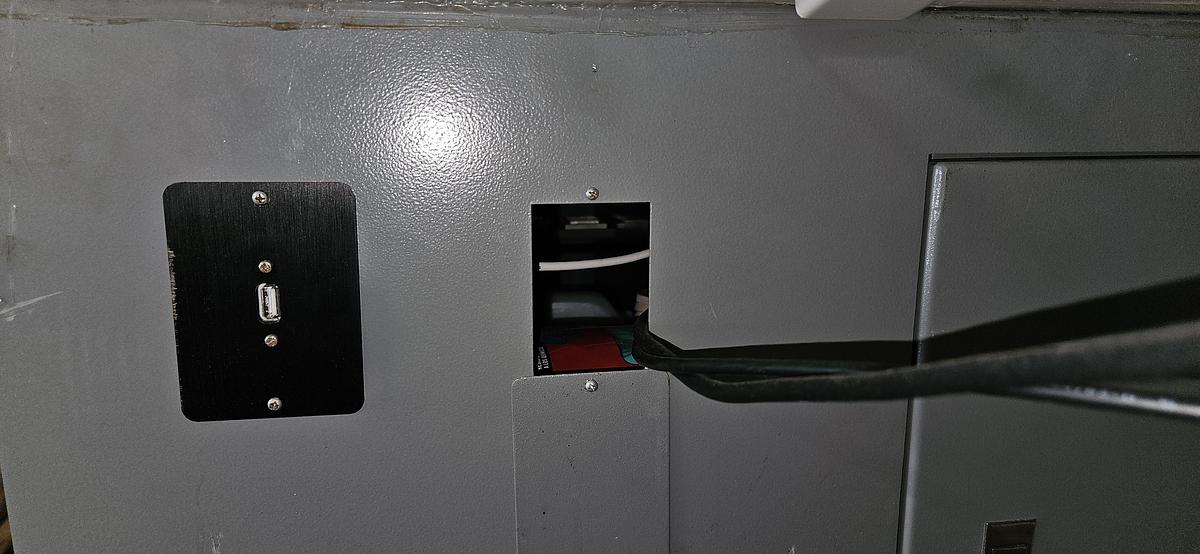

• USB connection

• Workholding vise

• Flexible coolant nozzle

• Assorted tooling / accessories as pictured

INCLUDES

• Tormach PCNC 1100 Series 3 CNC Milling Machine

• Tormach Motorized Rotary Table / 4th Axis

• 4th-Axis Drive / Machine Connection

• Dedicated CNC Computer / CPU

• Monitor

• Keyboard

• Machine Control Electronics

• Machine Base / Stand

• Coolant System

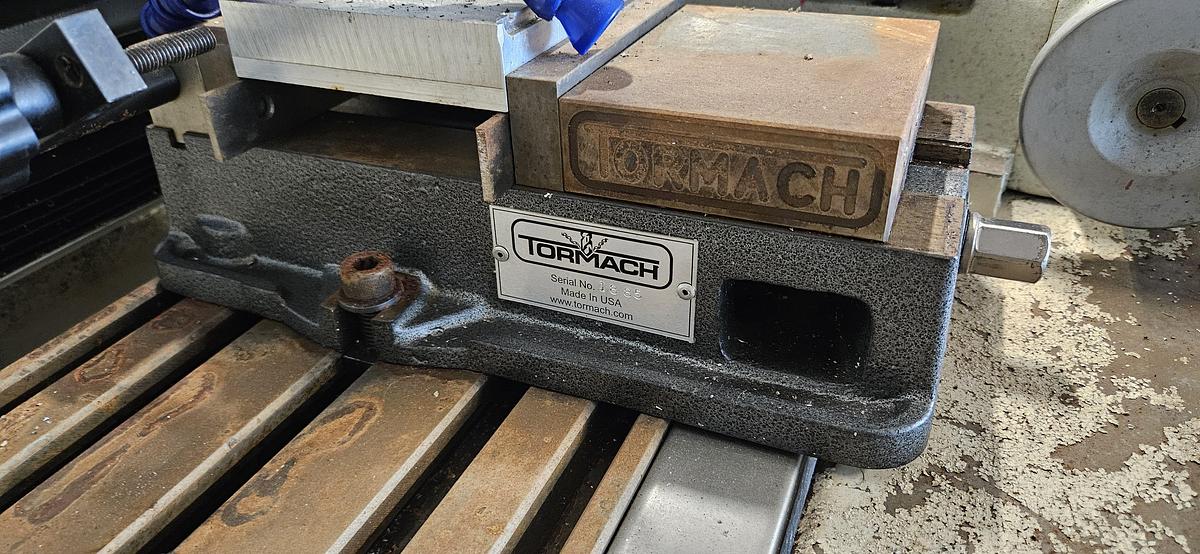

• Machine Vise

• Flexible Coolant Nozzle

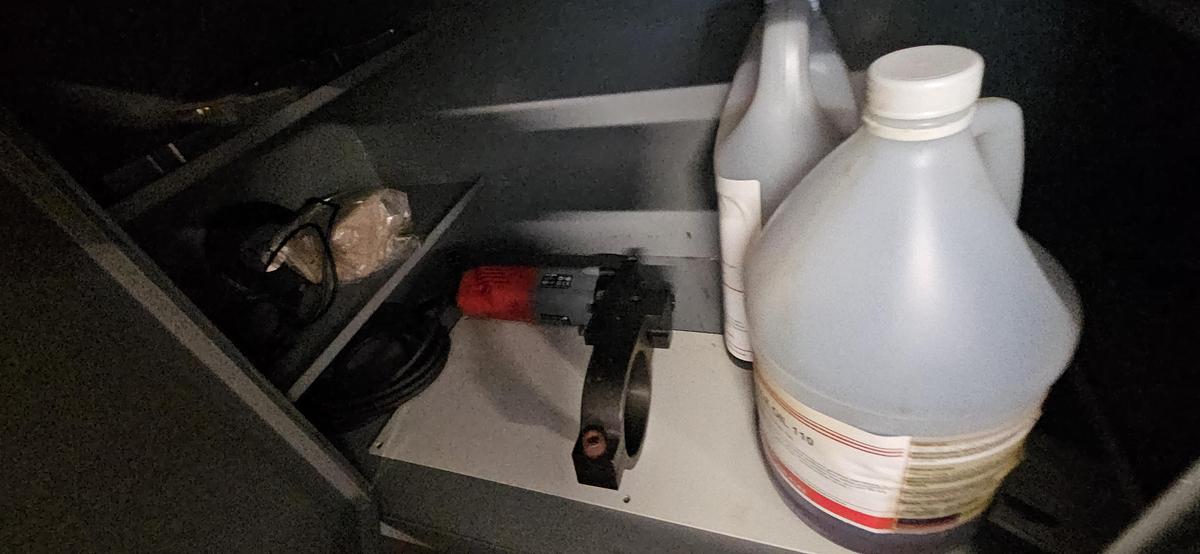

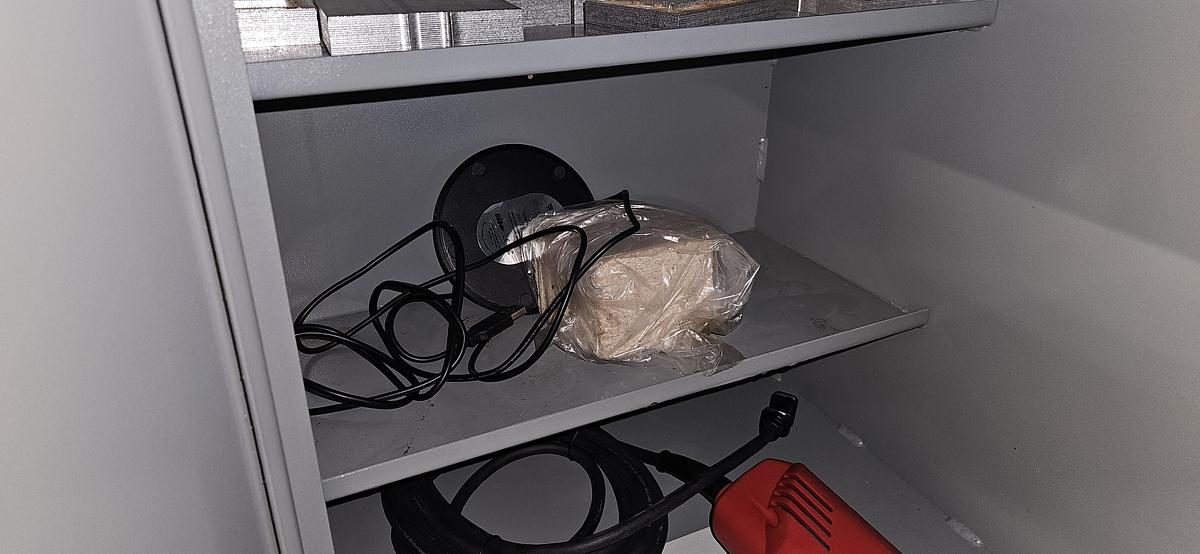

• Miscellaneous tooling and accessories shown in photographs

CONDITION

This Tormach PCNC 1100 Series 3 appears to be a complete and well-equipped machine package.

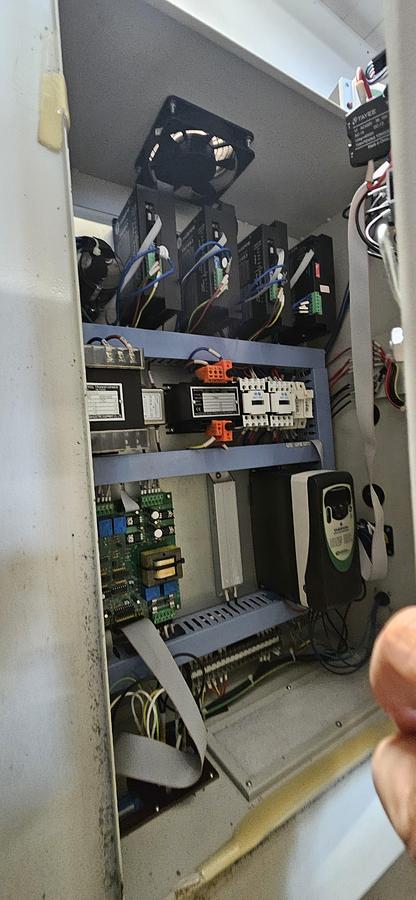

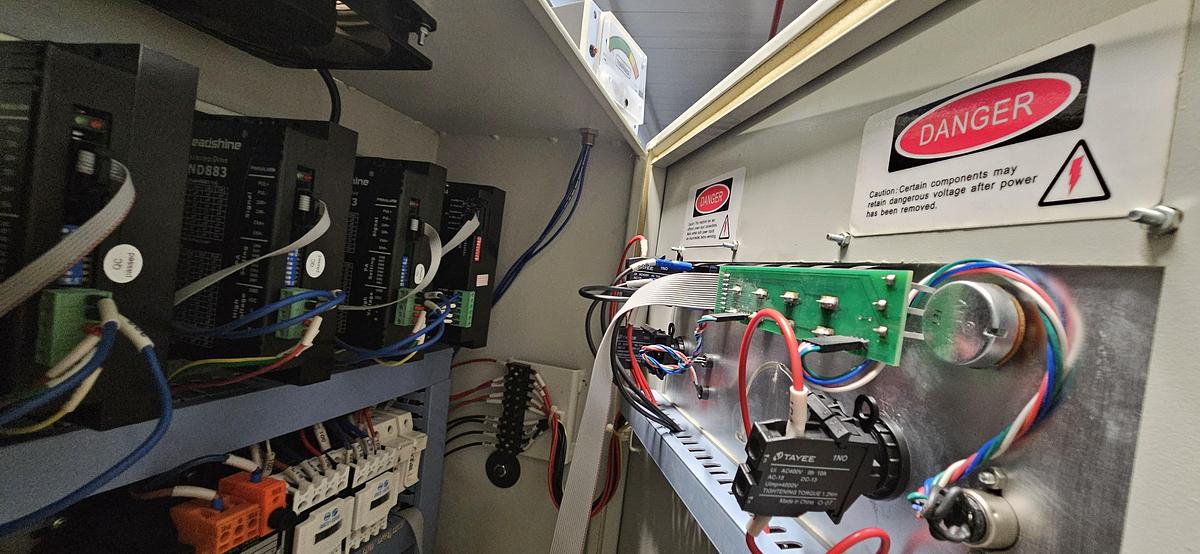

The electrical cabinet appears intact and includes the axis drives, control boards, contactors, transformer, spindle drive and associated control components. The dedicated computer / CPU is also present.

The machine was reported to be running when removed from service.

L R Associates has not powered up or operationally tested this machine.

Accordingly, the machine is presently being offered as-is / untested, with no representation being made regarding current operational condition.

Buyer is encouraged to inspect the machine prior to purchase.

SHIPPING

We can assist with rigging and freight quotes upon request.

Please contact us for a Shipping Quote!

We ship anywhere!

We will require a loading charge on this machine. Please inquire!
