2014 MILLTRONICS ML16 CNC LATHE – CENTURION 7 CONVERSATIONAL CONTROL – 8-POSITION AUTOMATIC TURRET – TAILSTOCK – FULL ENCLOSURE – 220V 3 PHASE

DESCRIPTION

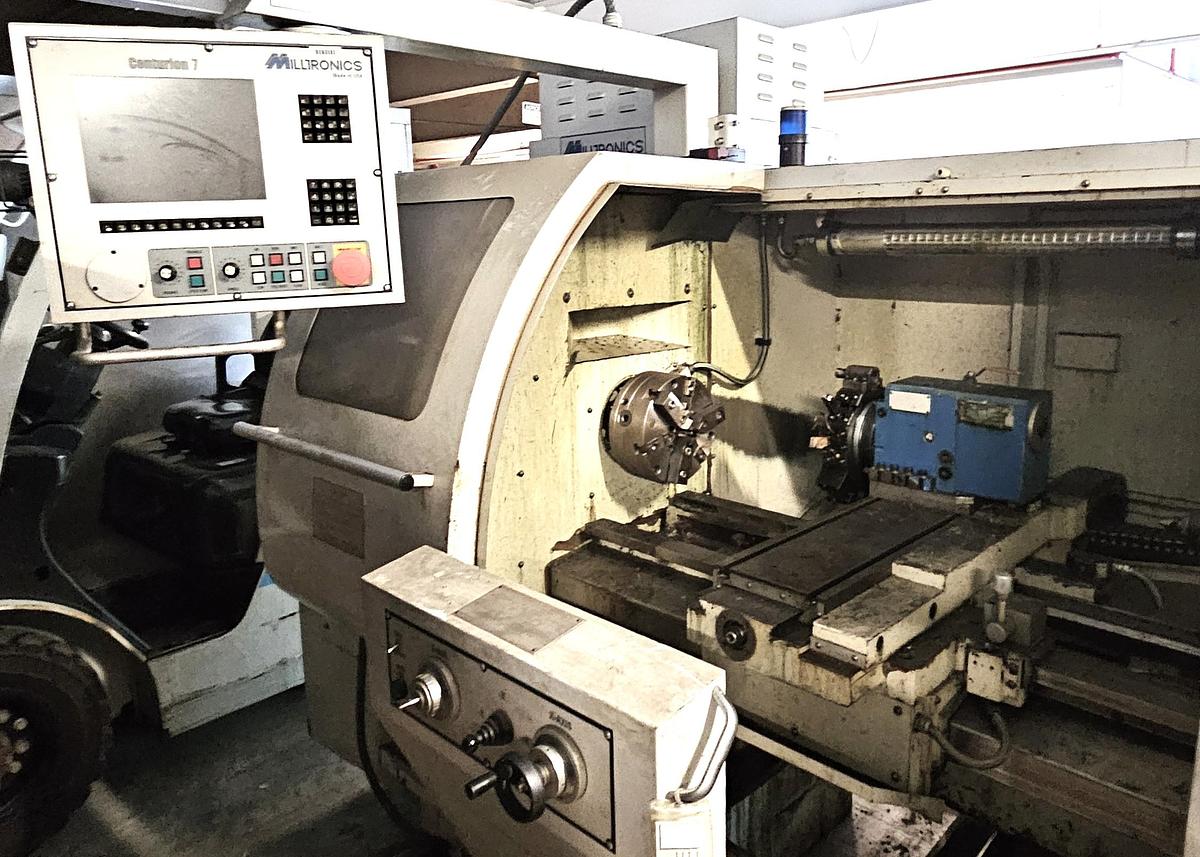

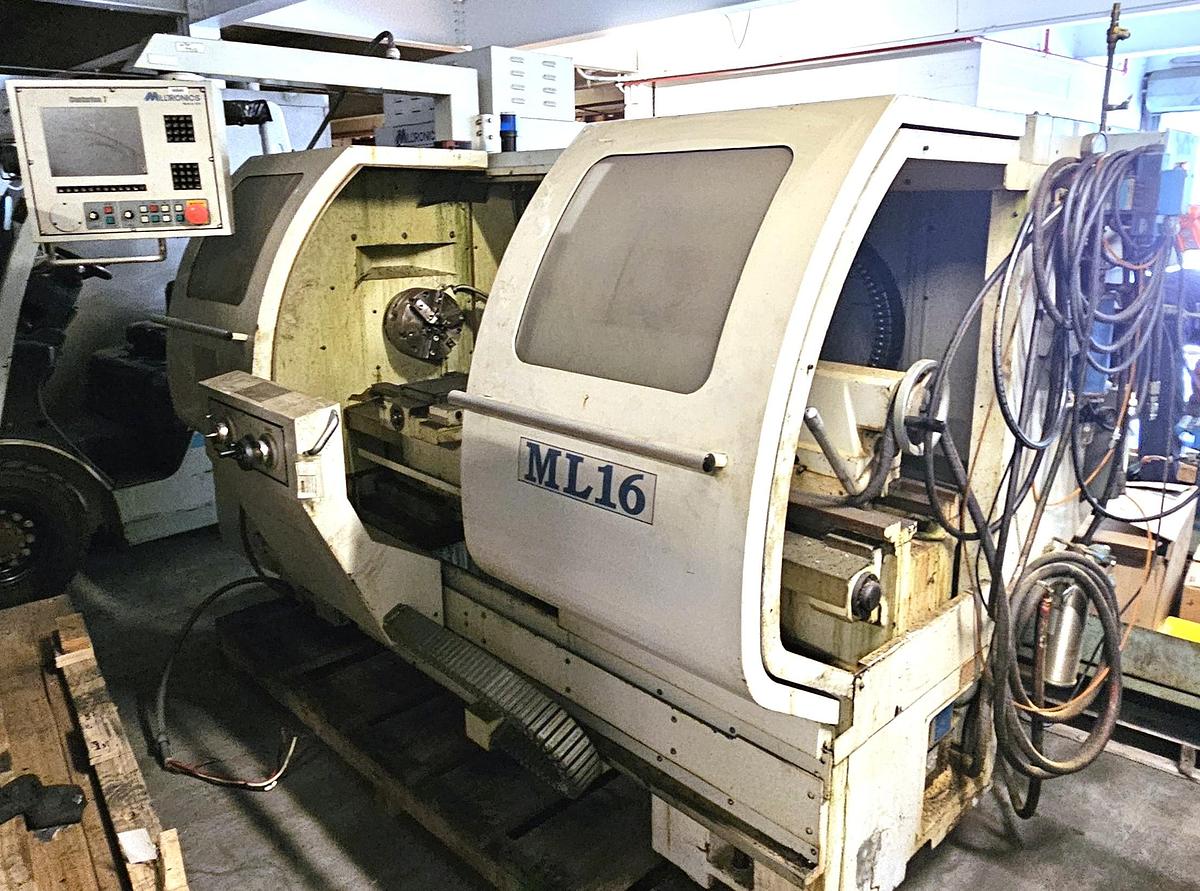

Available for immediate sale is this 2014 Milltronics ML16 CNC Lathe, equipped with the highly regarded Milltronics Centurion 7 CNC conversational control, 8-position automatic indexing turret, tailstock, full machine enclosure, coolant system, and 3-jaw chuck.

The Milltronics ML Series was designed as a versatile CNC/toolroom lathe platform combining conventional turning flexibility with full CNC machining capability. These machines are particularly well suited for toolrooms, prototype departments, maintenance facilities, educational laboratories, R&D operations, and short-to-medium production runs.

This particular machine is substantially better equipped than a basic ML16 toolroom configuration due to its automatic 8-station turret, allowing multiple turning, facing, boring, drilling, threading, and related tooling operations to be performed without manually changing tools.

The machine is controlled through the Milltronics Centurion 7 CNC, well known for its conversational programming capability and operator-friendly interface.

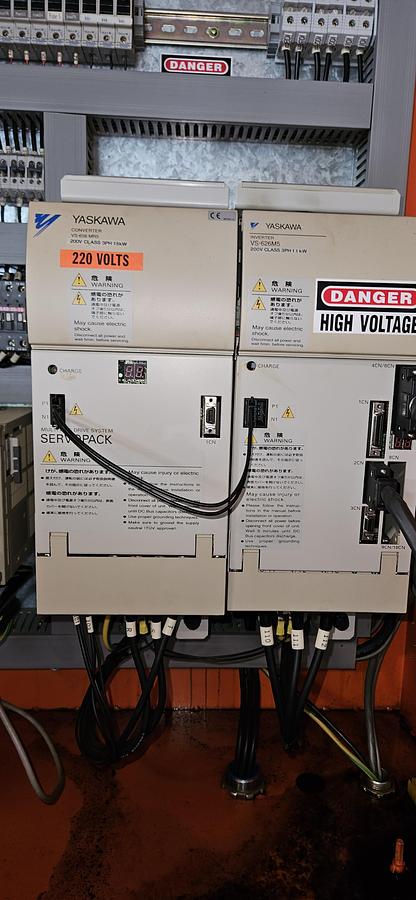

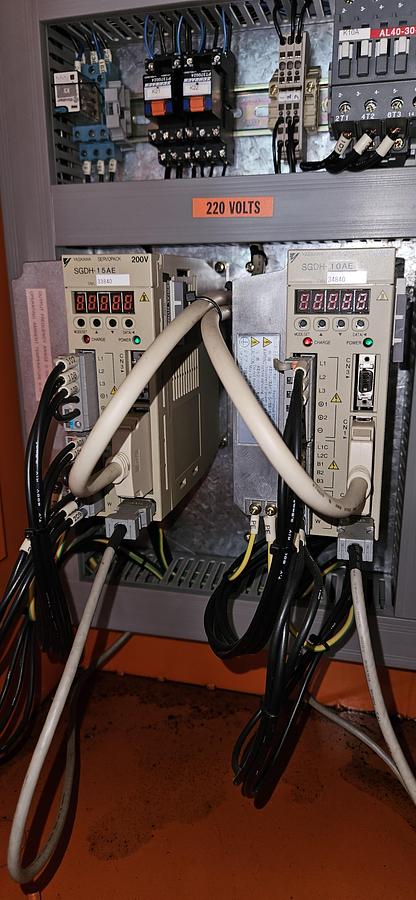

This machine was acquired from a university facility and appears complete and intact. The electrical cabinet is exceptionally well organized and includes Yaskawa servo equipment and associated Milltronics control electronics.

The machine was reported to be running when removed from service by the previous owner. We have not powered or tested the machine and therefore are selling it based upon its present condition.

SPECIFICATIONS

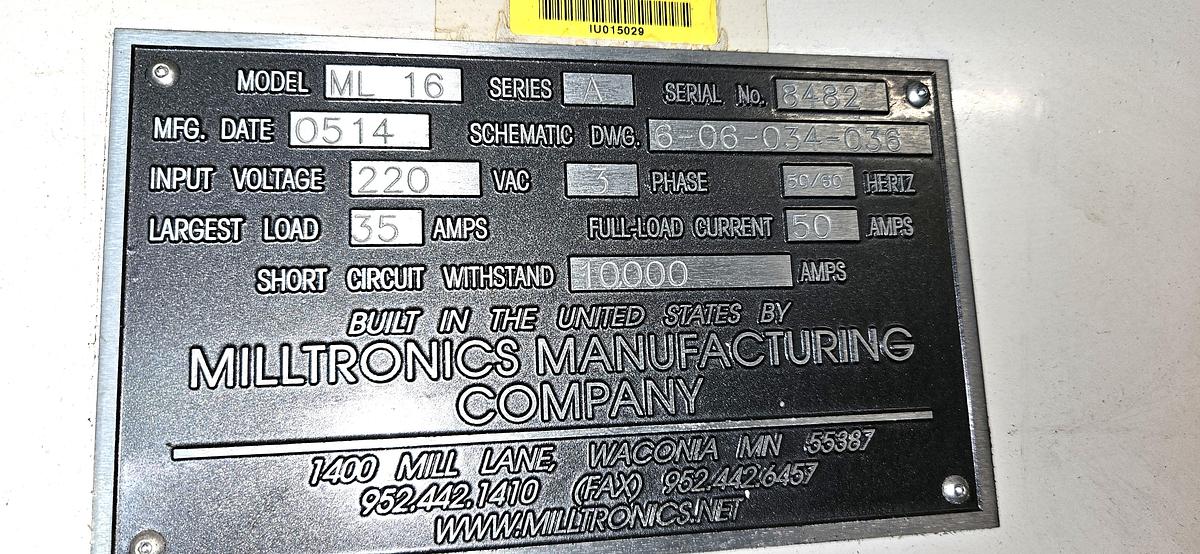

Manufacturer: Milltronics Manufacturing Company

Model: ML16

Series: A

Machine Type: CNC Flat-Bed / Toolroom Lathe

Manufacture Date: 05/2014

Serial Number: 8482

Control: Milltronics Centurion 7

CNC Type: Conversational / CNC

Axes: 2-Axis CNC

Turret: 8-Position Automatic Indexing Turret

Chuck: 3-Jaw Chuck

Tailstock: Included

Machine Configuration: Flat-Bed CNC Lathe

Enclosure: Full Enclosure with Sliding Access Doors

Input Voltage: 220 VAC

Phase: 3 Phase

Frequency: 50/60 Hz

Largest Load: 35 Amps

Full Load Current: 50 Amps

Short Circuit Withstand Rating: 10,000 Amps

Country of Manufacture: USA

Manufacturer Location: Waconia, Minnesota

The ML16 family is generally specified with approximately 17" swing over bed, approximately 25.9" swing over the gap, approximately 2.05" spindle bore, and spindle speeds up to approximately 4,000 RPM, although buyers should verify the exact mechanical configuration of this particular machine.

FEATURES

• 2014 manufacture

• Milltronics ML16 CNC lathe

• Centurion 7 CNC conversational control

• Full CNC operation

• Conversational programming capability

• 8-position automatic indexing tool turret

• Multiple-tool machining capability

• 3-jaw chuck

• Heavy-duty tailstock

• Flat-bed construction

• Gap-bed design

• Fully enclosed machining area

• Sliding operator access doors

• Flood coolant system

• Automatic lubrication system

• Yaskawa servo drive equipment

• Heavy-duty box-way construction

• Spindle load monitoring

• Adjustable feedrate control

• Adjustable spindle override

• Emergency stop

• Tool reset controls

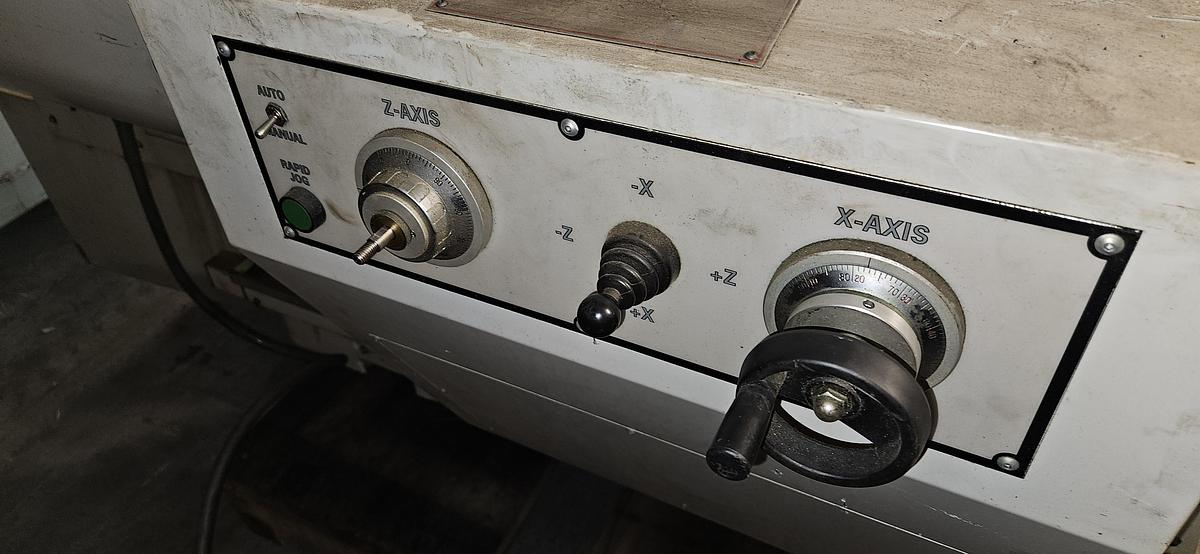

• Remote setup controls

• Spindle jog function

• Internal work lighting

• Heavy cast-iron machine construction

• Made in USA

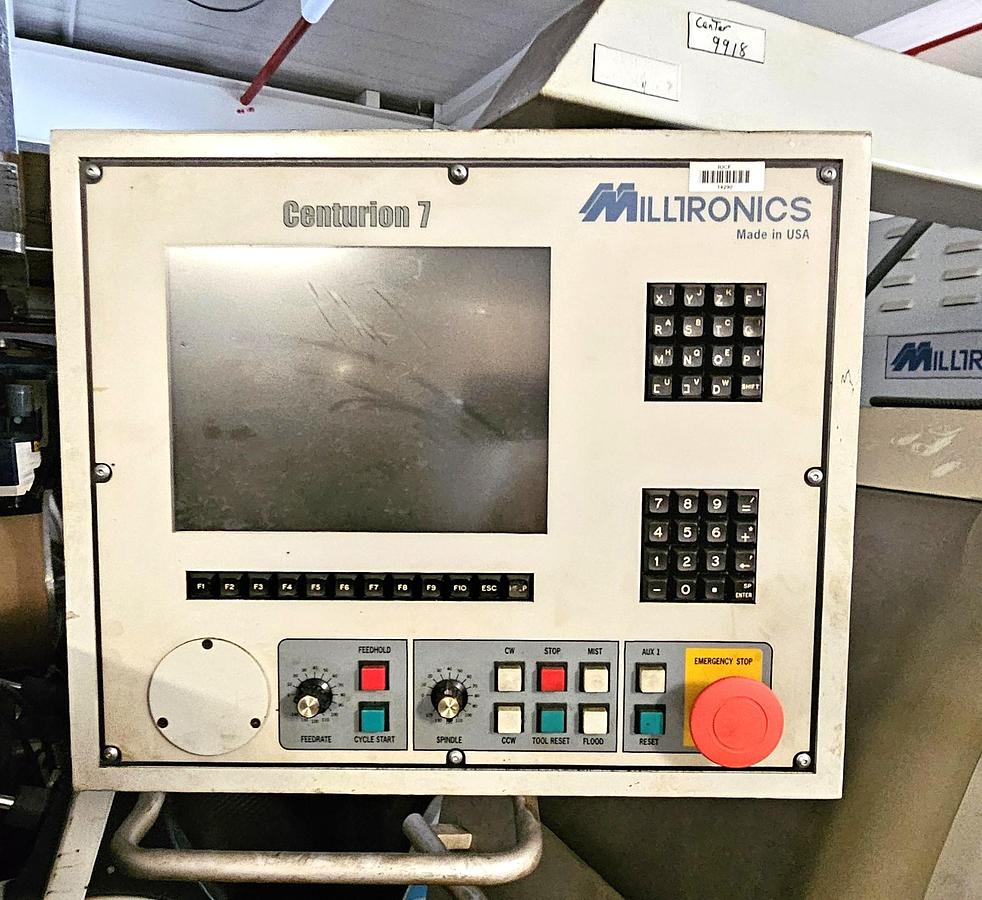

CNC CONTROL

The machine is equipped with the Milltronics Centurion 7 CNC control, providing an operator-friendly interface for CNC turning operations.

The Centurion platform was developed to allow operators to perform both conventional-style toolroom work and programmed CNC machining without requiring the programming complexity associated with many traditional production CNC controls.

Control functions include:

• Conversational CNC programming

• G-code CNC operation

• Tool offsets

• Feedrate override

• Spindle speed override

• Cycle start

• Tool reset

• Flood coolant control

• Mist coolant control

• Spindle forward/reverse

• Manual setup functions

• Automatic machining cycles

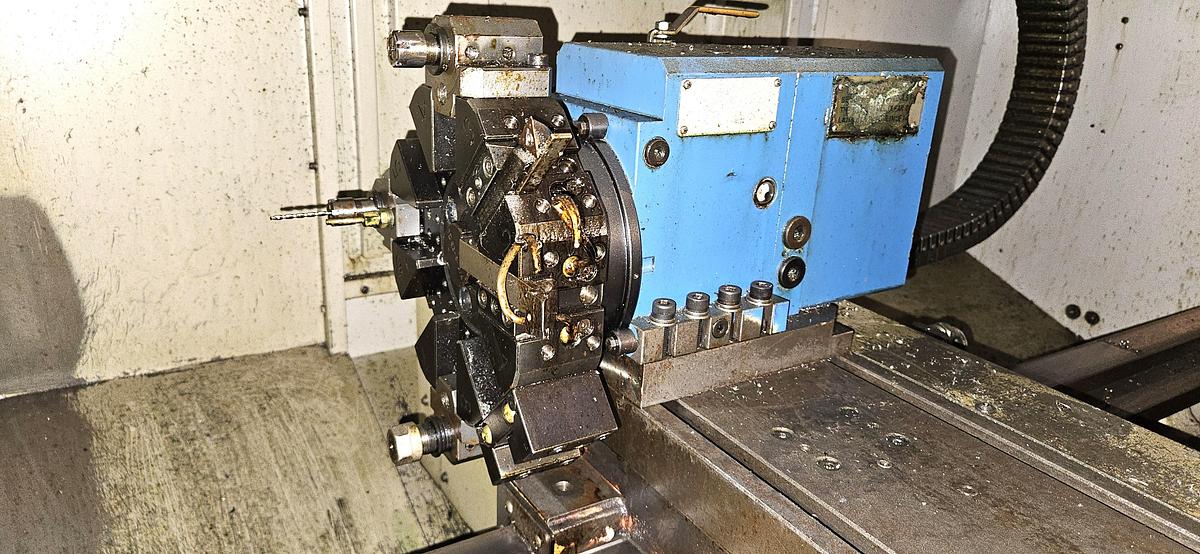

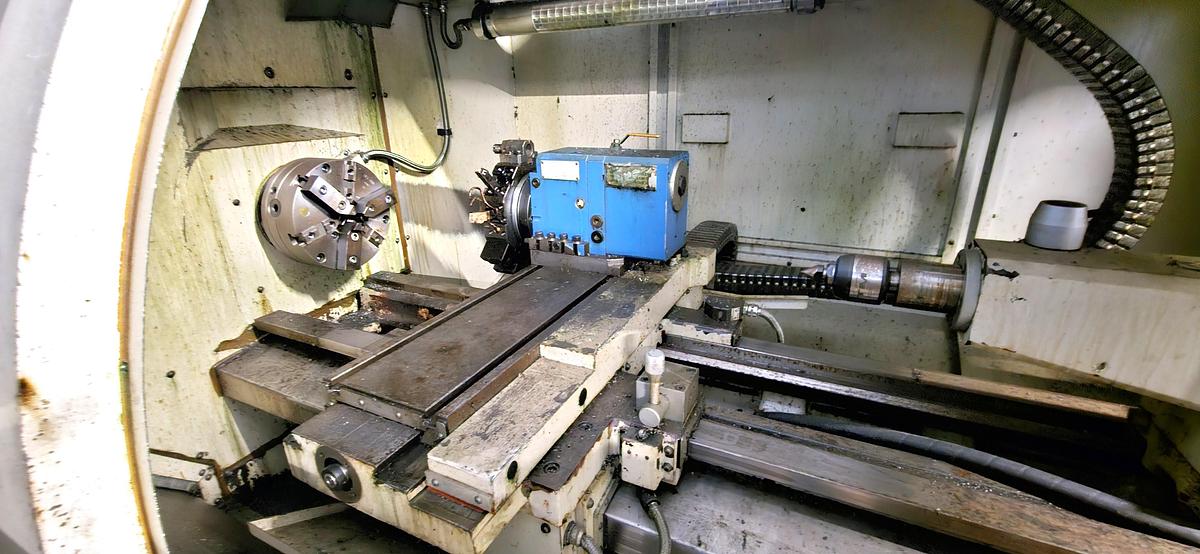

AUTOMATIC 8-POSITION TURRET

A major feature of this machine is the 8-position automatic indexing turret.

Unlike basic ML16 machines equipped with a manual tool post, the automatic turret allows multiple cutting tools to remain installed and automatically indexes the required tool during a CNC program.

This substantially increases the machine's usefulness for:

• Production turning

• Facing

• OD turning

• ID boring

• Drilling

• Threading

• Grooving

• Part profiling

• Repetitive production

• Prototype manufacturing

The ML Series was available with automatic tool turret configurations, and period documentation confirms 8-position automatic turret installations on ML16 machines.

CAPACITY – ML16 SERIES

Published ML16 specifications indicate approximately:

Swing Over Bed: 17"

Swing Over Gap: 25.9"

Gap Length: 12.75"

Swing Over Cross Slide: Approximately 7.48"

Spindle Bore: Approximately 2.05"

Spindle Speed: Up to approximately 4,000 RPM

Spindle Motor: Approximately 18 HP peak / 12 HP continuous

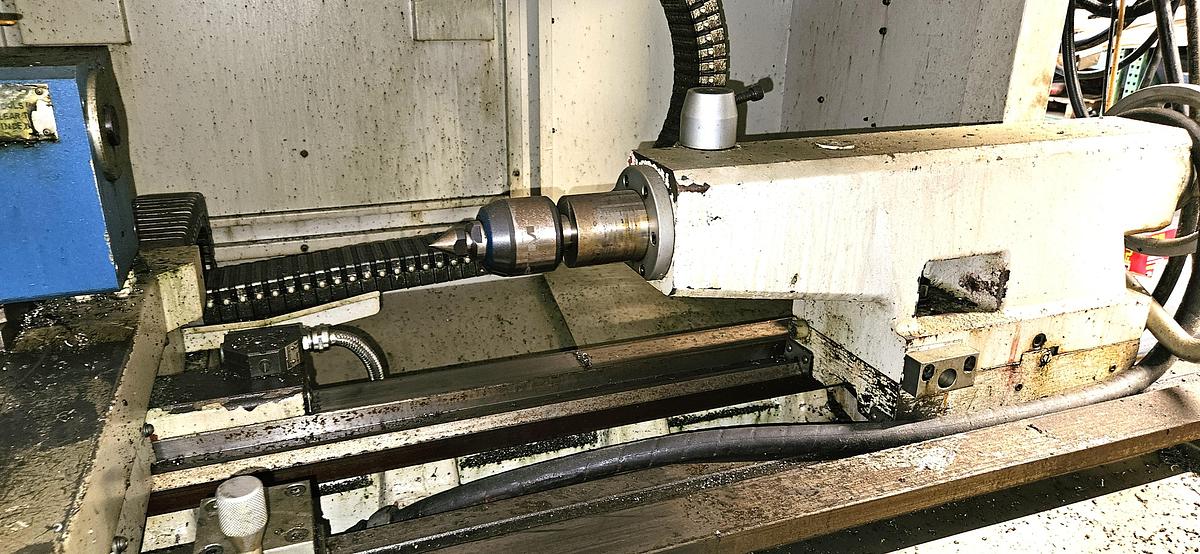

Tailstock Quill Travel: Approximately 6"

Tailstock Quill Diameter: Approximately 2.55"

Tailstock Taper: #4 Morse Taper

Exact specifications can vary according to the particular ML16 configuration and should be confirmed by the buyer.

APPLICATIONS

Ideal for:

• CNC turning

• Precision machining

• Toolroom operations

• Prototype manufacturing

• Short production runs

• Production turning

• Shaft machining

• Bushing manufacturing

• Threading

• Facing

• Boring

• Drilling

• Maintenance machining

• R&D facilities

• Educational machine shops

• Manufacturing facilities

INCLUDES

• Milltronics ML16 CNC Lathe

• Milltronics Centurion 7 CNC Control

• 8-Position Automatic Turret

• 3-Jaw Chuck

• Tailstock

• Full Machine Enclosure

• Coolant System

• Automatic Lubrication System

• Integrated Electrical Cabinet

• Yaskawa Servo Drive System

• Operator Control Station

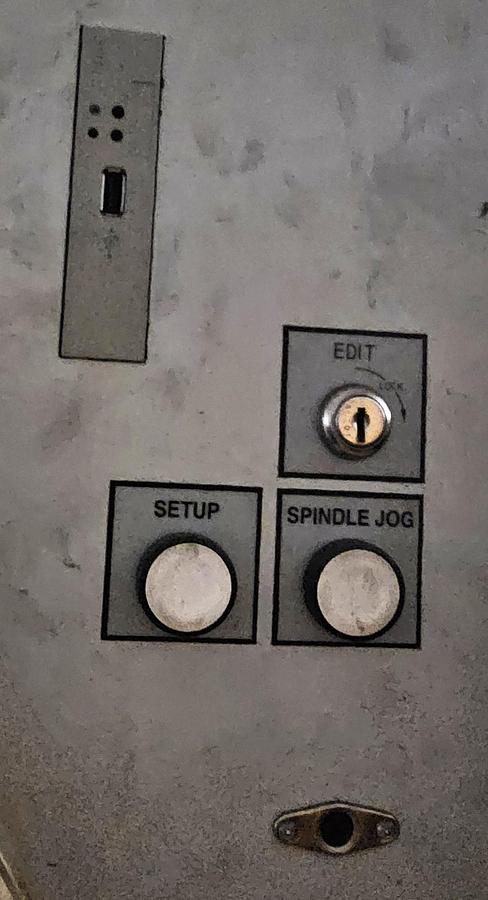

• Setup / Spindle Jog Controls

CONDITION

This machine was acquired from a university facility and appears to be complete and intact.

The machine shows normal cosmetic evidence of previous use, including machining residue, coolant staining, paint wear, and general shop use consistent with an industrial CNC lathe.

The automatic turret, chuck, tailstock, Centurion 7 CNC control, electrical cabinet, servo drives, coolant equipment, enclosure, and major machine components appear to be present.

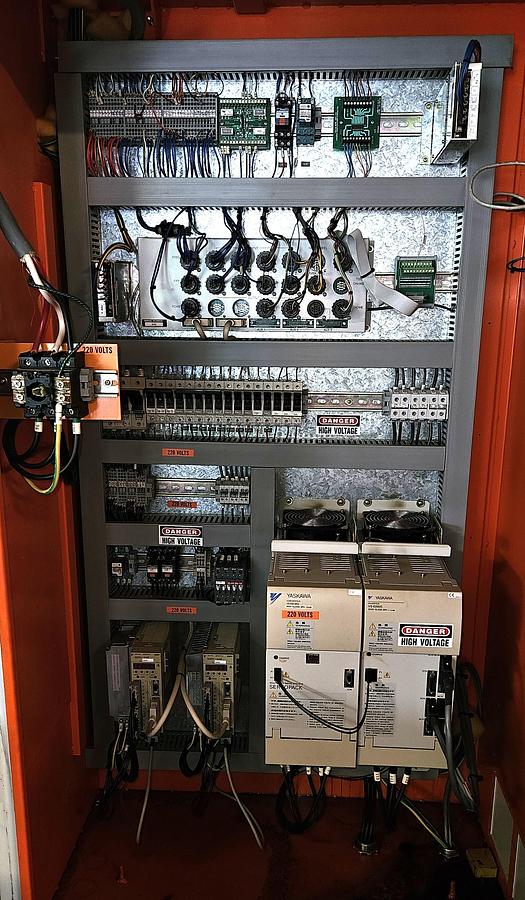

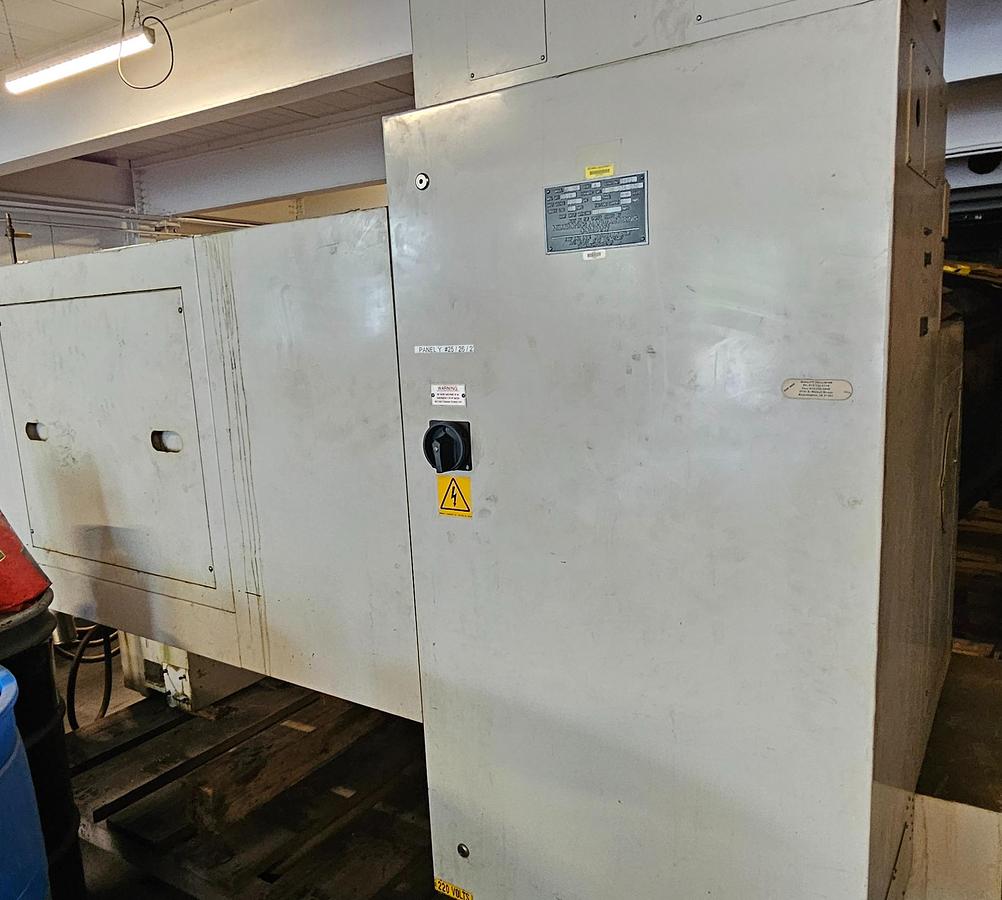

The electrical cabinet appears clean, organized, and substantially complete.

The machine was reported to be operational when removed from service by the previous owner. L R Associates has not powered or tested this machine.

Accordingly, the machine is being offered AS IS, WHERE IS, and the buyer is encouraged to inspect the machine prior to purchase.

SHIPPING

We can assist with professional rigging and freight quotes upon request.

This is a substantial machine tool and will require appropriate machinery-moving equipment for loading and transportation... We will require a loading charge on this machine. Please inquire!

Please contact us for a Shipping Quote!

We ship anywhere!

OFFERED BY

L R Associates, Inc.

Machinery Dealers / Consultants / Appraisers / Auctioneers

25 Conduit Street

Central Falls, Rhode Island 02863

Contact us at Four Zero One – Nine Six Five – Five Five Five Seven

LR# LGD-0000-082926-C

P#082826

ADDITIONAL INFORMATION

Specifications are based upon machine nameplate information, visual inspection, and available published information for the Milltronics ML16 series.

Specifications are not guaranteed and should be independently verified by the purchaser.

Machine is subject to prior sale.
