DONALDSON TORIT VS-1500 VIBRA-SHAKE DUST COLLECTOR – 5 HP – 208/230/460V – 3 PHASE – CLEAN FILTER – TESTED EXCELLENT

DESCRIPTION

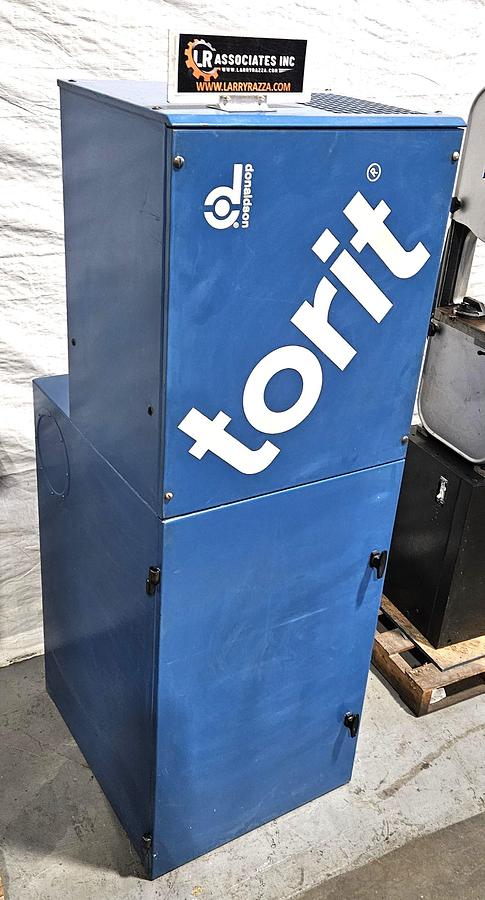

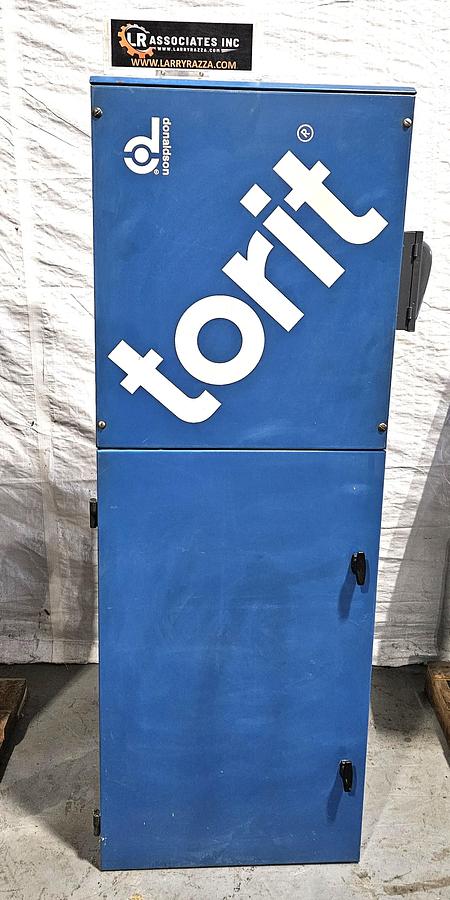

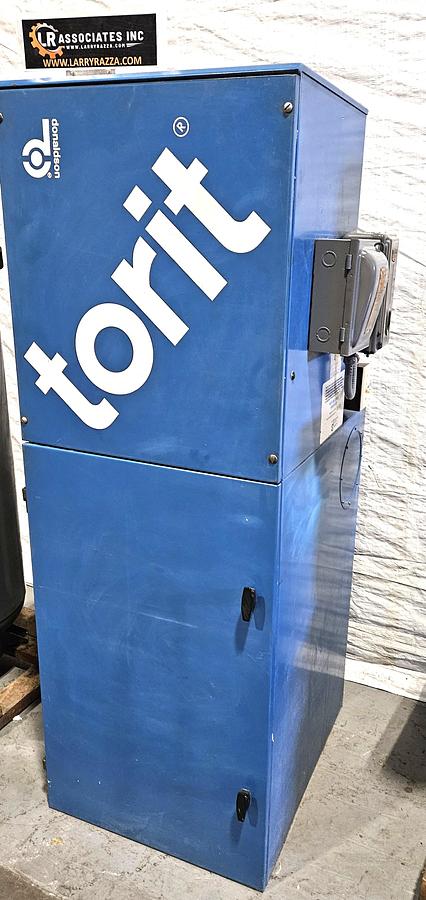

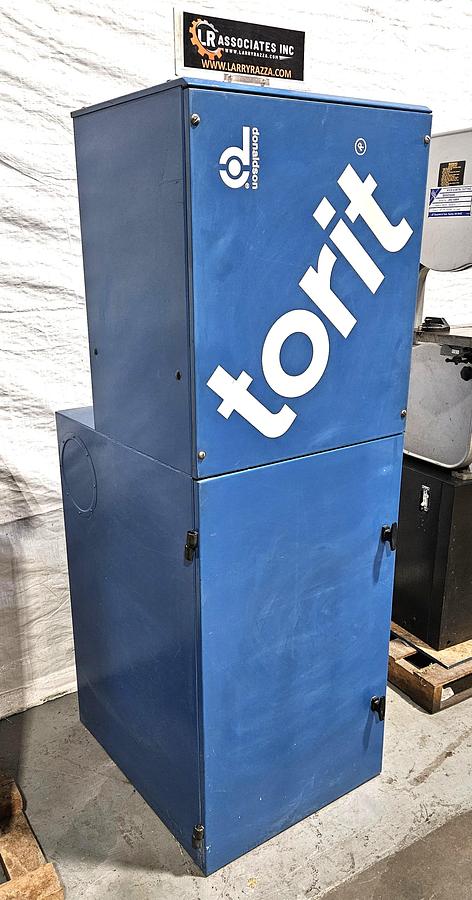

Available for immediate sale is this Donaldson Torit VS-1500 Vibra-Shake Industrial Dust Collector, a compact self-contained dust collection system designed for efficient collection of dry airborne particulate generated by industrial manufacturing and processing operations.

The Torit Vibra-Shake series combines a high-capacity cartridge-style filter with an integral mechanical filter-cleaning system. After operation, accumulated material can be removed from the filter by activating the Vibra-Shake mechanism, helping restore airflow and extend filter service life.

This particular VS-1500 is equipped with a manual switch-operated Vibra-Shake system rather than an automatic timer. This allows the operator to activate the filter-cleaning cycle as required.

The unit is powered by a heavy-duty 5 HP Baldor industrial motor and is presently wired for 208/220-volt, 3-phase operation.

A major advantage of this machine is the condition of the filter. The unit includes a clean filter cartridge, an important value consideration because replacement Torit filter cartridges can be expensive.

The machine has been tested and runs excellent.

Ideal for machine shops, grinding operations, plastics manufacturing, powder handling, metalworking, woodworking, general manufacturing, and numerous other dry dust collection applications.

SPECIFICATIONS

Manufacturer: Donaldson Company, Inc.

Division: Torit

Model: VS-1500

Type: Vibra-Shake Industrial Dust Collector

Serial / Order Entry: IG085207

Filter Cleaning System: Vibra-Shake

Filter Cleaning Activation: Manual Switch

Motor: Baldor Industrial Motor

Motor Horsepower: 5 HP

Motor Speed: 3,600 RPM

Motor Voltage Rating: 208-230/460 Volt

Machine Presently Wired For: 208/220 Volt

Phase: 3 Phase

Frequency: 60 Hz

Motor Amperage: 13.2 / 12 / 6 Amps

Motor Frame: 184TC

Motor Enclosure: TE

Motor Duty: Continuous

Filter Type: Large Cartridge-Style Dust Collection Filter

Dust Collection: Bottom Collection Tray

Construction: Heavy-Duty Industrial Steel Cabinet

Manufacturer Location: Minneapolis, Minnesota, USA

FEATURES

• Donaldson Torit industrial dust collector

• VS-1500 Vibra-Shake series

• 5 HP Baldor industrial motor

• 3-phase operation

• Presently wired for 208/220 volts

• 208-230/460V motor capability

• Manual Vibra-Shake filter cleaning

• Operator-controlled filter cleaning cycle

• Large-capacity cartridge filter

• Clean filter included

• Self-contained dust collection cabinet

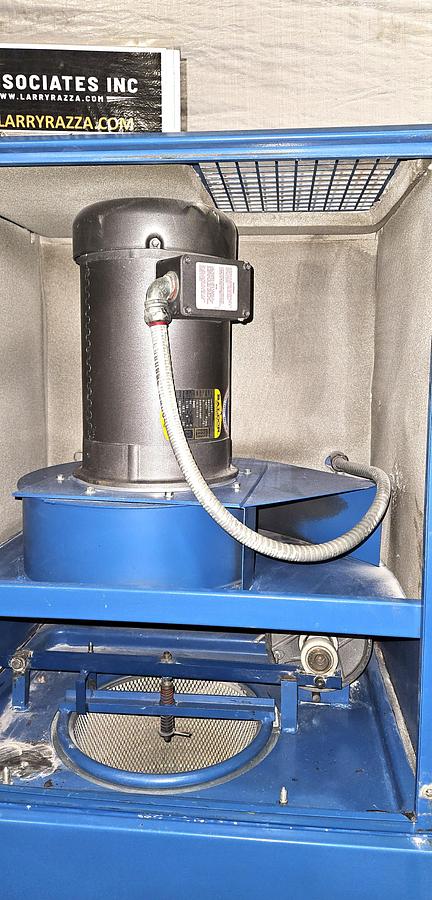

• Enclosed blower and motor compartment

• Bottom dust collection tray

• Easy-access upper and lower cabinet doors

• Heavy-duty industrial construction

• Compact vertical footprint

• No compressed-air pulse cleaning system required

• Simple mechanical filter-cleaning design

• Tested and running excellent

VIBRA-SHAKE FILTER CLEANING SYSTEM

One of the primary advantages of the Torit VS series is its Vibra-Shake filter cleaning system.

Rather than relying on compressed-air pulse cleaning, the Vibra-Shake system mechanically agitates the filter to dislodge accumulated dust and particulate.

On this particular machine, the Vibra-Shake cleaning system is activated using a manual switch rather than an automatic timer.

This provides a simple and reliable arrangement that allows the operator to initiate the cleaning cycle when required.

FILTER

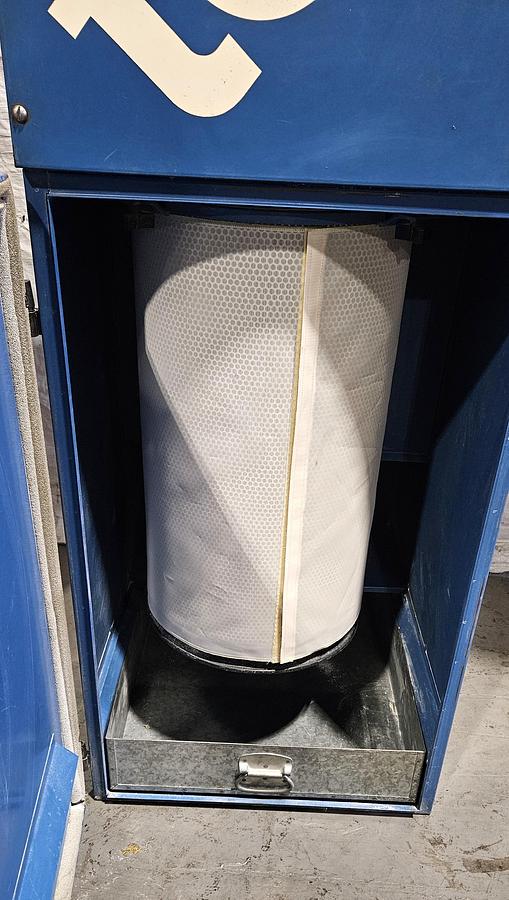

This machine includes the installed large Torit cartridge-style filter, which appears clean and in very good condition.

This is an important feature of this particular machine because replacement filters for industrial Donaldson Torit collectors can represent a significant expense.

The filter compartment is easily accessible through the lower cabinet door, and the removable bottom collection tray allows accumulated material to be cleaned from the machine.

APPLICATIONS

Ideal for dust collection from applications such as:

• Grinding

• Sanding

• Polishing

• Buffing

• Plastics processing

• Powder handling

• Dry machining operations

• Metalworking

• Woodworking

• General manufacturing

• Industrial particulate collection

• Production equipment dust extraction

• Maintenance operations

Actual suitability depends upon the material being collected and the installation. Buyer should verify that the collector and filter configuration are appropriate for the intended dust and application.

INCLUDES

• Donaldson Torit VS-1500 Dust Collector

• 5 HP Baldor Industrial Motor

• Integral Blower Assembly

• Vibra-Shake Filter Cleaning System

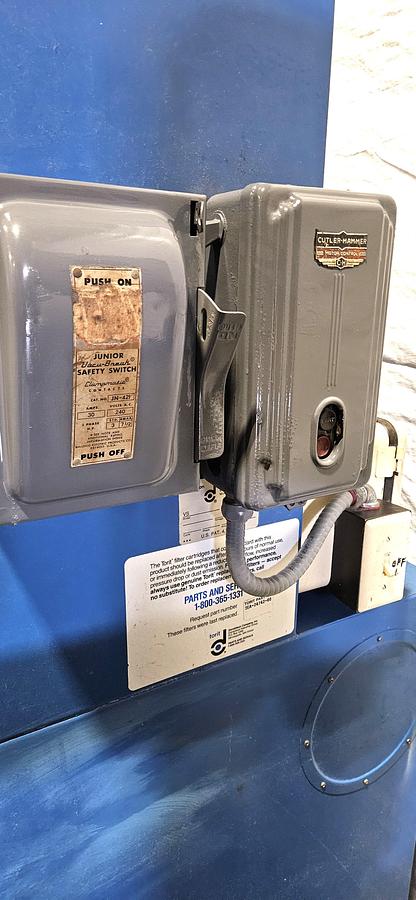

• Manual Vibra-Shake Activation Switch

• Clean Cartridge Filter

• Dust Collection Tray

• Complete Steel Cabinet

CONDITION

This Donaldson Torit VS-1500 is in good overall industrial condition.

The machine has been inspected and tested and runs excellent.

The 5 HP blower motor operates properly and the Vibra-Shake filter cleaning system is functional.

The installed filter is clean and presents very well.

The cabinet shows normal cosmetic evidence of previous industrial use, including minor scratches, marks and paint wear, but is structurally sound and complete.

This is a solid, complete industrial dust collector ready to be placed back into service after proper installation.

Buyer is encouraged to inspect and test the machine prior to purchase.

SHIPPING

We can assist with rigging and freight quotes upon request.

Please contact us for a Shipping Quote!

We ship anywhere!

OFFERED BY

L R Associates, Inc.

Machinery Dealers / Consultants / Appraisers / Auctioneers

25 Conduit Street

Central Falls, Rhode Island 02863

Contact us at Four Zero One – Nine Six Five – Five Five Five Seven

L-0000-090226-B

P# 032326

ADDITIONAL INFORMATION

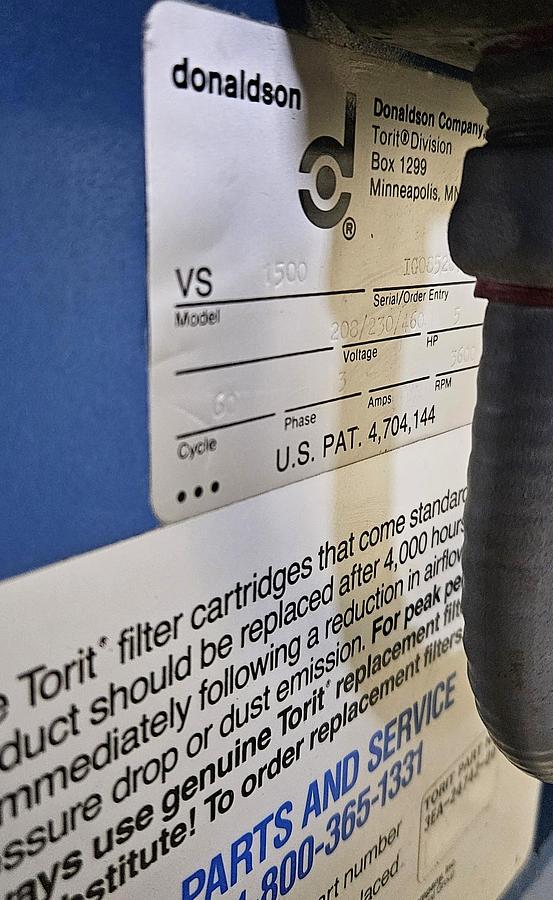

Specifications are based upon manufacturer nameplate information, component nameplates, visual inspection, and machine testing.

Machine is presently wired for 208/220 Volt, 3 Phase operation.

Care is taken to provide accurate specifications; however, buyer should independently verify specifications and suitability for the intended application.

Subject to prior sale.
