IMS LP-49 SOUND-DEADENED GRANULATOR – 7" X 7" FEED OPENING – 2 HP – 1/4" SCREEN – 440V 3 PHASE - TESTED - MADE IN USA

DESCRIPTION

Available for immediate sale is this IMS Company Model LP-49 Industrial Granulator, designed for beside-the-press and small-batch plastics size-reduction applications.

This is a compact, heavy-duty granulator featuring an approximately 7" x 7" feed opening, sound-deadened construction, 2 rotating cutting blades, 1 stationary bed knife, and a 1/4" diameter material screen.

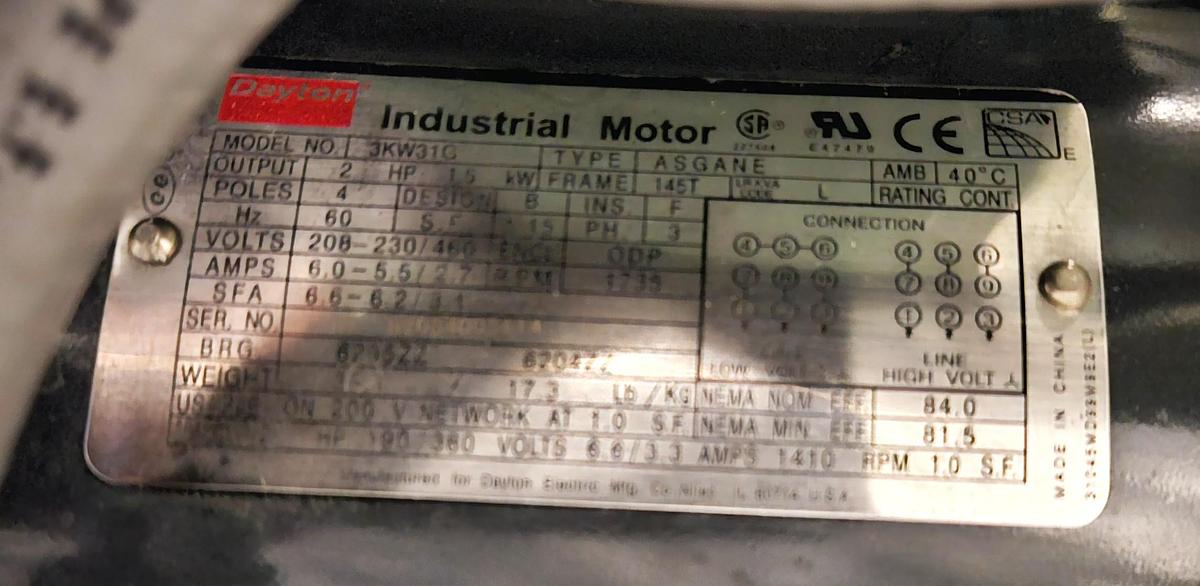

The machine is equipped with a 2 HP Dayton industrial motor and is presently wired for 440 Volt, 3 Phase, 60 Hz operation.

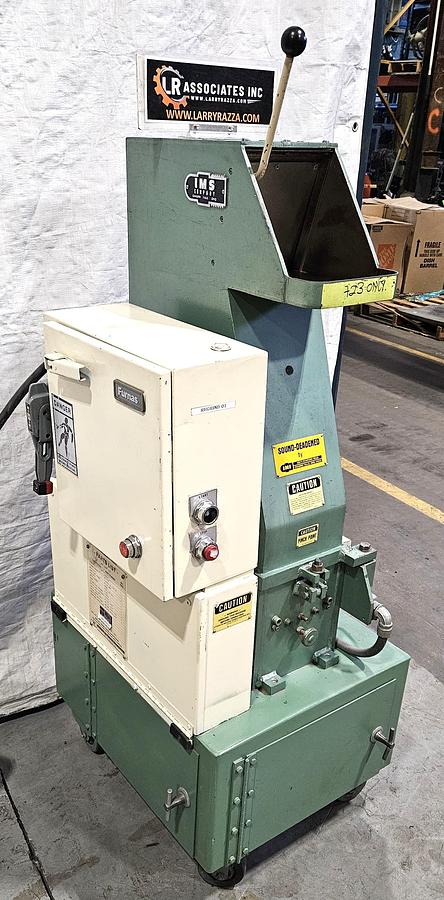

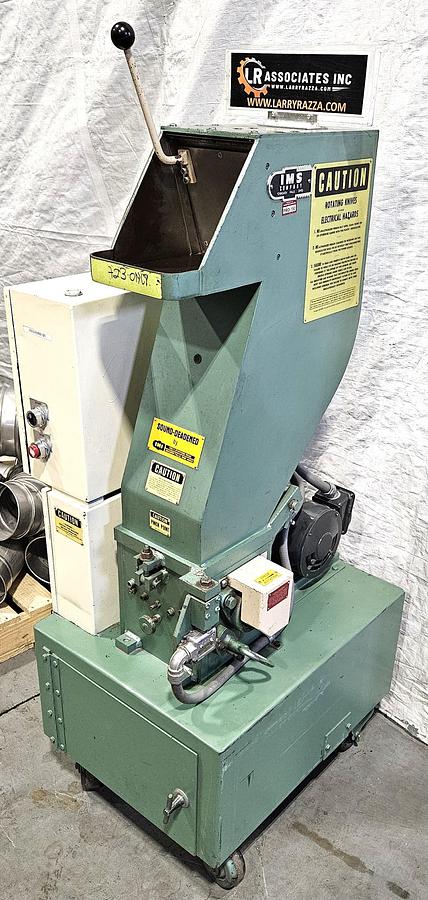

A particularly nice feature of this machine is its sound-deadened construction, which helps reduce operating noise compared with conventional open-frame granulators. Its compact footprint and castered base make it well suited for placement alongside injection molding machines, extrusion lines, assembly operations, or other plastics processing equipment.

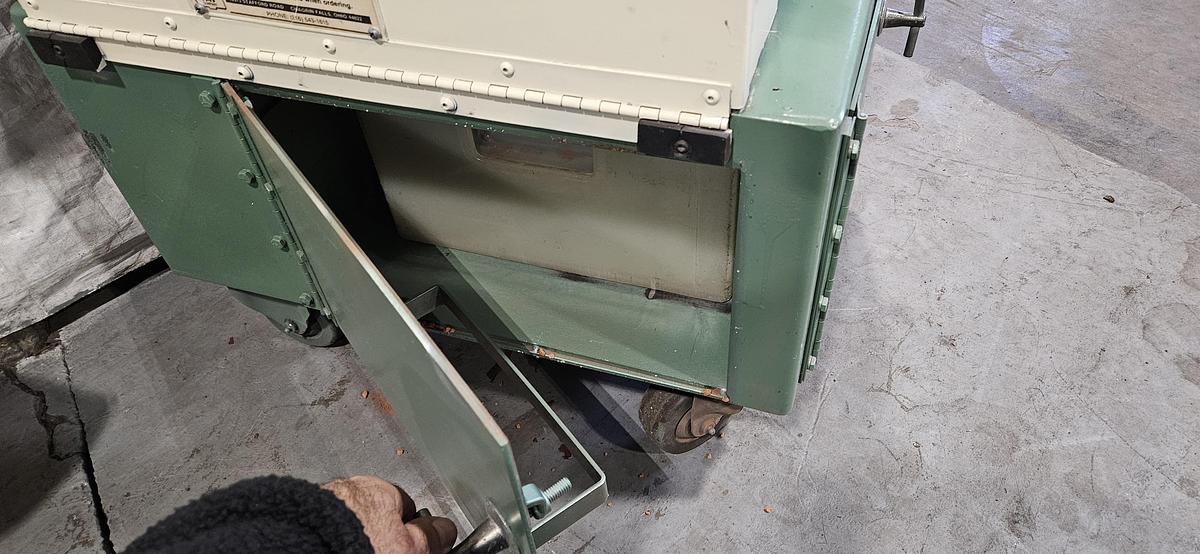

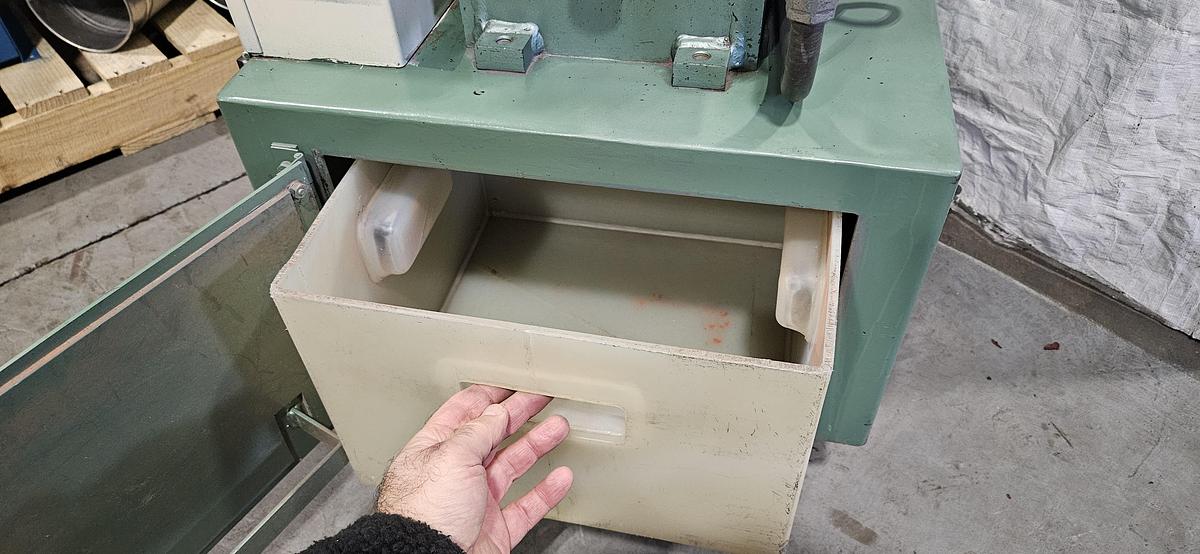

The lower cabinet contains a removable material collection bin, allowing processed material to be conveniently collected and removed.

This is a rugged American-made granulator with a very simple mechanical design, making it an excellent choice for runners, sprues, rejected molded parts, and general plastics recycling applications.

SPECIFICATIONS

Manufacturer: IMS Company

Model: LP-49

Machine Type: Industrial / Beside-the-Press Granulator

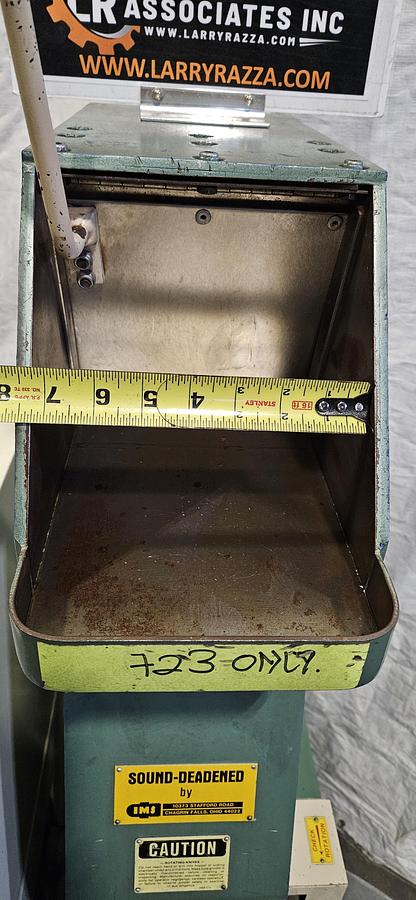

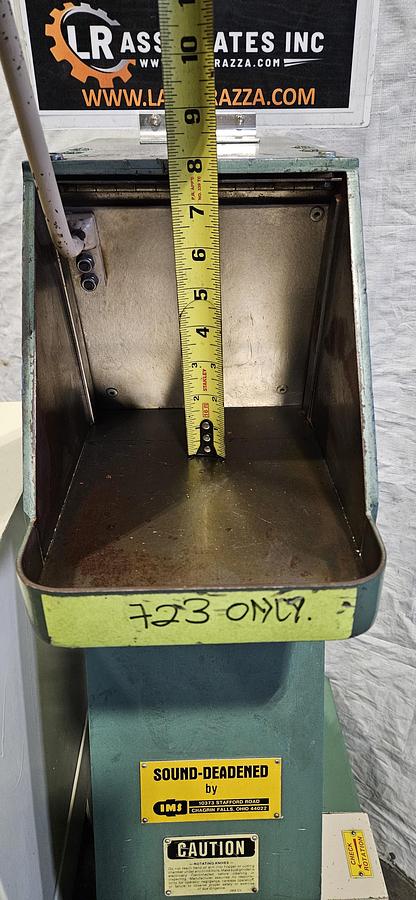

Feed Opening: Approximately 7" x 7"

Motor: 2 HP

Motor Manufacturer: Dayton

Electrical: 440 Volt

Phase: 3 Phase

Frequency: 60 Hz

Motor Design: Industrial Three-Phase Motor

Cutting Blades – Rotating: 2

Cutting Blades – Stationary: 1

Rotor: IMS G-322

Material Screen: 1/4" Diameter

Screen Part Number: G-394

Drive Belts: 2

Drive Belt Specification: 3VX450

Rotor Bearings: 1-3/4"

Construction: Heavy-Duty Industrial

Noise Reduction: Sound-Deadened Construction

Material Collection: Removable Lower Collection Bin

Mobility: Casters

Country of Manufacture: USA

CUTTING SYSTEM

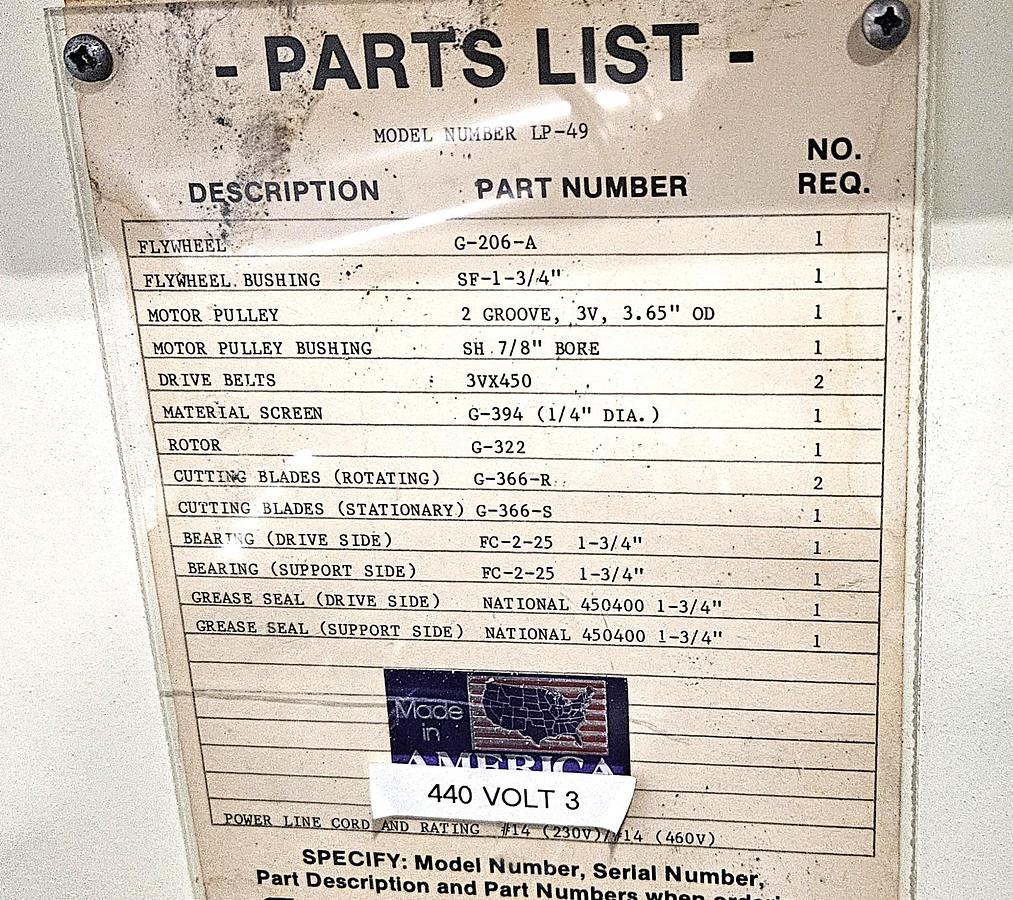

According to the factory parts information installed on the machine, the LP-49 cutting chamber incorporates:

• 2 rotating cutting blades – IMS G-366-R

• 1 stationary cutting blade – IMS G-366-S

• IMS G-322 rotor

• 1/4" diameter IMS G-394 material screen

• Heavy-duty 1-3/4" rotor bearings

• Belt-driven rotor system

This simple three-knife configuration provides a rugged, serviceable cutting system for reducing plastic runners, sprues and molded components.

FEATURES

• Compact beside-the-press granulator

• 7" x 7" feed opening

• 2 HP industrial motor

• 440 Volt / 3 Phase operation

• Sound-deadened enclosure

• Heavy-duty rotor assembly

• Two rotating knives

• One stationary bed knife

• 1/4" material screen installed

• Hinged feed hopper

• Long operating handle

• Belt-driven cutting chamber

• Heavy-duty industrial bearings

• Removable material collection bin

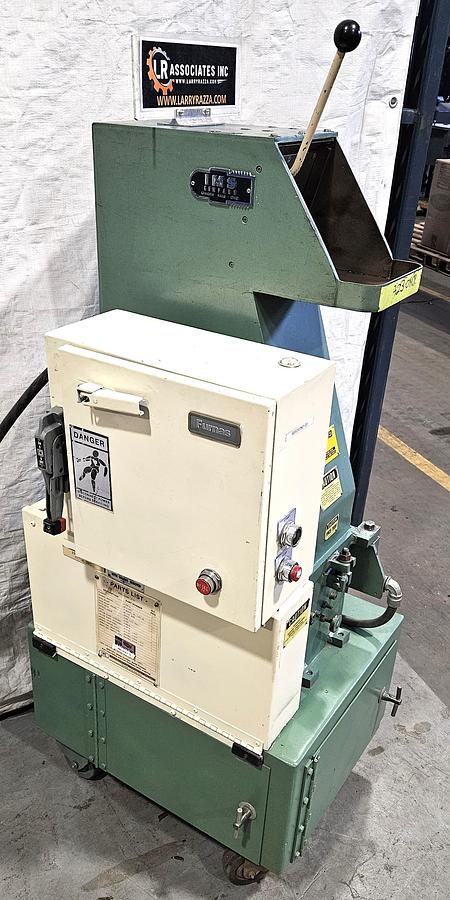

• Integrated electrical control cabinet

• Start / Stop controls

• Caster-mounted base

• Compact footprint

• Made in USA

APPLICATIONS

Ideal for processing:

• Injection molding runners

• Sprues

• Small molded plastic parts

• Rejected molded components

• Thermoplastic scrap

• Extrusion scrap

• Plastic recycling

• Regrind production

• Beside-the-press material recovery

• Small-batch plastics processing

INCLUDES

• IMS LP-49 Granulator

• 2 HP Dayton Motor

• 1/4" Material Screen

• Complete Cutting Chamber

• Feed Hopper

• Sound-Deadened Housing

• Electrical Control Cabinet

• Removable Material Collection Bin

• Caster-Mounted Base

CONDITION

This IMS LP-49 granulator has been tested and is in good overall used industrial condition.

The machine appears complete and retains its factory cutting chamber, sound-deadened enclosure, material screen, electrical controls, collection bin, and drive system... runs smooth and strong.

The cutting chamber is equipped with the factory-style two rotating knife / one stationary knife configuration and currently has a 1/4" material screen installed.

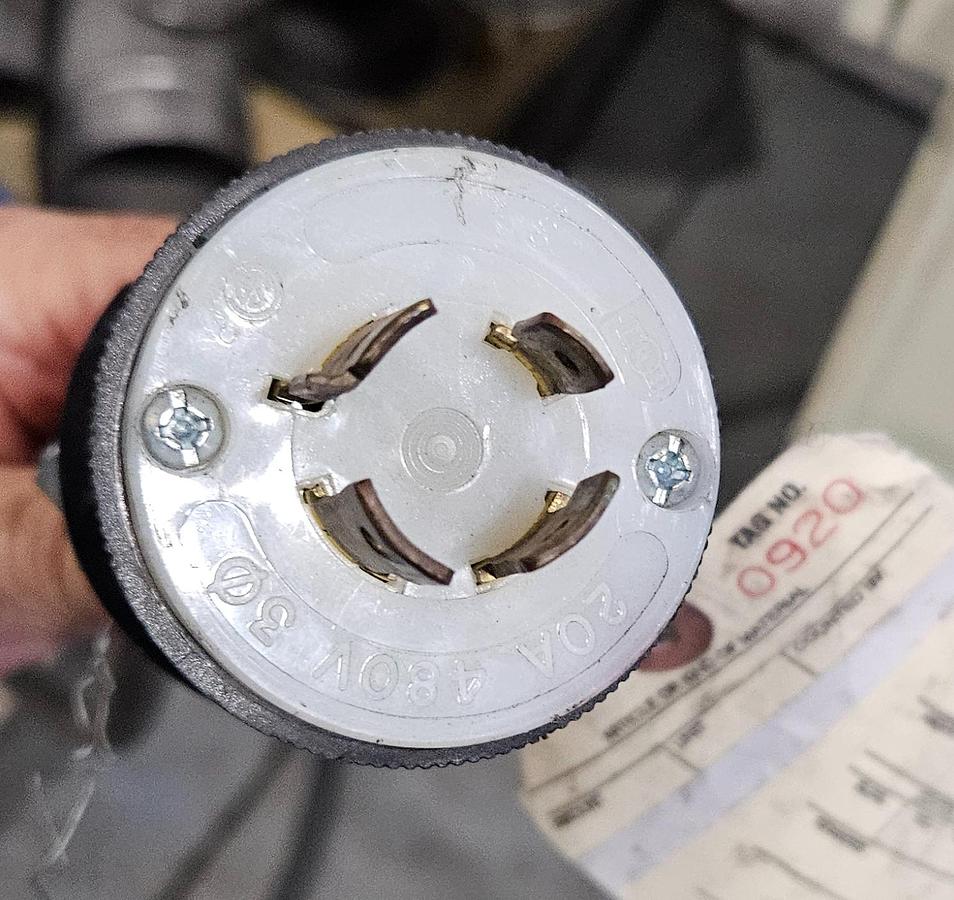

The unit is presently configured for 440 Volt, 3 Phase power.

Normal cosmetic wear, scratches, paint wear, and signs of previous industrial use are present as shown in the photographs.

Buyer is encouraged to inspect the machine prior to purchase.

SHIPPING

We can assist with rigging and freight quotes upon request.

Please contact us for a Shipping Quote!

We ship anywhere!

OFFERED BY

L R Associates, Inc.

Machinery Dealers / Consultants / Appraisers / Auctioneers

25 Conduit Street

Central Falls, Rhode Island 02863

Contact us at Four Zero One – Nine Six Five – Five Five Five Seven

L-0000-090226-C

P# 032326

ADDITIONAL INFORMATION

Specifications are based on manufacturer labels, installed component nameplates, factory parts information, measurements, and visual inspection.

Specifications should be independently verified by the buyer.

Subject to prior sale.
