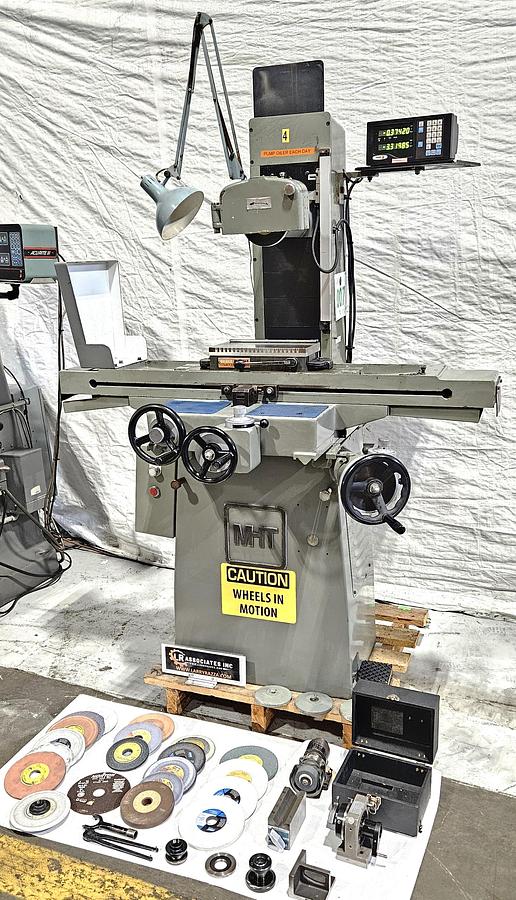

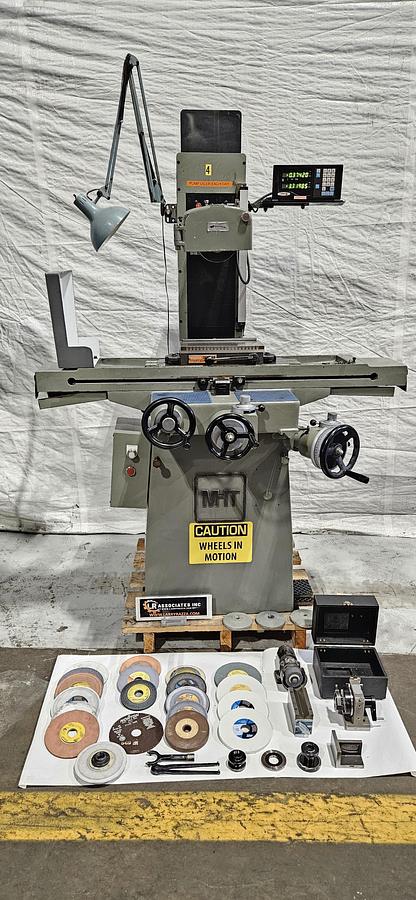

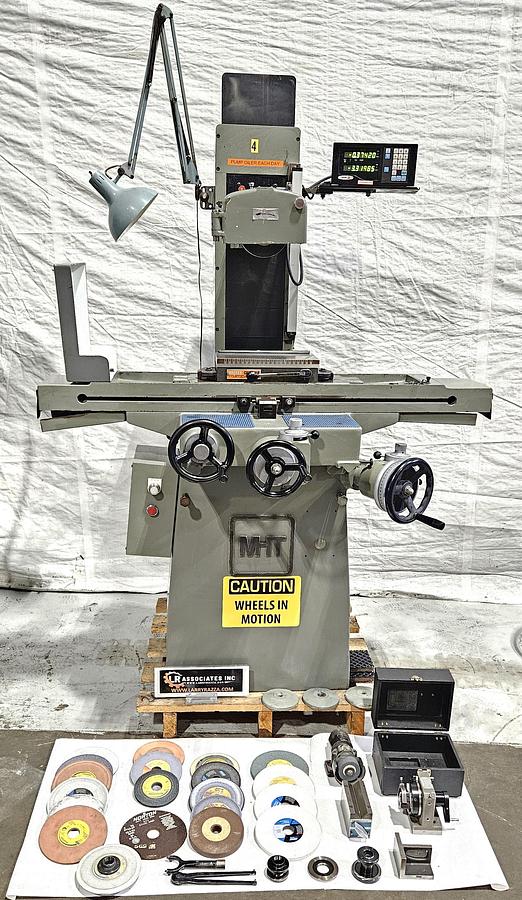

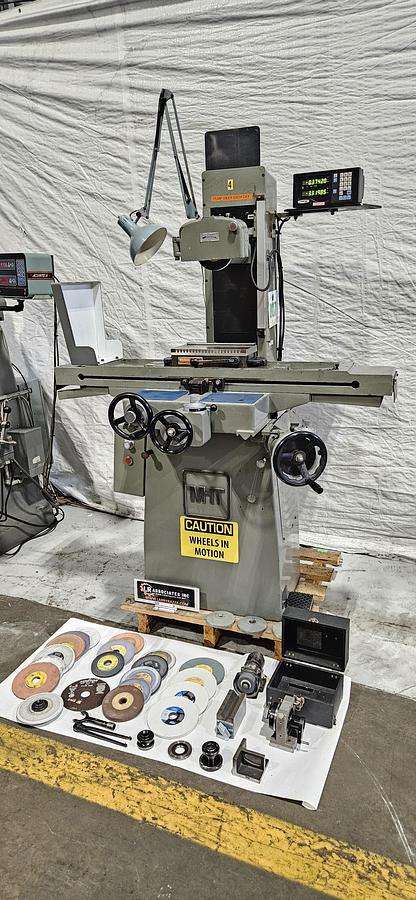

MITSUI MSG-205MH 6" X 12" PRECISION SURFACE GRINDER – FAGOR 2-AXIS DRO – WALKER CERAMAX MAG CHUCK – HARIG GRIND-ALL – LOADED WITH TOOLING - PLUS FINE FEED to .00005" on X and Z axis

DESCRIPTION

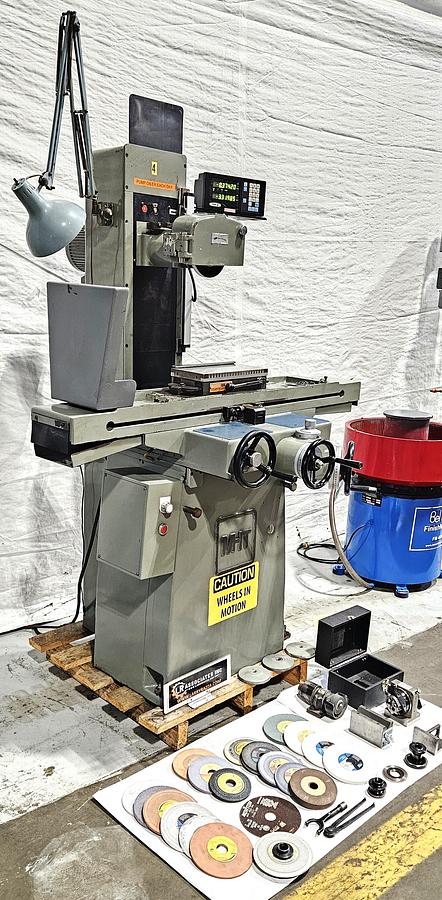

Available for immediate sale is this Mitsui High-tec MSG-205MH Precision Surface Grinder, equipped with a 6" x 12" Walker Ceramax permanent magnetic chuck, Fagor 2-axis digital readout, precision fine-feed controls, single-point lubrication system, and an excellent assortment of grinding accessories and tooling.

Mitsui surface grinders are highly regarded for their precision, rigid construction, smooth table movement, and excellent surface-finishing capability.

This particular machine is especially attractive because it is being offered as a complete grinding package, including a Harig Grind-All No. 1 indexing fixture with case, magnetic V-block, Brown & Sharpe magnetic tooling, precision angle/knee blocks, wheel hubs/flanges, wrenches, and a large assortment of grinding wheels.

The machine features precision manual controls with fine-feed adjustment on both the cross-feed and vertical/down-feed axes, allowing very small controlled movements for finish grinding and close-tolerance work.

The installed Fagor 2-axis DRO provides digital position indication and is powered up and displaying properly as shown in the photographs.

This is an excellent machine for toolrooms, mold and die shops, precision machine shops, maintenance departments, prototype facilities, and general surface grinding applications.

SPECIFICATIONS

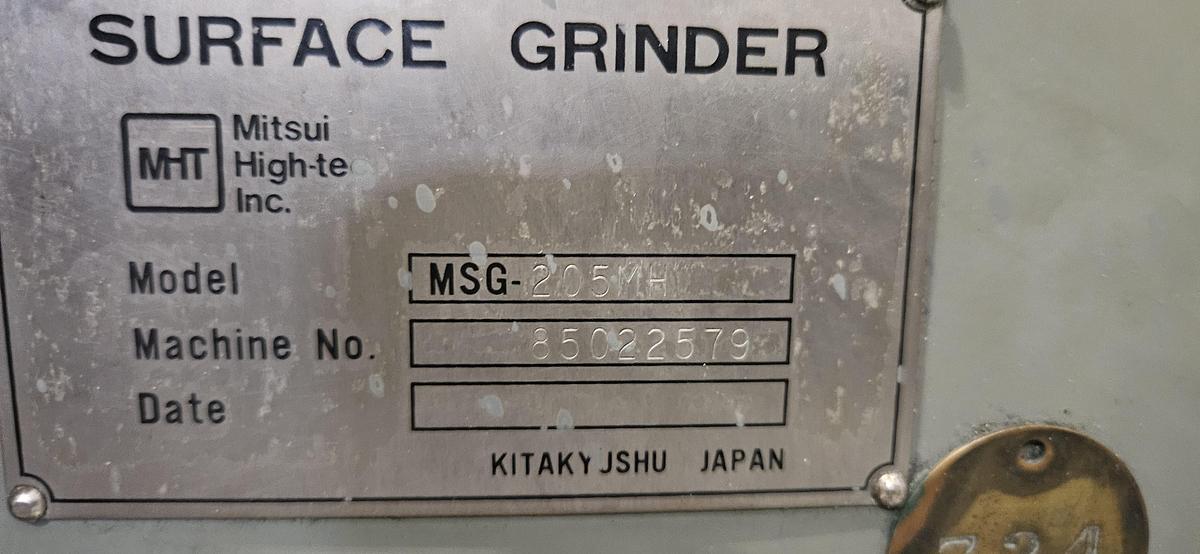

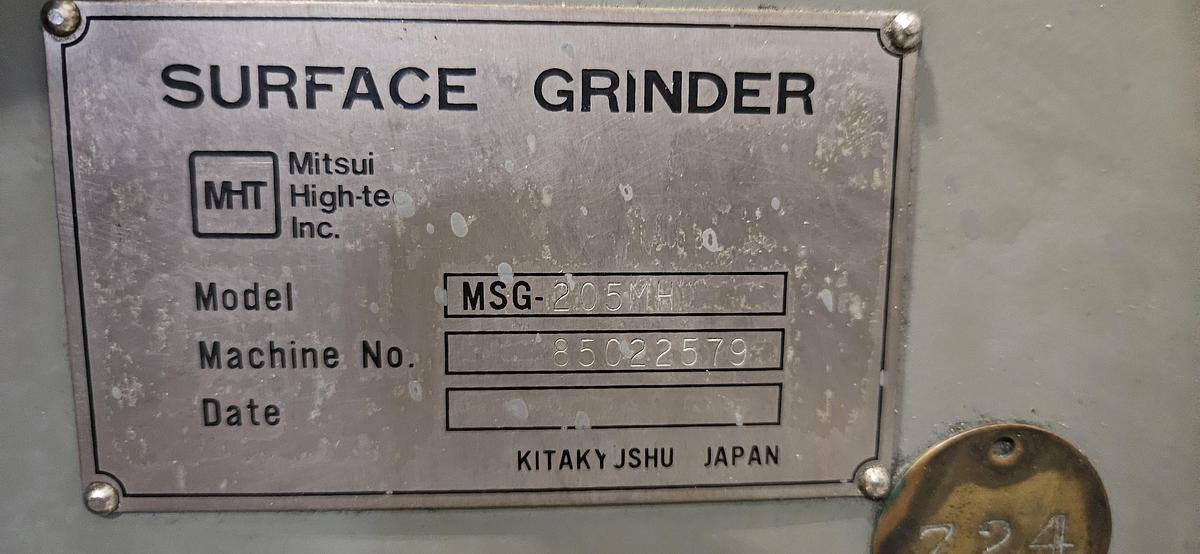

Manufacturer: Mitsui High-tec, Inc.

Model: MSG-205MH

Machine Type: Precision Surface Grinder

Machine No.: 85022579

Grinding Capacity: Approximately 6" x 12"

Magnetic Chuck: Walker Ceramax Permanent Magnetic Chuck

Chuck Size: 6" x 12"

Table Type: Reciprocating Precision Grinding Table

Operation: Manual

Digital Readout: Fagor 2-Axis DRO

DRO Model: Fagor NV20

DRO Axes: 2 Axis

Cross-Feed: Manual with Fine Adjustment

Vertical / Down-Feed: Manual with Fine Adjustment

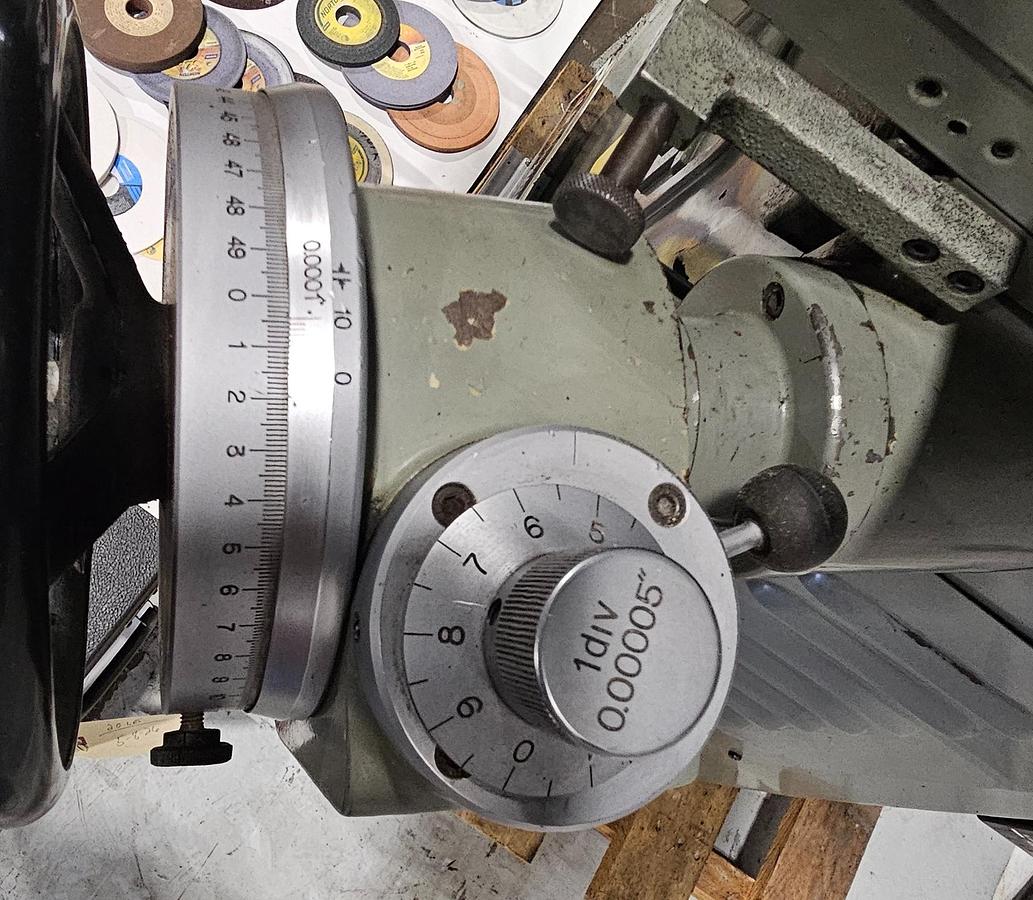

Fine Feed Graduation: 0.00005" per division shown on fine-feed dial

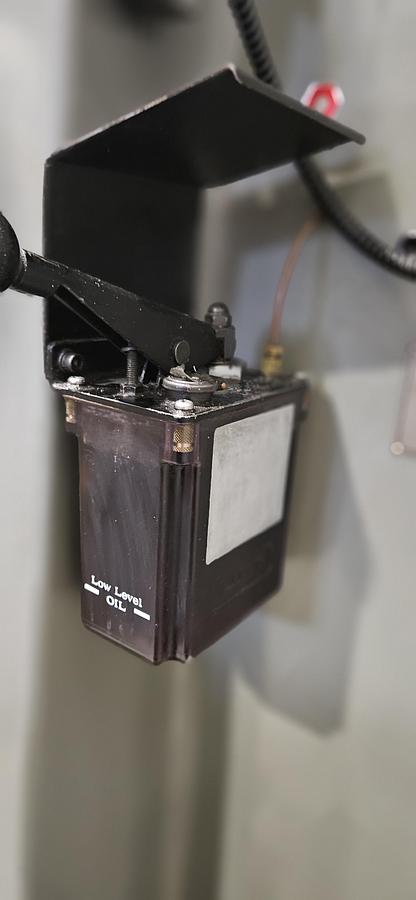

Lubrication: Single-Point / One-Shot Lubrication System

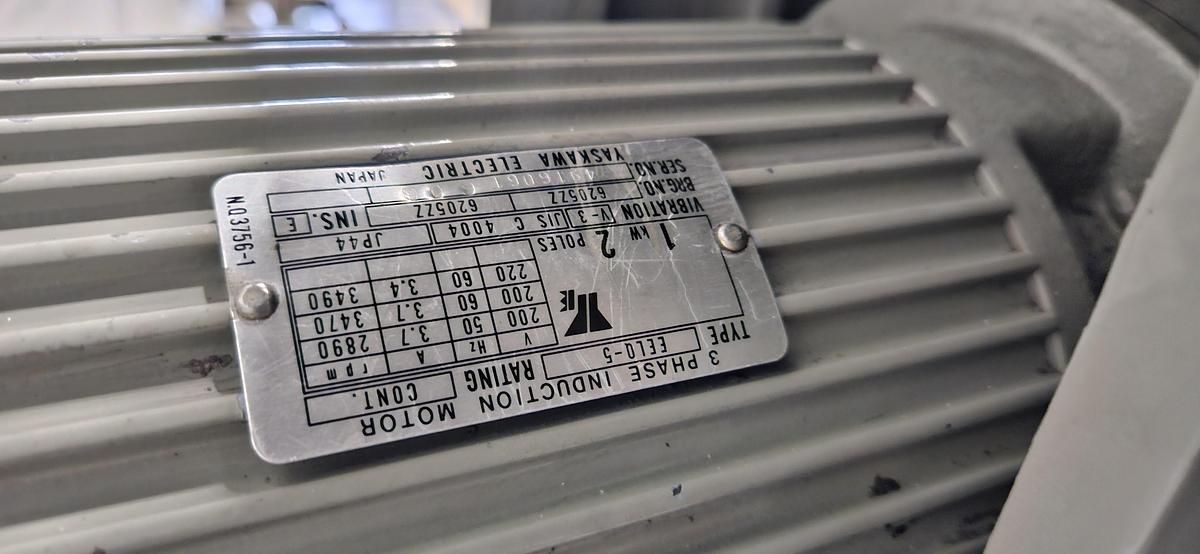

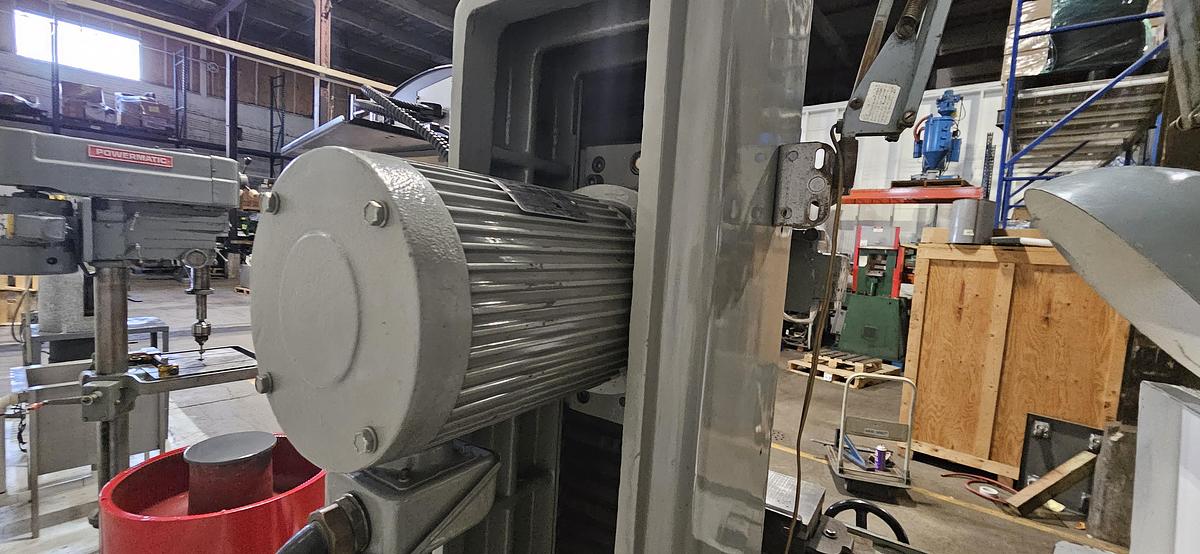

Spindle Motor: Yaskawa Electric

Spindle Motor Rating: 1 kW

Motor Type: 3-Phase Induction Motor

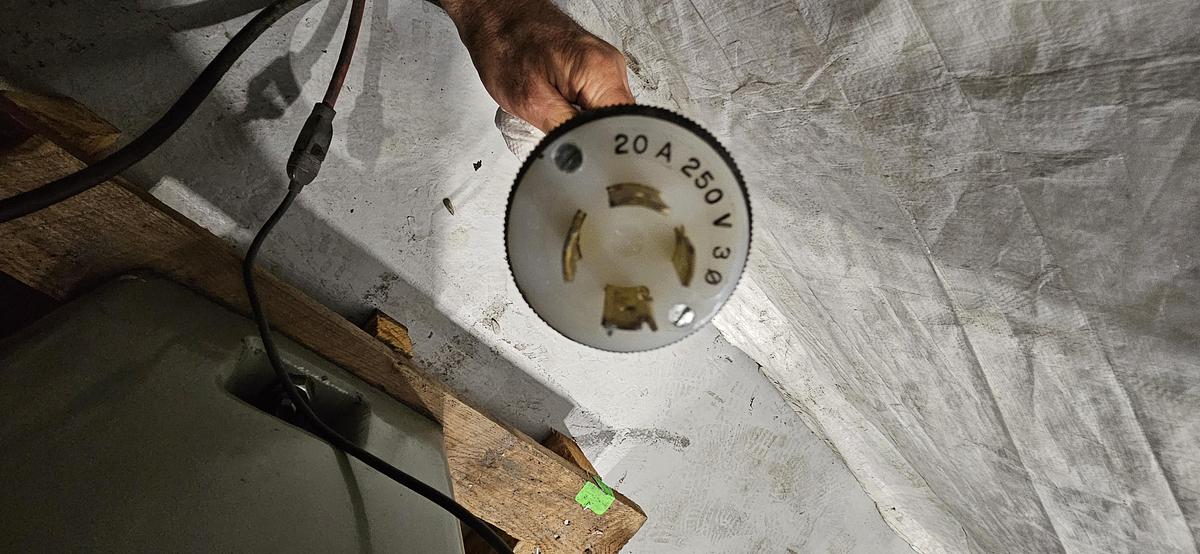

Motor Voltage: 200/220 Volt, depending upon incoming configuration

Motor Frequency: 50/60 Hz

Motor Speed: Up to approximately 3,490 RPM per motor plate

Country of Manufacture: Japan

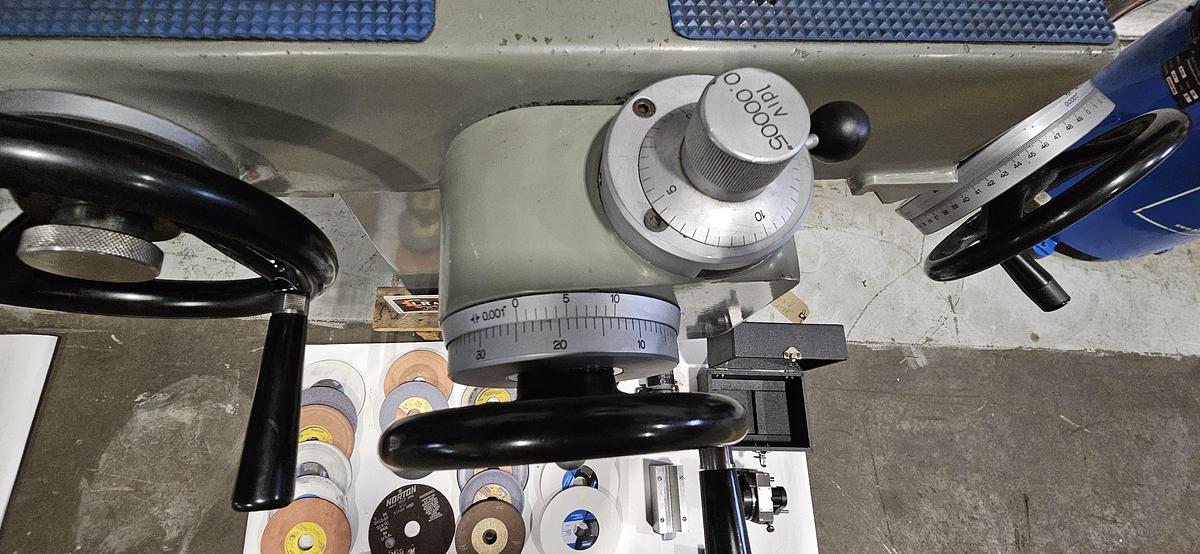

PRECISION CONTROLS

This machine is equipped with precision manual feed controls designed for fine surface grinding work.

Features include:

• Fine adjustment on cross-feed axis

• Fine adjustment on vertical / down-feed axis

• Precision graduated handwheels

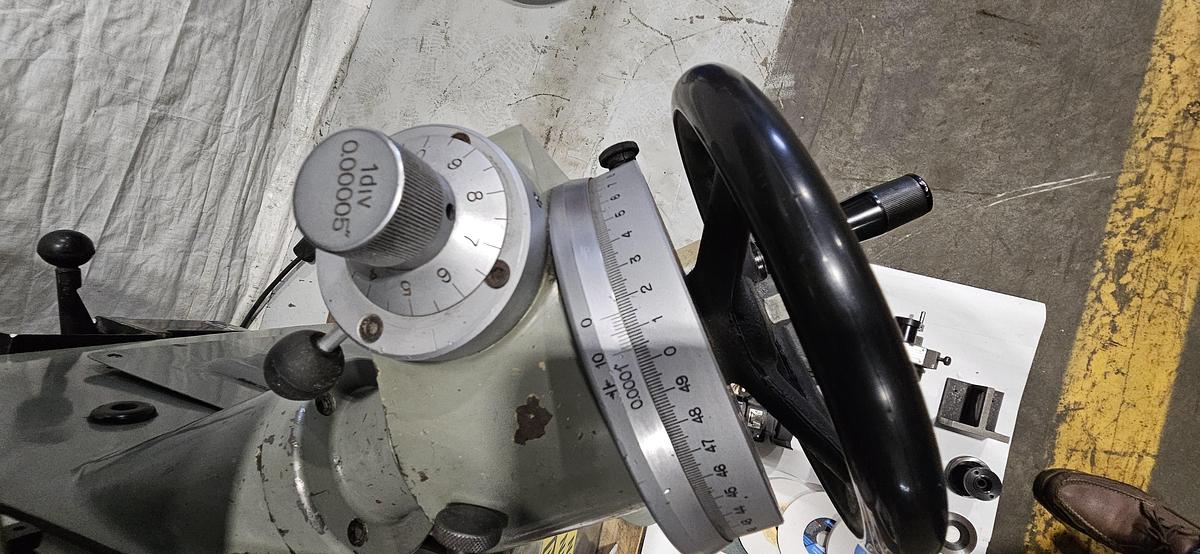

• Fine-feed dial marked 0.00005" per division

• Fagor digital position readout

• Smooth manual table positioning

• Single-point lubrication system

These controls make the machine particularly useful for close-tolerance toolroom and finishing applications.

FAGOR 2-AXIS DIGITAL READOUT

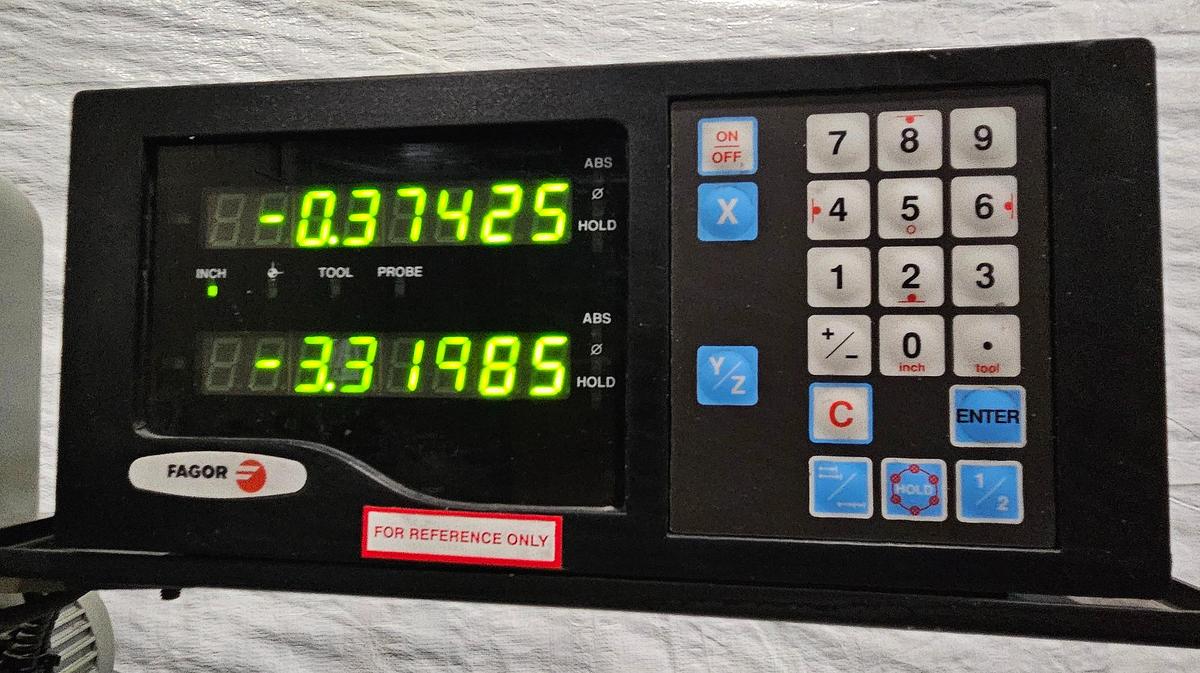

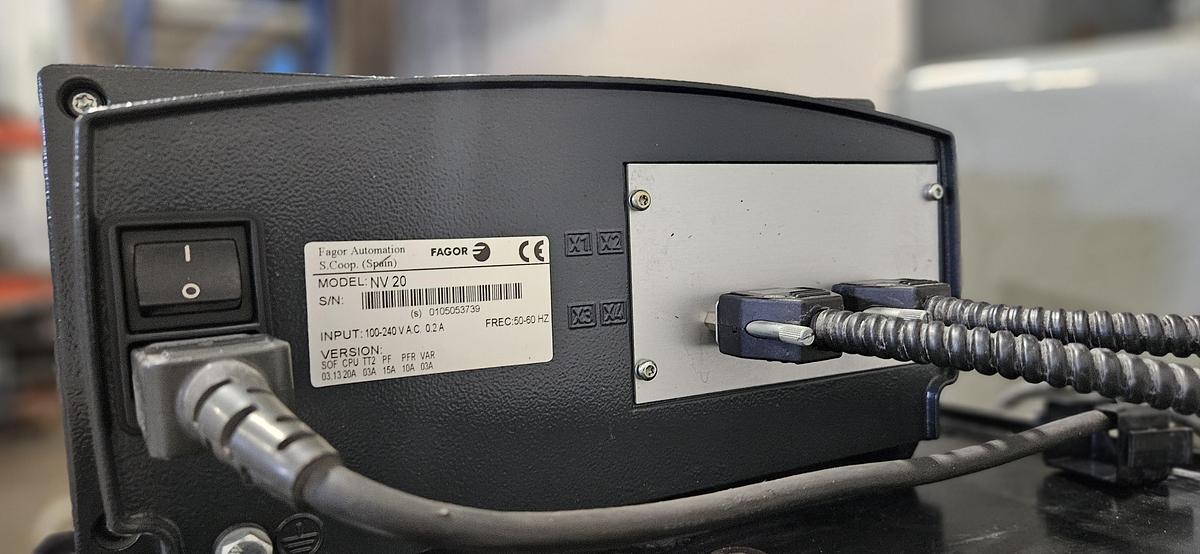

The machine is equipped with a Fagor NV20 2-axis Digital Readout System.

Features include:

• Digital X-axis position display

• Digital second-axis position display

• Inch operation

• Absolute / incremental positioning functions

• Numeric keypad

• Zero-setting capability

• Fine positional reference

The DRO is shown powered up and displaying both axes in the photographs.

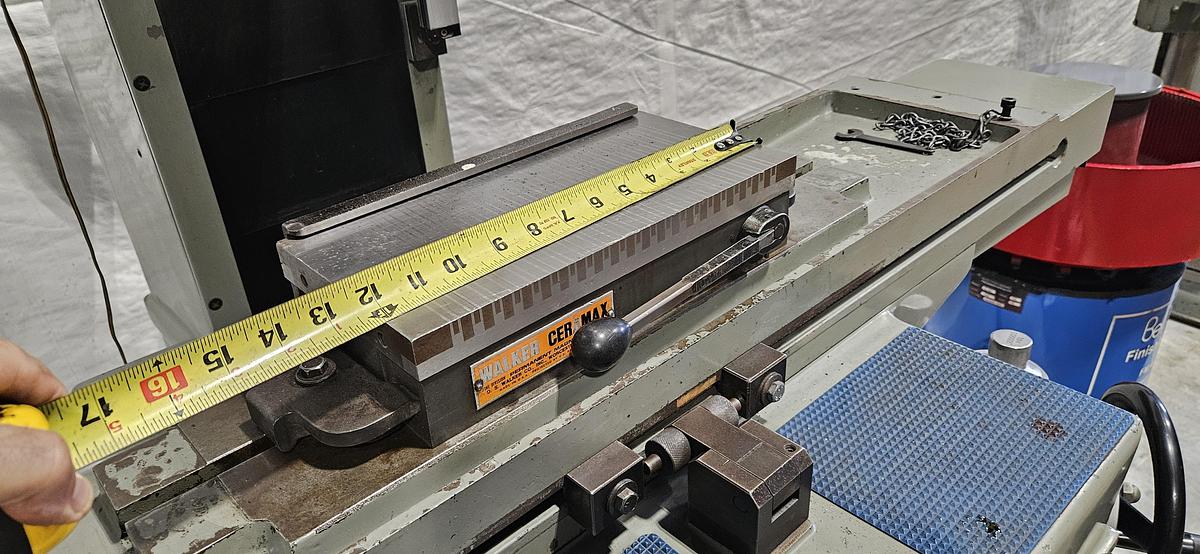

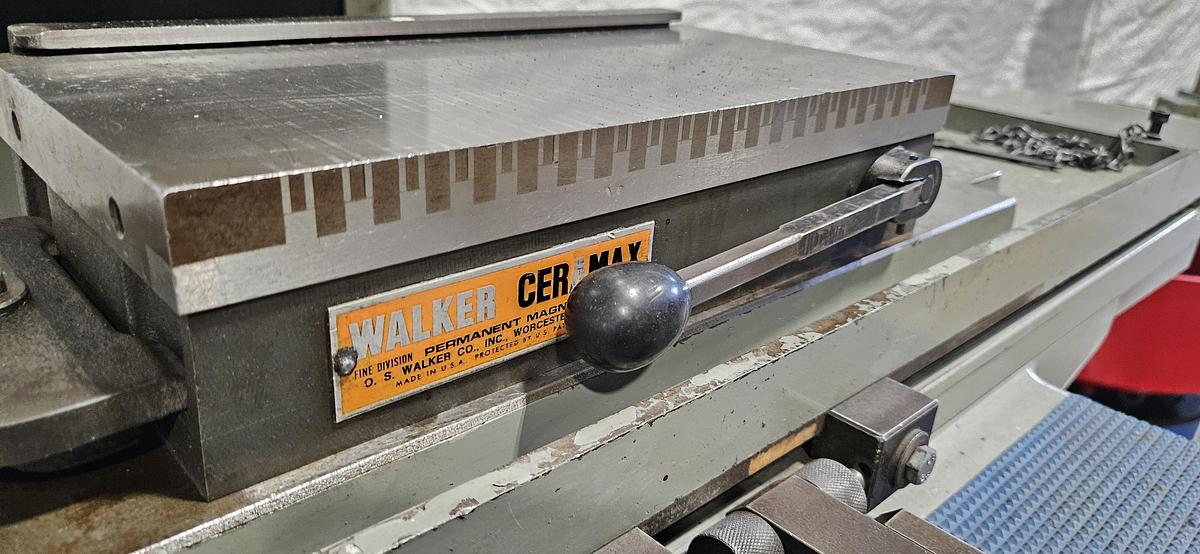

WALKER CERAMAX MAGNETIC CHUCK

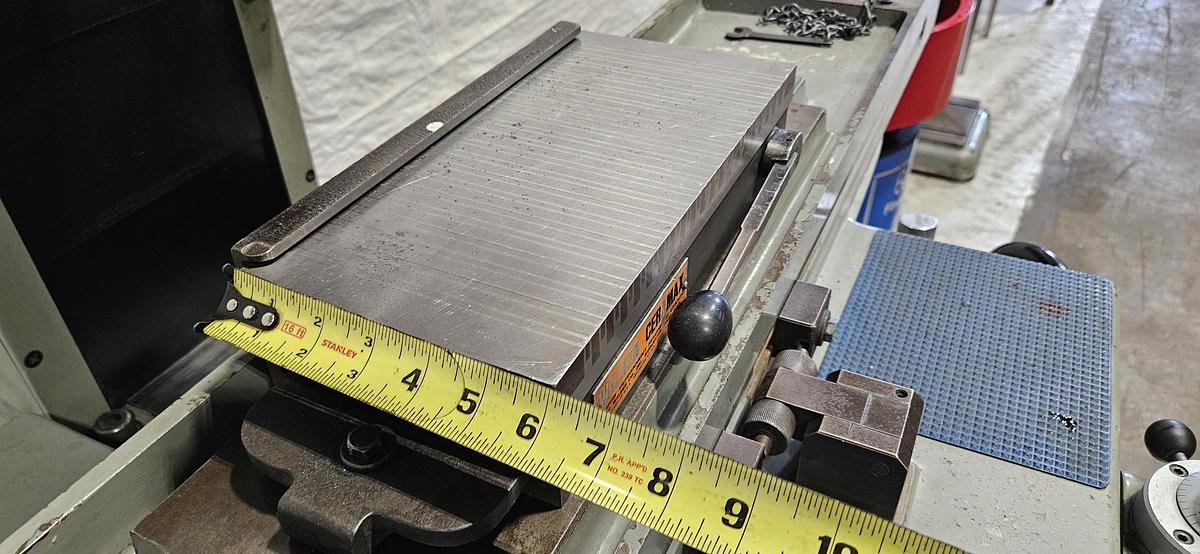

Included is a Walker Ceramax permanent magnetic chuck measuring approximately:

6" Wide x 12" Long

The Walker Ceramax is a quality permanent magnetic workholding chuck well suited for precision surface grinding applications.

The permanent magnetic design eliminates the need for a separate electromagnetic chuck controller.

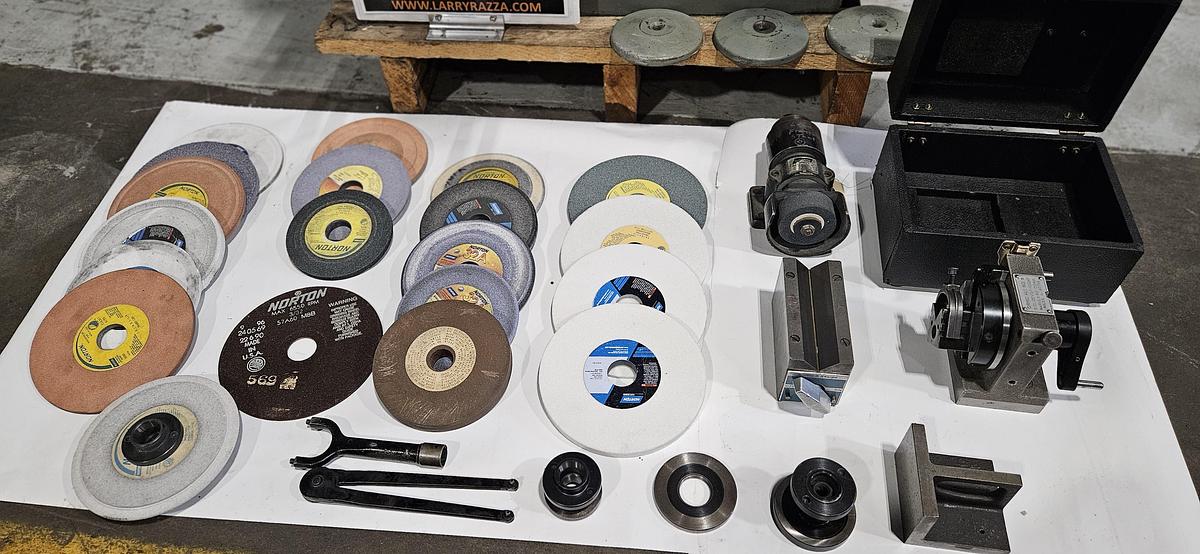

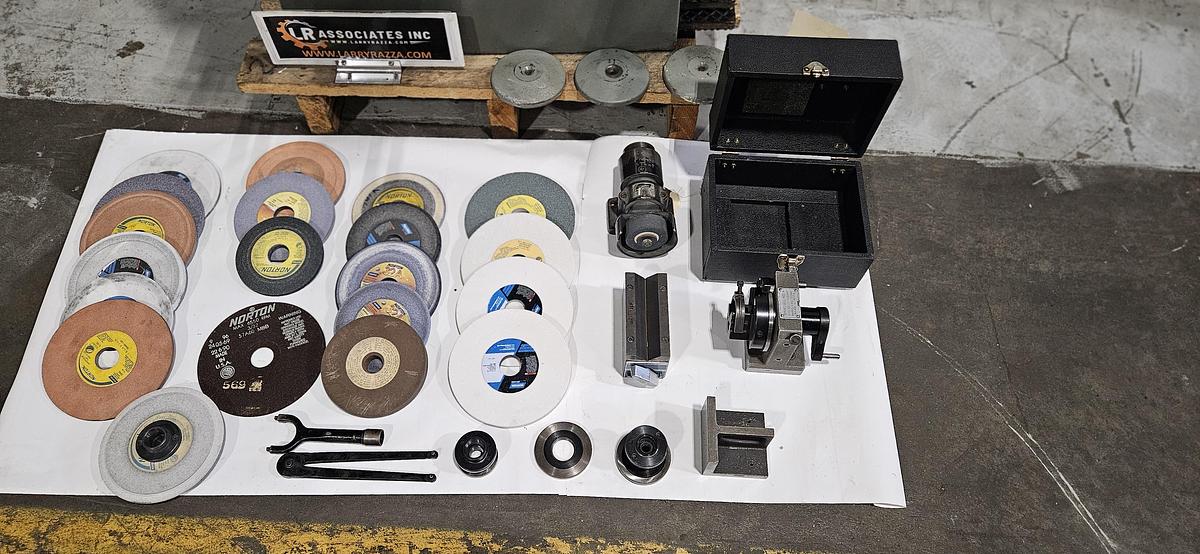

INCLUDED TOOLING & ACCESSORIES

This machine comes with an unusually good assortment of grinding tooling and accessories, including:

• Walker Ceramax 6" x 12" Permanent Magnetic Chuck

• Fagor NV20 2-Axis DRO

• Harig Grind-All No. 1 Precision Grinding Fixture

• Harig Grind-All storage case

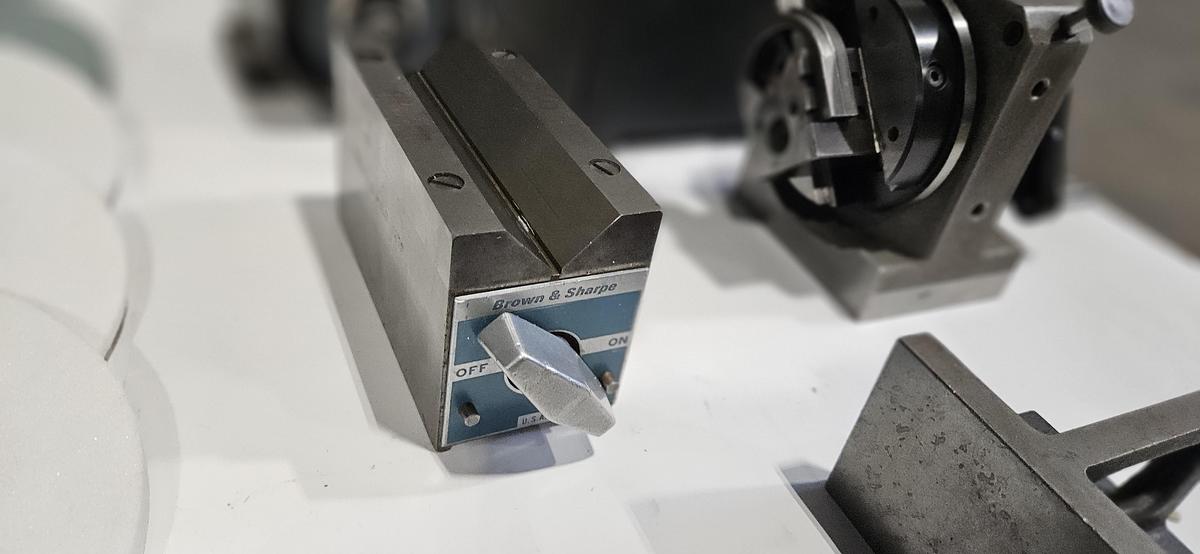

• Brown & Sharpe Magnetic V-Block / Precision Magnetic Fixture

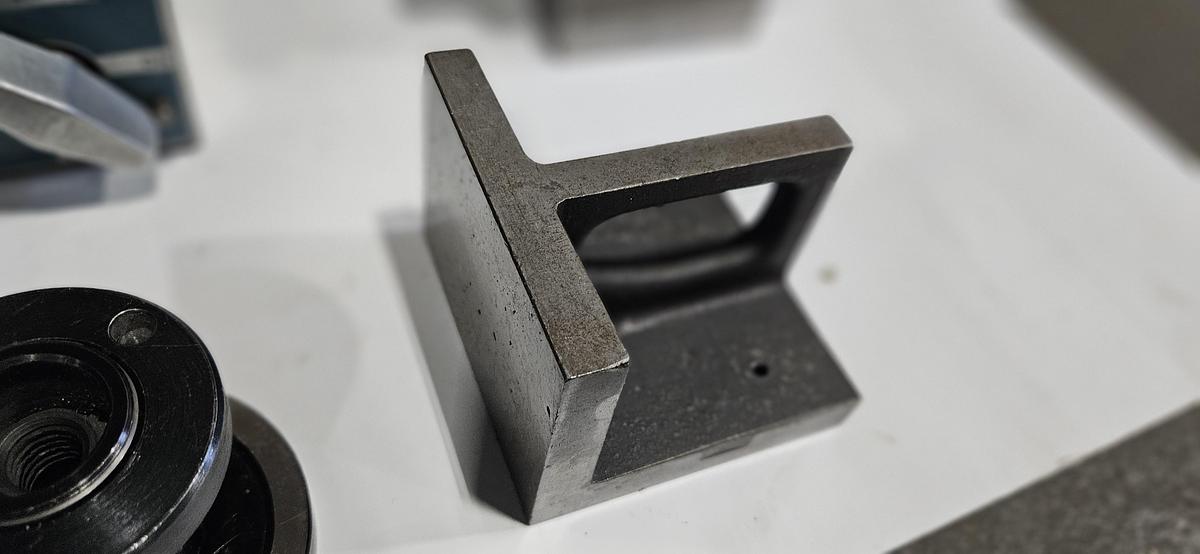

• Precision magnetic angle / knee block

• Additional precision angle block

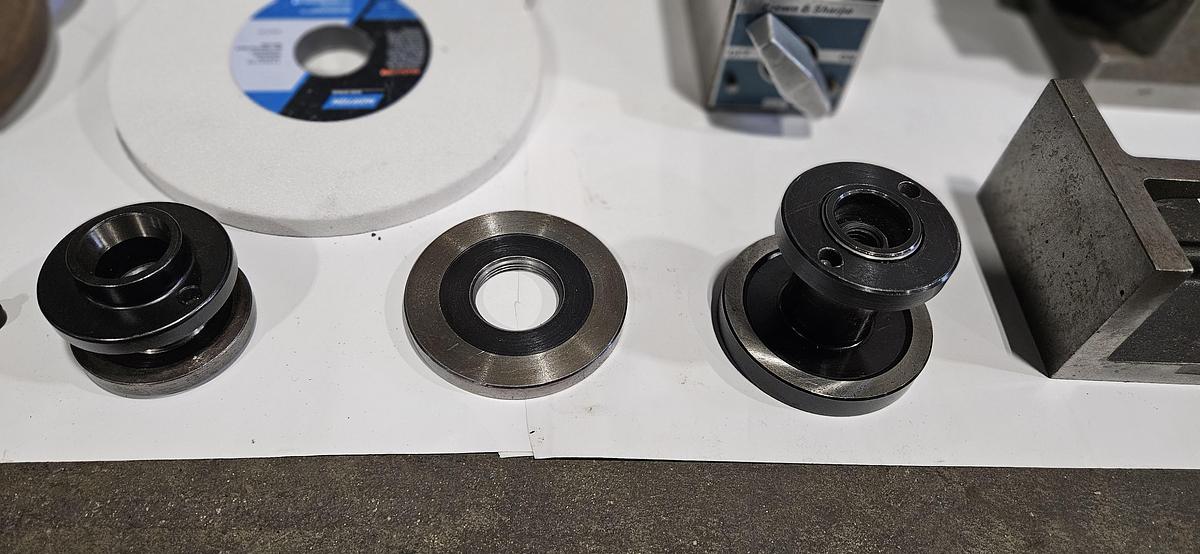

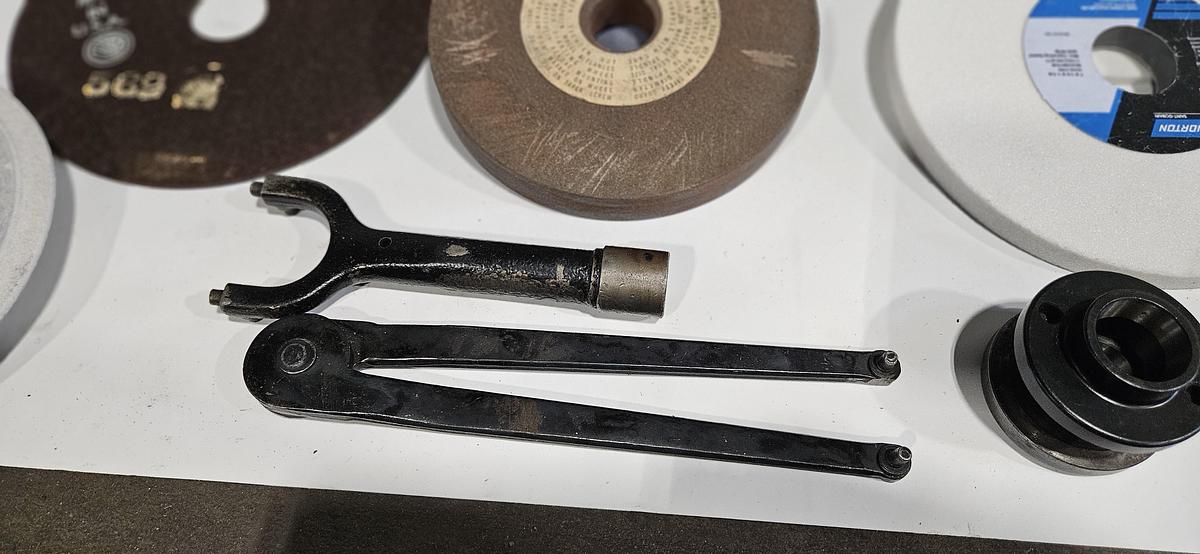

• Grinding wheel hubs / adapters

• Wheel mounting hardware

• Spindle / wheel wrenches

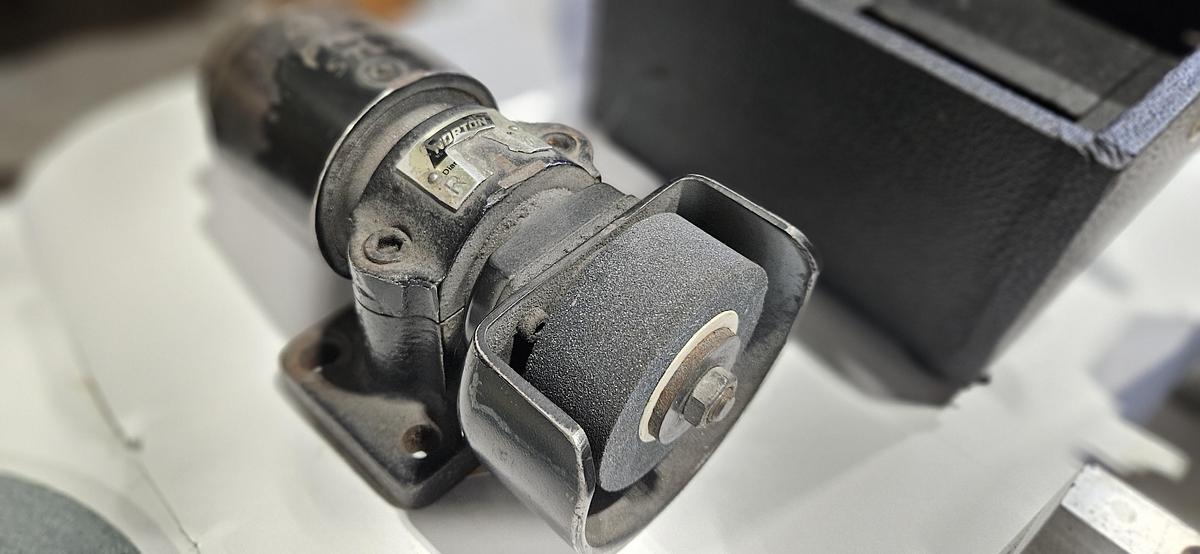

• Assorted setup tooling

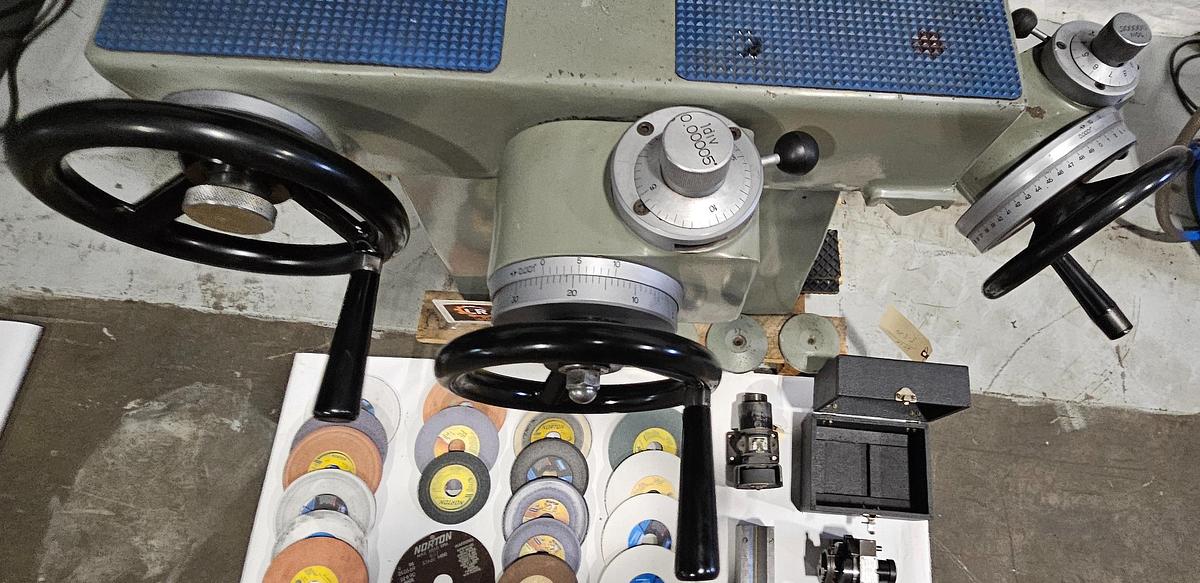

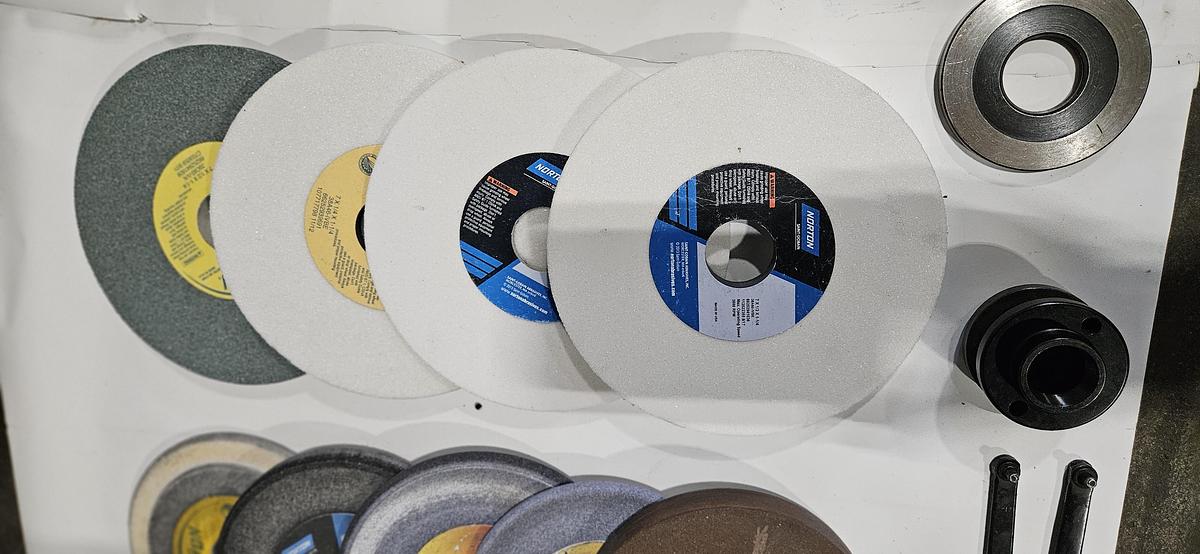

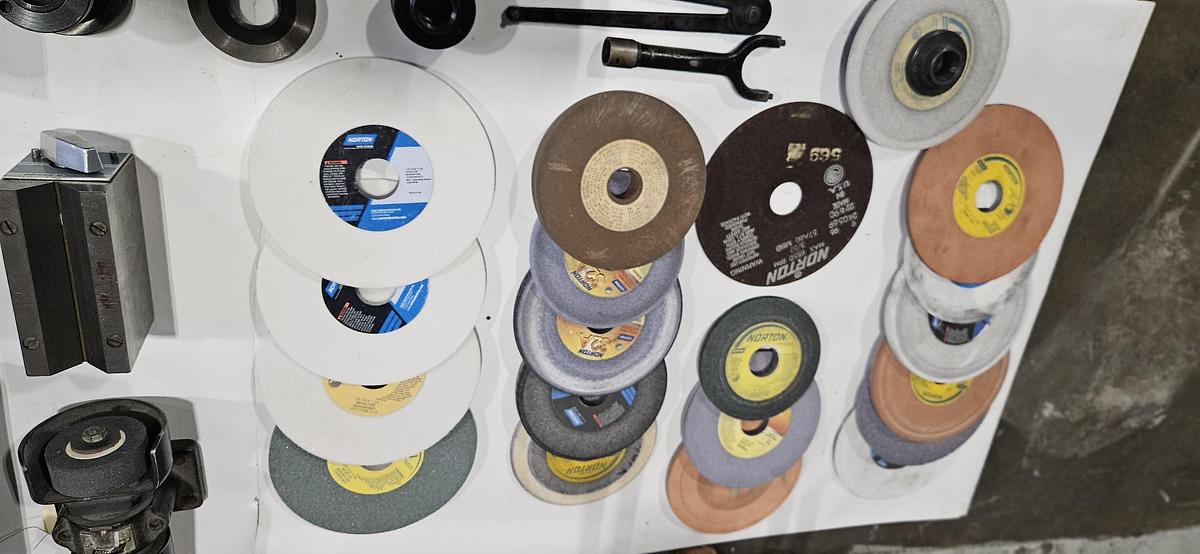

• Large assortment of grinding wheels

• Norton grinding wheels

• Assorted aluminum oxide wheels

• Assorted specialty grinding wheels

• Additional wheel flanges / hubs

Everything shown with the machine in the tooling photographs is included with the sale unless otherwise noted.

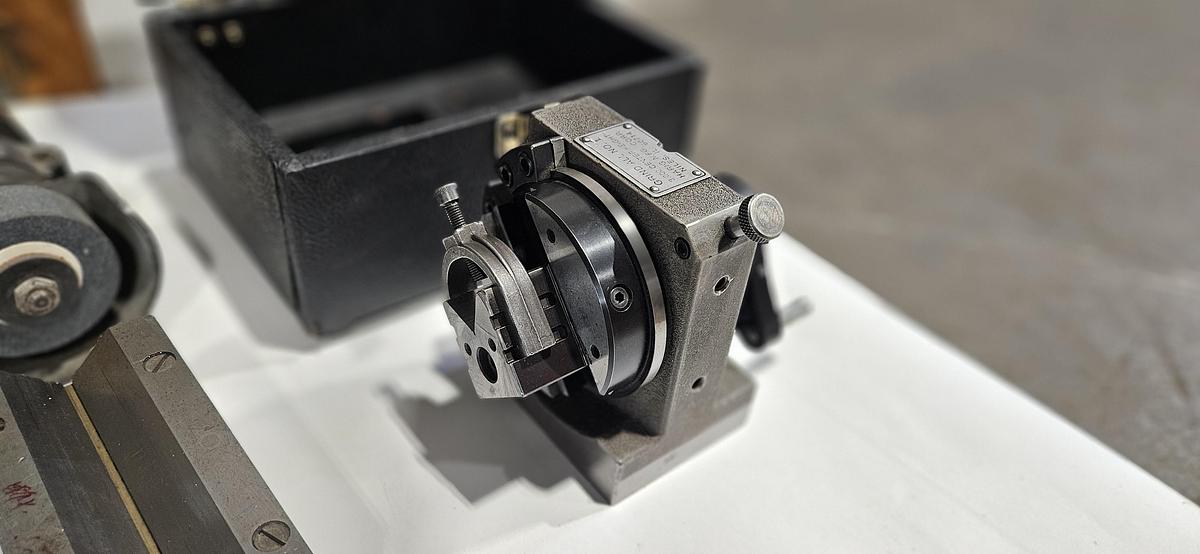

HARIG GRIND-ALL NO. 1

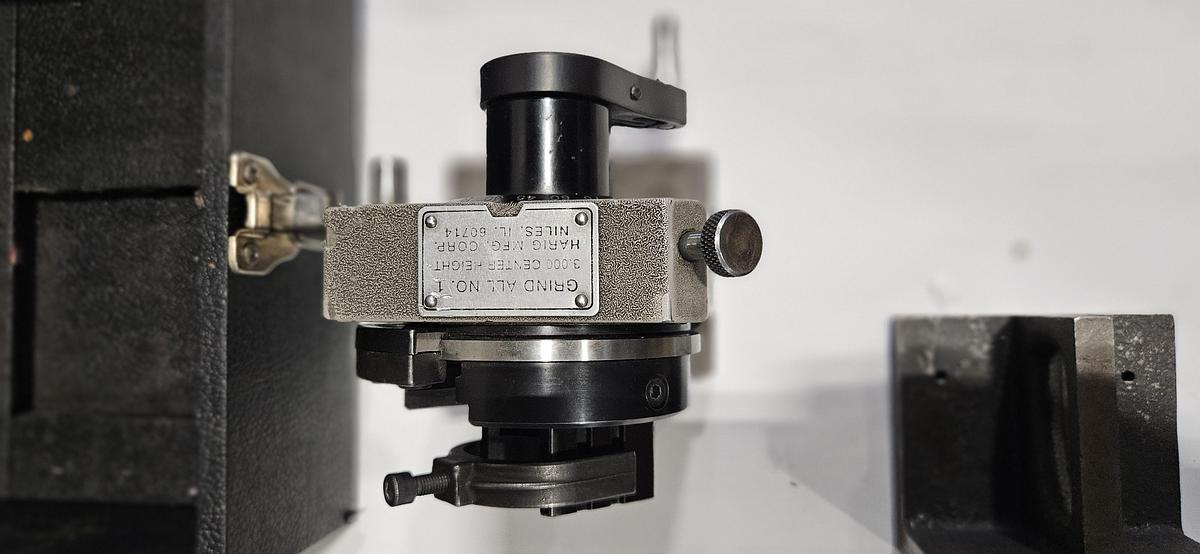

A particularly valuable accessory included with this machine is a Harig Grind-All No. 1 precision grinding fixture.

The fixture is marked:

Harig Mfg. Corp.

Grind-All No. 1

3.000" Center Height

The Grind-All is useful for precision grinding of round, angular, indexed and other specialized components and significantly expands the capabilities of the surface grinder.

A fitted storage case is also included.

FEATURES

• Mitsui High-tec precision construction

• 6" x 12" grinding capacity

• Walker Ceramax permanent magnetic chuck

• Fagor 2-axis DRO

• Precision fine cross-feed adjustment

• Precision fine vertical/down-feed adjustment

• Fine-feed dial graduated to 0.00005"

• Single-point lubrication system

• Precision handwheel controls

• Yaskawa spindle motor

• Manual reciprocating table

• Heavy cast-iron construction

• Compact toolroom footprint

• Extensive accessory package

• Harig Grind-All No. 1 included

• Magnetic V-block included

• Precision angle tooling included

• Multiple wheel hubs / adapters

• Large assortment of grinding wheels

• Made in Japan

APPLICATIONS

Ideal for:

• Precision surface grinding

• Toolroom work

• Mold and die work

• Fixture grinding

• Punch and die components

• Tool sharpening

• Precision flat grinding

• Small production work

• Prototype machining

• Maintenance departments

• Research and development shops

• Gauge and inspection tooling

• General machine shop applications

CONDITION

This Mitsui MSG-205MH is in good overall used industrial condition.

The machine is complete with its Walker Ceramax magnetic chuck, Fagor 2-axis DRO, precision fine-feed controls, lubrication system, and extensive assortment of grinding tooling and accessories.

The Fagor DRO powers up and displays properly as shown in the photographs.

The table, chuck, handwheels, controls and major machine components present well for a precision grinder of this age.

Normal cosmetic wear, paint wear and signs of previous industrial use are present.

The extensive tooling package is included and represents considerable additional value compared with purchasing a bare surface grinder.

Buyer is encouraged to inspect and test the machine prior to purchase.
