MAGELLAN V200 VIDEO MEASURING SYSTEM – 3-AXIS OPTICAL INSPECTION – VIDEO-WORKSHOP SOFTWARE – ORIGINAL DELL ALL-IN-ONE COMPUTER – MOTORIZED ZOOM – COMPLETE SYSTEM – TESTED & WORKING

DESCRIPTION

Available for immediate sale is a Magellan Metrology V200 Video Measuring System, manufactured in the USA by Caliper Designs, Inc., complete with the original Dell All-in-One computer, Magellan Video-Workshop measuring software, keyboard, mouse, operating manual, integrated digital camera, programmable illumination system, and motorized zoom.

This is a complete bench-top optical/video measuring system designed for precision non-contact dimensional inspection of machined components, stampings, molded parts, electronics, tooling, gears, medical components, and other precision manufactured parts.

This system has been powered up, tested, and is operating excellent.

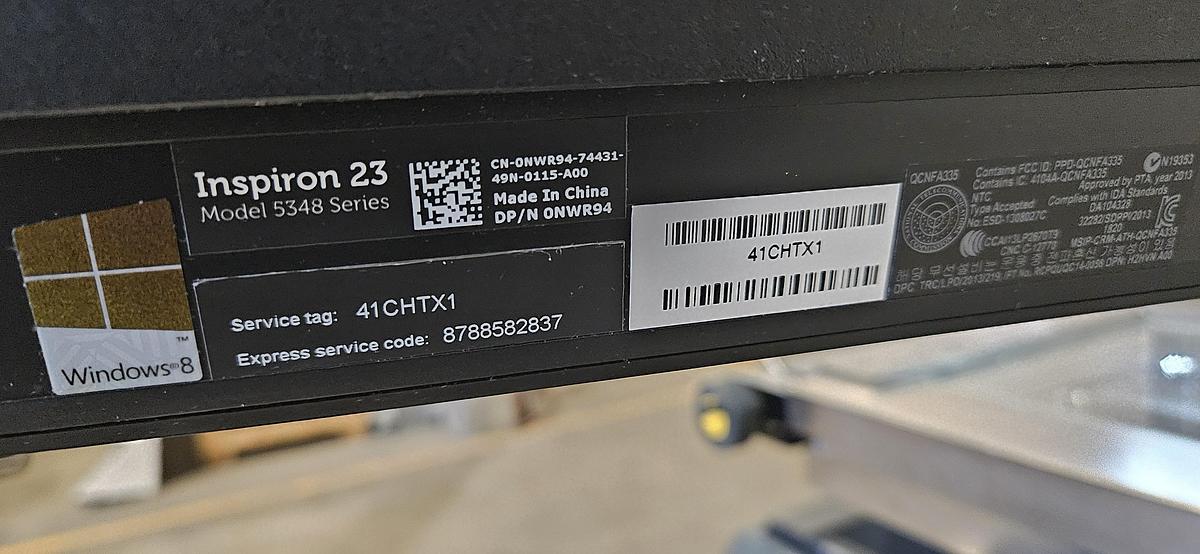

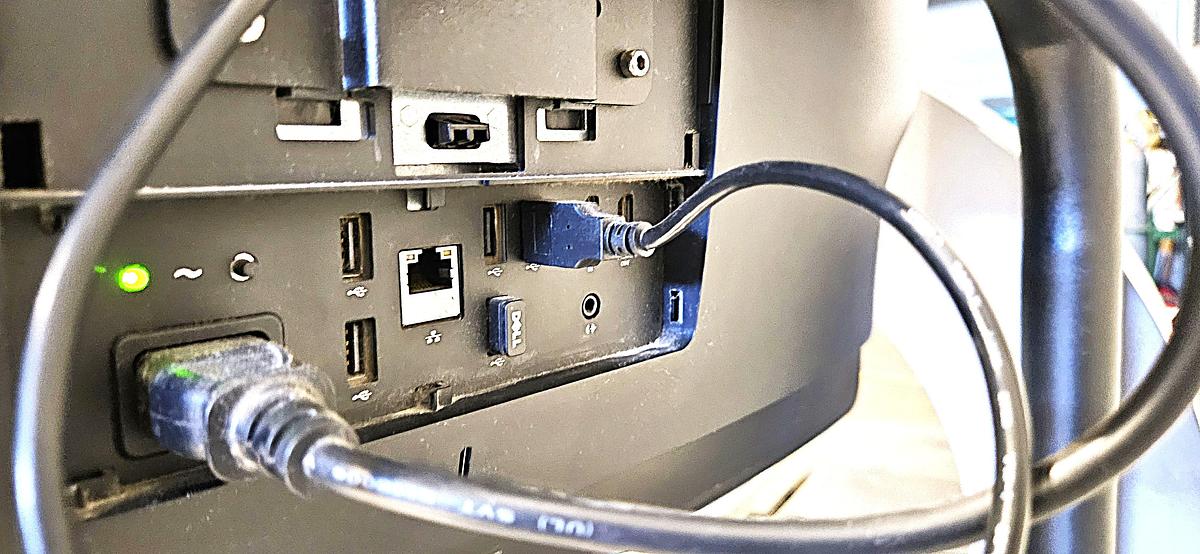

The original Dell All-in-One computer is included and retains the Magellan Video-Workshop measurement software and original machine configuration. The computer communicates properly with the V200, and the live video imaging, illumination, motorized zoom, digital measurement display, and software measurement functions have been tested.

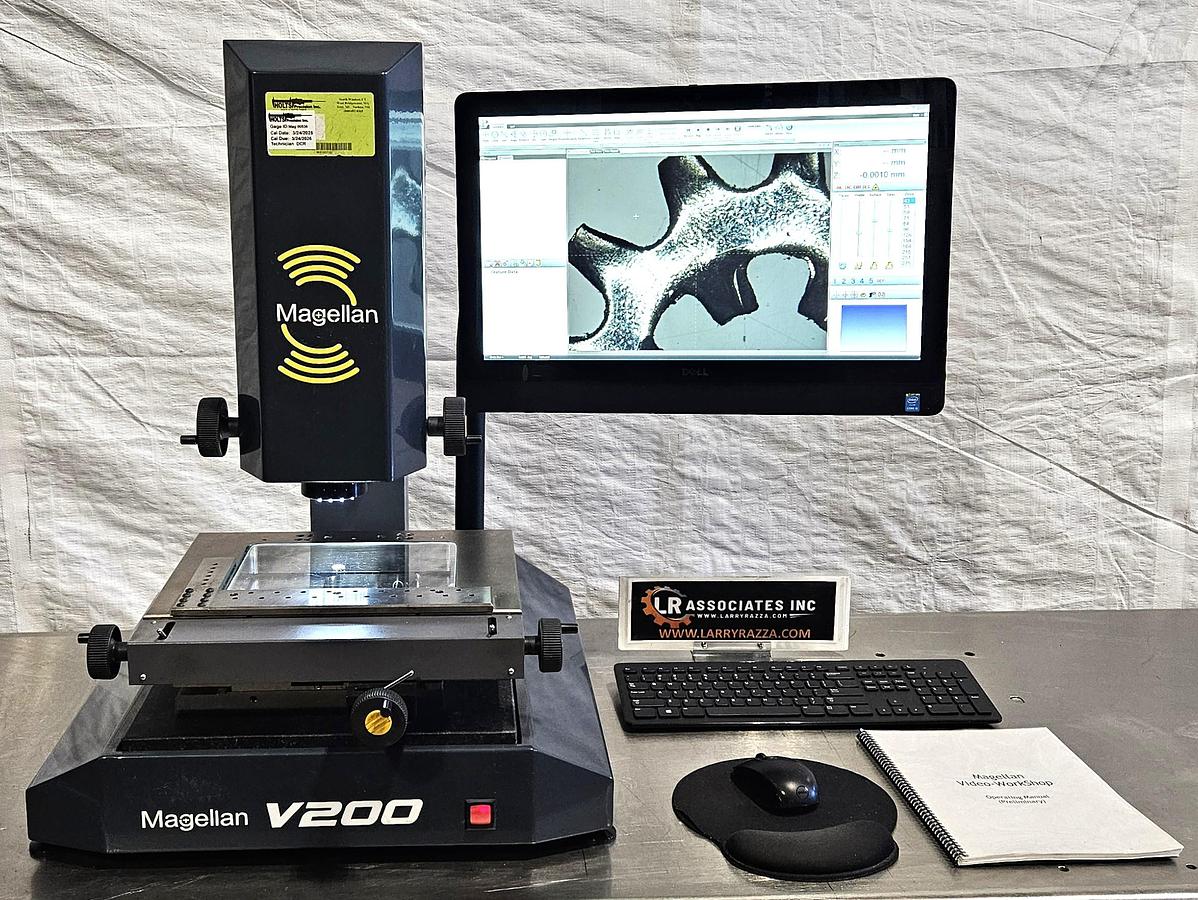

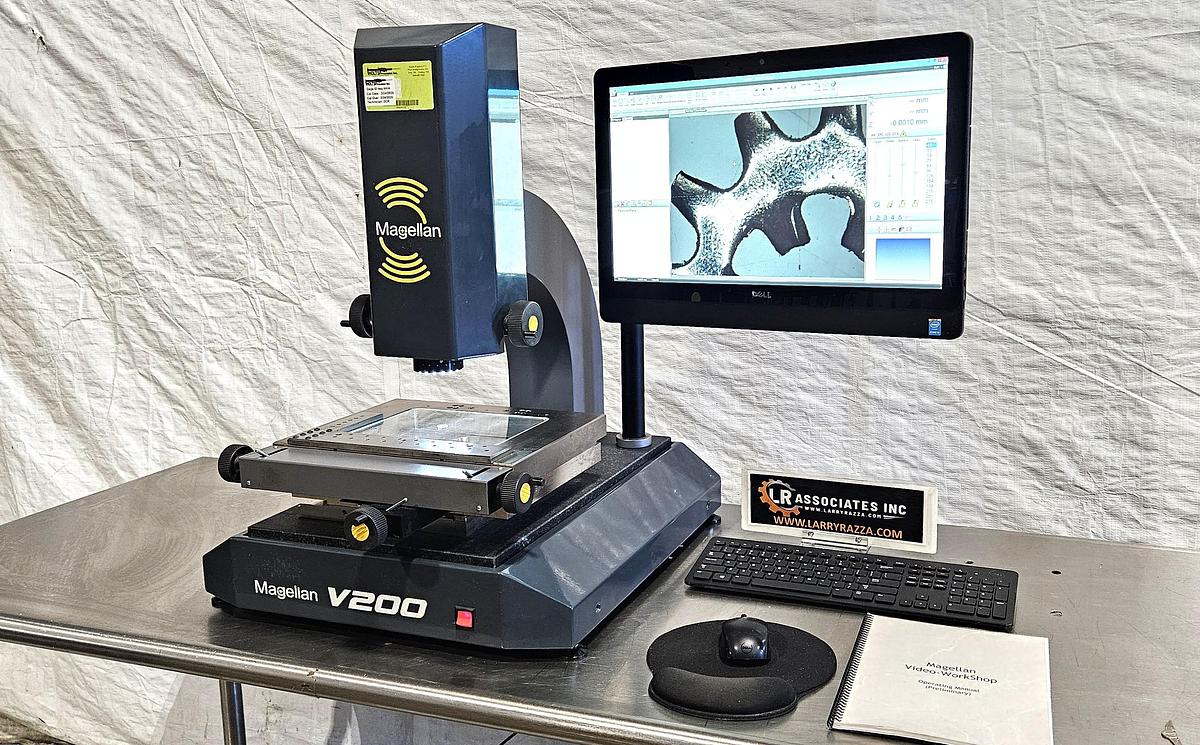

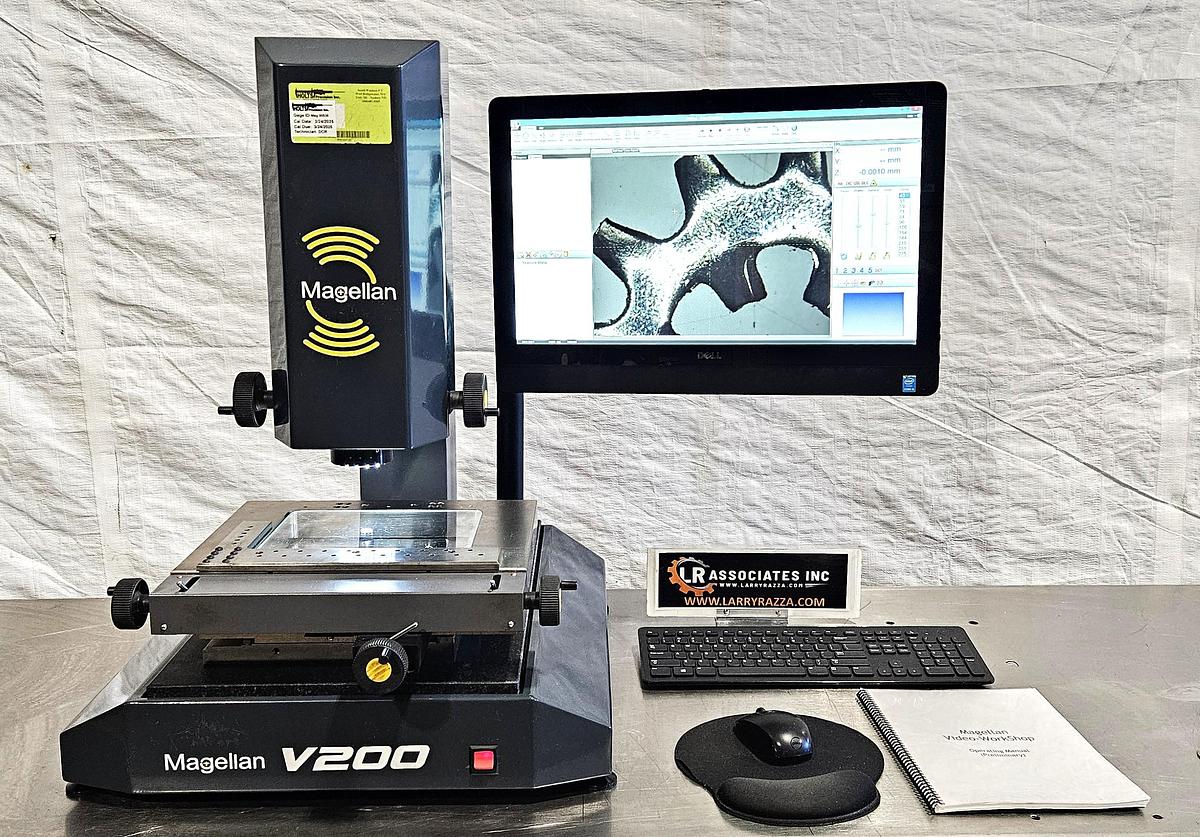

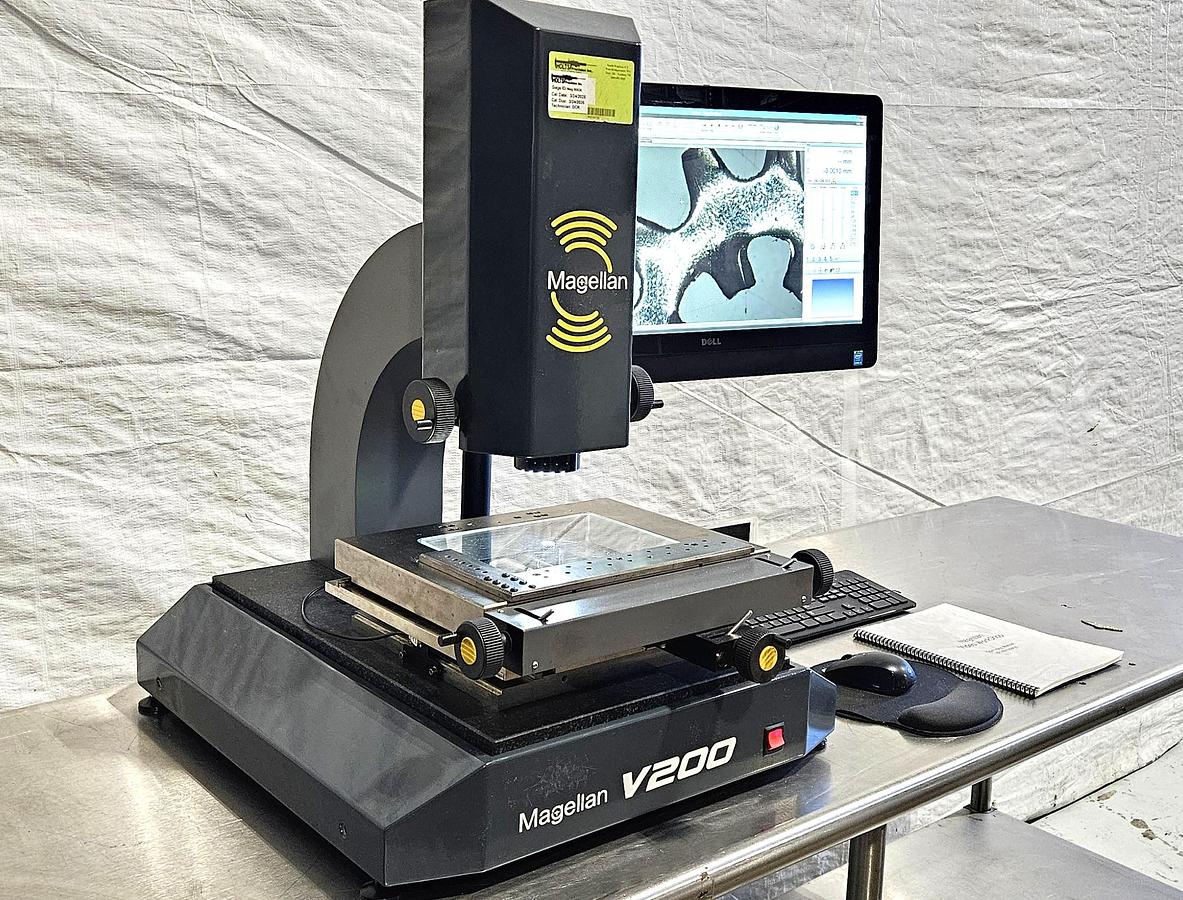

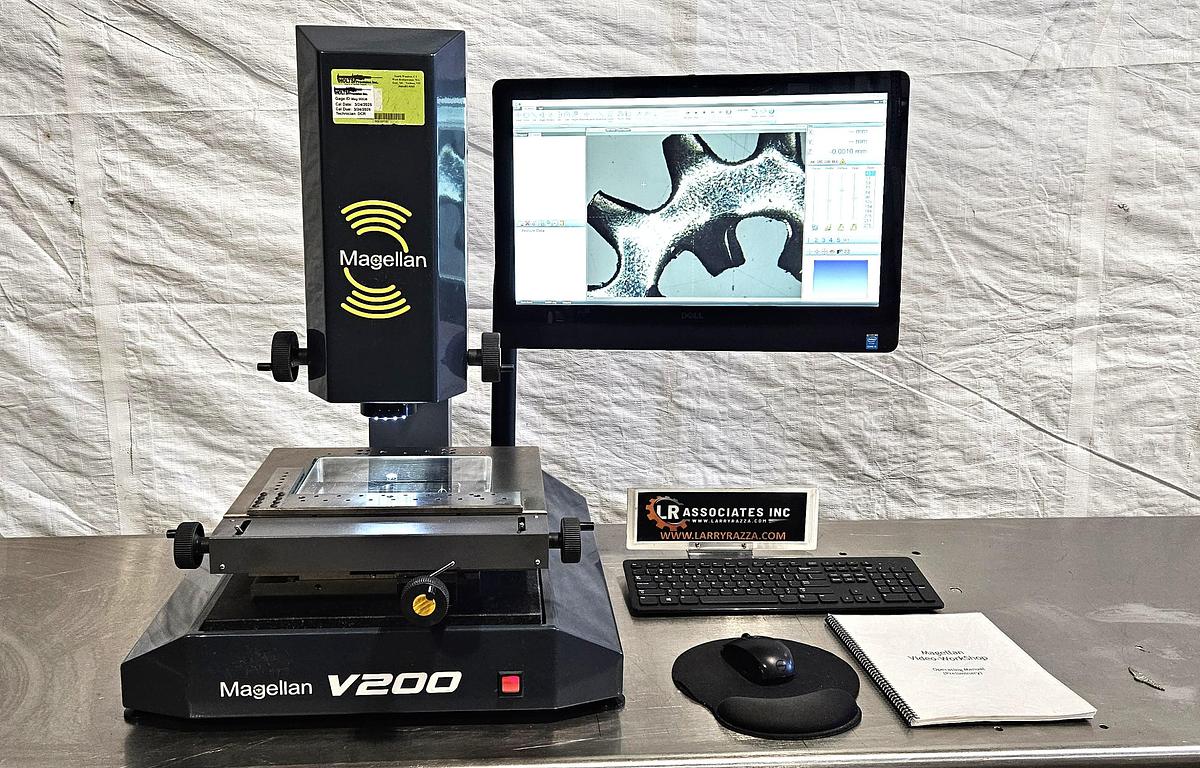

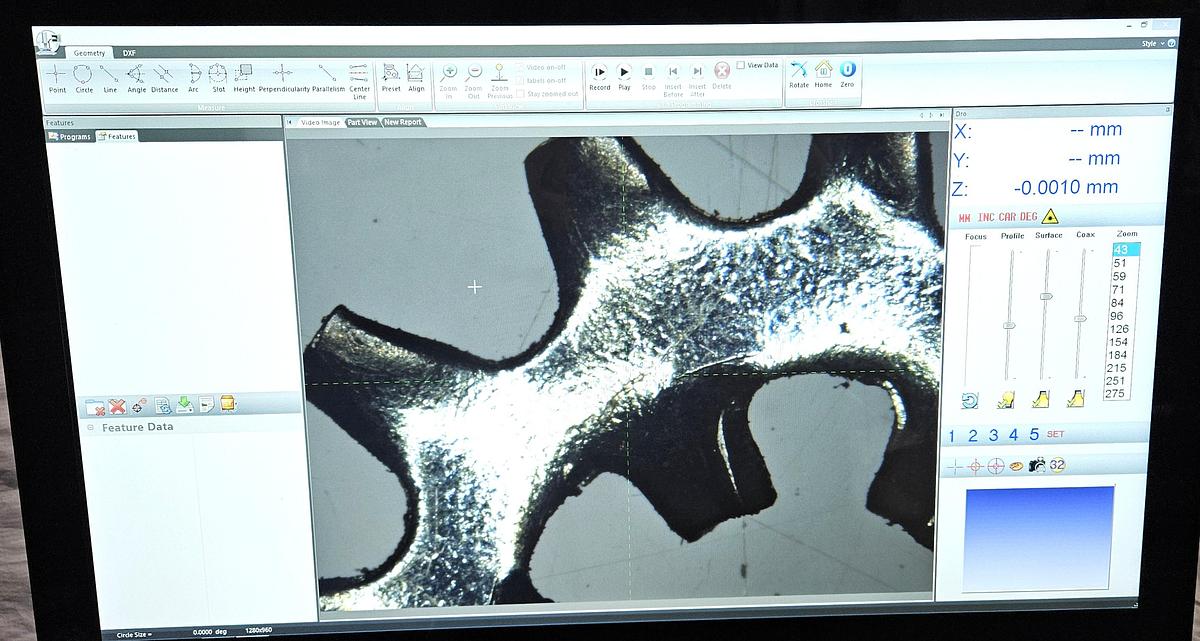

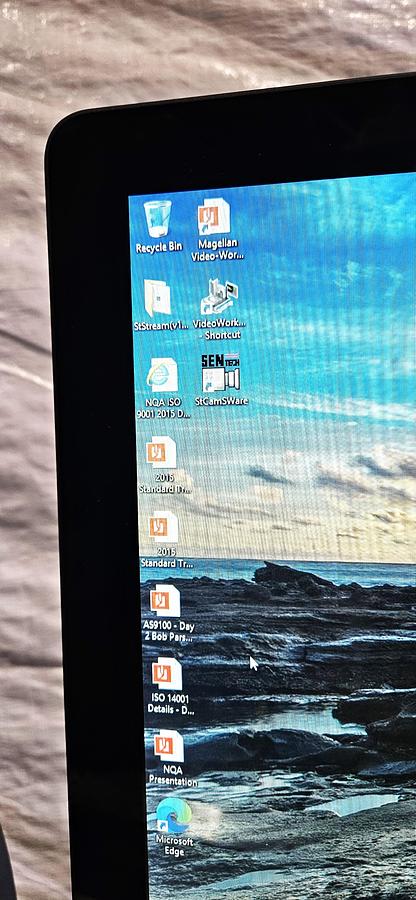

As shown in the photographs, the system produces a clear, high-resolution live image and is capable of performing graphical feature measurements directly through the Video-Workshop software.

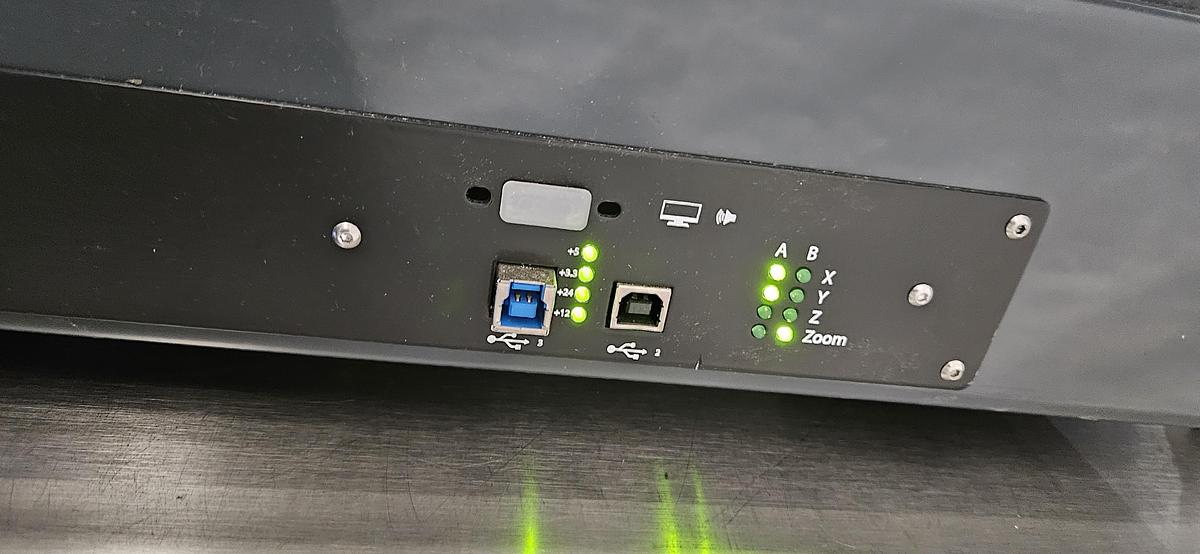

The V200 incorporates a precision granite base, mono-rail measuring stage, manual quick-release X/Y positioning, digital camera system, programmable LED illumination, and motorized optical zoom.

The machine also carries a Holt's Precision calibration label dated March 24, 2025, with Gage ID MAG00536. The calibration interval expired March 24, 2026; this information is provided as calibration history only.

Unlike many used optical measuring systems offered without their original computer or operating software, this V200 is being offered as a complete, operational package with its original computer and software intact.

Inspection and demonstration are available by appointment.

SPECIFICATIONS

Manufacturer: Magellan Metrology / Caliper Designs, Inc.

Model: V200

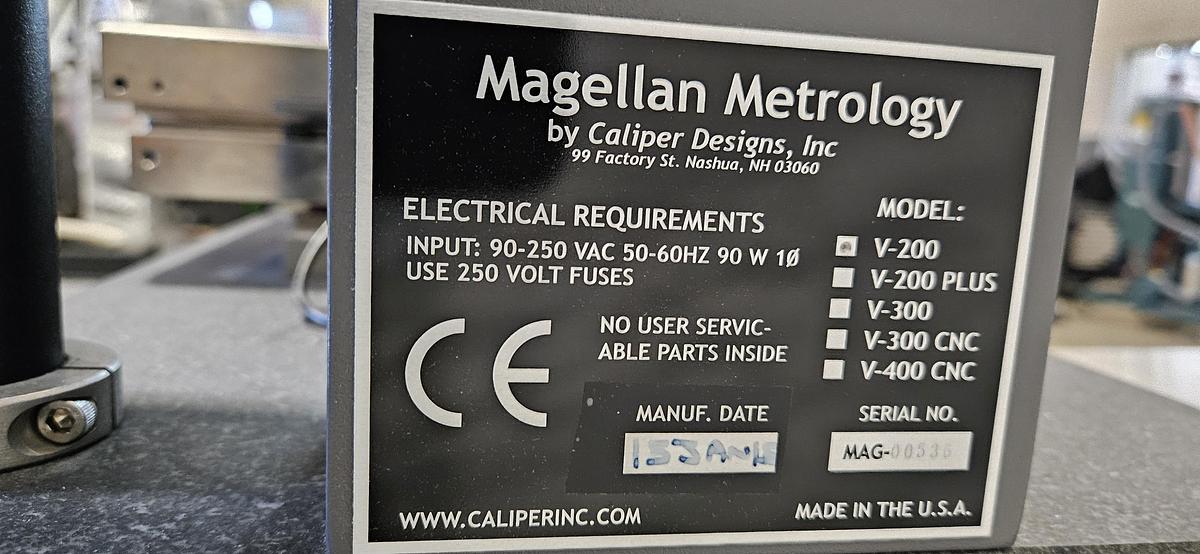

Serial Number: MAG-00536

Type: Video / Optical Measuring System

Configuration: Manual X/Y Precision Measuring Stage with Video Measurement System

X-Axis Measuring Range: 8"

Y-Axis Measuring Range: 6"

Z-Axis Measuring Range: 8"

Measurement Resolution: 0.001 mm

XY Accuracy: E2 = (3 + L/100) µm

Stage Load Capacity: 40 lbs

Stage Type: Precision Mono-Rail Bearing Stage

X/Y Positioning: Manual Quick-Release Controls

Machine Base: Granite

Camera: 1.2 Megapixel Digital Camera

Zoom System: Programmable Motorized Zoom

Zoom Ratio: 6.5:1

Optical Magnification Range: Approximately 28X–280X

Part Location: Thru-Lens Laser Spot Part Finder

Profile Illumination: Telecentric LED

Surface Illumination: 48-LED Ring Light

Illumination Control: Programmable

Computer: Dell All-in-One Windows Computer

Measurement Software: Magellan Video-Workshop

Electrical Input: 90–250 VAC

Frequency: 50/60 Hz

Power Requirement: 90 Watts

Phase: Single Phase

Approximate System Weight: 150 lbs

Country of Manufacture: USA

FEATURES

• Precision 3-axis video measuring system
• 8" × 6" × 8" measuring range
• Original Dell All-in-One computer included
• Original Magellan Video-Workshop measuring software
• Live digital video inspection
• Precision granite base
• Mono-rail bearing measuring stage
• Quick-release manual X/Y positioning
• 0.001 mm measurement resolution
• 1.2 megapixel digital camera
• Programmable 6.5:1 motorized zoom
• Approximately 28X–280X optical magnification
• Telecentric profile illumination
• 48-LED surface ring illumination
• Programmable illumination controls
• Thru-lens laser spot part finder
• X / Y / Z digital measurement display
• Inch / metric measurement capability

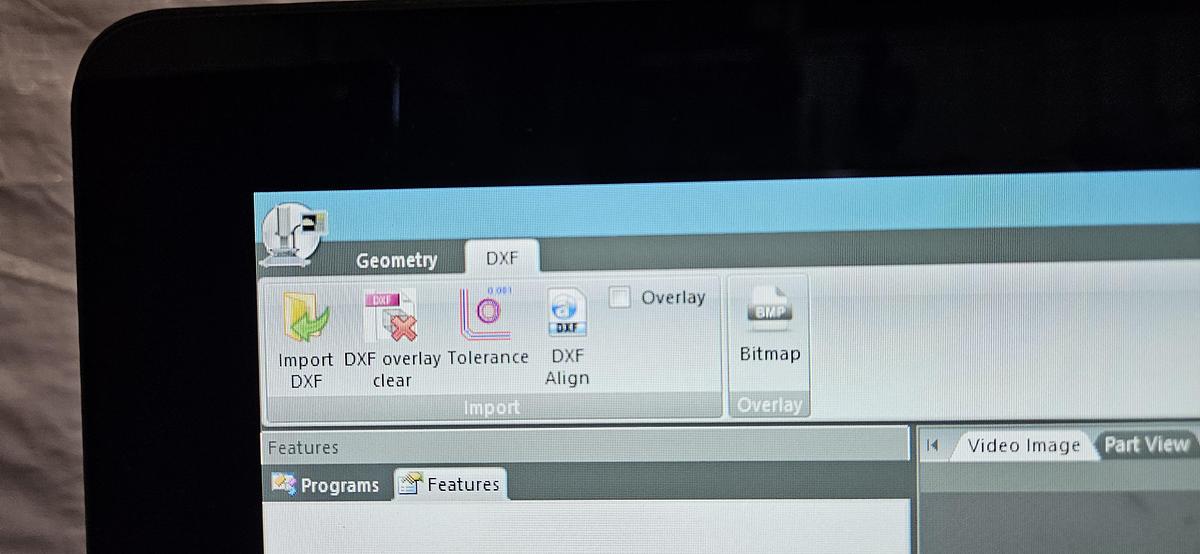

• Graphical feature measurement
• Arc / radius measurement capability
• Video edge measurement functions

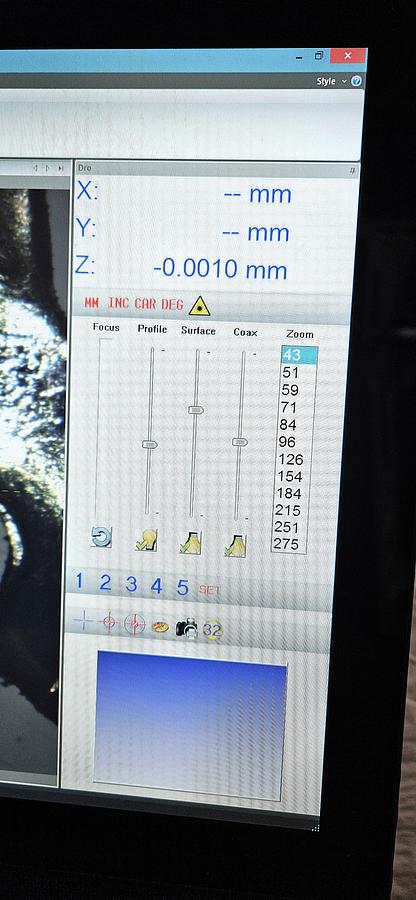

• Focus, profile, surface and coax illumination controls
• Complete operating computer/software package
• Compact bench-top configuration
• Made in USA
• Tested and operating excellent

INCLUDES

• Magellan Metrology V200 Video Measuring System
• Original Dell All-in-One Computer
• Magellan Video-Workshop Measuring Software
• Integrated Digital Camera System
• Motorized Zoom System
• Programmable LED Illumination System
• Keyboard
• Mouse
• Computer / Machine Interface Cabling

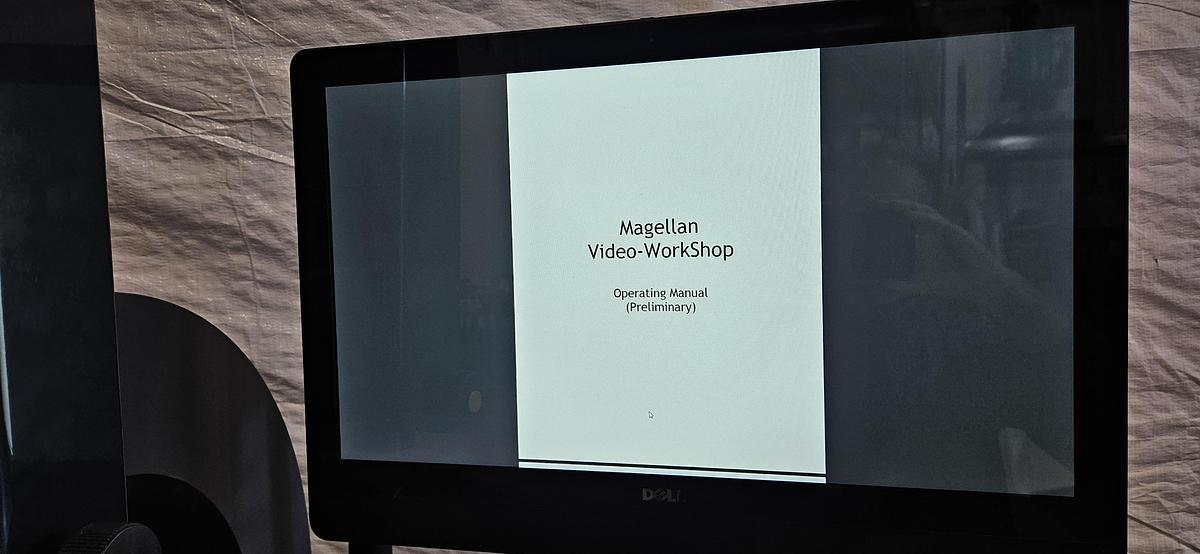

• Magellan Video-Workshop Operating Manual
• Accessories Shown

CONDITION

Excellent used condition.

This system has been cleaned, inspected, powered up, and tested at our facility.

The V200 communicates properly with the original Dell All-in-One computer and the installed Magellan Video-Workshop software.

Live video imaging tested.

Digital camera tested.

Motorized zoom tested.

Illumination system tested.

Computer tested.

Video-Workshop software tested.

Machine-to-computer communication tested.

Measurement functions tested.

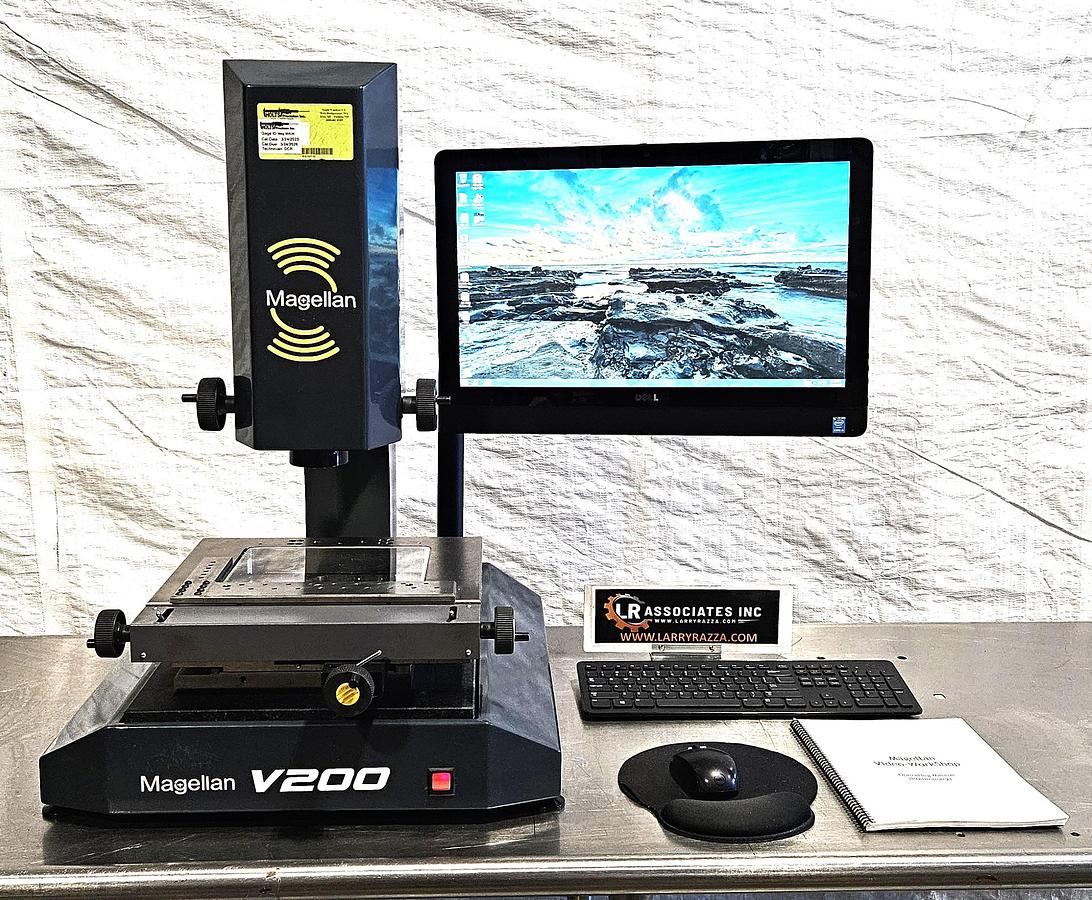

The photographs show the actual machine powered up and operating, including live video inspection and measurement functions.

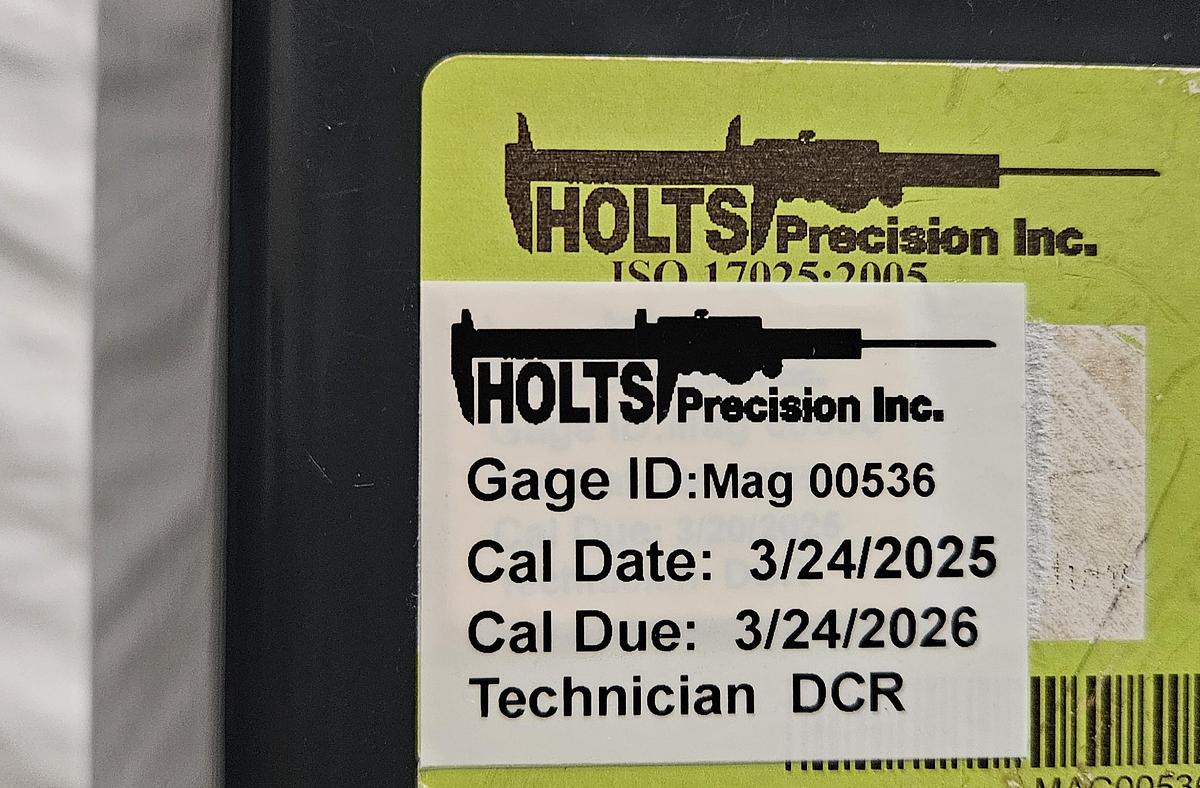

The machine carries a Holt's Precision calibration label showing:

Calibration Date: 03/24/2025

Calibration Due: 03/24/2026

Gage ID: MAG00536
