JONES & SHIPMAN 1300 10" × 27" UNIVERSAL ID / OD CYLINDRICAL GRINDER – INTERNAL & EXTERNAL GRINDING – SWING-AROUND GRINDING HEAD – MAGNETIC CHUCK – TOOLING & ACCESSORIES... TESTED & RUNNING EXCELLENT!

DESCRIPTION

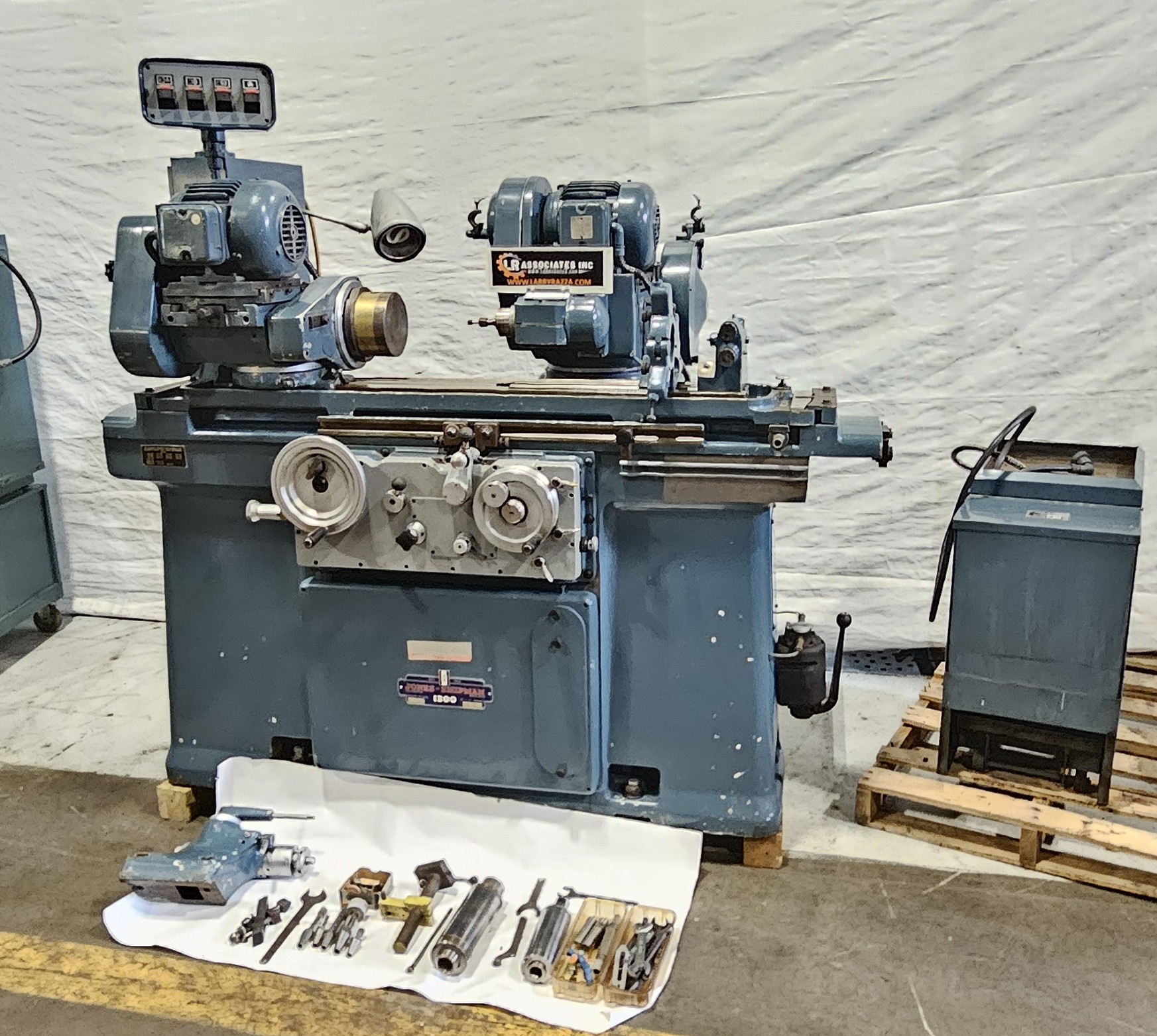

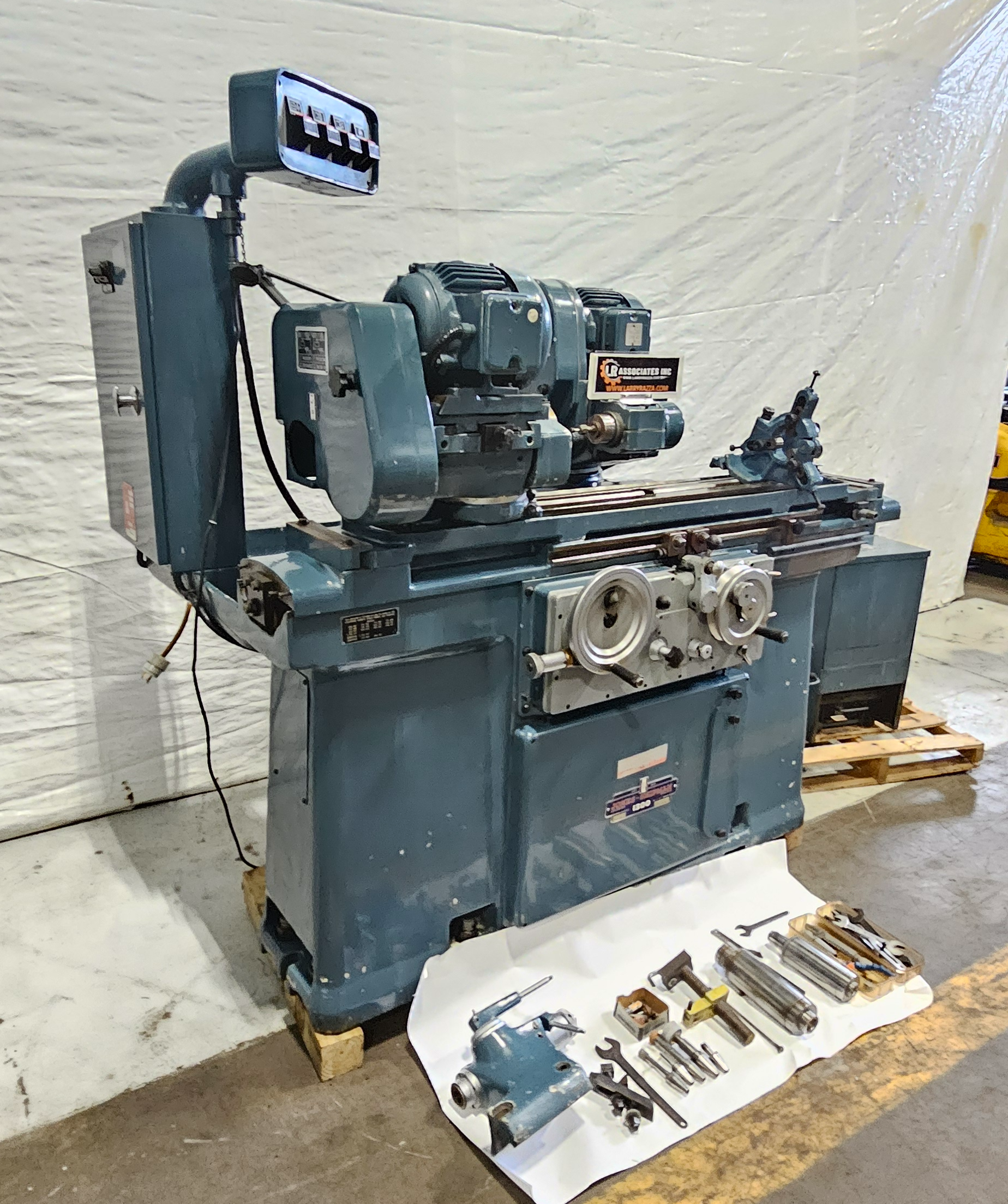

Available for immediate sale is a Jones & Shipman Model 1300 Universal Cylindrical Grinder featuring 10" swing × 27" between centers capacity and equipped for both external OD and internal ID grinding.

This is a classic heavy-duty Jones & Shipman precision toolroom grinder manufactured in Leicester, England, designed for precision cylindrical, internal and toolroom grinding applications.

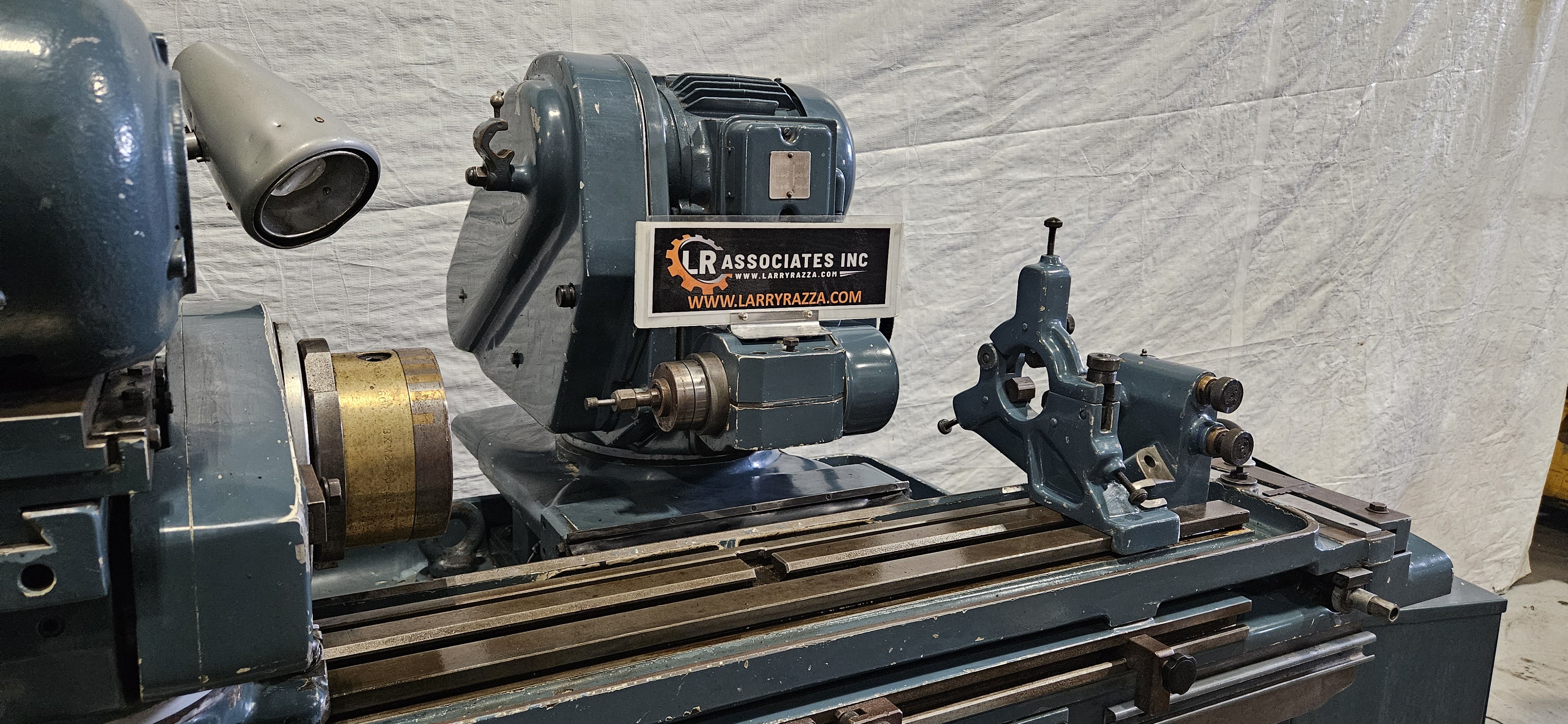

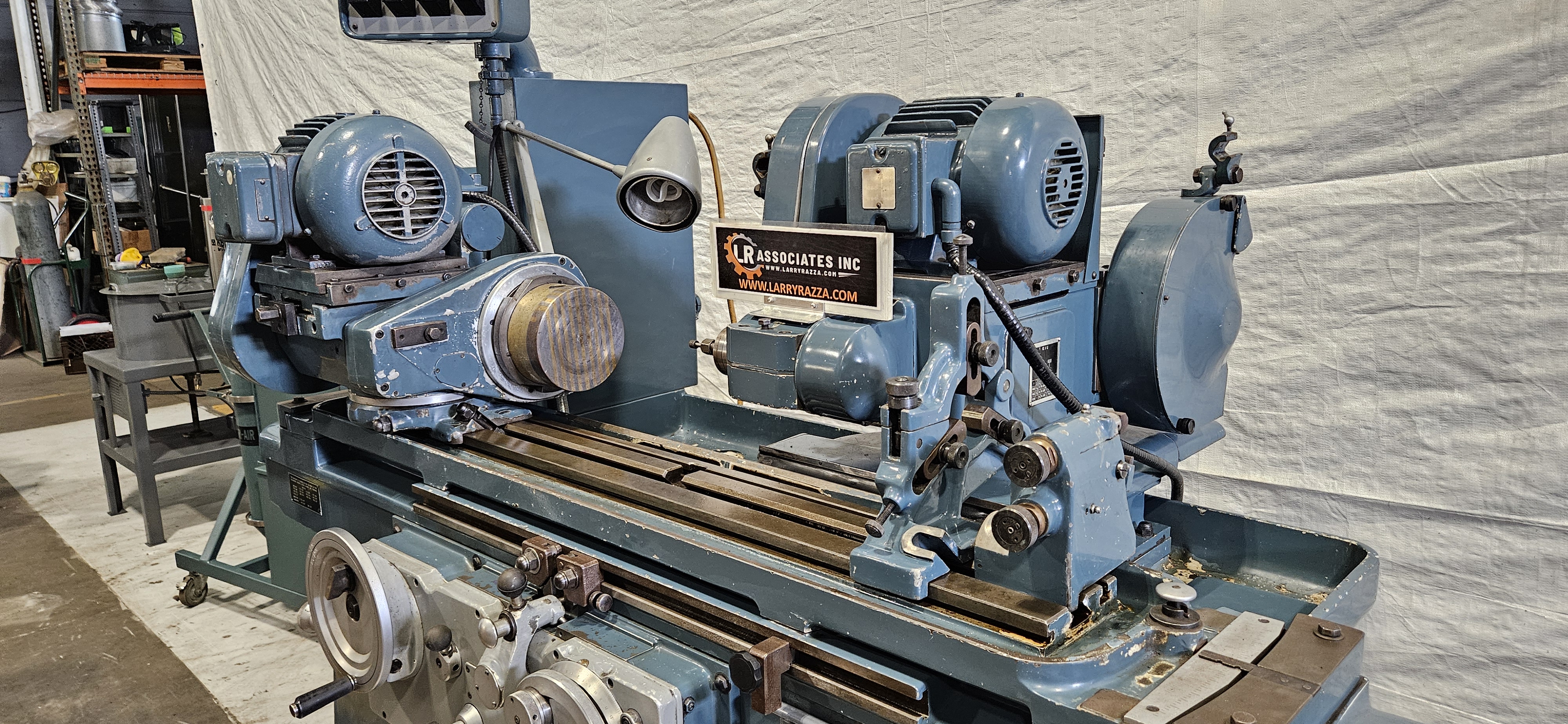

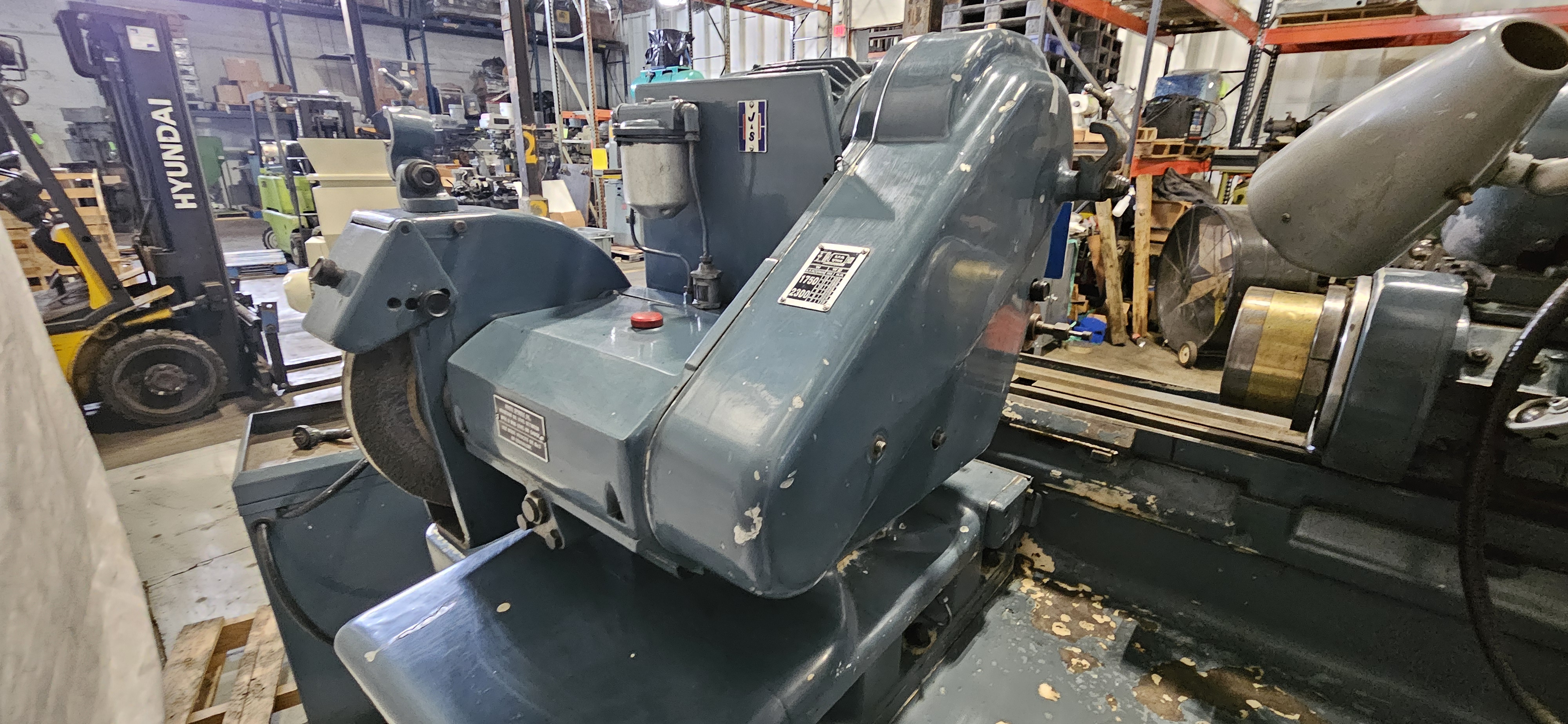

A particularly desirable feature of this machine is its dual-purpose / swing-around grinding head arrangement. The machine can be configured for conventional external cylindrical grinding using the large grinding wheel, or the head can be repositioned to utilize the high-speed internal grinding spindle for smaller ID grinding wheels and mounted grinding points.

This greatly expands the capability of the machine compared with a conventional OD-only cylindrical grinder.

The machine also includes a large assortment of original tooling and accessories, including internal grinding components, centers, wheel-related tooling, magnetic chuck, wrenches, setup tooling and miscellaneous grinding accessories as shown in the photographs.

A separate Jones & Shipman coolant circulating and cleaning tank is also included.

Jones & Shipman grinders have long been recognized for their rigid construction, precision spindle systems and excellent grinding capability, making the Model 1300 well suited for toolrooms, mold shops, machine shops, maintenance departments and precision manufacturing applications.

SPECIFICATIONS

• Manufacturer: Jones & Shipman

• Model: 1300

• Type: Universal Cylindrical Grinder – ID / OD

• Country of Manufacture: England

• Swing Over Table: 10"

• Distance Between Centers: 27"

• Center Height: Approximately 5" / 127 mm

• Maximum Workpiece Weight Between Centers: Approximately 220 lbs.

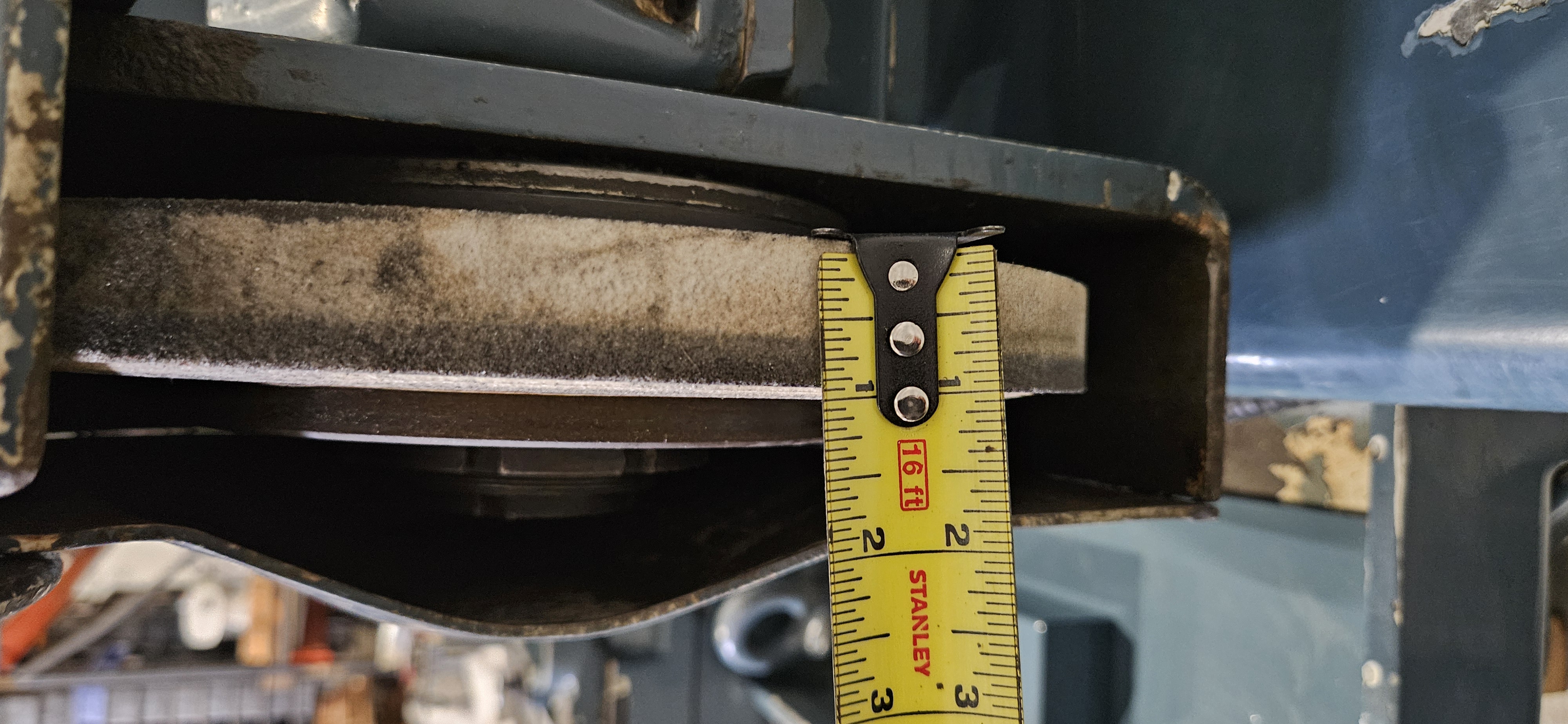

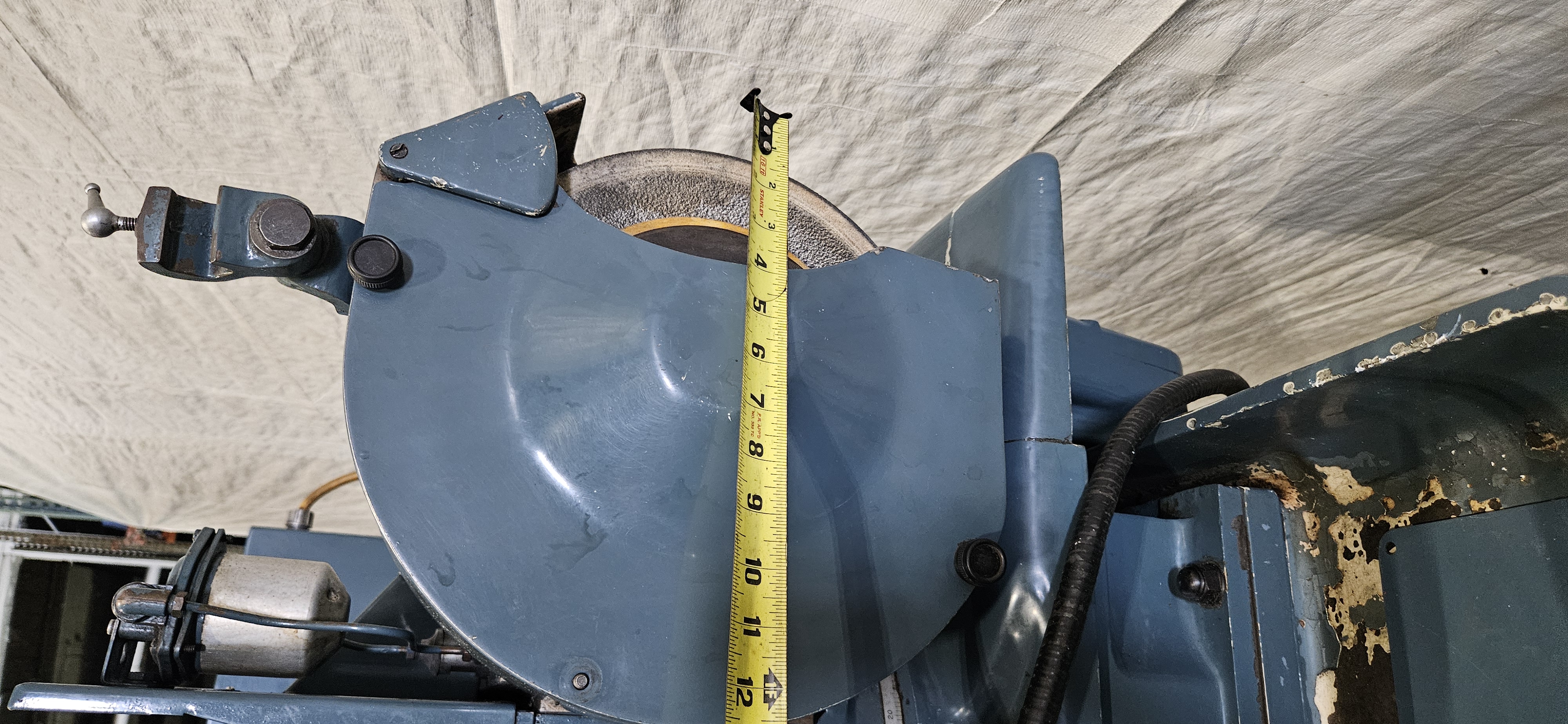

• External Grinding Wheel Diameter: Up to approximately 12"

• Grinding Configuration: External OD & Internal ID

• Wheelhead: Universal / Repositionable Grinding Head

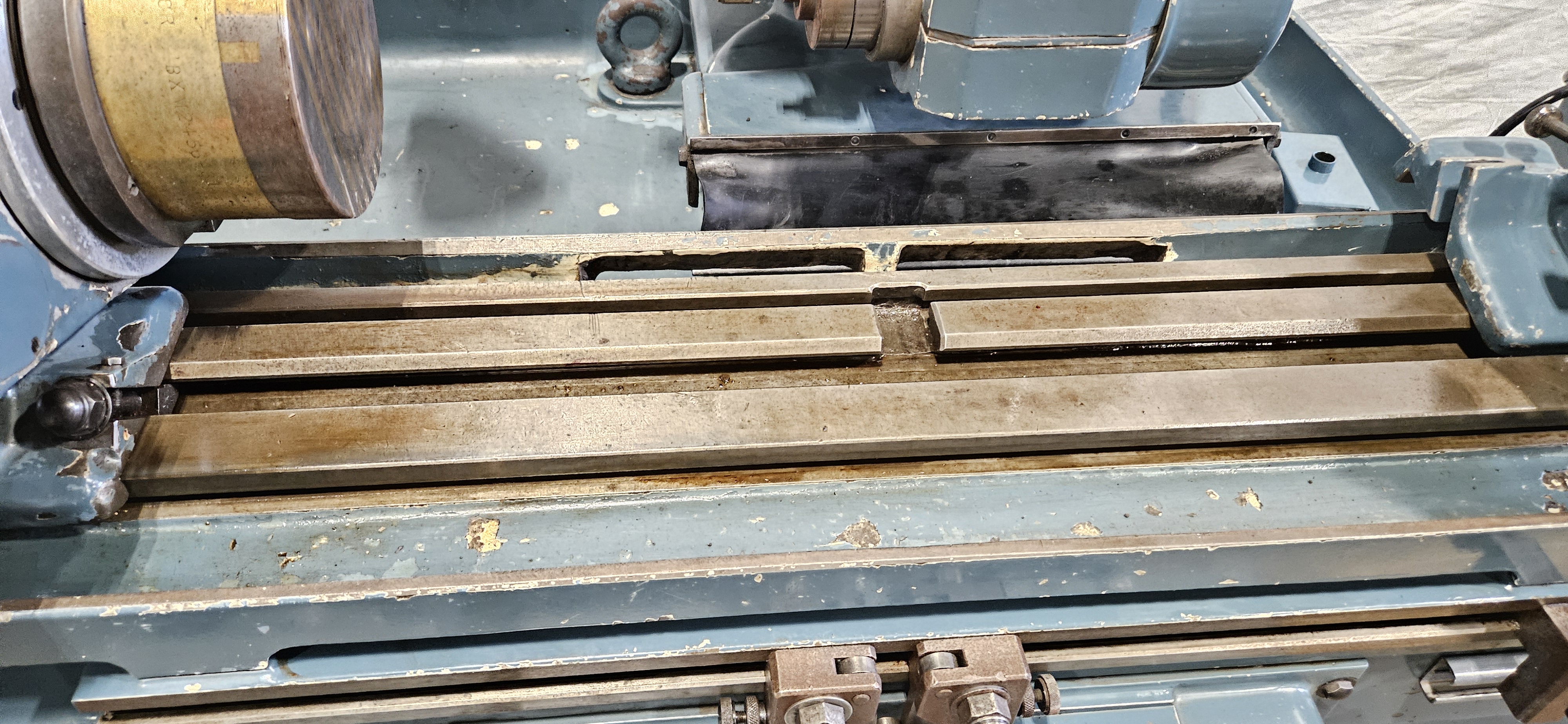

• Table: Reciprocating cylindrical grinding table

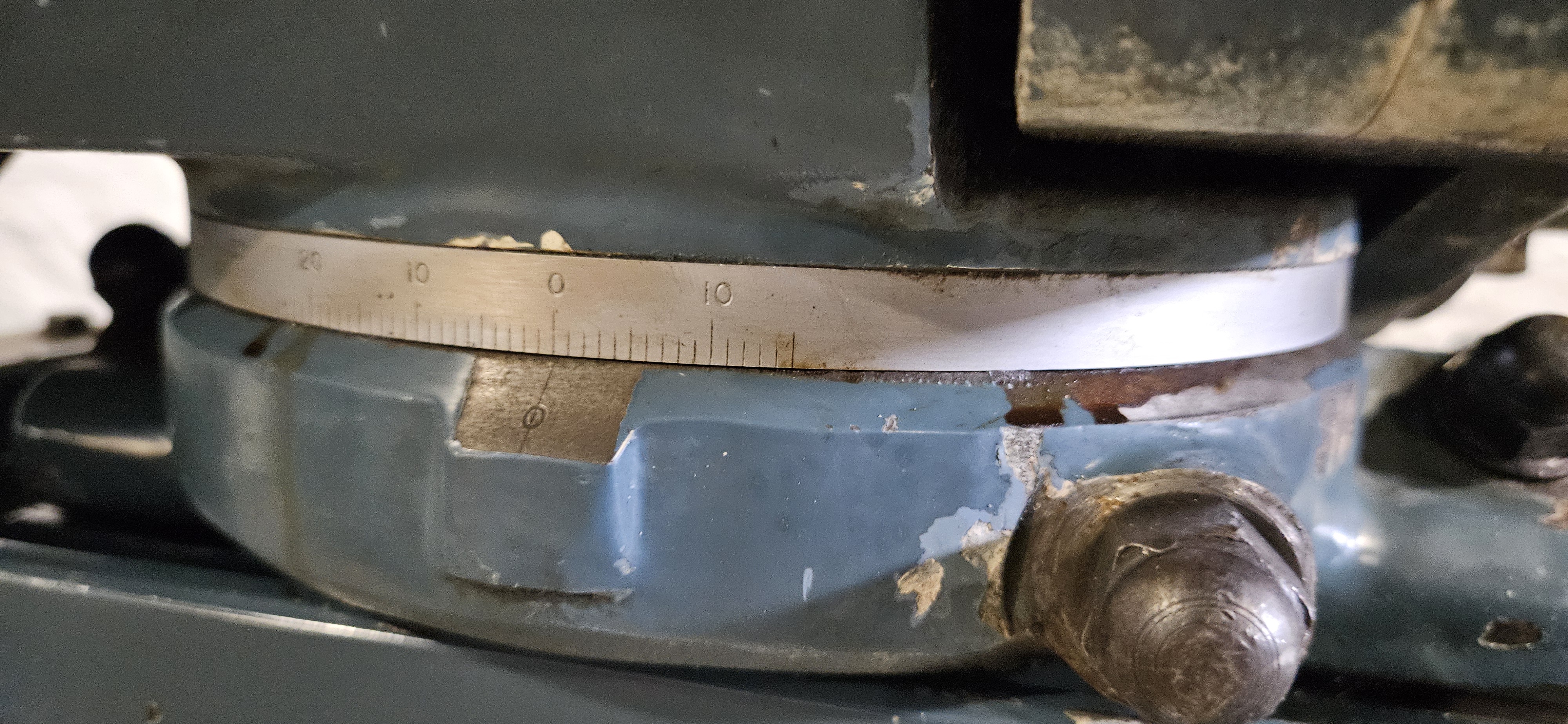

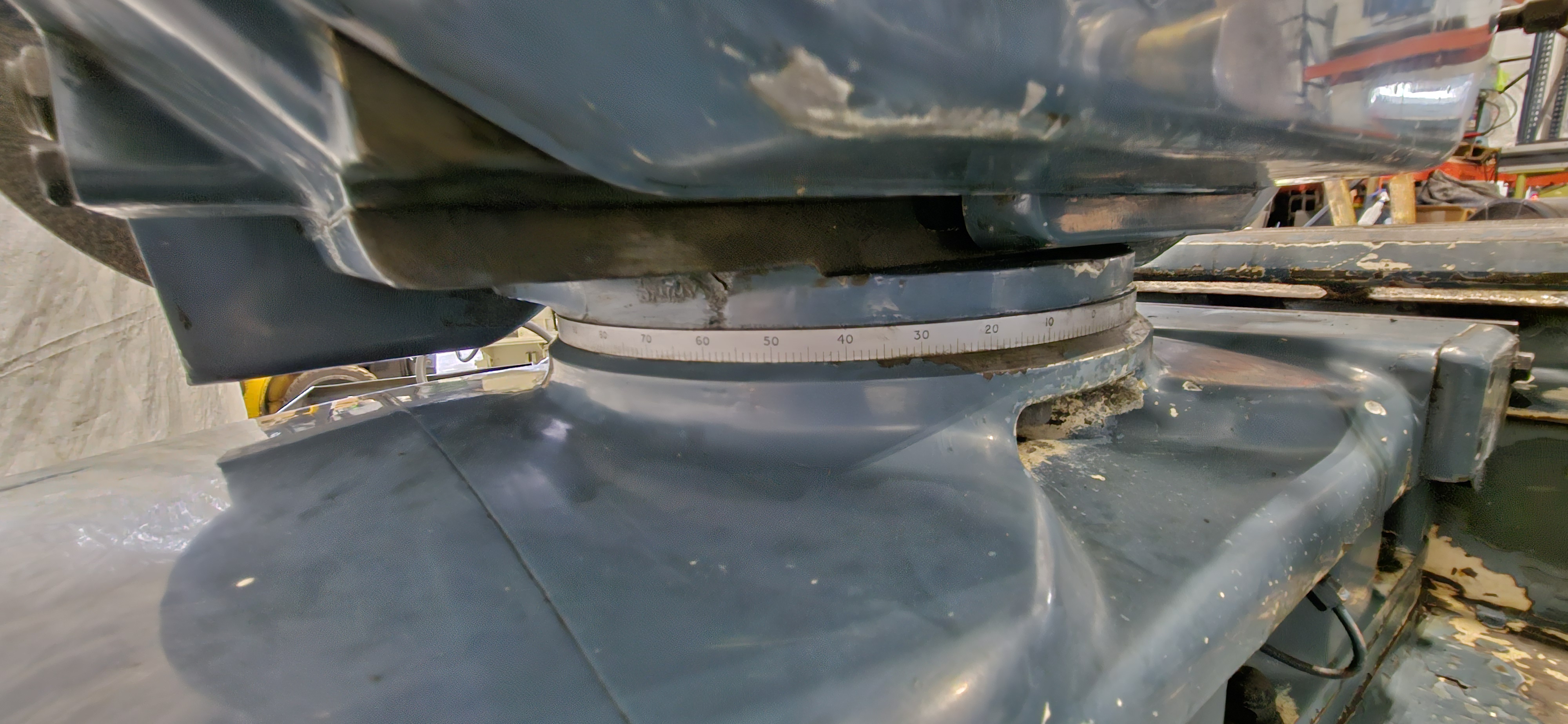

• Table Swivel: Adjustable for taper grinding

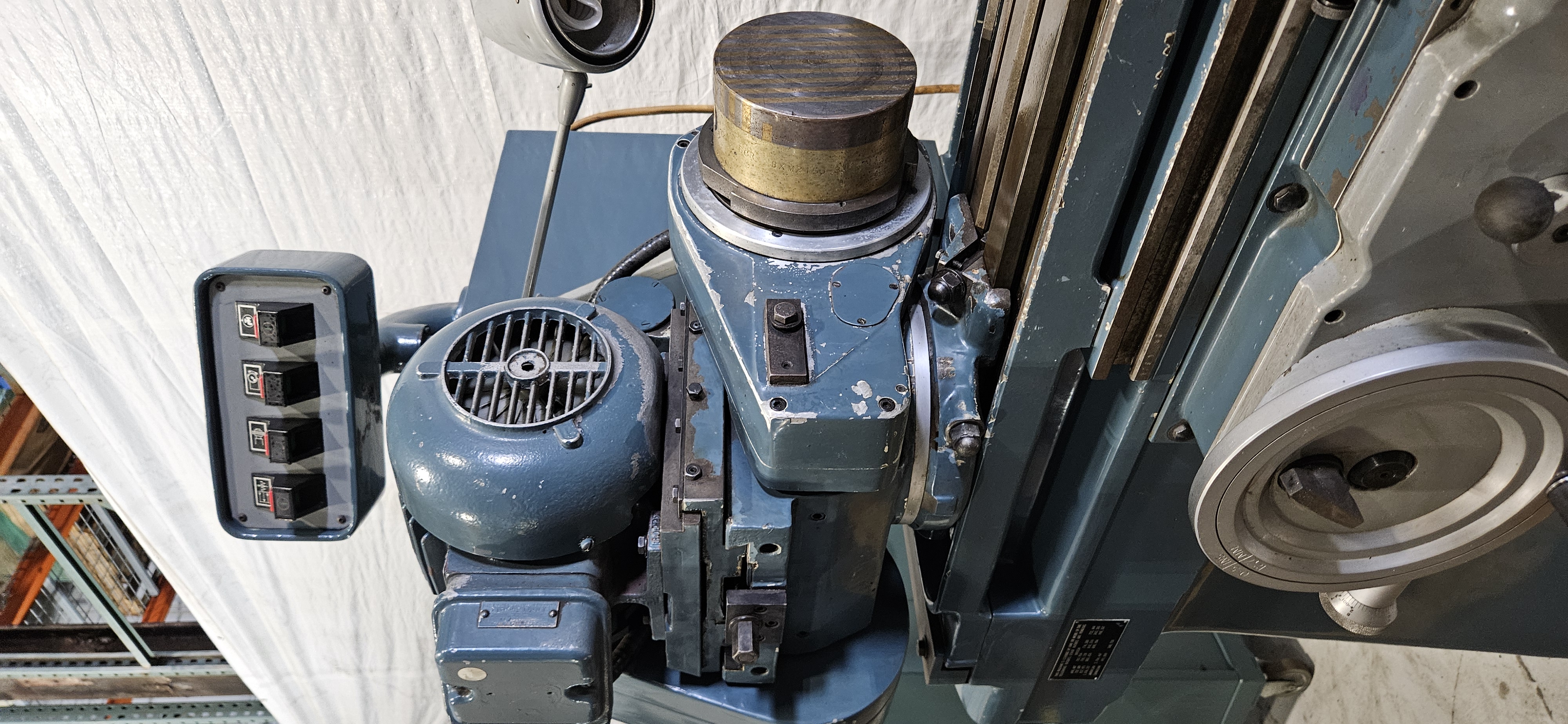

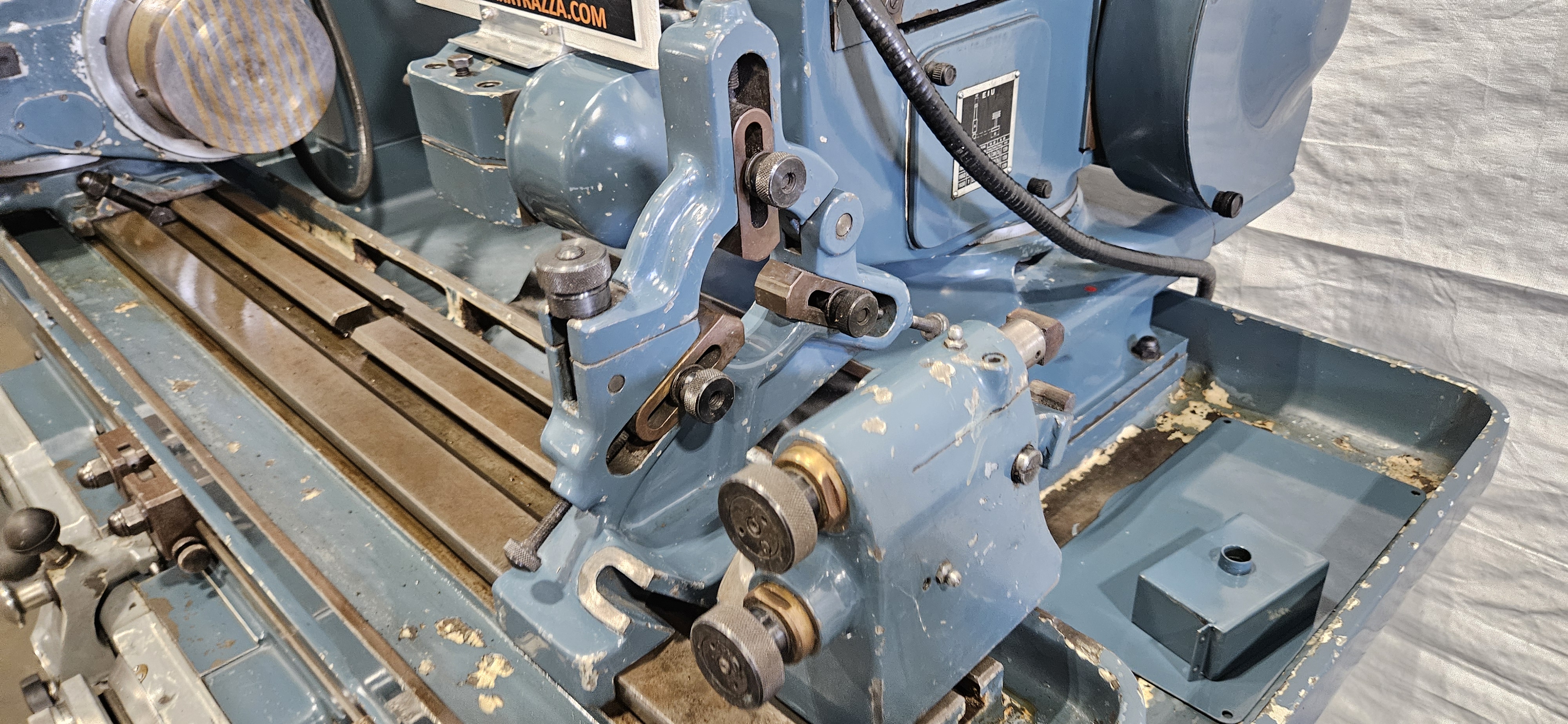

• Workhead: Adjustable / swivel type

• Tailstock: Included

• Workhead Speed Range: Multiple speeds

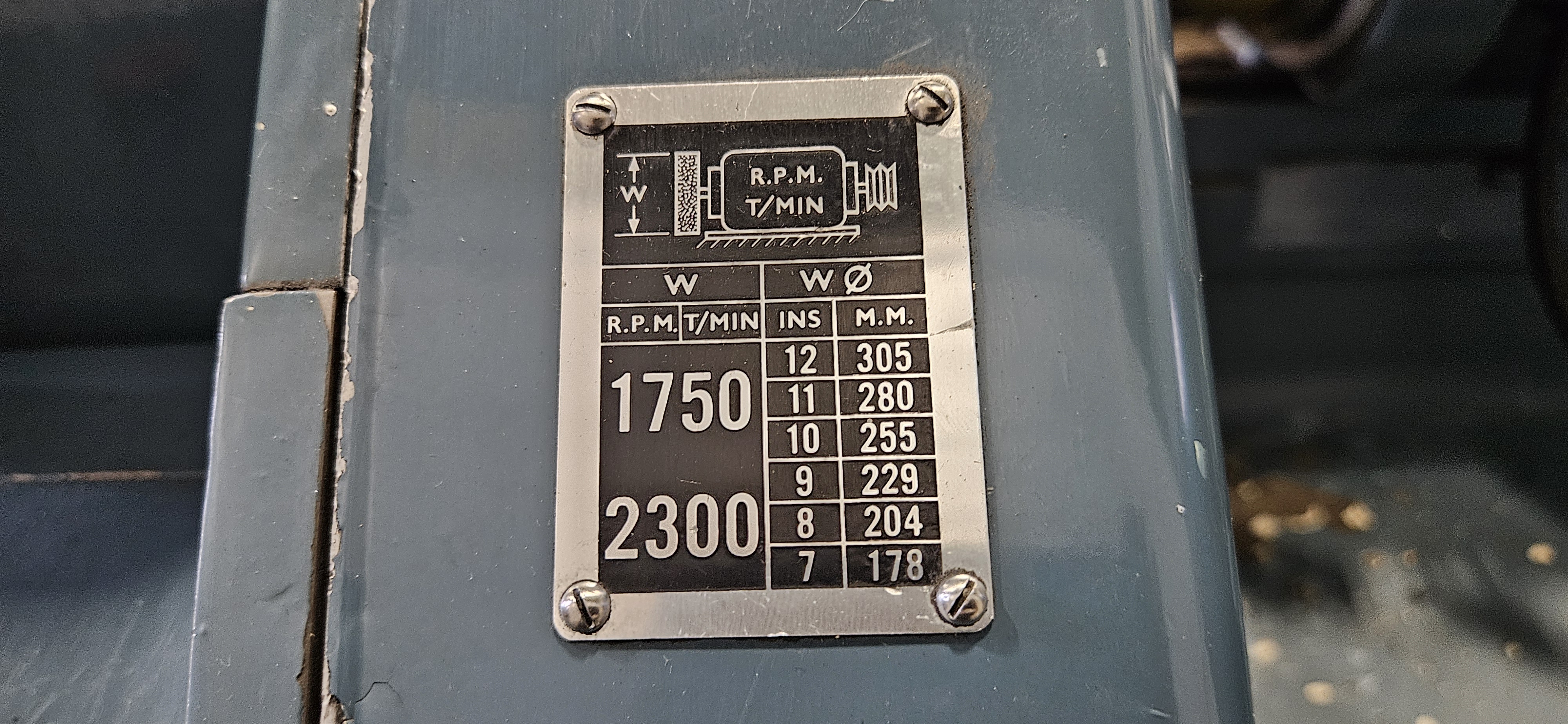

• External Grinding Wheel Speed: Approximately 1,750 / 2,300 RPM depending upon wheel diameter/configuration, as indicated on machine speed plate

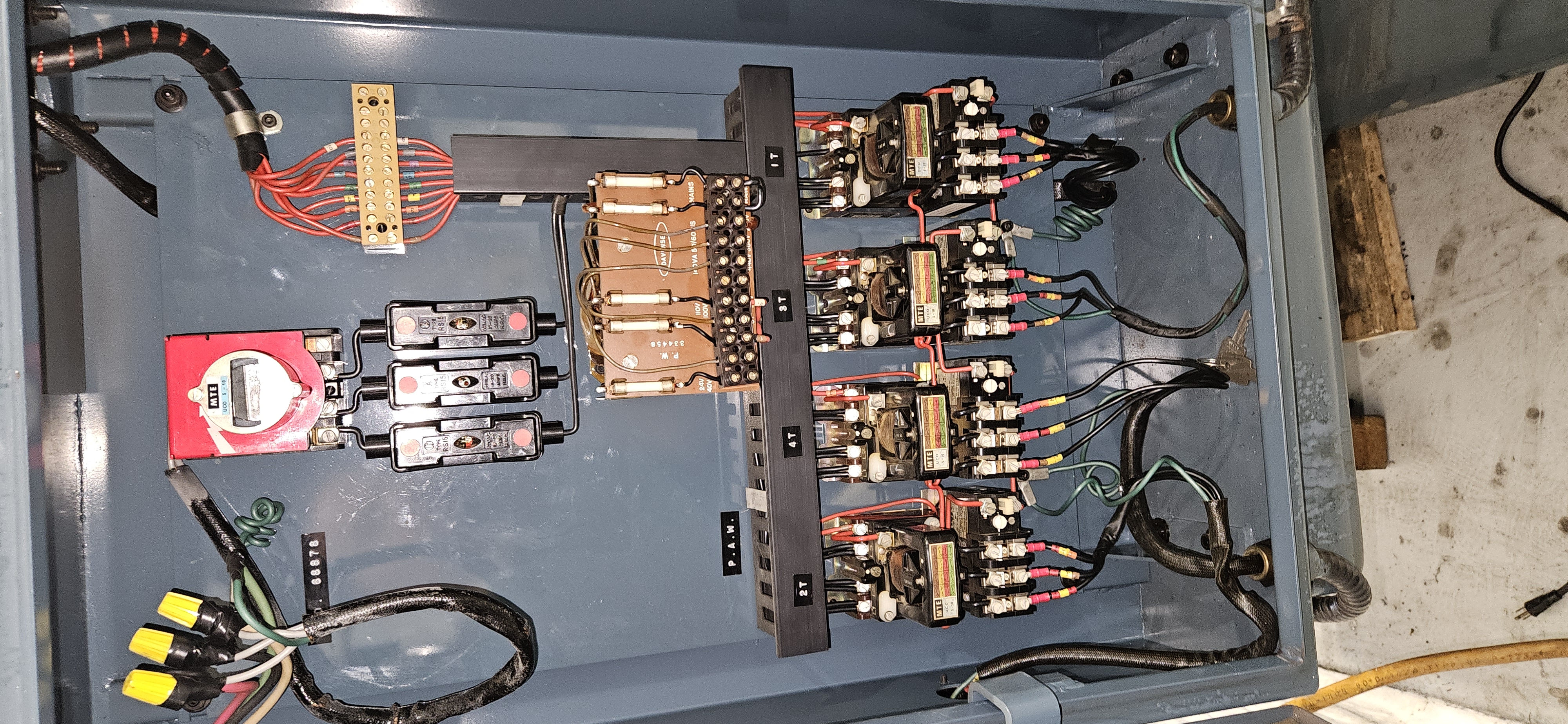

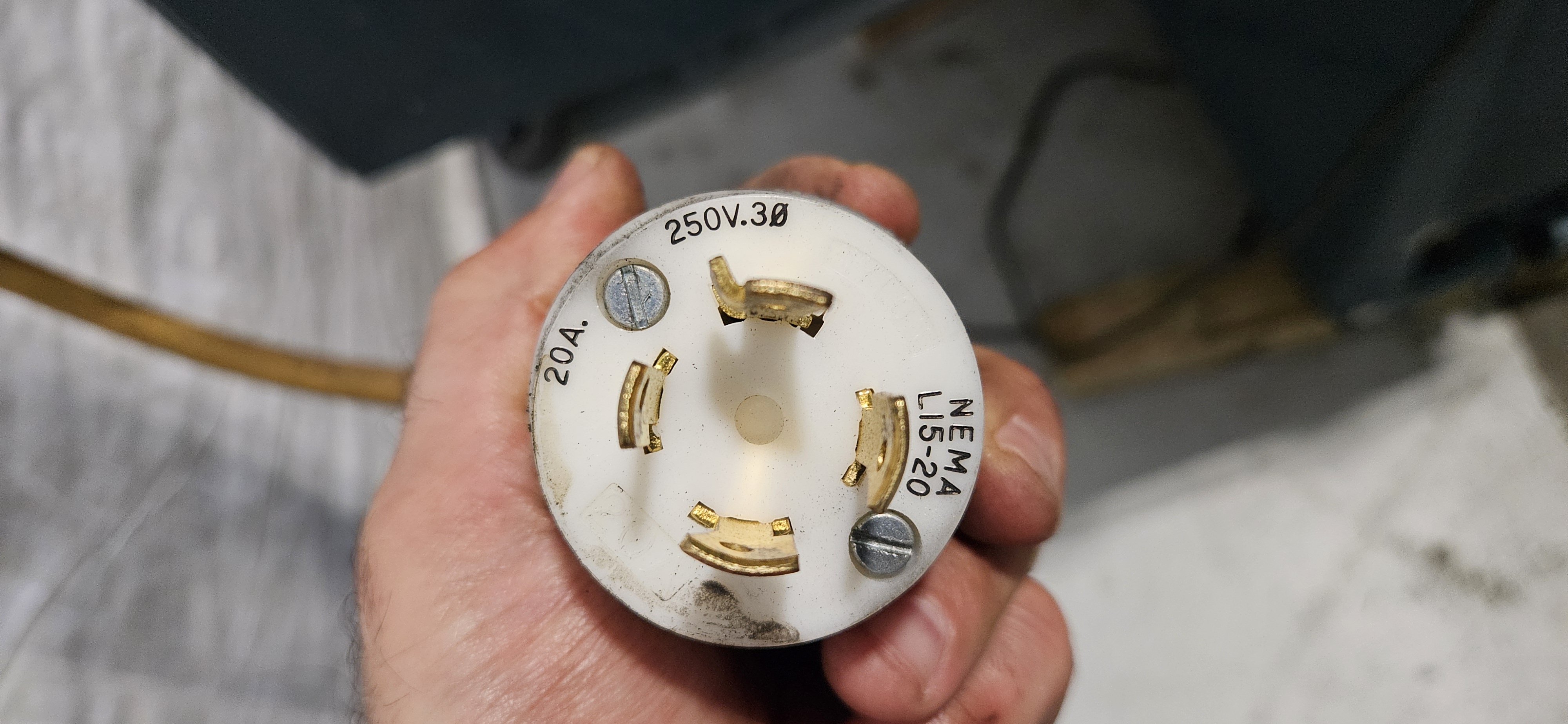

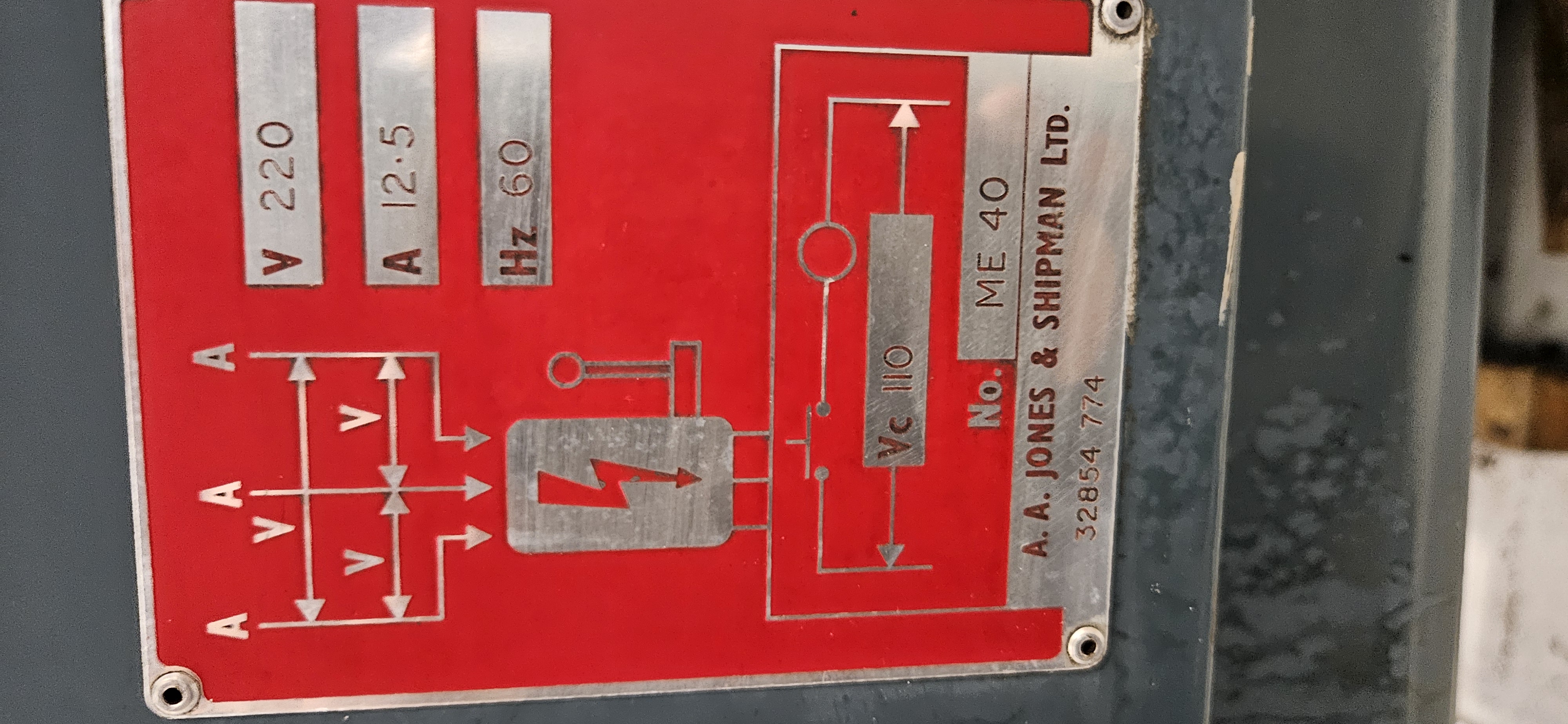

• Electrical: 220 Volt

• Frequency: 60 Hz

• Main Electrical Rating: 12.5 Amps

• Control Voltage: 110 Volt

• Machine Electrical No.: ME 40

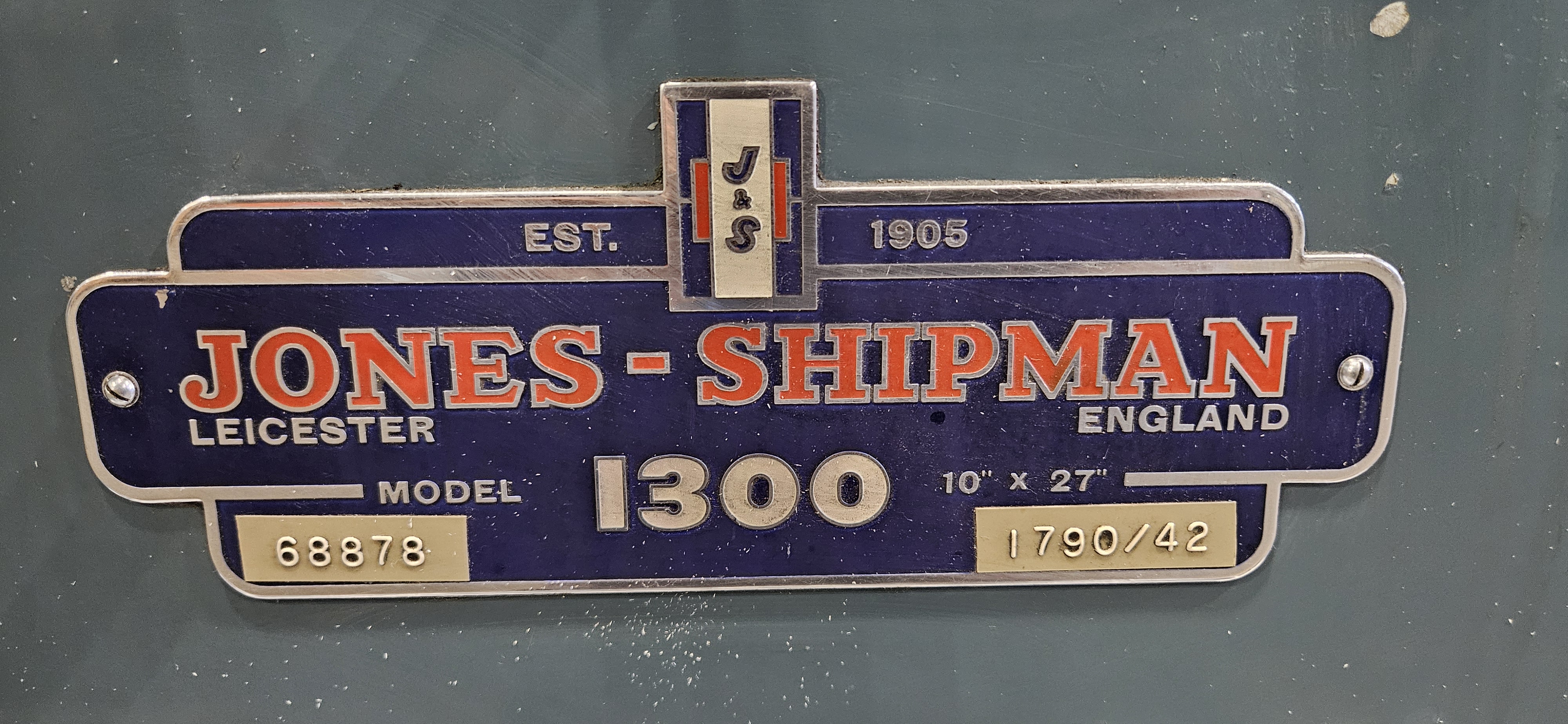

• Machine Number / Identification: 68878

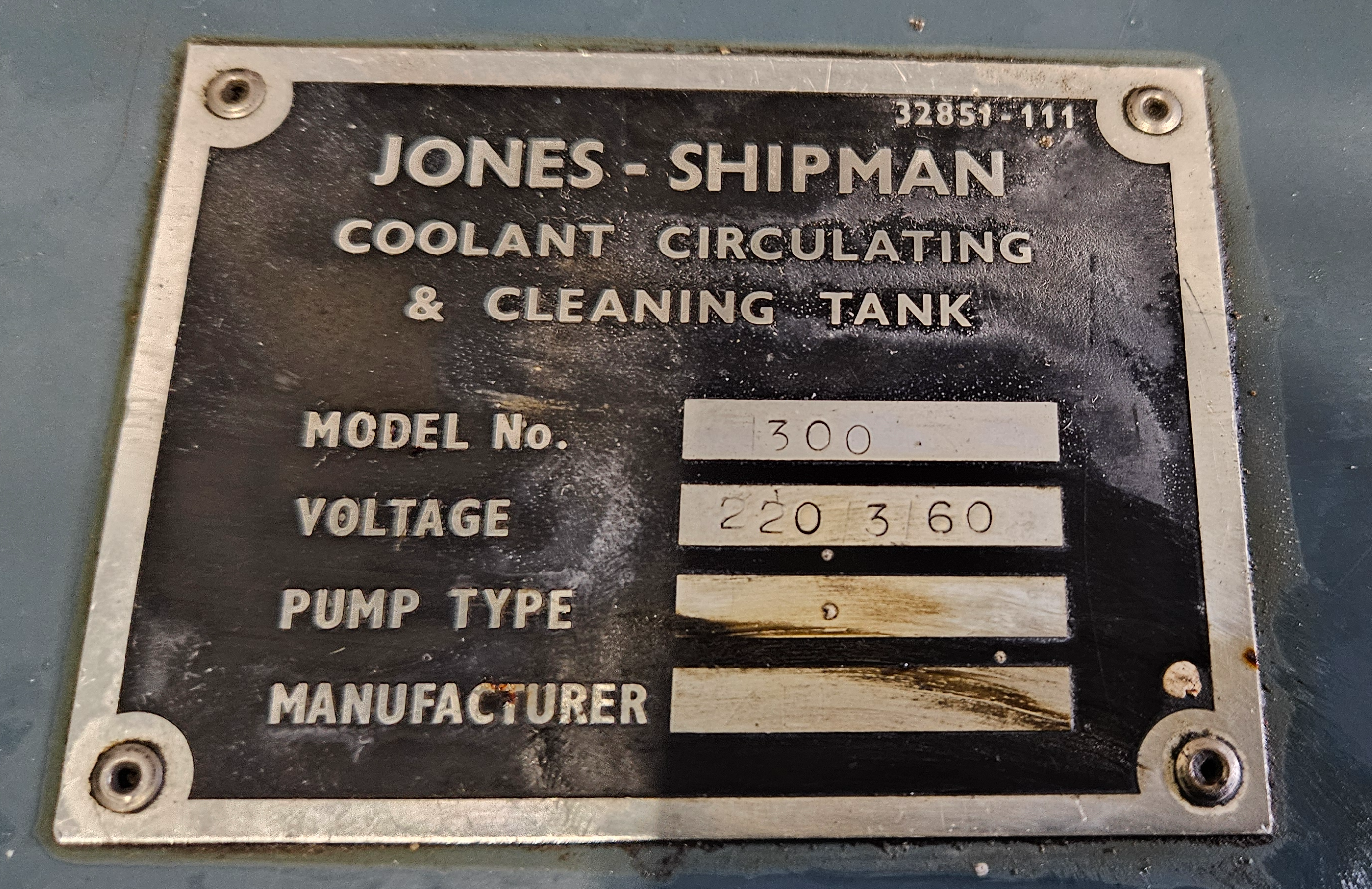

• Coolant Tank: Jones & Shipman circulating and cleaning system

• Coolant Tank Model: 300

• Coolant System Voltage: 220 / 360 Volt

UNIVERSAL ID / OD GRINDING CAPABILITY

One of the most important features of this machine is its ability to perform both external and internal cylindrical grinding.

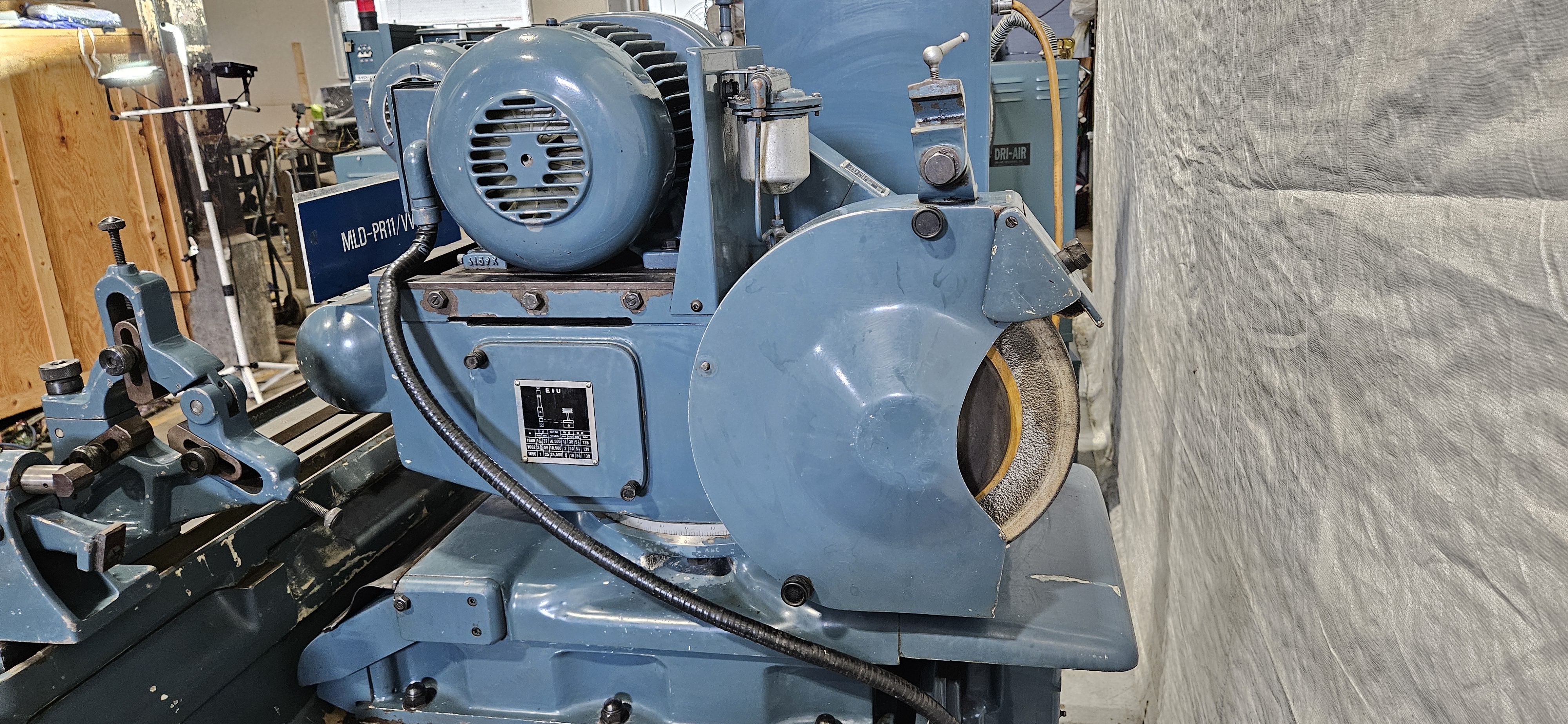

The machine is equipped with the large external grinding wheel assembly for conventional OD cylindrical grinding.

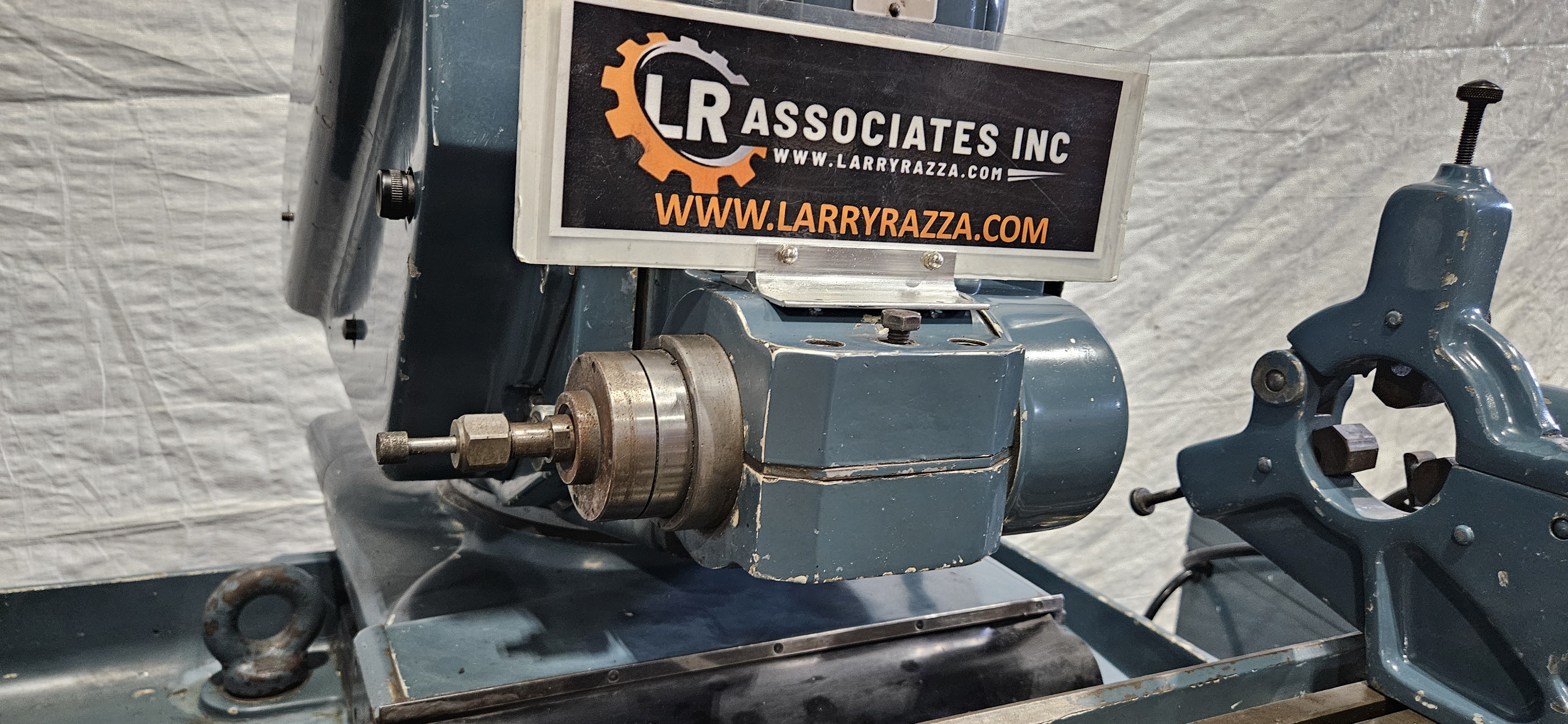

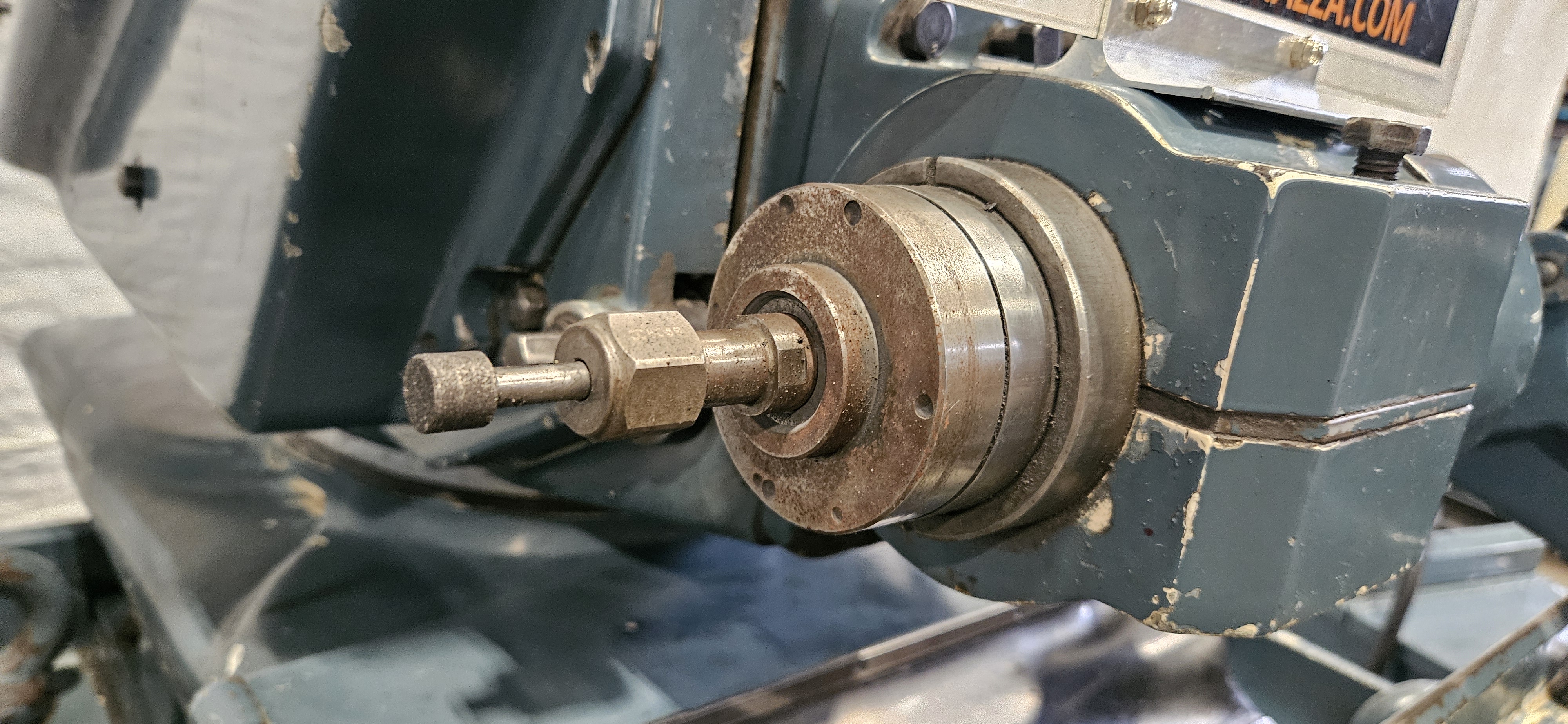

For internal work, the grinding head arrangement allows use of the smaller high-speed internal grinding spindle, permitting the installation of smaller grinding wheels, mounted points and similar internal grinding tooling.

This makes the machine suitable for grinding:

• Outside diameters

• Inside diameters / bores

• Shafts

• Bushings

• Sleeves

• Arbors

• Tooling

• Precision cylindrical components

• Tapers

• Internal bearing and locating surfaces

• General toolroom grinding applications

FEATURES

• 10" × 27" grinding capacity

• Universal ID / OD grinding configuration

• External cylindrical grinding capability

• Internal cylindrical grinding capability

• Repositionable / swing-around grinding head arrangement

• High-speed internal grinding spindle

• Large external grinding wheel capability

• Hydraulic table traverse

• Manual table positioning

• Adjustable/swivel table for taper grinding

• Swivel workhead

• Tailstock assembly

• Between-centers grinding capability

• Magnetic chuck included

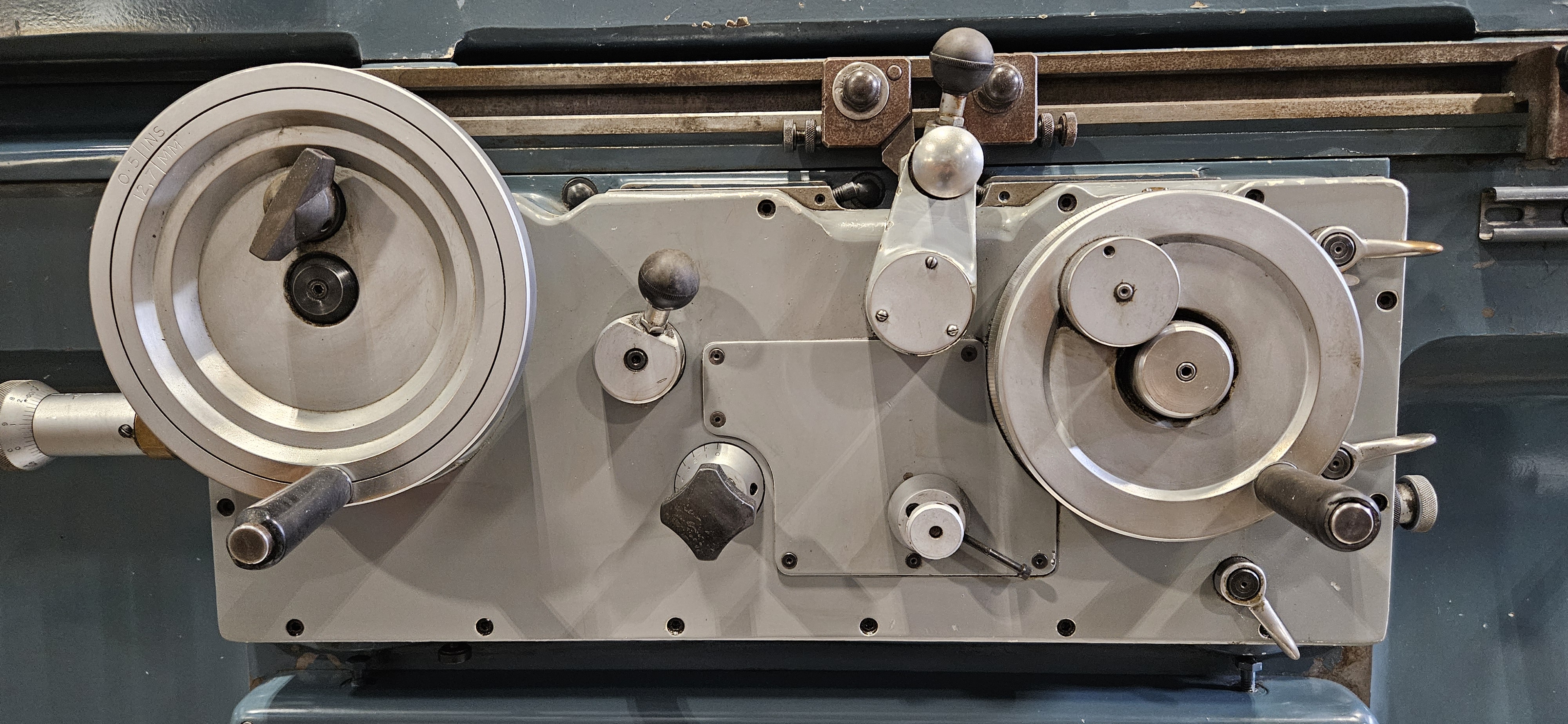

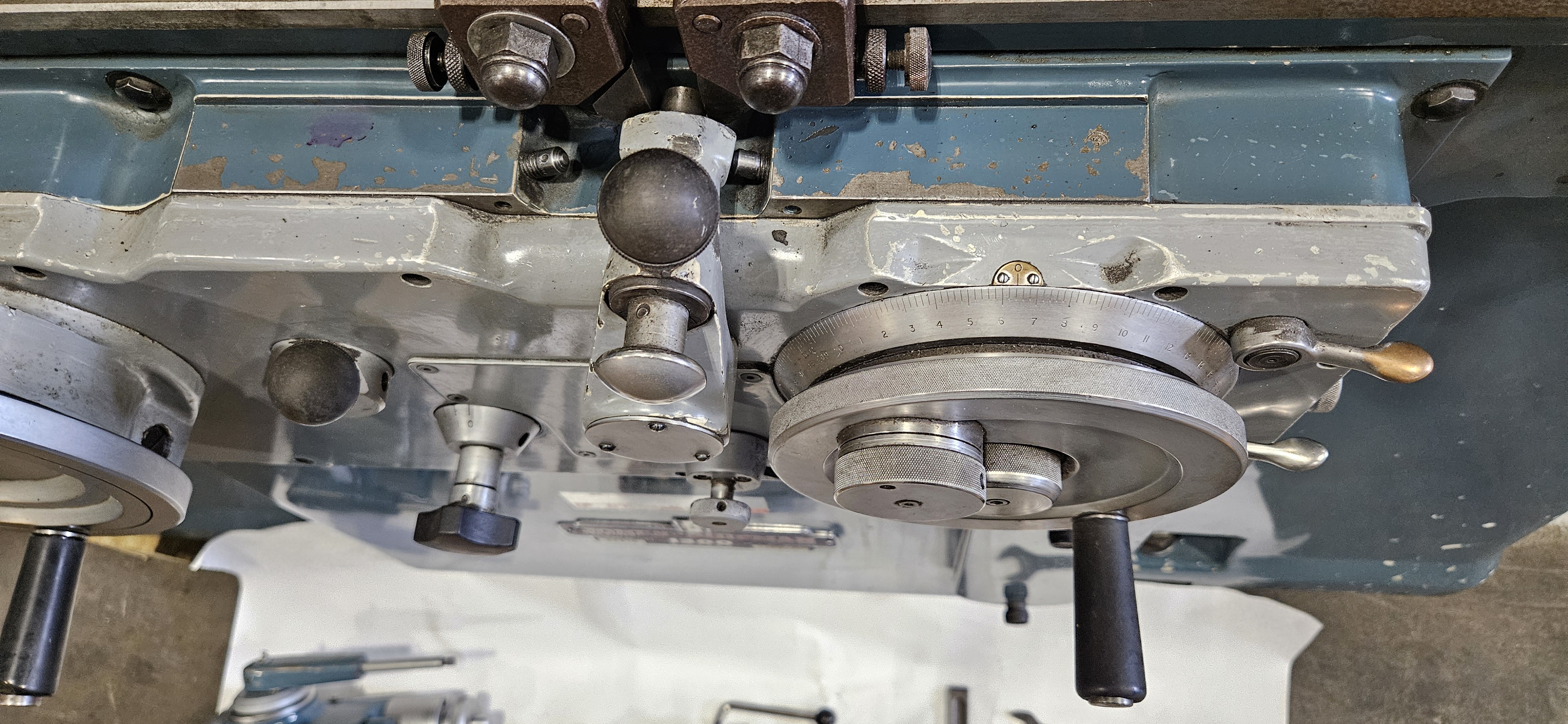

• Precision handwheel controls

• Machine-mounted work light

• Self-contained hydraulic system

• Separate coolant circulating and cleaning system

• Heavy cast-iron machine construction

• Made in England

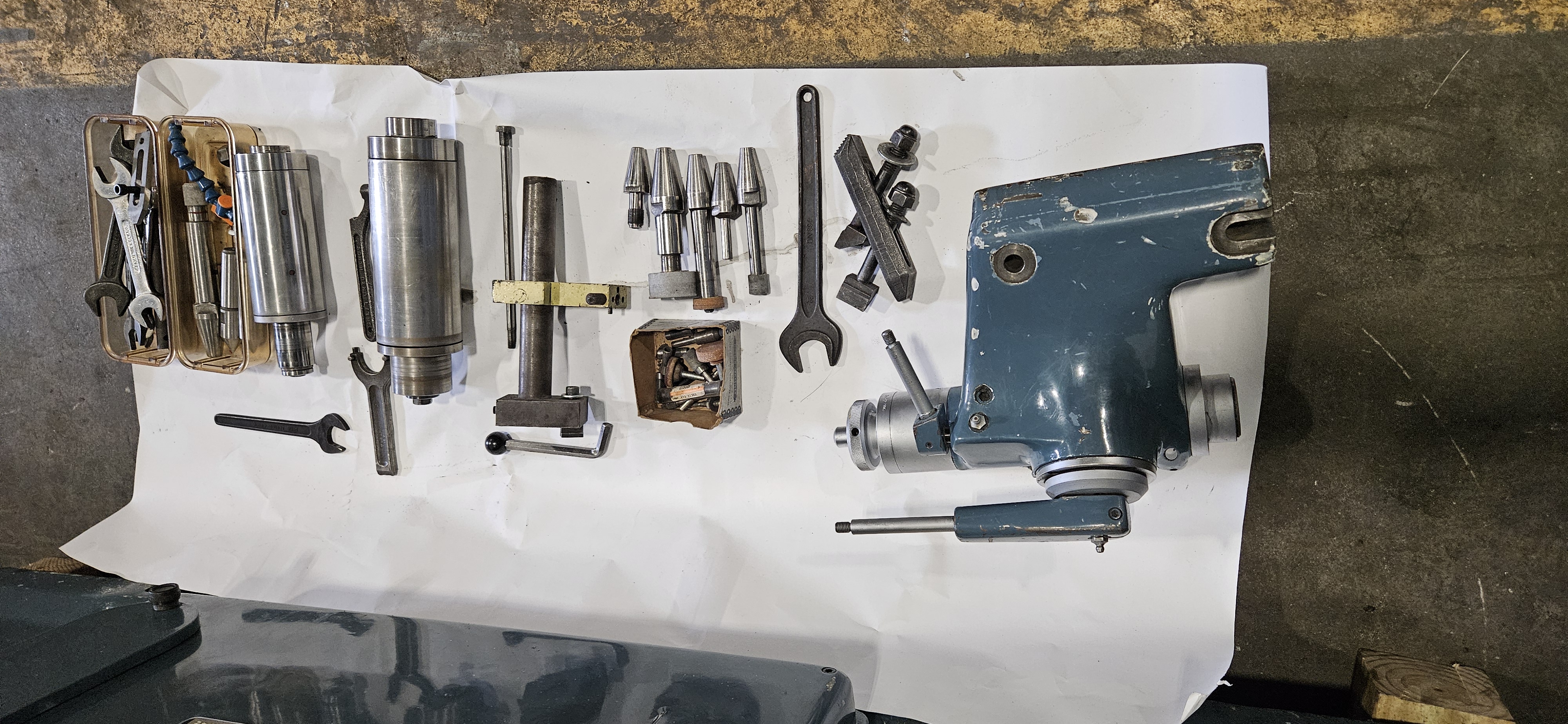

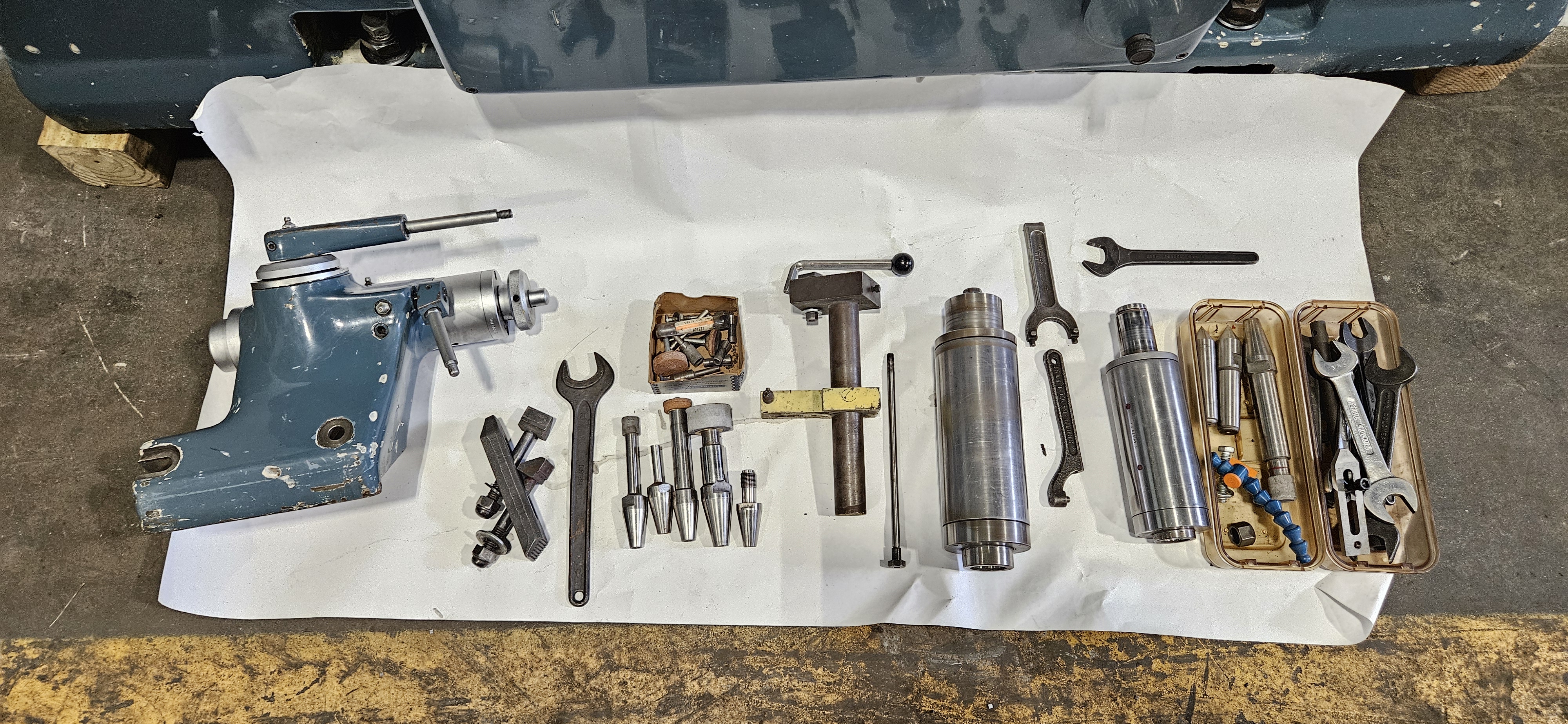

TOOLING & ACCESSORIES INCLUDED

This machine includes a substantial tooling and accessory package, including:

• Internal grinding spindle / attachment

• Assorted internal grinding arbors / spindle tooling

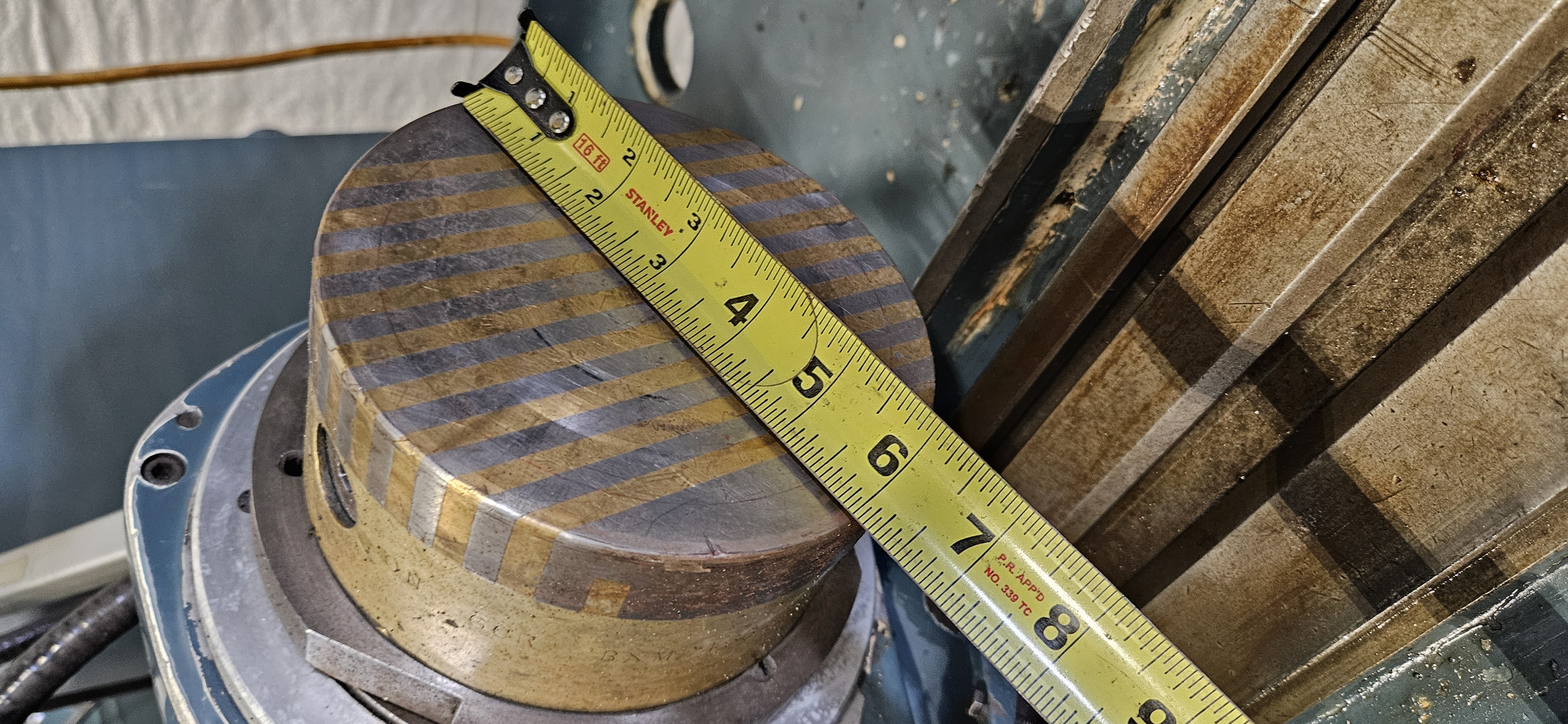

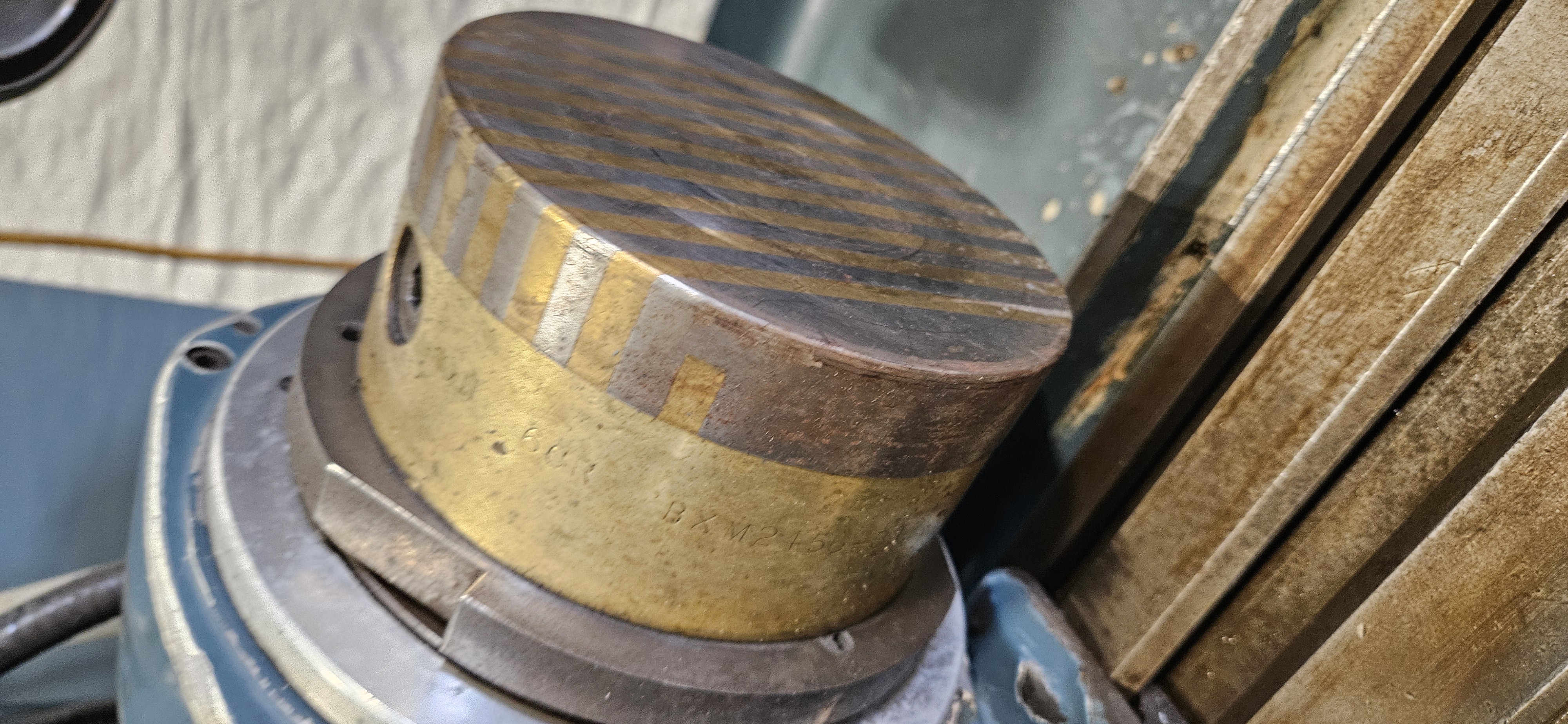

• Approximately 6" magnetic chuck

• Tailstock assembly

• Assorted centers

• Grinding wheel hubs / adapters

• Wheel balancing / setup components

• Assorted mounted grinding points

• Wheel dressing / setup accessories

• Specialty setup fixtures

• Assorted Jones & Shipman spanner wrenches

• Hand tools

• Miscellaneous grinding accessories

• Machine work light

• Jones & Shipman coolant circulating and cleaning tank

• Coolant pump/system

• All tooling and accessories shown in photographs

Tooling package is included with the machine and adds considerable value compared with a bare grinder.

CONDITION

Machine is in good used physical condition for its age.. TESTED & RUNNING EXCELLENT!

Paint shows normal cosmetic wear, chips and marks consistent with normal industrial use.

Machine is being offered with the extensive tooling and accessory package shown in the photographs.

Otherwise, I would use:

Machine was removed from service and is being offered in its present condition. Inspection is welcomed and encouraged.

L-0000-092926-A

P# 071826
