Cincinnati Hydroform Press 15-5-7 in Excellent Condition!

Cincinnati Hydroform Press 15-5-7 in Excellent Condition!

$27,950 (USD)

Providence, RI

orCall 1 (401) 965-5557

Description

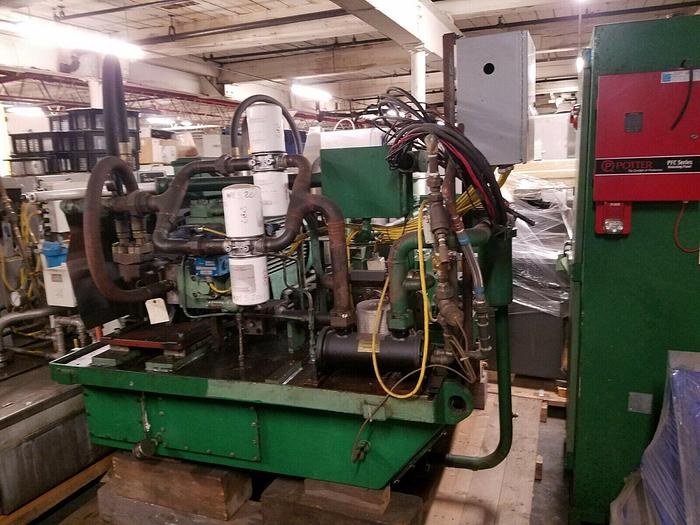

This unit has been dismantled and is ready to ship! Cincinnati Model #15-5-7 Serial #63-300F485-1 Specifications Max blank diameter 15" Max draw depth 7" Max punch diameter 12" Max punch forming tonnage 320 Tons Max punch stripping tonnage 11.5Tons New 1963 Pumping Equipment 1-75 Hp - 1200 RPM motor 2-35 Gpm Denison pumps Total Volumetric Output @ 0 PSI = 70 GPM Total Volumetric Output @ 5000 PSI = 34.5 GPM Unloading Valve Setting 2500 PSI Maximum Pump Pressure 5000 PSI Maximum Pre-charge & Gain 5000 PSI Closing Speed 1650 in/min Return Speed 1617 in/min Max Draw Speed 0-100 Ton @126 in/min (without differential) 100-300 Ton @ 62 in/min Maximum Stripping Speed 1730 in/min Conventional Press Specifications Maximum Tonnage 500 Ton Maximum Stroke 9 3/4" Press Speeds Rapid Advance 1650 in/min Return (1 pump) 1617 in/min Pressing Speed 75 in/min (0-200 Ton) Pressing Speed 37in/min (200-500 Ton) Advance Cylinder Stripping Capacity 12.5 Ton Daylight-Chamber Up 15" (Tool nest removed) Bed Bolster size 24"L-R 24"F-B Slide Bolster size 24"L-R 24"F-B Shipping Weight 33,000 Lbs $8000 in 2004 to retrofit press with PLC $18900 to replace two main hydraulic pumps $2340 for fire protection Palm Tree #LR-0000-070219GD-1 Bid with Confidence on this item, check our feedback!!! * All information deemed accurate but may vary from model to model. Contact Larry for any questions you may have... Contact us at Four Zero One - Nine Six Five - Five Five Five Seven or Contact us through ebay ___________________________________________________ Equipment Financing Available, please contact us! Fast Application, it’s all filled in for you... Online leasing applications (get LOW monthly payments) * Please Note: Not all machines may qualify for Leasing. Payments: We accept all Major Credit Cards, Bank Wires, Company and Personal Checks. SHIPPING: Contact us for great rates on shipping... We always get better rates... Please email us for a rigging and shipping quote; just include the zip code when inquiring and if you have a loading dock or ground level with forklift. Thank you! Contact us at Four Zero One - Nine Six Five - Five Five Five Seven or Contact us through ebay Message We also ship worldwide. CONDITIONS: All quotations are for immediate acceptance. They are subject to withdrawal, change and prior sale without notice. Shipping dates are only approximate and contingent upon delays beyond our control. All orders received are binding only when they have been accepted and acknowledged by us in writing. Provisions in customer’s purchase orders contrary to these conditions shall not be binding upon us unless accepted in writing. Unless otherwise specified, prices quoted are F.O.B. shipping point, exclusive of State, County and Federal taxes which must be added where applicable. Insurance on shipment must be requested by email, there will be an additional charge for shipping insurance. Shipping destination must be available to receive the shipment… any costs incurred on delays due to the buyers’ destination being unable to receive the shipment and/or additional services required, will be the responsibility of the buyer. Care is taken to give reliable specifications, but these are not guaranteed. We reserve the right to correct typographical errors. All used equipment is sold "as is". INDEMNIFICATION: Used Machines may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It is the user's responsibility that the said machines be so equipped and safeguarded to meet OSHA and any other requirements before placing such machinery into operation. User agrees to indemnify and hold Seller harmless of and from any and all claims or liabilities from accidents involving these machines caused by failure of user, his employees, or agent to follow instructions, warnings, or recommendations furnished by manufacturer, or Seller, or by failure of user to comply with Federal, State and Local laws applicable to such equipment including the Occupational Safety and Health Act of 1970. User shall notify Seller promptly after occurrence of any accident involving these machines, and shall cooperate fully with Seller. or Seller's agent in investigating and determining the cause of said accident.

Specifications

ManufacturerCincinnati
Model15-5-7
ConditionUsed
Serial Number63-300F485-1
Country/region of manufactureUnited States
Mpn15-5-7
