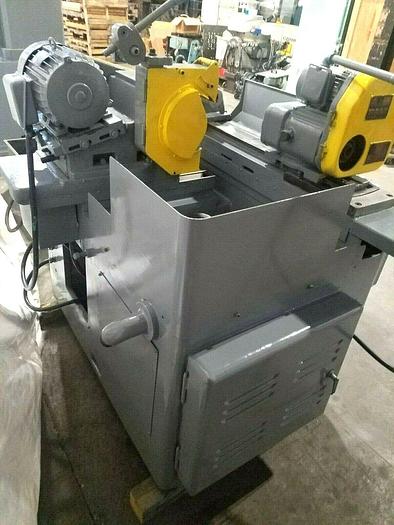

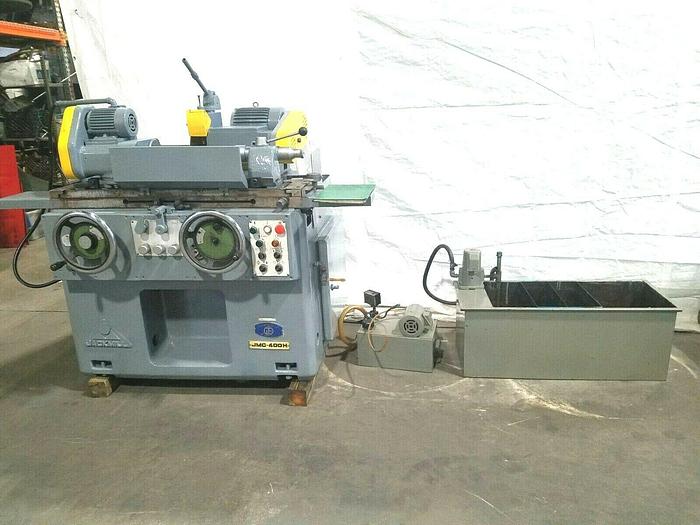

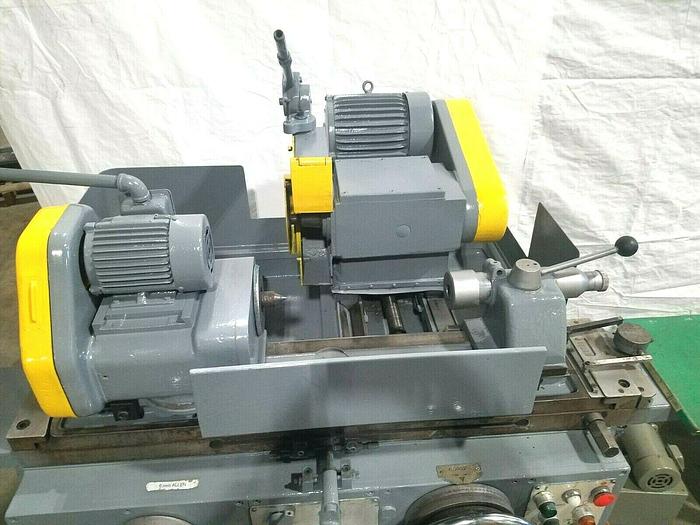

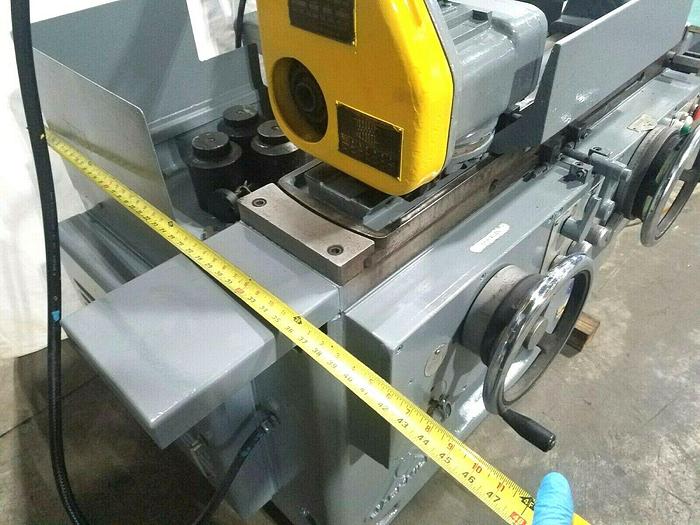

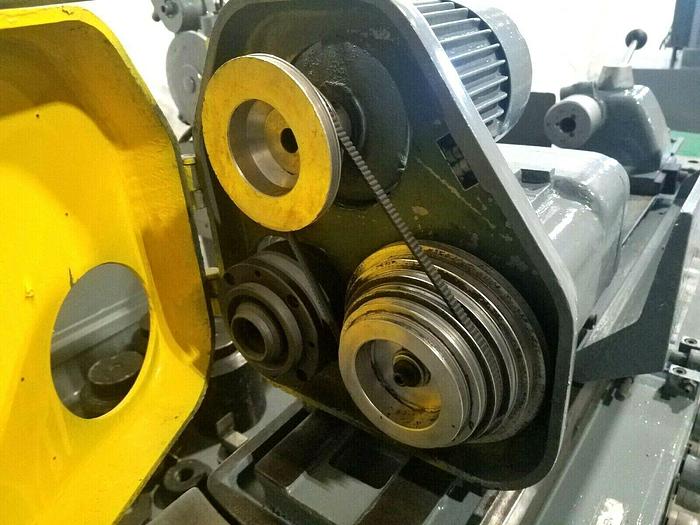

Jack Mill JMC 400H Universal Automatic Cylindrical Centerless Grinder Super Precision Jackmill Grinding

Jack Mill JMC 400H Universal Automatic Cylindrical Centerless Grinder Super Precision Jackmill Grinding

$12,995 (USD)

Location:Providence, RI

orCall 1 (401) 965-5557

Description

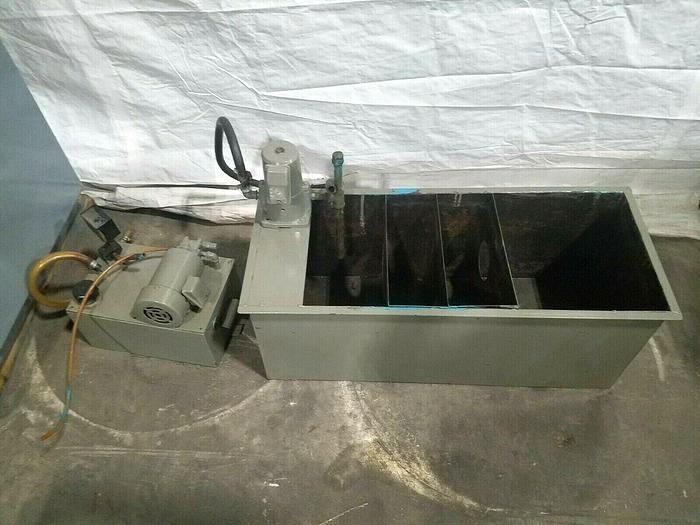

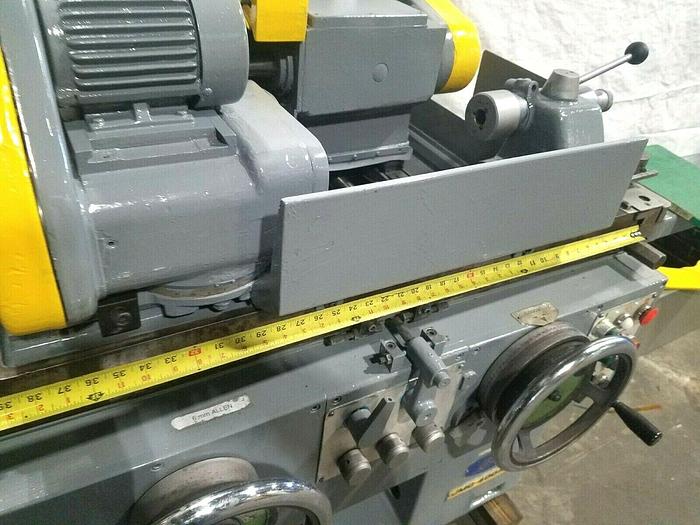

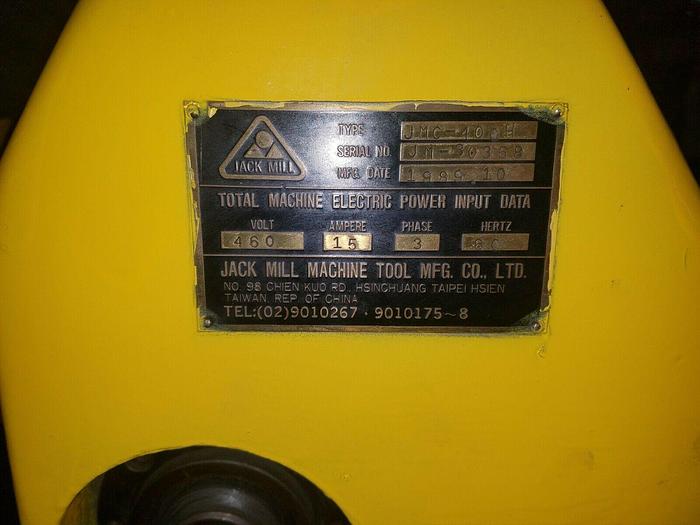

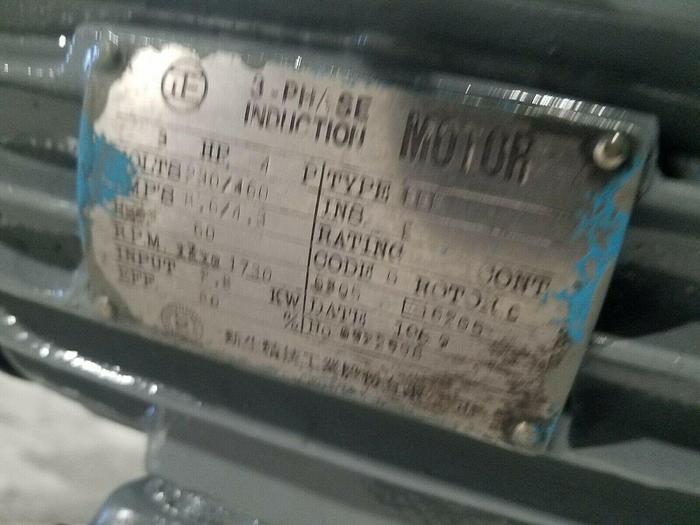

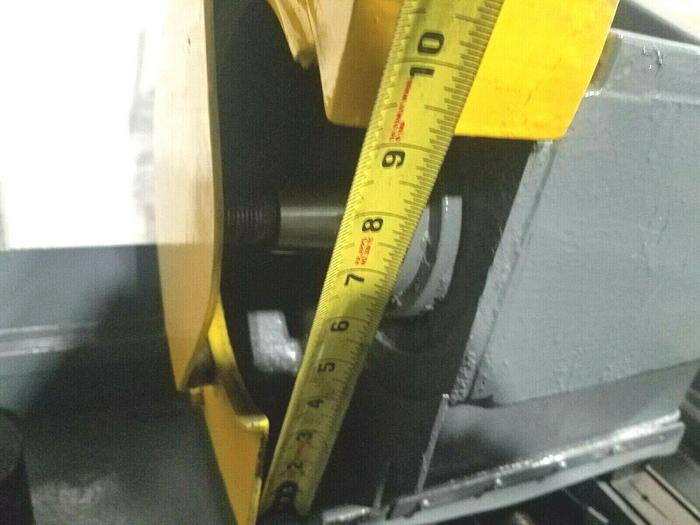

JACKMILL JMC-400H Mfg Year 1989 Includes: Hydraulic unit / Spindle Lube unit / Coolant Tank system 10" x 15", JACKMILL, No. JMC-400H, 5 HP SPECIFICATIONS: Distance Between Centers: 15.75" Max. Grinding Diameter: 10.24" Hydraulic Tank Capacity: 13.7 Gal. Coolant Tank Capacity: 19 Gal. Traverse Speed: 2.9-11 in/min. Travel Per Handwheel Rotation: 0.51" Swivel Angle Clockwise: 12/0 dg. Swivel Angle Counter Clockwise: 7/12 dg. Headstock Work Center: M.T. #4 Tailstock Work Center: M.T. #3 Workhead Swivel Angle Clockwise: 30 dg. Workhead Swivel Angle Counter Clockwise: 90 dg. Workhead Spindle Speed: 100,138,190,262,362,500 Rpm Grinding Wheel Speed: 2085, 2495 Rpm Infeed Per Graduation of Handwheel: .000196" Infeed Per Revolution of Handwheel: .078 per rev. Rapid In-Feed Stroke: 1.57 per min. Wheel Drive Motor: 5 HP Hydraulic Pump Motor: 1 HP Dimensions: 67" x 70" Weight: 4000 lbs. Voltage: 230/460V (Wired 460V) Amperage: 28 / 15 60 Hz Serial # JM-30358 Please contact us for a demonstration! Palm Tree # LR-0000-030920LR-D Pic# 012921 R040521 We invite Inspections and we can demonstrate this unit operating... please contact us for an appointment! Bid with Confidence on this item, check our feedback!!! * All information deemed accurate but may vary from model to model. Contact Larry for any questions you may have. Contact us at Four Zero One - Nine Six Five - Five Five Five Seven or Contact us through ebay Google "Larry Razza" to see more information & videos of our equipment! L R Associates, Inc. / Palm Tree Specialties ebay store Rhode Island, USA ___________________________________________________ Equipment Financing Available, please contact us! Fast Application, it’s all filled in for you... Online leasing applications (get LOW monthly payments) * Please Note: Not all machines may qualify for Leasing. Payments: We accept all Major Credit Cards, Bank Wires, Company and Personal Checks. SHIPPING: Contact us for great rates on shipping... We always get better rates... Please email us for a rigging and shipping quote; just include the zip code when inquiring and if you have a loading dock or ground level with forklift. Thank you! Contact us at Four Zero One - Nine Six Five - Five Five Five Seven or Contact us through ebay Message We also ship worldwide. CONDITIONS: All quotations are for immediate acceptance. They are subject to withdrawal, change and prior sale without notice. Shipping dates are only approximate and contingent upon delays beyond our control. All orders received are binding only when they have been accepted and acknowledged by us in writing. Provisions in customer’s purchase orders contrary to these conditions shall not be binding upon us unless accepted in writing. Unless otherwise specified, prices quoted are F.O.B. shipping point, exclusive of State, County and Federal taxes which must be added where applicable. Insurance on shipment must be requested by email, there will be an additional charge for shipping insurance. Any damage from shipping is the responsibility of the carrier and will be subject to the scrutiny of the carriers insurance company. Insurance claims paid by carrier's insurance will be paid according to time involved in settling the claim. Shipping destination must be available to receive the shipment… any costs incurred on delays due to the buyers’ destination being unable to receive the shipment and/or additional services required, will be the responsibility of the buyer. Care is taken to give reliable specifications, but these are not guaranteed. We reserve the right to correct typographical errors. All used equipment is sold "as is". INDEMNIFICATION: Used Machines may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It is the user's responsibility that the said machines be so equipped and safeguarded to meet OSHA and any other requirements before placing such machinery into operation. User agrees to indemnify and hold Seller harmless of and from any and all claims or liabilities from accidents involving these machines caused by failure of user, his employees, or agent to follow instructions, warnings, or recommendations furnished by manufacturer, or Seller, or by failure of user to comply with Federal, State and Local laws applicable to such equipment including the Occupational Safety and Health Act of 1970. User shall notify Seller promptly after occurrence of any accident involving these machines, and shall cooperate fully with Seller. or Seller's agent in investigating and determining the cause of said accident.

Specifications

ManufacturerJackmill
Year1989
ConditionUsed
Country/region of manufactureUnited States
MpnJMC 400H
Machine typeOD Grinder
FunctionGrinding
Model year1989
Power sourceElectric
Voltage460 V
