Radround Keyhole 4000 Watt Radiant Process Heater Oven Inline Cable Fiber Tubing


Radround Keyhole 4000 Watt Radiant Process Heater Oven Inline Cable Fiber Tubing

$4,795 (USD)

Providence, RI

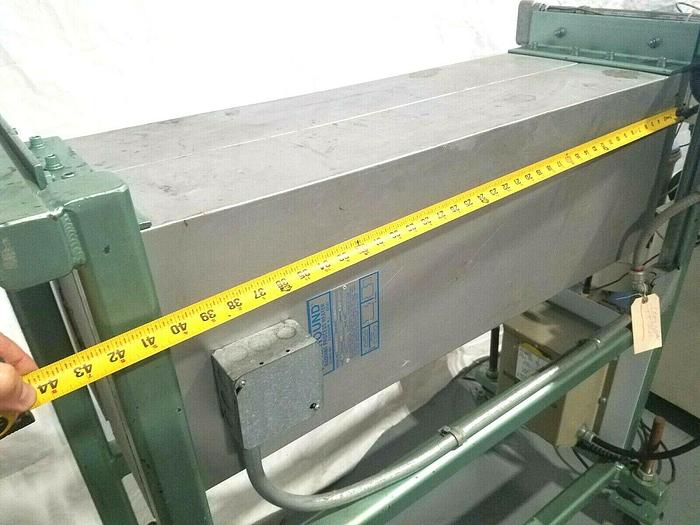

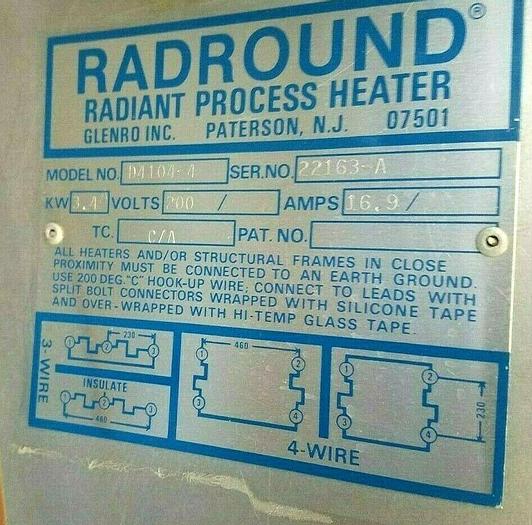

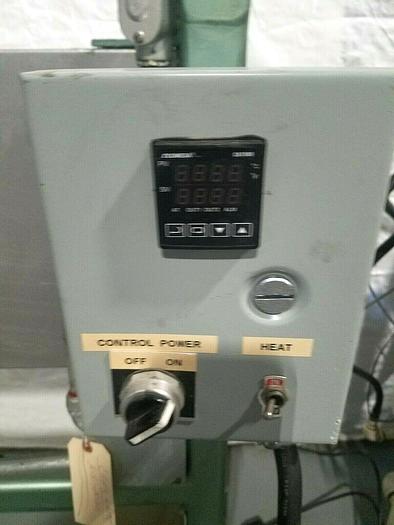

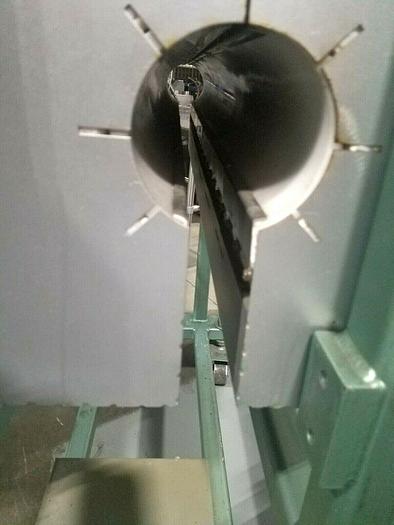

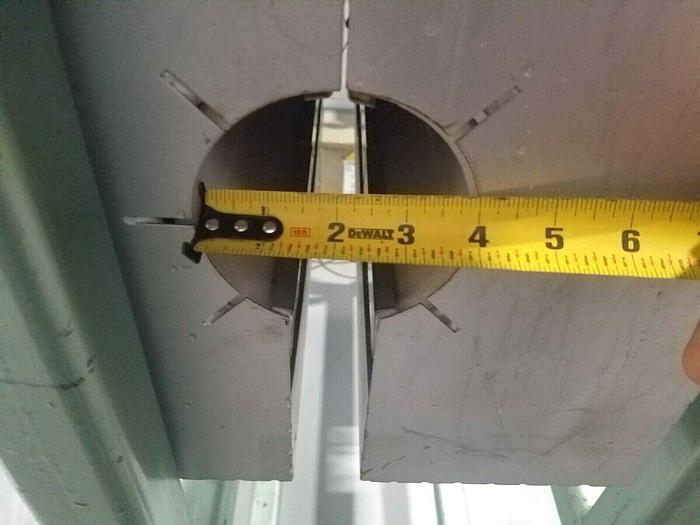

Standard Radround® Series 41 Radiant Process Heater Model # D4104-4 Serial # 22163-A 208/240 Volts 3.4 KW 16.9 Amps 42" length 4" Diameter With digital thermostat controller For continuous inline cable, fiber optics or tubing curing line... preheat or coating curing oven. Series 41 Series 41 Heater features a slotted opening in the shape of a “keyhole” so that a product can be easily positioned inside and outside of the heated cylinder. Larger diameter models have been integrated with spindle type conveyors to transport small parts through the heater. Standard Radround® Series 41 Heater Specifications* Base Model No. Inside Diameter Length Watts Voltage(s) 4104 – 4 4” 42” 4000 208/240 4106 – 6 6” 42” 6000 208/240/480 4108 – 8 8” 42” 8000 208/240/480 4110 – 10 10” 42” 10000 208/240/480 Radround® Series Quartz Cylindrical Electric Infrared Heaters If your wire, cable, fiber optic or tubing processing operations require intense, precisely controlled heat, you'll appreciate Glenro's Radround® infrared heaters. Radround® heaters completely surround the product with heat for efficient and uniform radiation heat transfer. You can speed up process lines without sacrificing product quality because high heat transfer rates minimize dwell times. The heaters can be mounted end to end horizontally, as well as vertically to accommodate the available space of a process line. Standard Radround® infrared heater designs are medium wave emitters and use a quartz cylinder combined with a resistive metal heating element. As the quartz cylinder gets hot, it becomes a secondary emitter of infrared energy. Product passing through the infrared heater receives uniform heat from all directions, and any heat not transferred to the product is reabsorbed by the quartz cylinder. That keeps energy consumption low, and energy efficiency high. Palm Tree # LR-0000-063020-CW-1 Pic# 05202020 R040521 Bid with Confidence on this item, check our feedback!!! * All information deemed accurate but may vary from model to model. Contact Larry for any questions you may have... Contact us at Four Zero One - Nine Six Five - Five Five Five Seven or Contact us through ebay Google "Larry Razza" to see more information & videos of our equipment! L R Associates, Inc. / Palm Tree Specialties ebay store Rhode Island, USA ___________________________________________________ Equipment Financing Available, please contact us! Fast Application, it’s all filled in for you... Online leasing applications (get LOW monthly payments) * Please Note: Not all machines may qualify for Leasing. Payments: We accept all Major Credit Cards, Bank Wires, Company and Personal Checks. SHIPPING: Contact us for great rates on shipping... We always get better rates... Please email us for a rigging and shipping quote; just include the zip code when inquiring and if you have a loading dock or ground level with forklift. Thank you! Contact us at Four Zero One - Nine Six Five - Five Five Five Seven or Contact us through ebay Message We also ship worldwide. CONDITIONS: All quotations are for immediate acceptance. They are subject to withdrawal, change and prior sale without notice. Shipping dates are only approximate and contingent upon delays beyond our control. All orders received are binding only when they have been accepted and acknowledged by us in writing. Provisions in customer’s purchase orders contrary to these conditions shall not be binding upon us unless accepted in writing. Unless otherwise specified, prices quoted are F.O.B. shipping point, exclusive of State, County and Federal taxes which must be added where applicable. Insurance on shipment must be requested by email, there will be an additional charge for shipping insurance. Any damage from shipping is the responsibility of the carrier and will be subject to the scrutiny of the carriers insurance company. Insurance claims paid by carrier's insurance will be paid according to time involved in settling the claim. Shipping destination must be available to receive the shipment… any costs incurred on delays due to the buyers’ destination being unable to receive the shipment and/or additional services required, will be the responsibility of the buyer. Care is taken to give reliable specifications, but these are not guaranteed. We reserve the right to correct typographical errors. All used equipment is sold "as is". INDEMNIFICATION: Used Machines may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It is the user's responsibility that the said machines be so equipped and safeguarded to meet OSHA and any other requirements before placing such machinery into operation. User agrees to indemnify and hold Seller harmless of and from any and all claims or liabilities from accidents involving these machines caused by failure of user, his employees, or agent to follow instructions, warnings, or recommendations furnished by manufacturer, or Seller, or by failure of user to comply with Federal, State and Local laws applicable to such equipment including the Occupational Safety and Health Act of 1970. User shall notify Seller promptly after occurrence of any accident involving these machines, and shall cooperate fully with Seller. or Seller's agent in investigating and determining the cause of said accident.


Serial Number22163-A
Country/region of manufactureUnited States
MpnRadiant Process Heater
